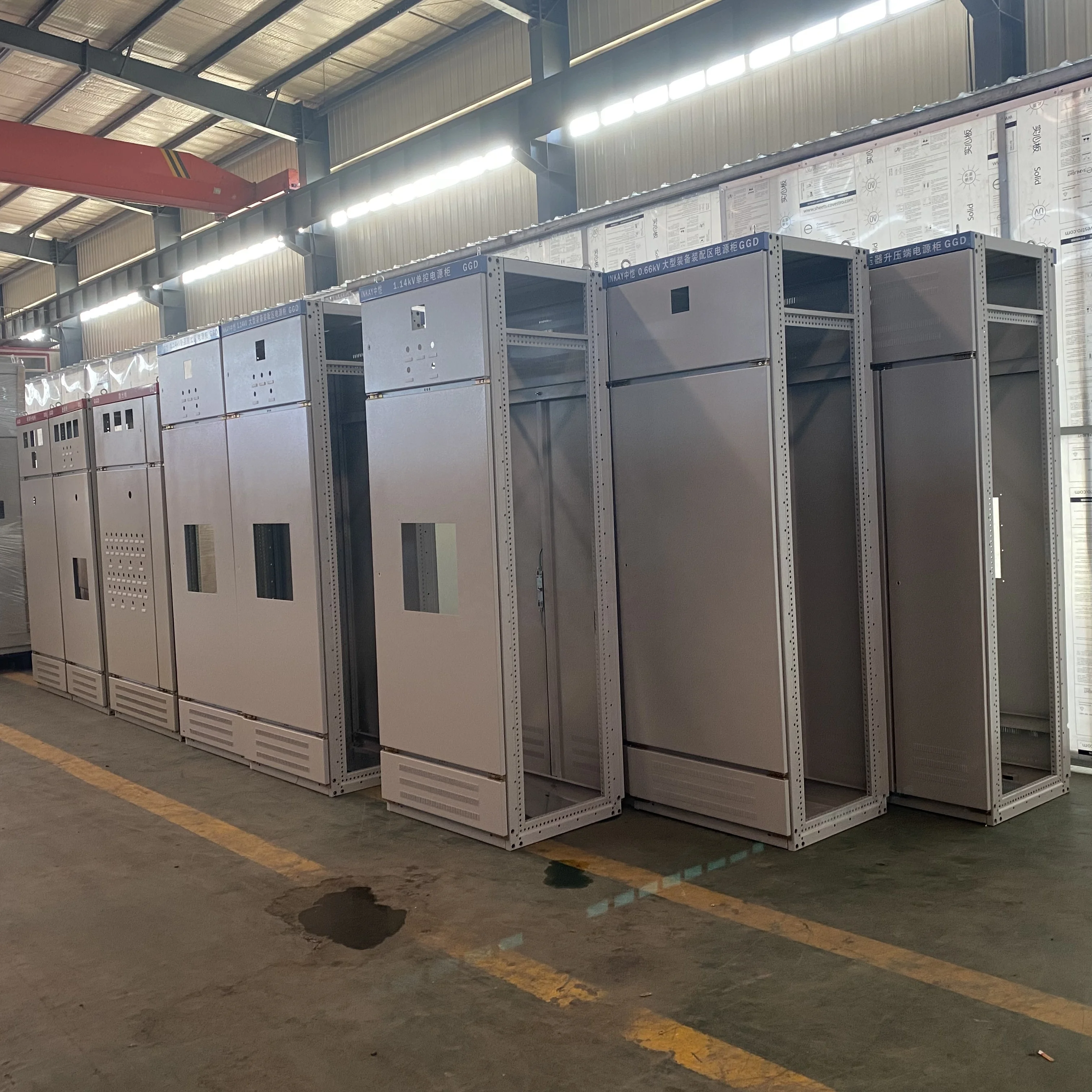

GGD Low Voltage Electrical Equipment Panel Power Distribution Switchgear Cabinet
- Category: >>>
- Supplier: Liaoning Zhongkai Electric Equipment Co. Ltd.
Share on (1600651507972):
Product Overview
Description
Products Description
Structure Feature:
1. High generality
2. Separate compartments: functional compartment, busbar compartment, cable compartment
3.Compacted designing, space saving
4. Modular design, easily assembly
5. Anti-flaming material, high safety and reliability
2. Separate compartments: functional compartment, busbar compartment, cable compartment
3.Compacted designing, space saving
4. Modular design, easily assembly
5. Anti-flaming material, high safety and reliability
Ring temperature: +40℃~15℃
Altitude :≤1500m
Ambient relative humidity: ≤90%
Earthquake intensity: ≤8 degrees
Free from disaster, explosion hazard, severe pollution seconds, chemical corrosion and violent vibration.
Altitude :≤1500m
Ambient relative humidity: ≤90%
Earthquake intensity: ≤8 degrees
Free from disaster, explosion hazard, severe pollution seconds, chemical corrosion and violent vibration.
Model | Rated voltage（V） | Rated current（A） | Rated short-circuit breaking current（KA） | Is Rated short withstand current（KA） | Rated peak withstand current （KA) |
GGD-1 | 380 | 400-1000 | 15 | 15 | 30 |
GGD-2 | 380 | 1000-1600 | 30 | 30 | 63 |
GGD-2 | 380 | 2000-3150 | 50 | 50 | 105 |

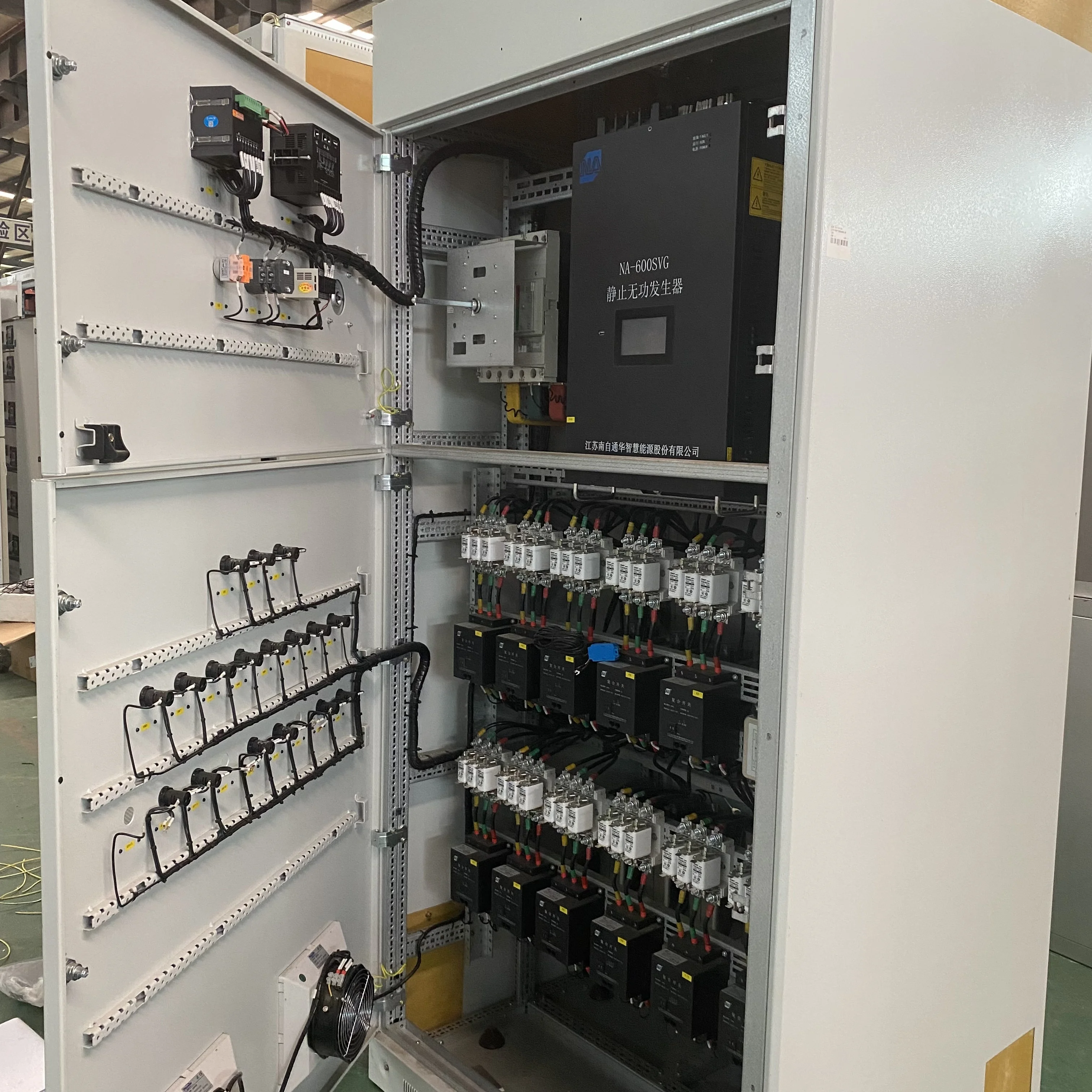

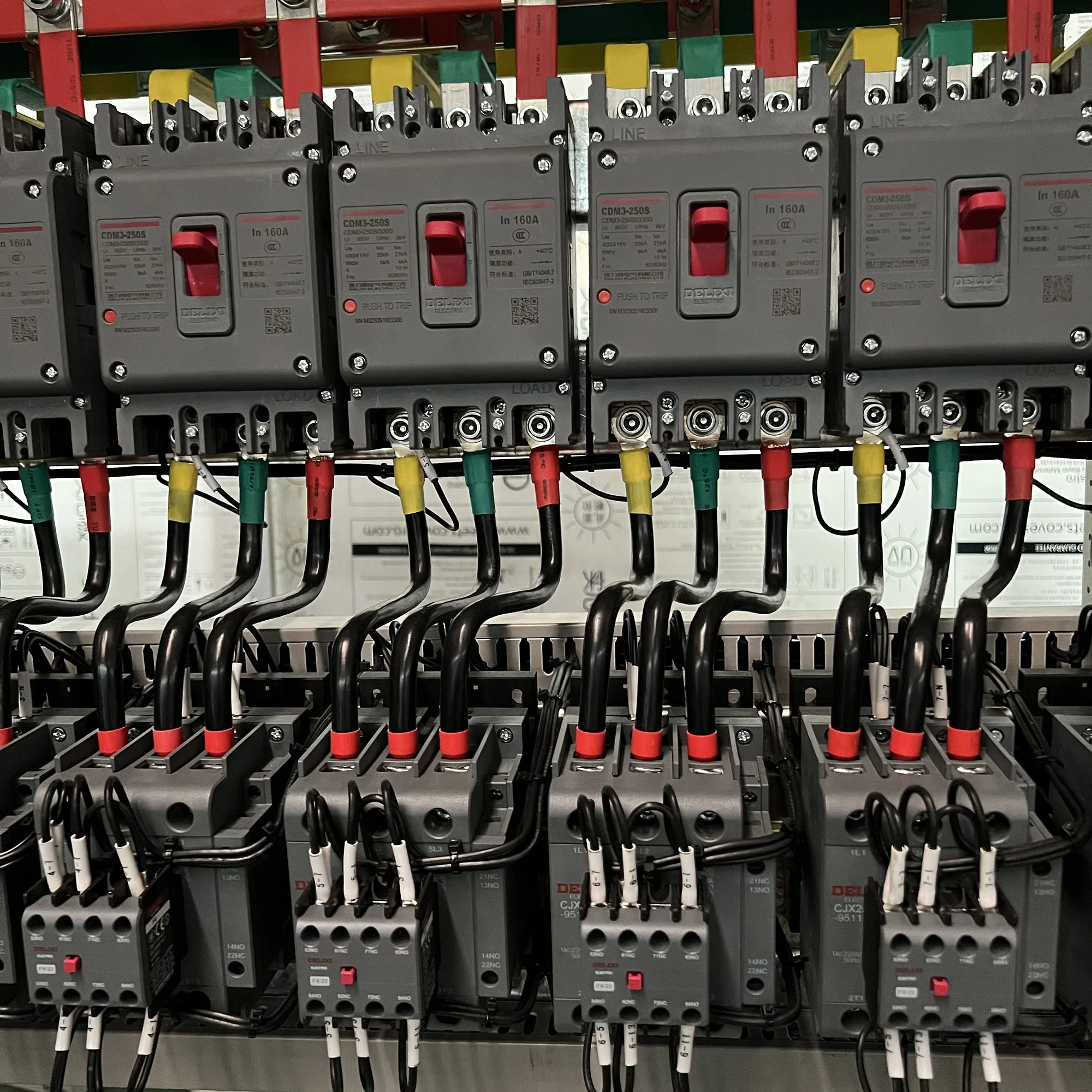

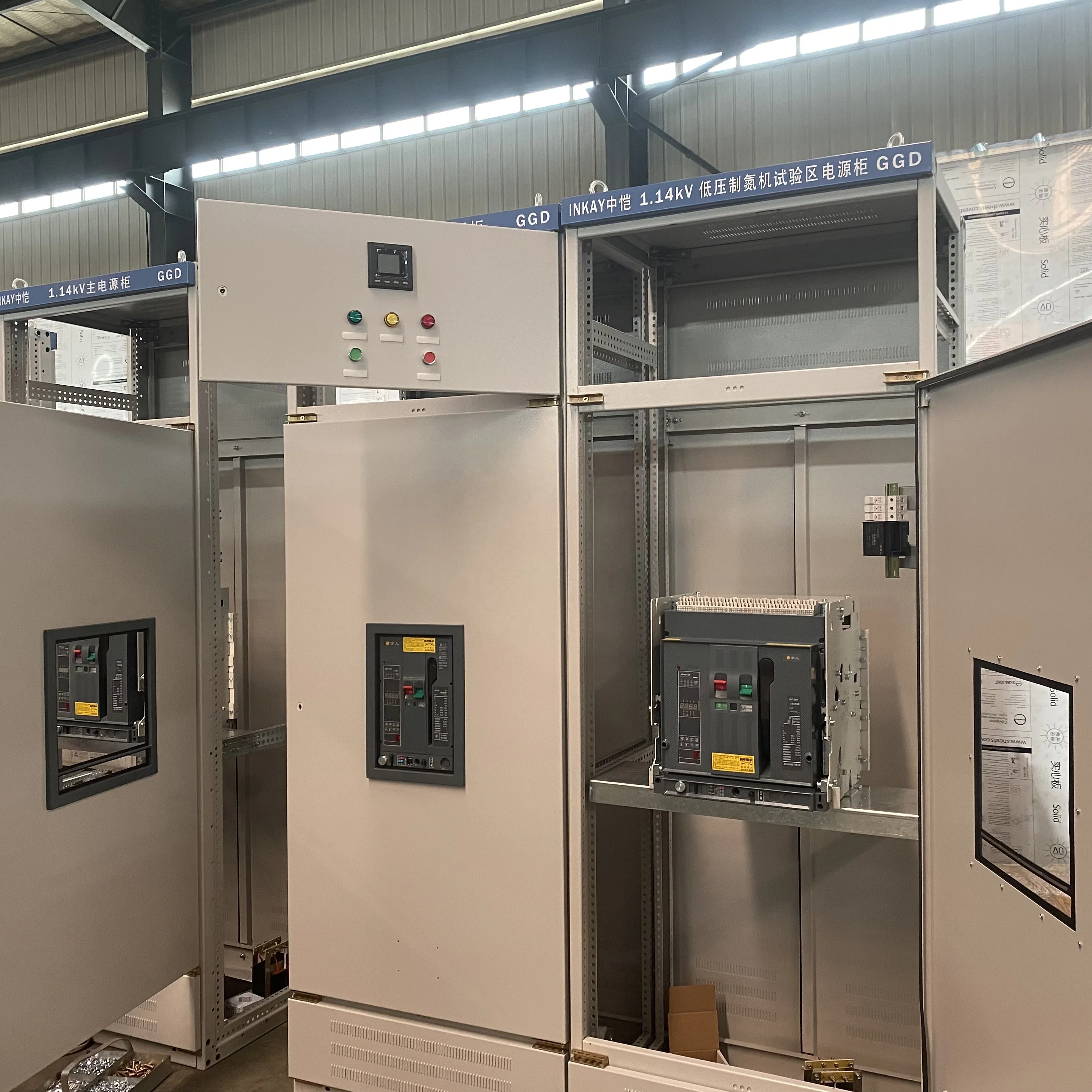

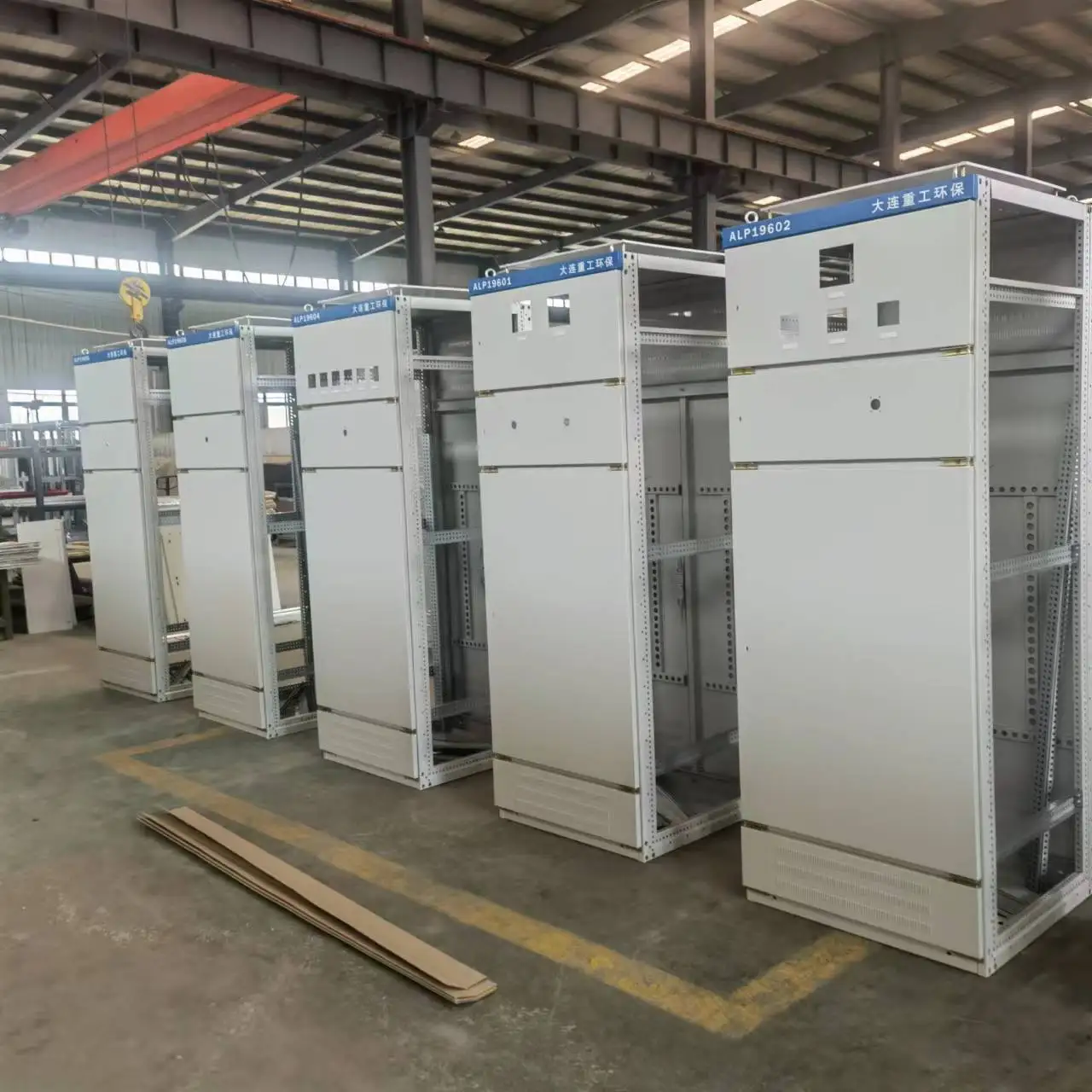

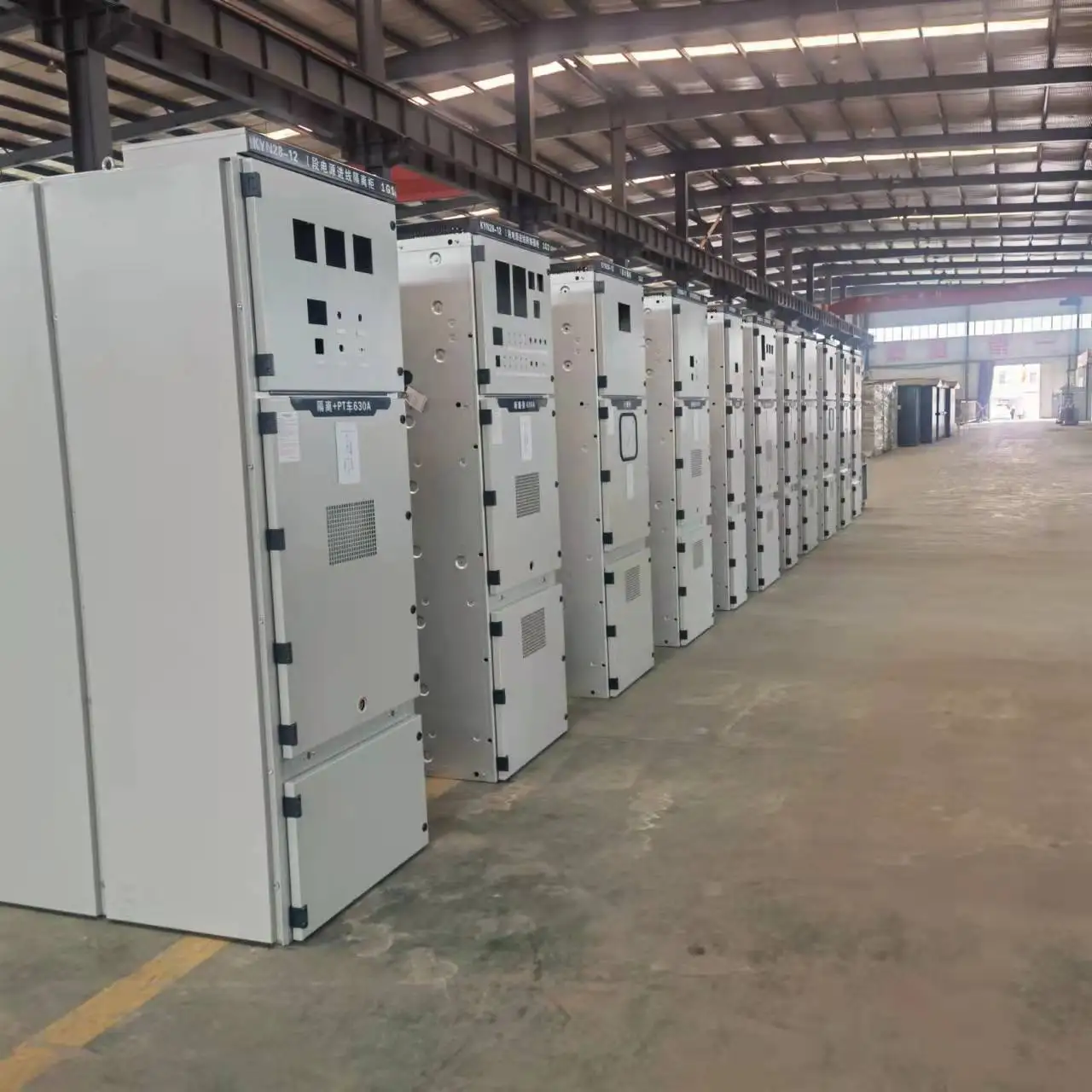

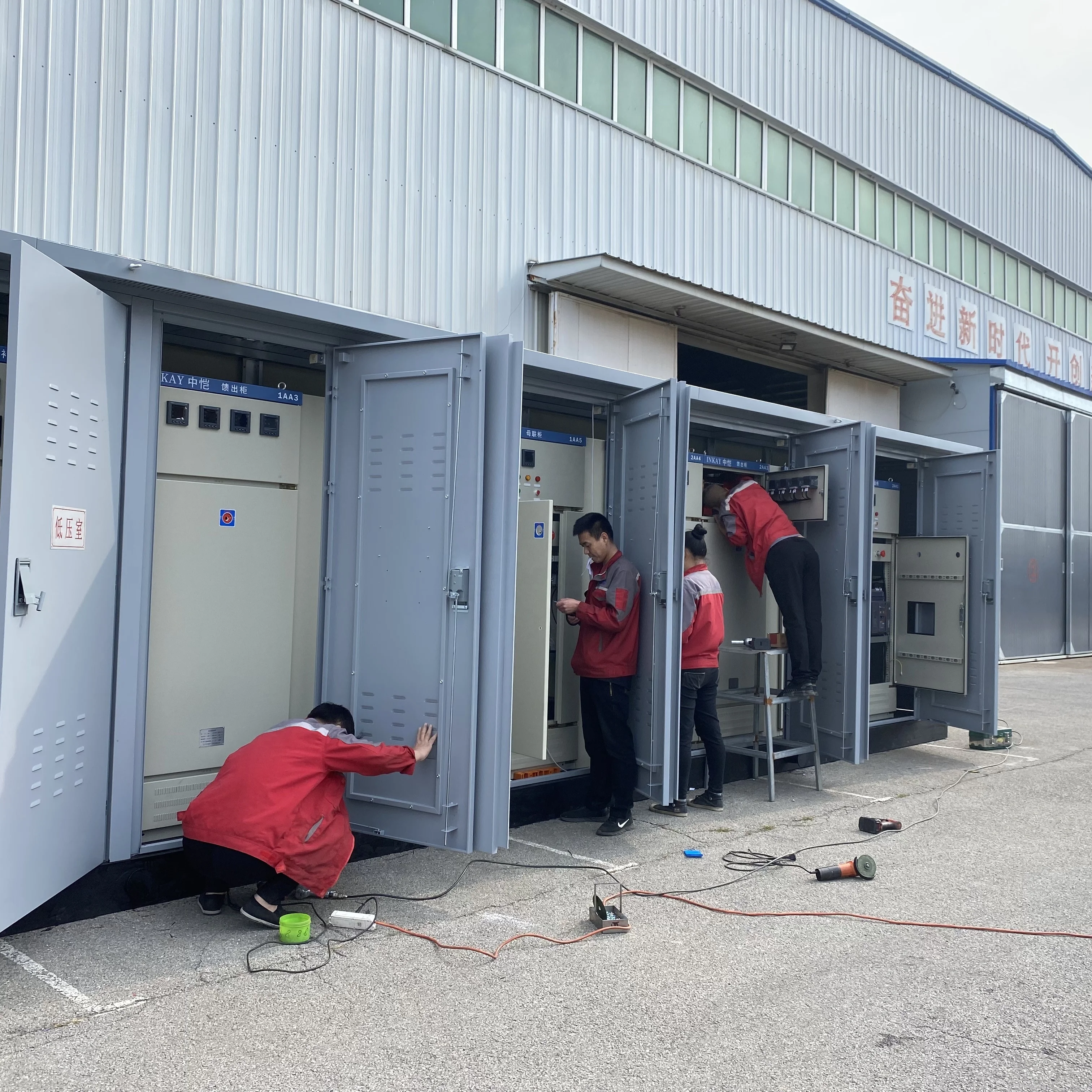

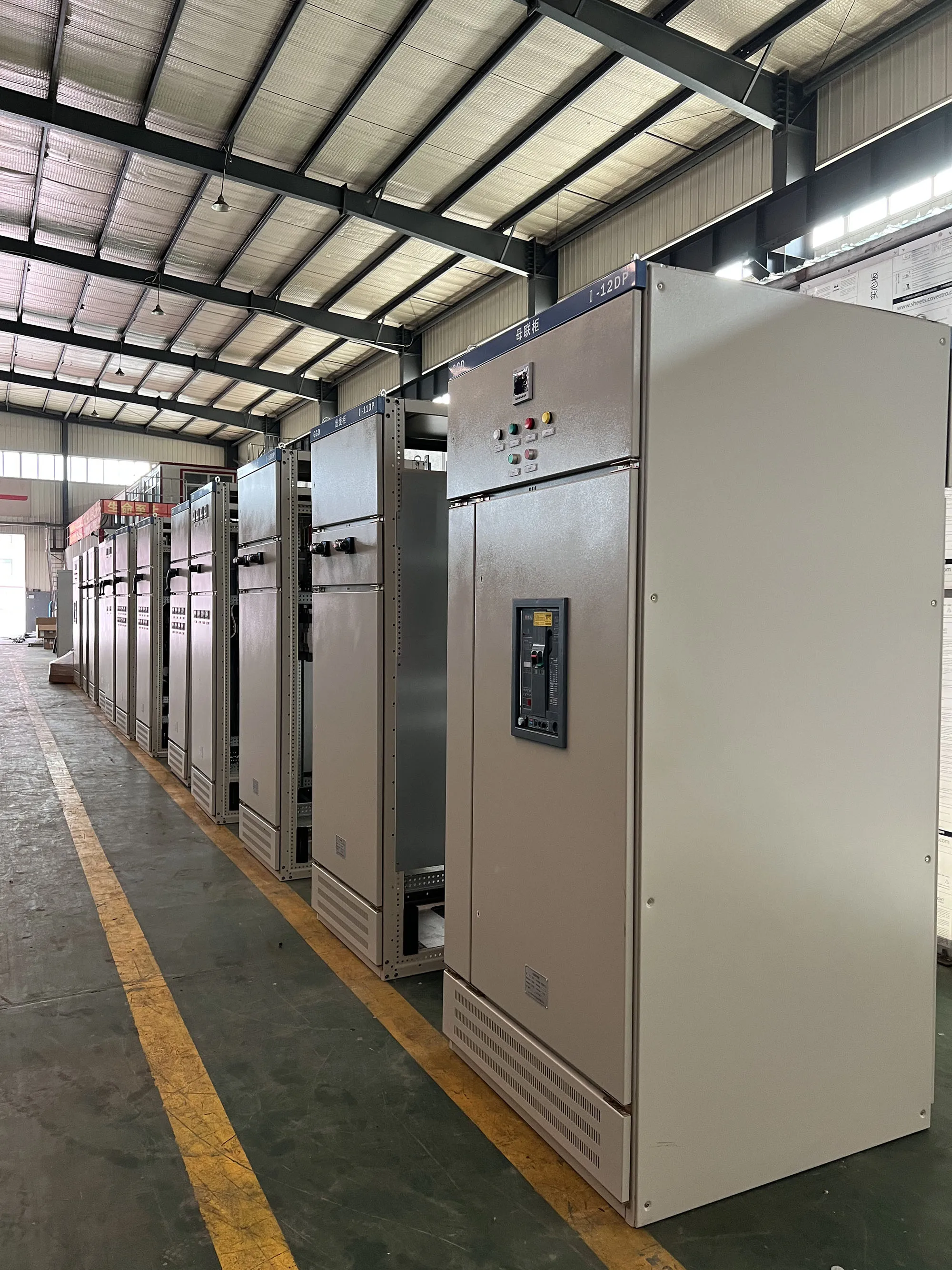

Product Show
Company Profile
Liaoning Zhongkai Electrical Equipment Co., Ltd. was established in 2010. The company has a complete and mature sales, design, production team, in the high and low voltage switch cabinet body design, processing and production and complete sets of the rich experience of more than ten years. The company has a variety of products, which can process all kinds of high- and low-pressure standard cabinets and non-standard control cabinets, operation tables, etc. At the same time, the company in a variety of special materials, such as aluminum zinc plate, stainless steel plate box production has rich processing experience, according to customer requirements to design and process its personalized products and high precision sheet metal products. The company produces a total of three categories of products, dozens of varieties, more than a hundred specifications.
We have a rich experience on manufacturing high and low voltage switch cabinets and complete sets for more than 20 years.
INKAY housekeeper gold medal service, provides free technical support.
With domestic advanced production equipment and production base.
Has a number of national certification and honorary qualifications, industry benchmark.
Professional engineering supervision team
to ensure the quality and quantity of the project.
Certifications

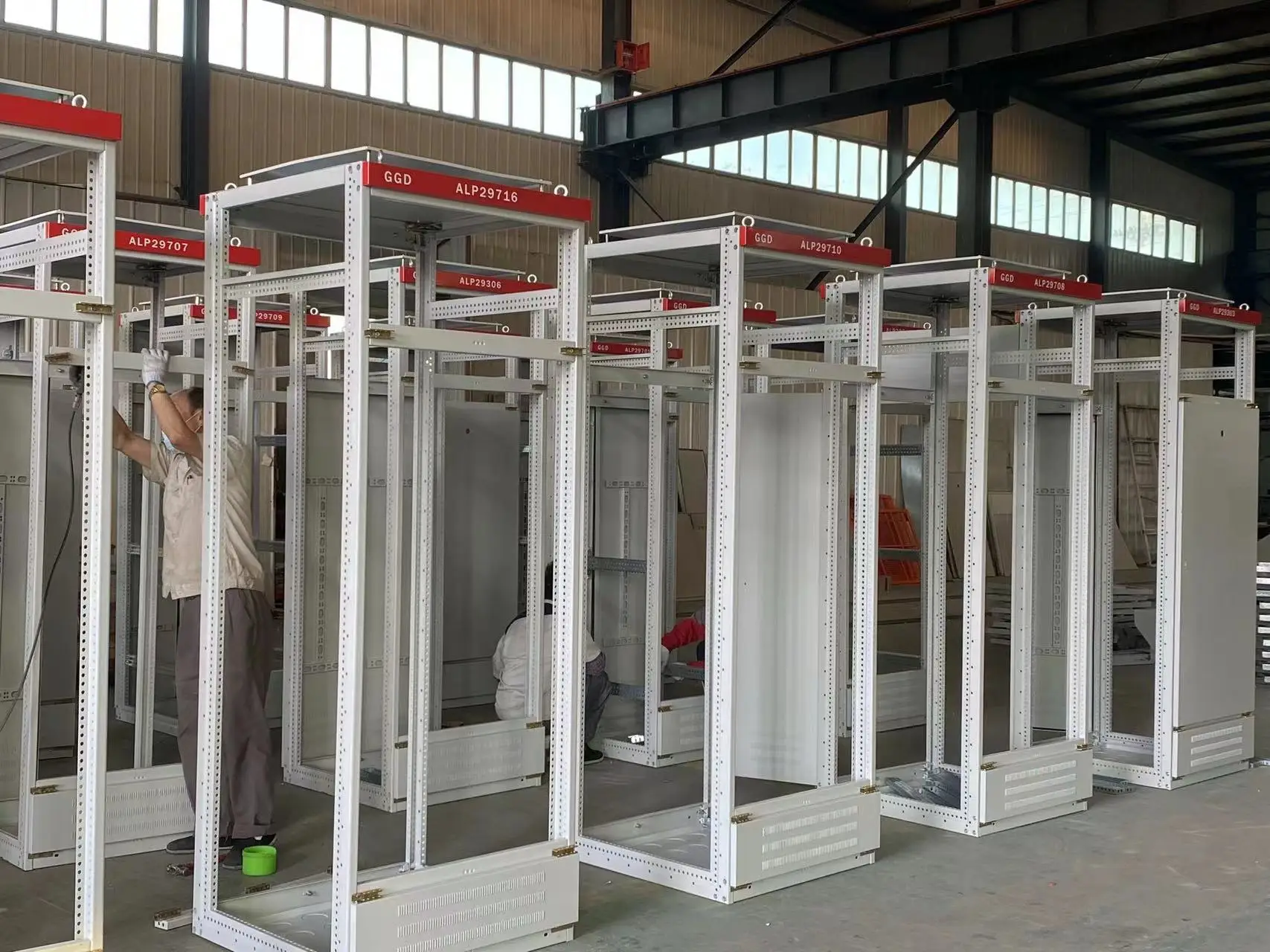

Manufacturing Technique

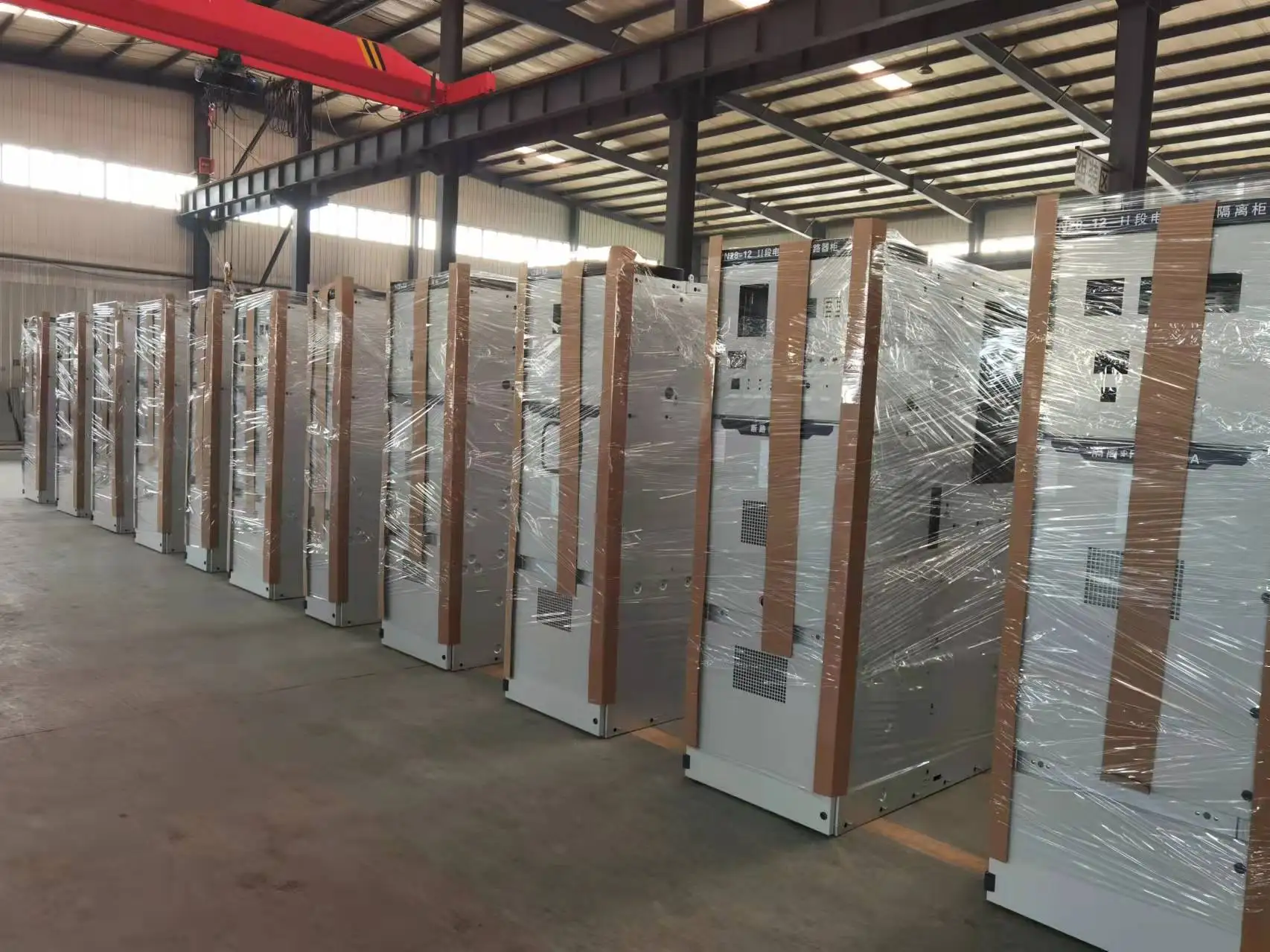

Payment & Delivery
FAQ
1.Do your enclosure come with the assembly?
You can choose the empty box or the installation of electrical components, depending on your needs, we can provide.
2. Can I order the cover seperately from the bases?
Yes, you can order boxes and accessories separately, and you can also put forward your customized requirements.
3.How do I order customized enclosures?
The best way is you give us engineering drawings and equipment list, we will arrange engineers to serve you, if there is no drawings, we will also provide solutions for you.
4. What are leading times of orders?
within 15days.
5. Ratings & compliance?
NEMA3.13.R3 IP65,IP54,3C ,CE ,UL
You can choose the empty box or the installation of electrical components, depending on your needs, we can provide.
2. Can I order the cover seperately from the bases?
Yes, you can order boxes and accessories separately, and you can also put forward your customized requirements.
3.How do I order customized enclosures?
The best way is you give us engineering drawings and equipment list, we will arrange engineers to serve you, if there is no drawings, we will also provide solutions for you.
4. What are leading times of orders?
within 15days.
5. Ratings & compliance?
NEMA3.13.R3 IP65,IP54,3C ,CE ,UL
