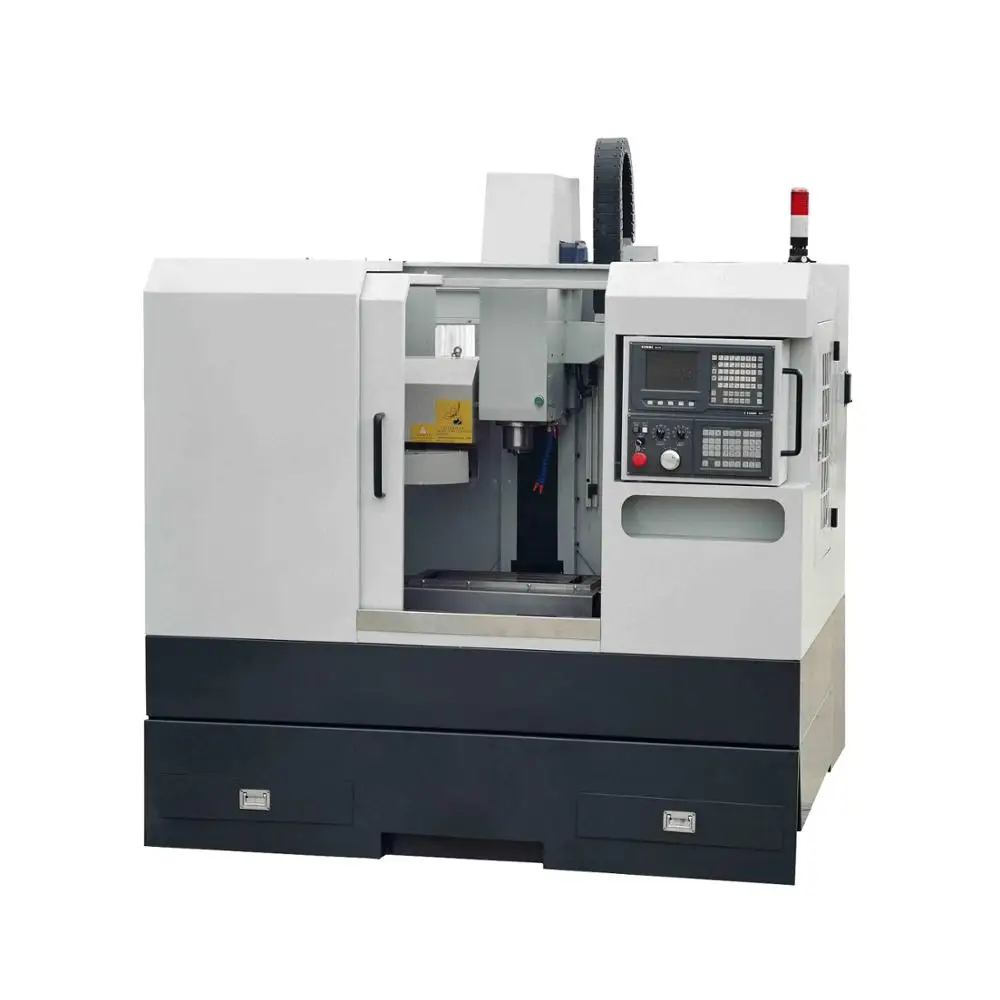

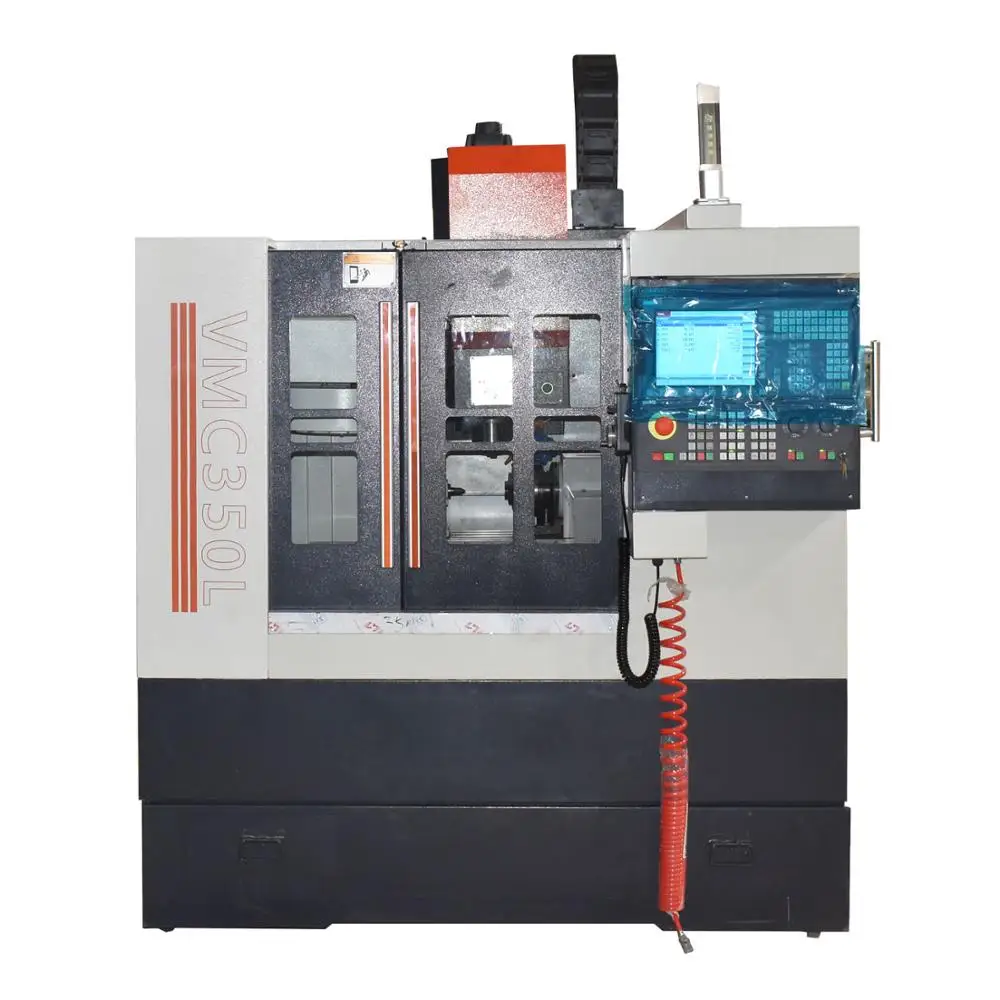

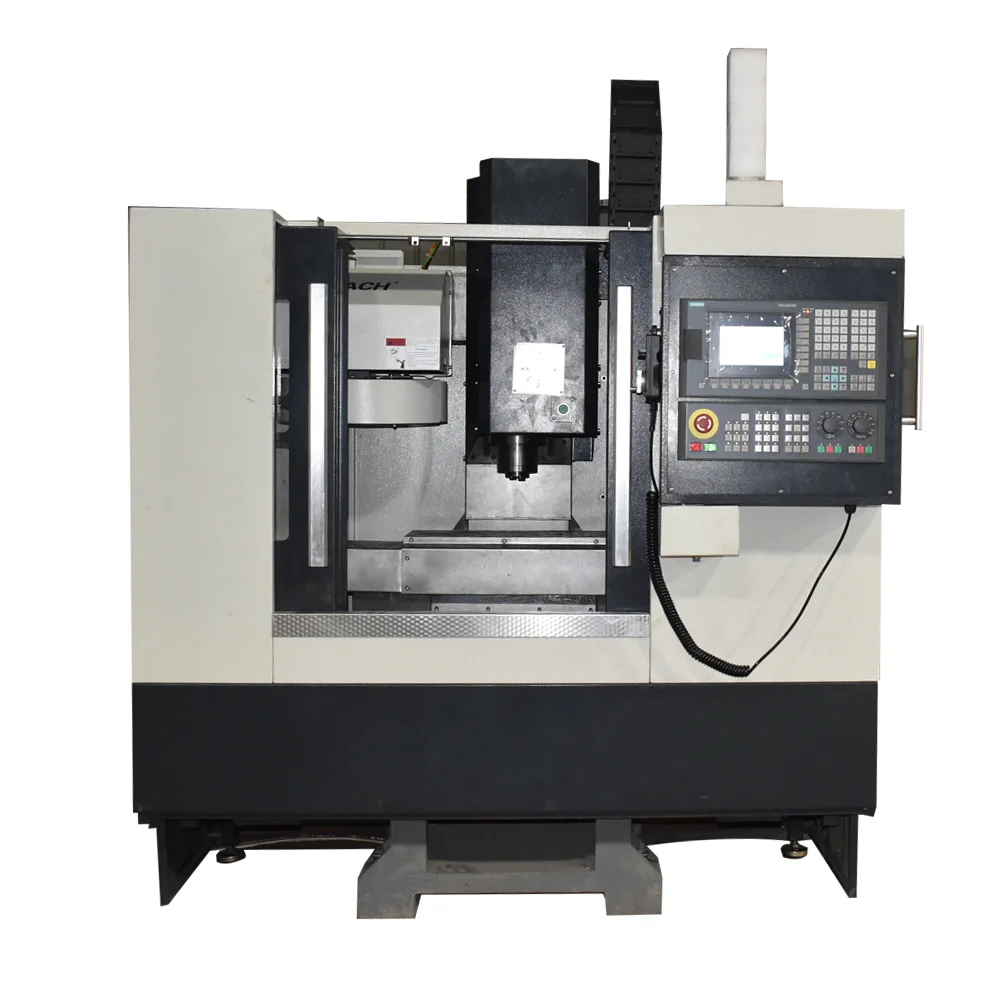

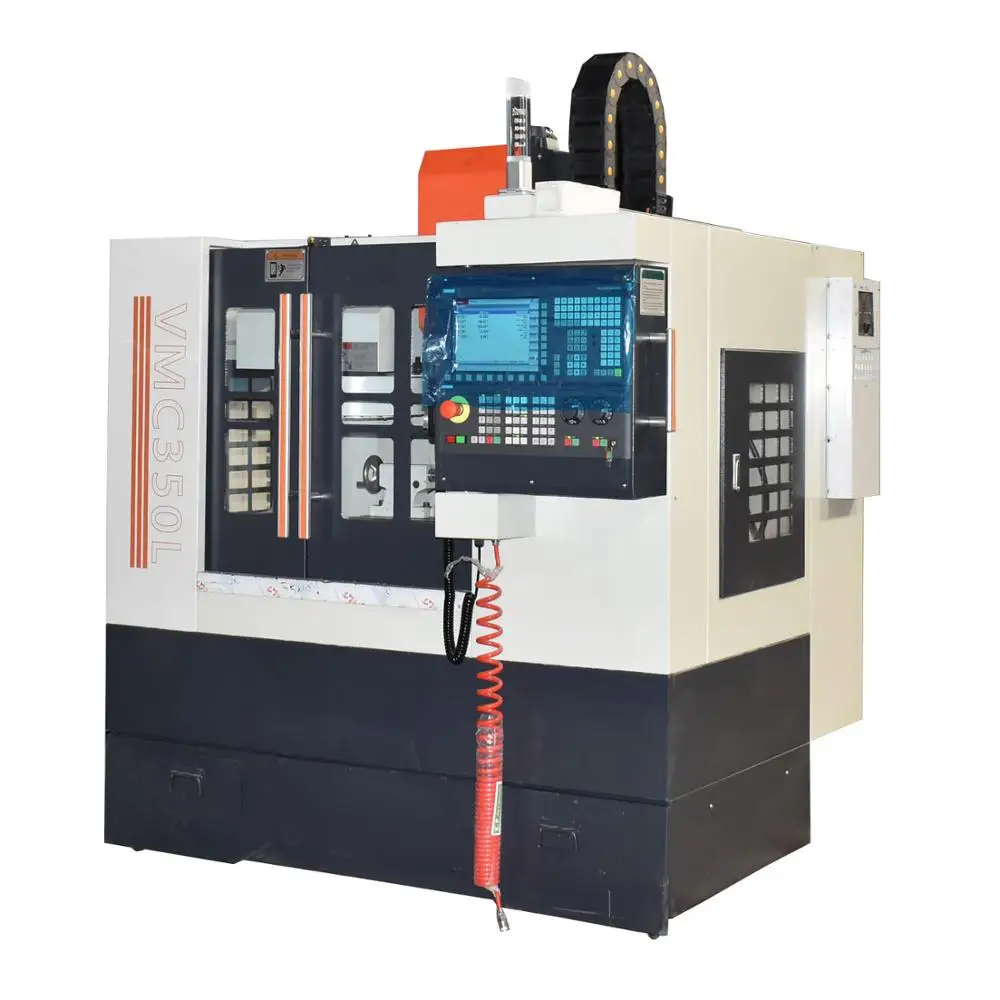

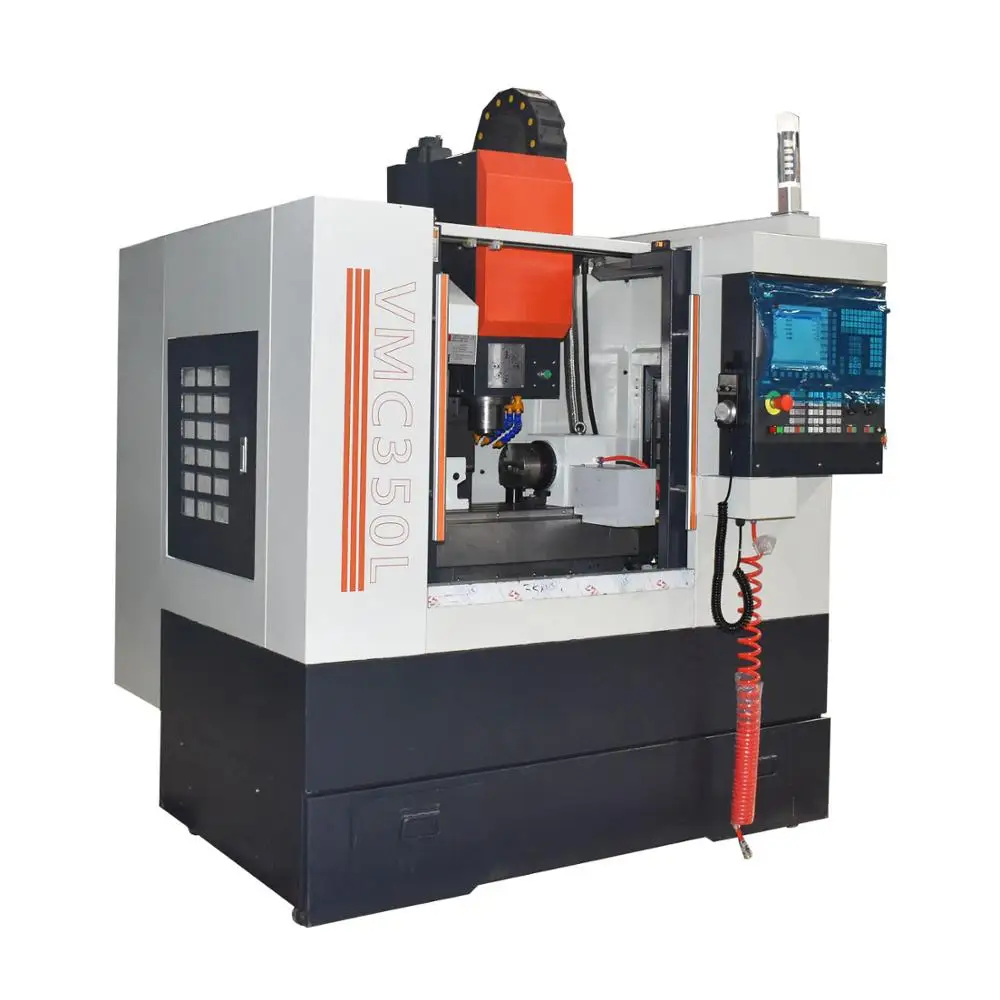

School training mini CNC milling machine price VMC350L best 4 axis small CNC mill with tool changer
- Category: >>>
- Supplier: Jinan Shangneng CNC Equipment Co. Ltd.
Share on (1600651553433):
Product Overview
Description
Product Description
Standard configuration
1. Taiwan spindle
2. Taiwan ball screw
3. Taiwan/Germany linear guide way
4. Three color warning light
5. Automatic lubrication
6. Full enclosed cover
Optional Configuration
1. CNC 4th/5th axis
2.Hydraulic indexing head
3.Automatic chip conveyor
4.Full closed loop control

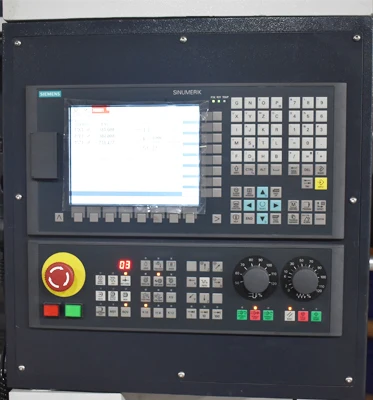

5 SIEMENS/SYNTEC/MITSUBISHI/FANUC/GSK/KND

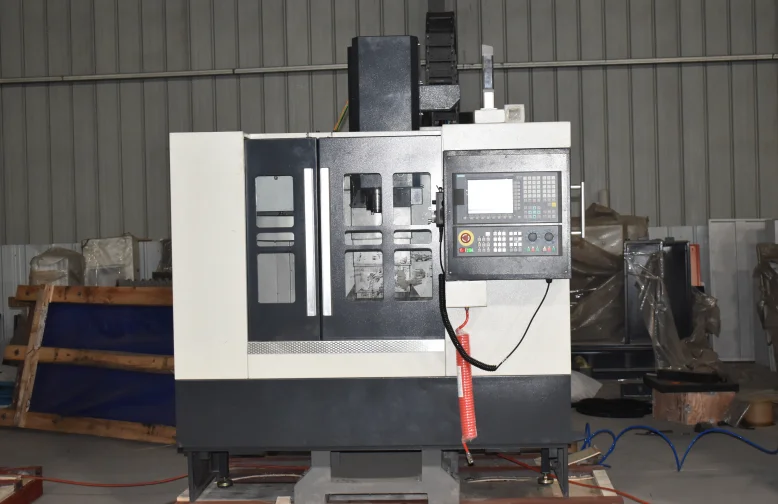

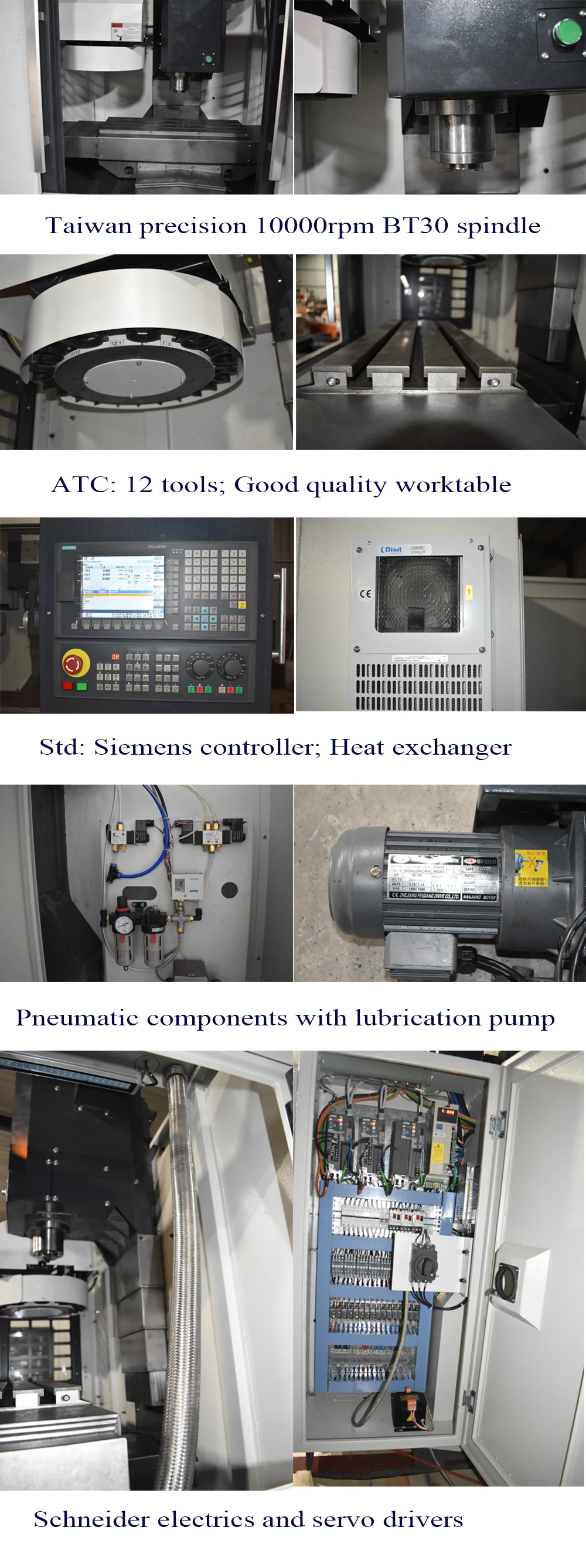

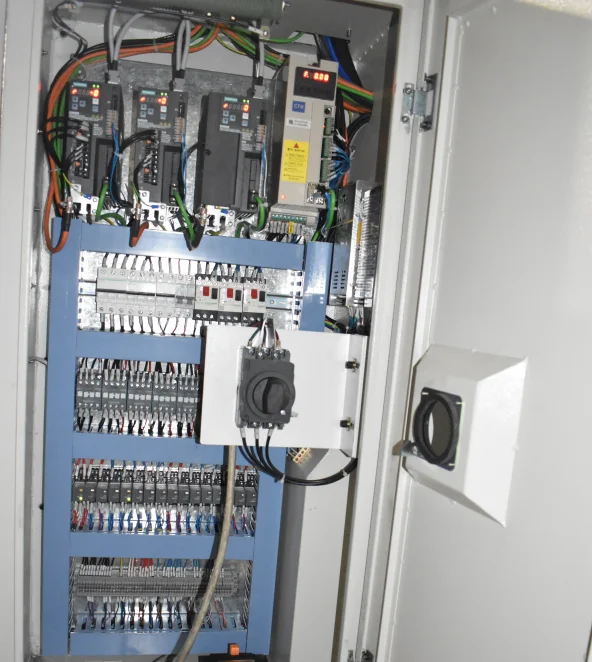

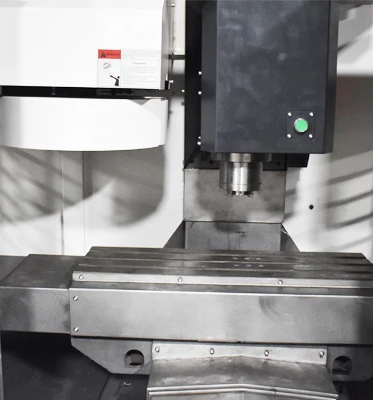

Details Images
Specification
Item | Unit | VMC350L | VMC460L | VMC600L |
Table size | mm | 690*230 | 800*300 | 800*360 |
Load capacity | kg | 150 | 200 | 350 |
T slot | 3-16*63 | 3-14*80 | 3-14*115 | |
X axis travel | mm | 350 | 460 | 600 |
Y axis travel | mm | 260 | 320 | 400 |
Z axis travel | mm | 350 | 460 | 500 |
Distance from spindle nose to table | mm | 90-440 | 90-550 | 100-600 |
Distance from spindle center to column slide way | mm | 294 | 395 | 430 |
Tool shank | BT30 | BT30/BT40 | BT40 | |
Spindle speed | rpm | 10000 | 10000 | 10000 |
Spindle motor power | kw | 2.2 | 3.7 | 5.5 |
Max. diameter of tool | mm | φ30/φ80 | φ80/φ120 | φ80/φ120 |
Max. length of tool | mm | 120 | 200 | 350 |
Max. weight of tool | kg | 3 | 6 | 8 |
X/Y axis rapid moving speed | mm | 10000 | 10000 | 10000 |
Z axis rapid moving speed | mm | 10000 | 10000 | 10000 |
Feed rate | mm/min | 1-4000 | 1-4000 | 1-10000 |
Positioning accuracy | mm | 0.02 | 0.012 | 0.01 |
Repeated positioning accuracy | mm | 0.01/300 | 0.007 | 0.007 |
Out dimension | mm | 1520*1300*1800 | 1850*1800*1900 | 2200*2100*2200 |
Machine Weight | kg | 1500 | 2500 | 3500 |
Main feature

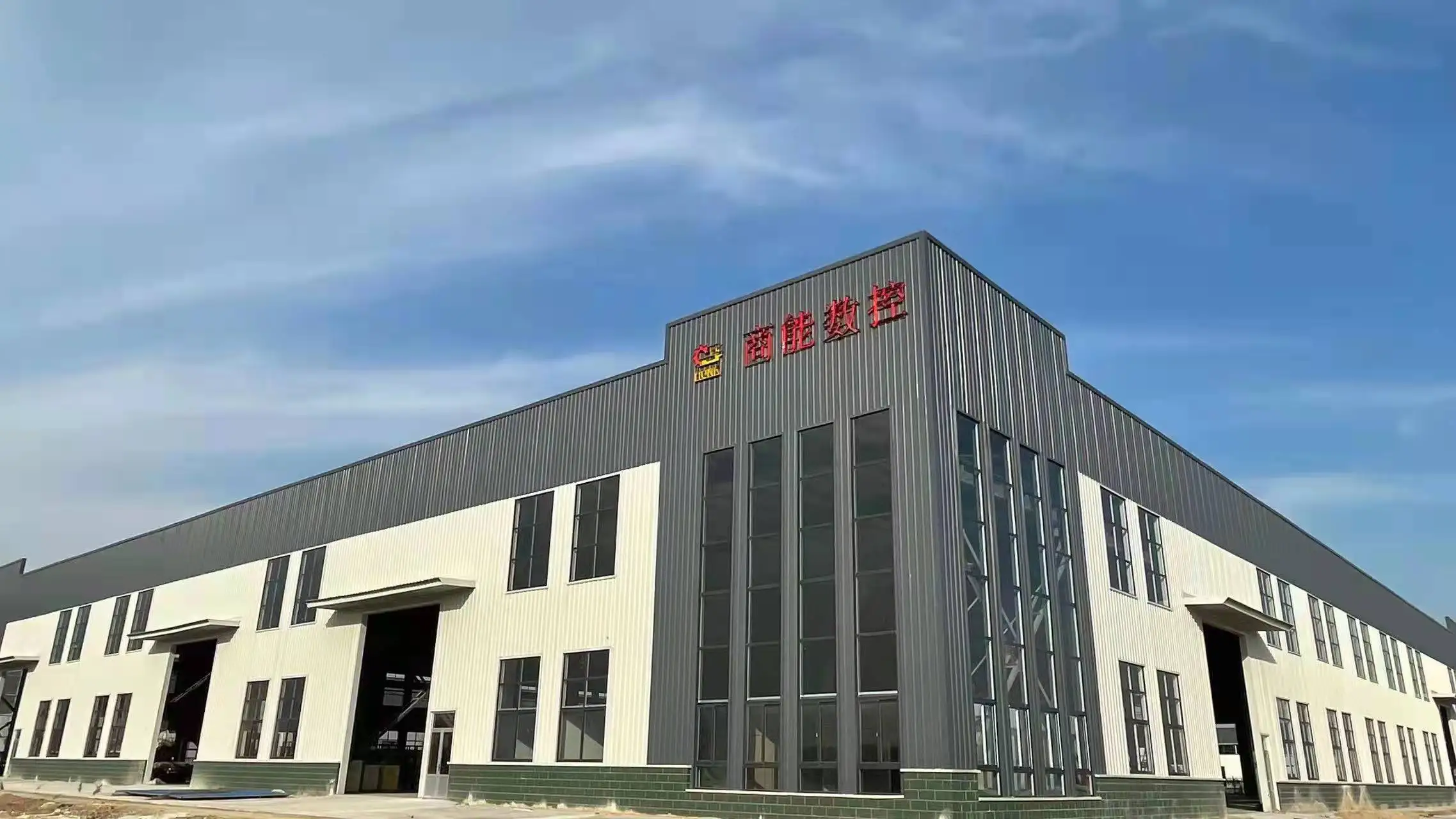

Company Profile
Jinan Shangneng CNC Equipment Co.,Ltd is a cnc machine tools company established in 2018, Integrated with manufacturing, processing and sales.It has a subsidiary corporation Shandong Hunk Precision Machinery Co.,Ltd. With a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcome deeply.The main product are horizontal/vertical/gantry machining center, flat/slant bed cnc turning lathe, cnc vertical turning lathe etc. Now we have exported more than 50 countries like USA,India,Mexico,Canada, Spain, Turkey,Russia and so on. We devoted to provide high quality performance cnc products and metal products to you. Welcome to visit our factory.\t
Cooperative Client

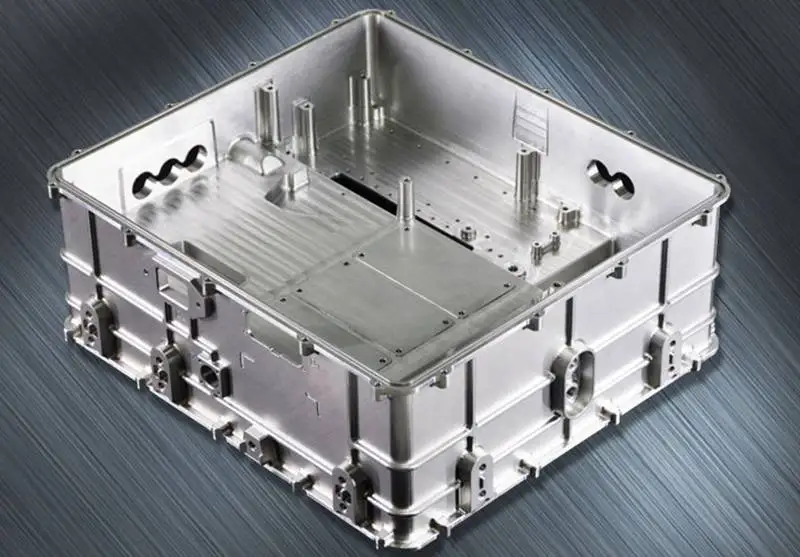

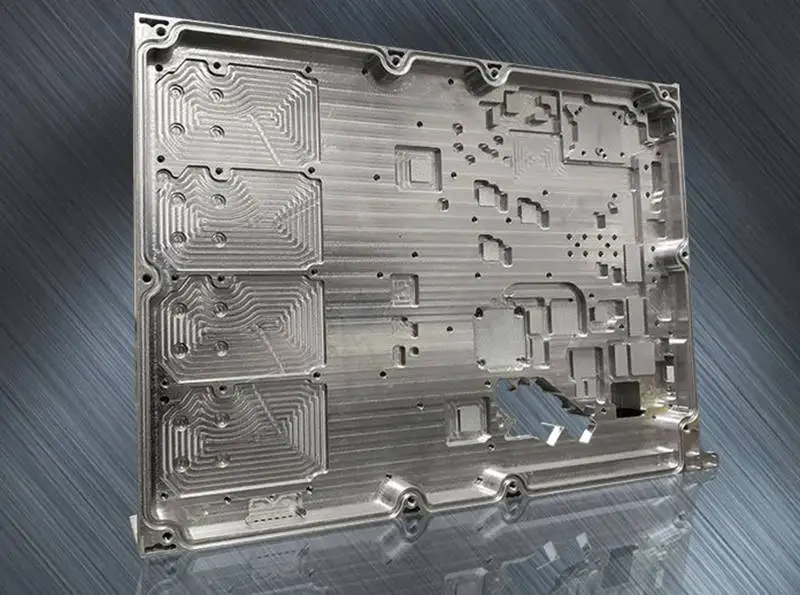

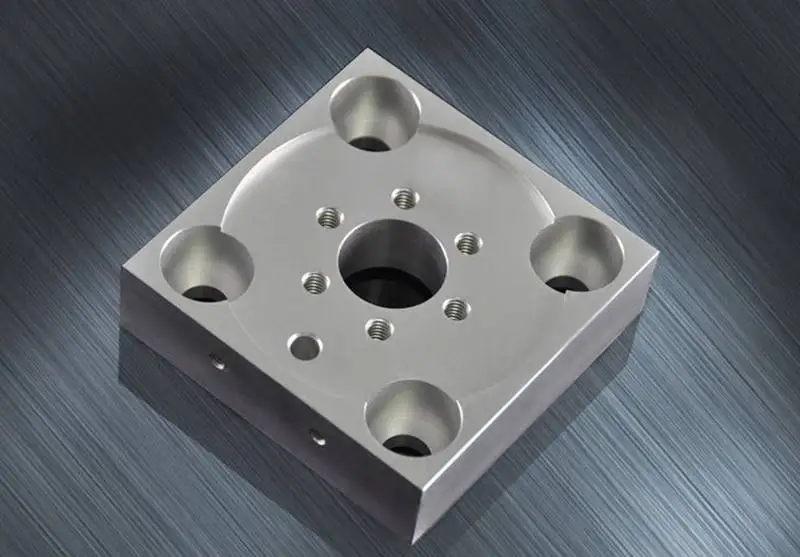

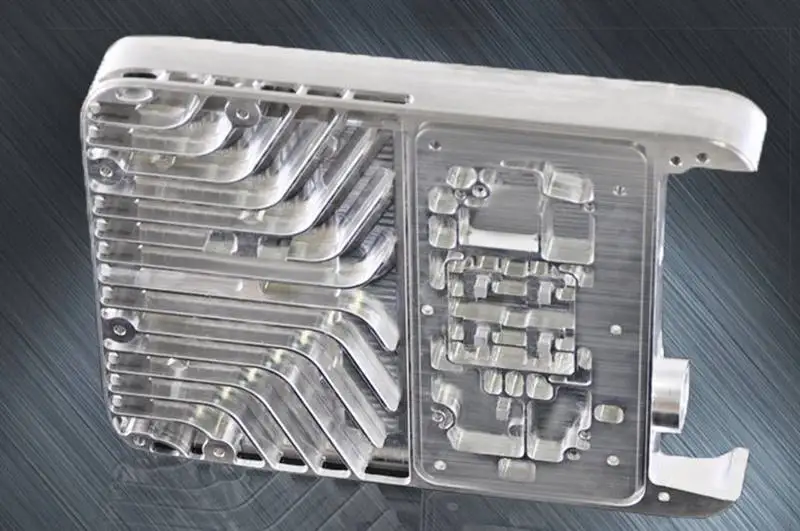

Product Display

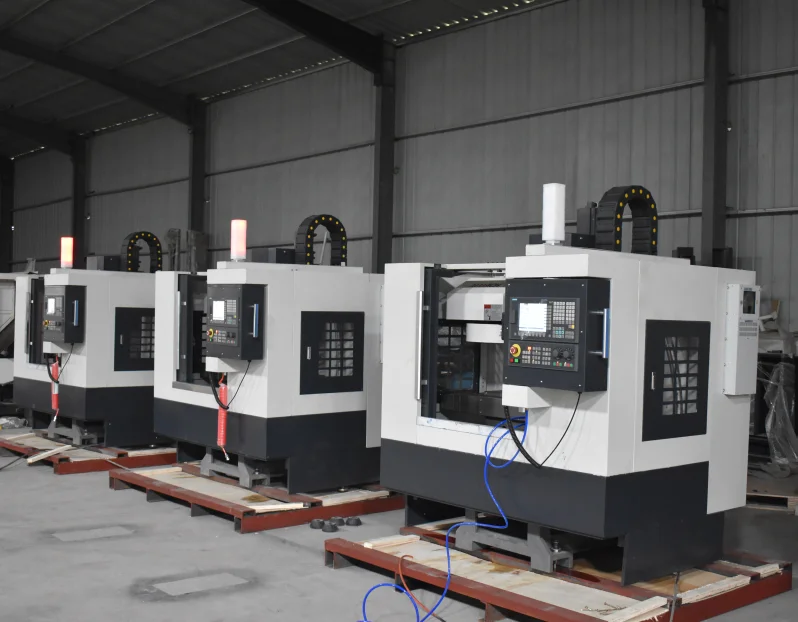

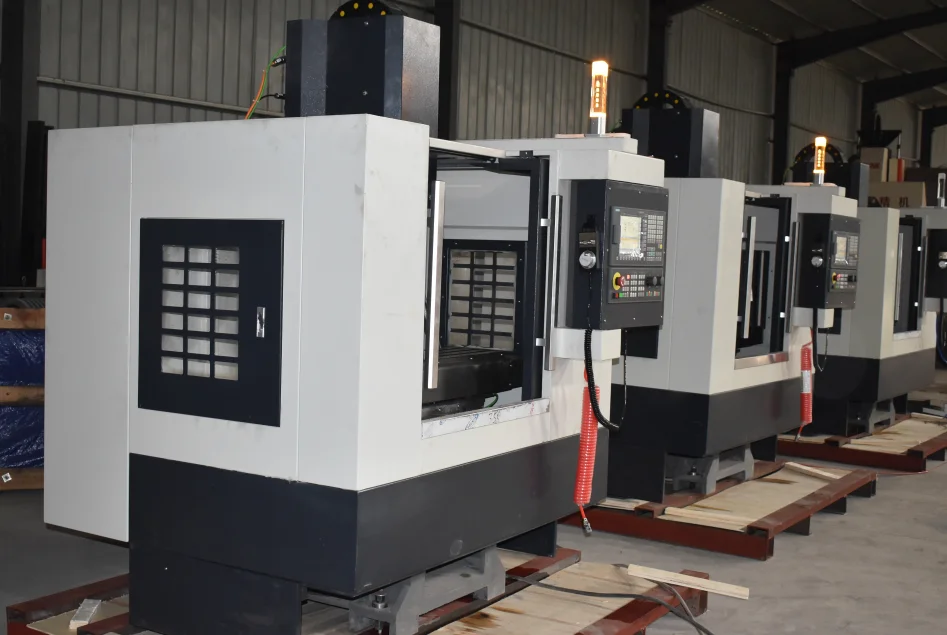

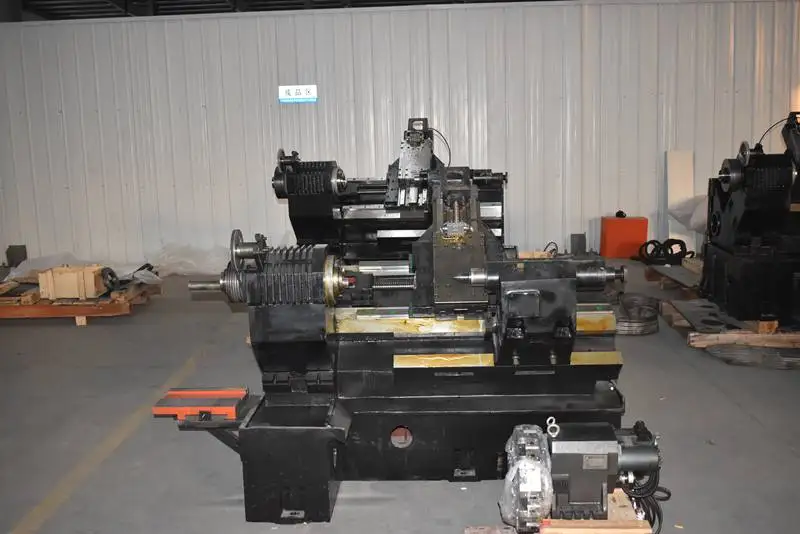

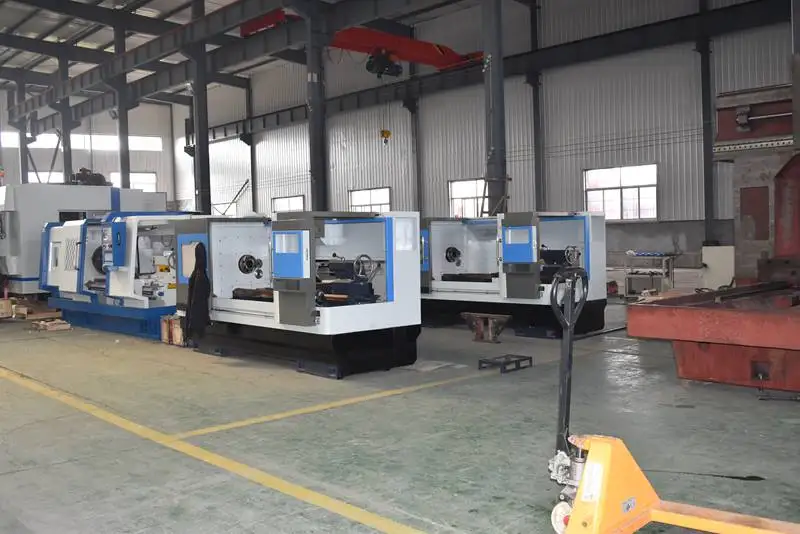

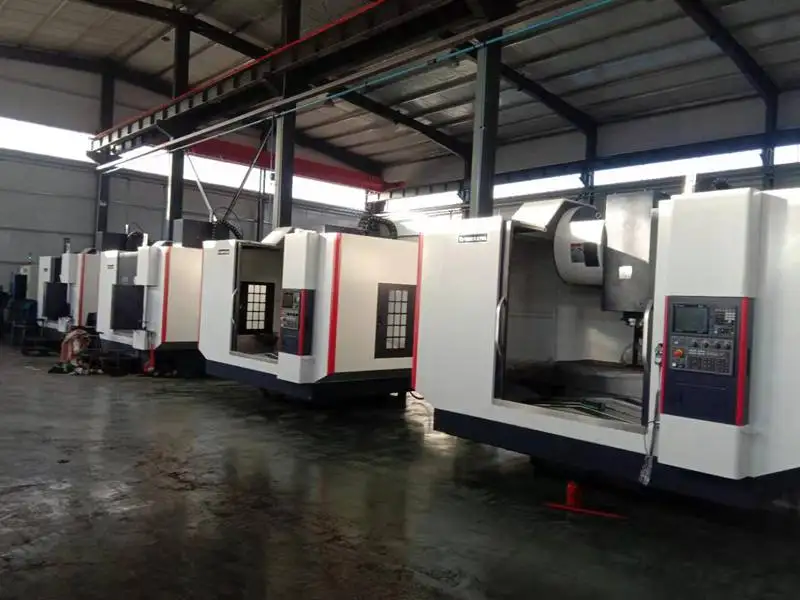

Production Line
Exhibition

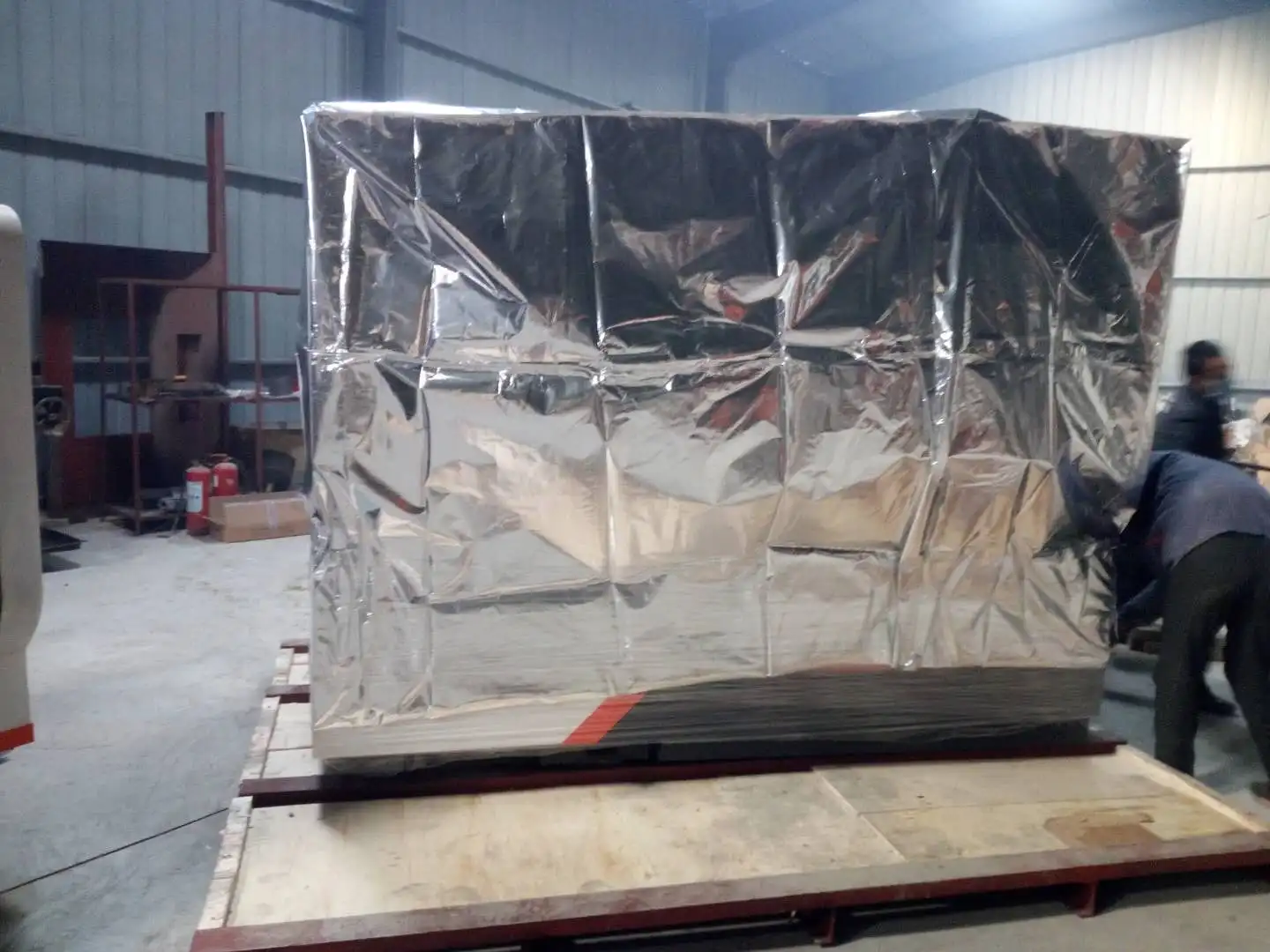

Packaging&Shipping
FAQ
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A:T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if
required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
