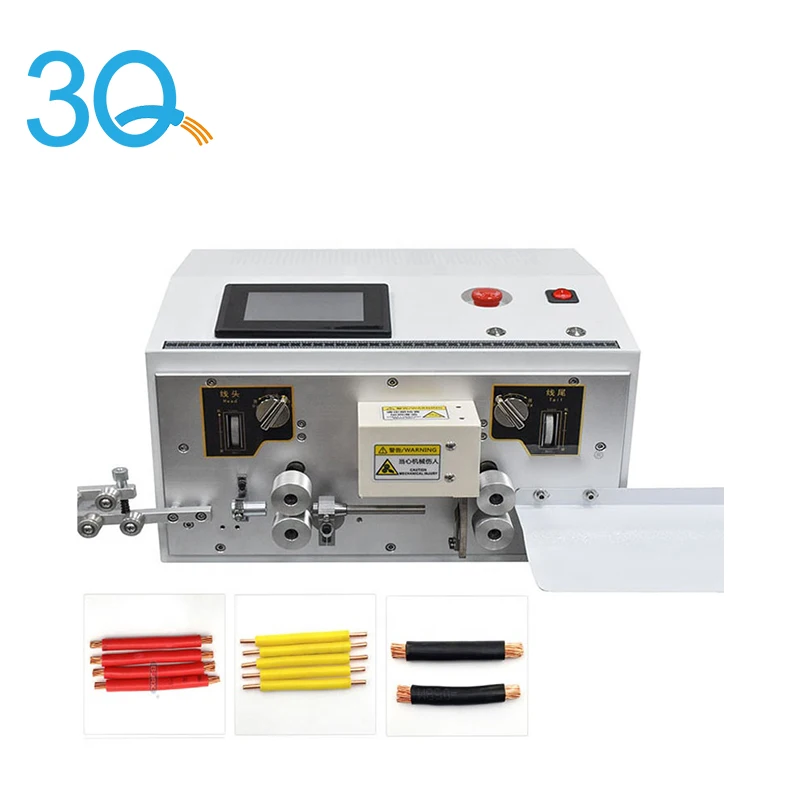

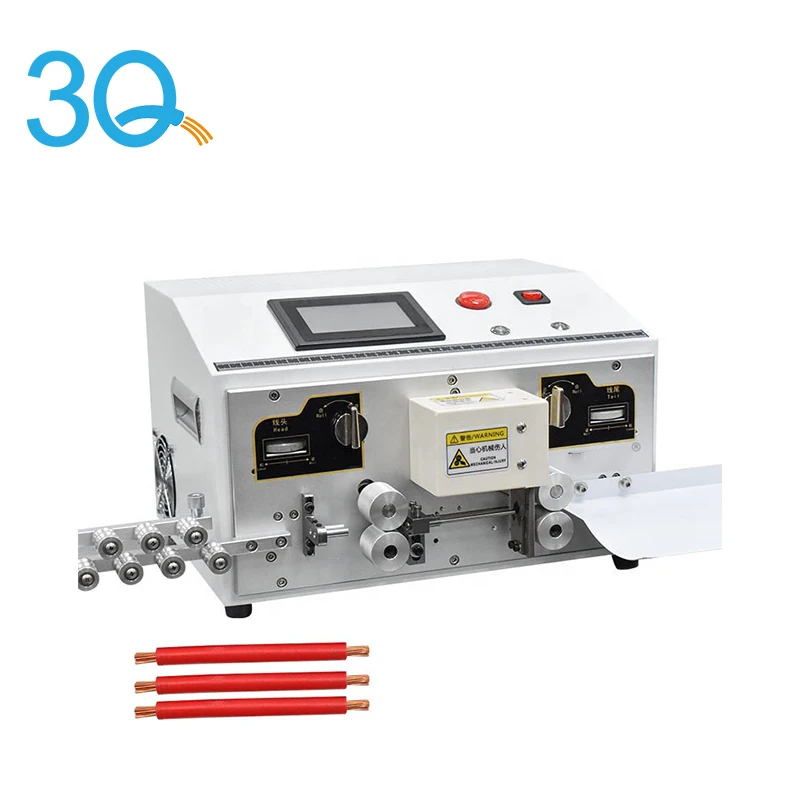

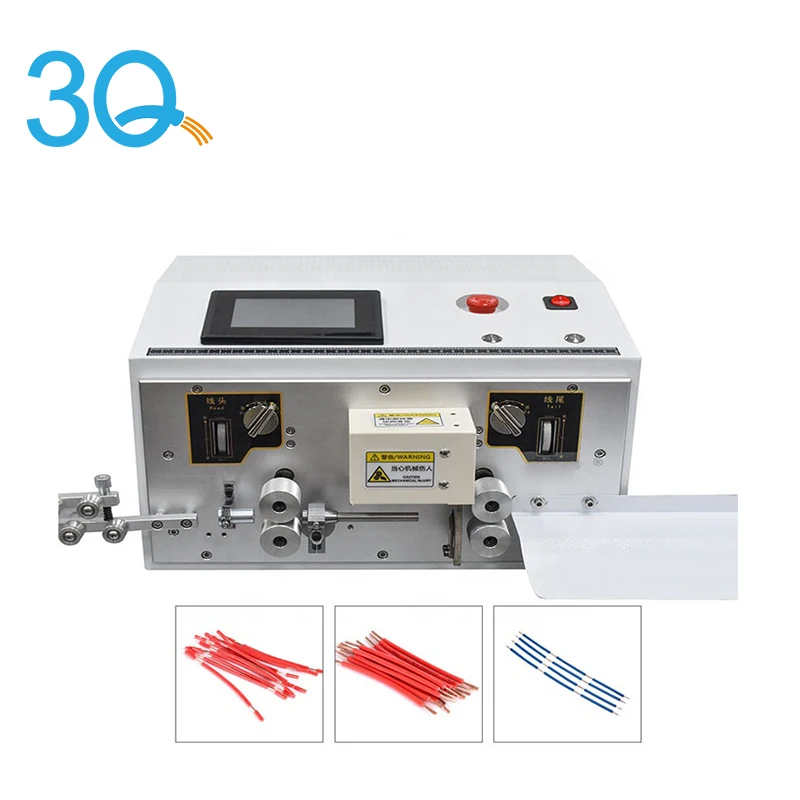

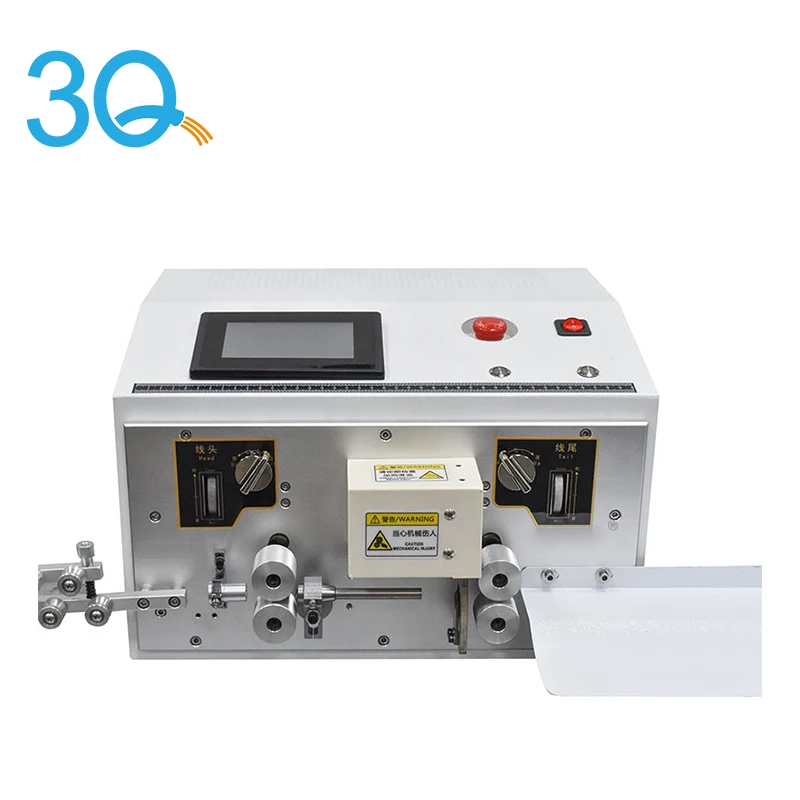

3Q factory price sheathed inner and outer skin flat pvc jacket wire cutting stripping and twisting machine
- Category: >>>
- Supplier: Wenzhou Keerte Measurement And Testing Instrument Co. Ltd.
Share on (1600651603774):
Product Overview
Description
Related Products
3Q Automatic sheathed flat cable pvc jacket wire cutting stripping twisting machine
Wiring harness equipment
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | 3Q |
Model Number | 3Q |
Usage | Stripping |
Place of Origin | Wenzhou, China |
Usage | Wire Stripping |
Application | Strip wire machine |
Type | Wire Cutting Stripping Machine |
Name | Automatic Wire Stripping Machine |
name | Flat sheath wire stripping and twisting machine |
Machine size | 700*400*280mm |
weight | 39Kg |
Power supply | AC220V 50Hz/60Hz (special voltage can be customized) |
Display method | Full Chinese LCD screen |
Processing size range | AWG7#~AWG28# (depending on wire material and structure) The inner and outer skinning and twisting of the flat sheath wire can be completed at one time |
Cutting length | 0.1-~99999.9mm |
Stripping length | Front end: 0~100 Rear end 0-60 (half stripping is required for more than 30) |
Cutting tolerance | +(0.2+0.003*L)mm (L is equal to length) |
Blade material | Tungsten steel |
Speed of work | 1500-2000 pieces/hour |
Drive way | Step motor drives 4 wheels simultaneously |
Processable wire | Flat sheathed wire, PVC, VSF, Teflon, glass fiber wire, etc. |
Adjust the speed | 0-9 |
Product Description
Company Profile
Wenzhou Sanqi Machinery Equipment Co., Ltd., established in 2008, It is a professional company engaged in new energy wire processing equipment,precision three axis dispensing machine,soldering machine,screw machine,non-standard automation and other high-end automation products. We are located in Songgang Street, Baoan District, Shenzhen with convenient transportation access. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.
Our production factory as under ISO9001 and CE are through whole procedure. All products can be tested for needed certificates with your standard and request, We always adhere to the business philosophy of: Customer First, Service Foremost. We advocate the tenet of "Brand and market in honesty" on the basis of equality, mutual benefit and the exchange of needed goods.
Our production factory as under ISO9001 and CE are through whole procedure. All products can be tested for needed certificates with your standard and request, We always adhere to the business philosophy of: Customer First, Service Foremost. We advocate the tenet of "Brand and market in honesty" on the basis of equality, mutual benefit and the exchange of needed goods.
Packing & Delivery
Certifications
FAQ
1. who are we?
We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Western Europe(10.00%),Southern Europe(10.00%),Eastern Europe(10.00%),South America(10.00%),South Asia(5.00%),Africa(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Oceania(5.00%),Central America(1.00%),Eastern Asia(1.00%),Mid East(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CUTTING MASHINE,SHOWS MASHINE,CUPS MASHINE,MASHINE
4. why should you buy from us not from other suppliers?
Wenzhou keerte measurement and testing instrument Co., Ltd., established in 2008, It is a professional company engaged in new energy wire processing equipment,precision three axis dispensing machine,soldering machine,screw machine,non-standard automation a
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
We are based in Zhejiang, China, start from 2014,sell to North America(30.00%),Western Europe(10.00%),Southern Europe(10.00%),Eastern Europe(10.00%),South America(10.00%),South Asia(5.00%),Africa(5.00%),Southeast Asia(5.00%),Northern Europe(5.00%),Oceania(5.00%),Central America(1.00%),Eastern Asia(1.00%),Mid East(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
CUTTING MASHINE,SHOWS MASHINE,CUPS MASHINE,MASHINE
4. why should you buy from us not from other suppliers?
Wenzhou keerte measurement and testing instrument Co., Ltd., established in 2008, It is a professional company engaged in new energy wire processing equipment,precision three axis dispensing machine,soldering machine,screw machine,non-standard automation a
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FAS,CIP,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Japanese
