Battery Power Connector SB120 120A High Current Heavy Duty Power Battery Connector
- Category: Connectors & Terminals >>>
- Supplier: Shenzhen,Tuozhi,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
Specification sheet
Name | Specifications | ||||||
Rated current | 50A | 120A | 175A | 350A | |||
Rated voltage | 600V | 600V | 600V | 600V | |||
Terminal material | The copper plating silver | The copper plating silver | The copper plating silver | The copper plating silver | |||

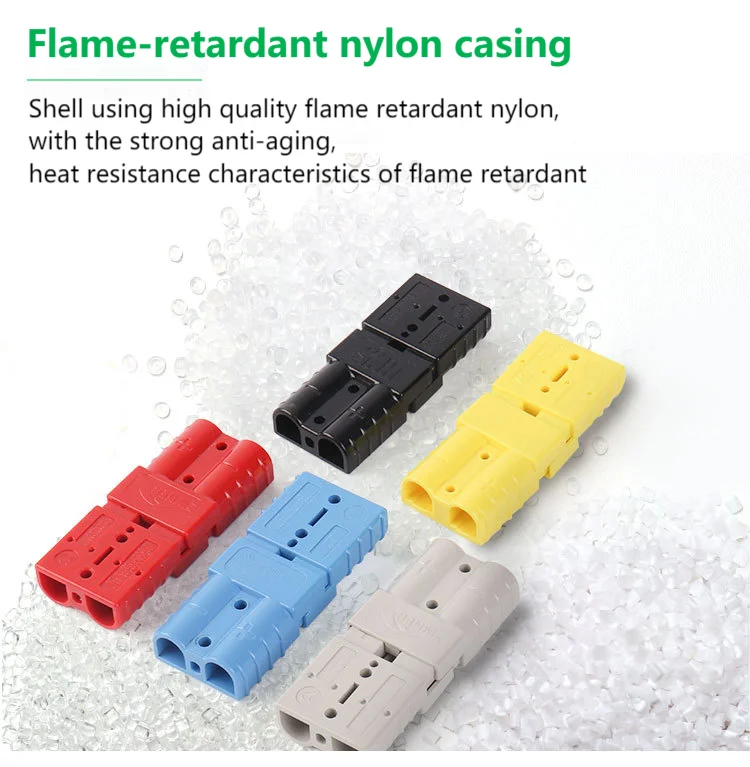

The shell material | Flame retardant PC | Flame retardant PC | Flame retardant PC | Flame retardant PC | |||
Fire rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | |||
Inside the shell | 65Mn | 65Mn | 65Mn | 65Mn | |||
Environment temperature | -20℃~105℃ | -20℃~105℃ | -20℃~105℃ | -20℃~105℃ | |||
Wire size（US standard） | 14AWG~6AWG | 8AWG~4AWG | 6AWG~1/0AWG | 4AWG~2/0AWG | |||
Wire size（National standard） | 2mm²~16mm² | 10mm²~25mm² | 16mm²~50mm² | 25mm²~70mm² | |||
Product Description
Why Choose Us
●Different Optional Product
●Oem/Odm Custom Service
●Strict Product Quality Test
●Fast Delivery Service
to get latest price and wonderful service.
We are sincerely looking forward to cooperatering with you!
There are a wide range of products in our store, and many of them have not been released yet. Welcome to send product pictures or datasheet what you need, and we will provide you with quotation as soon as possible.
●Rated Current: 50A/120A/175A/350A
●Wire Range:12AWG~4/0AWG

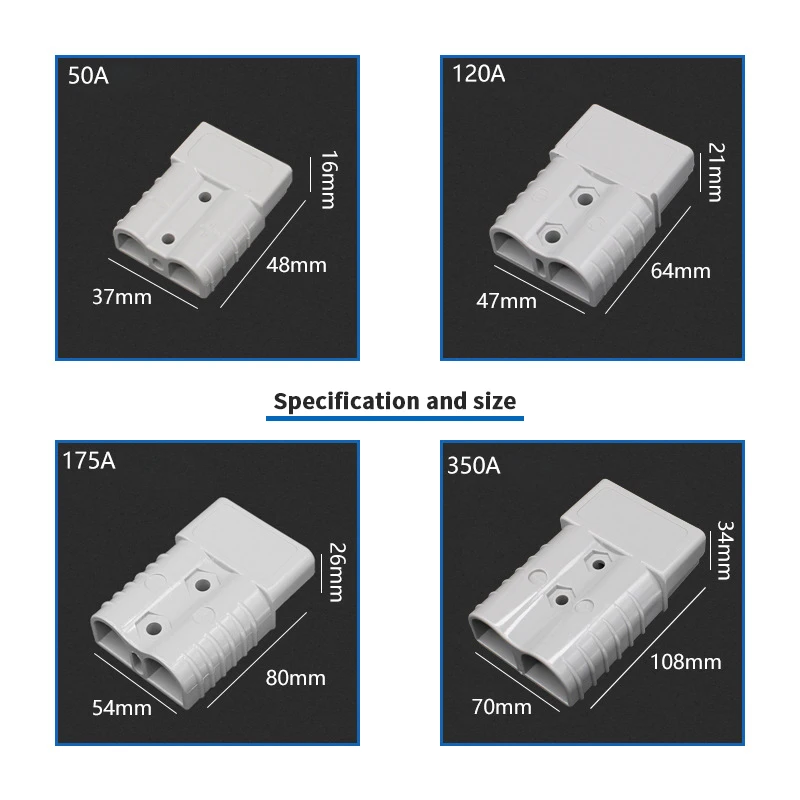

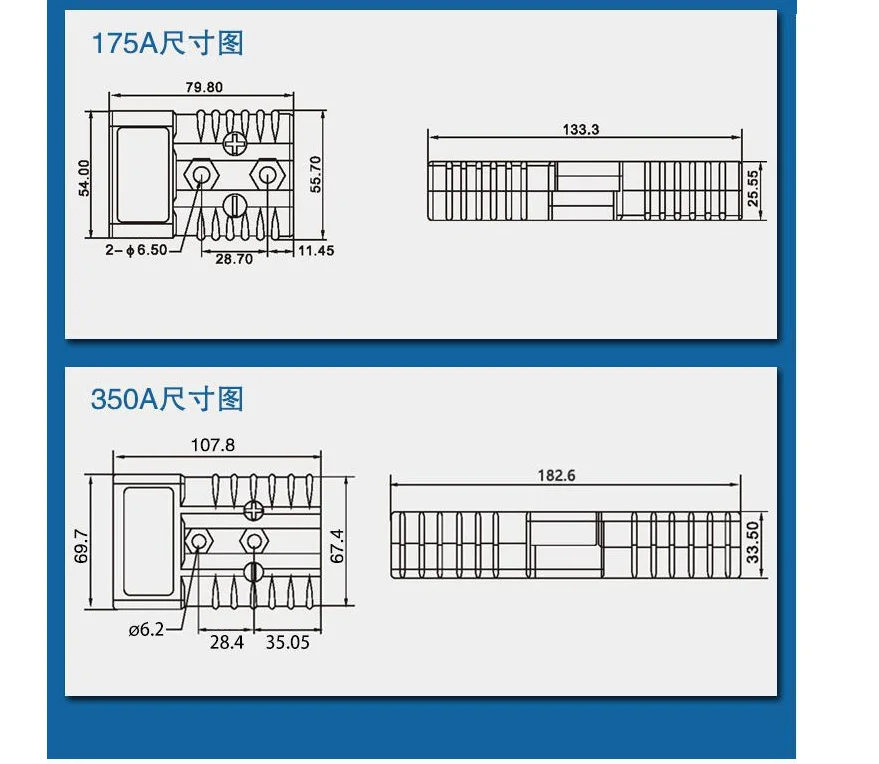

Different current drawings
Dimensional drawing of metal terminal
