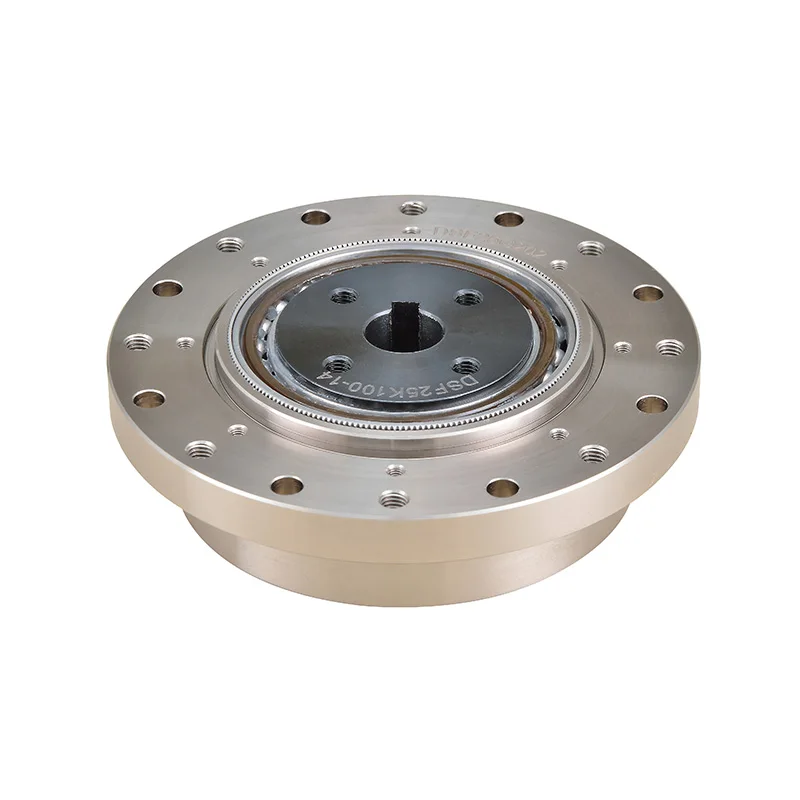

Benoy MGJ DRIVE Series precision aluminum harmonic speed gear reducer gearbox
- Category: >>>
- Supplier: Dongguan Benoy Intelligent Technology Co. Ltd.
Share on (1600651631140):
Product Overview
Description
Products Description
Benoy precision harmonic reducer team based on theoretical calculation finite element analysis, combined with cutting-edge inspection system to obtain a large amount of actual measurement data, the use of multi-objective regression optimization means, successfully break through the non-standard design difficulties of the circular arc tooth shape, the development of breakthrough harmonic reducer.
The S-shaped optimized involute tooth structure is adopted for smoother and smoother meshing, and the tooth processing of rigid-flexible wheel breaks through the traditional slow-walking and gear hobbing process. With the special process of hobbing semi-finishing + light finishing and tooth surface accuracy, multiple teeth are meshed at two 180-degree symmetrical positions simultaneously, so the gear tooth pitch error and accumulated tooth pitch error have a more average effect on the rotational accuracy, and very high positional accuracy and rotational accuracy can be obtained.
The material of the flexible wheel adopts the military steel purified by customized electroslag re-solution, and the thin-walled deformation part has been repeatedly spinning process and heat treatment to make its material wear resistance and plasticity reach a perfect balance. Steel wheel material adopts high spheroidization rate continuous casting of ductile iron instead of traditional 40Cr material, the unique self-lubricating ductile iron dry steel 1 times the thermal conductivity, can quickly absorb vibration, excellent wear reduction performance, service life 2 times dry traditional 40Cr steel wheel.
Flexible wheel tooth processing technology in the innovative invention of a deformation after the light finishing processing of a unique method, not only to solve the problem of accuracy, but also to solve the traditional processing after the assembly of deformation steel flexible wheel contact points are not uniform, so that the tooth mesh full contact, more uniform force, less friction, high load-bearing capacity.
The transmission ratio is large, the transmission ratio of single-stage harmonic gear transmission can reach i=30~500, and the structure is simple, three basic parts on the coaxial can achieve high reduction ratio. In order to stick to the market and user needs, configure various structures of cam flange servo interface specifications, for different industries to launch various series of molding products, in order to facilitate customer selection and use.
The S-shaped optimized involute tooth structure is adopted for smoother and smoother meshing, and the tooth processing of rigid-flexible wheel breaks through the traditional slow-walking and gear hobbing process. With the special process of hobbing semi-finishing + light finishing and tooth surface accuracy, multiple teeth are meshed at two 180-degree symmetrical positions simultaneously, so the gear tooth pitch error and accumulated tooth pitch error have a more average effect on the rotational accuracy, and very high positional accuracy and rotational accuracy can be obtained.
The material of the flexible wheel adopts the military steel purified by customized electroslag re-solution, and the thin-walled deformation part has been repeatedly spinning process and heat treatment to make its material wear resistance and plasticity reach a perfect balance. Steel wheel material adopts high spheroidization rate continuous casting of ductile iron instead of traditional 40Cr material, the unique self-lubricating ductile iron dry steel 1 times the thermal conductivity, can quickly absorb vibration, excellent wear reduction performance, service life 2 times dry traditional 40Cr steel wheel.
Flexible wheel tooth processing technology in the innovative invention of a deformation after the light finishing processing of a unique method, not only to solve the problem of accuracy, but also to solve the traditional processing after the assembly of deformation steel flexible wheel contact points are not uniform, so that the tooth mesh full contact, more uniform force, less friction, high load-bearing capacity.
The transmission ratio is large, the transmission ratio of single-stage harmonic gear transmission can reach i=30~500, and the structure is simple, three basic parts on the coaxial can achieve high reduction ratio. In order to stick to the market and user needs, configure various structures of cam flange servo interface specifications, for different industries to launch various series of molding products, in order to facilitate customer selection and use.
Type | MGJ-Drive Series Harmonic Reducer |
Model | MSHF, MCSH, MSHD, MCHD |
Ratio | 7.5,10,15,20,25,30,40,50,60,80,100. |
Material | Housing: Aluminum alloy(size 25~90) / Cast iron(size 110~185) |
Worm wheel: Aluminum Bronze or Tin Bronze | |
Worm shaft: 20CrMn Ti | |
Output Shaft: steel-45# | |
Input Power | 0.09kw,0.18kw,1.1KW,1.5KW,2.2KW,3KW,4KW,5.5KW,7.5KW,11Kw and so on. |
Usages | Industrial Machine: Food Stuff, Ceramics, CHEMICAL, Packing, Dyeing,Wood working, Glass |
IEC Flange | IEC standard flange or on customer request |
Lubricant | Synthetic oil or worm gear oil |
