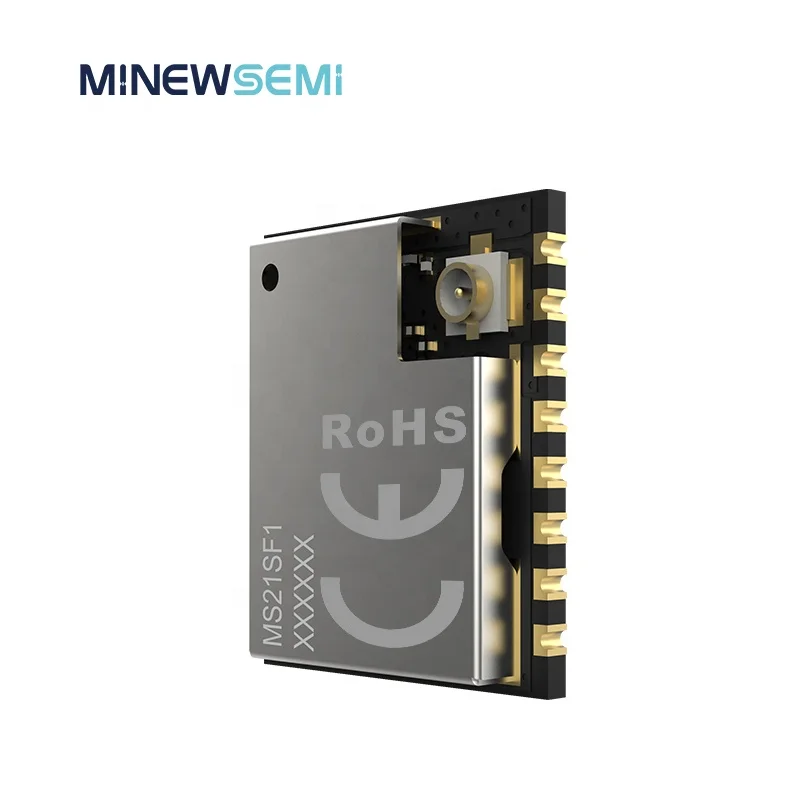

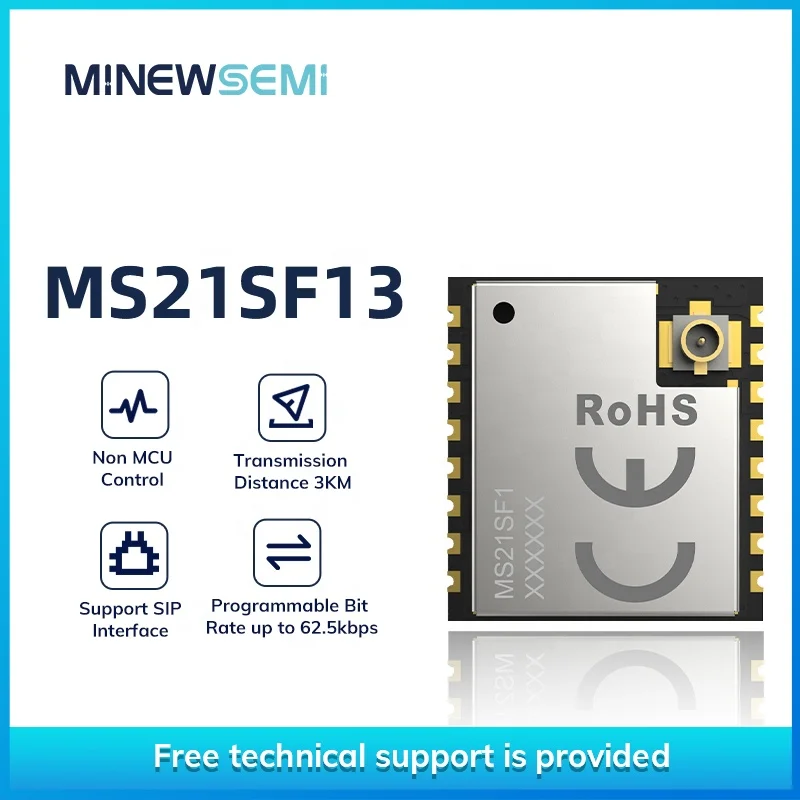

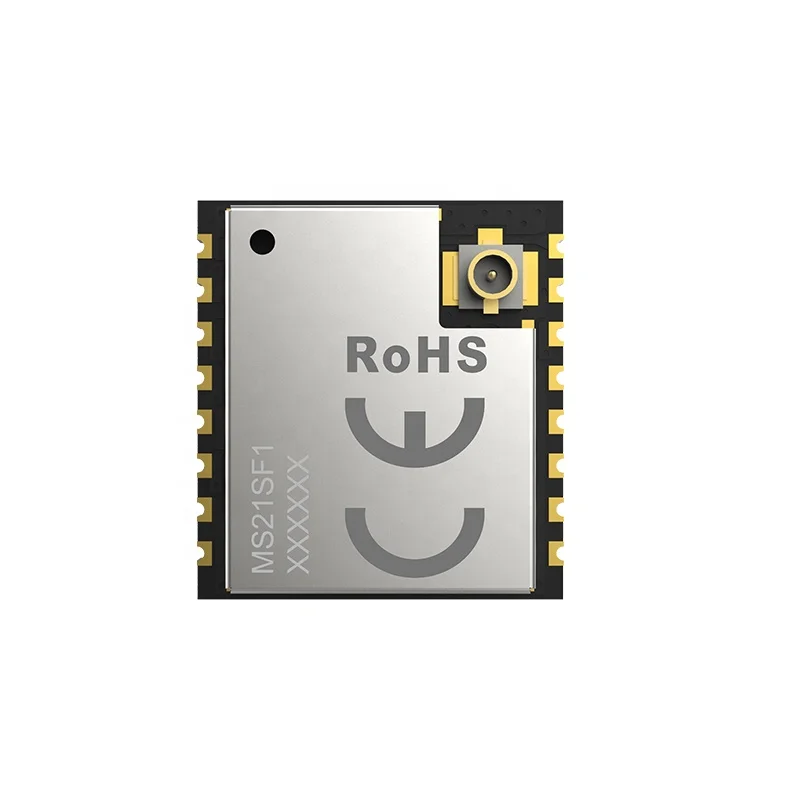

LoRa Semtech SX1262 Chip MS21SF13 Long Range Low Power LoRa and FSK Modem Integrated DC DC converter and LDO Module
- Category: >>>
- Supplier: Shenzhen Minewsemi Co. Ltd.
Share on (1600651654259):
Product Overview
Description
Product Description
Specification
Item | value |
Model Number | MS21SF13 |
Type | LORA MODULE |
Place of Origin | China |
Brand Name | MinewSemi |
Chipset | SX1262 |
Application | IoT |
Model | MS21SF13 |
Antenna | IPEX |
ChipSet | Semtech SX1262 |

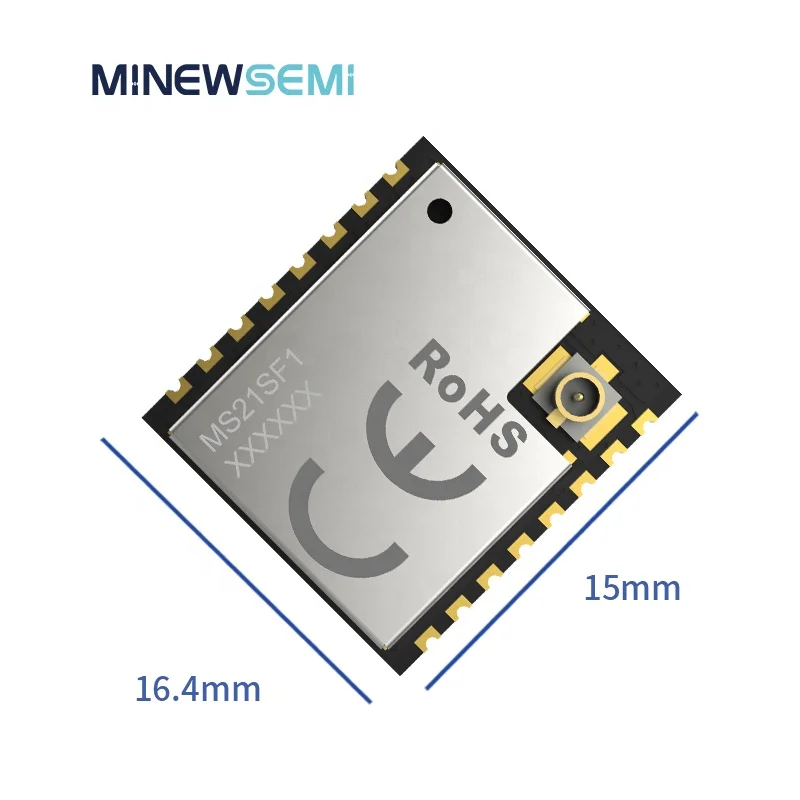

Dimension | 16.4*15*3mm |
RSSI | -128dBm |
Tx. Power | +22dBm |
TX Current | 8.2mA |
Rx Current | 4.7mA |
GPIO | 5 |
Application | Smart Metering, Auto Buildings, Agriculture Sensor, Smart Cities, etc |
Application
Company Profile
Shenzhen MinewSemi Co., Ltd. is a wholly-owned subsidiary of Shenzhen Minew Technology Co., Ltd.. Adhering to corporate vision of"Bringing the world into IOT era" of the head Company, "Providing customers with high-quality intelligent communication modules quickly" is MinewSemi's business mission. As a leading one-stop IoT wireless connection module provider, MinewSemi focuses on R&D and innovation in the field of IoT embedded industry. The corporation is a verified strategic partner of Nordic Semiconductor andan enterprise member of Bluetooth SIG Alliance and Fira Alliance.
Packing & Delivery
FAQ
1. who are we?
We are based in Guangdong, China, start from 2022,sell to North America(30.00%),South America(15.00%),Southern Europe(15.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Western Europe(10.00%). There are total about null people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bluetooth module,Wi-Fi module,UWB module,LoRa module
4:Can MS21SF13 model be used with a pressure sensor
We are based in Guangdong, China, start from 2022,sell to North America(30.00%),South America(15.00%),Southern Europe(15.00%),Eastern Europe(15.00%),Southeast Asia(15.00%),Western Europe(10.00%). There are total about null people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Bluetooth module,Wi-Fi module,UWB module,LoRa module
4:Can MS21SF13 model be used with a pressure sensor
The module can be used with sensors, but MCU needs to be added for control. The module is an RF communication module
5.Is there any demo code for reference?
Yes, there is a Semtech open source demo code for reference
Yes, there is a Semtech open source demo code for reference
