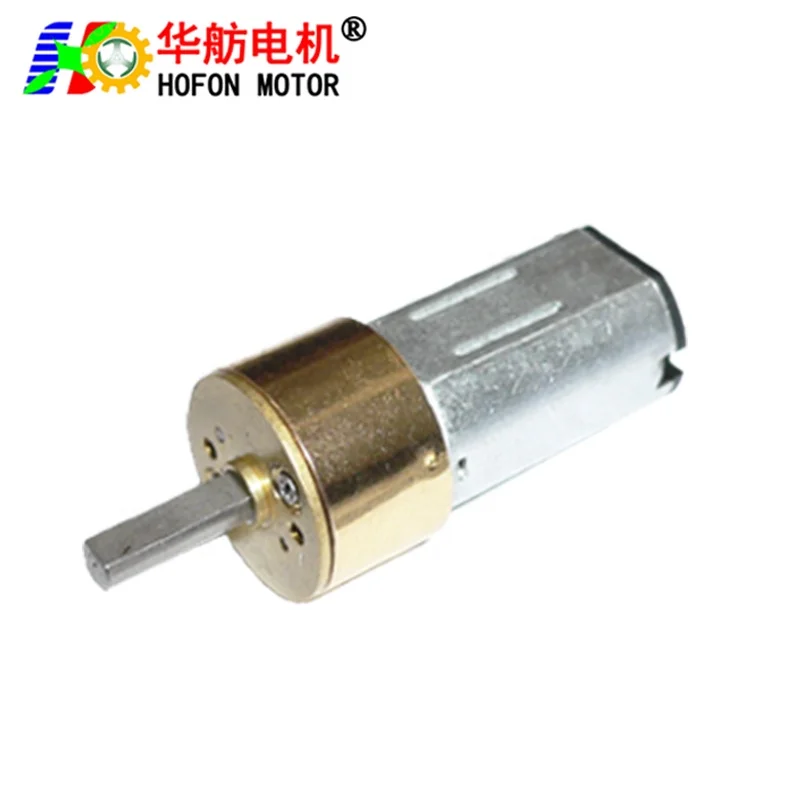

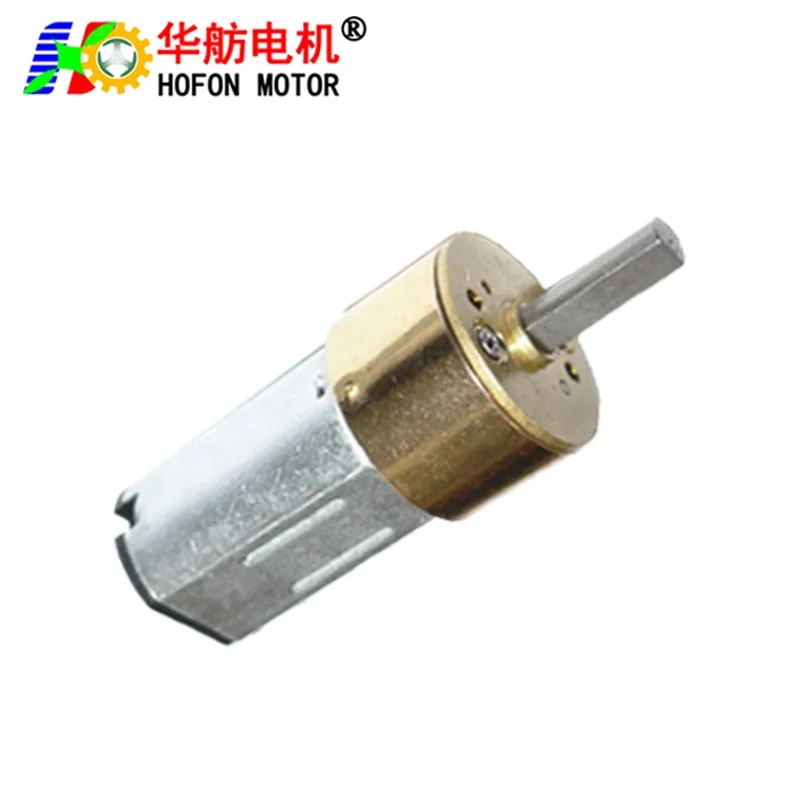

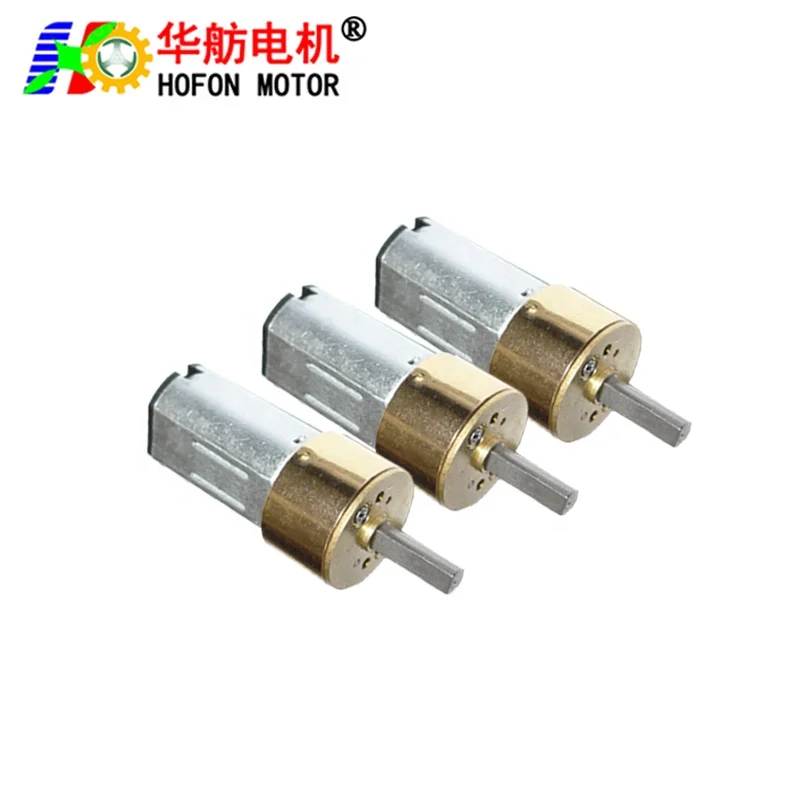

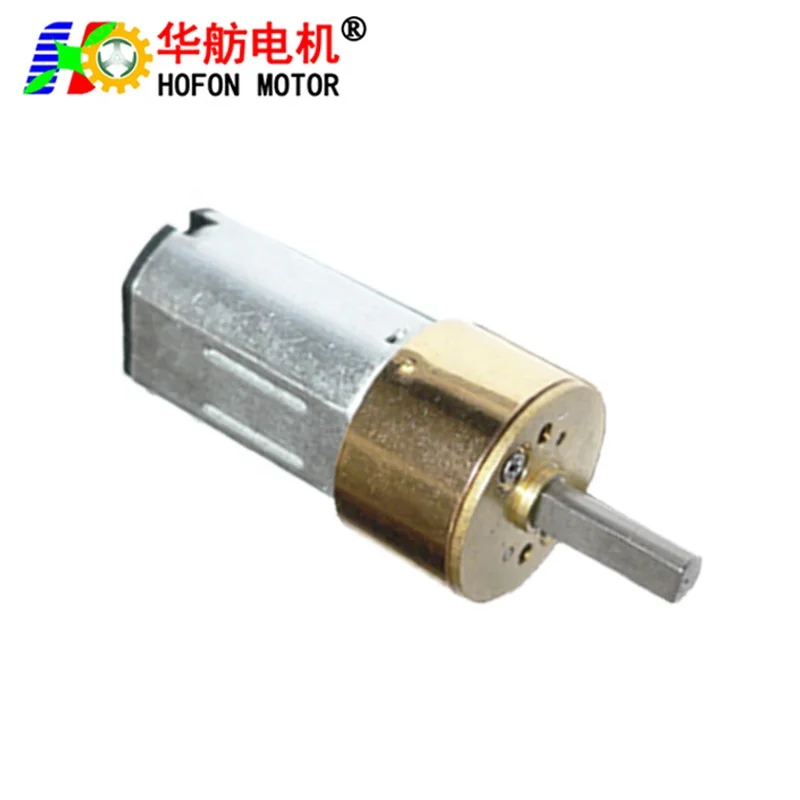

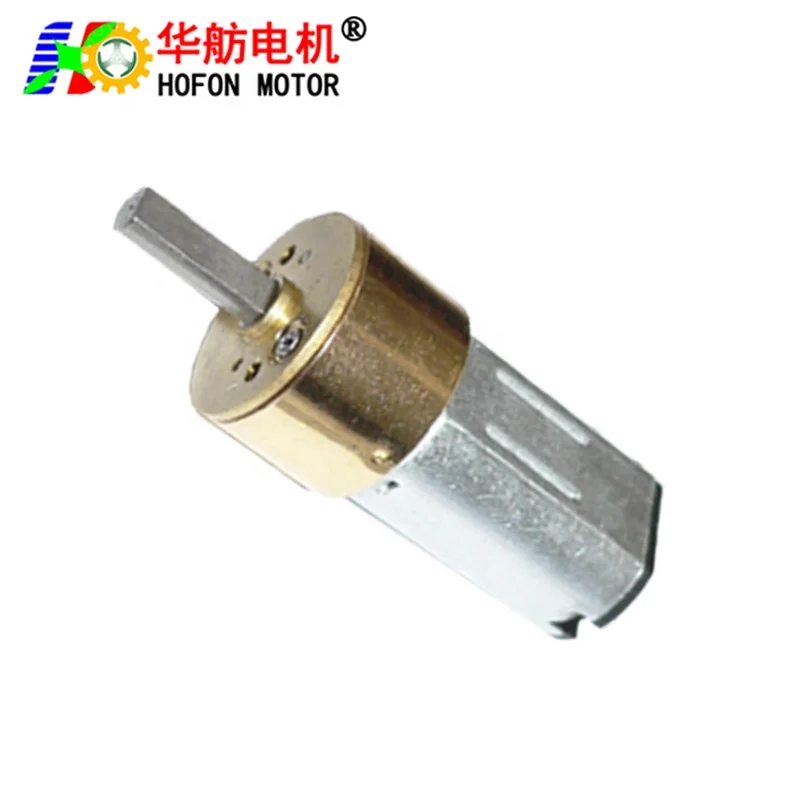

Hofon 14mm GM14 N30 1.5v 3v 3.7v 4.5v 5v 6v 7.4v 9v 12v electric mini small brush high torque permanent magnet reducer motor
- Category: >>>
- Supplier: Shenzhen Hofon Electronic Technology Co. Ltd.
Share on (1600651701488):
Product Overview
Description
Specification
Typical Applications:
- Electronic door lock / Monitor / Printer / Robot / Optic equipment / Precision instrument
- Bank equipment / Safe box / Paper feeder / Intelligent gas meter / Tissue machine
- Accessory of automobile / Ad equipment / Analysis instrument / Electronic game machine
Voltage, speed, torque and other performance parameters can be customized according to requirements.
Shaft length, D-CUT shaft, threaded shaft, encoder, gear box and so on can be customized.
Representative Performance:
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | TORQUE | CURRENT | ||||
| r/min | A | r/min | A | mN.m | g.cm | w | mN.m | g.cm | A | ||||
| 1# GM14F-N30VA-09210-30 | 1.5-5.0 | 3.0V | 206 | 0.020 | 160 | 0.070 | 6 | 60 | 0.210 | 26.0 | 260 | 0.28 | |
| 2# GM14F-N30VA-09210-50 | 1.5-5.0 | 3.0V | 124 | 0.020 | 96 | 0.070 | 10 | 100 | 0.210 | 44.0 | 440 | 0.28 | |
| 3# GM14F-N30VA-09210-100 | 1.5-5.0 | 3.0V | 62 | 0.020 | 48 | 0.070 | 20 | 200 | 0.210 | 85.0 | 850 | 0.28 | |
| 4# GM14F-N30VA-09210-150 | 1.5-5.0 | 3.0V | 41 | 0.020 | 32 | 0.070 | 30 | 300 | 0.210 | 130.0 | 1300 | 0.28 | |
| 5# GM14F-N30VA-09210-210 | 1.5-5.0 | 3.0V | 29 | 0.020 | 22 | 0.070 | 42 | 420 | 0.210 | ≥150 | ≥1500 | 0.28 | |
| 6# GM14F-N30VA-09210-250 | 1.5-5.0 | 3.0V | 24 | 0.020 | 19 | 0.070 | 50 | 500 | 0.210 | ≥150 | ≥1500 | 0.28 | |
| 7# GM14F-N30VA-09210-298 | 1.5-5.0 | 3.0V | 20 | 0.020 | 16 | 0.070 | 59.6 | 596 | 0.210 | ≥150 | ≥1500 | 0.28 | |
| 8# GM14F-N30VA-09210-30 | 3.0-8.0 | 6.0V | 412 | 0.350 | 320 | 0.090 | 12 | 120 | 0.540 | 52.0 | 520 | 0.56 | |
| 9# GM14F-N30VA-09210-50 | 3.0-8.0 | 6.0V | 248 | 0.350 | 192 | 0.090 | 20 | 200 | 0.540 | 88.0 | 880 | 0.56 | |
| 10# GM14F-N30VA-09210-100 | 3.0-8.0 | 6.0V | 124 | 0.350 | 96 | 0.090 | 40 | 400 | 0.540 | ≥150 | ≥1500 | 0.56 | |
| 11# GM14F-N30VA-09210-150 | 3.0-8.0 | 6.0V | 82 | 0.350 | 64 | 0.090 | 60 | 600 | 0.540 | ≥150 | ≥1500 | 0.56 | |
| 12# GM14F-N30VA-09210-210 | 3.0-8.0 | 6.0V | 58 | 0.350 | 44 | 0.090 | 84 | 840 | 0.540 | ≥150 | ≥1500 | 0.56 | |
| 13# GM14F-N30VA-09210-250 | 3.0-8.0 | 6.0V | 48 | 0.350 | 38 | 0.090 | 100 | 1000 | 0.540 | ≥150 | ≥1500 | 0.56 | |
| 14# GM14F-N30VA-09210-298 | 3.0-8.0 | 6.0V | 40 | 0.350 | 32 | 0.090 | 119.2 | 1192 | 0.540 | ≥150 | ≥1500 | 0.56 | |
| 15# GM14F-N30VA-12120-30 | 1.5-5.0 | 3.0V | 300 | 0.060 | 237 | 0.280 | 11.7 | 117 | 0.840 | 24.0 | 240 | 0.70 | |
| 16# GM14F-N30VA-12120-50 | 1.5-5.0 | 3.0V | 180 | 0.060 | 142 | 0.280 | 19.5 | 195 | 0.840 | 40.0 | 400 | 0.70 | |
| 17# GM14F-N30VA-12120-100 | 1.5-5.0 | 3.0V | 90 | 0.060 | 71 | 0.280 | 39 | 390 | 0.840 | 72.0 | 720 | 0.70 | |
| 18# GM14F-N30VA-12120-150 | 1.5-5.0 | 3.0V | 60 | 0.060 | 47 | 0.280 | 58.5 | 585 | 0.840 | 108.0 | 1080 | 0.70 | |
| 19# GM14F-N30VA-12120-210 | 1.5-5.0 | 3.0V | 42 | 0.060 | 33 | 0.280 | 81.9 | 819 | 0.840 | ≥150 | ≥1500 | 0.70 | |
| 20# GM14F-N30VA-12120-250 | 1.5-5.0 | 3.0V | 36 | 0.060 | 28 | 0.280 | 97.5 | 975 | 0.840 | ≥150 | ≥1500 | 0.70 | |
| 21# GM14F-N30VA-12120-298 | 1.5-5.0 | 3.0V | 30 | 0.060 | 23 | 0.280 | 116.2 | 1162 | 0.840 | ≥150 | ≥1500 | 0.70 | |
| 22# GM14F-N30VA-12120-30 | 3.0-7.0 | 5.0V | 500 | 0.080 | 396 | 0.303 | 19.5 | 195 | 1.500 | 83.0 | 830 | 1.14 | |
| 23# GM14F-N30VA-12120-50 | 3.0-7.0 | 5.0V | 300 | 0.080 | 238 | 0.303 | 32.5 | 325 | 1.500 | 130.0 | 1300 | 1.14 | |
| 24# GM14F-N30VA-12120-100 | 3.0-7.0 | 5.0V | 150 | 0.080 | 119 | 0.303 | 65 | 650 | 1.500 | ≥150 | ≥1500 | 1.14 | |
| 25# GM14F-N30VA-12120-150 | 3.0-7.0 | 5.0V | 100 | 0.080 | 79 | 0.303 | 97.5 | 975 | 1.500 | ≥150 | ≥1500 | 1.14 | |
| 26# GM14F-N30VA-12120-210 | 3.0-7.0 | 5.0V | 71 | 0.080 | 56 | 0.303 | 136.5 | 1365 | 1.500 | ≥150 | ≥1500 | 1.14 | |
| 27# GM14F-N30VA-12120-250 | 3.0-7.0 | 5.0V | 60 | 0.080 | 47 | 0.303 | 162.5 | 1625 | 1.500 | ≥150 | ≥1500 | 1.14 | |
| 28# GM14F-N30VA-12120-298 | 3.0-7.0 | 5.0V | 50 | 0.080 | 39 | 0.303 | 193.7 | 1937 | 1.500 | ≥150 | ≥1500 | 1.14 | |
| 29# GM14F-N30VA-12120-1000 | 3.0-7.0 | 5.0V | 15 | 0.080 | 11.9 | 0.303 | 642.4 | 6552 | 1.500 | ≥150 | ≥1500 | 1.14 | |
Maybe you also like

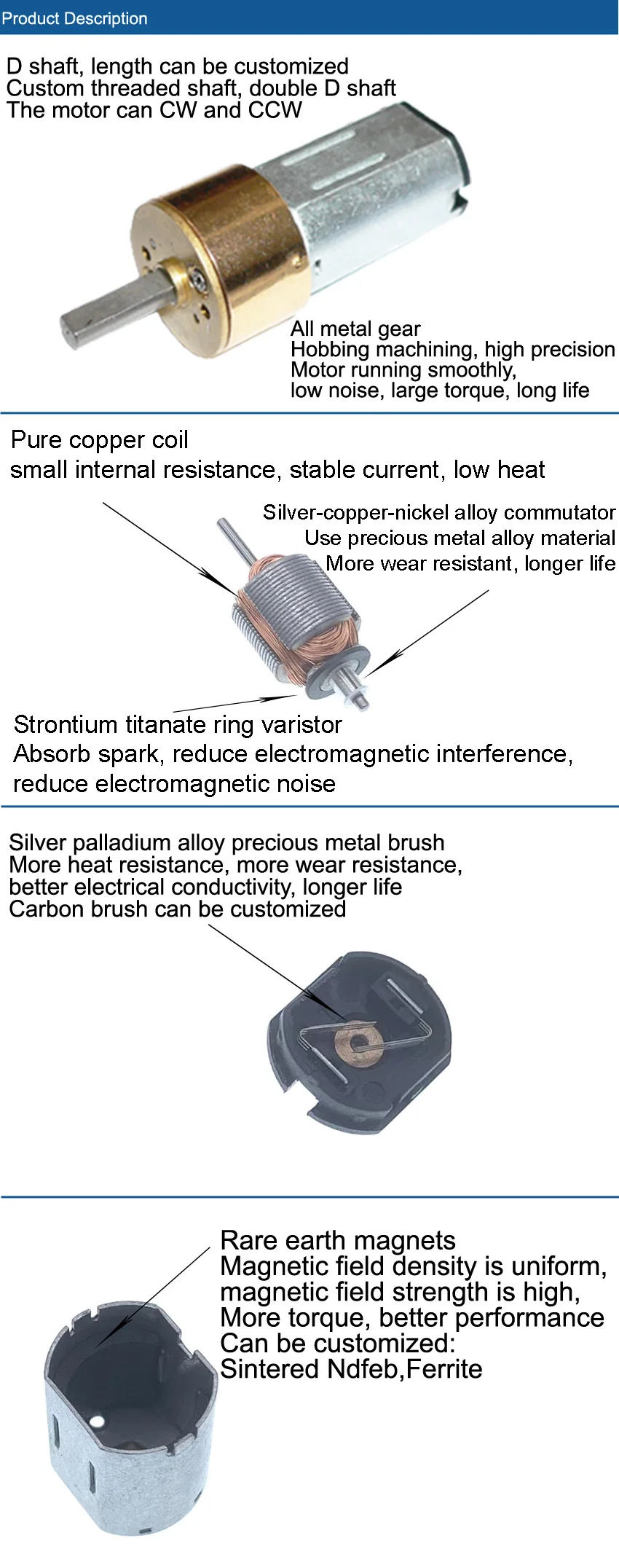

Product Description
Application
Company Profile
Shenzhen Hofon Electronic Technology Co., Ltd. was founded in the year of 2002, to the establishment of the DC micro motor, small modulus gear motor, brushless motor research and development of the manufacture and sale of customer service professional firms. Hofon Motor, specialized R & D and manufacturing in consumer electronics, toys, model aircraft, security, automotive electronics and electronic equipment, office equipment to streamline the development of important pieces of the Important component. Hofon Motor is more conductive to customer demand, with customers to design and develop new products, specifically in the refined products focused on the needs of customers, shorten the cycle of research and development under the precondition of, and continued to enhance customer satisfaction and productivity and to create a positive Hofon customers out of the trust.
We are committed to the Company's production of the motor and gear components with high quality and reasonable price, fast delivery and high satisfaction of marketing services around the world.
Certifications
Exhibition
Packaging & Shipping
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
