Hanwha Samsung SMT machine PCB Pick and Place Machine Chip Mounter SM482 SM481PLUS SM471plus PlacerReady Stock With nice price

Product Overview

Description

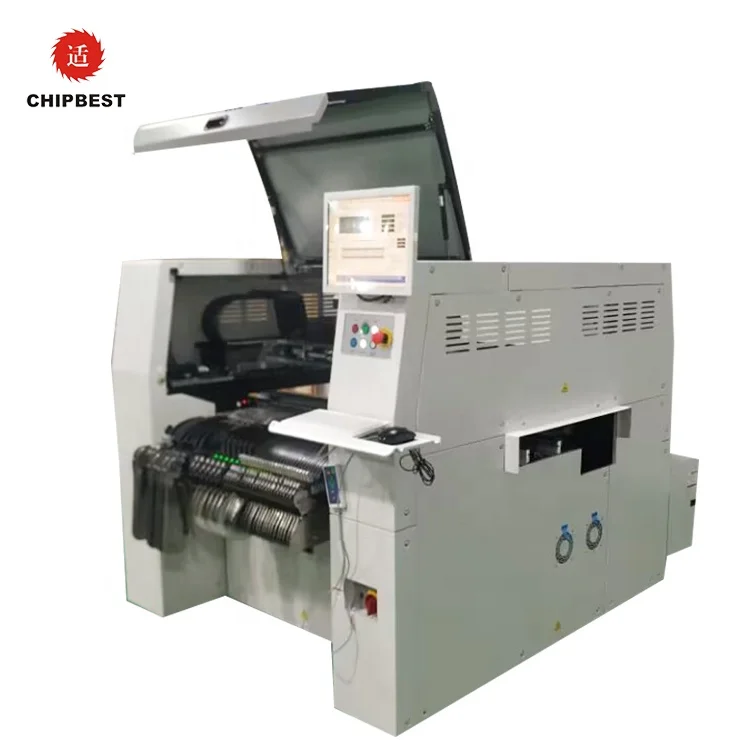

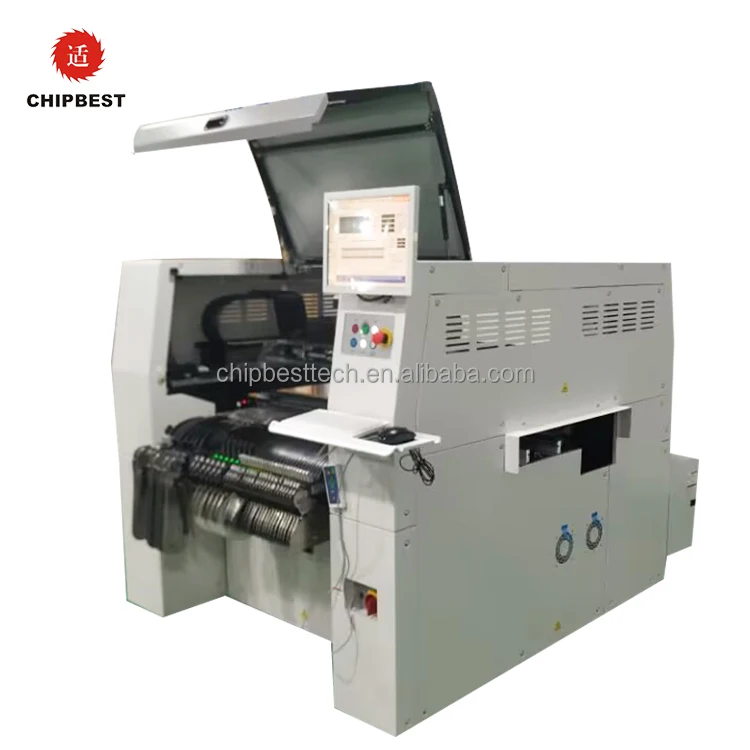

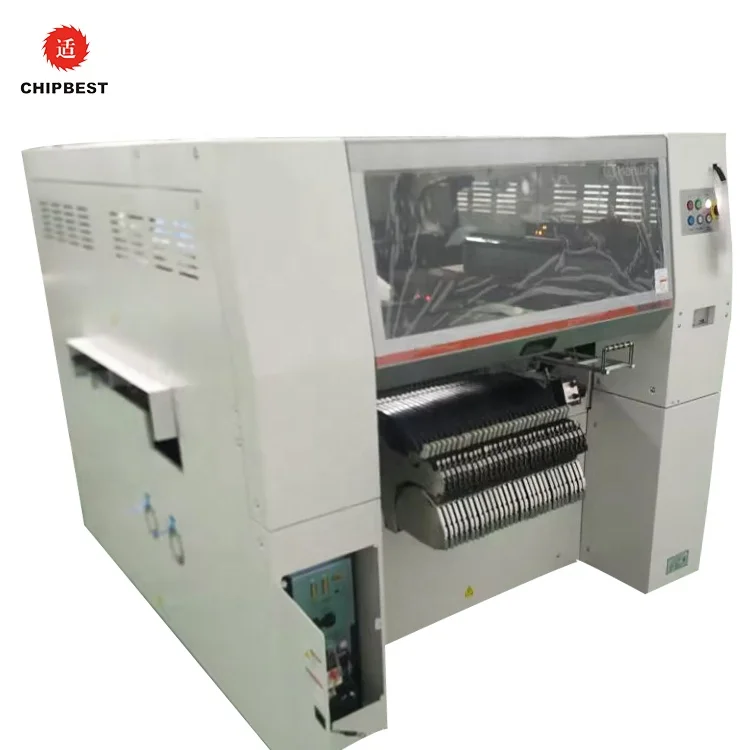

SM482 Plus Chip Mounter Machine Picture:

Features:
1. aiming at strengthening the corresponding ability of special-shaped components, it is a universal machine equipped with one cantilever and six shafts.
2. 55mmIC can be mounted, and Polygon identification scheme is supported.
3. Mounting accuracy correction system (suction position correction, head correction, track correction, etc.)
4. It can be mounted with 0603-55mm (h = 15mm), which is a long board for producing LED and display.
5. Can correspond to MAX.740(L)×460(W)PCB (option)
6. NEW vacuum system and suction/mounting mode are optimized, and the suction position is automatically aligned.
7. Through the vacuum pump, the material absorption is stable and the air pressure consumption is reduced.
8. Suitable for electric feeder, improve the actual productivity and mounting quality.
9. And can be shared with SM pneumatic feeder, so as to solve the customer's convenience.

Parameters:
1. more than 120 8mm feeders can be accommodated (Docking Cart)
2. 6 shaft *1 cantilever
3. Mounting speed: 30,000CPH (better conditions)
4. The mounting accuracy: 50um @ u+3u2/chip, 30um @ u+3u2/qfp,
5. Dimensions of components: Chip 0603~55mm(H 15mm), ~ ~L75mm Connector,
6. Substrate size (monorail): 50(L)*40(W)~460(L)*400(W)
7. PCB thickness: 0.38mm~4.2mm
8. Power supply: AC 200/208/220/240/380/415 V (50/60 Hz, 3 3Phase)Max.4.7kva
9. Air pressure: 0.5 ~ 0.7 MPa (5-7 kgf/cm2) 180 NL/min
10.Weight: about 1600KG
11. Equipment size: 1650(L)*1680(D)*1530(H)
12. Configuration: Nozzles suction nozzle (including TOOL:1pcs, 20PCS in total)

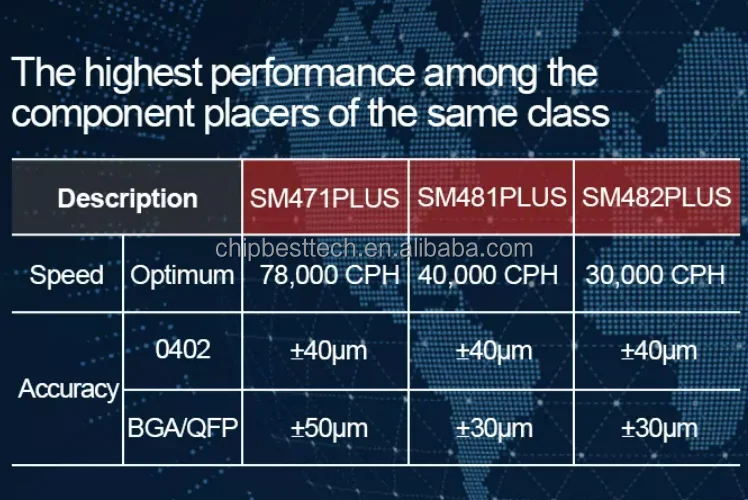

Serises Pick And Place Machines :

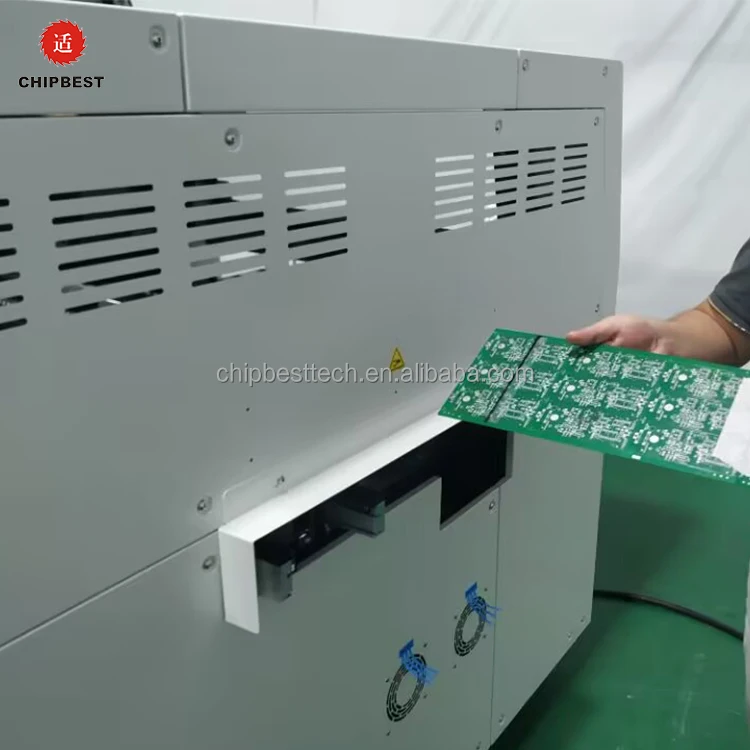

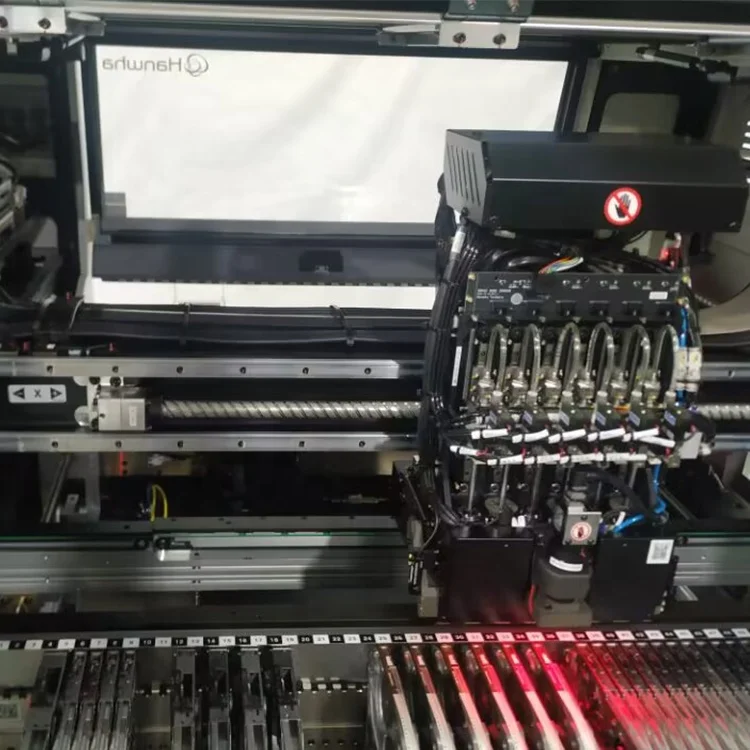

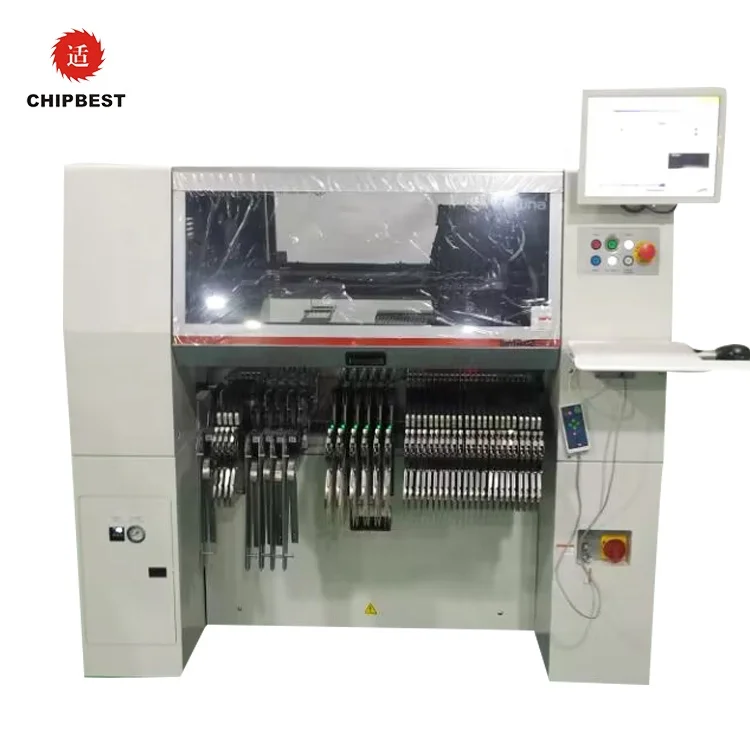

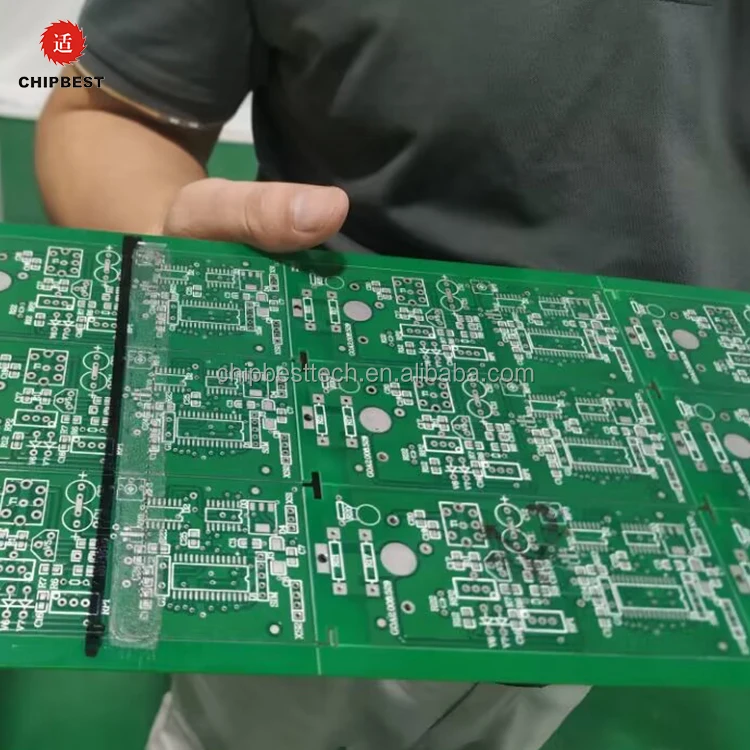

SM482 Plus Placement Machine Detailed Pictures :
