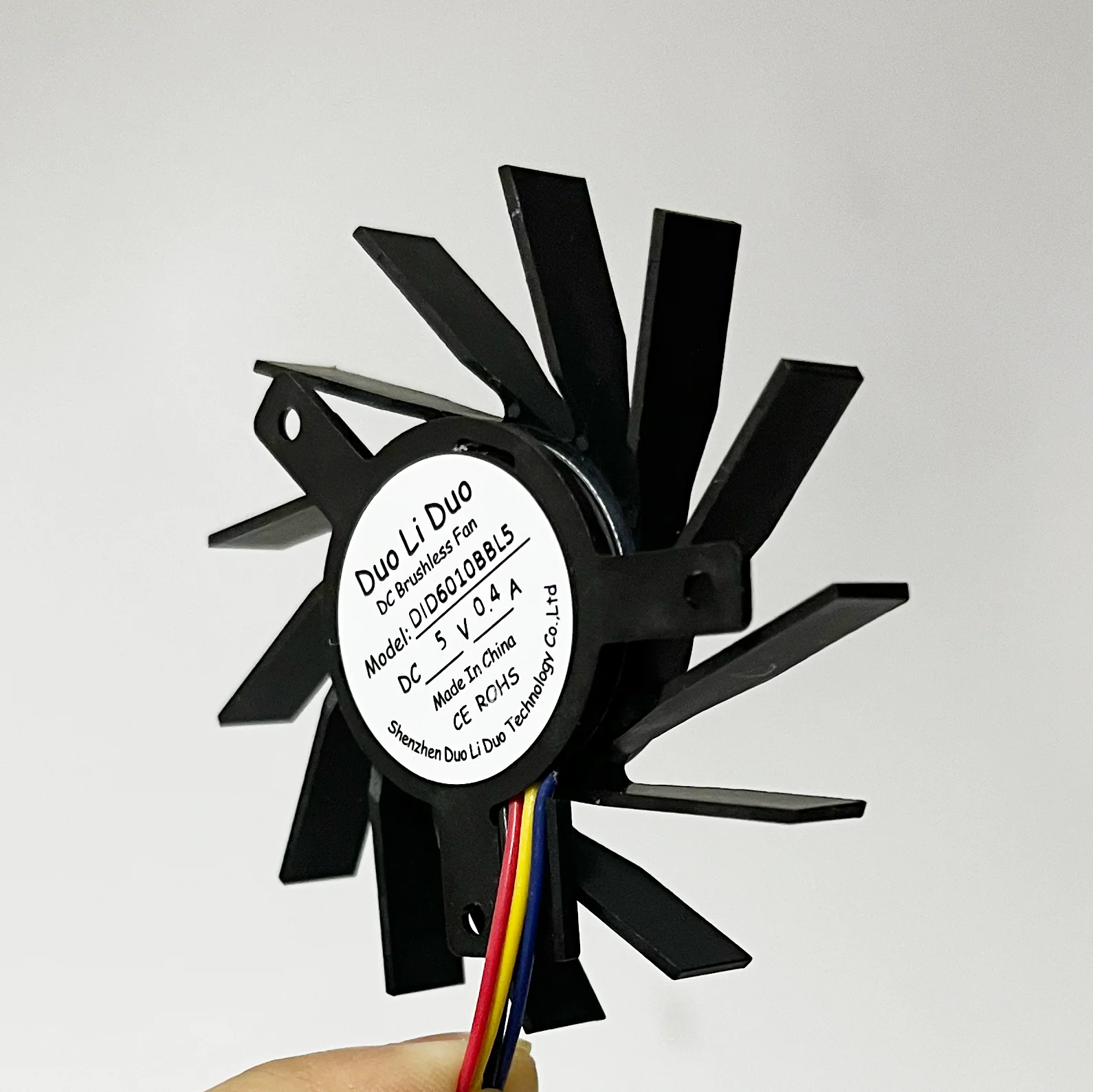

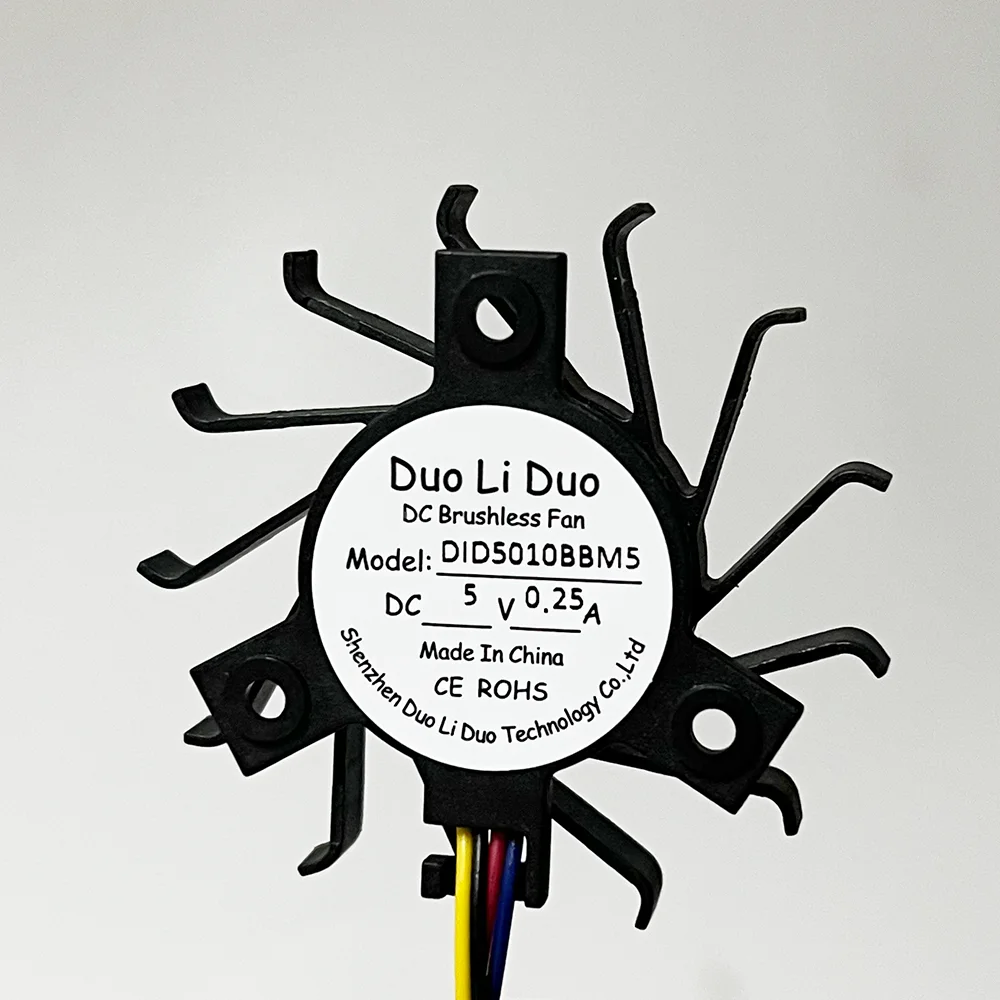

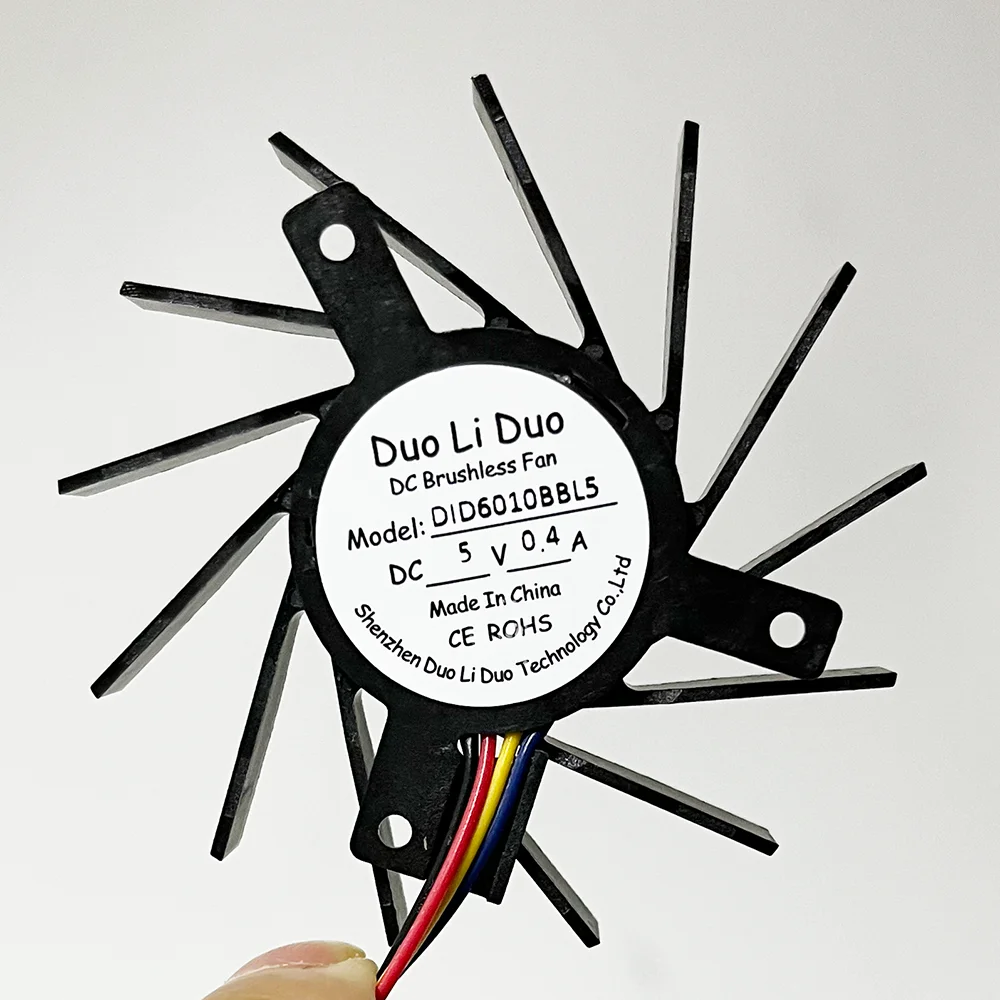

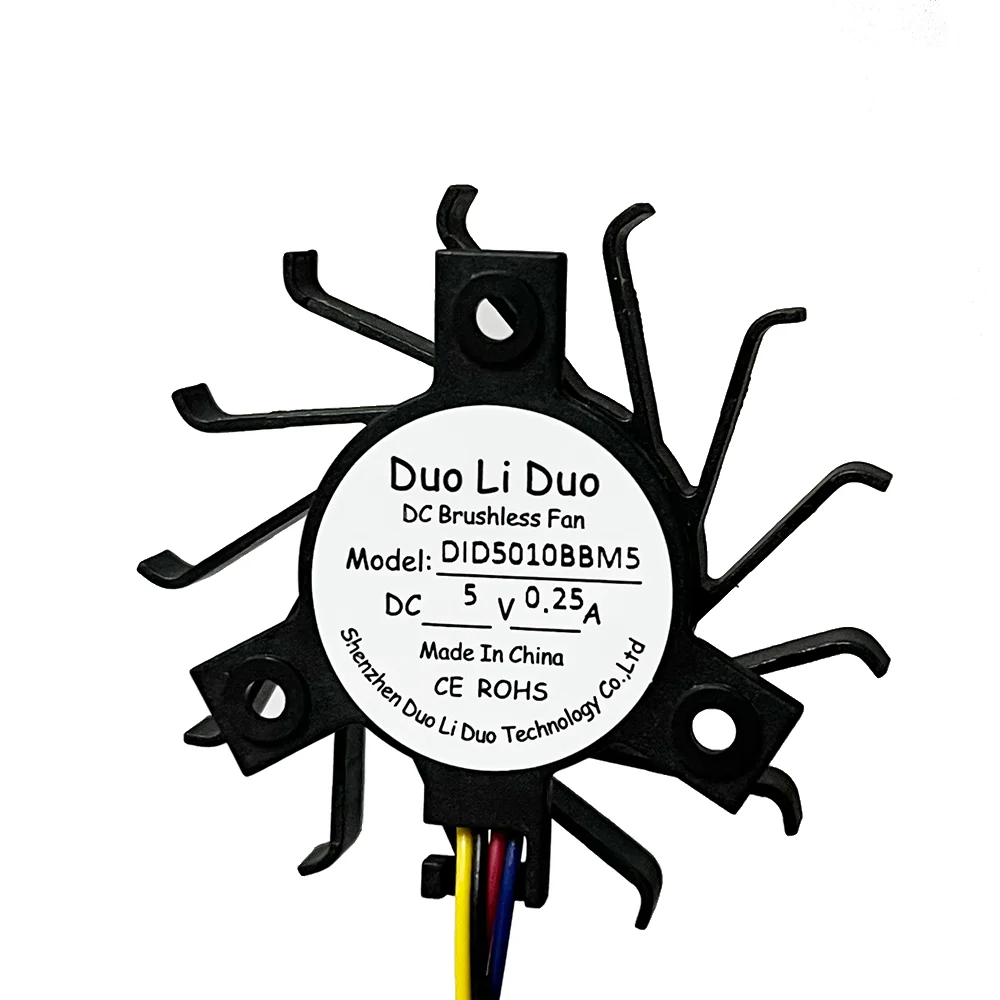

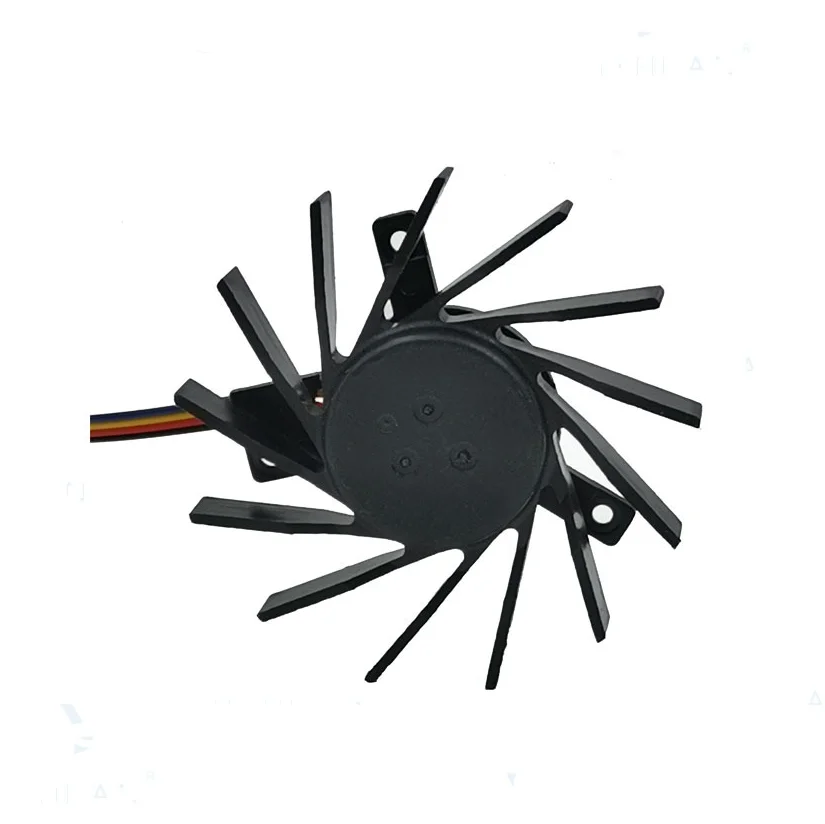

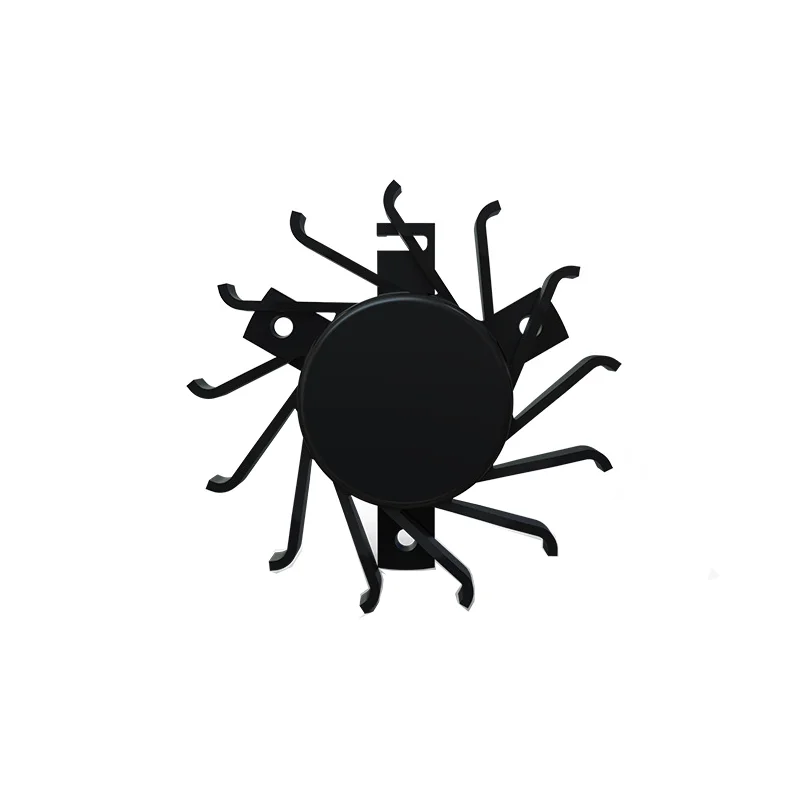

5010 frameless fan 50mm Turbine support fan Micro industrial DC cooling fan
- Category: >>>
- Supplier: Shenzhen Duo Li Technology Company Limited
Share on (1600652105014):
Product Overview
Description
Product Paramenters
Product categories: Frameless fan
Brand: DID
Product Model: DID6010FB
Voltage: 5V / 12V / 24V DC
Speed: 3000~6000 RPM
Max Air Flow: 6.6 CFM
Max air pressure: 3.81 mmAq
Noise: ＜41 dB
Bearing: sleeve bearing / ball bearing
Life: 30000H / 50000H
Material: environment protection
Wire: 2, 3, 4 wire/pin
Standard Function: PWM, FG, RD
Model | Bearing Type | Rated Voltage | Input Current | Input Power | Speed | Max Air Flow | Max air pressure | Noise |
DID5010 | B/S | VDC | Amp | Watt | RPM | CFM | mm-H2O | dB-A |
FB(S)H5 | B/S | 5 | 0.20 | 1.0 | 5000 | 5.5 | 2.66 | 37.6 |
FB(S)M5 | 0.15 | 0.75 | 4000 | 4.8 | 1.62 | 31.8 | ||
FB(S)H1 | 12 | 0.10 | 1.20 | 6000 | 6.6 | 3.81 | 42.2 | |
FB(S)M1 | 0.08 | 0.96 | 5000 | 5.5 | 2.66 | 37.6 | ||
FB(S)L1 | 0.07 | 0.84 | 4000 | 4.8 | 1.62 | 31.8 | ||
FB(S)M2 | 24 | 0.05 | 1.20 | 5000 | 5.5 | 2.66 | 31.8 | |
FB(S)L2 | 0.04 | 0.96 | 4000 | 4.8 | 1.62 | 26.2 |
Product material
Frame: | PBT |
Impeller: | PBT |
Bearing type: | sleeve bearing/ball bearing |
Motor: | DC Motor |
Voltage: | 5V 12V 18V 24V DC |
Warranty: | 1 year |
Application | Aquarium lamp, video card, LED lamp, induction cooker, case |
