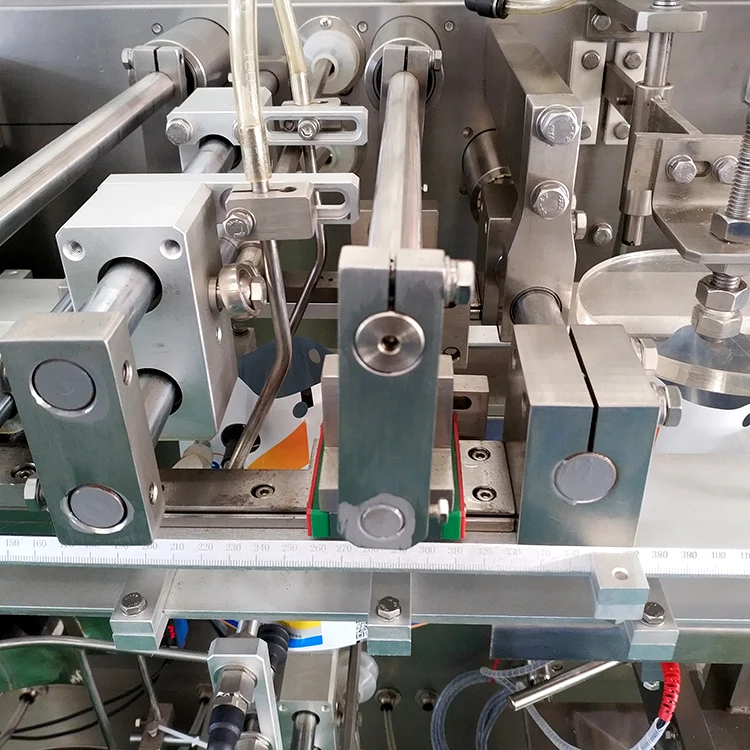

Acepack brand automatic bag filling machine for tomato paste

Share on (1600652370575):


Price:$68,000.00 - $70,000.00

Quantity:


Product Overview

Description



Machine Profile


cost saving top spout doypack form fill and seal packaging filling machine

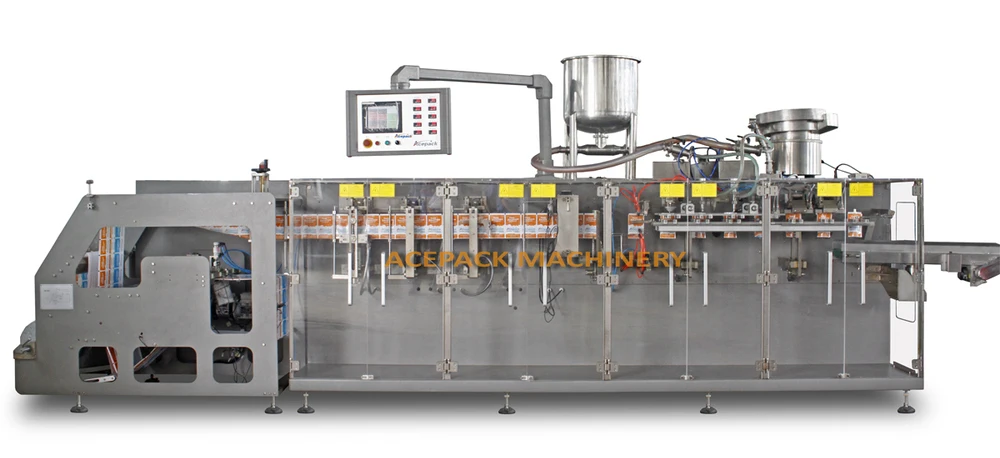

DS-180SC is designed for standup pouch with top spout packing. It can make standard standup pouches also with zipper, side spout as well as adding special  functions like hanging hole or special shapes. Too add special functions to the pouches , please refer to DS-180SZ (zipper),  DS-180SXC(side spout) etc. 2 DS-180SC-.jpg


  We will offer the best solution according to your requirement.








Technical Parameter


















































Pouch Width90-180mm
Pouch Length160-260mm
Max Filling Capacity800ml
Speed40-60 pouches per minute
Electric Components BrandMitsubishi/Schneider/Simens
Touch Screen LanguageEnglish/Spanish/Russia
Electricity Consumption8KW
Air Consumption200 NL/min
Weight2500kg
Size (L×W×H)6000x1100x1500mm

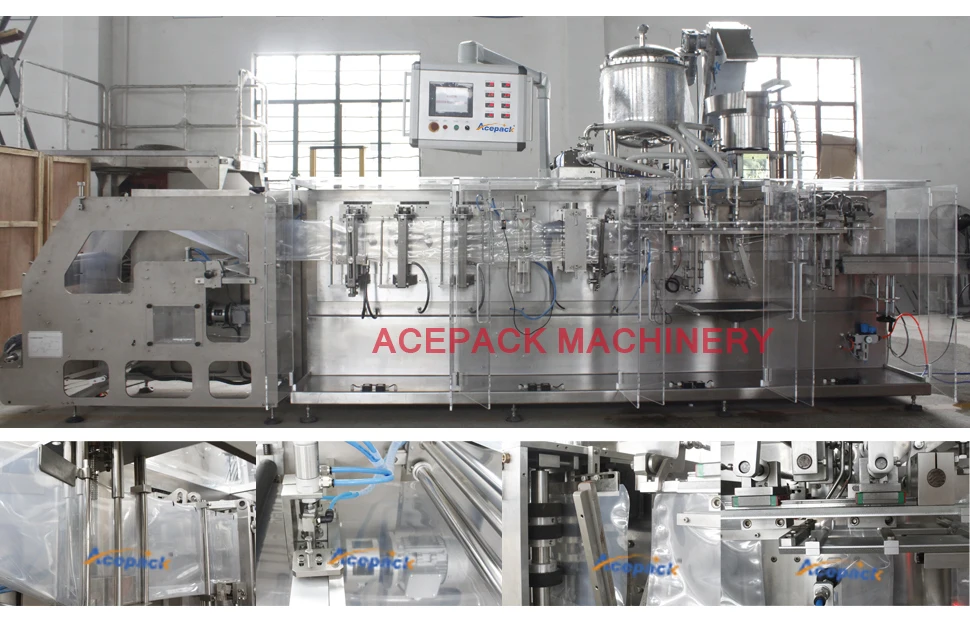

Machine Details


 Wine packing machine.jpg




Functional Design, easily operation, HCI, more friendly user operation.


 .jpg

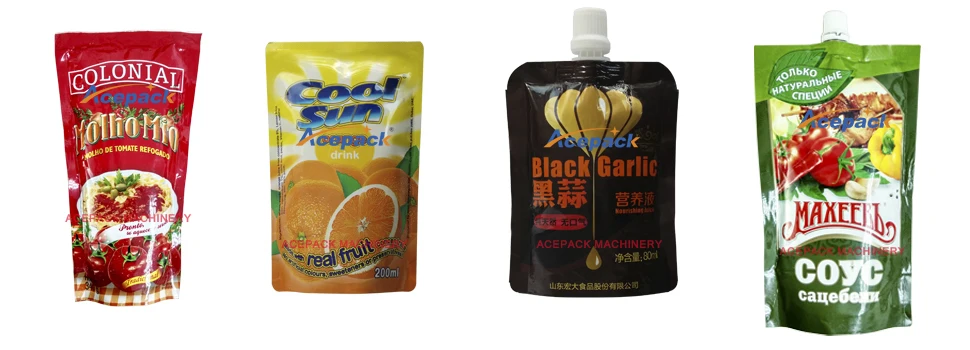

  All the pouch samples are from our clients’.






Filling Solution


 *The filling system is just for your reference. We will offer you best solution according to your product mobility, viscosity, density, volume, dimensions etc.





A. Powder Packing Solution


* Servo Screw Auger Filler is specialized for powder filling such as nutrients powder, seasoning powder, flour, medicinal powder etc.





B. Liquid Packing Solution
* Piston Pump Filler is specialized for liquid filling such as water, juice, laundry detergent, ketchup etc.





C. Solid Packing Solution


* Combination multi-head weigher is specialized for solid filling such as candy, nuts, pasta, dried fruit and vegetable etc.





D. Granule Packing Solution
* Volumetric Cup Filler is specialized for granule filling such as chemical, beans, salt, seasonings etc.






E. More Packing Solution
* For more solution, welcome to contact us.


Wine packing machine.jpg









Company Profile


 Shanghai Acepack Machinery Co., Ltd. is established in 2005. We have our own powerful Research and Development team and abundant packing experience. We devote to offer you better packing needs, solutions and service.




Machine In Our Workshop


*HFFS Packing Machine Workshop


1 HFFS.png

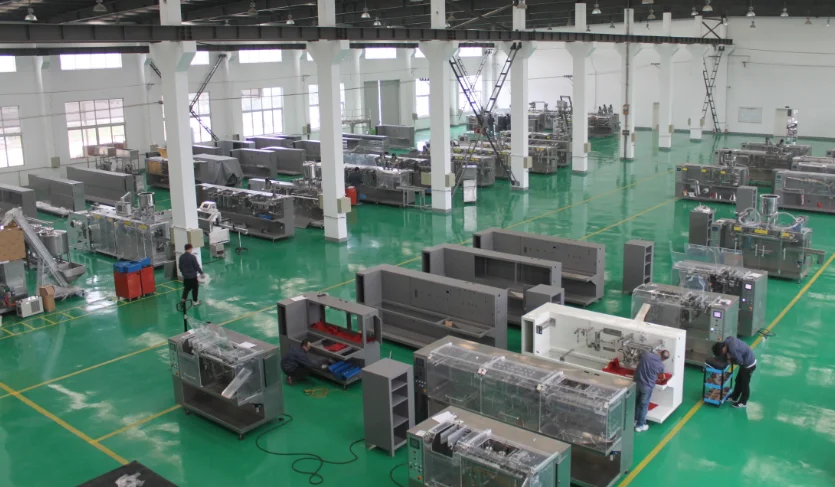

*HFS Packing Machine Workshop


 2 HFS.png









Machine On Site


 .jpg




 Our machines are widely used in the packing fields of food, cosmetics, pharmaceuticals, house chemicals, healthy products, etc and have been exported to more than 30 countries and regions.









Certifications


 Wine packing machine.jpg




 Our company won the national high-tech enterprises, ISO 9001:2008, CE certified and more than 50 patents.





 With Our Clients 13.jpg
