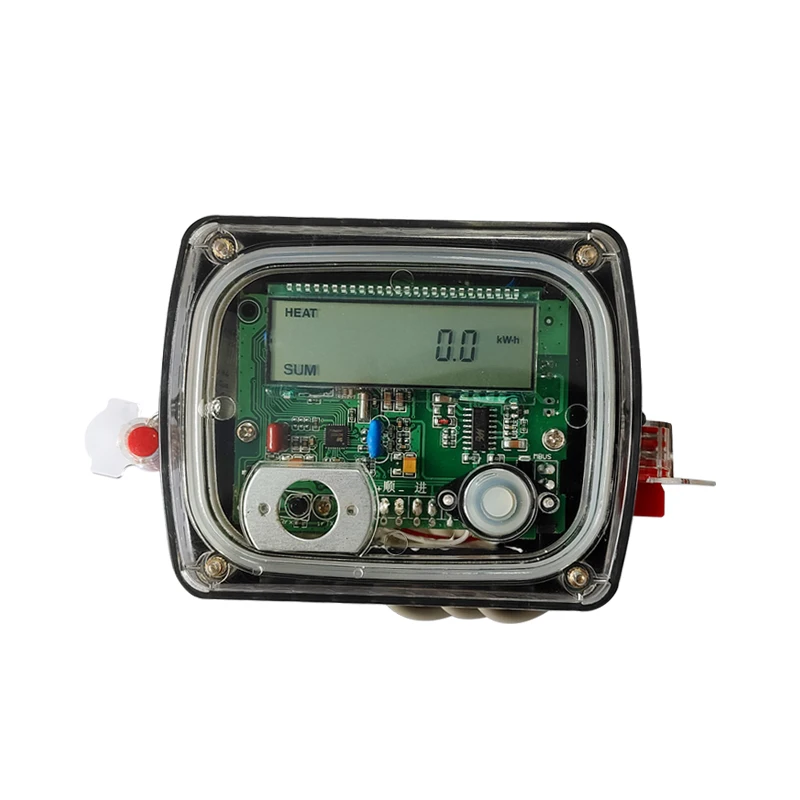

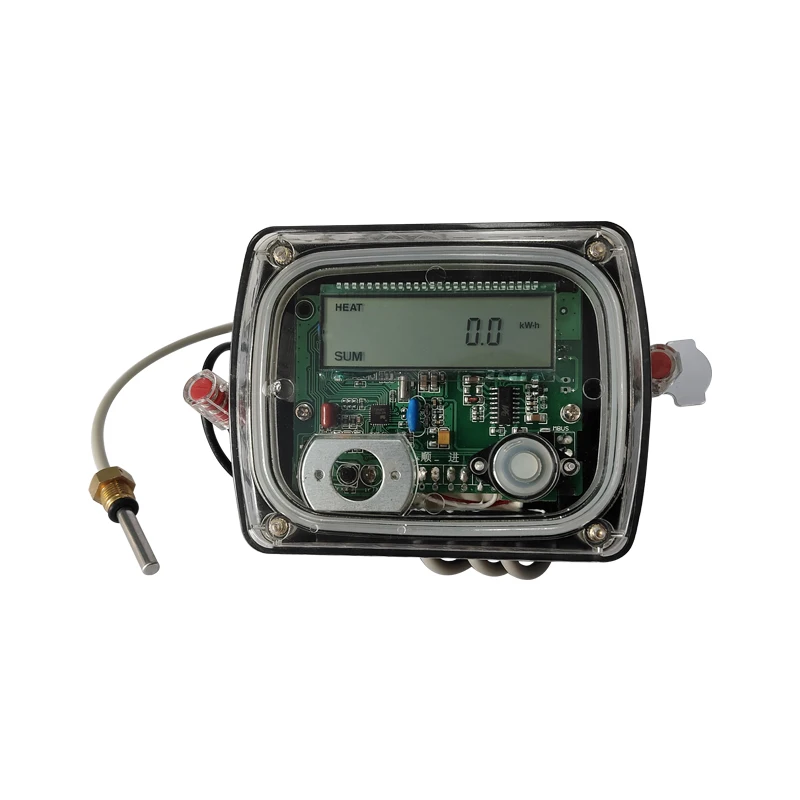

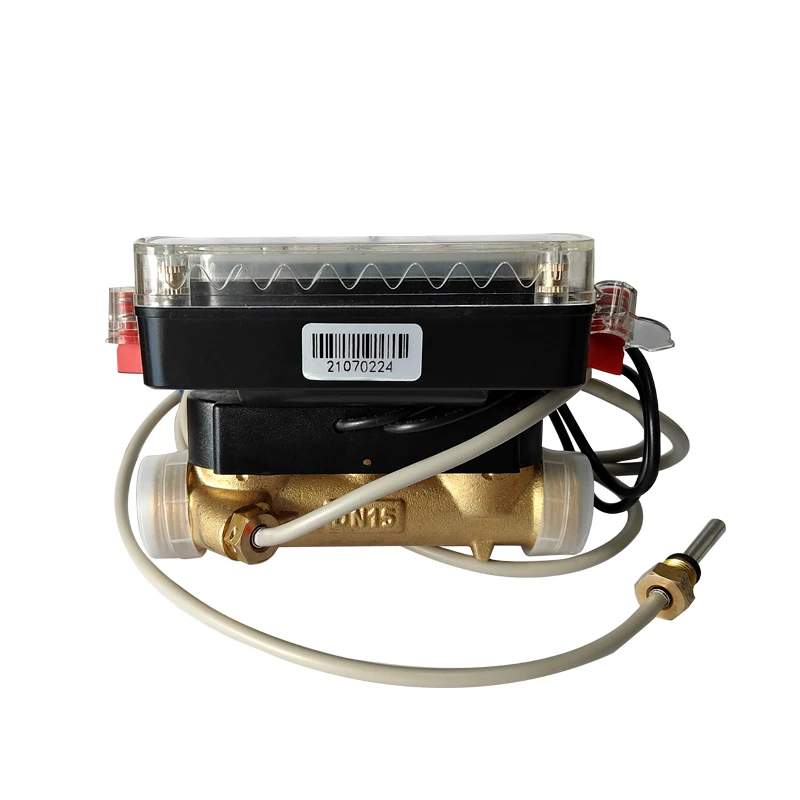

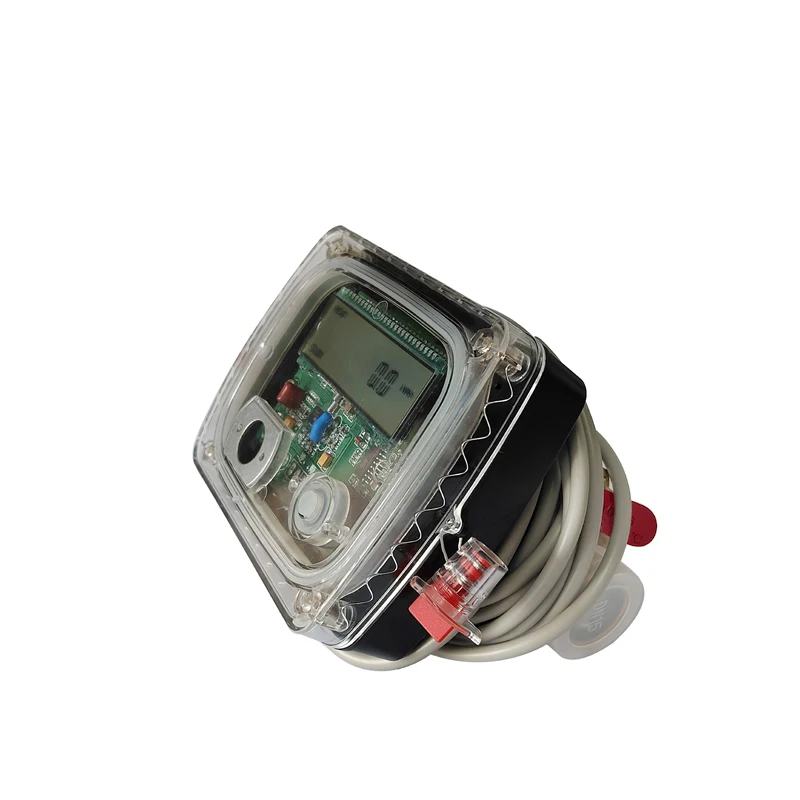

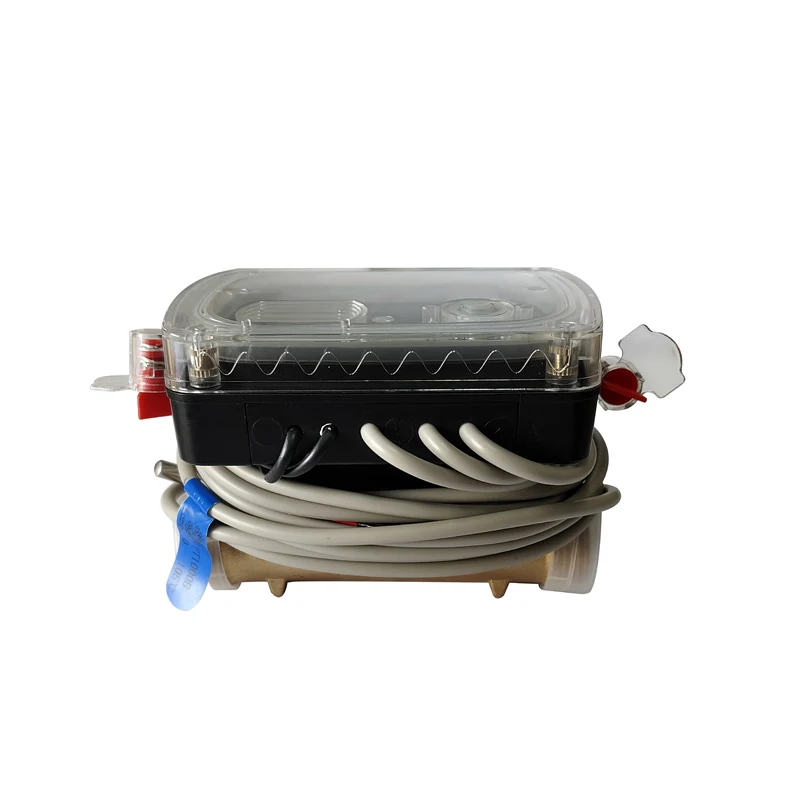

High quality flow measurement ultrasonic heat meter
- Category: Water Meters >>>
- Supplier: Taian Xin Haitai Sensor Co. Ltd.
Share on (1600652396672):
Product Overview
Description
Parameter table
R(Q3/Q1) | R100 |
Accuracy Class | Class 2 |
Communication protocol | CJ-T188-2018，EN1434 |
Standard Compliance | CJ128-2007，EN1434 |
Data interface | RS485、M-BUS |
Temperature Range | 4℃～95℃ |
Power supply | Battery DC 3.6V lithium battery |
Protection Class | IP68 |
Max.permissible Working Pressure | 1.6 MPa |
Mechanical Structure | Integration |
Working Environmental Requirement | Ambient temp.：-15℃～ ﹢70℃； Humidity：<100% （RH) |
EMC Class | E1 |
Data Storage | 24 Month |
Static Consumpion | ＜12μA |
Average working current | ＜25μA |

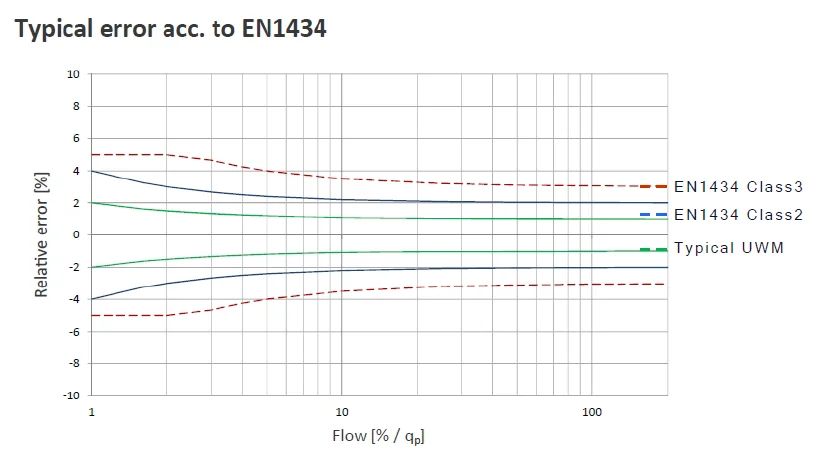

Flow Error Curve

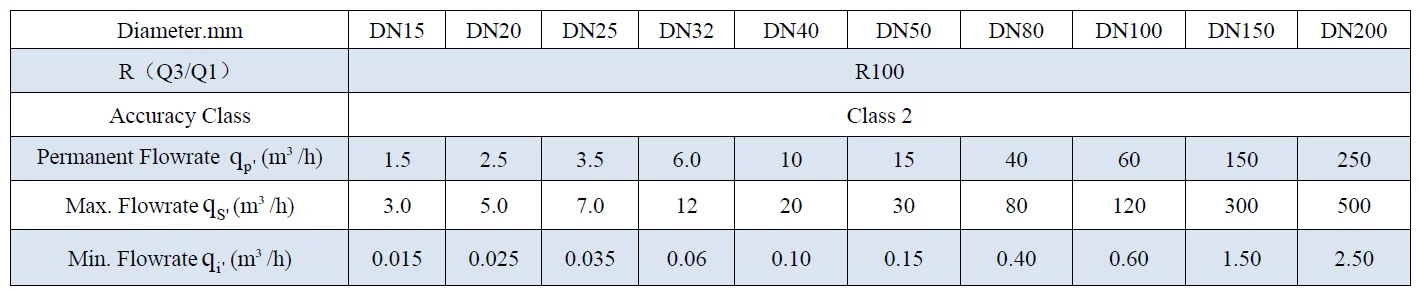

Actual Flow Performance Parameters
