RoHS certificated 5 years warranty super bright 0.06w 5mm red oval led diode 625nm lens red diffused

Product Overview

Description

RoHS certificated 5 years warranty super bright 0.06w 5mm red oval led diode 625nm lens red diffused



Free sample: 50Pieces

Product advantage: Warranty 5 years

1.Gold wire:100% pure gold wire,Excellent stability,Thermostability

2.Chip:Imported chip,such as Epistar or Osram chip,Low light attenuation,High brightness

3.Metal PIN:Tin easily,Good head conduction,Copper material+Silver plated+Tin plated,not easy to oxidize

4.Colloid:Environmental protection epoxy resin,Thermostability,Anti-altraviolet

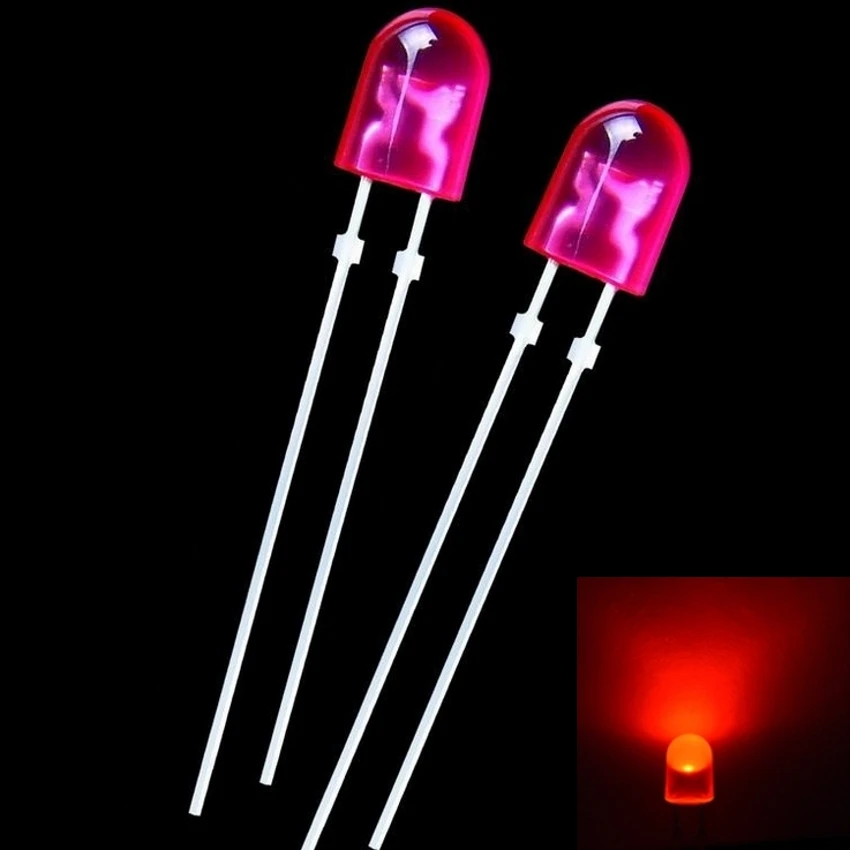

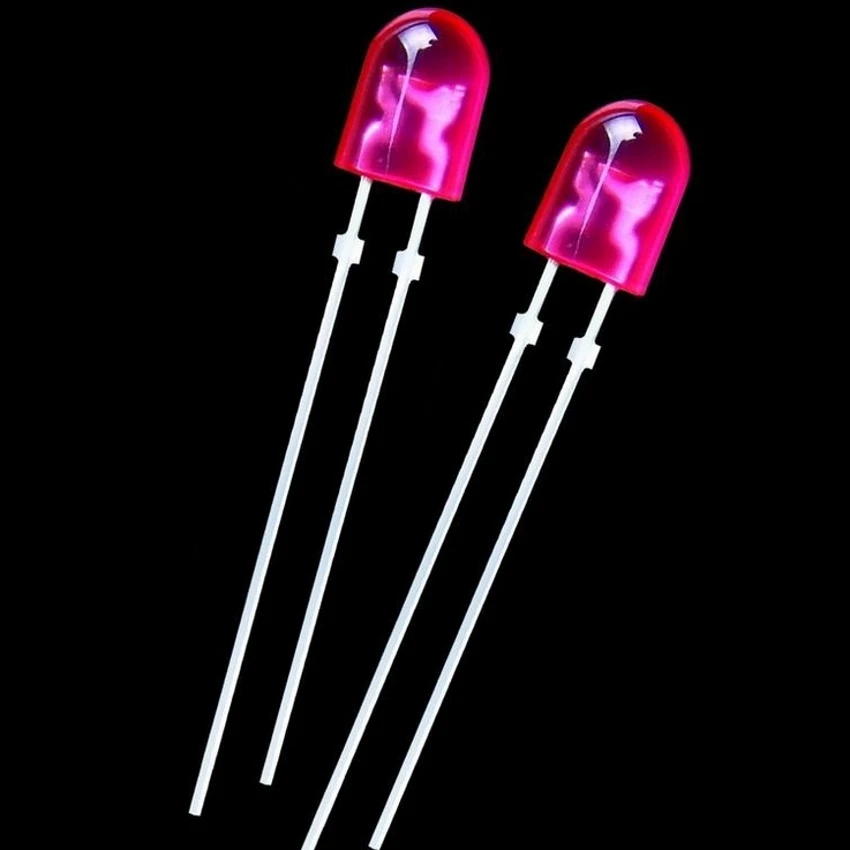

Real photo

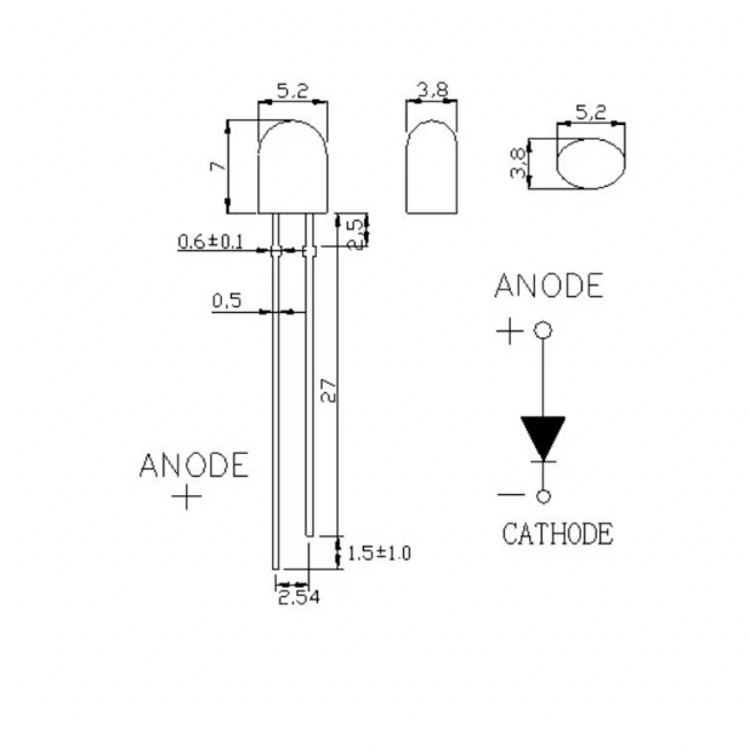

Product Size

5mm Oval shape Red led diode

super bright for display and sign

Long life solid state reliability

RoHs compliant.



Electrical and optical characteristics

 Absolute Maximum Ratings at Ta=25℃

Parameter	MAX.	Unit
Power Dissipation	80	mW
Peak Forward Current (1/10 Duty Cycle, 0.1ms Pulse Width)	100	mA
Continuous Forward Current	30	mA
Derating Linear From 50℃	0.4	mA/℃
Reverse Voltage	5	V
Electrostatic Discharge(HBM) ESD	2000	V
Operating Temperature Range	-40℃ to +85℃
Storage Temperature Range	-40℃ to +100℃
Lead Soldering Temperature [4mm(.157”) From Body]	260℃ for 5 Seconds



 Electrical Optical Characteristics at Ta=25℃

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Luminous Intensity	Iv	500	---	1000	mcd	IF=20mA (Note 1)
Viewing Angle	2θ1/2		120	--	Deg	(Note 2)
Dominant Wavelength	λd	620	--	630	nm	IF=20mA (Note 3)
Forward Voltage	VF	1.8	---	2.4	V	IF=20mA
Reverse Current	IR	---	---	5	µA	VR=5V
