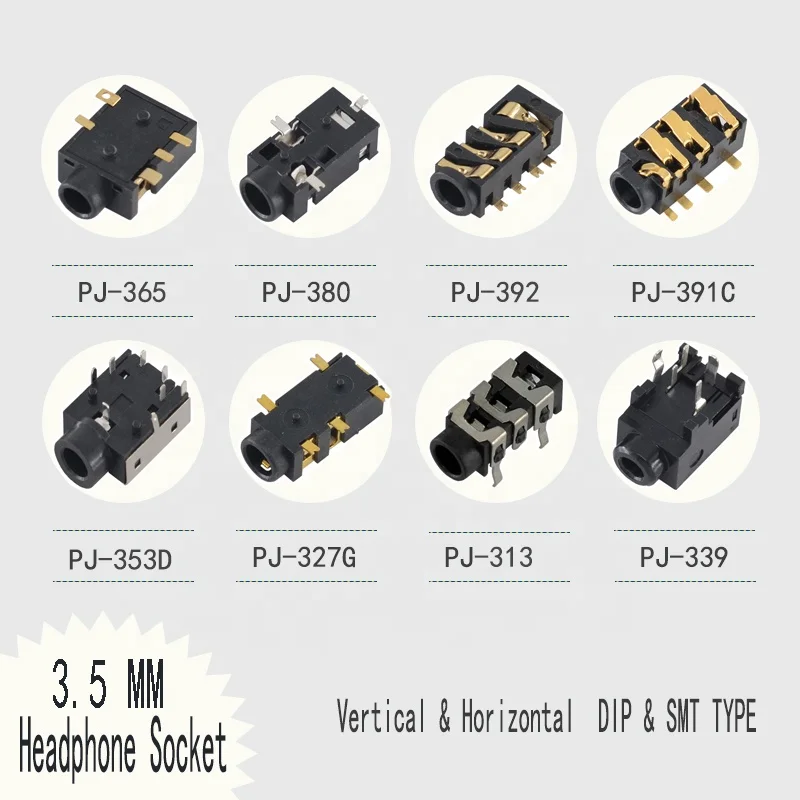

WINTAI Headphone Jack

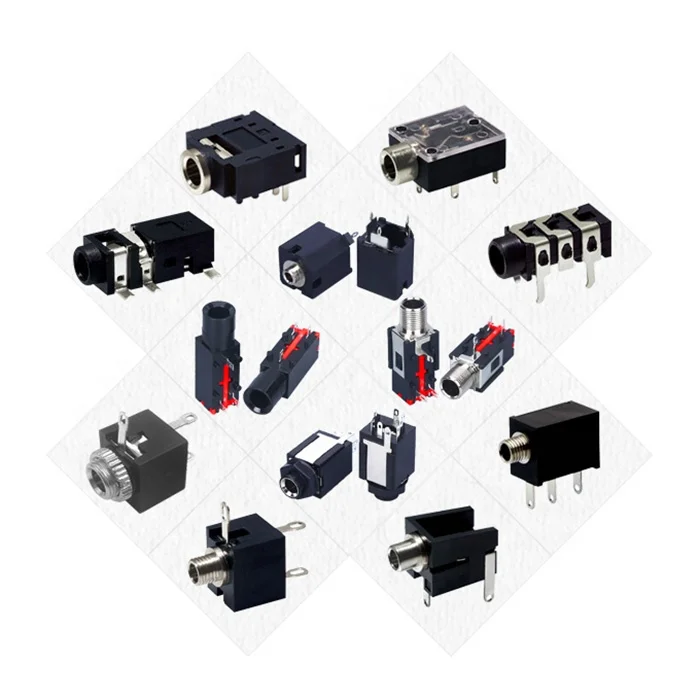

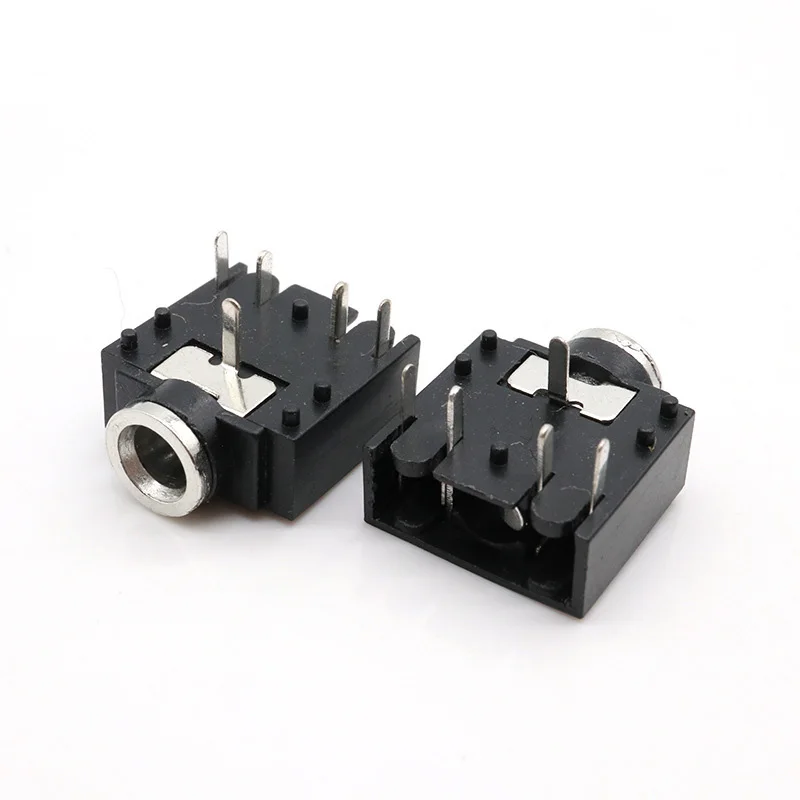

The Wintai headphone socket series has been developed specifically for transmitting audio signals for a variety of portable applications. More than 1000 models, including 2.5mm, 3.5mm, 6.35mm, patch type, clip type, sink type, reverse type, etc. The headphone socket is 3.5mm through hole type. There are many colors to choose, such as black, blue, green , yellow, and so on. There are 6 positioning pins on the underside of the socket to ensure a firm mounting.


Details Images


Performance Specification

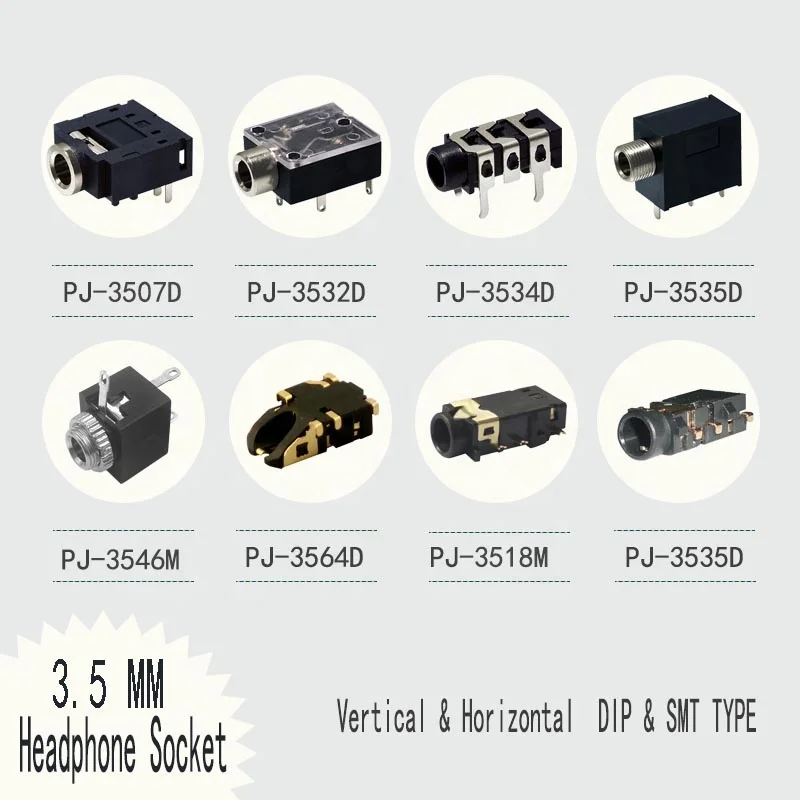

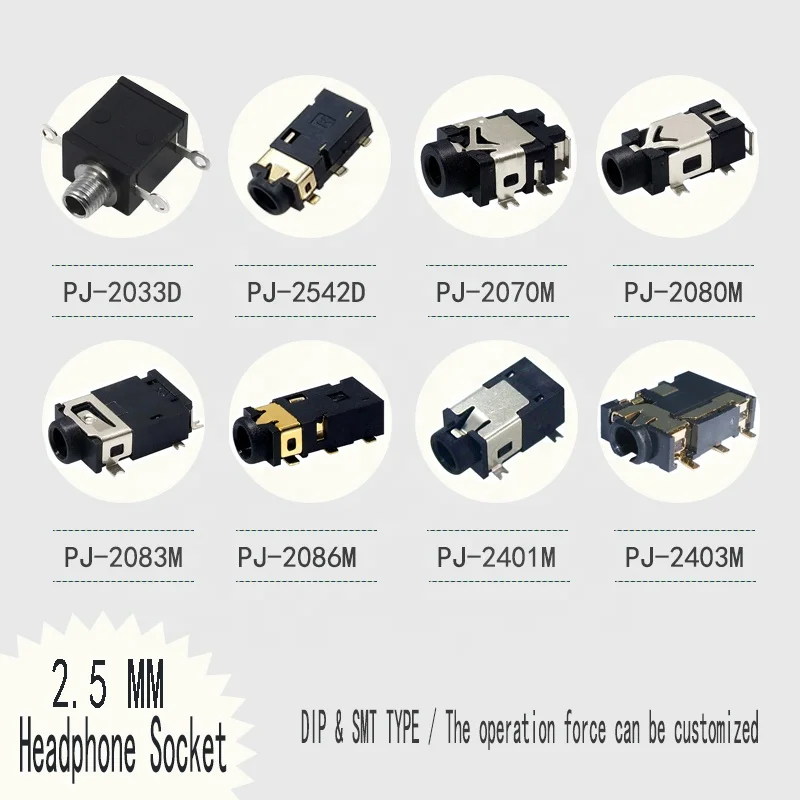

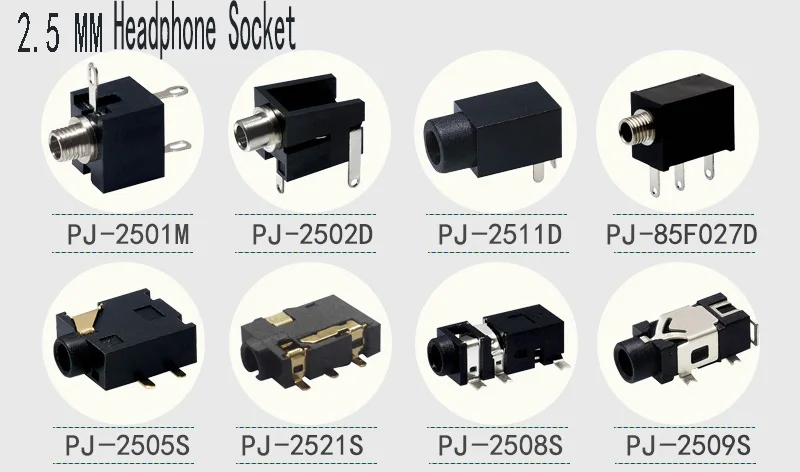

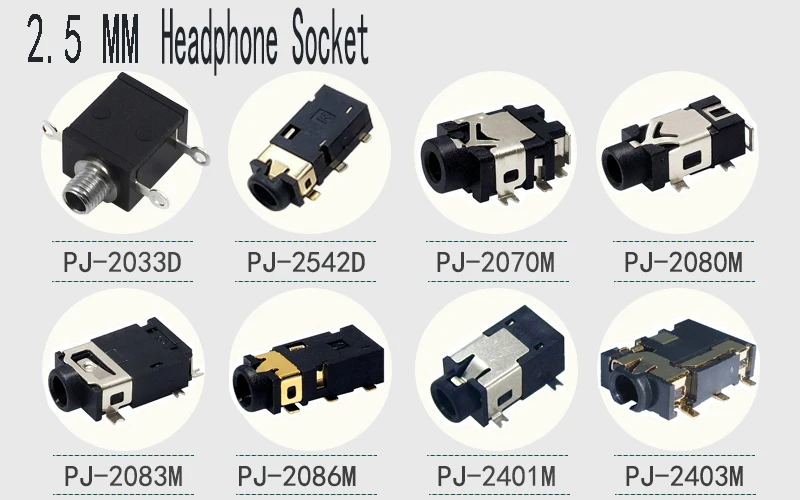

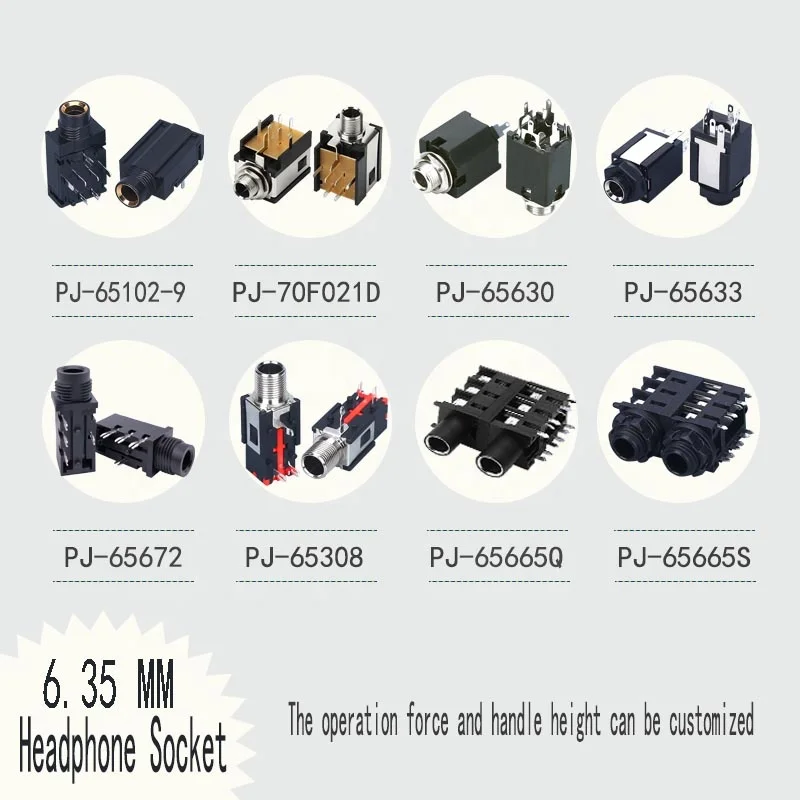

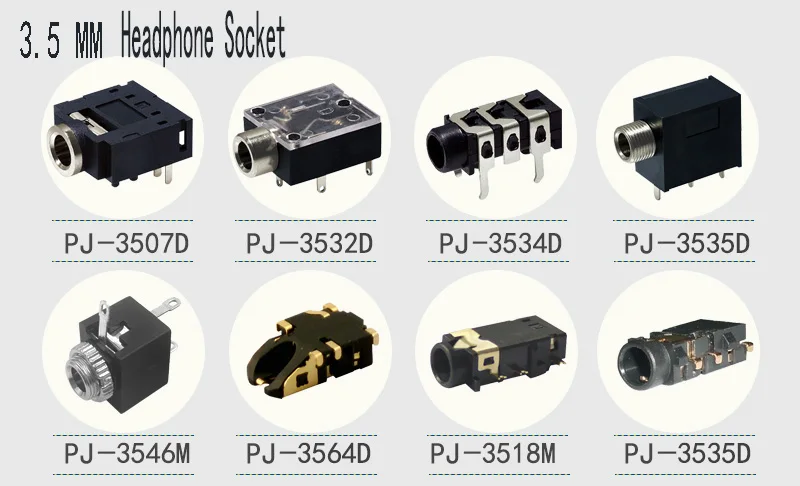

The diameter of the inner hole of the commonly used headphone socket is 2.5mm, 3.5mm and 6.35mm. And the audio phoen jack socket is 3.5mm.
The headphone socket consists of 3 pins to 5 pins, depending on the design needs, as shown on the left diagram.
Headphone socket is mainly used in mobile phone stereo design, CD player, wireless phone, MP3 player, digital laptop, DVD, digitall camera, and so on.


Product Paramenters


Product Name
Headphone Jack
Current Rating
1A, 30VDC
Withstand Voltag
500 VAC
Operating Force
160gf, 250gf
Operating Temperature
-25oC ～ +80oC
Contact Resistance
50 mΩ Max
Insulation Resistance
100MΩ Min
Life Time
10,000 Cycles
