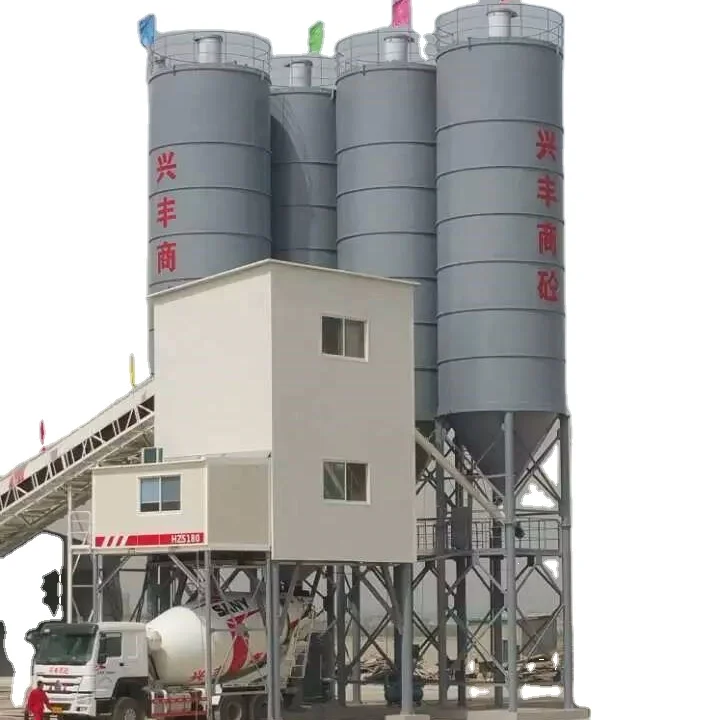

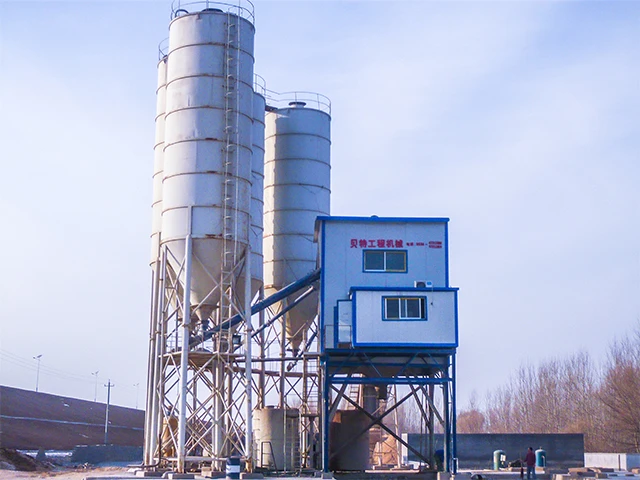

HZS60 road construction equipment concrete batching plant 60m3/h
- Category: Concrete Machinery >>>
- Supplier: Shandong,Beite,Heavy,Industry,Stock,Co.,Ltd.
Share on:
Product Overview
Description
Product Show
Product Paramenters
Model | HZS60 |
Capacity(m3/h) | 60 |
Mixer | JS1000 |
Mixing motor (kW) | 2×18.5 |
Mixer capacity (L) | 1000 |
Discharging height (M) | 4.0 |
Batcher | PL1600 |
Aggregate metering accuracy | ±2 % |
Cement metering accuracy | ±1 % |
Fly ash metering accuracy | ±1 % |
Water metering accuracy | ±1 % |
Additive metering accuracy | ±1 % |
Total power (kW) | 110 |
Product features:
1.Batching system
* Avariety of aggregates could be weighed at the same time with high efficiency..
* The screw tension device at the tail of belt conveyoradjusts the belt tension freely to prevent belt from slipping and deviation so as to ensure the efficient operation.
* The blocking device at the head of belt conveyor prevents material splashing.
* The sidewall of aggregate hopper and scale is equipped with vibrator to help fast weighing and dropping
2.Conveying system
* Avariety of aggregates could be weighed at the same time with high efficiency..
* The screw tension device at the tail of belt conveyoradjusts the belt tension freely to prevent belt from slipping and deviation so as to ensure the efficient operation.
* The blocking device at the head of belt conveyor prevents material splashing.
* The sidewall of aggregate hopper and scale is equipped with vibrator to help fast weighing and dropping
2.Conveying system
* Motorized pulley with strong capacity, steady performance, low noise and long life.
* Enclosed conveying prevents dust and material dropping to ensure high efficiency and environment protection.* Double walkway ensures convenient maintenance.
* The forward-inclined idler adjusts the center automatically and corrects belt deviation effectively.
* Pull-rope emergency stop ensures safe and reliable operation.
3. Weighing system
* Aggregate weighing: load cell with high accuracy; aggregate separate weighing, by coarse and fine weighing.
* Filler weighing: load cell with high accuracy, stable performance; safe and reliable. .
* Cement weighing: load cell with high accuracy ±1%, stable performance; safe and reliable.
* Additive weighing : load cell with high accuracy.
* Water weighing: load cell with high accuracy, short discharging time and high efficiency.
4. Dedusting system
* The mixer and silo top is equipped with pulse dust collector, with high efficiency and environmental protection.
* Aggregate weighing: load cell with high accuracy; aggregate separate weighing, by coarse and fine weighing.
* Filler weighing: load cell with high accuracy, stable performance; safe and reliable. .
* Cement weighing: load cell with high accuracy ±1%, stable performance; safe and reliable.
* Additive weighing : load cell with high accuracy.
* Water weighing: load cell with high accuracy, short discharging time and high efficiency.
4. Dedusting system
* The mixer and silo top is equipped with pulse dust collector, with high efficiency and environmental protection.
5. Mixing system
* The shaft end seal adopts German BHS structure with long service life.
* The lining board and mixing blade are made of high chromium wear-resistant alloy cast iron, the angle design is reasonable, the stirring is efficient and fast, and the service life is long.
* The shaft end is equipped with a fully automatic sealing lubrication system.
* The hydraulic oil pump controls the feeding gate, which realizes three-stage opening, and is equipped with manual brake opening device, which runs stably without noise.
* The lining board and mixing blade are made of high chromium wear-resistant alloy cast iron, the angle design is reasonable, the stirring is efficient and fast, and the service life is long.
* The shaft end is equipped with a fully automatic sealing lubrication system.
* The hydraulic oil pump controls the feeding gate, which realizes three-stage opening, and is equipped with manual brake opening device, which runs stably without noise.
6. Control system
* The control cabinet with Schneider parts realizes automatic, semi-automatic and manual control. It has the functions of formula input and storage, splash error automatic correction, parameter adjustment, scale calibration, automatic failure diagnosis, automatic alarm and real-time printing.
7. After-sale service
* Modular design for convenient and fast installation, maintenance, relocation and transportation.
Company Profile
Exhibition
Certifications
Product packaging
FAQ
Q1: How about the price?
A:We are a professional manufacturer and the offer of product is for reference only,the final price will be according to your configuration,and the final interpretation right belongs to our company.
Q2: What is your payment term?
A:We usually accept T/T, L/C. T/T: Pay 30% of the contract total value in advance ;70% of the total price will be paid before delivery.
Q3: What is the delivery time?
A: Asphalt mixing plant:60 days after receiving advance payment.
Concrete batching plant:30 days after receiving advance payment.
Stabilized soil mixing plant:15 days after receiving advance payment.
Q4: Do you provide after-sale service?
A: Yes. The warranty period of our equipment is one year from delivery, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
A:We are a professional manufacturer and the offer of product is for reference only,the final price will be according to your configuration,and the final interpretation right belongs to our company.
Q2: What is your payment term?
A:We usually accept T/T, L/C. T/T: Pay 30% of the contract total value in advance ;70% of the total price will be paid before delivery.
Q3: What is the delivery time?
A: Asphalt mixing plant:60 days after receiving advance payment.
Concrete batching plant:30 days after receiving advance payment.
Stabilized soil mixing plant:15 days after receiving advance payment.
Q4: Do you provide after-sale service?
A: Yes. The warranty period of our equipment is one year from delivery, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
