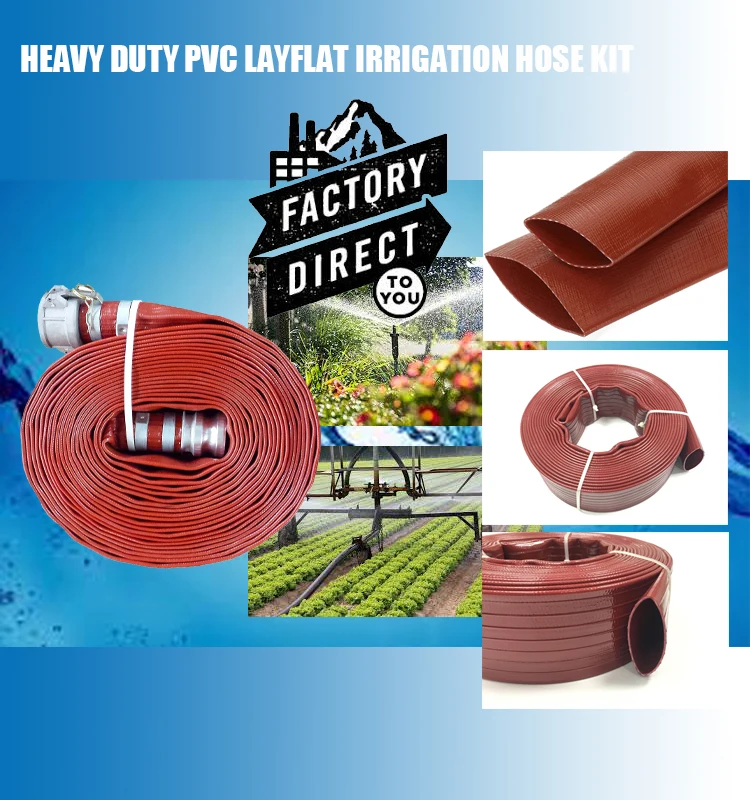

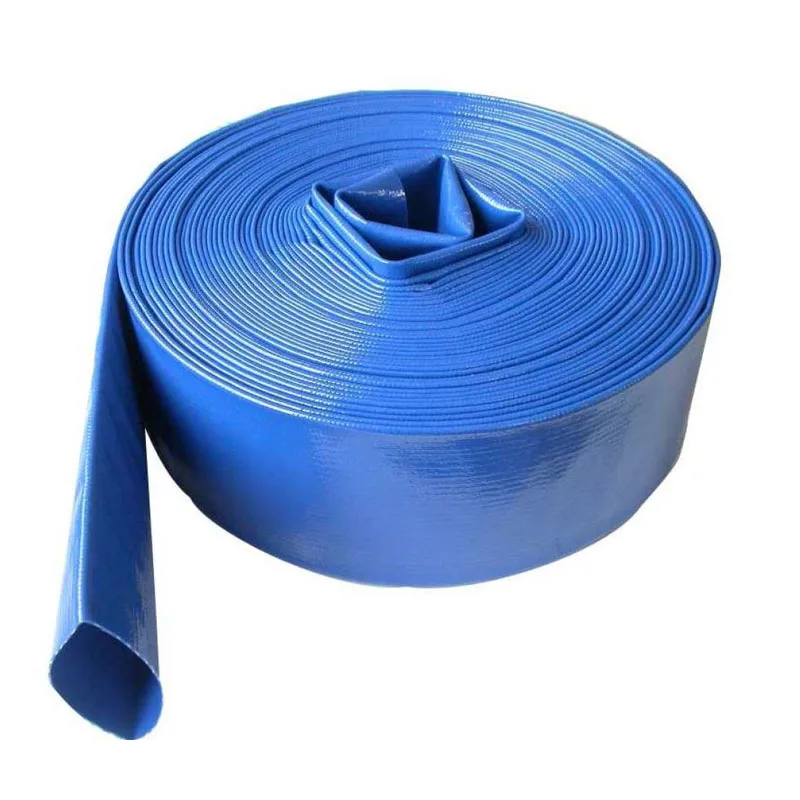

Flexible Farm Water Irrigation Pvc Layflat Hose Pipe
- Category: >>>
- Supplier: Sinopulse Hose Factory Co. Ltd.
Share on (1600652491232):
Product Overview
Description
Product Description

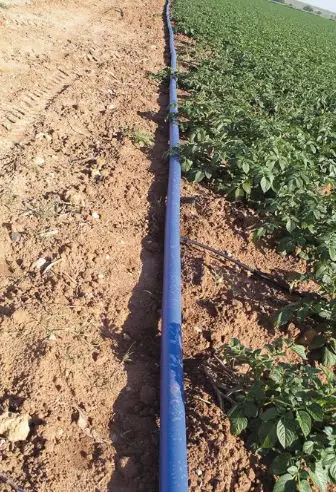

Applications: PVC lay flat hose is designed for light and heavy duty applications,the hoses are most commonly used in agricultural
equipment
where continuous water flow through irrigation systems is required. Other application include water pump, pool & spa,
construction, mines and marine.

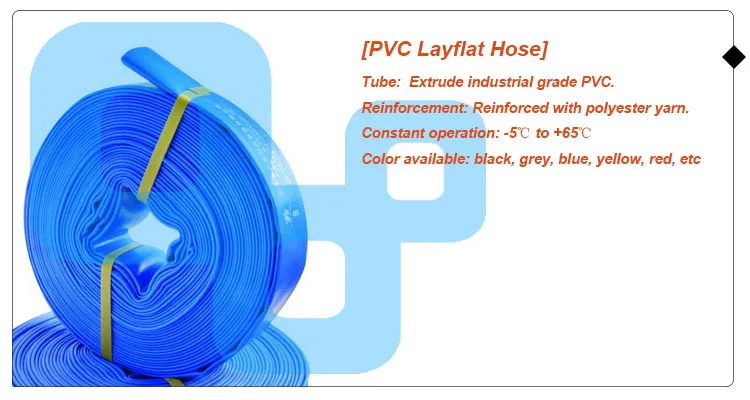

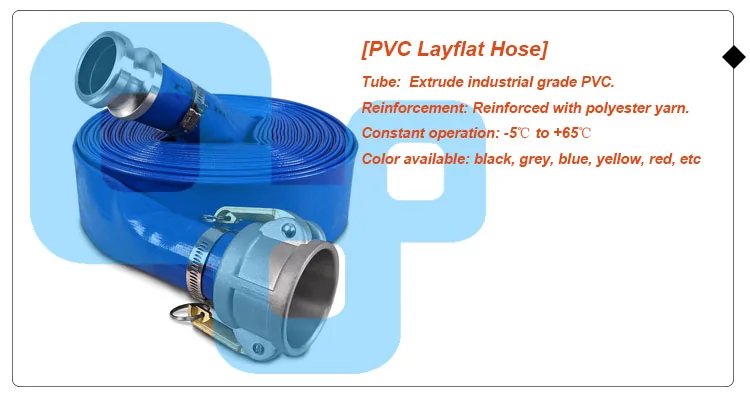

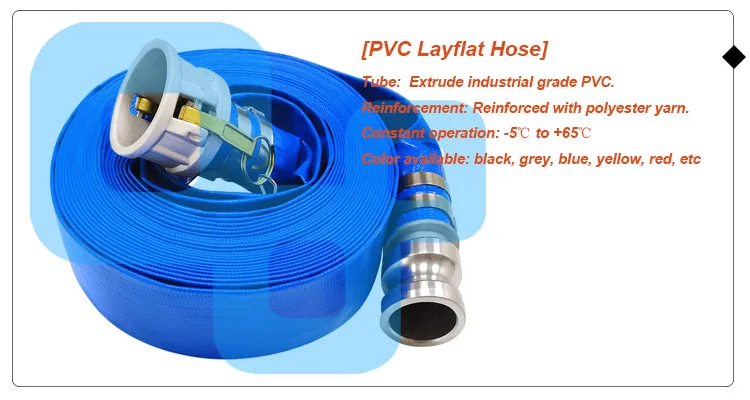

Tube: Non-toxic clear flexible PVC.
Reinforcement: High tensile synthetic fiber braiding.
Cover: Non-toxic clear flexible PVC.
Characteristics:
Light weight,Good flexibility.
Corrosion resistant,anti-aging.
Easy handle & storage.
Various colors available.

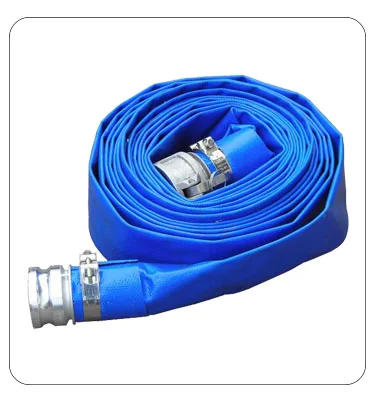

Assemblies and/or cut lengths available.
Non-toxic,Non-smell
Burst pressure 3 times working pressure.
Temperature range: -10℃(-50℉)to + 60°C (+ 140°F)
equipment
where continuous water flow through irrigation systems is required. Other application include water pump, pool & spa,
construction, mines and marine.
Tube: Non-toxic clear flexible PVC.
Reinforcement: High tensile synthetic fiber braiding.
Cover: Non-toxic clear flexible PVC.
Characteristics:
Light weight,Good flexibility.
Corrosion resistant,anti-aging.
Easy handle & storage.
Various colors available.
Assemblies and/or cut lengths available.
Non-toxic,Non-smell
Burst pressure 3 times working pressure.
Temperature range: -10℃(-50℉)to + 60°C (+ 140°F)
Details Images
Standard Duty 4Bar/60 PSI
Part No. | I.D. | W.P. | B.P. | Length | Weight | Volume | ||||||
inch | mm | psi | bar | psi | bar | m/roll | kg/m | m3 | ||||
LFHS20 | 3/4" | 20 | 58 | 4 | 218 | 15 | 100 | 0.14 | 0.014 | |||
LFHS25 | 1" | 25 | 58 | 4 | 218 | 15 | 100 | 0.15 | 0.019 | |||
LFHS32 | 1-1/4" | 32 | 58 | 4 | 218 | 15 | 100 | 0.17 | 0.023 | |||
LFHS38 | 1-1/2" | 38 | 58 | 4 | 218 | 15 | 100 | 0.21 | 0.026 | |||
LFHS51 | 2" | 51 | 58 | 4 | 174 | 12 | 100 | 0.23 | 0.039 | |||
LFHS64 | 2.5" | 64 | 58 | 4 | 174 | 12 | 100 | 0.32 | 0.047 | |||
LFHS76 | 3" | 76 | 58 | 4 | 174 | 12 | 100 | 0.36 | 0.06 | |||
LFHS102 | 4" | 102 | 58 | 4 | 174 | 12 | 100 | 0.55 | 0.083 | |||
LFHS125 | 5" | 127 | 58 | 4 | 174 | 12 | 100 | 0.75 | 0.109 | |||
LFHS153 | 6" | 153 | 58 | 4 | 174 | 12 | 100 | 0.9 | 0.141 | |||
LFHS203 | 8" | 203 | 58 | 4 | 174 | 12 | 100 | 1.8 | 0.193 | |||
LFHS254 | 10" | 254 | 58 | 4 | 174 | 12 | 50 | 2.6 | 0.178 | |||
LFHS305 | 12" | 305 | 58 | 4 | 174 | 12 | 50 | 3.1 | 0.245 | |||
Medium Duty 6 Bar/90PSI
Part No. | I.D. | W.P. | B.P. | Length | Weight | Volume | ||||||
inch | mm | psi | bar | psi | bar | m/roll | kg/m | m3 | ||||
LFHM19 | 3/4" | 20 | 87 | 6 | 305 | 21 | 100 | 0.14 | 0.014 | |||
LFHM25 | 1" | 25 | 87 | 6 | 305 | 21 | 100 | 0.17 | 0.019 | |||
LFHM32 | 1-1/4" | 32 | 87 | 6 | 305 | 21 | 100 | 0.19 | 0.023 | |||
LFHM38 | 1-1/2" | 38 | 87 | 6 | 305 | 21 | 100 | 0.24 | 0.026 | |||
LFHM40 | 1-1/2" | 40 | 87 | 6 | 261 | 18 | 100 | 0.26 | 0.026 | |||
LFHM51 | 2" | 51 | 87 | 6 | 261 | 18 | 100 | 0.3 | 0.039 | |||
LFHM64 | 2.5" | 64 | 87 | 6 | 261 | 18 | 100 | 0.45 | 0.047 | |||
LFHM76 | 3" | 76 | 87 | 6 | 261 | 18 | 100 | 0.5 | 0.06 | |||
LFHM102 | 4" | 102 | 87 | 6 | 261 | 18 | 100 | 0.9 | 0.083 | |||
LFHM125 | 5" | 127 | 87 | 6 | 261 | 18 | 100 | 1.1 | 0.109 | |||
LFHM153 | 6" | 153 | 87 | 6 | 261 | 18 | 100 | 1.8 | 0.141 | |||
LFHM203 | 8" | 203 | 87 | 6 | 261 | 18 | 100 | 2.8 | 0.193 | |||
Heavy Duty 10Bar /150PSI
Part No. | I.D. | W.P. | B.P. | Length | Weight | Volume | ||||||
inch | mm | psi | bar | psi | bar | m/roll | kg/m | m3 | ||||
LFHH76-1 | 3" | 76 | 116 | 8 | 348 | 24 | 50 | 0.66 | 0.03 | |||
LFHH102 | 4" | 102 | 116 | 8 | 348 | 24 | 50 | 1 | 0.042 | |||
LFHH153 | 6" | 153 | 116 | 8 | 348 | 24 | 50 | 2.2 | 0.071 | |||
LFHH203 | 8" | 203 | 116 | 8 | 348 | 24 | 50 | 2.8 | 0.01 | |||

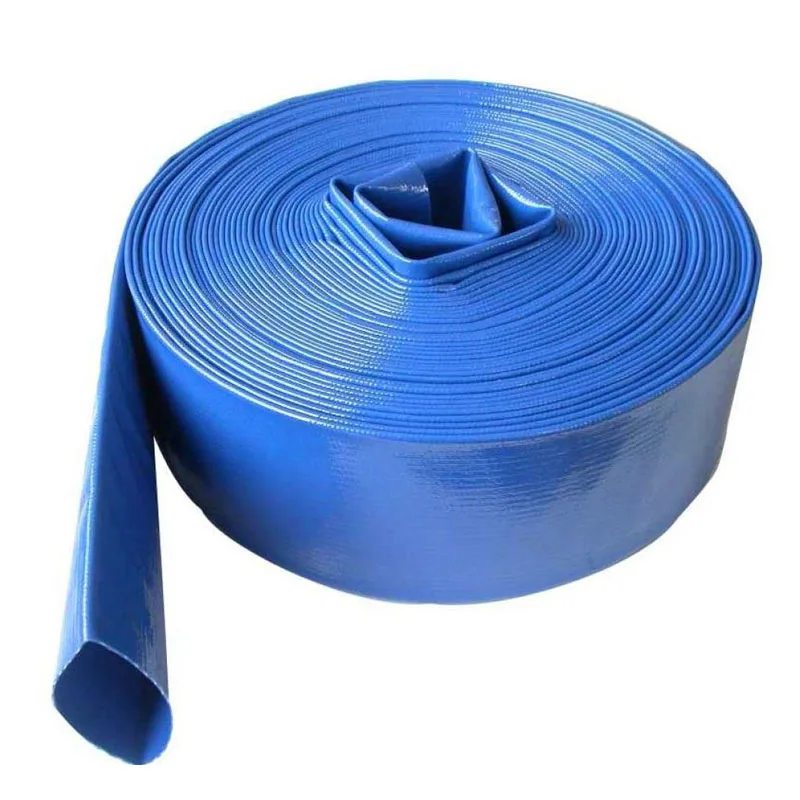

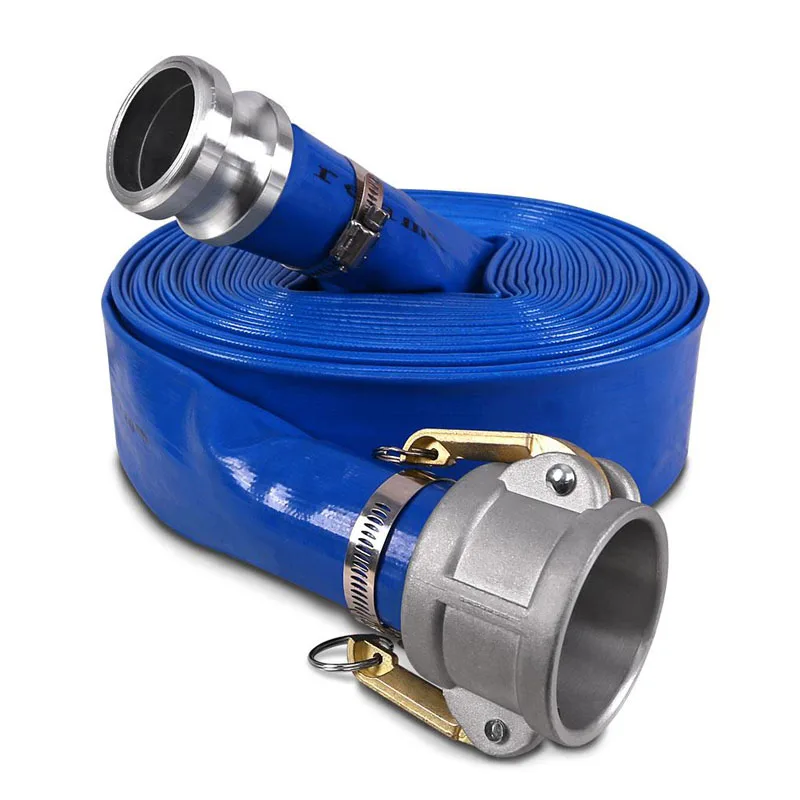

Photos Detail:
Packing & Delivery

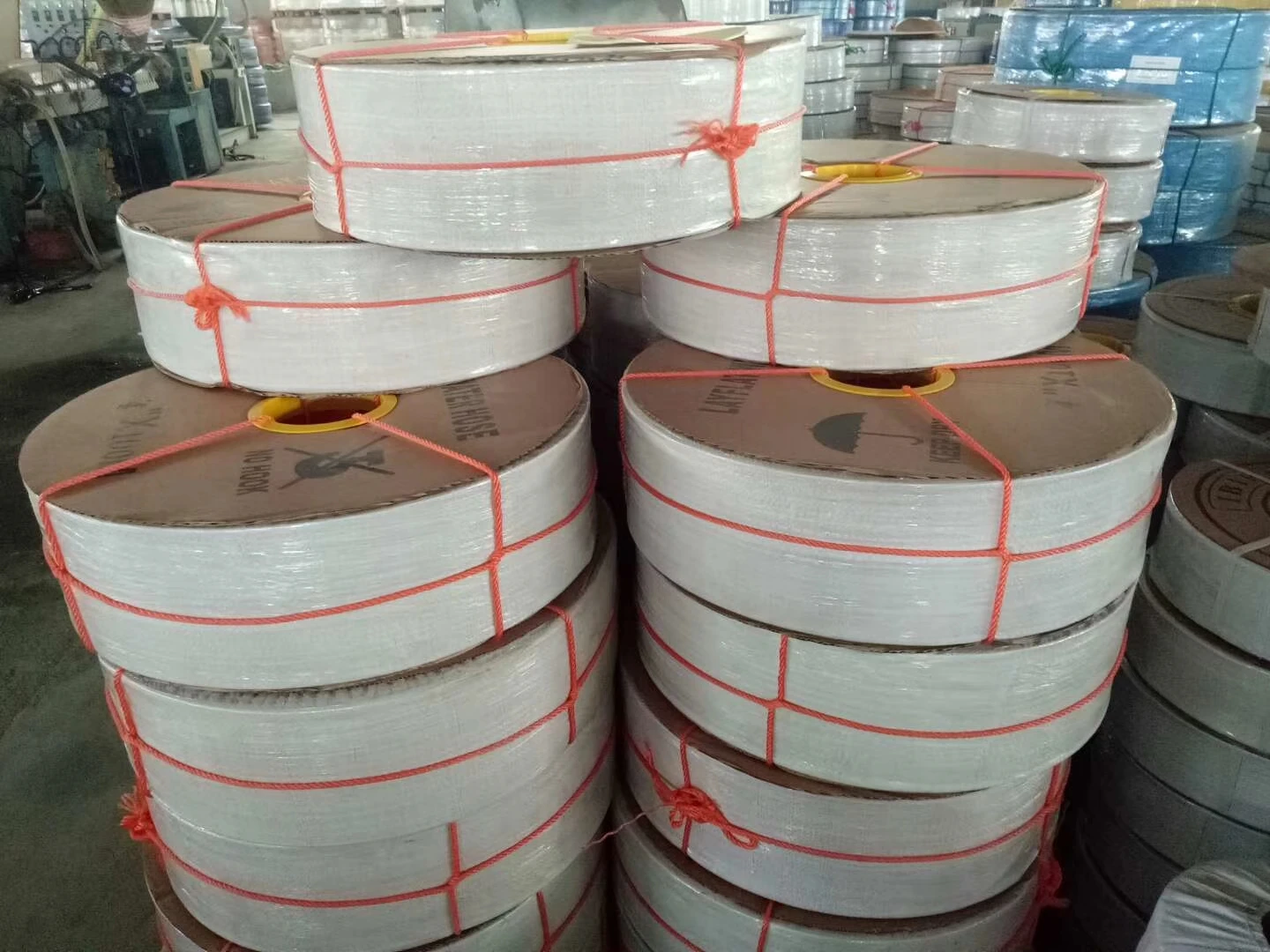

Packing Details :
1. Colorful nylon tape wrapped coils
2. Transparent PVC sea worthy tape wrapped coils
3. Plastic hose reels
4. Wooden hose reels

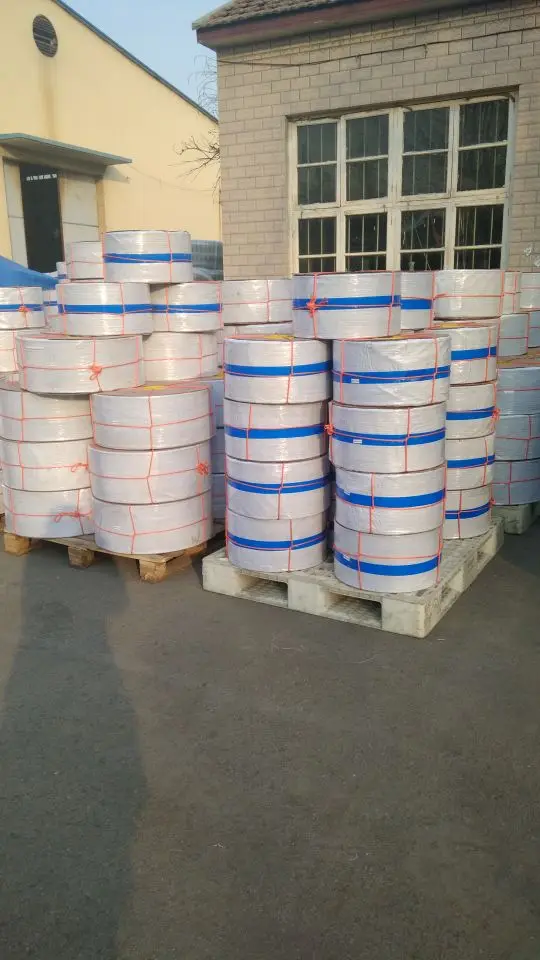

5. Pallets with hose coils
6. Wooden case with hose coils
Delivery Details :
1. Less than 1000 Meters will delivery within 7days;
2. Less than 5000 Meters will delivery within 10 days.
3. Less than 10000 Meters will delivery within 15 days.
4. One full container will be delivery within 30 days.
1. Colorful nylon tape wrapped coils
2. Transparent PVC sea worthy tape wrapped coils
3. Plastic hose reels
4. Wooden hose reels
5. Pallets with hose coils
6. Wooden case with hose coils
Delivery Details :
1. Less than 1000 Meters will delivery within 7days;
2. Less than 5000 Meters will delivery within 10 days.
3. Less than 10000 Meters will delivery within 15 days.
4. One full container will be delivery within 30 days.
Certifications
Why Choose Us
Exhibition
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us!
