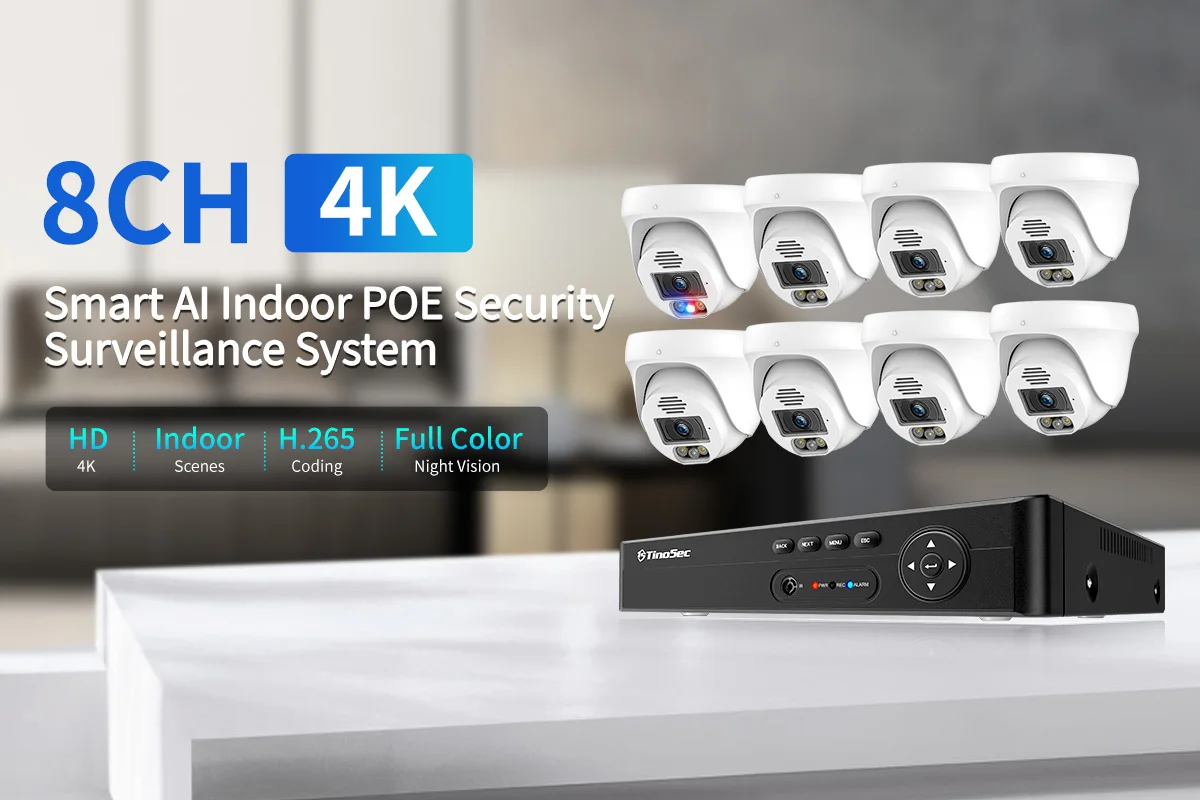

Techage Security 8Ch 4K Nvr Kit Indoor Dome Cctv 8Mp Poe Camera With Alarm Voice Ai Face Detection
- Category: Surveillance Systems >>>
- Supplier: Shenzhen,Tino,Security,Corp.,Ltd.
Share on:
Product Overview
Description
Product Description
Features:
1. Our New 4K POE Camera System. 8 Channel NVR Design, Support To Connect Up To 8pcs Cameras, You Can Buy Techage POE IP Cameras To Expand Your CCTV System.
2.All Cameras Are Built-In Microphone And Speaker, Support Two-Way Audio Sound Recording.
3. Support DIY Alert Voice and Alarm Bell / Customized.

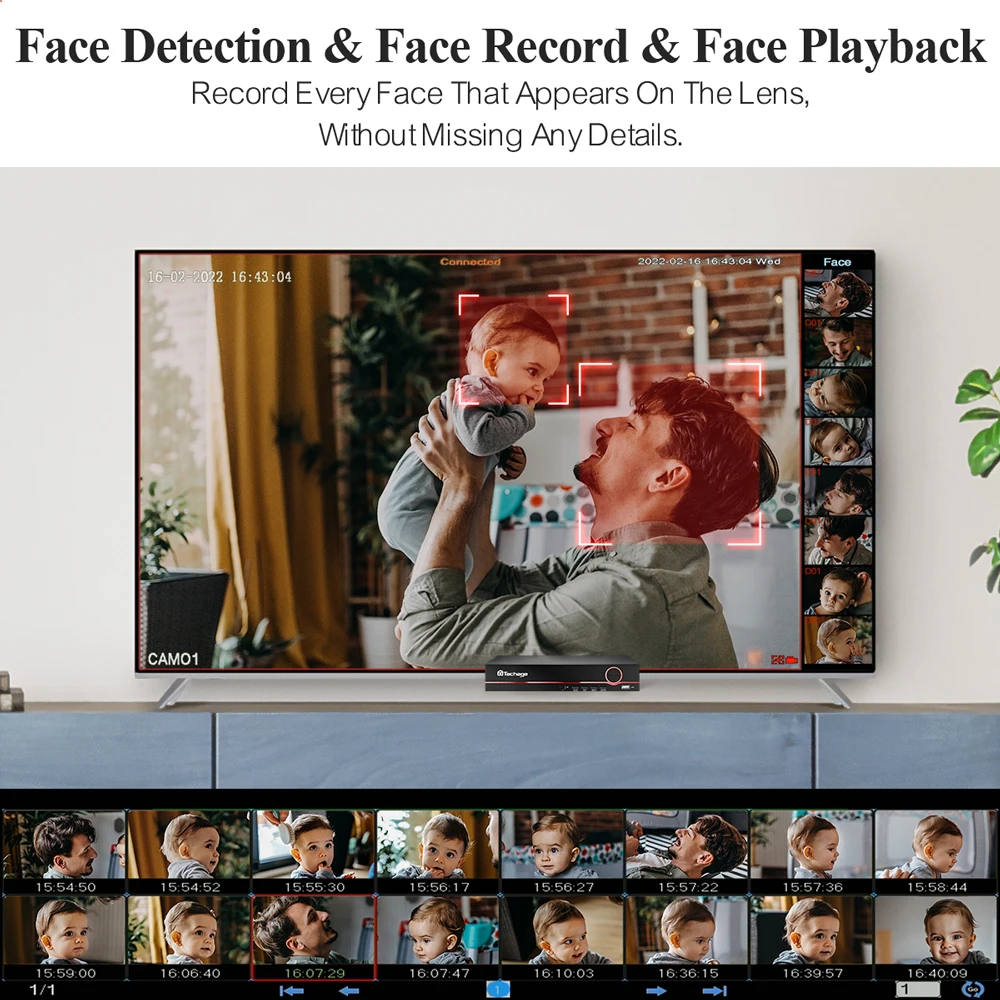

3. Newest AI Cameras Support Face Detection.
4. Three Night modes Setting: Day Vision, Night Vision, Full Color Night Vision.
5. P2P Remote Access/Multi-User : P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet.
1. Our New 4K POE Camera System. 8 Channel NVR Design, Support To Connect Up To 8pcs Cameras, You Can Buy Techage POE IP Cameras To Expand Your CCTV System.
2.All Cameras Are Built-In Microphone And Speaker, Support Two-Way Audio Sound Recording.
3. Support DIY Alert Voice and Alarm Bell / Customized.
3. Newest AI Cameras Support Face Detection.
4. Three Night modes Setting: Day Vision, Night Vision, Full Color Night Vision.
5. P2P Remote Access/Multi-User : P2P technology let you be able to view the live situation of your house wherever you are , just with the P2P account on the app via your Smartphone or tablet.

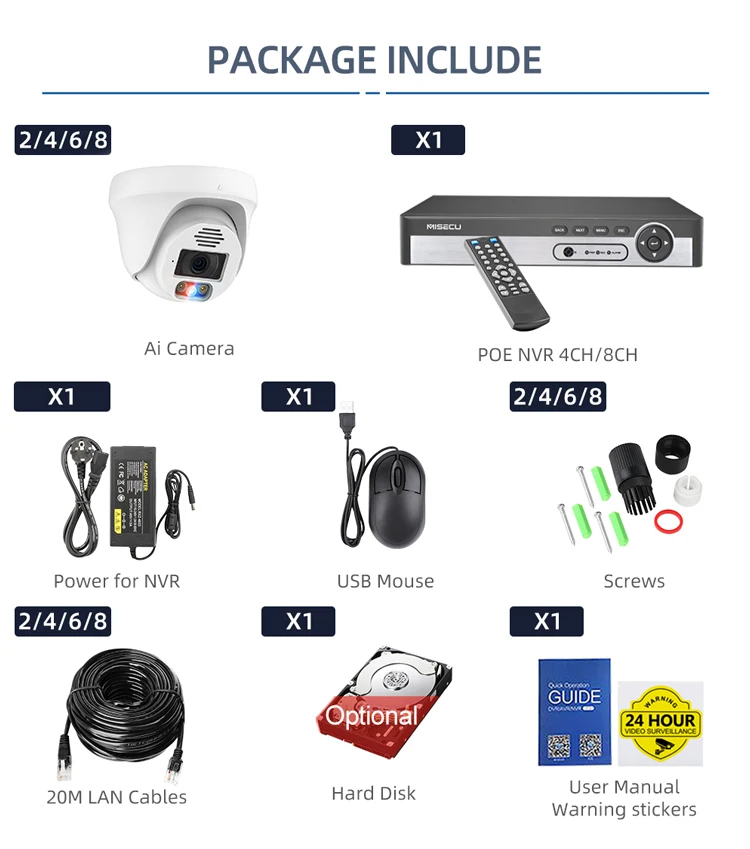

Package Including:
1 x H.265 8CH 4K POE NVR Built In 8 POE Port
2/4/6/8 x 4K POE IP Cameras With Two-Way Audio
2/4/6/8 x 20M Network Cable for Cameras
1 x Power Supply for NVR
1 x USB Mouse for NVR
1 x User Manual
2 x Warning Sticker (gift)
2/4/6/8 x Waterproof Connector for Cable (gift)
1 X Remote Control (No Battery)
NO HDD / 1TB/ 2TB/ 3TB HDD for Optional
8CH Set: 8CH POE NVR + 8 Cameras / 8CH POE NVR + 6 Cameras / 8CH POE NVR + 4 Cameras / 8CH POE NVR + 4 Cameras for Optional
No HDD / 1TB / 2TB / 3TB / 4TB/ 6TB / 8TB HDD for Optional.
1 x H.265 8CH 4K POE NVR Built In 8 POE Port
2/4/6/8 x 4K POE IP Cameras With Two-Way Audio
2/4/6/8 x 20M Network Cable for Cameras
1 x Power Supply for NVR
1 x USB Mouse for NVR
1 x User Manual
2 x Warning Sticker (gift)
2/4/6/8 x Waterproof Connector for Cable (gift)
1 X Remote Control (No Battery)
NO HDD / 1TB/ 2TB/ 3TB HDD for Optional
8CH Set: 8CH POE NVR + 8 Cameras / 8CH POE NVR + 6 Cameras / 8CH POE NVR + 4 Cameras / 8CH POE NVR + 4 Cameras for Optional
No HDD / 1TB / 2TB / 3TB / 4TB/ 6TB / 8TB HDD for Optional.

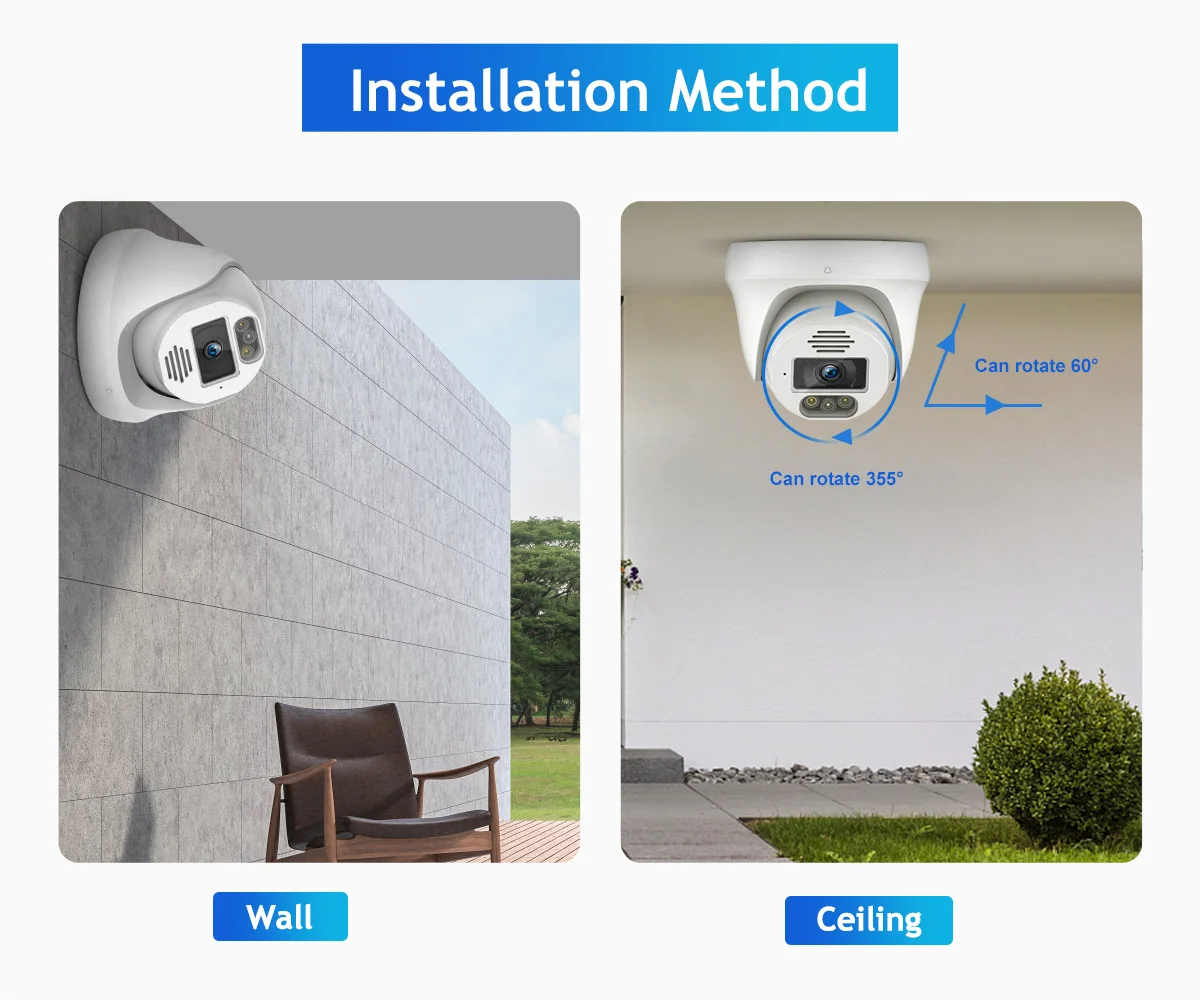

Two Install Methods
Support 4K HD Display
Show Higher-Quality Images, With Better Experience.
Show Higher-Quality Images, With Better Experience.
AI Humen Detection & Email Alert & Alarm Sound
when motion is detected the NVR will save the footage into hard disk without missing any important events. You can even ensure that false alarms are avoided by setting the motion detection "mask" to block areas with constant movement.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
When Someone Breaks Into Shooting Area,The Camera Will Alarm Messages Will Be Pushed To Your Phone App.
Real-time Two-way Audio
Camera has built in Microphone and Speaker. Never miss a moment with your family.
Full Color Night Vision
When the 2 white LEDs are lit, the surveillance video at night will show a colorful picture.
Three night vision modes for you to choose: IR infrared night vision, dual warning lights, full color night vision
IP66 Weatherproof Security Camera
Our Camera All Can Suit For Both Outdoor And Indoor Usage.

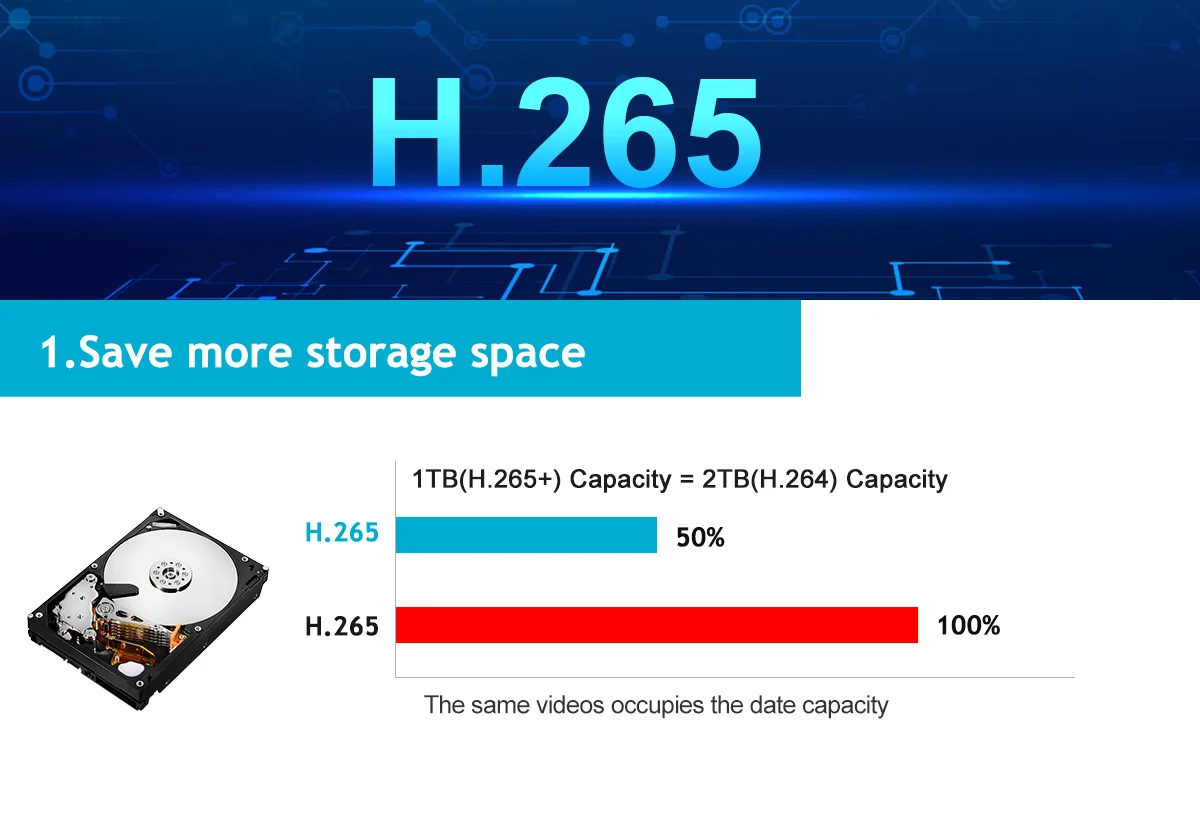

Save Your HDD Storage Space And Reduce Your Purchase Cost
H.265 Only Need a Lower Bandwidth, Speed Loading Faster, Play Video More Smoothly.

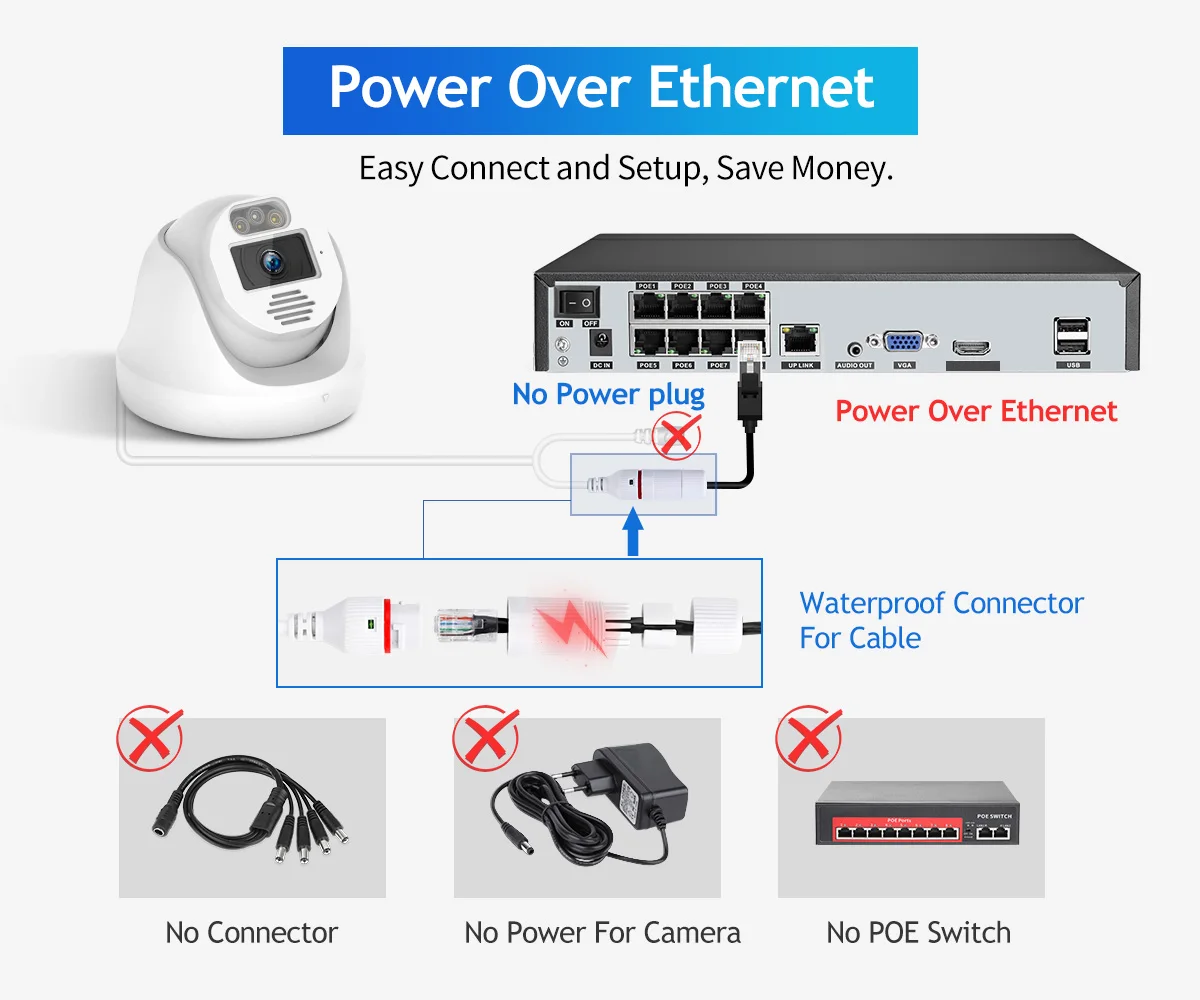

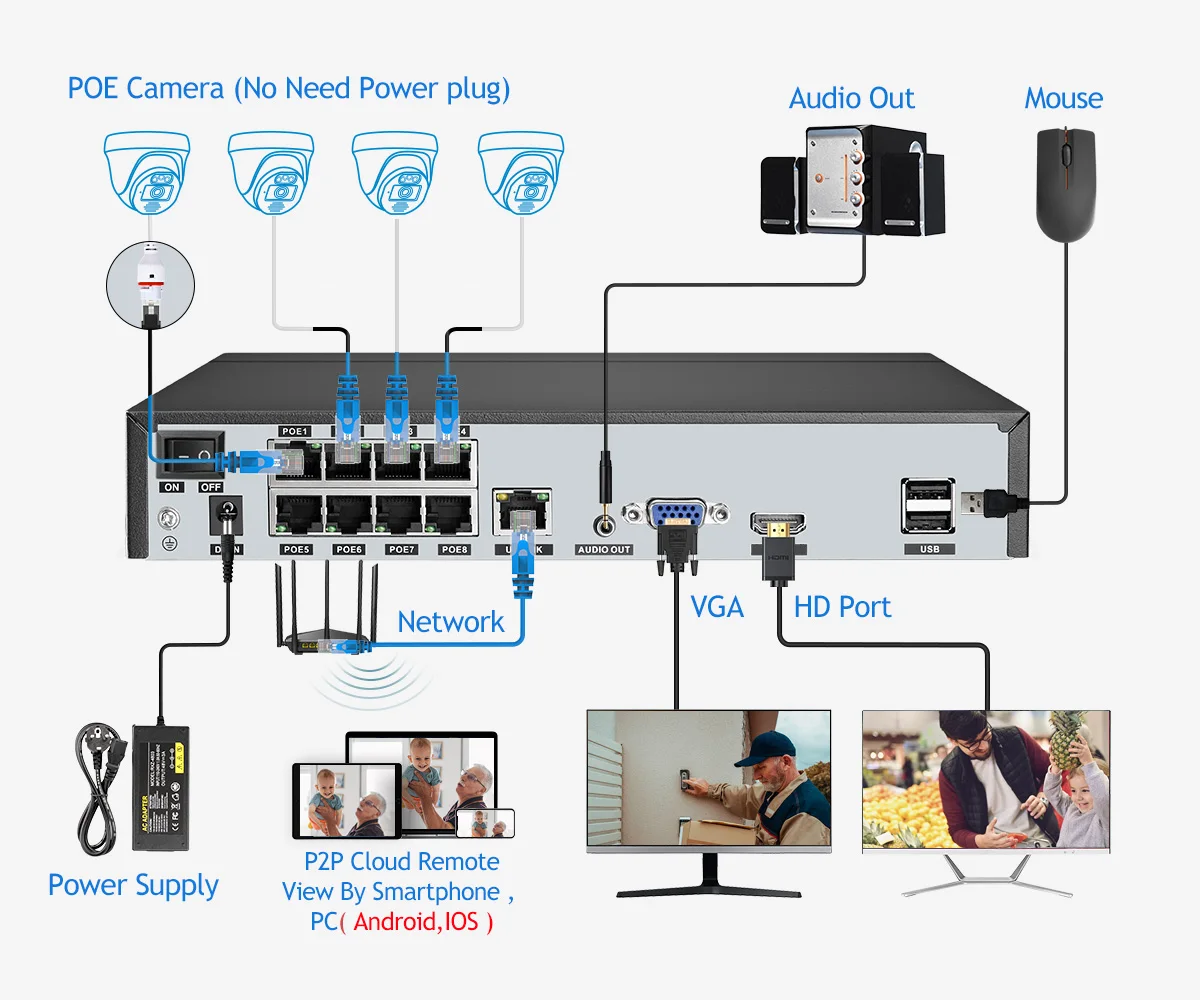

POE Advantage, Why Choose POE ?
Don't Need Extra Power Cables or Adapters or Switch.Plug And Play And Easy Setup.
Save Money And Convenient, POE NVR = NVR + POE Switch
Save Money And Convenient, POE NVR = NVR + POE Switch

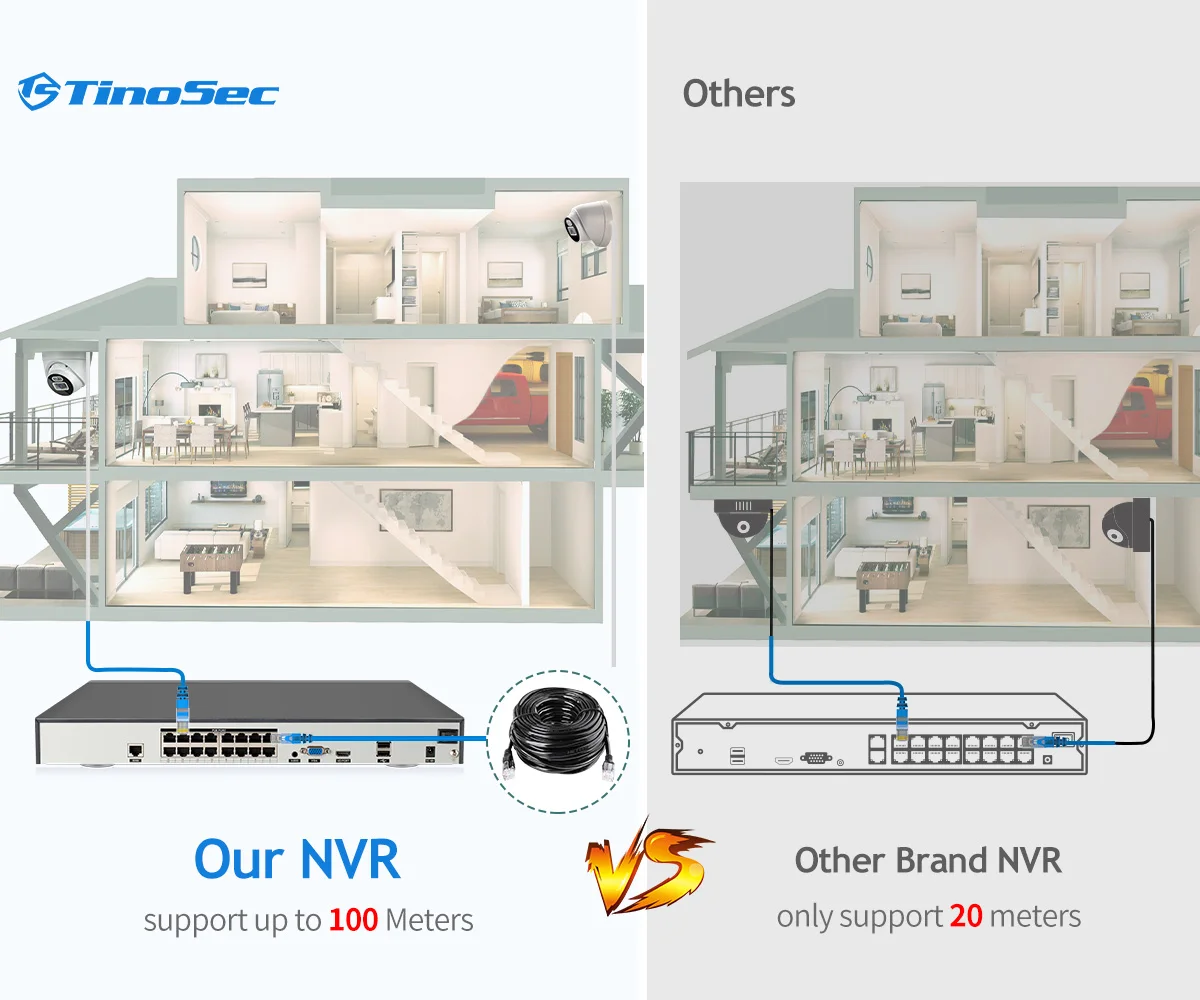

Max Support 100 Meters Cables Transmission Distance
Which Greatly Increases Home Installation Convenience.
Video With Smart Playback
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.

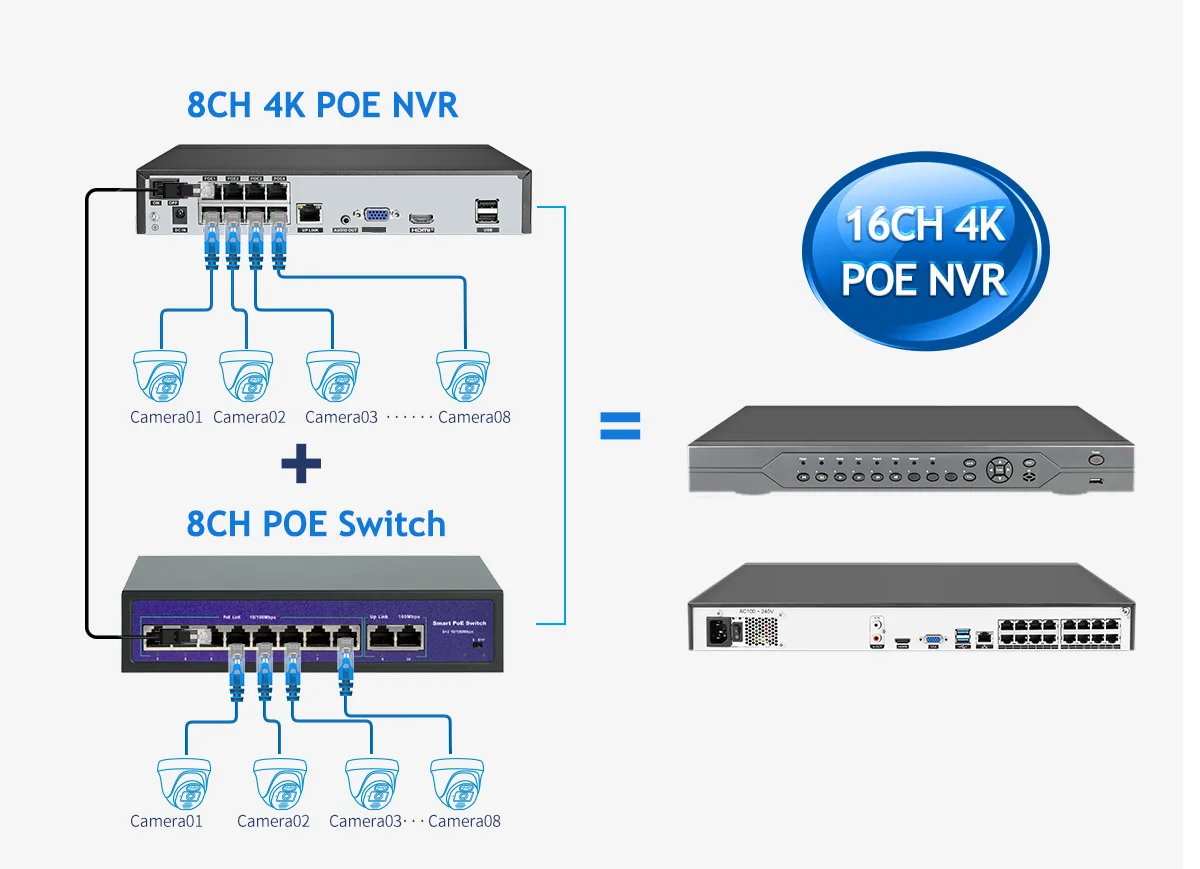

It Can be Extended to 16pcs 4K POE Camera if use 8CH POE Switch Together.
Video With Smart Playback
Smart Playback Available With Customizable Searching Area,
Playback Time Is Greatly Reduced By Speeding Through Unimportant Videos.
P2P Remote Access & Multi-user
Based on P2P (peer to peer) technology, support plug-and-play installation. Access the IP camera through its web interface via Internet Explorer, also comes with a free smartphone App (Android & iPhone) for remotely view from anywhere.
Support iOS and Android Device Access. Scan QR-Code to login. Download free app in Apple App store / Google play.
Remote Access Anytime, Anywhere
Based On P2P (Peer To Peer) Technology, Support Plug-And-Play Installation.
Access The Ip Camera Through Its Web Interface Via Internet Explorer,
Also Comes With a Free Smartphone App (Android & Iphone) For Remotely View From Anywhere.
Support IOS And Android Device Access. Scan QR-Code To Login. Download Free App In Apple App Store / Google Play.

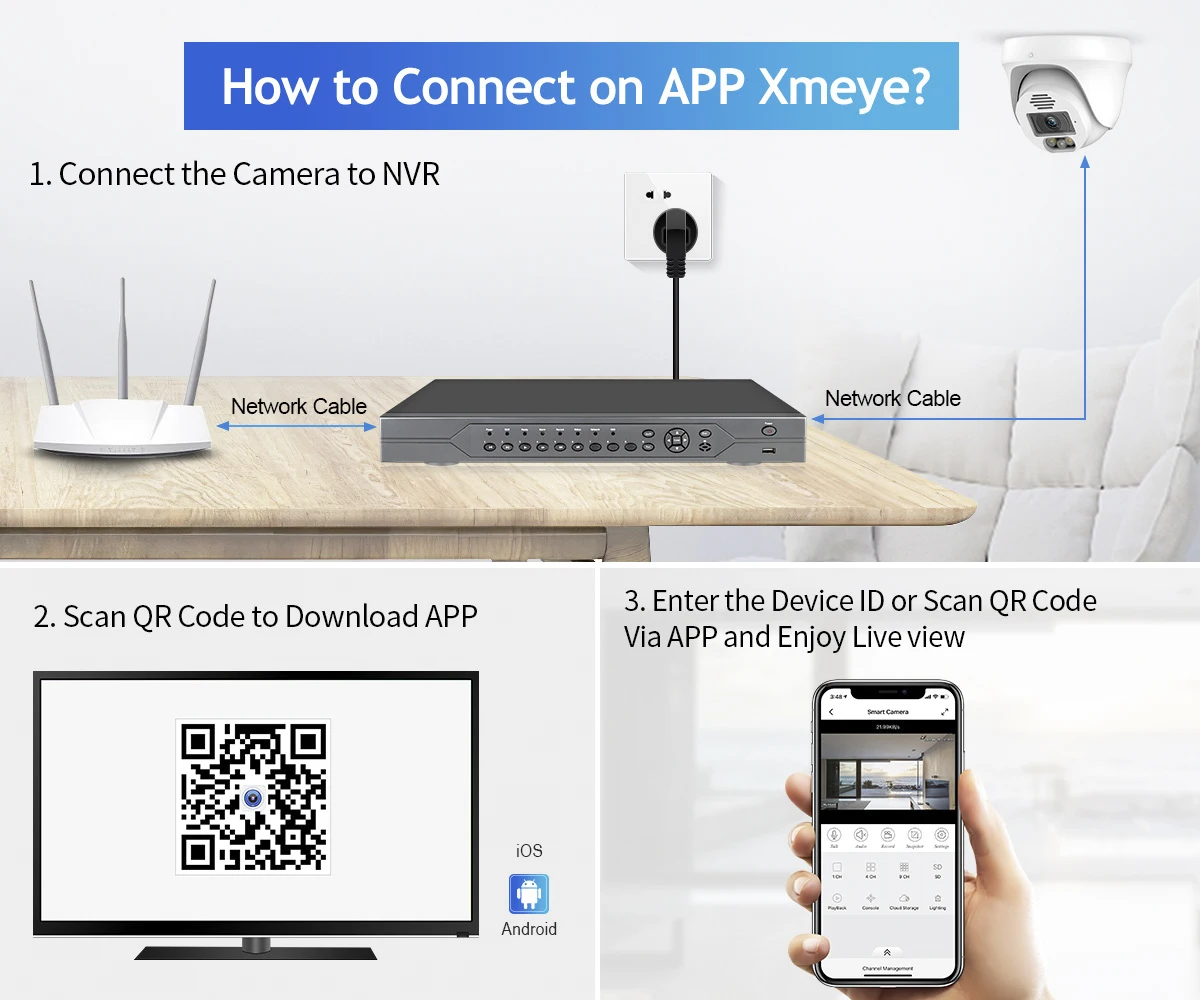

Mobile Phone Setting
Easy setting , just 4 steps for mobile phone viewing (Android and iPhone iOS)
Details Images
Specification
Model | Model Type: | POE Camera |
Model No. | XM-DM27SP-AI-80N | |
System | System structure | Embedded RTOS design, dual core 32-bit DSP, pure hard compression, watchdog |
Video | Sensor | 8 million black light CMOS sensor SC8239; colour [email protected] , black and white [email protected] |
Video processing | H.265AI encoding, double stream,AVI format; | |
Image output | main stream: 8M 3840*2160@15fps；5M 2880*1616@25fps；4M 2560*1440@25fps；3MP 2304*1296@25fps；2MP 1920*1080@25fps；Substream: 800*448@25fps | |
Shutter | 1/50(1/60)to 1/10000 of a second | |
Noise reduction | 2 d / 3 d noise reduction | |
Wide dynamic | Digital-wide dynamic | |
Lens | 3.6mm hd lens | |
Night vision | IR-CUT，Infrared night vision, color filter automatically switch | |
light distance | Infrared 15m ，white light 10m(2 infrared light,2 white light) | |
Audio | Audio processing | G.711A，two way audio |
Audio interface | -33dB high sensitive mic, 8 Ω 1W horn | |
Network | Network interface | One RJ45 Ethernet port,10/100M auto-sensing |
Alarm | Human detection, Motion detection, Smart AI alarm, Face detection | |
Red and blue alarm warning light | ||
APP push, voice alarm, video recording, capture pictures | ||
Video | Video mode | Timing video, event video |
Playback mode | Event playback, time playback | |
Other | Reliability | Comprehensive lightning protection，7*24 hours 65℃ high temperature test is stable and reliable |
ONVIF | support | |
Cell phone monitoring | Mobile phone monitoring (iOS, Android) | |
power | POE/12V | |
Material | Metal Housing | |
Work environment | Temperature | -20℃ to +55℃ |
Humidity | 30% to 80% RH |
System | Main processor | Hi3536E |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/6/8/9/16 | |
Video | Video input (IP) | 16*4K（Access bandwidth 72Mbps） |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
VR | Unsupport | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | unsupport | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Localpayback(real-time+ Un real-time) | 4K（1*real-time）/5M（1+1）/4M（2+1）/ 3M（3+1）/1080P（5+1） | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 0/1（3.5MM audio output） | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1 SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ONVIF | Support |
Power supply | 52V/2.5A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
