Walk In Climatic Chamber Temperature Humidity Controlled Rooms Big Steam Chamber Customized Climate Chamber
- Category: >>>
- Supplier: Guangdong,Asli,Test,Instrument,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Walk In Climatic Chamber Temperature Humidity Controlled Rooms Big Steam Chamber Customized Climate Chamber is suitable for large part and machines undergone low to high, high to low temperature changing test, which can change the room size according to user's need. It applies to Patchwork type chamber, with the feature of nice looking outlook, scientific design for pipe and duct, all in one touch screen control panel and programmable logic controller can satisfy most needs of all kinds of clients.
Specification
Model | THR-volume (low-temperature options : A ~ F) |
Inner Dimensions(cm) | Customers designated space size and design |
Temperature Range | Low Temperature(A:25°C B:0°C C:-20°C D:-40°C E:-60°C F:-70°C) High Temperature 150°C (150°C ~200°C is optional) |
Humidity Range | 20%~98%R.H.(10%-98% R.H. / 5%-98% R.H ,is a special optional condition, need dehumidifier) |
Control Accuracy of Temperature and Humidity | ±0.5°C; ±2.5% R.H. |
Temperature Rising/ Falling Velocity | Temperature rising approx. 0.1~3.0°C/min temperature falling approx. 0.3~1.0°C/min; ( The Falling Velocity Min.1.0°C /min is a optional) |
Cooling System | Air Cooling or Water cooled |
Protection Devices | Fuse-free switch, overloading protection switch for compressor,high and low voltage coolant protection switch, over-humidity & over-temperature protection switch, fuses, fault warning system, water short storage warning protection |
Optional Accessories | Slope for cart , Recorder, Water Purifier, Dehumidifier |
Power | AC 380 V(±10%),50/60HZ ,3 phase 5 Lines |
Features:
1.Reasonable structural design, rapid cooling rate.
2. Imported refrigeration system, internal with SUS#304 high temperature resistant stainless steel.
3. More than 30% energy saving is achieved.
4. The test specimen can be easily observed via observation window,
5. Easy to Operate, install and maintain.
6.ational Construction and fast cooling rate
7.Frequency conversion control of wind speed.
8.Adopts international brand of imported parts for cooling system to improve operation reliability
9.Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
10.Standards Implemented and met
11.GB10592-89 Technical requirements for high and low temperature test chamber
12.GB2423.1-1989 Low temperature test
13.GB2423.2-1989 High temperature test mode
Standard:
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
EIA - 364-31C temp resistance GB/T2423.3 constant heat test method
1.Reasonable structural design, rapid cooling rate.
2. Imported refrigeration system, internal with SUS#304 high temperature resistant stainless steel.
3. More than 30% energy saving is achieved.
4. The test specimen can be easily observed via observation window,
5. Easy to Operate, install and maintain.
6.ational Construction and fast cooling rate
7.Frequency conversion control of wind speed.
8.Adopts international brand of imported parts for cooling system to improve operation reliability
9.Touch screen controller, friendly Man-Machine interface and safety device to ensure simple operation and easy maintenance.
10.Standards Implemented and met
11.GB10592-89 Technical requirements for high and low temperature test chamber
12.GB2423.1-1989 Low temperature test
13.GB2423.2-1989 High temperature test mode
Standard:
GB/Bb T2423.2-89 high temperature test method GB2423.1-89 test A: low temperature test method 6
Ab IEC60068-2-1 low temperature test method GJB150.4-1986 test at low temperature
EIA - 364-59 test at low temperature IEC60068-2-38 temperature cycle
IEC60068-2-78 constant temperature IEC60068-2-30 temperature cycle
EIA - 364-31C temp resistance GB/T2423.3 constant heat test method
Functions:
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Programmable temperature humidity test chamber is able to display the relative date and information of the whole operating system in running mode, graphic display. Precautions, maintenance and troubleshooting appear on the screen instantly.
4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
6. Water Supply adopts automatic watering System, Circulating water supply together with water filter.
1. The separation of humidifier circuit from electric circuit improves safety and protects the circuit against the leakage of water supply line.
2. Available in Chinese and English LCD touch screen, easy operation and program.
3. Programmable temperature humidity test chamber is able to display the relative date and information of the whole operating system in running mode, graphic display. Precautions, maintenance and troubleshooting appear on the screen instantly.
4. The Sirocco fan motor provides greater cyclic airflow to avoid dead corner in the chamber so as to obtain an uniform distribution of temperature and humidity.
5. The system of heating up, heating down, dehumidifying, and humidifying can be operated independently so as to reduce the cost of testing, extend the operating life of the machine and decrease the failure rate.
6. Water Supply adopts automatic watering System, Circulating water supply together with water filter.

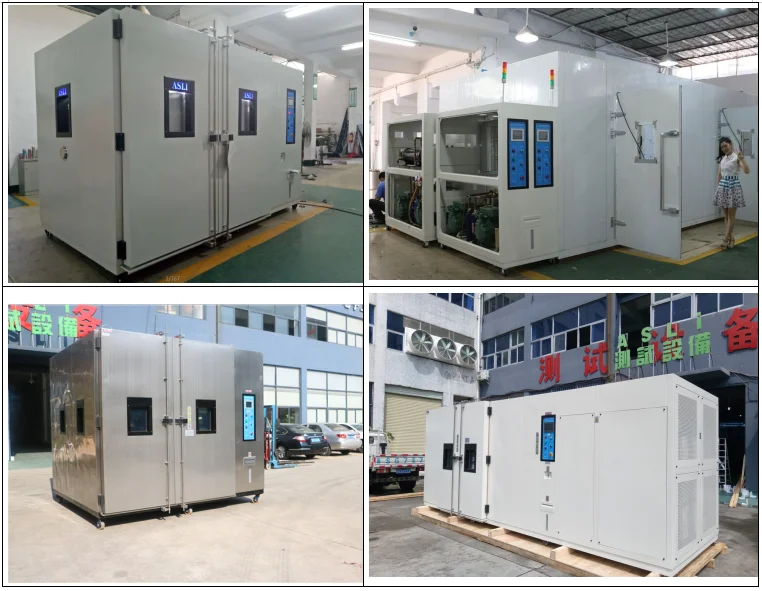

More Pictures for reference:
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
We are a long history testing equipment manufacturer, in the past 25 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. walk in temperature test chamber is our star products , and we had obtained the CE certification for this machine .
FAQ
1.Do you offer after-sales service? How can I ask for that? And how about the warranty?
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the free maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
If you want to know more information about Walk In Climatic Chamber Temperature Humidity Controlled Rooms Big Steam Chamber Customized Climate Chamber ...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!
Every machine from our factory has a 14-month warranty after shipment. Generally, we offer 12 months for the free maintenance, while considering of sea transportation, we can extend 2 months for our customers. If your machine doesn't work, you can send E-mail to us and we will try our best to find the problem by email or skype video chat if necessary. After confirmation of the problem, we can send you new spare parts or provide on-site repair.
2.What's the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after
deposit receipt. If you are in urgent need, we can consider making a special arrangement for you.
3.Do you accept customization service? Can I have my logo on the machine?
Yes, of course. We can not only offer standard machines, but also customized machines according to your requirements. And we can also put your logo on the machine.
4.How to install and use the product?
We will send you operating instructions, English video by Email. Or you can download on our website directly. Most of our
machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
We will send you operating instructions, English video by Email. Or you can download on our website directly. Most of our
machine is shipped with a whole part, which means it is already installed, all you need to do is to connect the power cable and start to use. And if possible, we can also install your machine at site.
If you want to know more information about Walk In Climatic Chamber Temperature Humidity Controlled Rooms Big Steam Chamber Customized Climate Chamber ...
Please leave a message below and click " SEND "
Thanks for your time and attention~Thank you!
