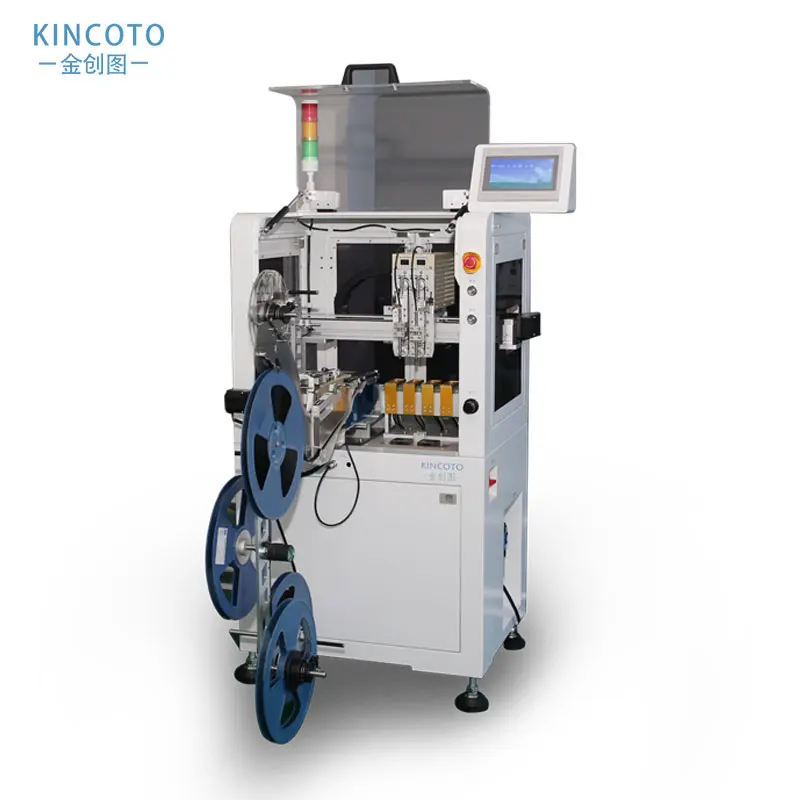

Полностью автоматическая машина для IC лента программирование ключей машина KA42-2000 для программирования машина
- Category: Other Machinery & Industrial Equipment >>>
- Supplier: Shenzhen,Jinchuangtu,Electronic,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Output efficiency | 1200UPH |
Host size | 680x550x1400mm (Length, width and height) |
Host + taping size | 680x1070x1400mm (Length, width and height) |
Support IC packaging | QFN,SOP,SSOP,TSSOP,SON,QF... |
Pick and place device | Vacuum nozzle*2 |
Burning station | 4 |
Monitor | 7"LCD |
Accuracy of pick and place | 士0.03mm |
Way to control | Embedded control board |
Burning method | Down-press burning seat |
Feeding device | Standard 12-16mm, optional 8-32mm feeder |
Discharge device | Adjustable automatic hot pressing film sealing device |
Input voltage | AC 220/50ZHz |
Power | 0.25kw |
Gas source | 0.4-0.6MPA |
Total weight | 1 40KG |
