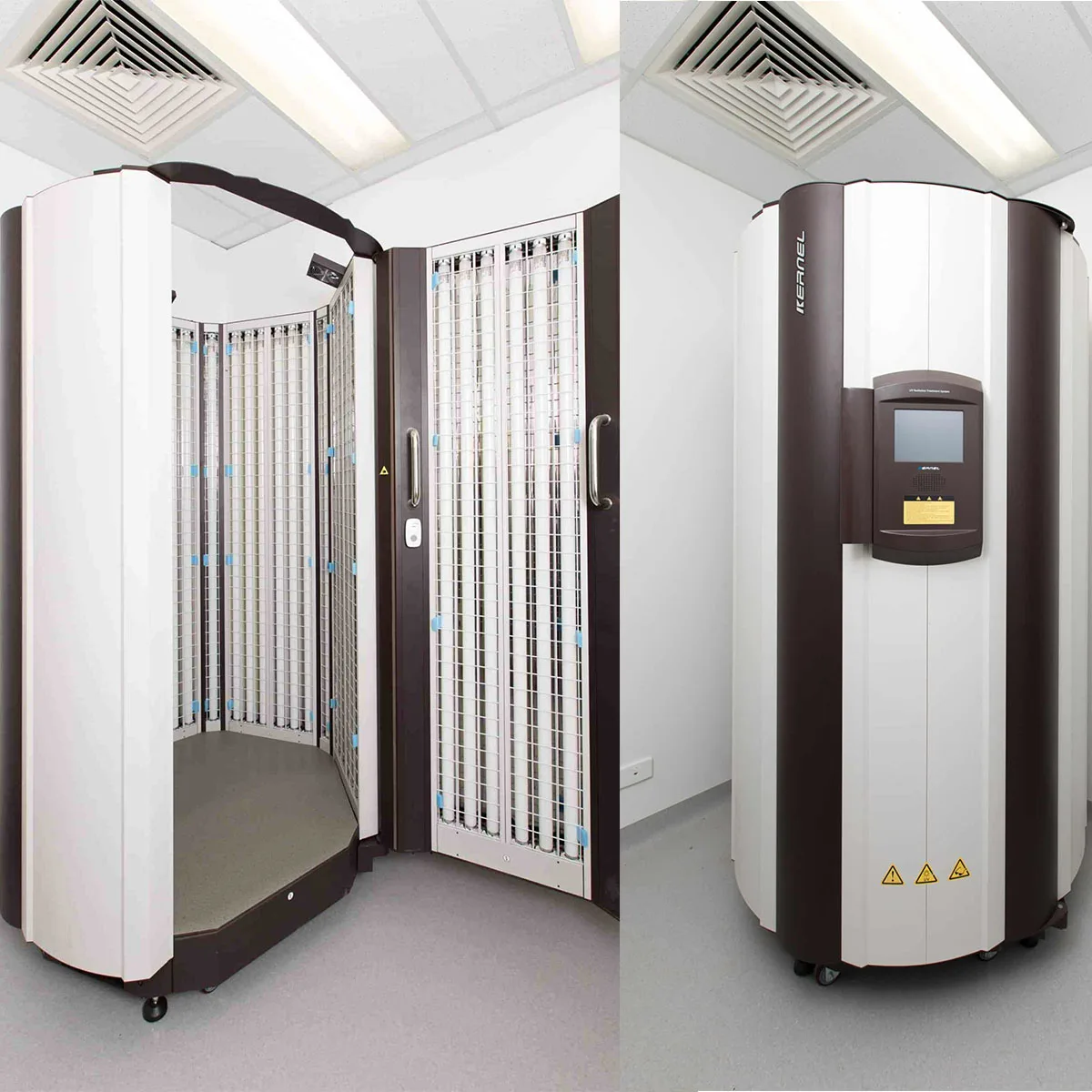

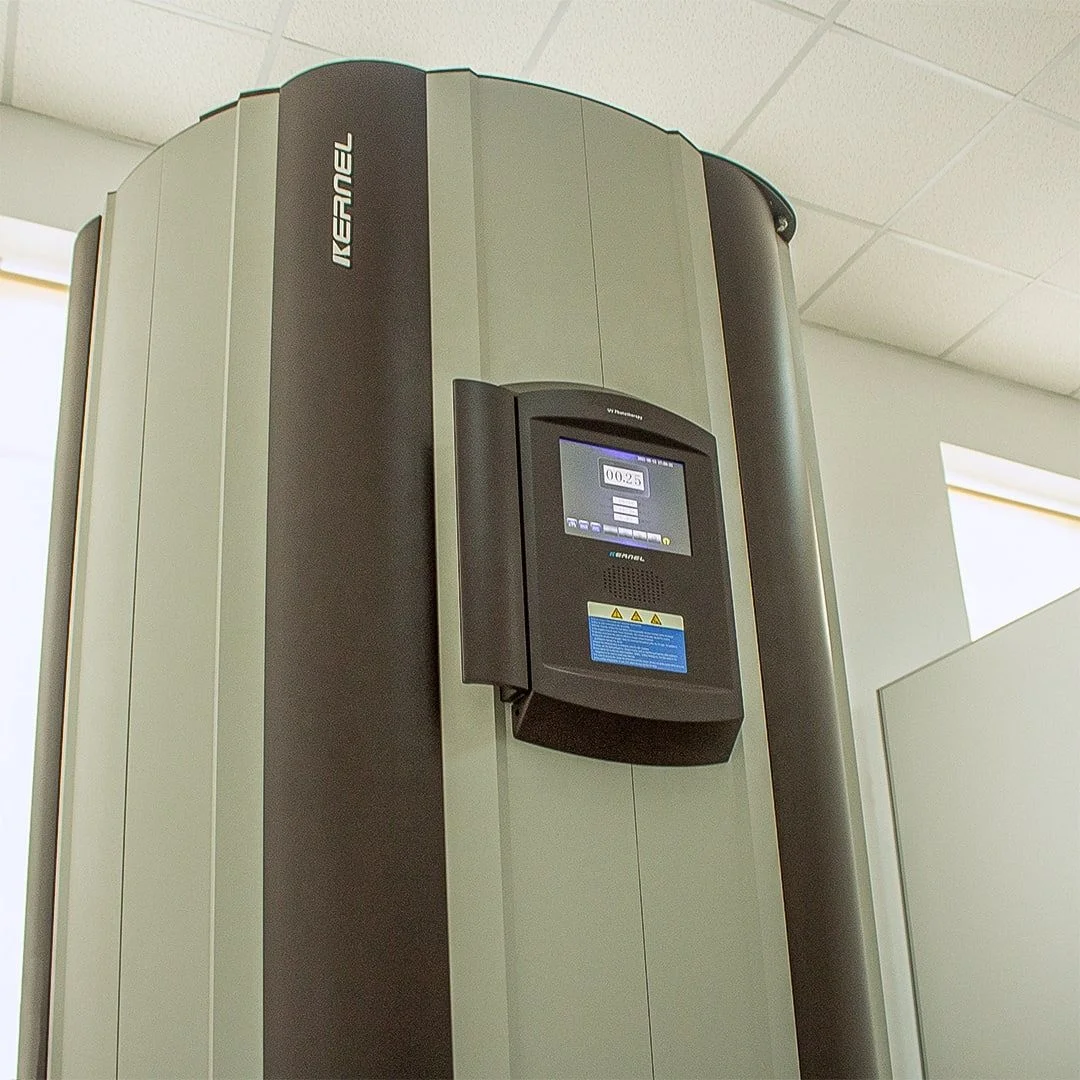

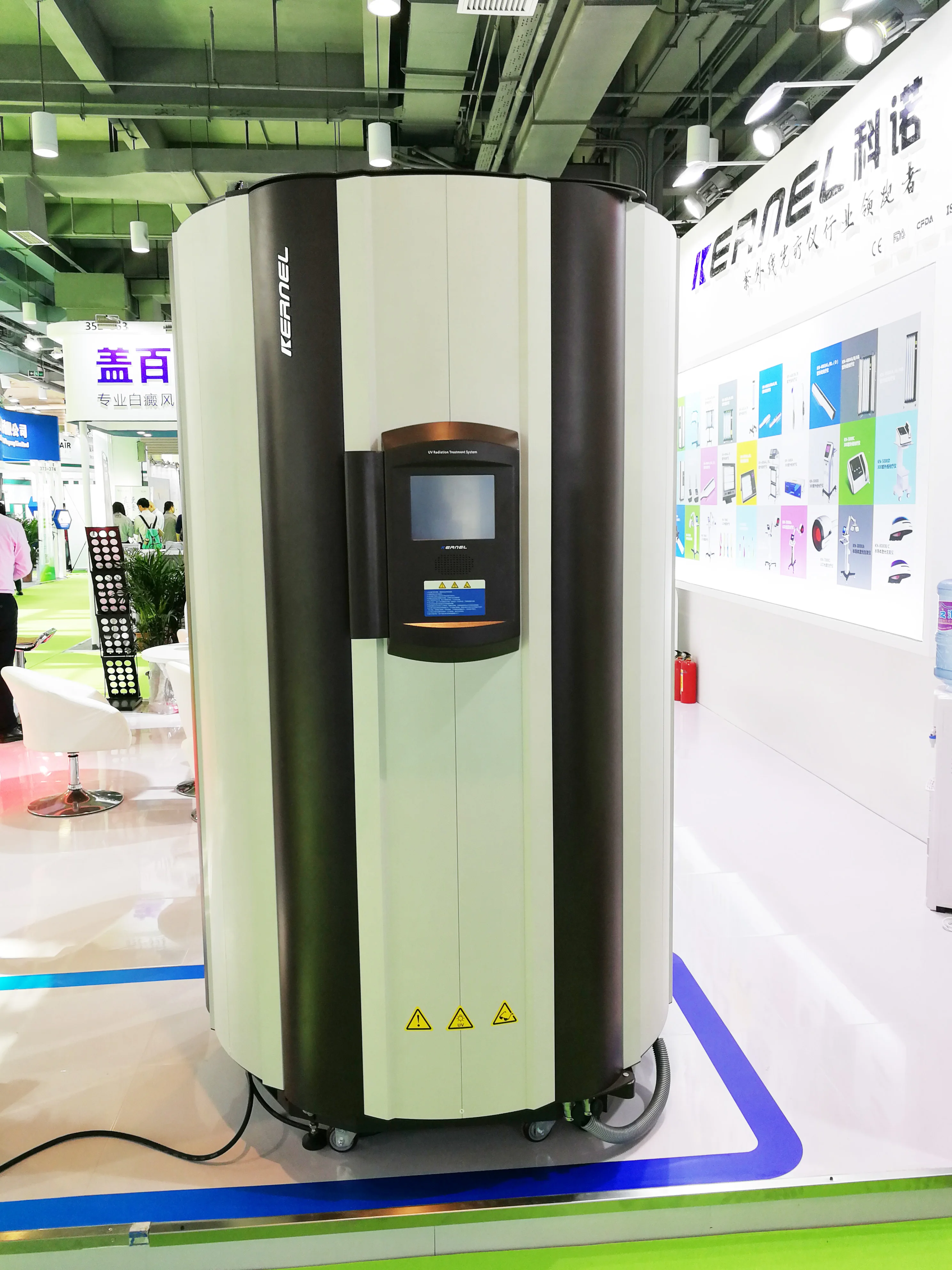

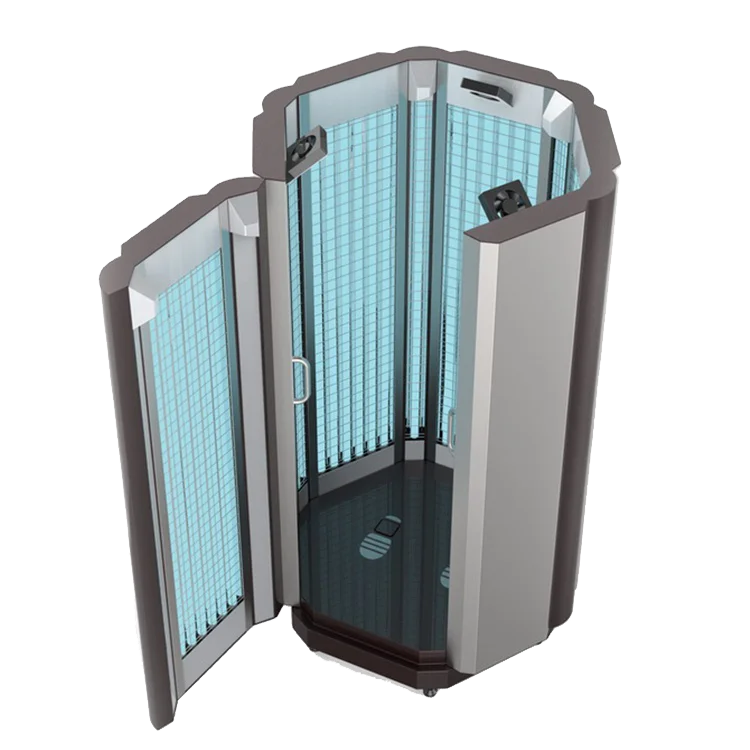

Full Body Cabinet UVB Lamps UVA UVB phototherapy device KN 4001 for vitiligo and psoriasis uvb light for vitiligo
- Category: >>>
- Supplier: Kernel Medical Equipment Co. Ltd.Kernel Ltd.
Share on (1600652735769):
Product Overview
Description
Product Description

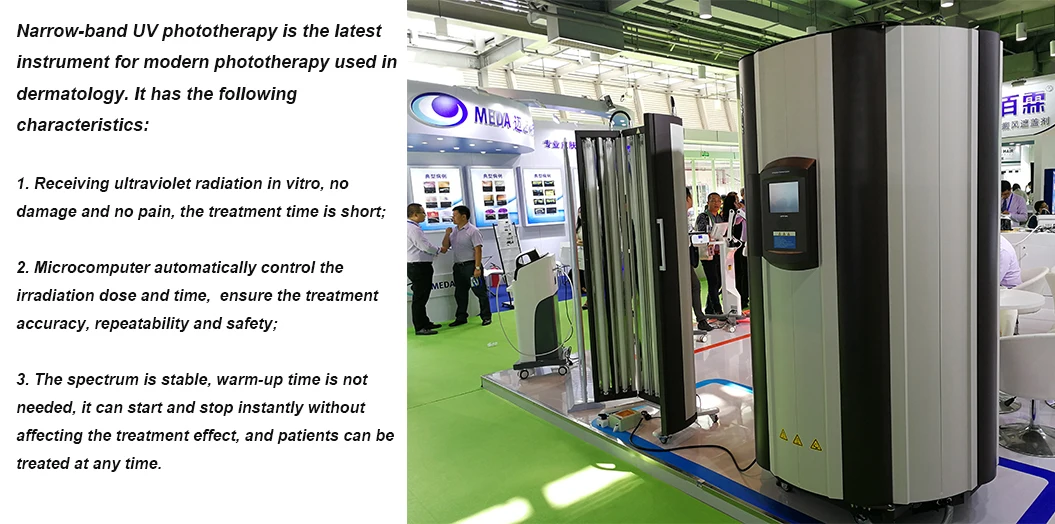

What is UVB phototherapy?
UVB phototherapy refers to irradiation with shortwave ultraviolet radiation. To treat the whole body, the patient, undressed, stands in a specially designed cabinet containing fluorescent light tubes.
Traditionally, broadband UVB was used, but increasingly, narrowband UVB phototherapy (311nm) is provided. Increasing doses of UVB are given each exposure (three to five times weekly until the skin condition has cleared, has failed to respond, or a predetermined maximum number of treatments). The aim is to turn the skin very slightly pink but not to burn it.
Traditionally, broadband UVB was used, but increasingly, narrowband UVB phototherapy (311nm) is provided. Increasing doses of UVB are given each exposure (three to five times weekly until the skin condition has cleared, has failed to respond, or a predetermined maximum number of treatments). The aim is to turn the skin very slightly pink but not to burn it.
Features
* 8'' TFT LCD touching screen, case management function
* With stable and long usage life Philips special UV lamps as light source
* 40 pieces 100W UV lamps, various combinations
* Microcumputer controls dose or time to guarantee the treatment precision
* PUVA output and NBUVB output work separately or simultaneously
* High intensity UV phototherapy output effective treatment can reduce treatment cycles and times
* Microcomputer real-time display the working status of the equipment
* Hardware and software double monitoring function, ensure the patients' safety
* Scientific ventilation and cooling system, wide and comfortable treatment space
* Unique anti-interference technology, ensure the normal use of equipment in strong magnetic field
* Optional special sofware of remote control and case management functions
* With optional UV intensity measurement system, real-time displays the irradiation intensity.
* With stable and long usage life Philips special UV lamps as light source
* 40 pieces 100W UV lamps, various combinations
* Microcumputer controls dose or time to guarantee the treatment precision
* PUVA output and NBUVB output work separately or simultaneously
* High intensity UV phototherapy output effective treatment can reduce treatment cycles and times
* Microcomputer real-time display the working status of the equipment
* Hardware and software double monitoring function, ensure the patients' safety
* Scientific ventilation and cooling system, wide and comfortable treatment space
* Unique anti-interference technology, ensure the normal use of equipment in strong magnetic field
* Optional special sofware of remote control and case management functions
* With optional UV intensity measurement system, real-time displays the irradiation intensity.
Humanized design---pay attention to users' safety and experience
Foot switch design
The machine can only work after the patients turn on the foot switch
Cooling system
Give patients a more comfortable feeling during treatment
Door handle design
Temporary support when patients are tired
Doorbell design, remote call function
Patients can call the doctor when the they are not comfortable

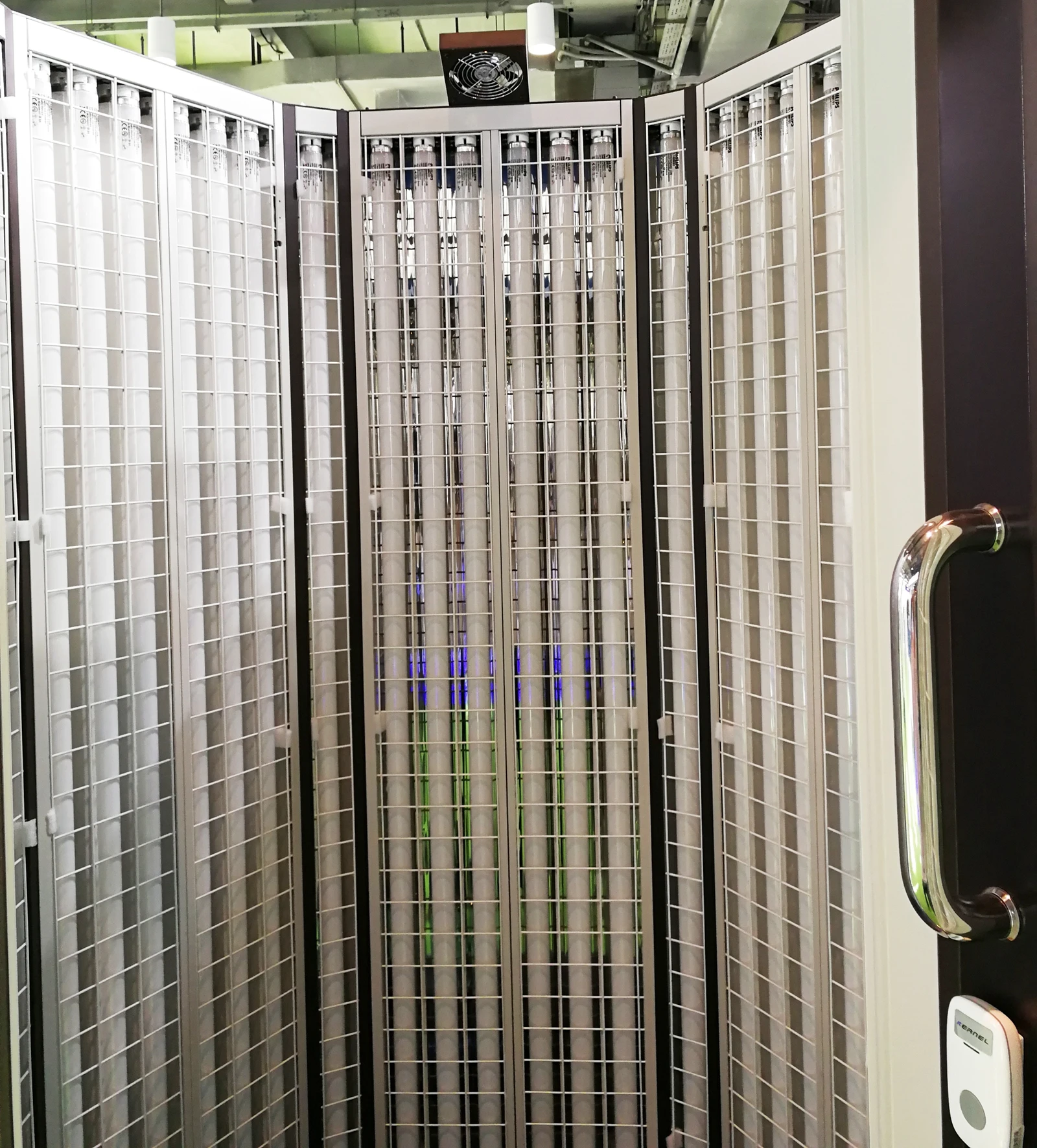

Special protective net protection
Prevent the lamp from falling off or the patient touching the lamp
Prevent the lamp from falling off or the patient touching the lamp

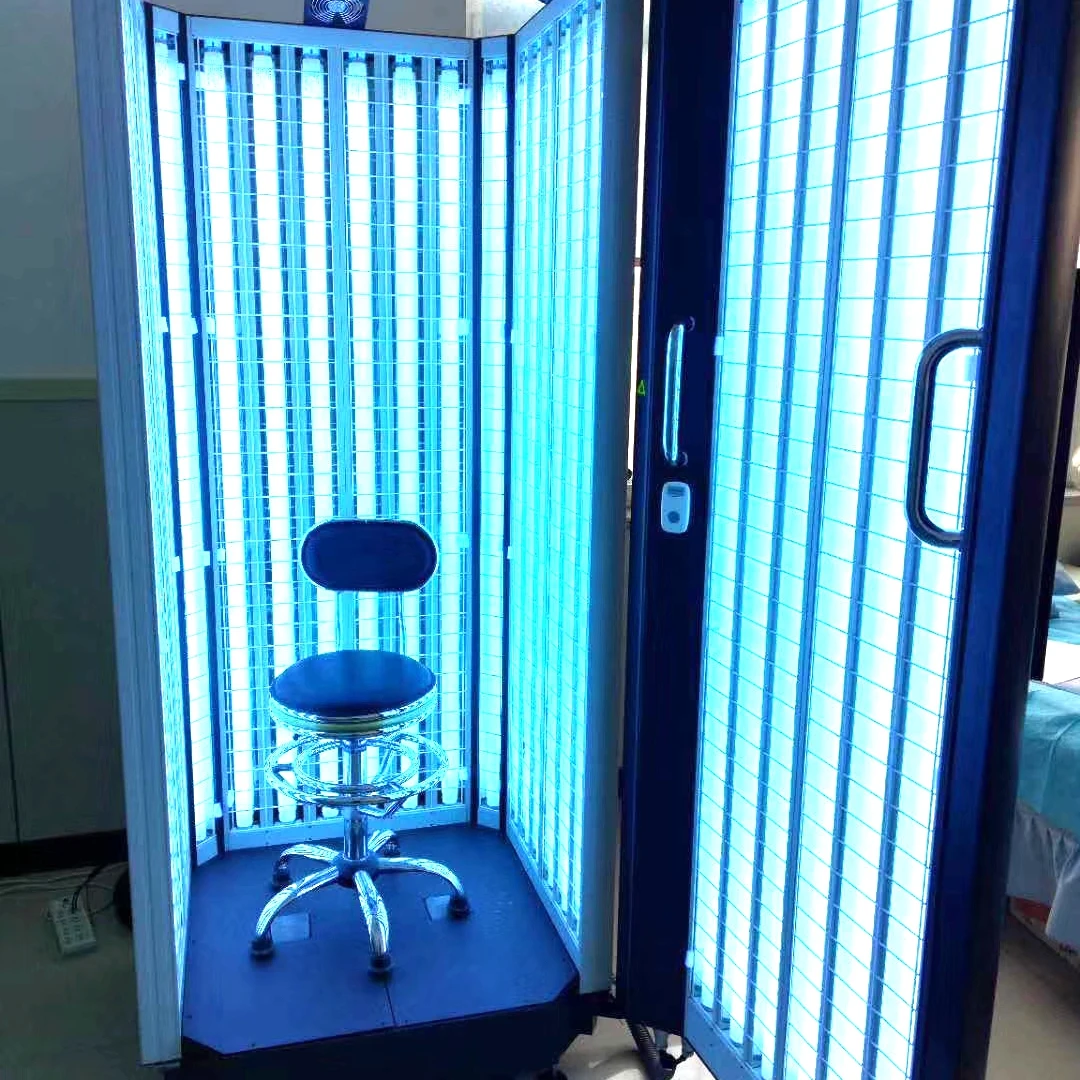

Big treatment space
provide a comfortable treatment environment

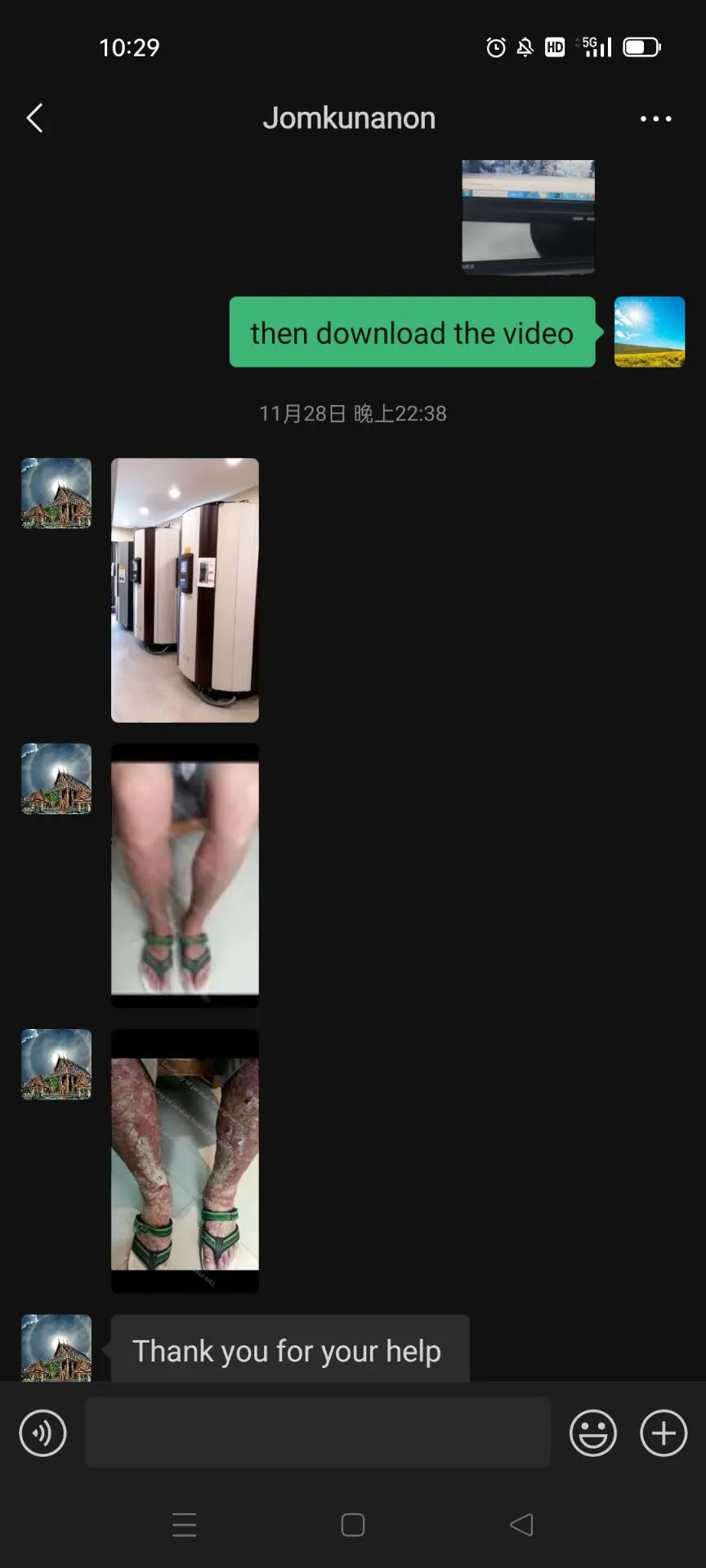

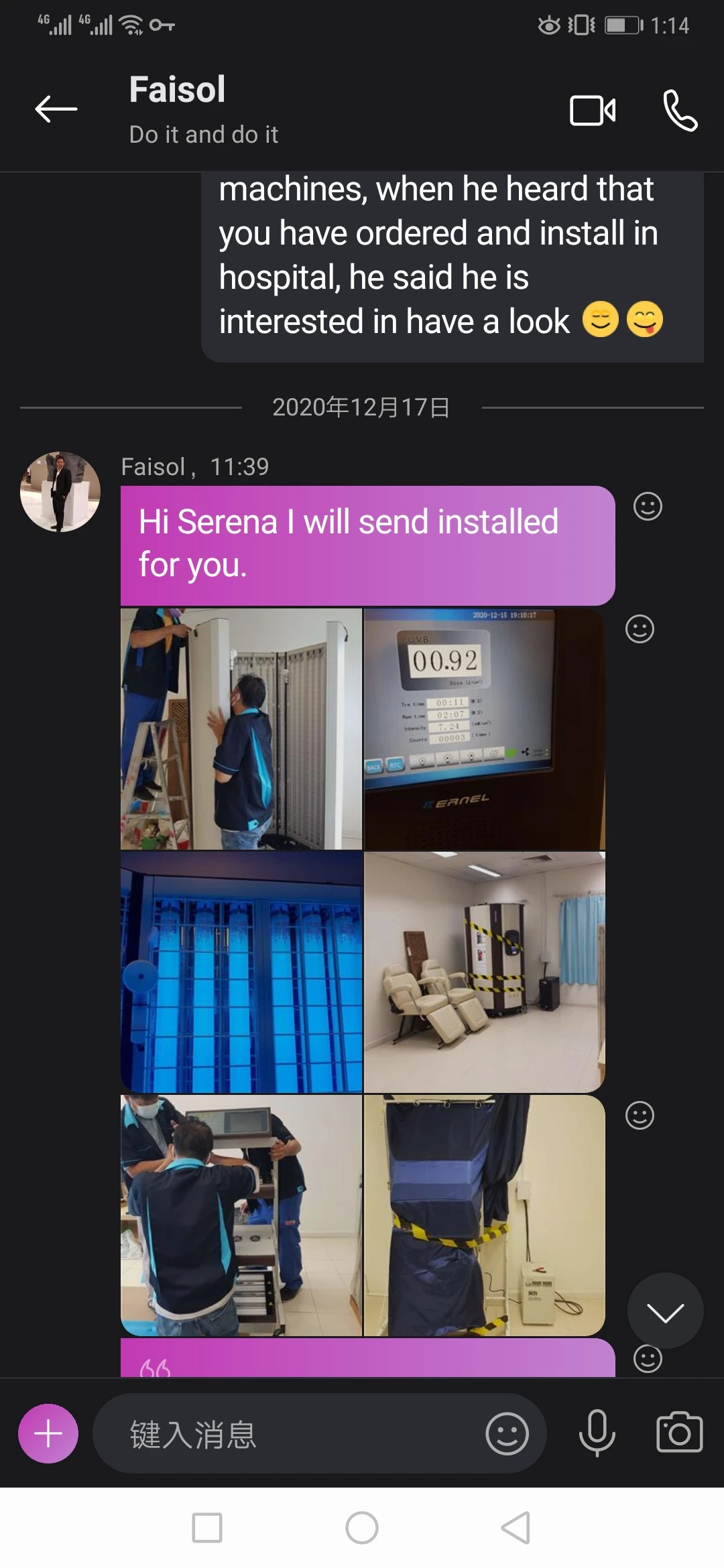

Customer Feedback
Specification
Work Voltage | AC 220V+10%,50Hz+2% | ||||
Rated Power | 4800VA | ||||
Effective Radiation Size | Whole body | ||||
Radiant light source | Special type of UV light tube, average using life is more than 3000 hours | ||||
Classification | Class I Type B | ||||
Machine dimension | 1300×1320×2050mm | ||||
Packing dimension | 2120×880×375mm (total 4 boxes); 1910×473×390mm(one box) 1288×1288×180mm(one box) | ||||
Weight | NW:670kg GW:820kg | ||||
Irradiation area | 40500cm2 | ||||
Display | 8 inch 16:9 color LED touch screen | ||||
Work distance | 20cm | ||||
Output waeform | UVA or UVB or UVA+UVB | ||||
Lamp | KN-4001A:40 units UVA; KN-4001B:40 units UVB; KN-4001AB:20 units UVA,20 units UVB | ||||
Optinal | 1. Workstation: central monitoring center for remote control 2. UVA/UVB intensity measurement system, real time display the irradiation intensity | ||||
Clinical Application
What conditions are treated by UVB phototherapy?
Psoriasis
Psoriasis is a common inherited skin disorder, which may vary considerably in extent and severity. Neither phototherapy nor any other available treatment effects a permanent cure.
UVB is suitable for most people with extensive psoriasis. It may not suit those with very fair skin or those whose psoriasis gets worse in sunlight.
Initially, most patients have their treatment three times a week. The first few exposures will be short (less than 5 minutes). The length of exposure is gradually increased, according to the patient's response, up to a maximum of 30 minutes per session. Few patients require such long exposures, most being controlled with shorter times.
Most psoriasis patients will have their psoriasis cleared or much improved after 12 to 24 treatments. At this stage, treatments will usually be discontinued. Even without treatment, the skin may remain clear for some months. However, psoriasis may later flare up again, and further UVB treatment may be necessary.
Those cases of psoriasis which appear to be resistant to UVB may still be helped by another form of ultraviolet treatment called PUVA, or other treatments (e.g. ointments or tablets).
Dermatitis
UVB is occasionally used for severe cases of dermatitis, especially atopic eczema. Frequency and dosage of treatment are similar to that used for psoriasis. However, a course of phototherapy may need to be more prolonged than that generally required for psoriasis.
Vitiligo
UVB is one of the most effective treatments for vitiligo. Treatments must be cautious as the white skin burns easily. It may take several months to see an improvement.
Other skin conditions
Many other skin conditions have been effectively treated with UVB, including generalised itch, prurigo, cutaneous T-cell lymphoma, pityriasis lichenoides, and symptomatic dermographism.
Psoriasis is a common inherited skin disorder, which may vary considerably in extent and severity. Neither phototherapy nor any other available treatment effects a permanent cure.
UVB is suitable for most people with extensive psoriasis. It may not suit those with very fair skin or those whose psoriasis gets worse in sunlight.
Initially, most patients have their treatment three times a week. The first few exposures will be short (less than 5 minutes). The length of exposure is gradually increased, according to the patient's response, up to a maximum of 30 minutes per session. Few patients require such long exposures, most being controlled with shorter times.
Most psoriasis patients will have their psoriasis cleared or much improved after 12 to 24 treatments. At this stage, treatments will usually be discontinued. Even without treatment, the skin may remain clear for some months. However, psoriasis may later flare up again, and further UVB treatment may be necessary.
Those cases of psoriasis which appear to be resistant to UVB may still be helped by another form of ultraviolet treatment called PUVA, or other treatments (e.g. ointments or tablets).
Dermatitis
UVB is occasionally used for severe cases of dermatitis, especially atopic eczema. Frequency and dosage of treatment are similar to that used for psoriasis. However, a course of phototherapy may need to be more prolonged than that generally required for psoriasis.
Vitiligo
UVB is one of the most effective treatments for vitiligo. Treatments must be cautious as the white skin burns easily. It may take several months to see an improvement.
Other skin conditions
Many other skin conditions have been effectively treated with UVB, including generalised itch, prurigo, cutaneous T-cell lymphoma, pityriasis lichenoides, and symptomatic dermographism.

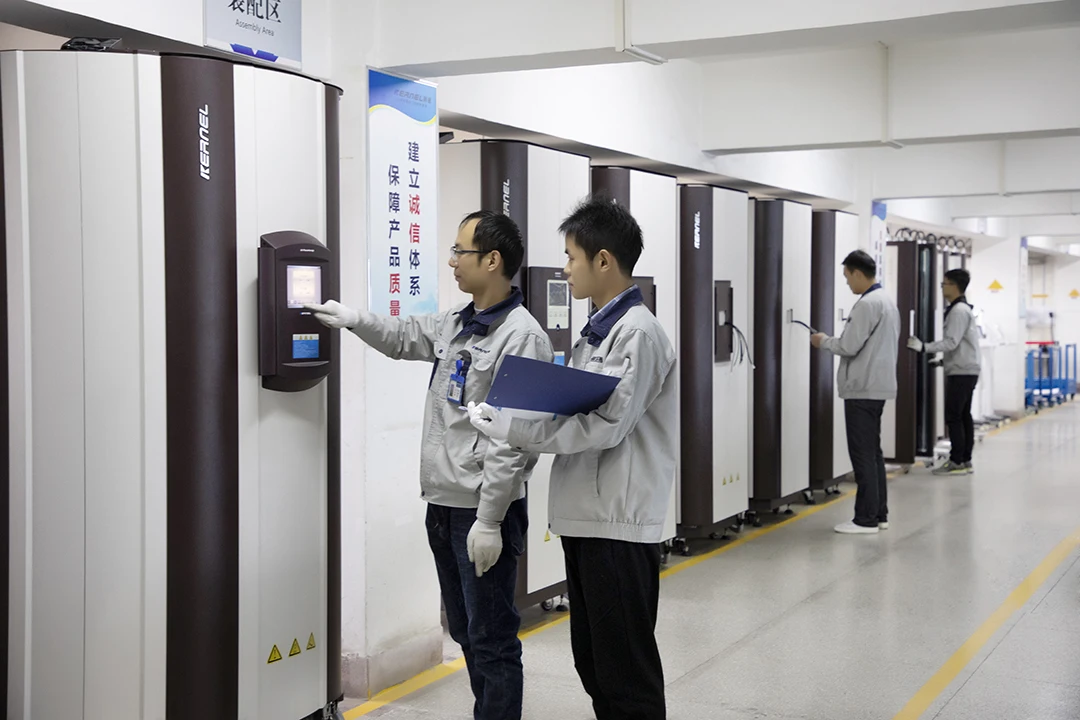

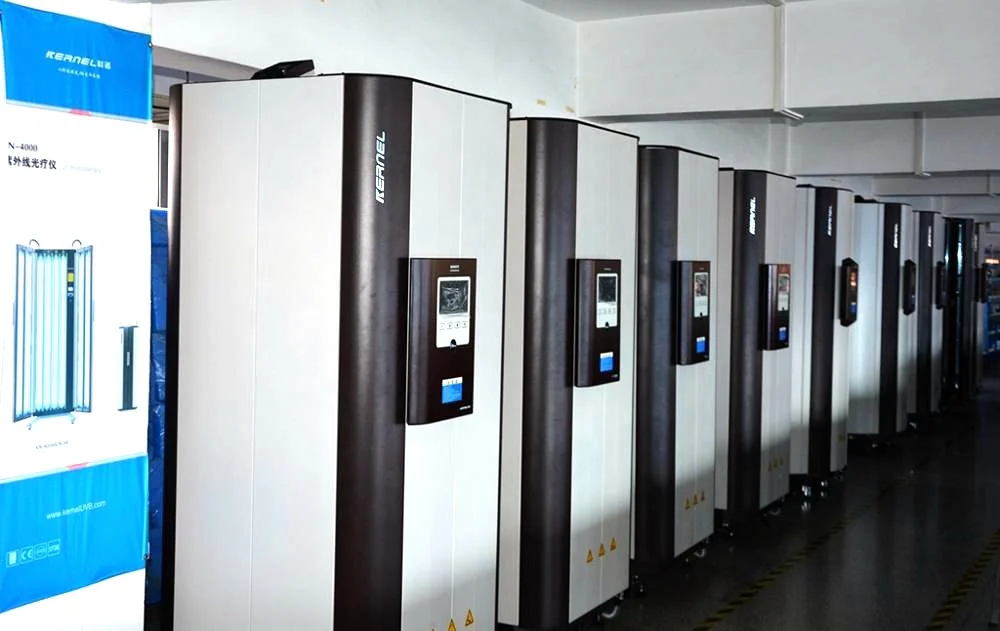

Production Line
