Apparel & Textile Machinery Garment Process Fabric Roll Strip Cutting Machine Fabric Slitting Machine
- Category: >>>
- Supplier: Shishi Zhicheng Garment Machinery Co. Ltd.
Share on (1600652907972):
Product Overview
Description
Product Overview

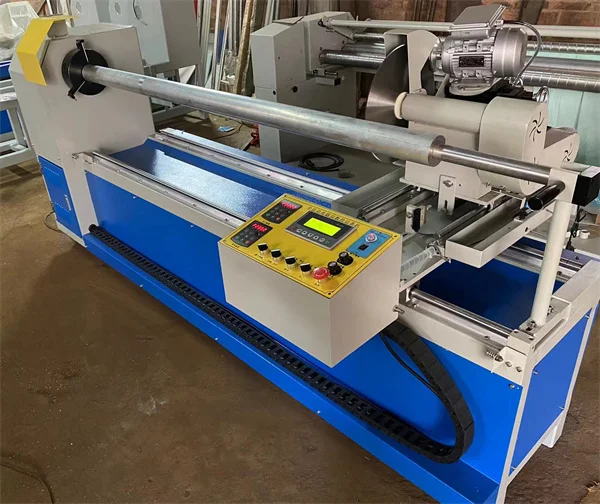

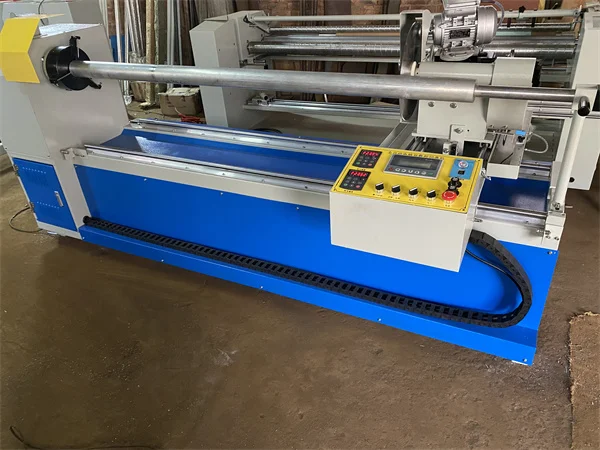

Fabric roll strip cutting machine

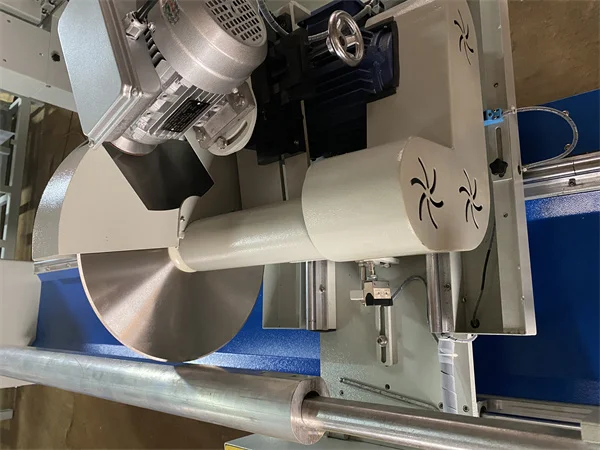

This machine is mainly consisted of linear bearing slide rail, large cutter, knife grinder, oilstone, stepping motor, transducer,
linear motor, text control panel and other electrical control parts. It is compact and highly automatic.
Suitable for all kinds of width cutting of fabrics, non-woven cloth, linings, interlinings, foam, leather, reflective materials,
paper, plastic, acetic acid cloth, reinforcing tape, conductive cloth and so on. Widely used in garment, shoes and hats, bags, clothing accessories factory, swimwear factory, tent factory, umbrella factory, reflective materials factory, home textile products and other industries.
linear motor, text control panel and other electrical control parts. It is compact and highly automatic.
Suitable for all kinds of width cutting of fabrics, non-woven cloth, linings, interlinings, foam, leather, reflective materials,
paper, plastic, acetic acid cloth, reinforcing tape, conductive cloth and so on. Widely used in garment, shoes and hats, bags, clothing accessories factory, swimwear factory, tent factory, umbrella factory, reflective materials factory, home textile products and other industries.
Product Features 1.Spindle power use stepless variable speed system, which can be used for high and low adjusting speed and positive &negative
switching control to achieve best cutting quality.
2.Adopting high precision stepping system to control cutting width, Cooperating with precision ball screw and slide rail in Taiwan
to reach to high precision cutting.
3.Using horizontal pushing for cutting cloth.

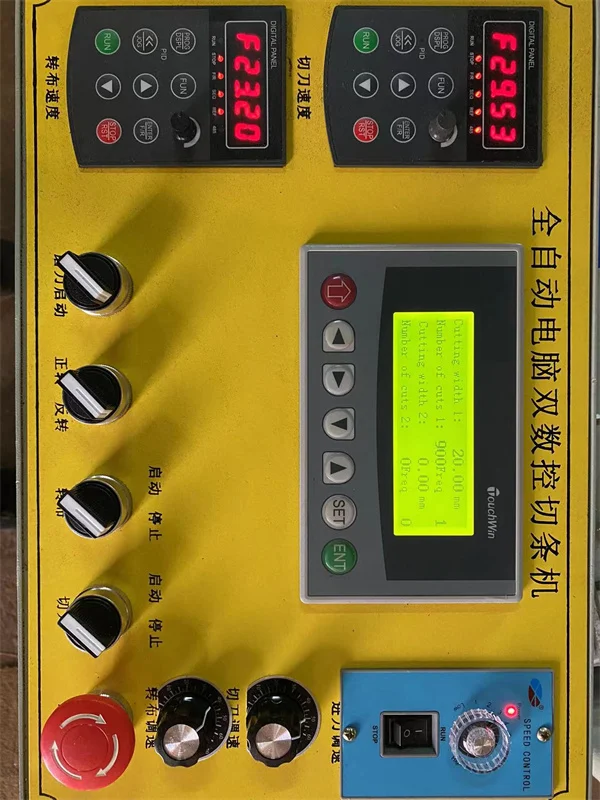

4.Interface uses Chinese and English LCD display ,we can directly input the cutting width quantity setting and action setting.
switching control to achieve best cutting quality.
2.Adopting high precision stepping system to control cutting width, Cooperating with precision ball screw and slide rail in Taiwan
to reach to high precision cutting.
3.Using horizontal pushing for cutting cloth.
4.Interface uses Chinese and English LCD display ,we can directly input the cutting width quantity setting and action setting.
PRODUCT SPECIFICATIONS
1.7width | 1.7m/2.0m/2.4m |
Fabric roll rotating speed | 80m/min max |
Shaft diameter | 38mm max |
Fabric roll diameter | 300mm(400mm,500mm can also be customized) |
Rolling machine power | 0.75kw |
Cutting machine power | 1.5kw |
Minimun width of cut strap | 2mm |
Voltage | 220V/380V |
Machine measurement | 2.2m(2.5m/2.8m)*1m*1.3m |
PRODUCT CONFIGURATION
Application&Effects
SALES AND SERVICE NETWORK
Company Profile
FAQ
1. Are you a trading company or manufacturer?
We are a manufacturer, our factory is located in Shishi city, Fujian province ,China. We are looking forward to having you visit
our factory.
2. How many years does your factory work on the spreading machine?
We have been started in production, development & research in 2014.
3.What about the warranty?
One year from the date of installation.
4.How about the installation?
We provide after-sales service by video and chat. We can also send engineers to customers' country.
5.How long it takes to deliver machines?
Generally machines will be shipped within 15 days, if the goods are in stock. Or it will takes 30 day if the goods are not in
stock. It depends on the order quantity.
We are a manufacturer, our factory is located in Shishi city, Fujian province ,China. We are looking forward to having you visit
our factory.
2. How many years does your factory work on the spreading machine?
We have been started in production, development & research in 2014.
3.What about the warranty?
One year from the date of installation.
4.How about the installation?
We provide after-sales service by video and chat. We can also send engineers to customers' country.
5.How long it takes to deliver machines?
Generally machines will be shipped within 15 days, if the goods are in stock. Or it will takes 30 day if the goods are not in
stock. It depends on the order quantity.
