ATE 5 3D Manual Monocular Digital Video Stereo Microscope with HDMI 1080P Camera
- Category: >>>
- Supplier: Suzhou Jingtong Instrument Co. Ltd.
Share on (1600652923927):
Product Overview
Description
 | Monocular Head HDMI Camera Optical Mag. 0.6X~5X 3D Manual 360° Rotation Real-time Image Observation 2D/3D switch manually and freely |
Product Description
ATE-5 Microscope optical system features the quality optical system, low distortion, high resolution, flat and large field of view, high depth of field and superior parfocality. The novel design and one-up-technology make it easy for operation.
The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.

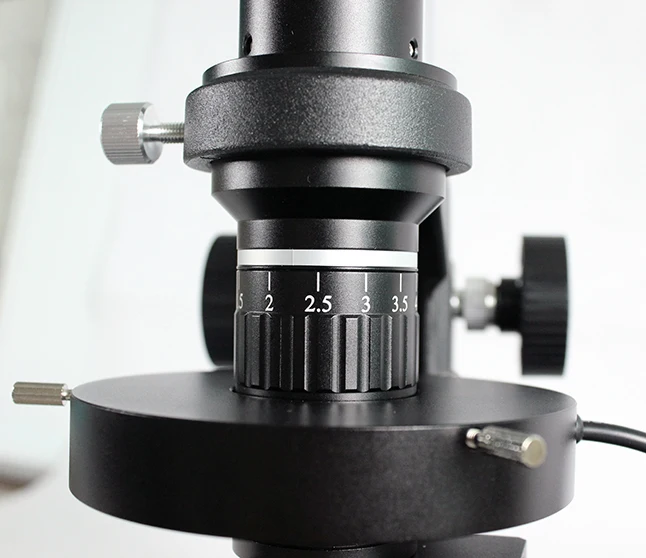

When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.6X, 1X, 1.5X, 2X, 2.5X, 3X, 3.5X, 4X, 4.5X, 5X.
The 3D 360° rotary observation lens can achieve 86mm (Max) working distance. By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired. Digital and Analog video systems can meet the different users' demands.
3D Video Microscope can be widely used in the areas of micro-electronics, precision electronic inspection, PCB solder testing industries, hardware & precision parts, criminal investigation and life sciences, as well as plant morphology, etc.
Features
---Equipped with HDMI industrial camera, 1920*1080 resolution
---The camera field of view without black edge, high resolution and large depth of field
---Equipped with infinity optical system, 0.6X~5X continuous zoom, and the zoom ratio is 1:8.3
---Equipped with LED ring light source, with 4 zones control.
---2D/3D observation can be manually and freely switched, with 360 ° rotation and 45 ° viewing angle of objective lens. When switching, the working distance (86mm) and the central position remains unchanged
---Widely used in microelectronics, precision electronics, precision hardware, deep hole wall, life science, animal and plant morphology, criminal investigation and identification, etc.

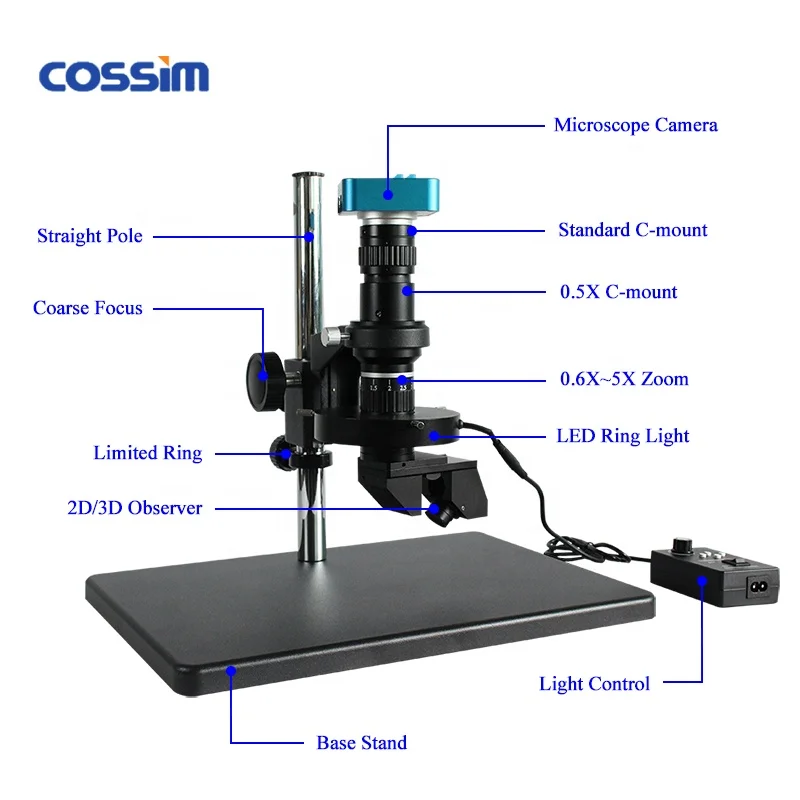

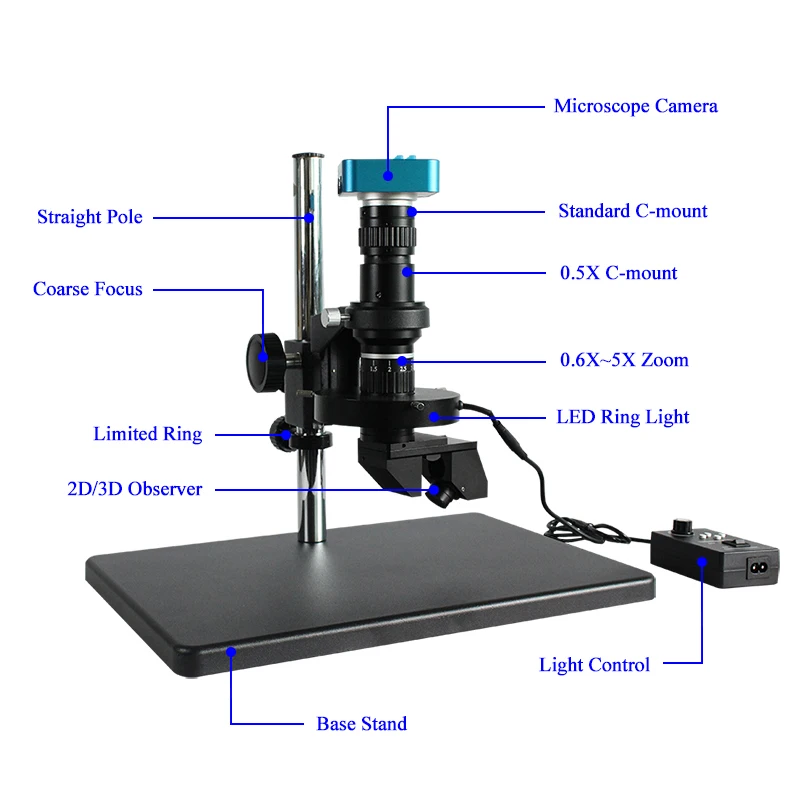

| Structure of ATE-5 3D Manual Stereo Microscope |

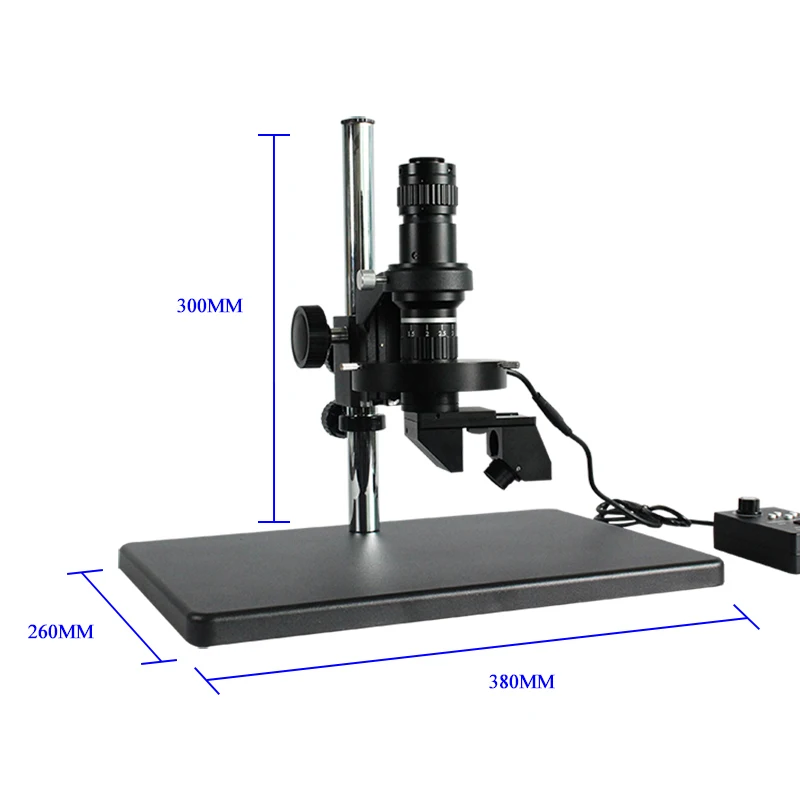

| Dimension of ATE-5 3D Manual Stereo Microscope |
Specification
Specification for ATE-5: | ||
|---|---|---|
Lens Parameters | Optical Magnification | 0.6X~5X |
Total Magnification | 11X~95X, with 21.5” display screen | |
Working Distance | 86mm | |
Ratio | 1:8.3 | |
Field of View | 24*13.5-2.88*1.62mm | |
Interface | Standard C-Mount | |
2D/3D Rotate Observer | 2D/3D switch manually and freely | |
the working distance (86mm) remains unchanged | ||
the central position remains unchanged | ||
360 ° rotation and 45 ° viewing angle of objective lens | ||
Camera Parameter | Sensor | 1/2” SONY CMOS |
Resolution | 1920 x 1080 | |
Pixel Size | 3.75μm x 3.75μm | |
White Balance | Auto/Manual | |
Exposure | Auto/Manual | |
Record Format | Save into U Disk JPG/BMP | |
Output Interface | HDMI | |
Light Source Parameters | Zone Control | Four partition control, brightness adjustable |
Color | White | |
LED Granule | 208PCS LED | |
Illuminance | 15000 Lux | |
Wave Length | 455~457.5nm | |
Output Voltage | 12V | |
Output Power | 8~10W | |
Working Distance | 35~110mm | |
Material | Alu alloy | |
Size | Inner Dia: 40mm Outer Dia: 106mm Height: 19mm | |
Stand Parameters | Stand | Round column coarse adjustable bracket |
Product Details

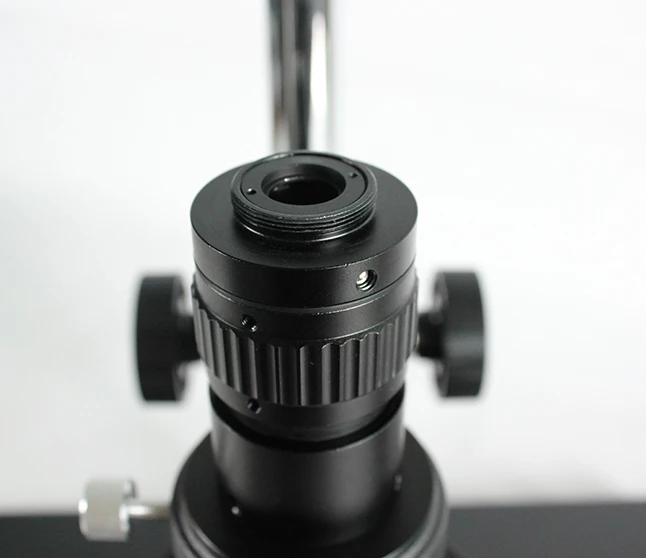

 | C-Mount Interface Standard C-Mount interface, which could be connected with microscope camera. |
Continuous Zoom Equipped with infinity optical system, 0.6X~5X continuous zoom, and the zoom ratio is 1:8.3. |  |

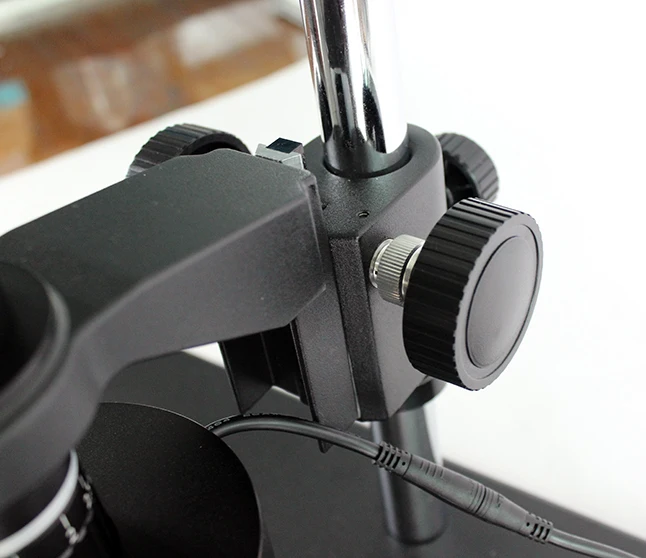

 | Coarse Focuse Coarse focus system, which adjust the distance easily. |

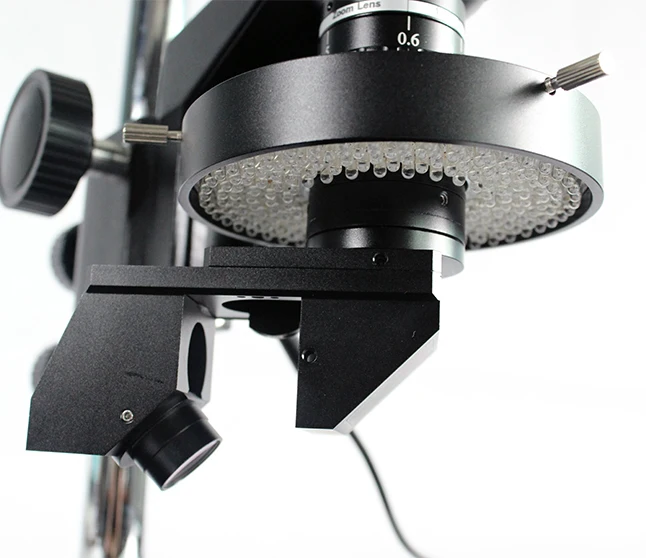

LED Ring Light Four zones control ring light sources, 8~10W output power, 15000 lux illuminance. |  |

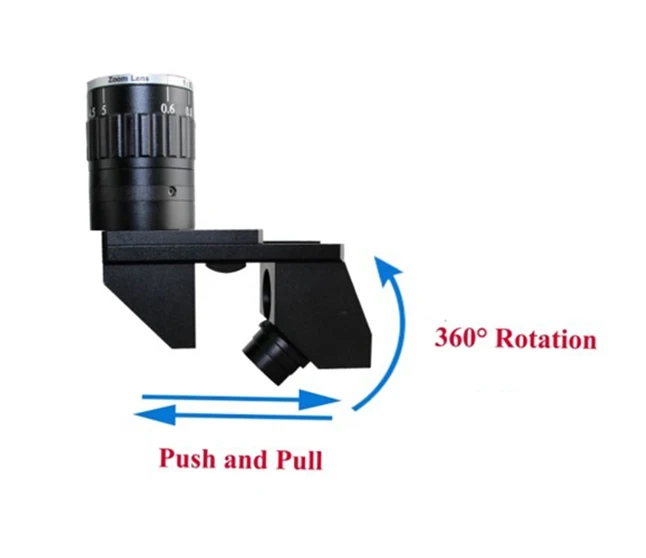

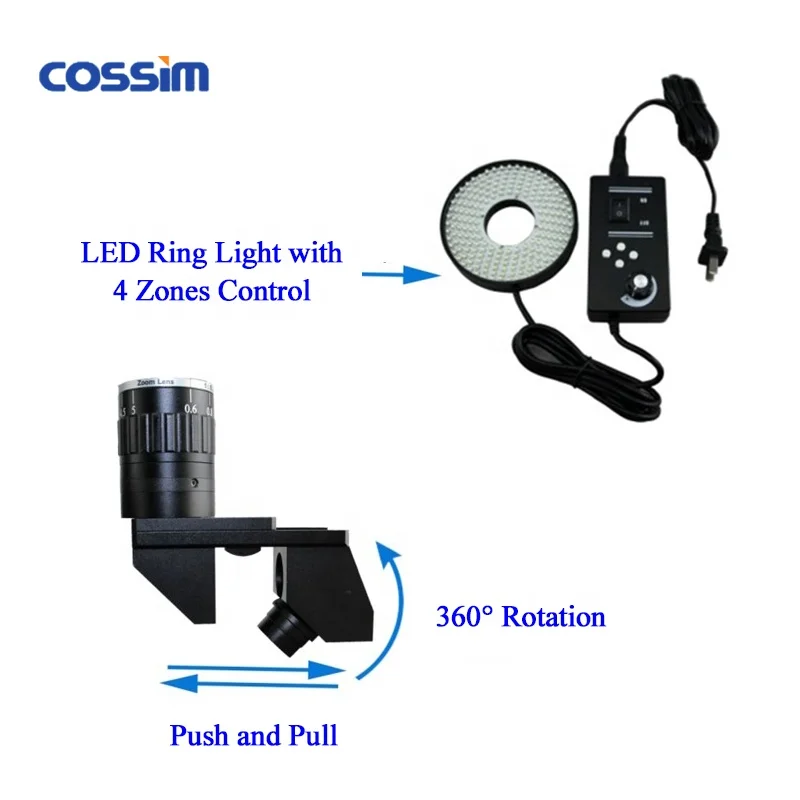

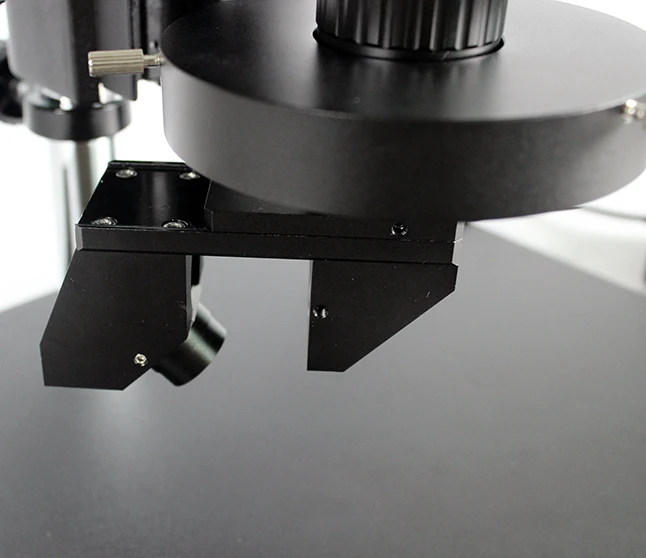

 |  | 2D/3D Observer 2D/3D observation can be manually and freely switched, with 360 ° rotation and 45 ° viewing angle of objective lens. |

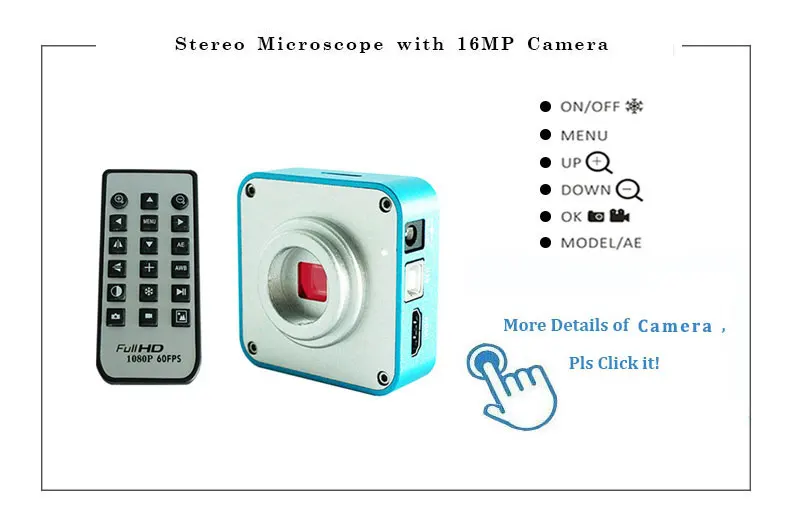

16MP High Resolution HDMI-compatible & USB2.0 Interface, it's easy to observe, edit and save the images directly
|

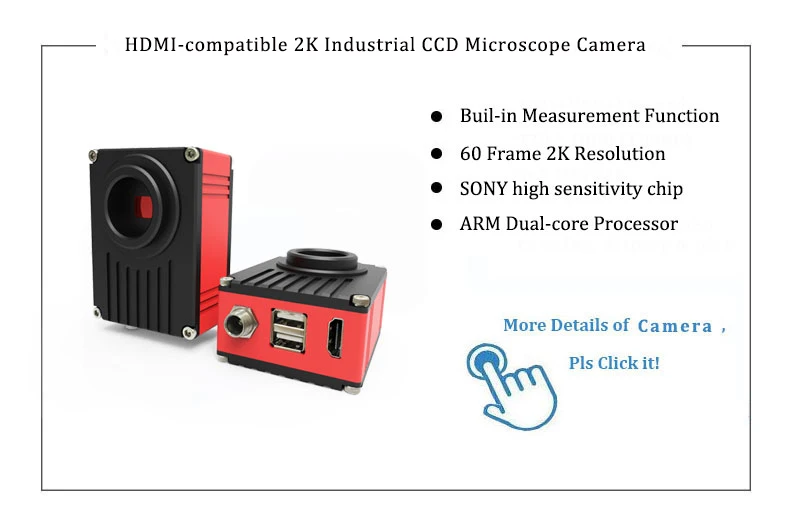

HDMI-compatible 2K Industrial CCD Microscope Camera for Measuring.
|
HDMI-compatible+USB output, 1080P HD 10.1" Display Screen, Supply photography, video, save function.
|
Samples

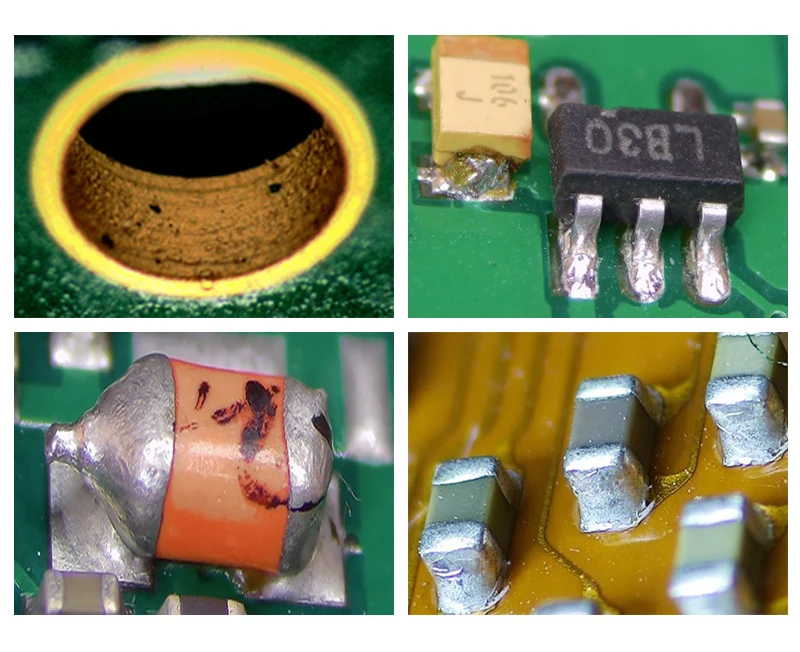

| Samples Captured by ATE-5 3D Manual Stereo Microscope |
