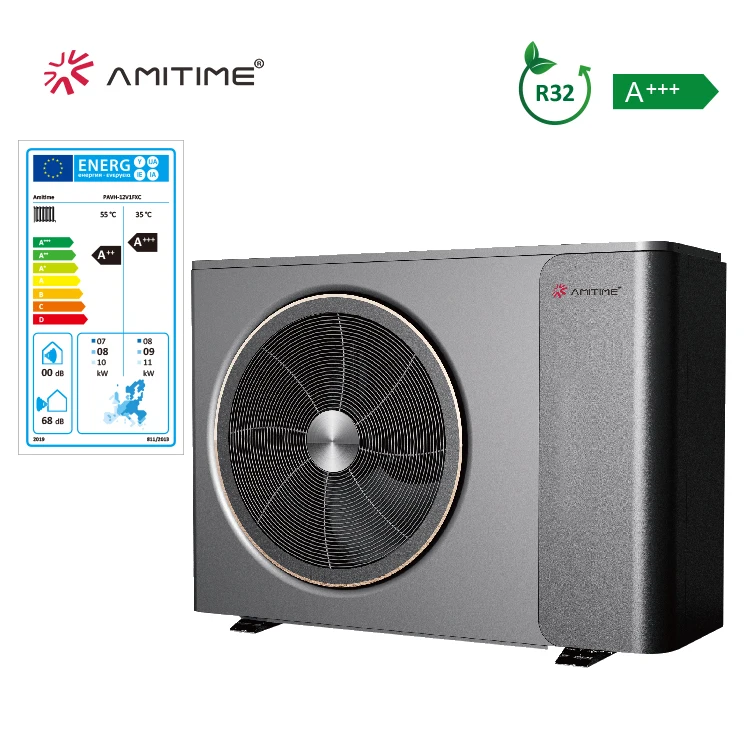

Erp Ce Keymark Certified Low Noise Amitime Custom Air To Water Cold Weather Ce Heat Pump Oem With HeatLITE
- Category: >>>
- Supplier: Zhongshan Amitime Electric Co. Ltd.
Share on (1600652949909):
Product Overview
Description
Product Paramenters
Technical data | ||||||||||
Model no. | PAVH-06V1FXC | PAVH-09V1FXC | PAVH-12V1FXC | |||||||
Power supply | ||||||||||
Power supply - Outdoor unit | Outdoor unit | V / Hz / Ph | 230V/50Hz/1Ph | 230V/50Hz/1Ph | 230V/50Hz/1Ph | |||||
Refrigerant | R32 | R32 | R32 | |||||||
Energy class （35℃ SCOP） | A+++ | A+++ | A+++ | |||||||
Performance | ||||||||||
Min/max heating capacity (1) | kW | 3.4~6.5 | 5.4~9.7 | 5.9~11.9 | ||||||
El. heating power input min/max (1) | KW | 0.74~1.5 | 1.2~2.4 | 1.3~2.9 | ||||||
C.O.P min/max (1) | W/W | 4.26~4.6 | 4.04~4.53 | 4.05~4.67 | ||||||
Min/max heating capacity (2) | kW | 3.1~5.9 | 5.1~8.8 | 6~11.5 | ||||||
El. heating power input min/max (2) | KW | 0.92~1.7 | 1.5~2.9 | 1.6~3.6 | ||||||
C.O.P min/max (2) | W/W | 3.41~3.5 | 3.03~3.4 | 3.19~3.66 | ||||||
SCOP - Average climate, low temperature | W | 4.66 | 4.62 | 4.57 | ||||||
Energy class | A+++ | |||||||||
Min/max cooling capacity (3) | kW | 3.1~6.5 | 4.2~9.1 | 5.1~11.3 | ||||||
El. coolimg power input min/max (3) | KW | 0.82~1.9 | 1.28~2.5 | 1.34~3.4 | ||||||
E.E.R. min/max (3) | W/W | 3.32~3.8 | 3.28~3.71 | 3.33~3.82 | ||||||
Min/max cooling capacity (4) (A35/W7) | kW | 1.8~4.8 | 3.8~7.5 | 4.2~8.1 | ||||||
El. cooling power input min/max (4) | KW | 0.66~2.54 | 1.6~2.7 | 1.6~3.1 | ||||||
E.E.R. min/max (4) | W/W | 2.54~2.7 | 2.46~2.72 | 2.61~2.73 | ||||||
Ambient temperature range | heating | °C | -25~43 | |||||||
cooling | °C | 7~43 | ||||||||
Outlet water temperature range | °C | 7~60 | ||||||||
Sound power level | 55℃ | dB (A) | 64 | 67 | 68 | |||||
35℃ | dB (A) | 50 | 56 | 56 | ||||||
Indoor unit | dB (A) | / | / | / | ||||||
Dimensions and weight | ||||||||||
Net Dimensions (Lx D x H) | Outdoor unit | mm | 1015x380x700 | 1175x380x845 | 1175x380x845 | |||||
Brutto Dimensions (L x D x H) | Outdoor unit | mm | 1080x470x865 | 1245x480x1020 | 1245x480x1020 | |||||
Net weight | Outdoor unit | kg | 70 | 79 | 82 | |||||
Brutto weight | Outdoor unit | kg | 81 | 90 | 93 | |||||
Included with the unit | ||||||||||
WIFI | Yes / No | Yes | ||||||||
(1) Heating condition: water inlet/outlet temperature: 30 °C/35°C, Ambient temperature: DB 7 °C /WB 6 °C | ||||||||||
(2) Heating condition: water inlet/outlet temperature: 40°C/45°C, Ambient temperature: DB 7 °C /WB 6 °C | ||||||||||
(3) Cooling condition: water inlet/outlet temperature: 23 °C/18°C, Ambient temperature: DB 35 °C /WB 24 °C | ||||||||||
(4) Cooling condition: water inlet/outlet temperature: 12°C/7°C, Ambient temperature: DB 35 °C /WB 24 °C | ||||||||||
