YUSHI 0.5mm to 508mm A Scan B Scan Ultrasonic Thickness Gauge UM 5 Resolution 0.01mm Through Paint NDT UT
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (1600653105296):
Product Overview
Description

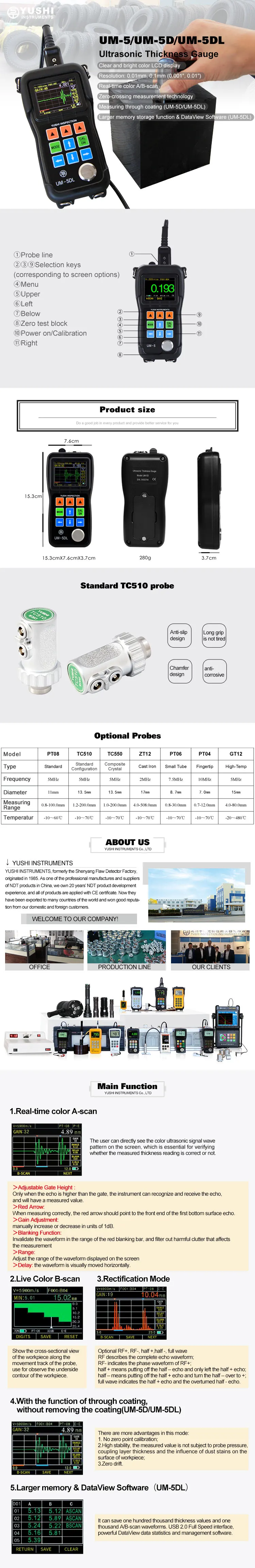

Products Description

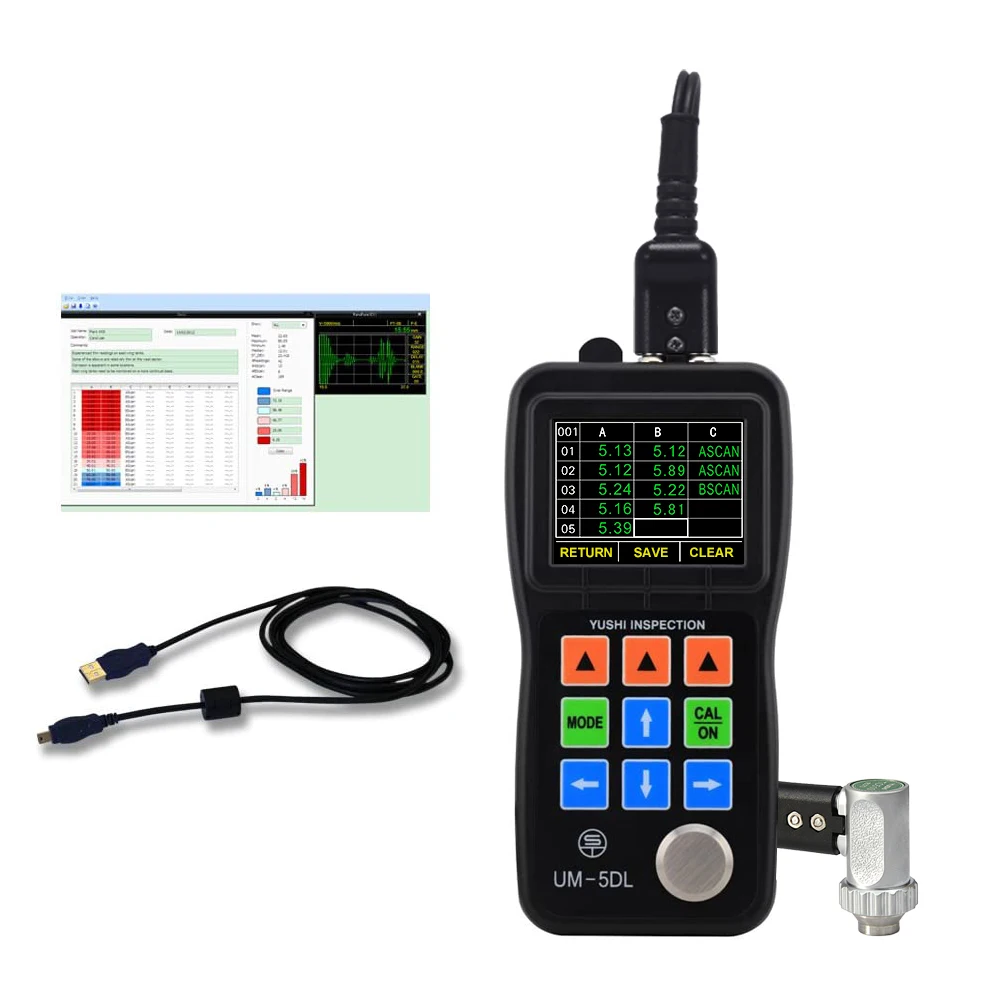

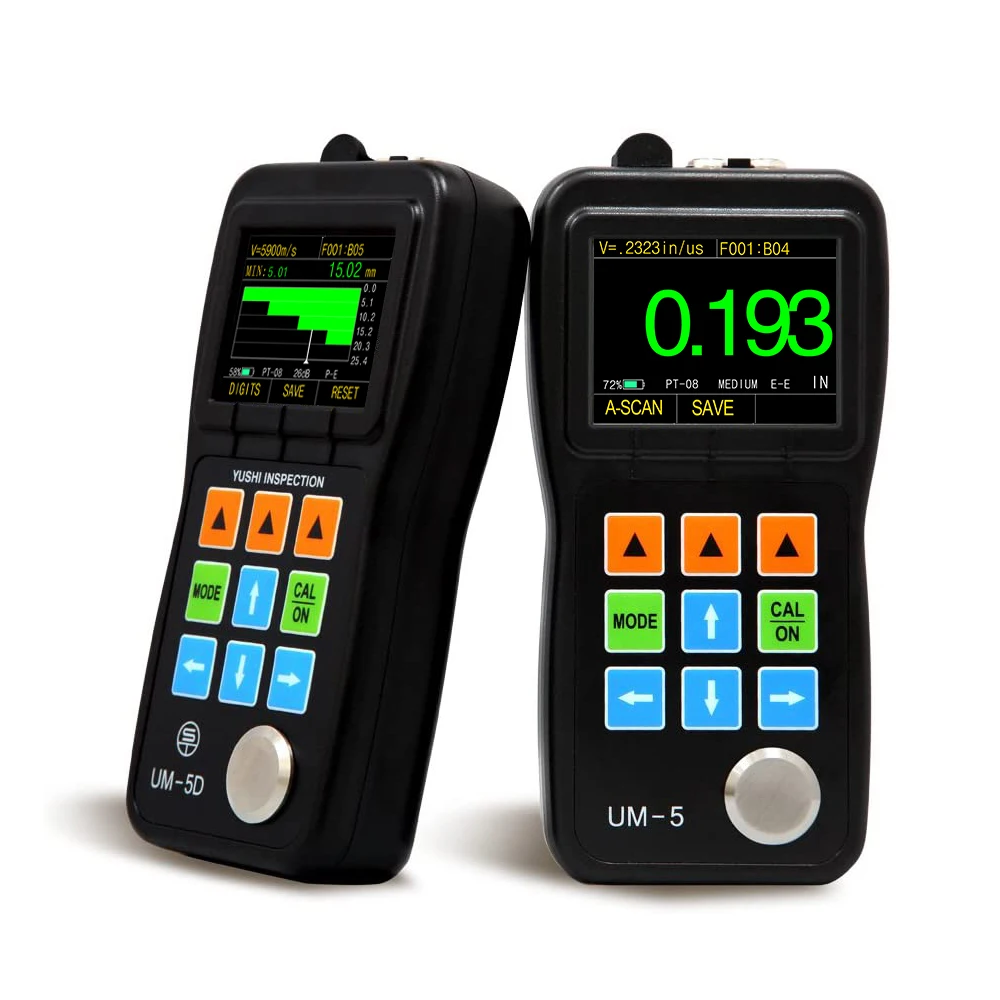

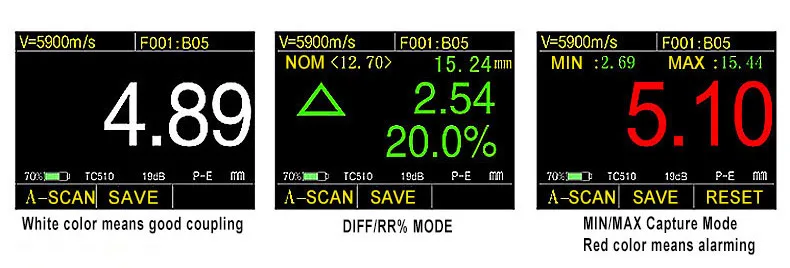

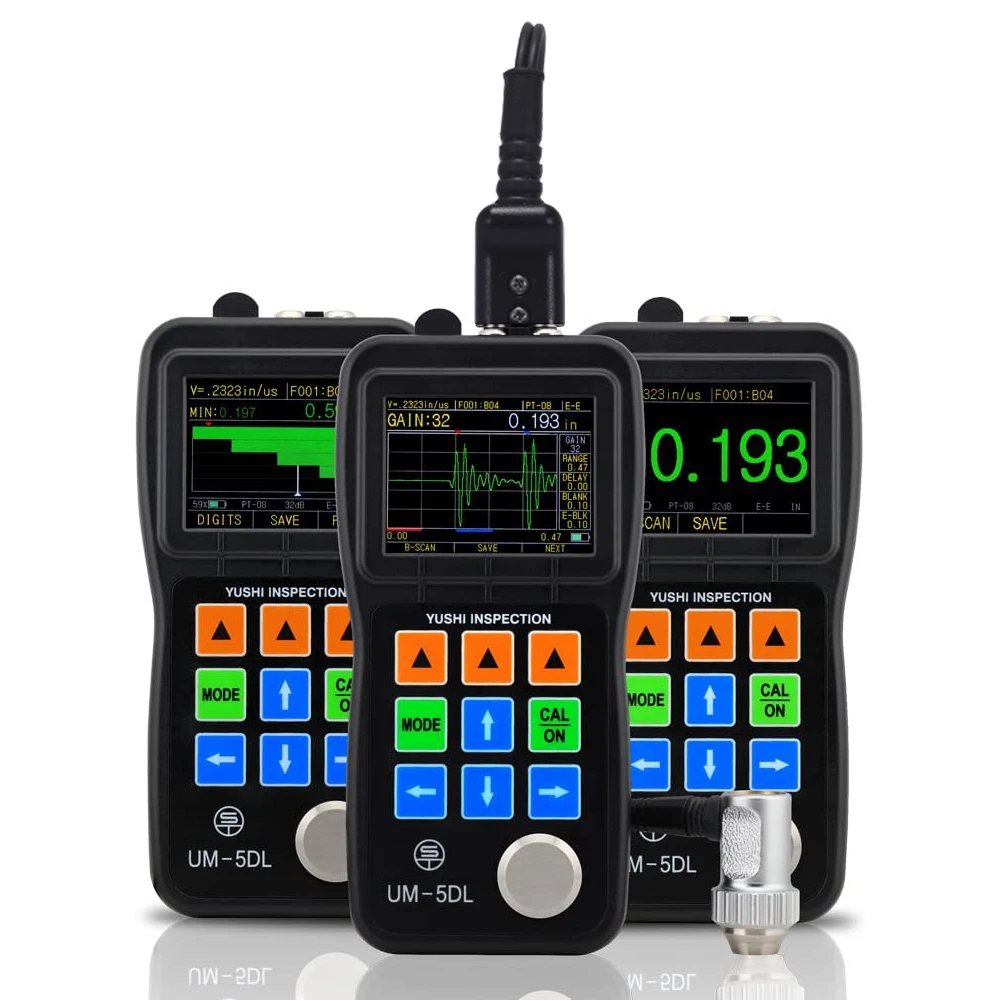

Three Three display modes
Warning Function: Minimum and Maximum alarms. Dynamic waveform color change on alarm
A Scan
1.Adjustable Gate Height
2.Gain Adjustment
3.Adjust the range of the waveform displayed on the screen
4.Adjust the starting position of the waveform displayed on the screen

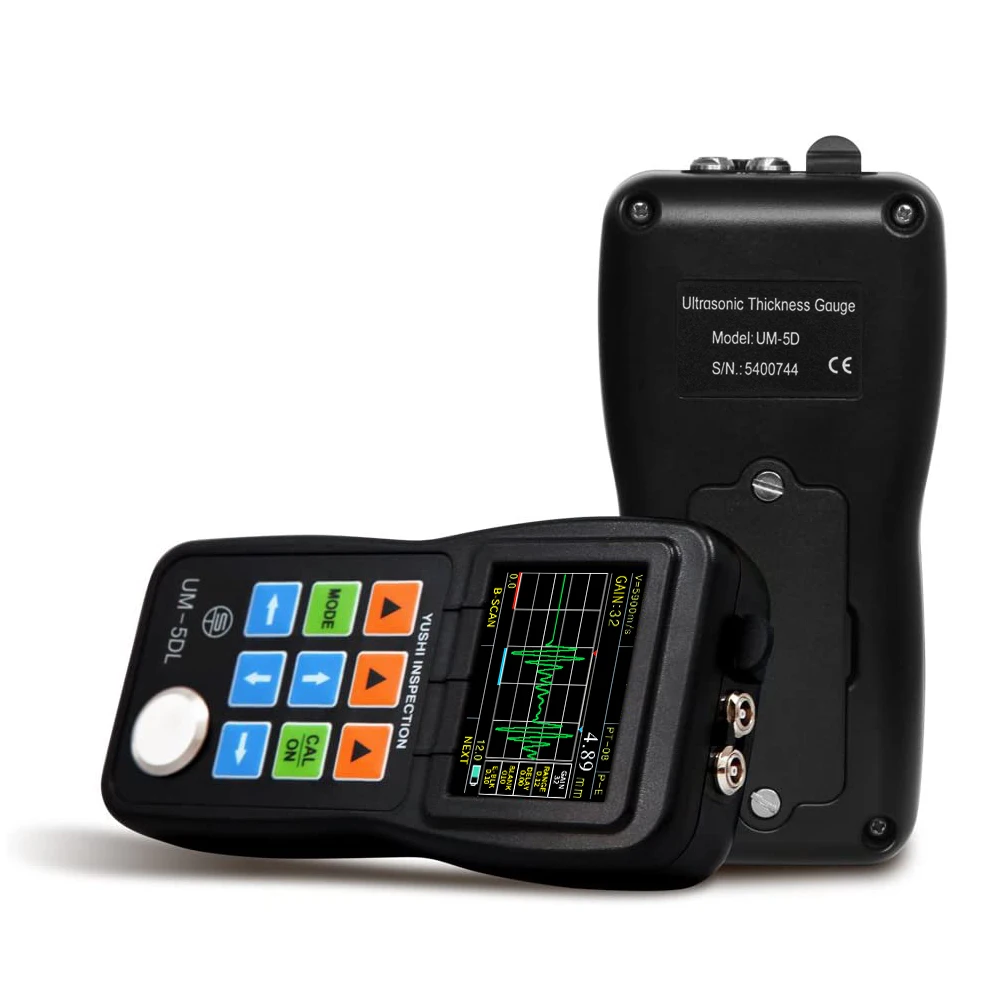

B Scan
Selectable Chinese, English, German，French，Japanese
Data Storage
100,000 readings, 1000 waveforms, 400 files (Only UM-5DL)
Workmanship
1. high-quality components selected from around the world-Good stability and long service life
2. High hardness and Chemical corrosion resistance such as acid and alkali- Hard and durable, long life for use
3. Chemical corrosion resistance such as acid and alkali,Not easy to break, good color retention, anti-aging
3. Chemical corrosion resistance such as acid and alkali,Not easy to break, good color retention, anti-aging
Communication Software (Optional)
Communication to the optional software to directly send thickness readings into an active Windows® program on your Windows 10 PC.
Allow you to more effectively manage your inspections and much more
Allow you to more effectively manage your inspections and much more
Accurate measurement
Error ±0.05mm (Low limit to 10mm)
Resolution
0.01mm / 0.001in
Through Coating Function
(UM-5D and UM-5DL)
Resolution
0.01mm / 0.001in
Through Coating Function
(UM-5D and UM-5DL)
Multiple language options
Selectable Chinese, English, German，French，Japanese
Product Specifications
Display | 2.4 inch (320×240 dot matrix) Color LCD screen display |
Operating Principle | P-E (pulse-echo) , E-E (echo-echo)(UM-5D&UM-5DL) with dual elements transducer |
Measuring Range | 0.50mm to 508mm(0.025" to 20.00"), depending on material, probe and surface condition |
Measuring Limits of Tube (Steel): | Φ20mm×3.0mm(PT-08 probe) Φ15mm×2.0mm(PT-06 probe) The measuring error is up to ±0.1mm |
Measuring Error | ±0.05mm (＜10mm) ± (0.5%H+0.01) mm (≥10mm) Note: H is the actual thickness of the testing object |
Repeatability: | 0.05mm |
Resolution | 0.01mm, 0.1mm (0.001", 0.01") Selectable in the entire measurement range |
Units | Inch / Millimeter |
Gain | Adjustable |
Display Mode | Normal, Minimum / Maximum capture, DIFF/RR% |
Calibration | Zero calibration,Two-point calibration |
V-Path Correction | Automatic |
Update Rate | Selectable 4Hz, 8Hz, 16Hz |
Material Velocity Range | 500 to 9999m/s (0.0197 to 0.3937in/us) |
Data Storage | 100,000 readings, 1000 waveforms, 400 files (Only UM-5DL) |
Warning Function | Minimum and Maximum alarms. Dynamic waveform color change on alarm |
Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of no activity |
Language | Selectable Chinese, English, German，French，Japanese |
Communication Port | USB 2.0 (Full Speed ) port |
Software | UmView software is used for measurement data transmission, storage, analysis and documents editing (Optional) |
Power | Two 1.5V AA batteries, 24 hours standby time |
Operating Temperature | -10°C to +50°C, Up to -20℃ with special requirements |
Size | 153mm X 76mm X 37mm (H X W X D) |
Weight | 280g including batteries |
Application
Glass
Ceramic
Metal
Steel, Stainless Steel, Iron, Copper and Copper Alloy, Aluminum and Aluminum Alloy, Titanium and Titanium Alloy, etc.
Plastic
PVC and PE, etc

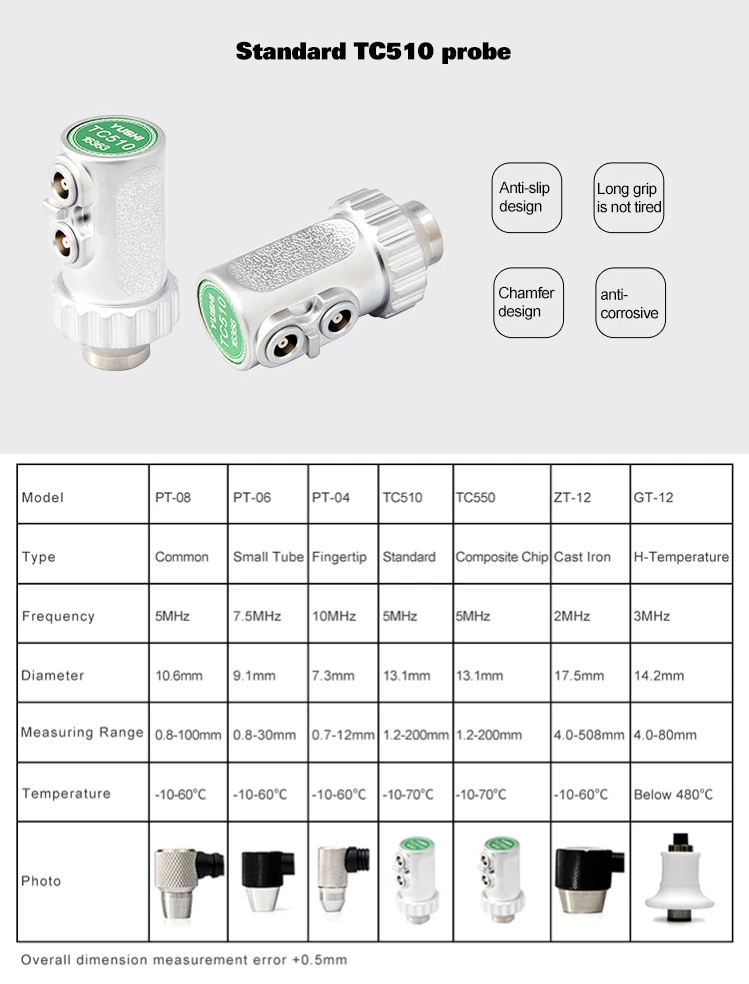

Product Configuration
Name | Unit | Number |
Ultrasonic Thickness Gauge | Set | 1 |
Couplant Bottle | Pc | 1 |
Probe(Include Test Report) | Pc | 1 |
Probe Cable | Piece | 1 |
Carrying Case | Case | 1 |
Operation manual | Copy | 1 |
Quality Certification | Copy | 1 |
Warranty Card | Copy | 1 |
Packing List | Copy | 1 |
Communication CD (Optional) | Set | 1 |
USB Cable (Optional) | Pc | 1 |
Certificate of Calibration (Optional) | Copy | 1 |

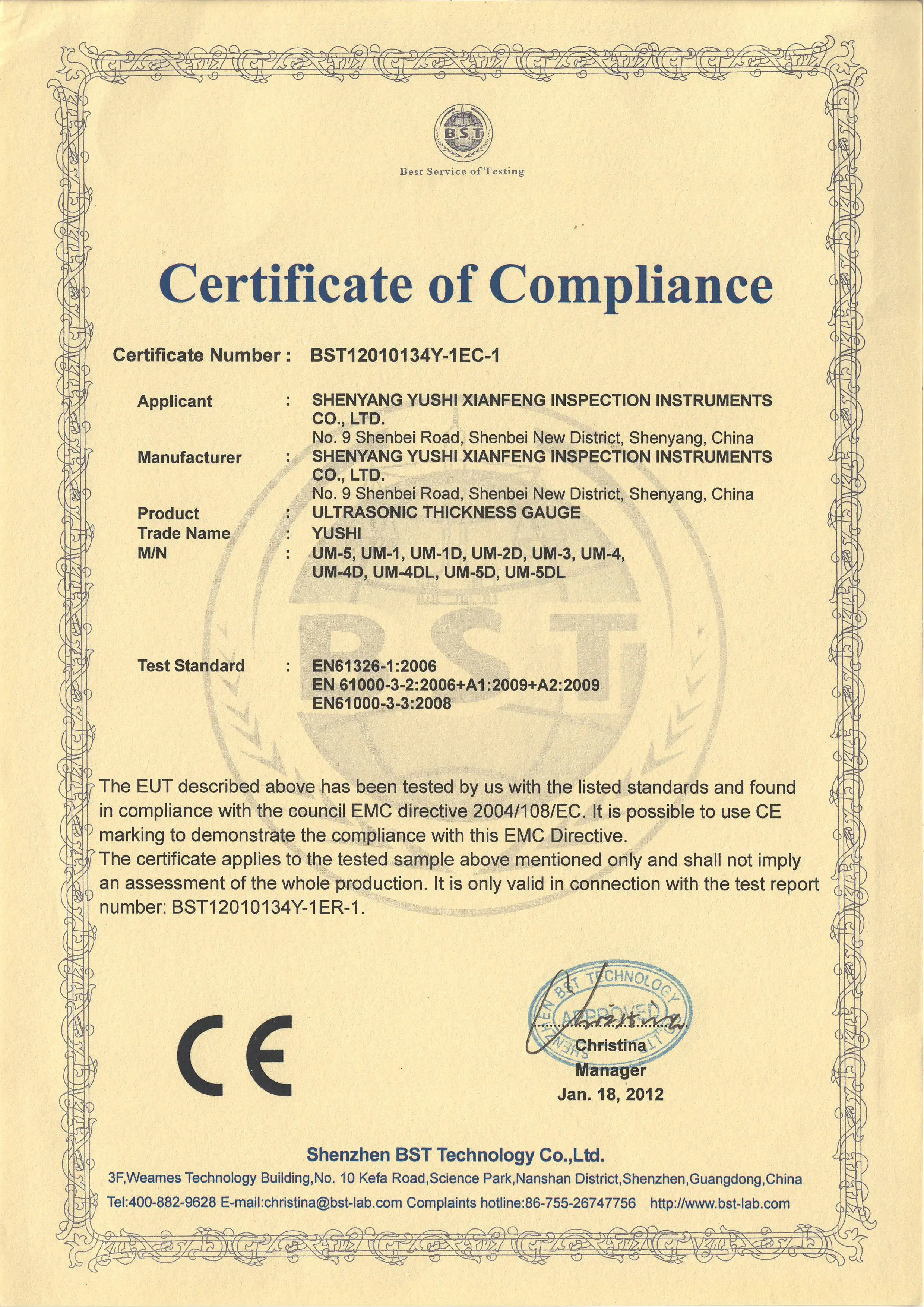

Certifications
Related Products
Explore different options to suit your application needs，from simple handheld gauges to advanced models
Name | Measuring Range | Resolution | Others |
The Basic model UM-2 | 0.8mm-300mm | 0.01mm | 1.Store 500 thickness values 2. Through coating function |
The Cheap Basic model UM-1 | 0.8mm-300mm | 0.1mm | 1.Store 500 thickness values 2.Through coating function |
The Precise model UM-3 | 0.3mm-20mm | 0.001mm | 1.The lower limit of measurement is 0.3mm 2.Suitable for measuring flat thin parts |
The Color Display UM-4 | 0.6mm-508mm | 0.01mm | 1.A Scan snapshot 2.Optional through coating function 3.(Optional) Store 100 thousands thickness values 4.Optional communication software to export data to computer |
The Advanced Precise PM-5 | 0.2-27mm | 0.001mm | 1.Live A Scan and B Scan 2.The lower limit of measurement is 0.2mm 3.Suitable for measuring flat thin parts 4.Through thin coating function 5.Optional communication software to export data to computer |
