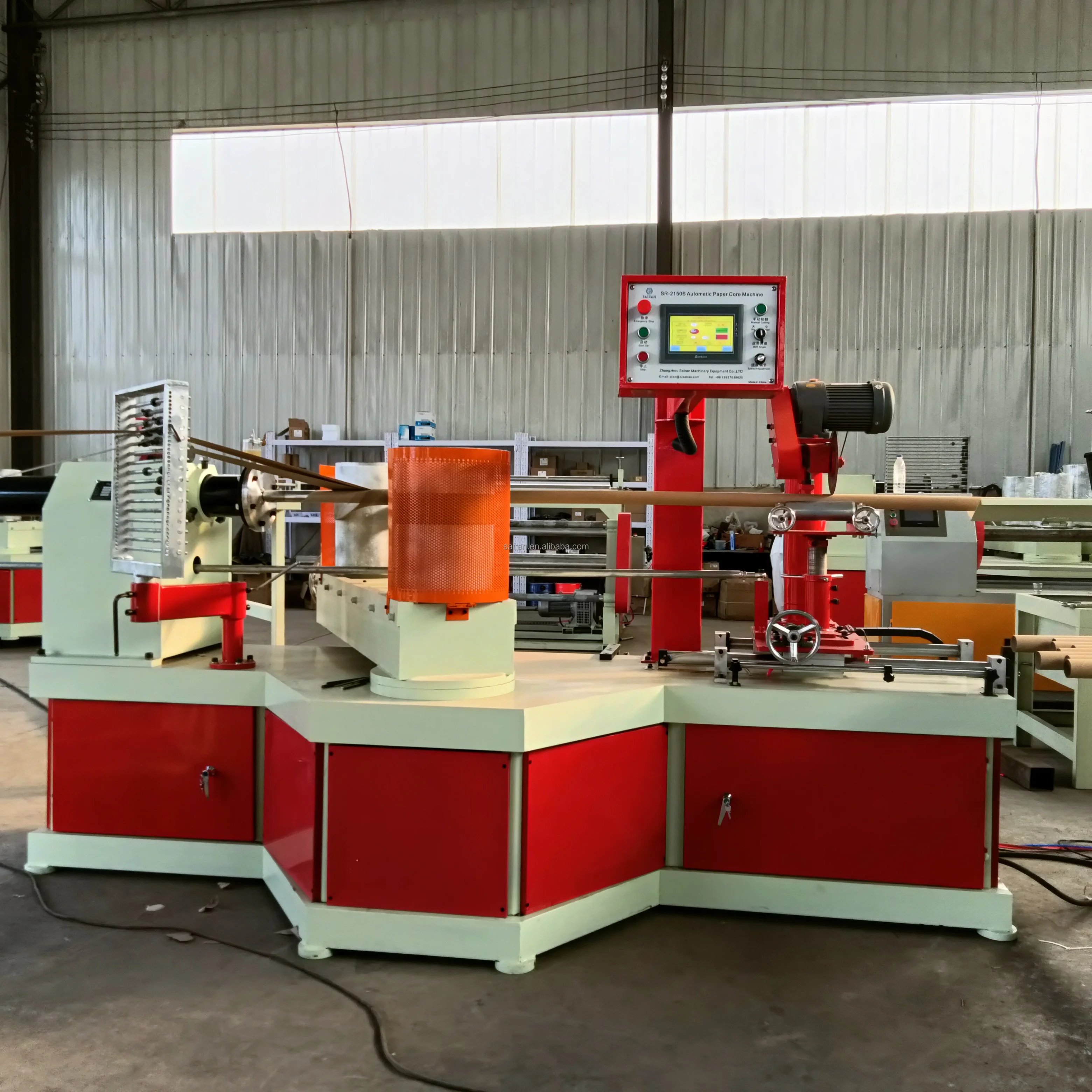

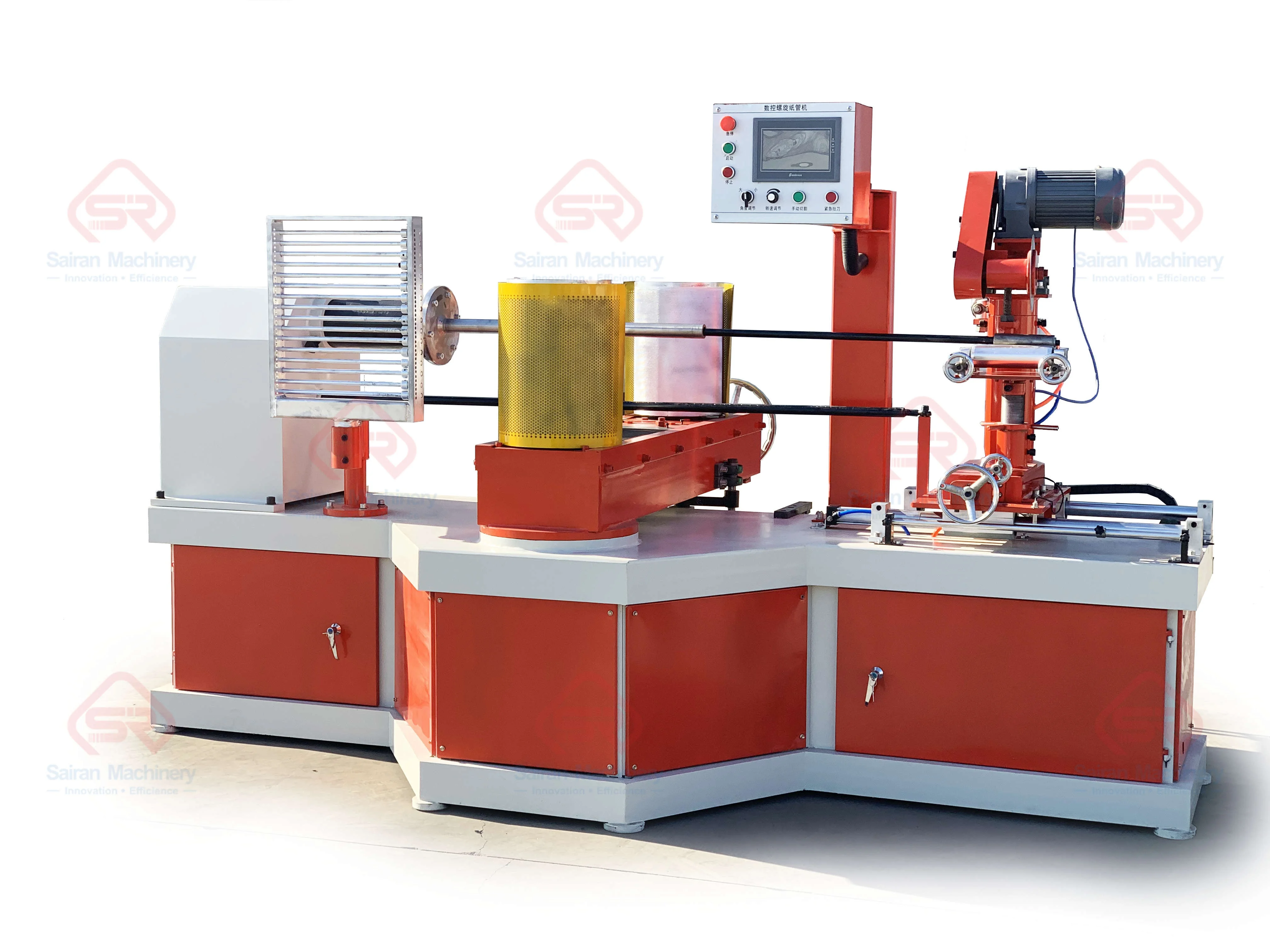

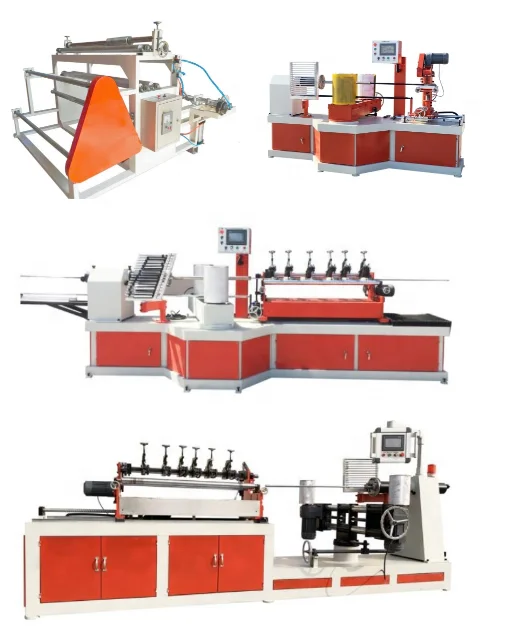

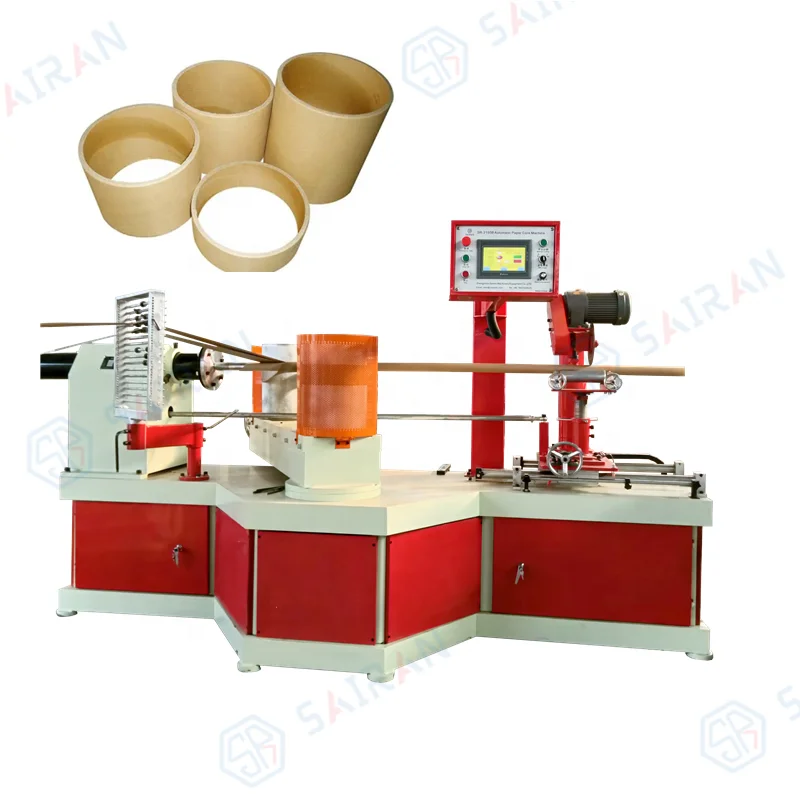

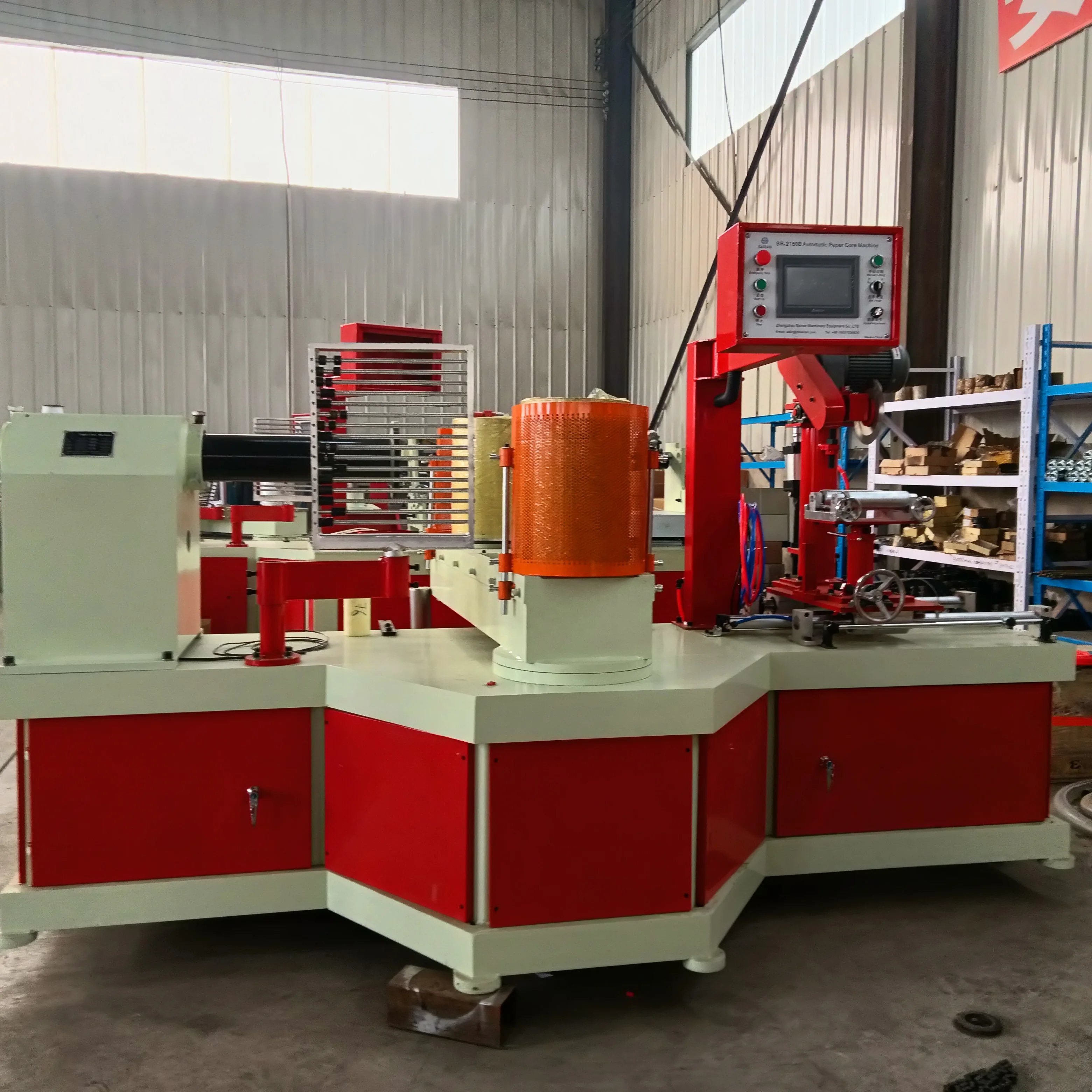

Multi specification paper core tube machine paper tube winding machine for tissue roll
- Category: >>>
- Supplier: Zhengzhou Sairan Machinery Equipment Co. Ltd.
Share on (1600653240992):
Product Overview
Description
Product Description
Introduction of paper tube machine：
Paper tubes are mechanical equipment that can produce paper pipes. Paper tubes made by paper pipes have been used in major industries. Because there are many types of paper pipes, they can effectively meet the needs of customers and markets. The requirements of the public, In general, food packaging tubes and paper tubes used in the printing industry are very large and the price is relatively cheap and relatively suitable for large-scale development or marketing. Paper tubes are pure green products that do not cause pollution to the body or objects.
Features:
1.Computer PLC and frequency control system,low noise.
2.Saving power,it can save 50% electricity than ordinary electromagnetic speed adjustment.
3.Locating by infrared ray,automatic cutting.
4.Single blade or saw blade are in common use,adjust the cutting length of the paper core arbitrarily.
5.Automatic Gluing,easy operation.

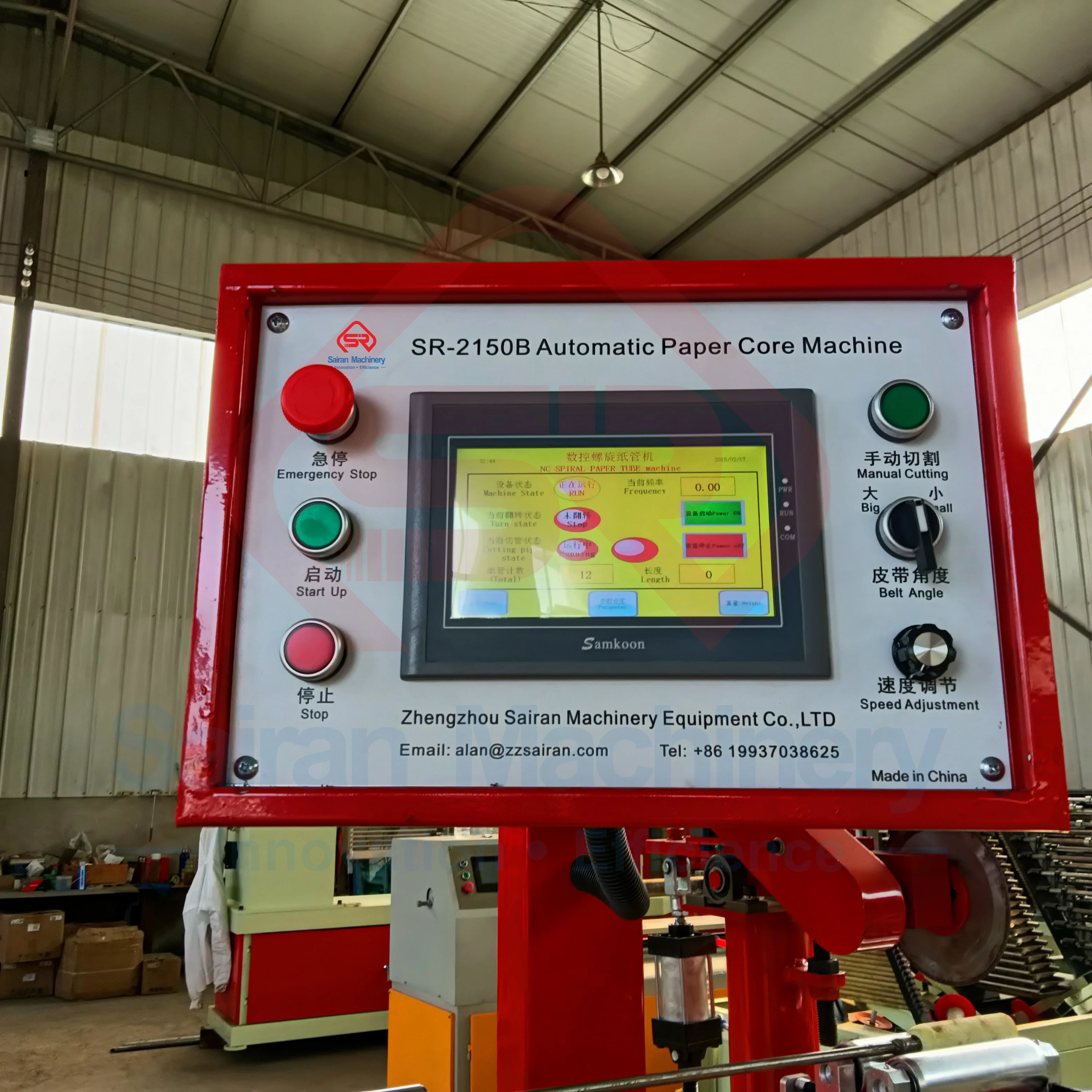

6.The digital control panel set various operating function,can set arbitrary workings on the machine.
2.Saving power,it can save 50% electricity than ordinary electromagnetic speed adjustment.
3.Locating by infrared ray,automatic cutting.
4.Single blade or saw blade are in common use,adjust the cutting length of the paper core arbitrarily.
5.Automatic Gluing,easy operation.
6.The digital control panel set various operating function,can set arbitrary workings on the machine.
Application:
Core paper machine is of great use in many industries, such as tubes for the chemical fiber industry, DTY tubes, POY tubes, FDY tubes, nylon tubes, spandex tubes, spandex coated yarn tubes, etc., film industry tubes, etc. The printing industry mainly Used in tube printing, film printing, paper printing, etc., leather PU leather, real leather, carpet leather. Tubes for food packaging, cans of potato chips, cans of sweets, cans of salt, cans of cakes, tubes for the metallurgical industry, tubes for the construction industry, tubes for the crust board, tubes for the exhibition industry, tube paper for the exhibition, etc. Paper tubes are increasingly used in industrial production and life.
Advantages of automatic paper tube machine：
First of all, the automatic paper tube machine has an intelligent paper tube machine with a self-locking function. After the angle of the swing arm is adjusted, it can be automatically locked without shaking. With automatic follow cutting device, the cut is neat and has no warping angle, and the cutting length is optional and adjustable. One or two people can operate, but ordinary ones are far from enough. Secondly, it adopts three-active stepless speed regulation to drive the rollers, the belt does not slip, the deformation of the core shaft is small, and the belt pressure is large. Strong winding force, high power transmission efficiency, good paper tube strength and smooth appearance. Although the price of the automatic paper tube machine is higher than that of the ordinary paper tube machine, considering the long-term use and long-term benefits of the equipment, the automatic paper tube machine is more cost-effective. Relatively speaking, the input cost has been reduced, and the performance and safety of the machinery have been greatly improved.
How is the high efficiency of the paper tube machine reflected:
1.this kind of equipment setup is simple and fast.
2.it can choose to start the electric cutting motor.
3.the cutting speed is free of burrs and the cutting opening is perpendicular to the axis of the pipe.
4. it uses stainless steel jaws to form a self-centering clamping system with a wide range of pipe diameters.
5.the whole machine has a compact structure and is light and easy to carry, which is very suitable for on-site installation or workshop operations.
6.the cutting blades are close to the clamping system, so that tube vibration can be avoided, and thin-walled or small-caliber tubes can also be guaranteed not to be deformed.
Specification
Technical Specification | Specification Size | ||||
Roll paper layers | 3-16layers | Machine size L*W*H | 3200*2000*1950mm | ||
Max. diameter | 150mm | Floor Space（ L*W） | 16 x 7.5m | ||
Min. diameter | 20mm | Min.wheel distance | 750mm | ||
Max. thickness | 8mm | Max.wheel distance | 950mm | ||
Min.thickness | 0.5mm | Host Power | 5.5kw | ||
Operator | 1-2persons | Weight | 2800kg | ||
Paper core rolling speed | 3-20m/min | ||||
Power supply | 380V three phase(can be customized) | ||||

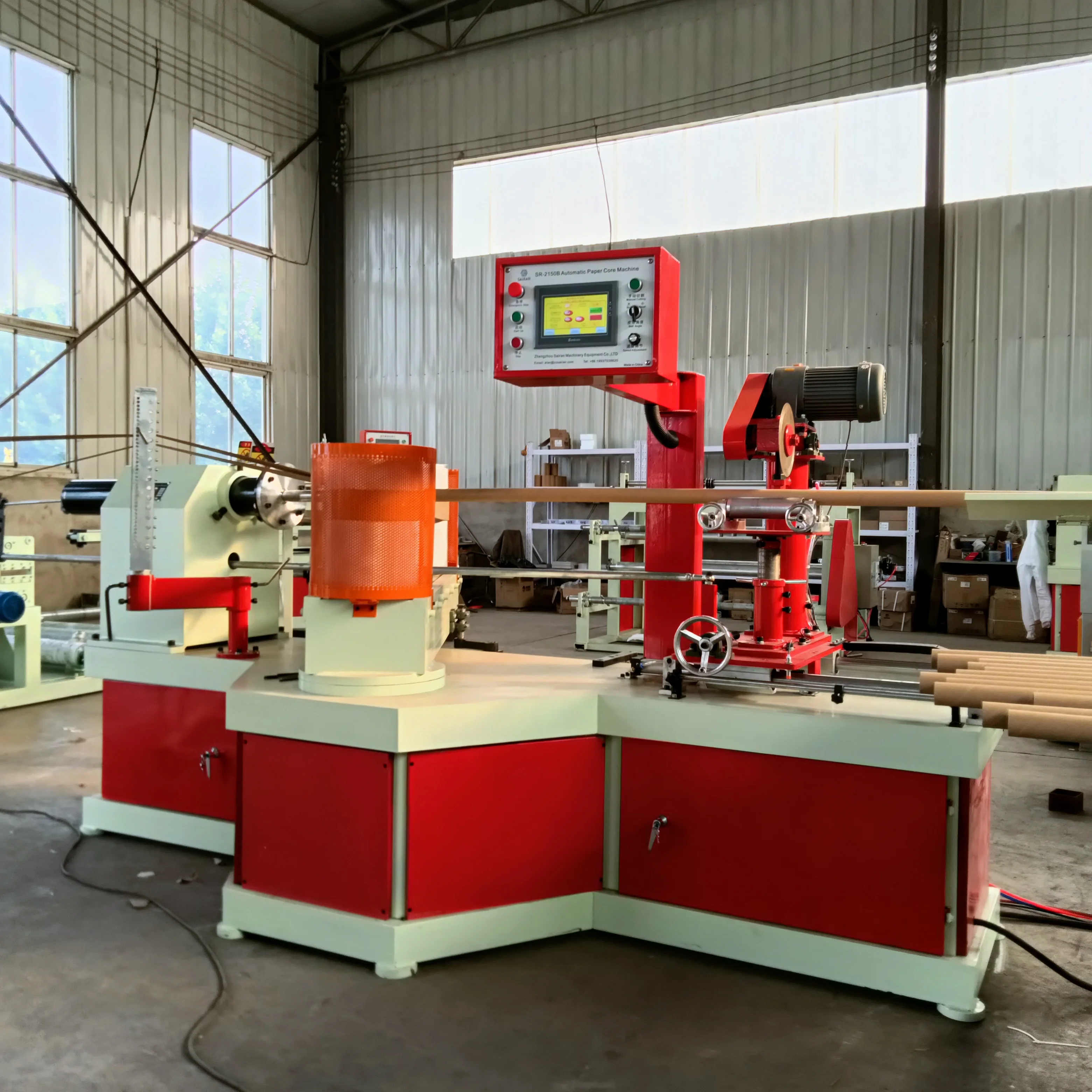

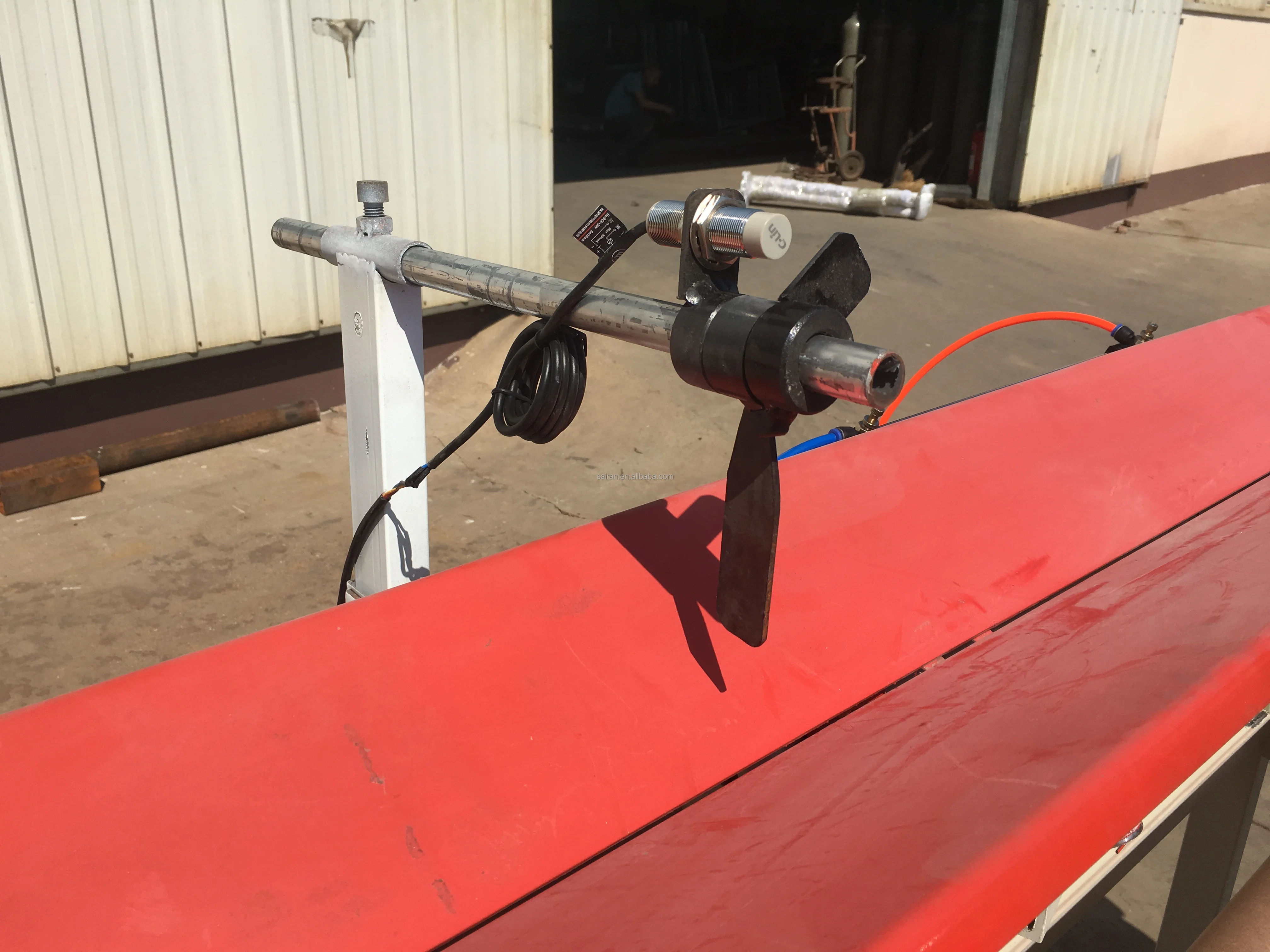

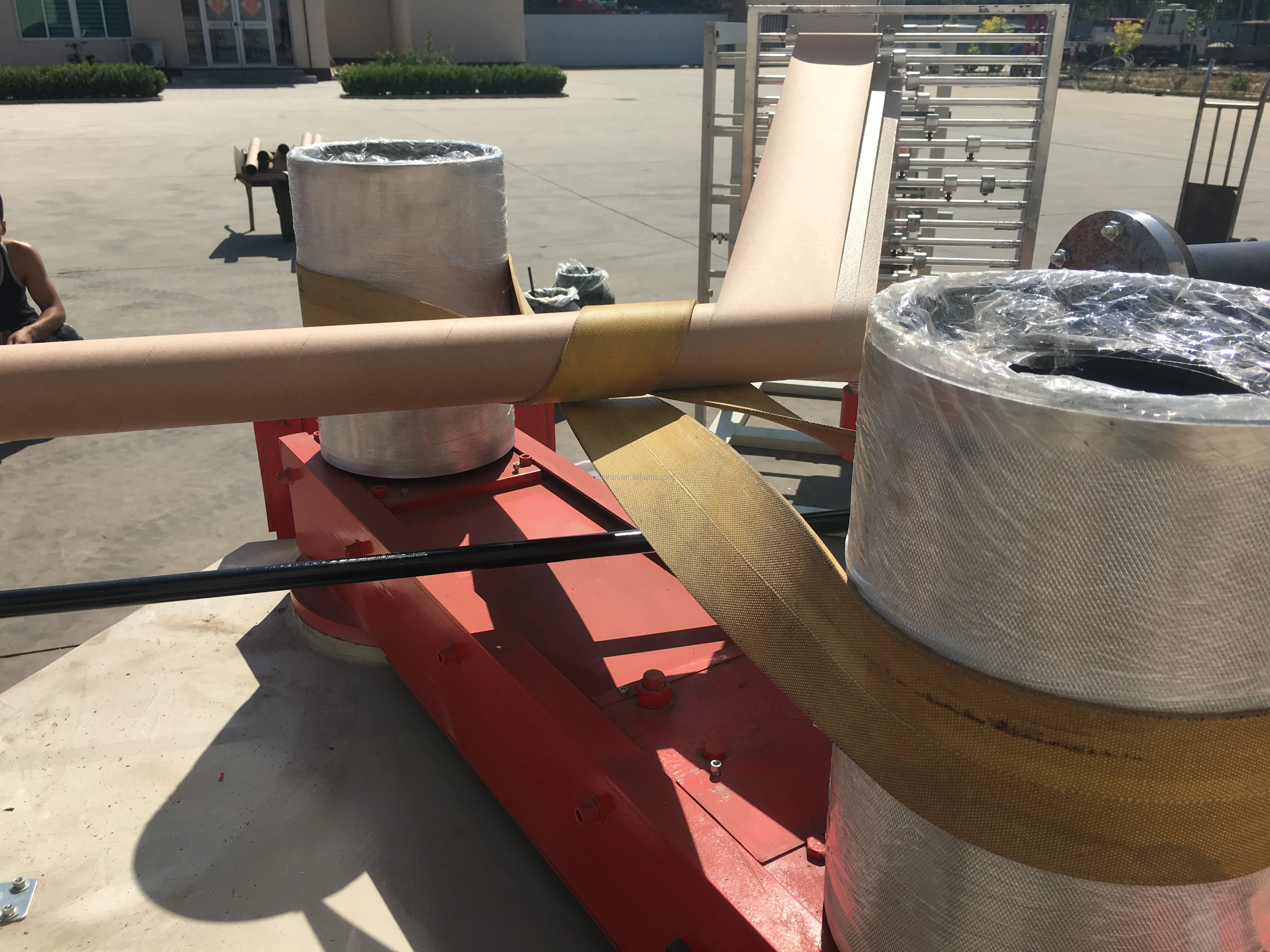

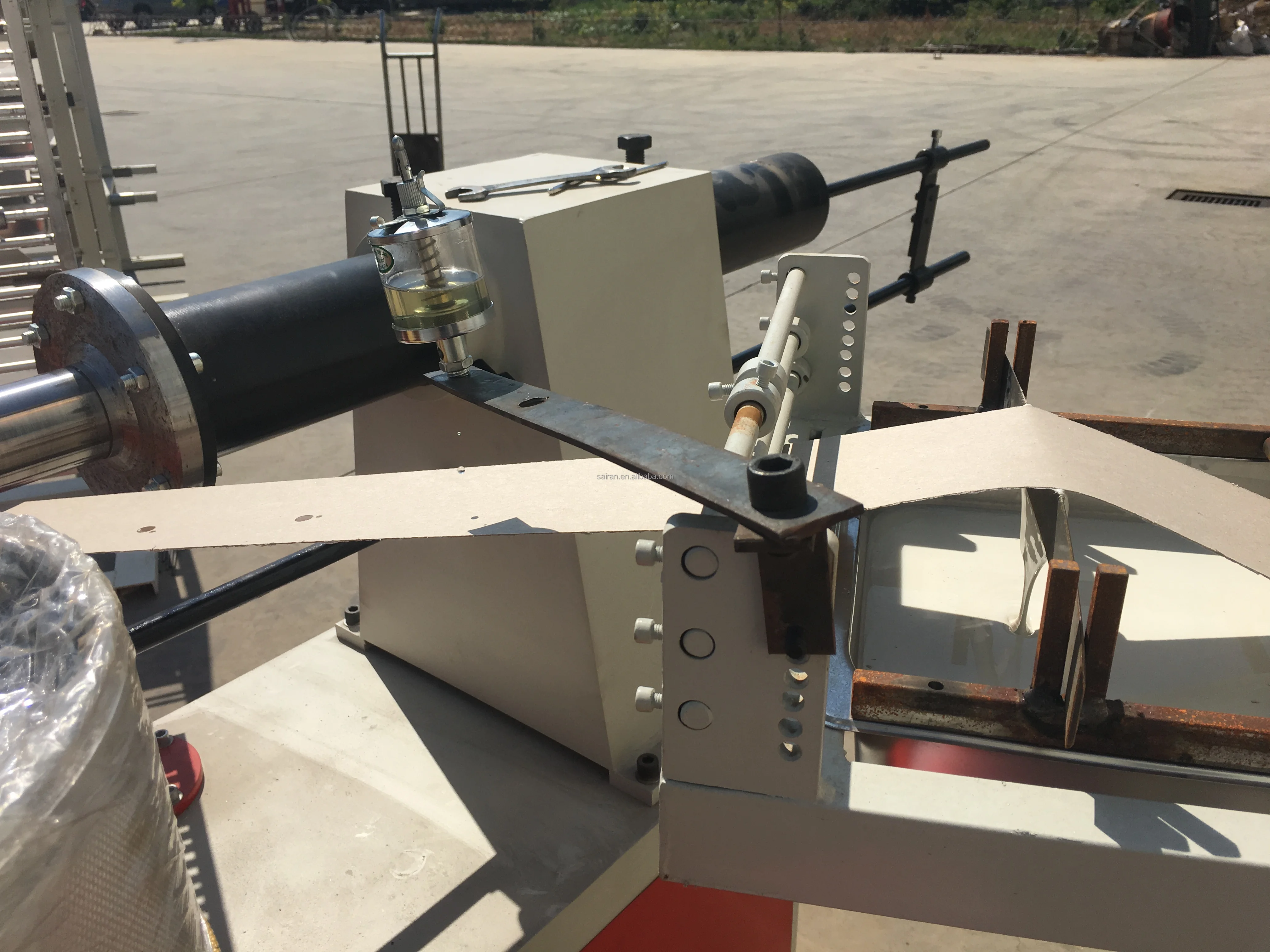

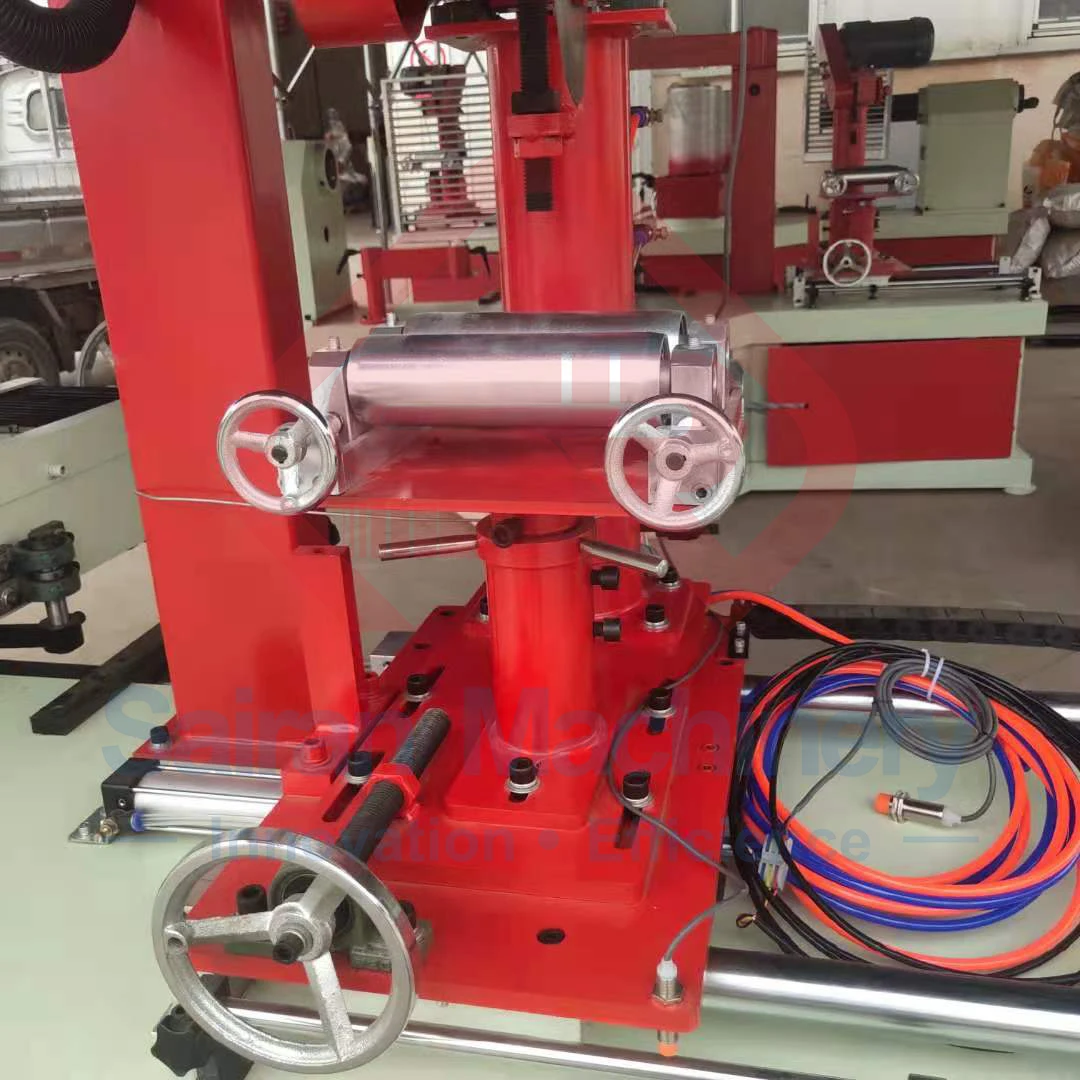

Working details show
Functions:

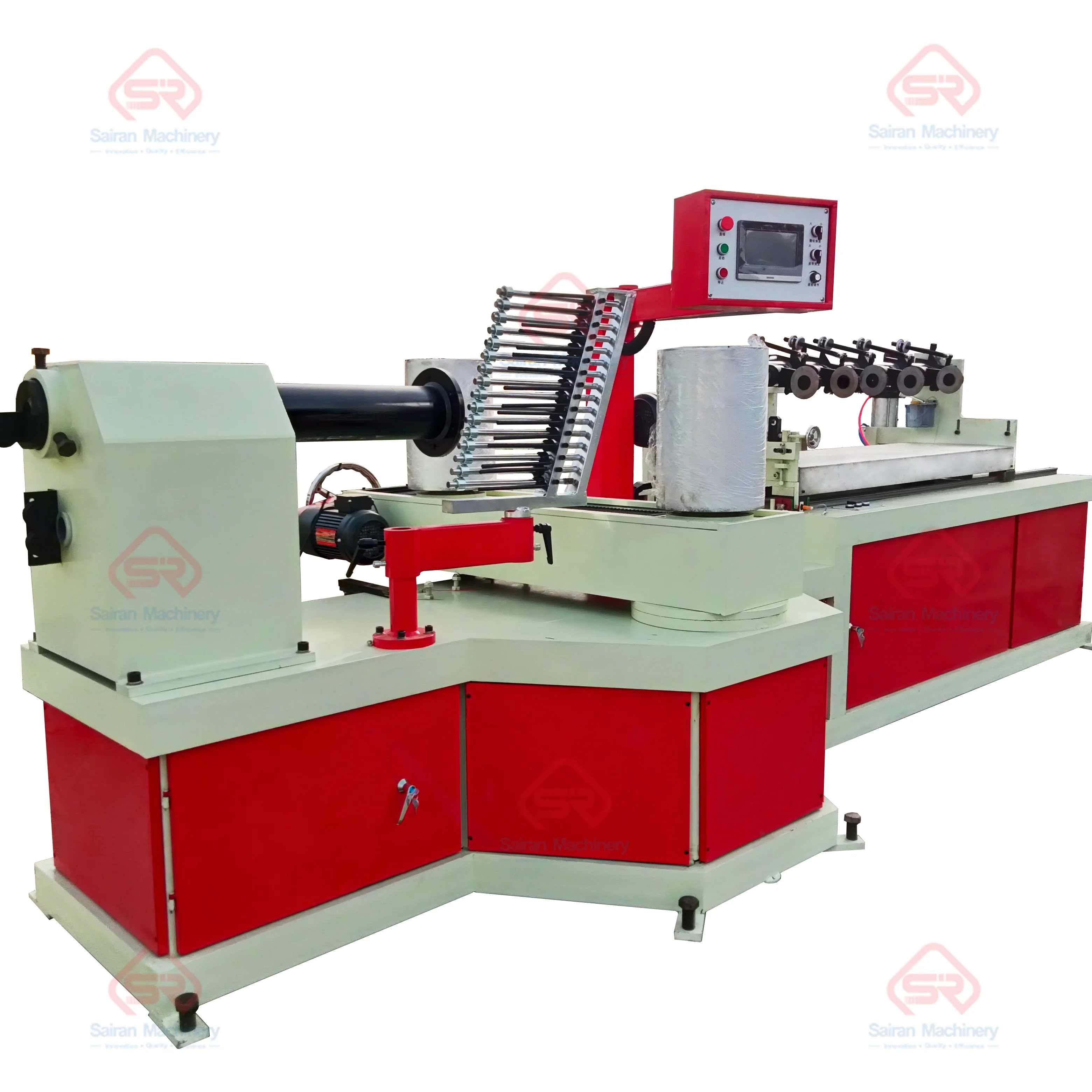

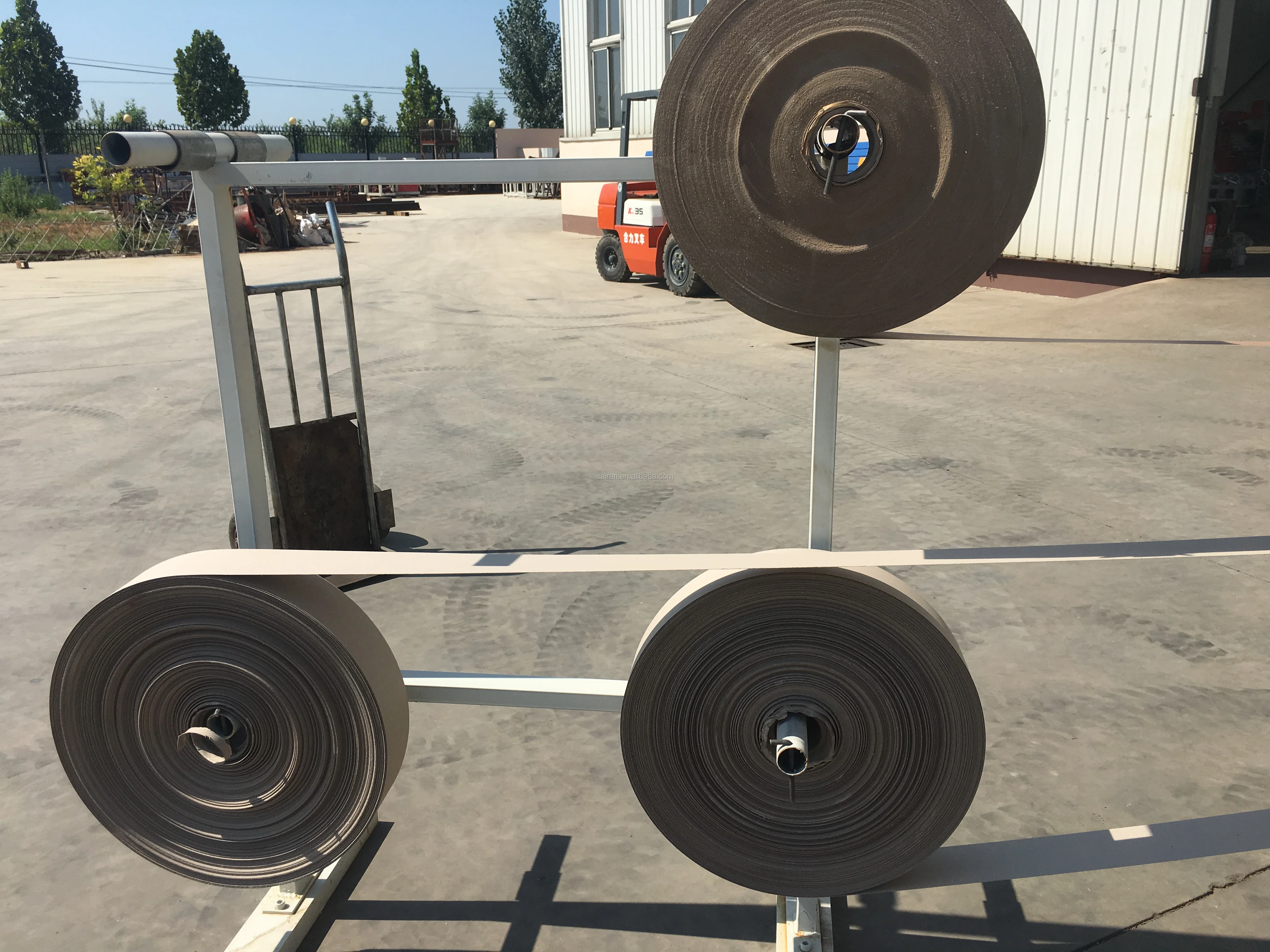

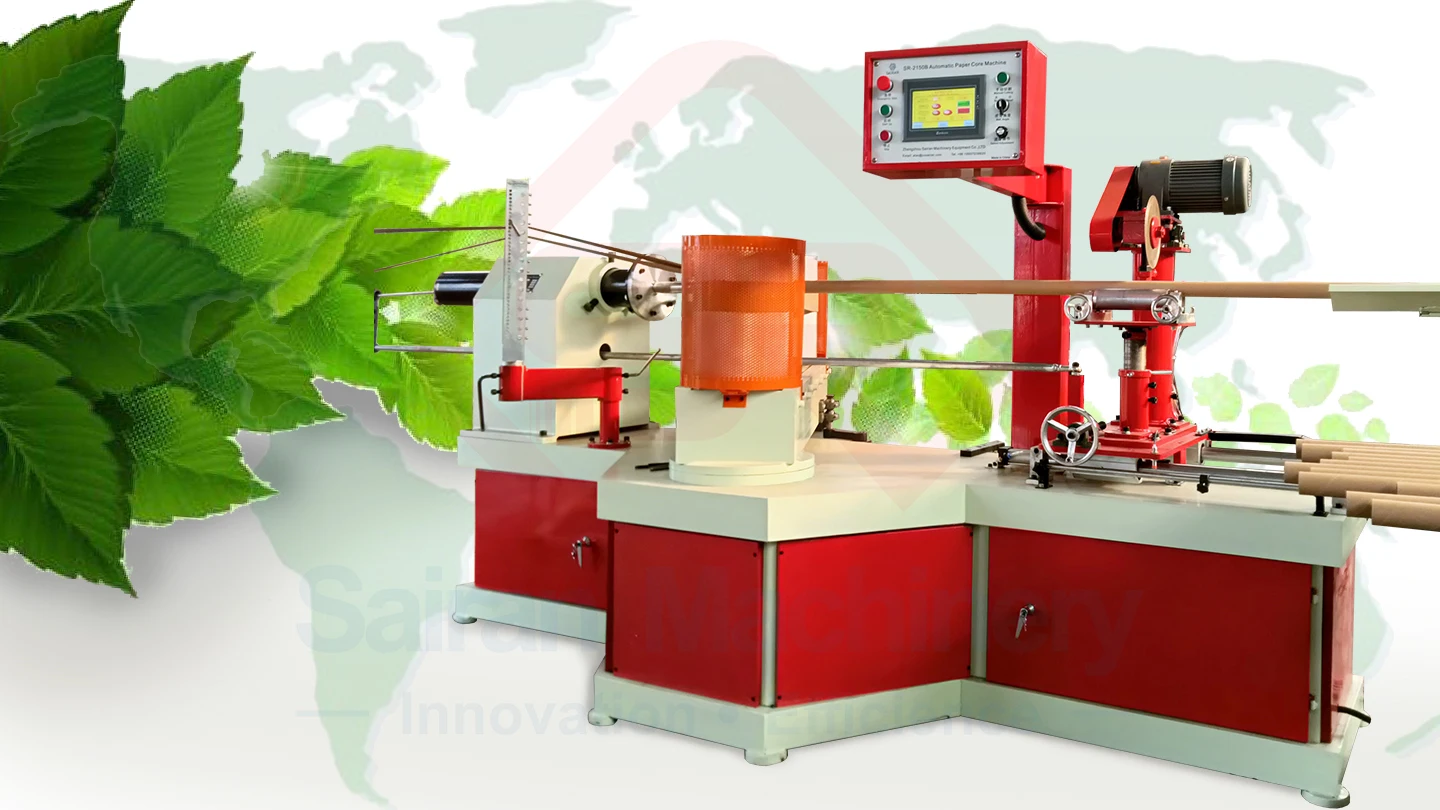

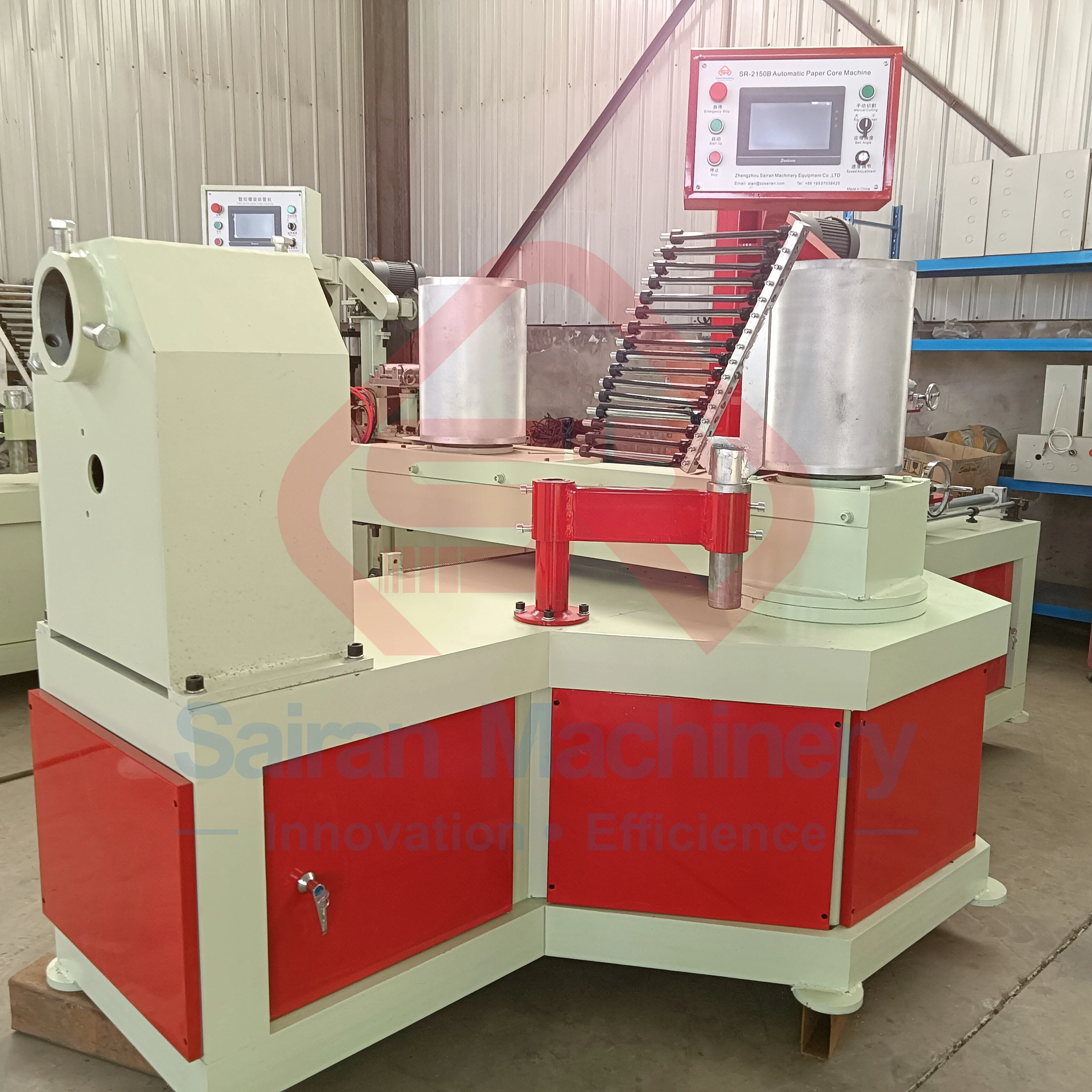

This automatic spiral paper core machine can make the paper tube from fluting paper roll .The paper roll have been cut into with small width.It can coat glue on paper and rotate into paper tube.
Structure principle：

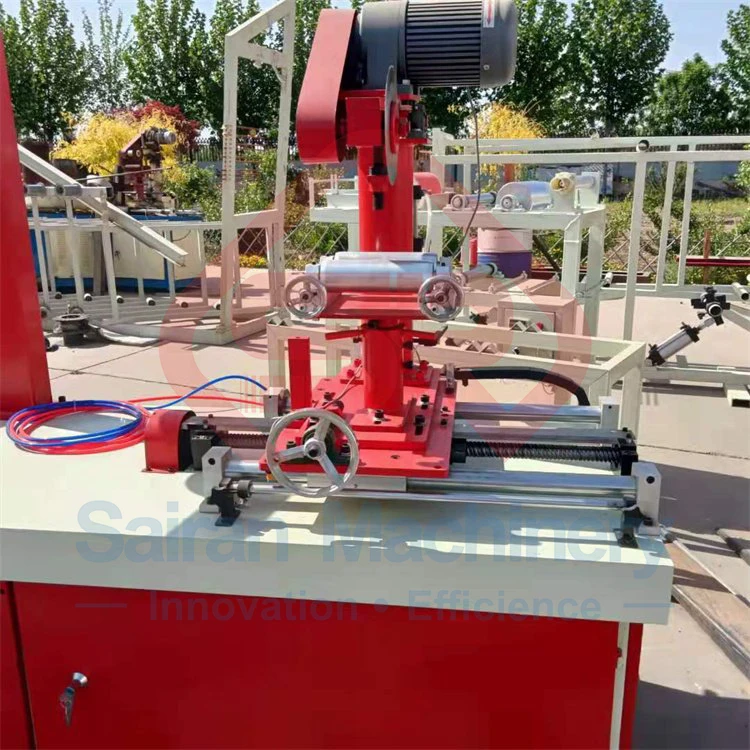

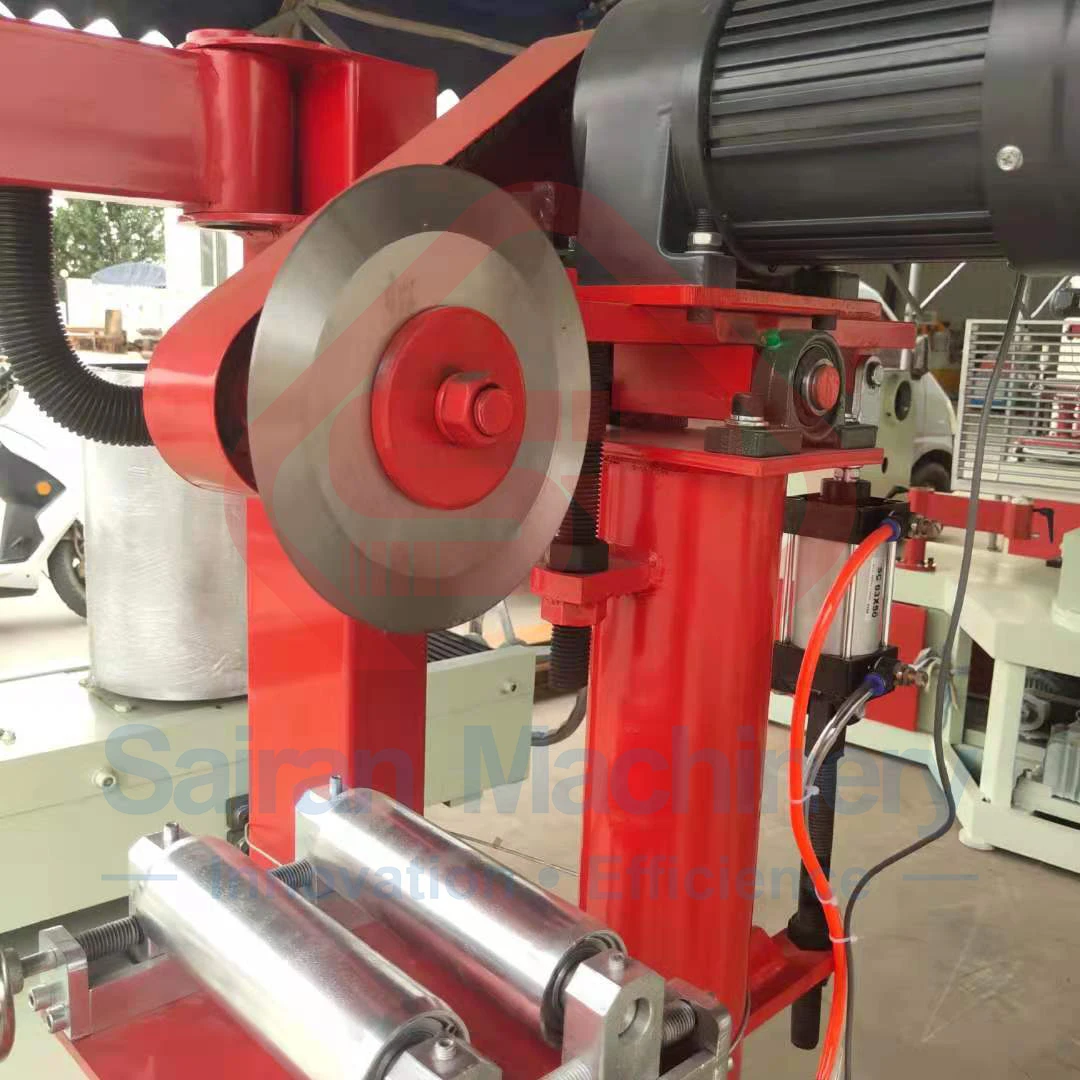

The paper tube machine adopts CNC computer numerical control system, SMS synchronous mobile tracking cutting device, and imported servo drive, which can greatly reduce the resistance of the cutter to the paper tube during the cutting action, and make the gap of the paper tube uniform.
Product performance：
● With self-locking function, the swing arm can be automatically locked without shaking after adjusting the angle of the swing arm.

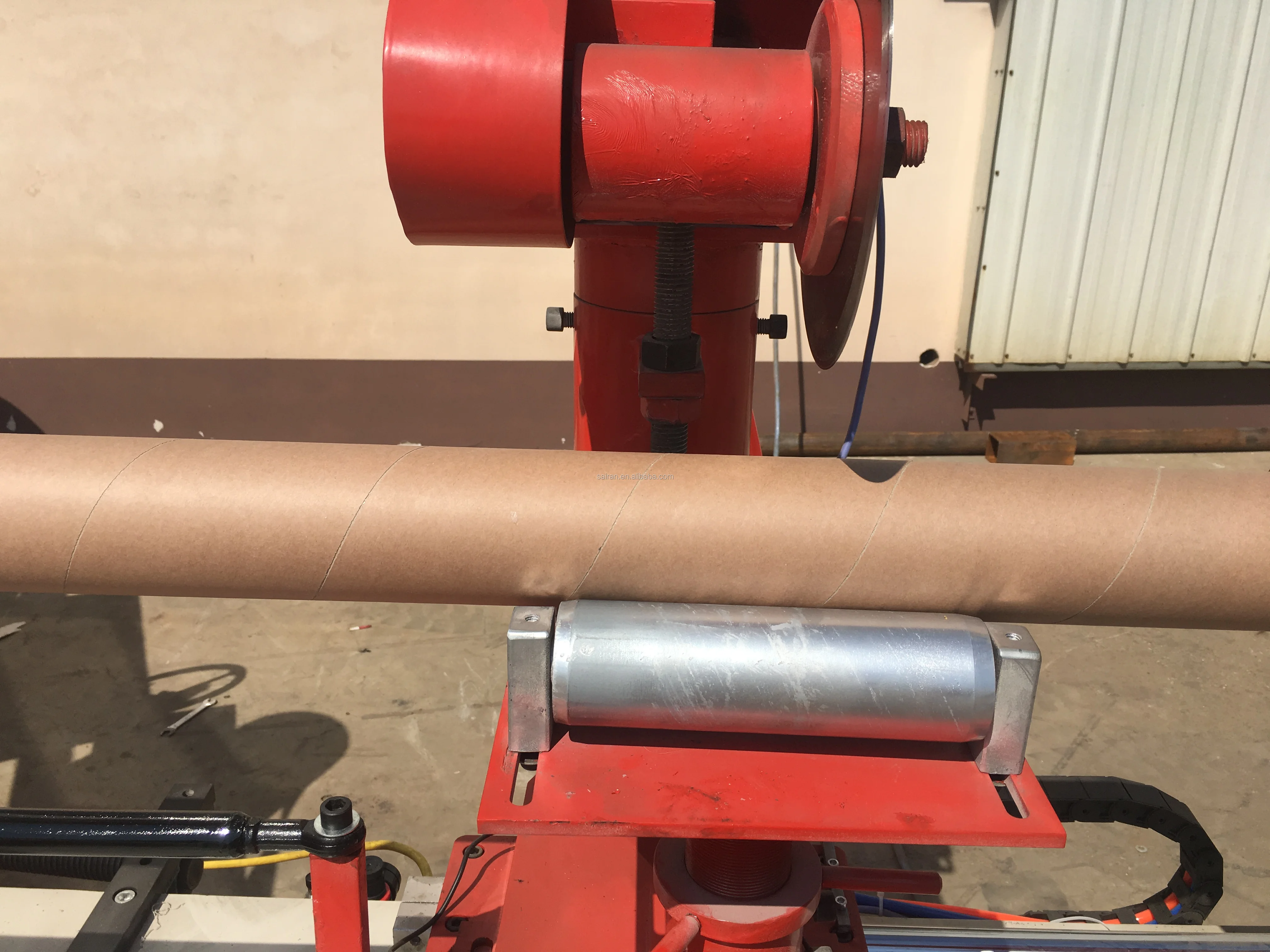

● With automatic follow cutting device, the cut is neat and has no warping angle, and the cutting length is optional and
adjustable. One or two people operate.
adjustable. One or two people operate.
● Wind the paper tape with suitable quantitative and wide width into a parallel spiral paper tube machine with required inner diameter and wall thickness.
● Adopting three-active stepless speed regulation driving roller, the belt does not slip, the core shaft deformation is small, the belt pressure is large, the winding force is strong, the power transmission efficiency is high, the paper tube strength is good, and the appearance is smooth.
Optional item:

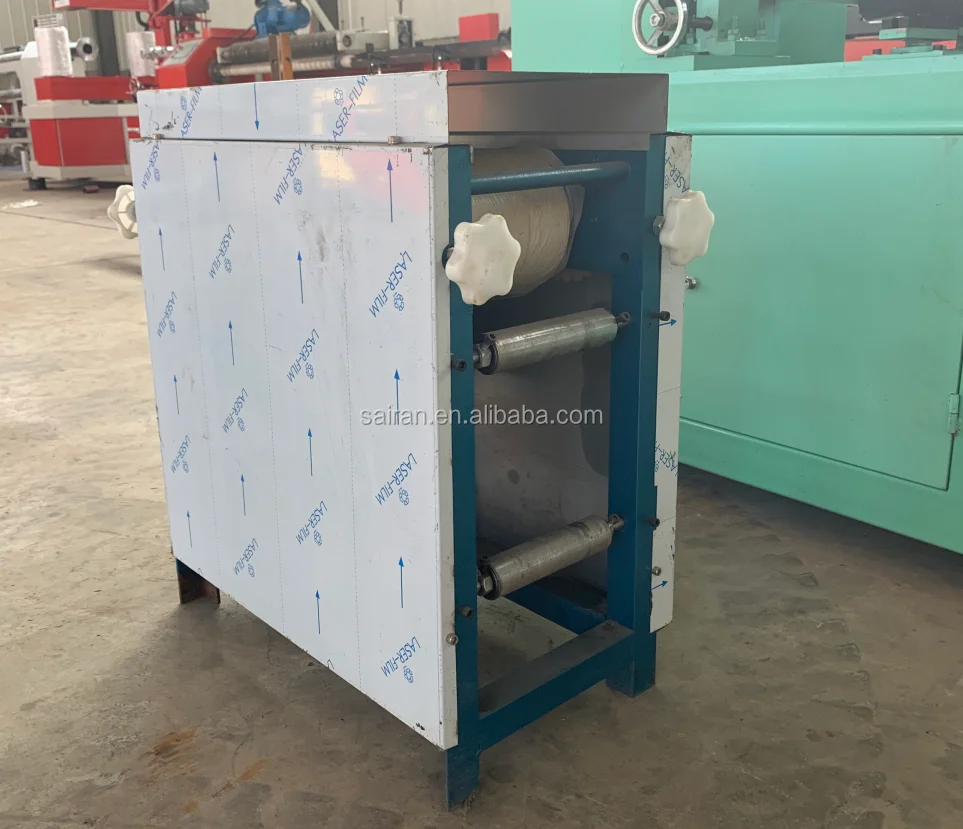

Single color printing,This is one optional function of the paper core machine, some customers want to print their company name or logos in the core inside. This printing unit usually only can print some easy words.
The development trend of paper tube machine：
With the impact of the world's green economy and circular economy, paper packaging is gradually replacing plastic, metal and other packaging materials, becoming the mainstream of packaging materials. Paper tube is one of many paper packaging products, and the equipment for producing paper tube is called paper tube machine. Now many industries need to use paper tubes, such as printing industry, paper industry, food packaging industry, textile industry, fireworks industry, etc. Do you know the development trend of paper tube machinery? Like other products in the industry, paper tube machinery and equipment are also moving towards intelligence and technology with the development of technology. The technology used in paper tube machines is getting higher and higher. The quality of the products produced continues to improve. With the increasing demand for paper tubes, customers' demand for paper tube machinery is also increasing.
What should customers pay attention when using a paper tube machine：
1. The sleeve of the task clothing should be tight clothing edge.
2. Strictly prohibit the head and hand into the torsion part of the cutting paper tube machine.
3. Do not wear gloves in the process of manipulation.
4. The paper pipe machine should be clean, neat, light appropriate, nearby can not place other debris, so as not to give the
operator convenience.
5. The product equipment is special, cutting paper pipe machine torsion parts can not be placed on the workpiece, things and other goods.
6. Must block the power supply before maintenance.
2. Strictly prohibit the head and hand into the torsion part of the cutting paper tube machine.
3. Do not wear gloves in the process of manipulation.
4. The paper pipe machine should be clean, neat, light appropriate, nearby can not place other debris, so as not to give the
operator convenience.
5. The product equipment is special, cutting paper pipe machine torsion parts can not be placed on the workpiece, things and other goods.
6. Must block the power supply before maintenance.
How to clean and maintain the paper tube machine：
1. Paper tube equipment cleaning. After the equipment is unpacked, inspected and disassembled, remove the applied anti-rust agent and internal residual iron filings, rust, and dust accumulated during transportation and storage, and clean it before assembly.
2. Paper tube equipment lubrication. Lubrication can be carried out only after the internal and external parts of the equipment are cleaned. Lubricants must be tested and determined to meet the requirements before they can be used. Lubricating oil must be filtered before being added to the equipment, and the oil added should reach the specified oil standard position; all lubricating parts and oil holes should be filled with lubricating oil.
2. Paper tube equipment lubrication. Lubrication can be carried out only after the internal and external parts of the equipment are cleaned. Lubricants must be tested and determined to meet the requirements before they can be used. Lubricating oil must be filtered before being added to the equipment, and the oil added should reach the specified oil standard position; all lubricating parts and oil holes should be filled with lubricating oil.

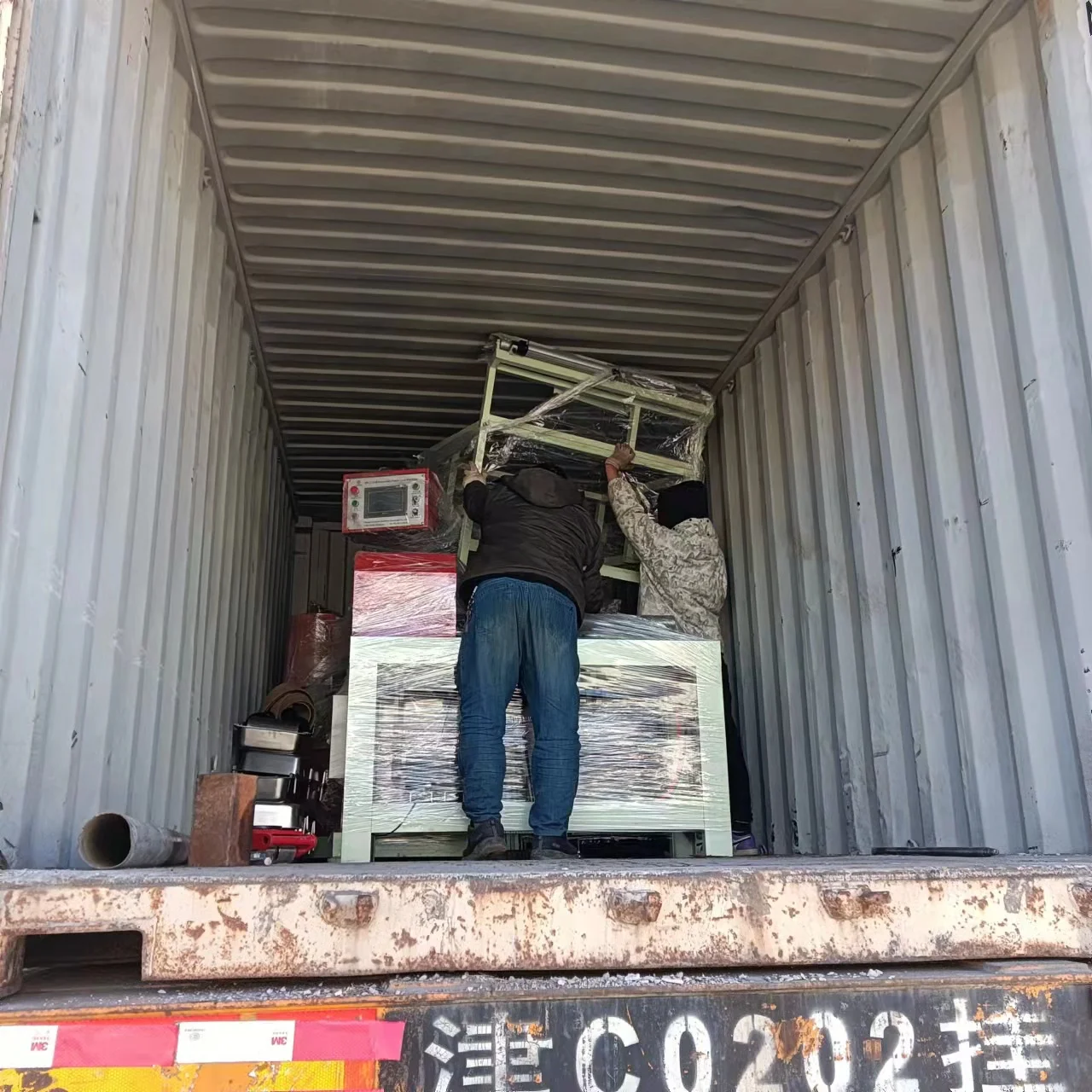

Packing & Delivery

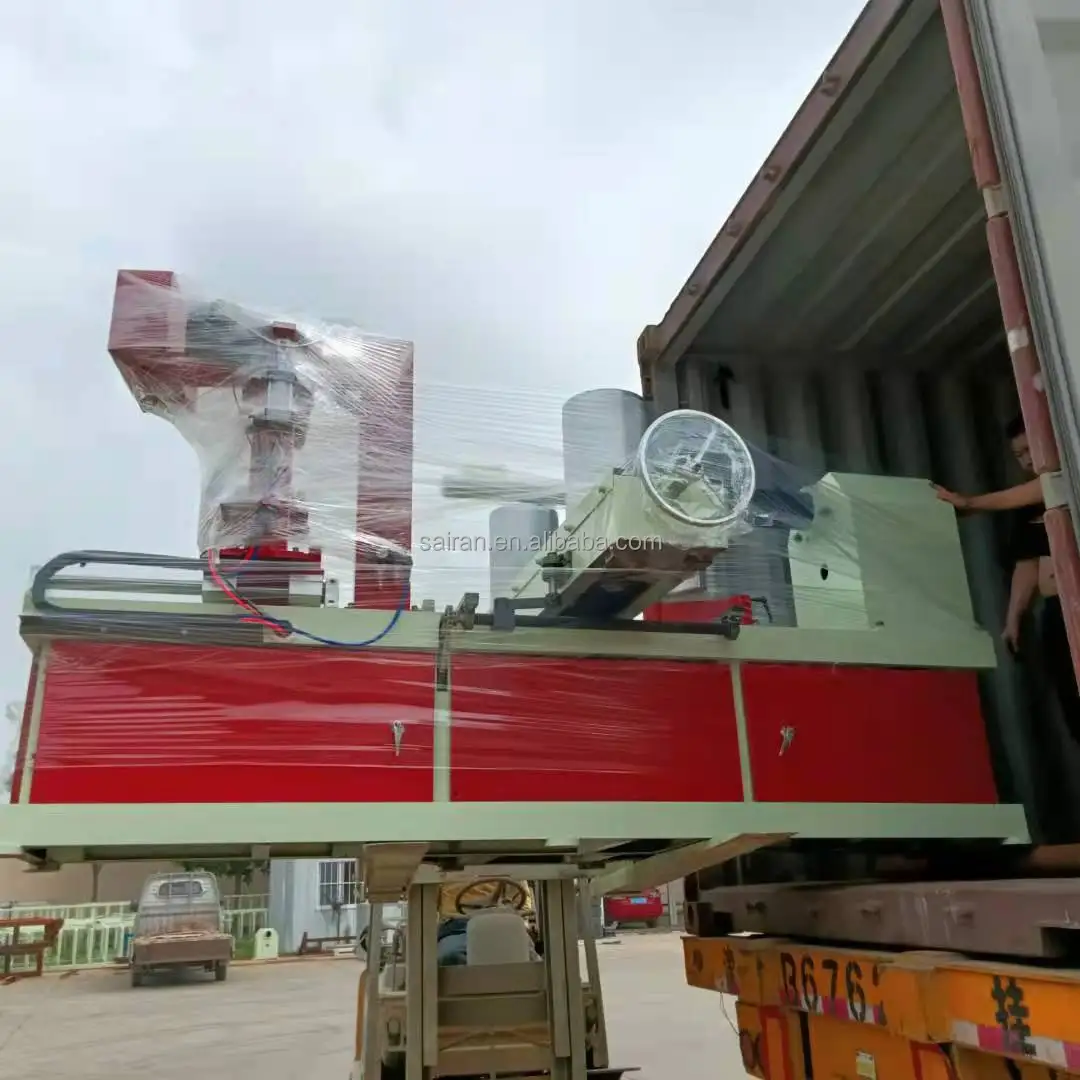

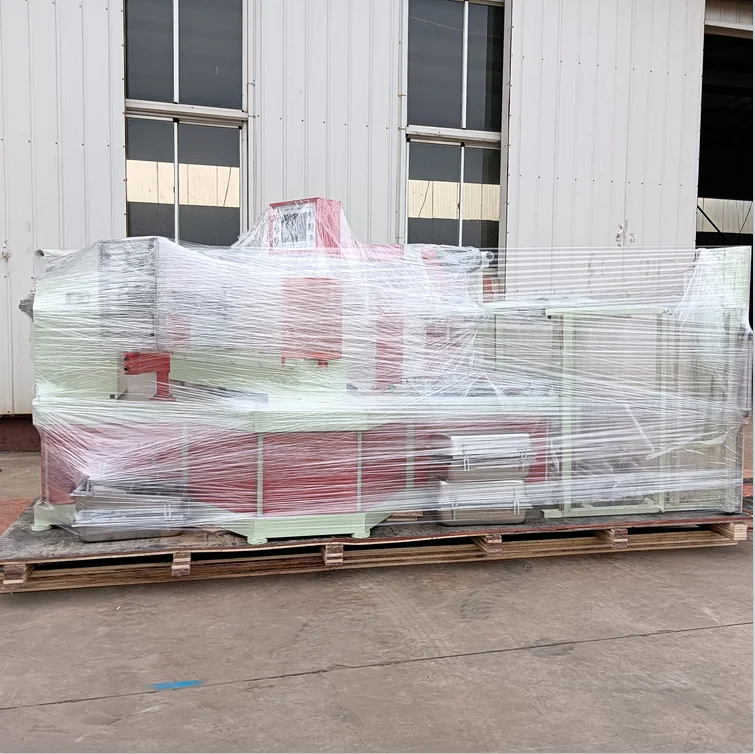

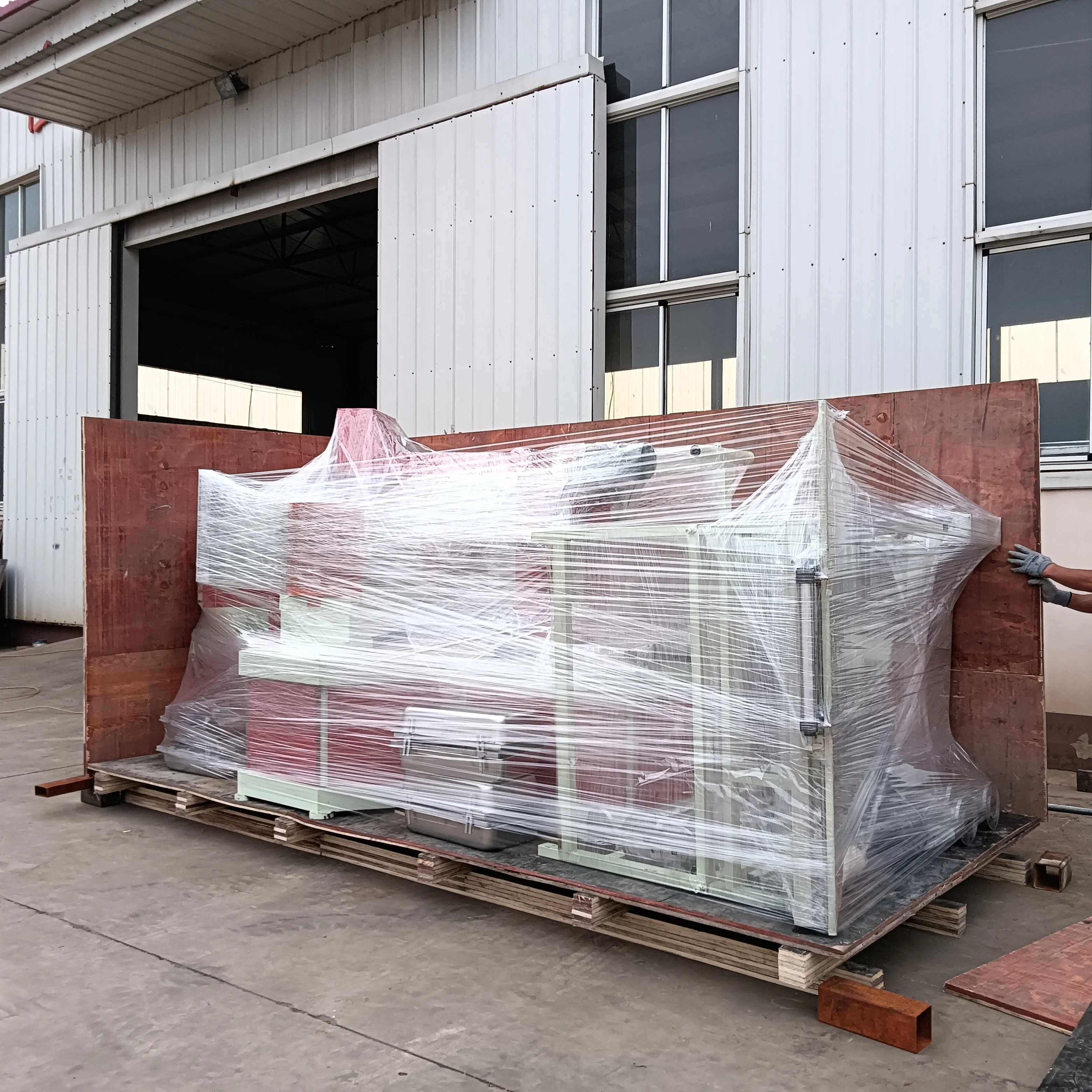

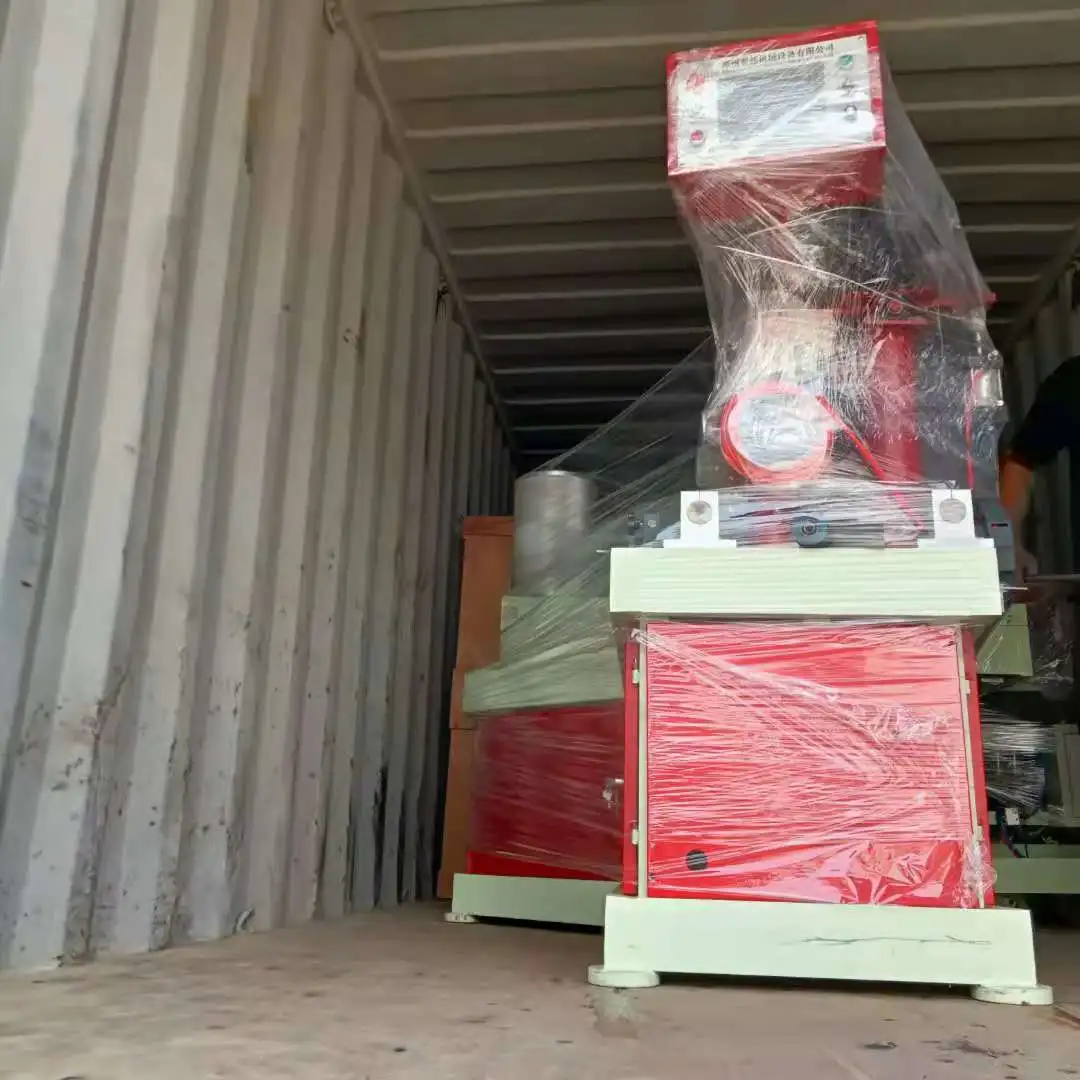

We will use the film wrapping before loading the container for anti-corrosion and anti-collision treatment.

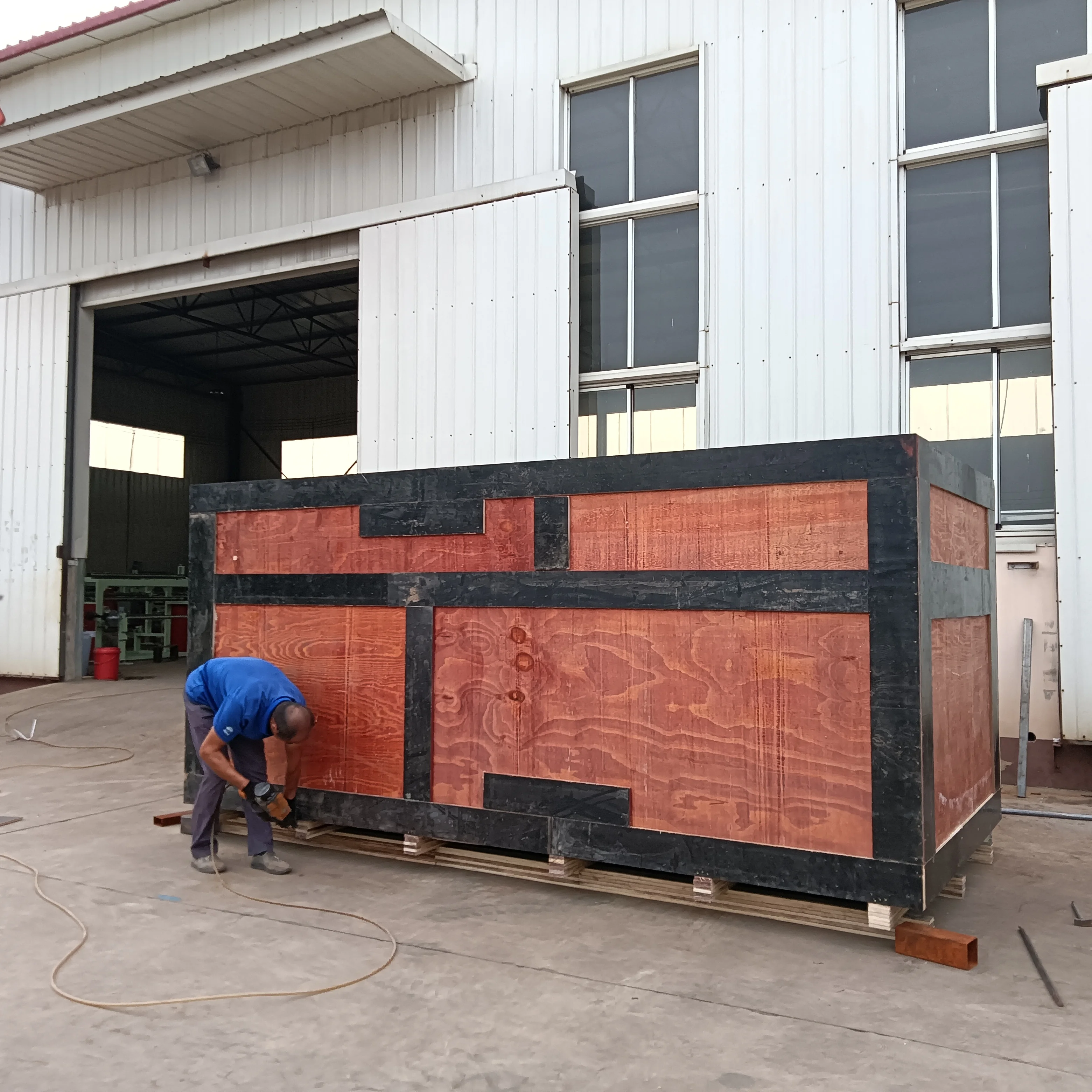

If you need to use wooden box packaging, we will strictly follow the relevant export wooden box packaging regulations, and will do anti-collision fixation of machinery and equipment before wooden box packaging. The box board packaging has tight seams, and the box board combination is flat and without misalignment.

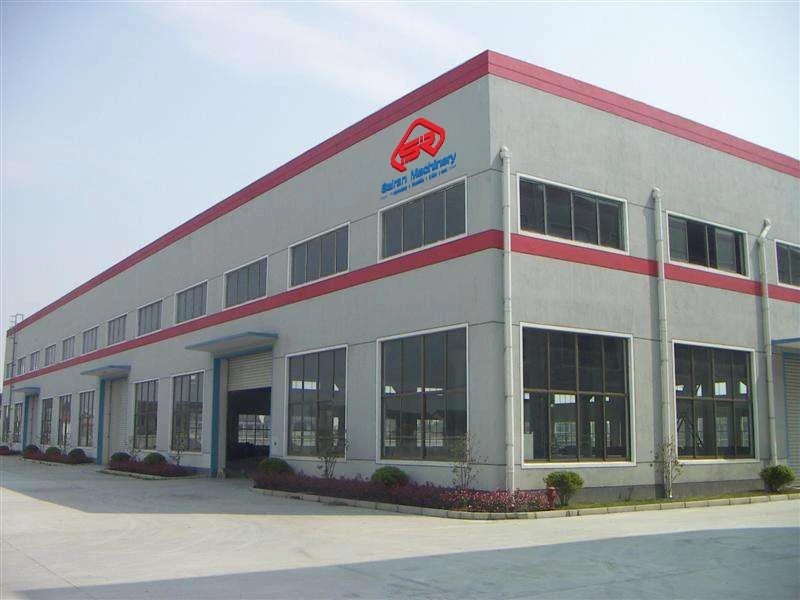

Company Profile
Zhengzhou Sairan Machinery Equipment Co., Ltd. is a high-tech group enterprise integrating R&D, manufacturing and sales of a full range of high-end equipment for the production of automatic paper products. It also designs a series of optimized solutions for customers in the production and processing process. In the course of many years of development, our company has accumulated rich practical experience in engineering R&D design and production technology.
At present, the company has successfully completed the optimization and reorganization, combined with the powerful, and integrated a full set of high-quality resources from the base paper to the finished product in the production. After the completion of the reorganization, Sairan Machinery will concentrate its advantages to build a product innovation research and development and after-sales service system, so as to better provide global users with more advanced intelligent paper products production equipment and one-stop worry-free services.
FAQ
1. What is the minimum paper core length and maximum paper core length ?
Maximum paper core length is about 3m, minimum paper core length is 0.5m.
2. Is this machine PLC control or manual control ?
It is PLC control.
3. What type of paper required to make the paper core ?
Craft paper for making cores.
4. What GSM we can use craft paper and what type of glue we can use to make cores ?
The craft paper is about 160-420GSM, the glue is a professional glue for making paper
core, The glue main components are water, PVOH and kaoline.
5. Can it be changed as our demand local ?
The standard voltage is 380v50hz three phase. It can be changed as customers’ demand, but need to add some extra cost.
Maximum paper core length is about 3m, minimum paper core length is 0.5m.
2. Is this machine PLC control or manual control ?
It is PLC control.
3. What type of paper required to make the paper core ?
Craft paper for making cores.
4. What GSM we can use craft paper and what type of glue we can use to make cores ?
The craft paper is about 160-420GSM, the glue is a professional glue for making paper
core, The glue main components are water, PVOH and kaoline.
5. Can it be changed as our demand local ?
The standard voltage is 380v50hz three phase. It can be changed as customers’ demand, but need to add some extra cost.
6. Can this core fix our name inside paper part ?
Yes, color printing function is optional function, need to add extra cost, usually single
color printing.
color printing.
