ZEMIC Column Load Cell BM14C 50T Capacity IP68 OIML

Product Overview

Description

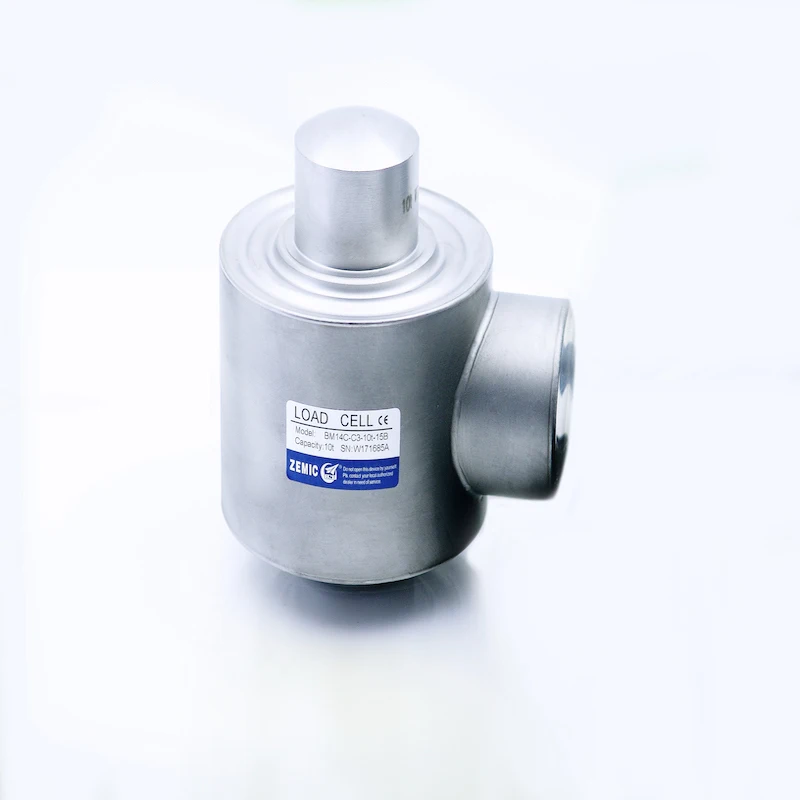

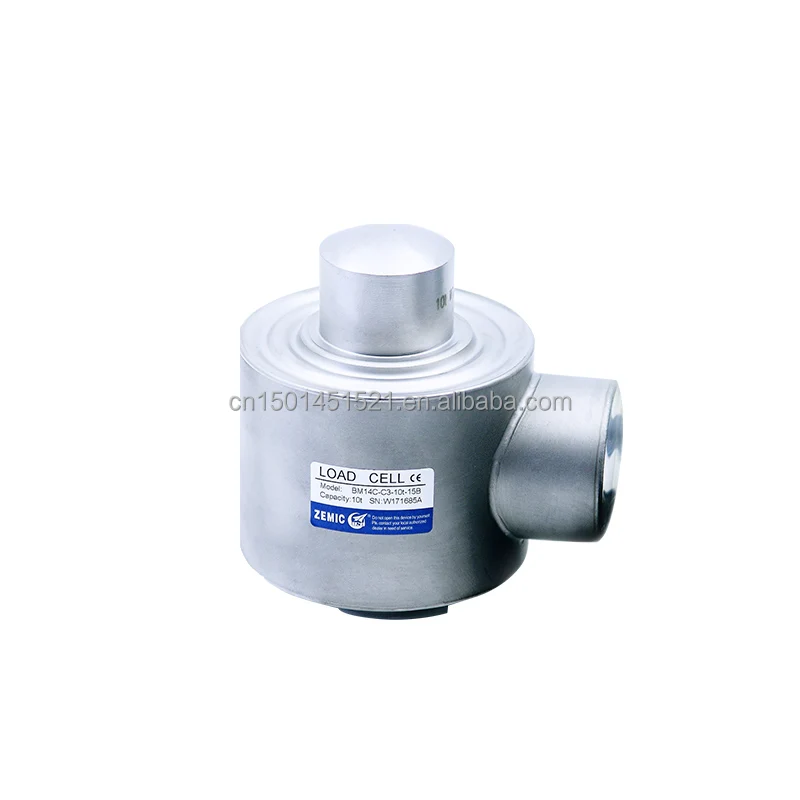

ZEMIC Column Load Cell BM14C 0.5-50T Capacity



Products Description

ZEMIC 14 SERIES LOAD CELL, which is COLUMN LOAD CELL element.

With IP68 protection, and NTEP, OIML, ATEX approved

Suitable for vehicle and hopper scales, and vehicle testing facilities

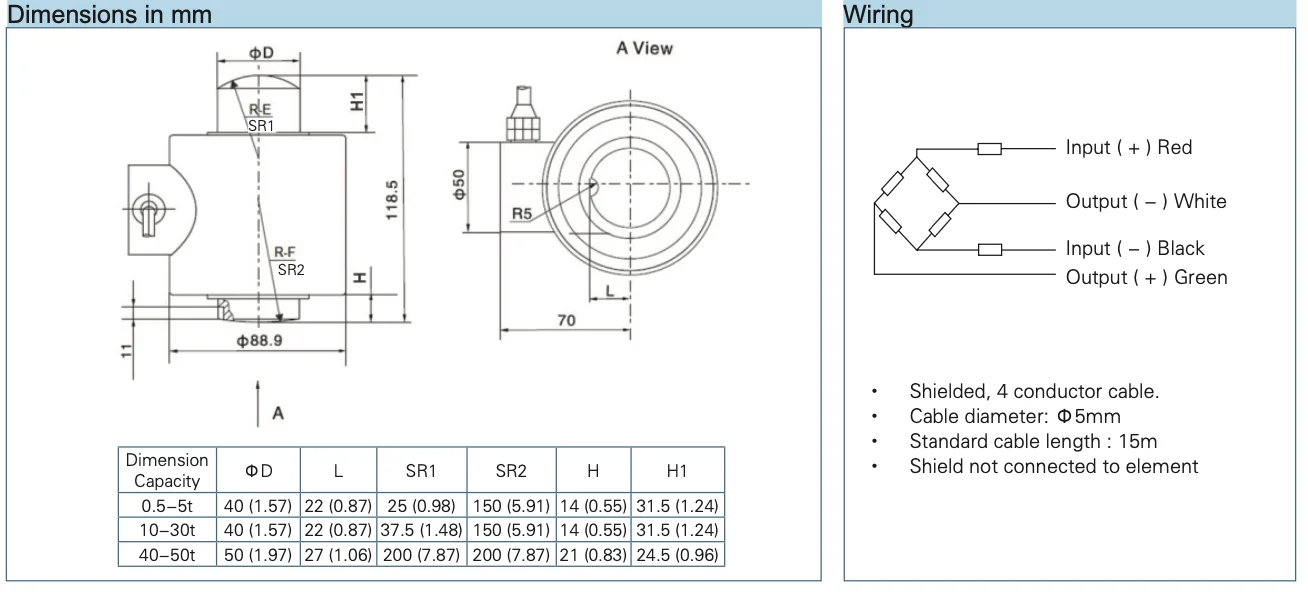

Details Specification



Item	Technical Parameter
Model	BM14C-C4-10T...50T-15B
Accuracy class	OIML R60 C3
Output Sensitivity,mV	2.0±0.002
Maxium Capacity, Emax,t	0.5,1,2,3,5,10,20,30,40,50
Maxium number of load cell intervals (nLC)	3000/4000
Ratio of Minimum LC verification interval Y=Emax/Vmin	10000/15000
Combined error, %FS	±0.00174
Minimum Dead Load, of Emax	0%
Safe overload, of Emax	150%
Ultimate Overload, of Emax	300%
Zero Balance,%FS	<±1.0
Excitation, recommended voltage,V	5-12Vdc
Excitation Max., V	18Vdc
Input resistance,Ω	700±7
Output resistance,Ω	703±4
Insulation Resistance, MΩ	>=5000(50Vdc)
Compensated Temp., ℃	-10 to +40
Operating Temp., ℃	-35 to +65
Protection Class	IP68







Other Series of our Load cell

2 Series, Spoke Type Load Cell

3 Series, S-Beam Load cell

6 Series, Single Point Load cell

8 Series, Single Shear Beam Load cell

9 Series, Dual Shear Beam Load cell

11 Series, Single Point With Bellow

14 Series, Column Type Load cell

16 Series, Dual Paraelle Beam



ZEMIC Company Profile



ZEMIC, Zhonghang Electronic Measuring Instruments Co., Ltd. is a holding company of Aviation Industry Corporation of China(AVIC), focusing on the field of "intelligent measurement and control".Based on the core technology of sensing force and weight, ZEMIC has established four business segments: Aviation and Military products, Sensor Control, Intelligent Transportation and Industrial Software. Nowadays, ZEMIC is a domestic backbone enterprise that provides intelligent measure-ment and control products and system solutions for both military and civilian use. On August 27th,2010, ZEMIC succeeded in achieving its IPO and was listed on Shenzhen Stock Exchange(Stock Code:300114). By the end of 2020, ZEMIC total assets reached 2.933 billion RMB.











Our R&D

By the end of December 2020, the company has obtained more than 340 patents and software copyrights authorizedby the State Intellectual Property Office, including 55 invention patents, more than 200 utility model patents anddesign patents, and 90 authorized software copyrights. Intellectual property system layout has been set up based oncore products.





Q1: What is your lead time?
A: Stock:5-15 days in general. No stock:15-60 days after samples confirmed. Or please contact us by email for specific lead time base on your order quantities.
Q2: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end:
1) All raw material we used are environmental-friendly, comply with Rohs, CE etc.
2) Automation are applied in 50% process and skilful workers pay great attention to each details in handling the producing and packing processes;
3) We have a professional QA/QC team with good experience in 8D and PFEMA, which help to ensure the quality.
4) All test data of product is traciable due we store them in our facility or server for at least 3years.
Q3: Do you accept OEM or ODM order?
A: Yes, we accept both OEM and ODM for customers.
Q4: What are your terms of delivery?
A: We can accept EXW, FOB, CIF, etc. You can choose one which is the most convenient for you.
Q5: What is the payment way?
A: TT, Pay Later, West Union, Online Bank Payment.

Q6: What is the complete description for Zemic product for export purposes(tarif code, description, country of origin)?
A: Zemic force sensors: Product: Sensor Straingage Measuring HS code:90318080
Origin: China Zemic mounting assembly: Product: Accessories Measuring Instruments HS code:90319000
Origin: China Zemic straingages: Product: Straingage Resistor HS code:85339000
Origin: China



Should you have other questions, please let us know. We' ll add answers here for your further references. Thank you.
