Product Overview

Description

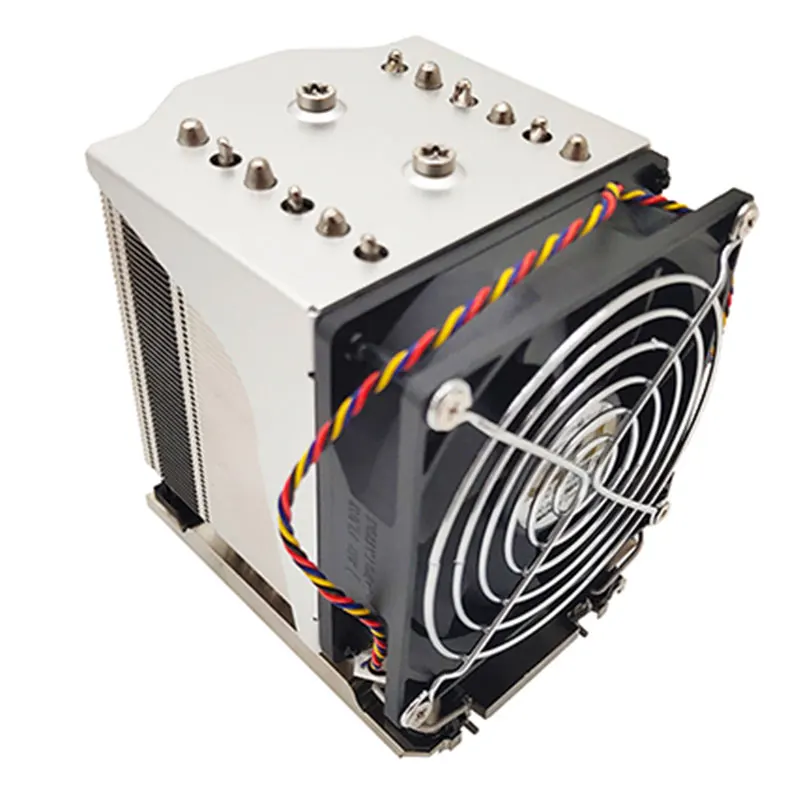

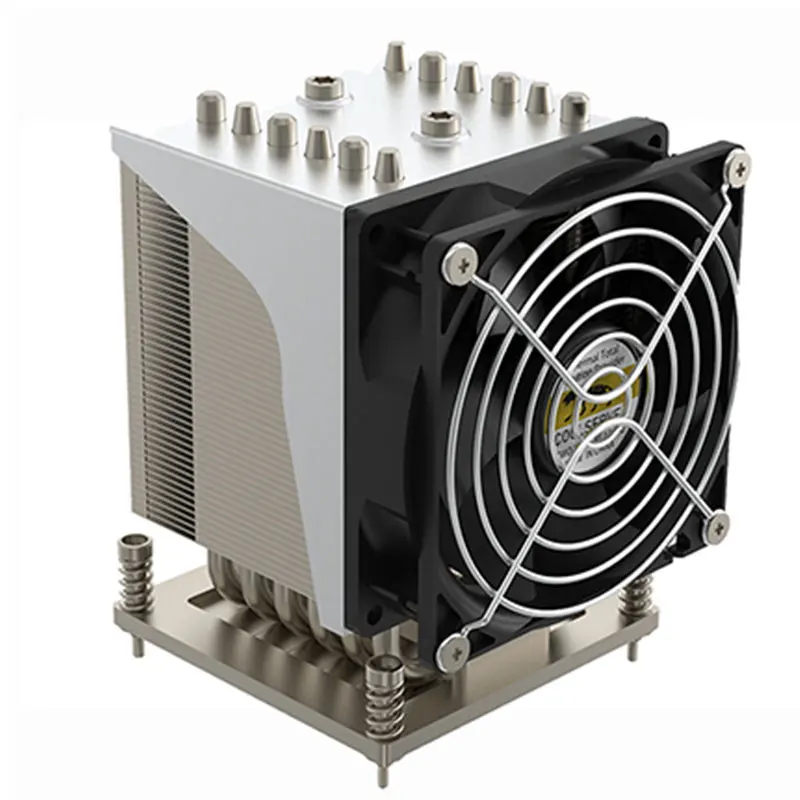

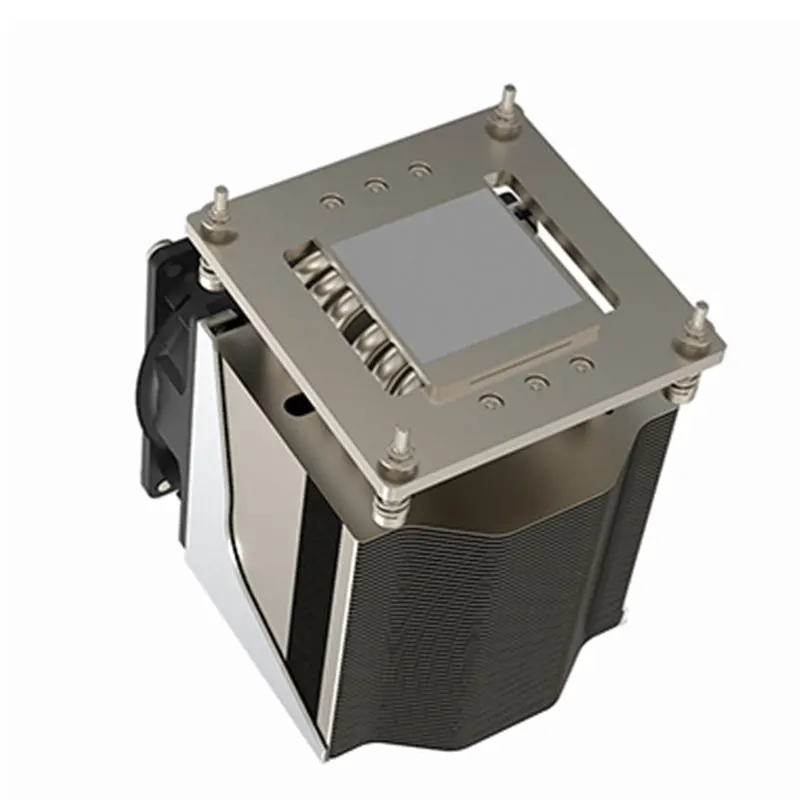

COOLSERVER R96 4U server cooler Air Cooling Fan 280W 6 HeatPipes CPU Radiator For Intel LGA 1700 LGA 3647 Cpu Processor Fans heat sink

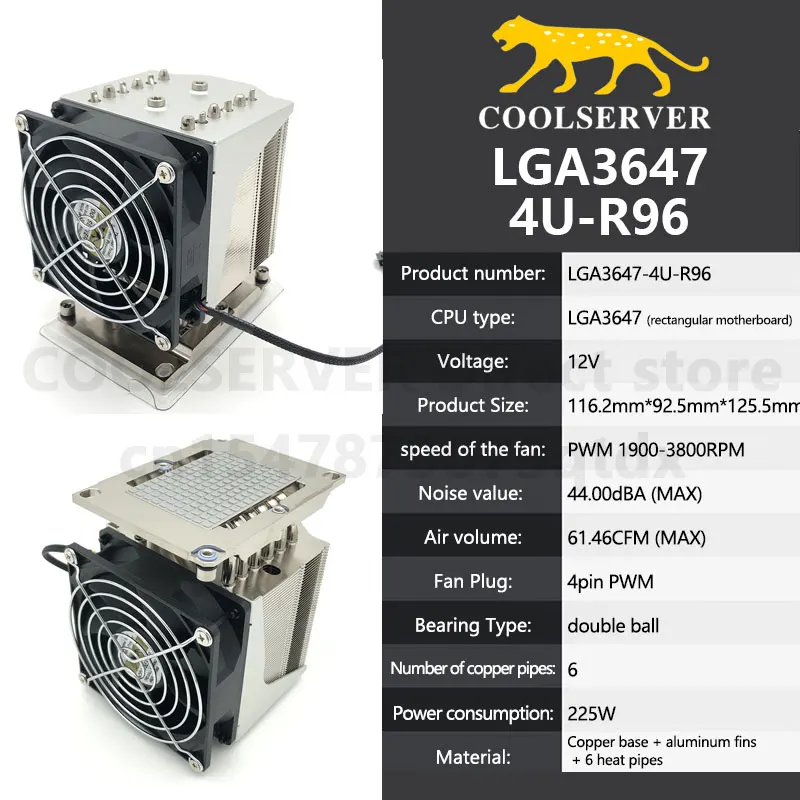

Product model: LGA3647-4U-R96

CPU type: LGA3647 (rectangular motherboard)

Voltage: 12V

Product size: 116.2mm*92.5mm*125.5mm

Fan speed: PWM 1900-3800RPM

Noise value: 44.00dBA (MAX)

Air volume: 61.46CFM (MAX)

Fan Plug: 4pin PWM

Bearing type: double ball

Number of copper pipes: 6

Power consumption: 225W

Material: copper base + aluminum fins + 6 heat pipes

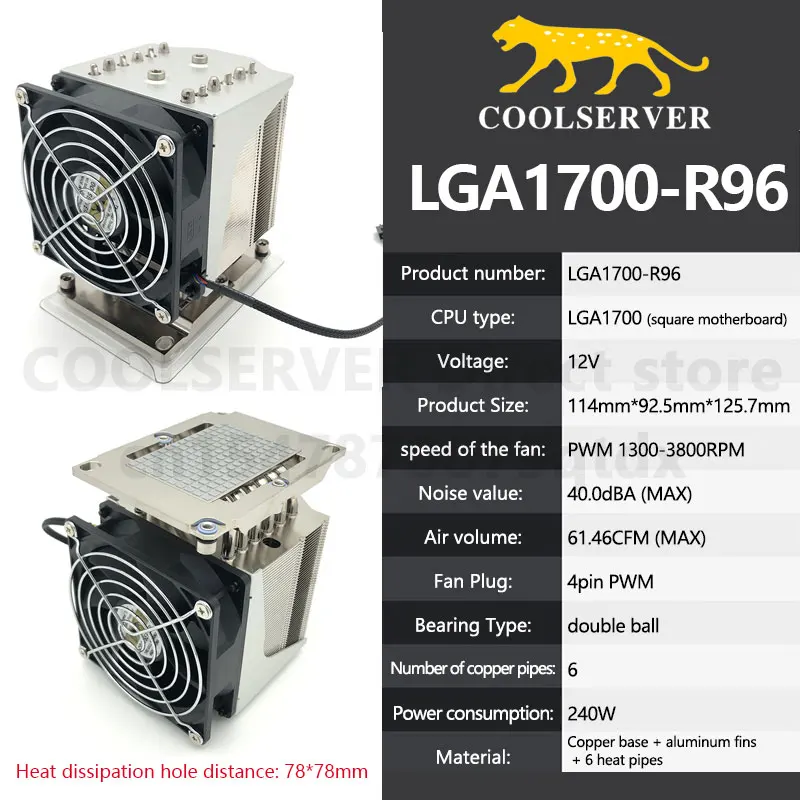

Product model: LGA1700-R96

CPU type: LGA1700 (square motherboard)

Voltage: 12V

Product size: 114mm*92.5mm*125.7mm

Fan speed: PWM 1300-3800RPM

Noise value: 40.0dBA (MAX)

Air volume: 61.46CFM (MAX)

Fan Plug: 4pin PWM

Bearing type: double ball

Heat dissipation hole distance: 78*78mm

Number of copper pipes: 6

Power consumption: 240W

Material: aluminum base + aluminum fins + 6 heat pipes

6 composite pipes

Stronger thermal conductivity, better excellent thermal conductivity and heat dissipation performance

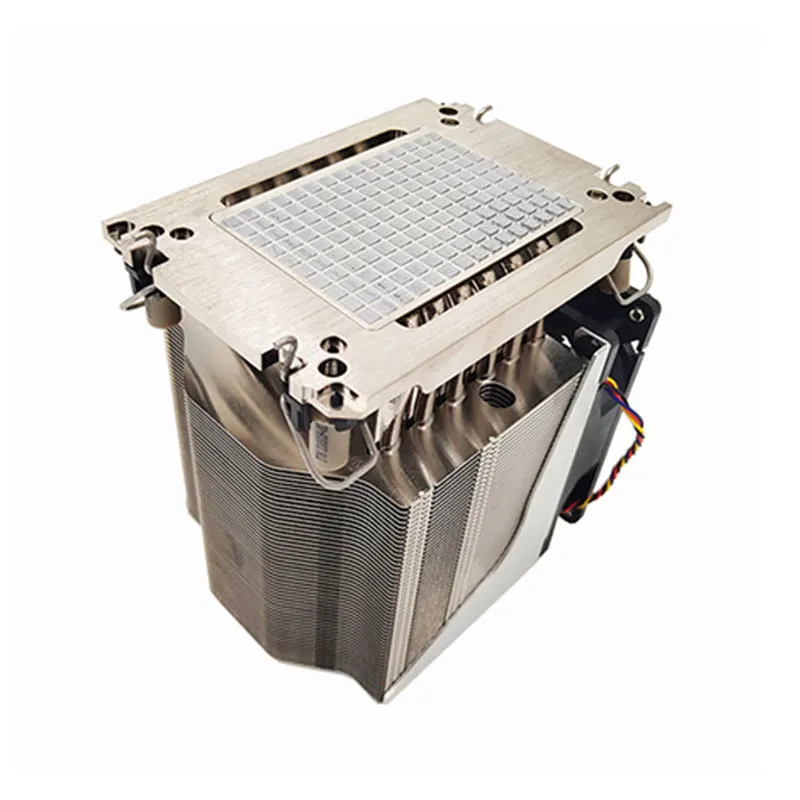

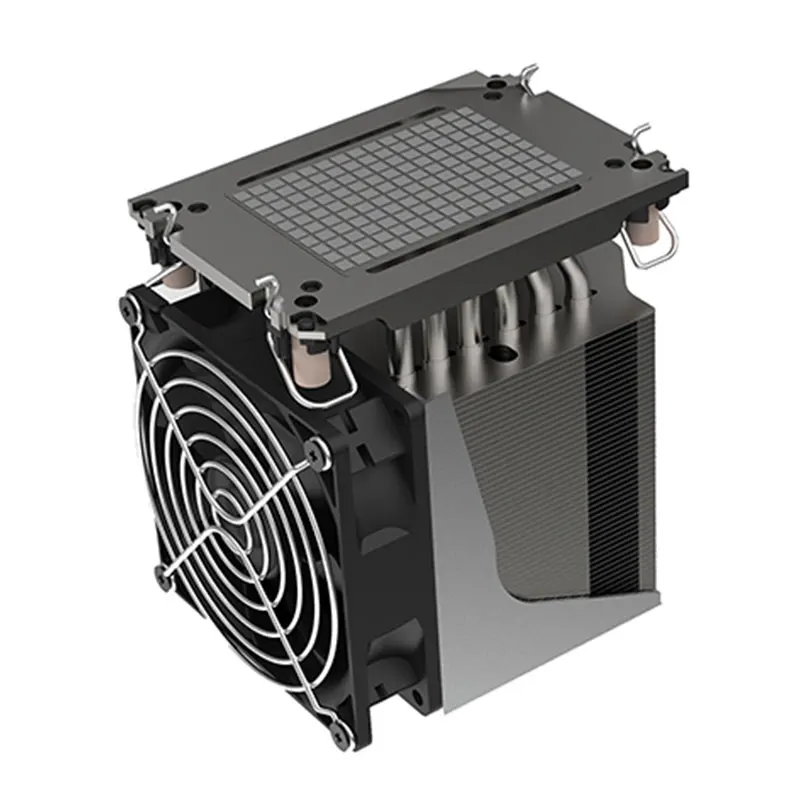

6 high-efficiency heat pipes closely cover the surface of the CPU, which greatly increases the contact area and allows the heat to be conducted to the heat dissipation fins more efficiently.

Heat Pipe Nickel Plating Process

The 6 composite heat pipes are designed with nickel-plated surface treatment to increase the contact between the magnesium light and the inside of the anti-oxidation heat pipe, effectively improving the heat conduction efficiency of the heat pipe.

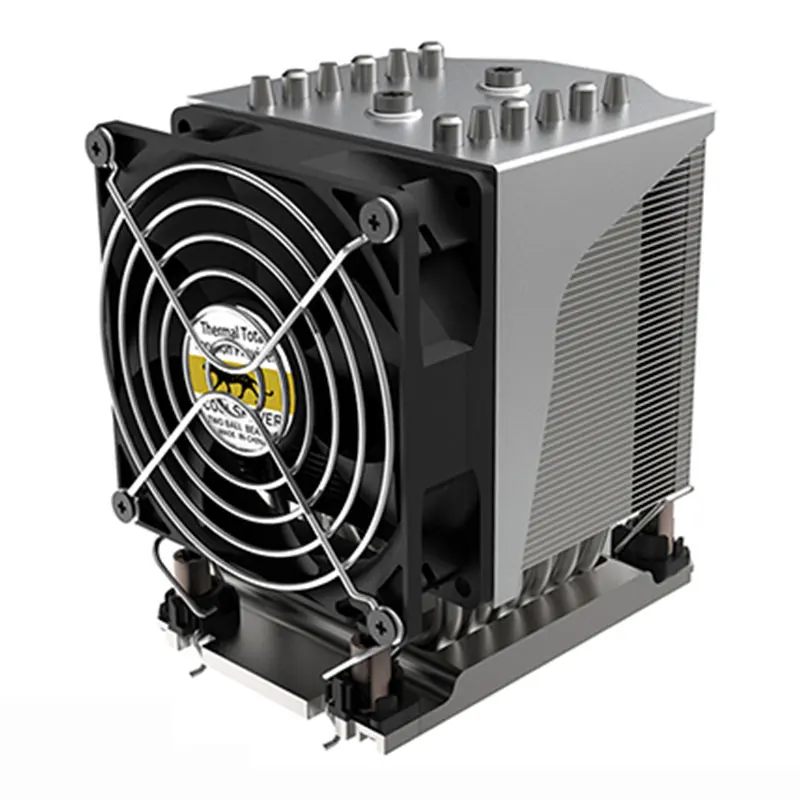

Adopt 9225 fan

Imported lc original components, quiet, stable, strong wind, large air volume, fast and efficient heat dissipation

The unique fan blade design can effectively reduce the wind shear sound produced by the fan blade.

Reflow soldering process

Better contact, stable thermal conductivity, high heat conversion rate, and efficient heat dissipationPure copper heat conduction, aluminum fin heat dissipation module

The design of the conjoined heat dissipation group using pure aluminum material can directly dissipate part of the temperature, which greatly improves the heat dissipation efficiency.

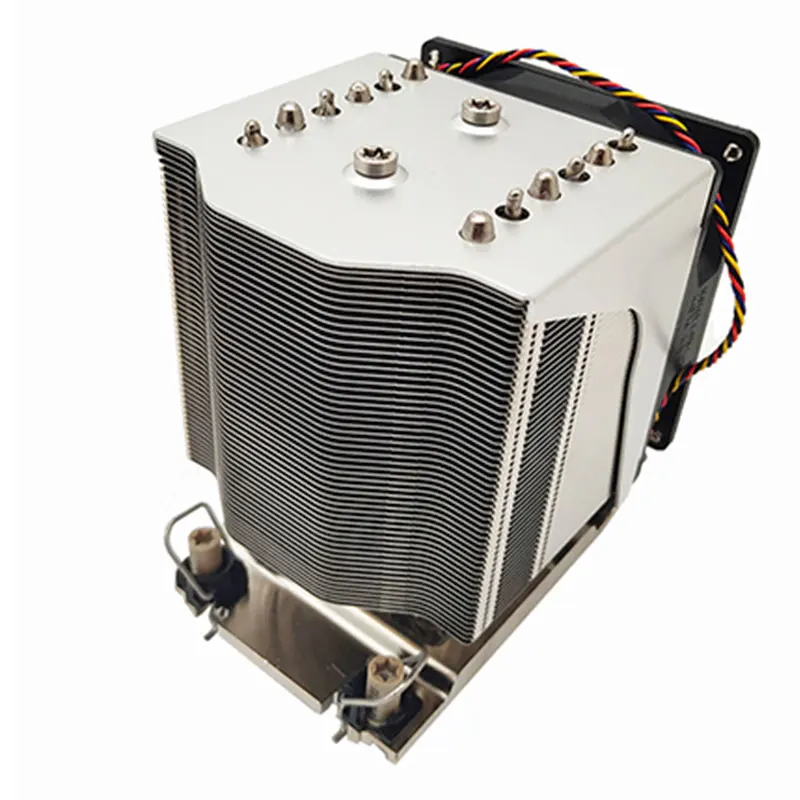

The fins on both sides of the heat sink can not only increase the firmness, but also maintain the same spacing between each fin, so that the airflow generated by the fan can pass through each fin evenly and smoothly, thereby reducing noise and enhancing heat dissipation performance.

Reflow soldering process

Better contact, stable thermal conductivity, high heat conversion rate, and efficient heat dissipation

Electroless nickel plating technology for aluminum plate

1. The metal surface treated by this process is an amorphous coating with excellent corrosion resistance

2. Since the surface after catalytic treatment is amorphous, that is, it is in a basic plane state and has self-lubricating properties, so the friction coefficient is small, the non-adhesion is good, and the wear resistance is high.

3. After the chemical brocade treatment, the hardness of the metal surface can be more than doubled

4. The bonding strength between the alloy layer and the metal base after chemical brocade treatment increases, generally under the condition of 350-400Mpa, it will not peel, fall off, and have no bubbles, and the bonding strength with aluminum can reach 102-241Mpa.
