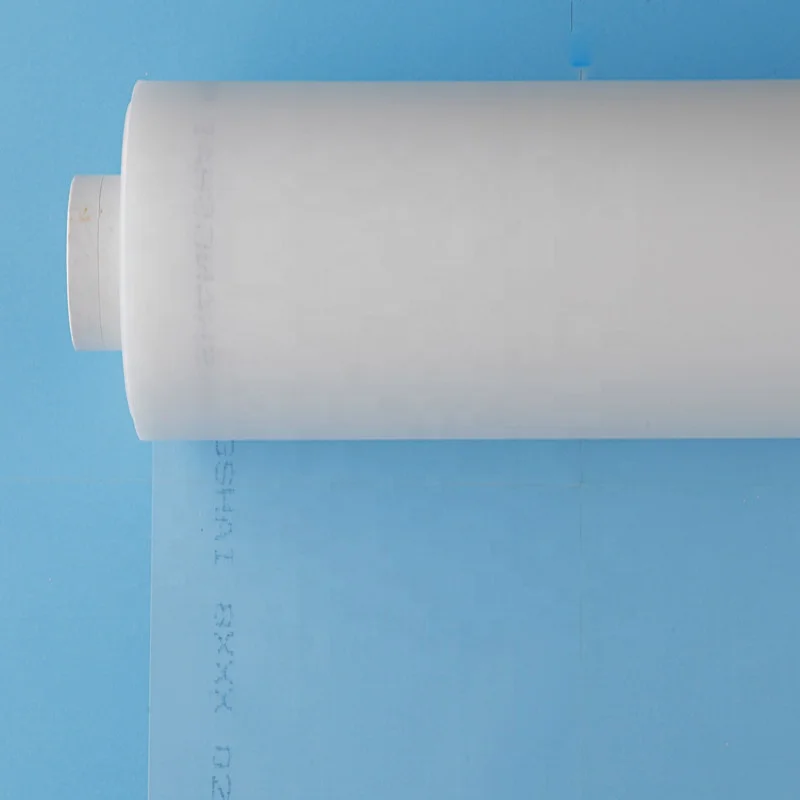

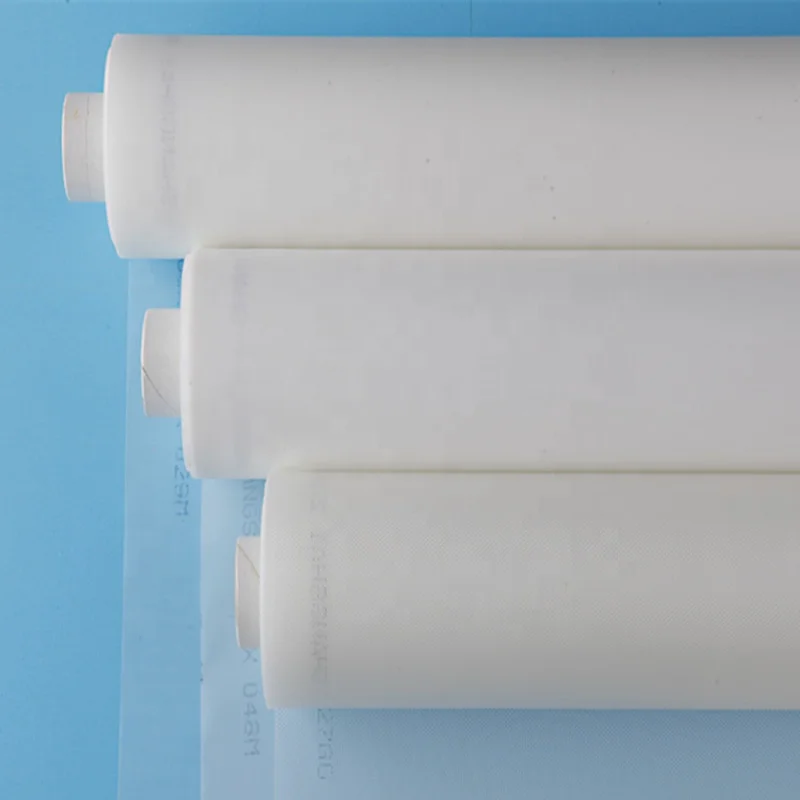

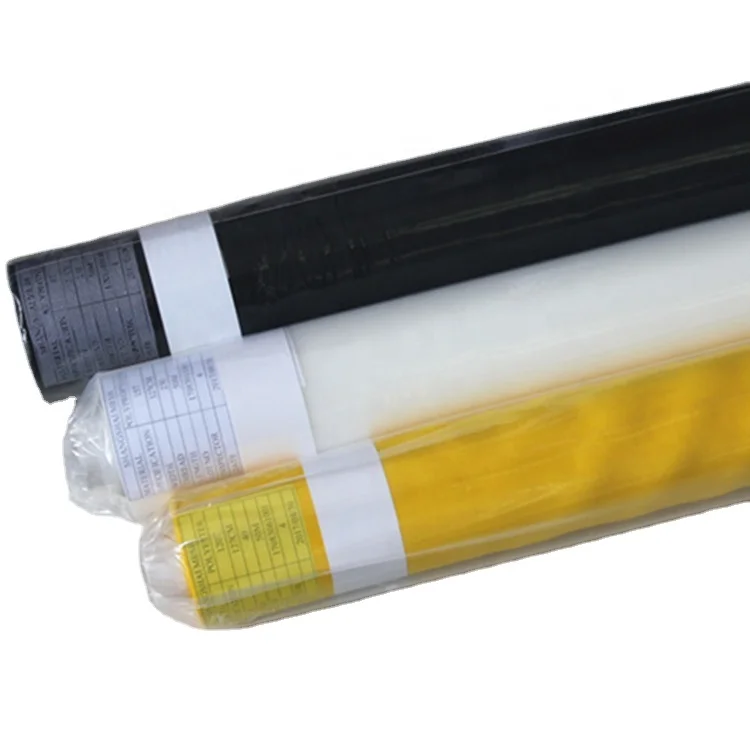

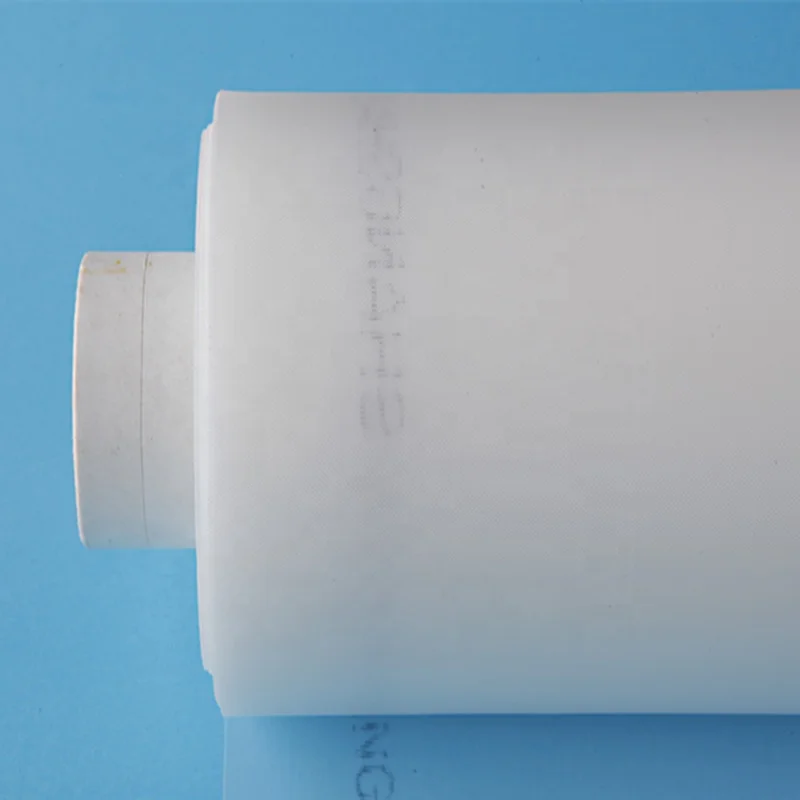

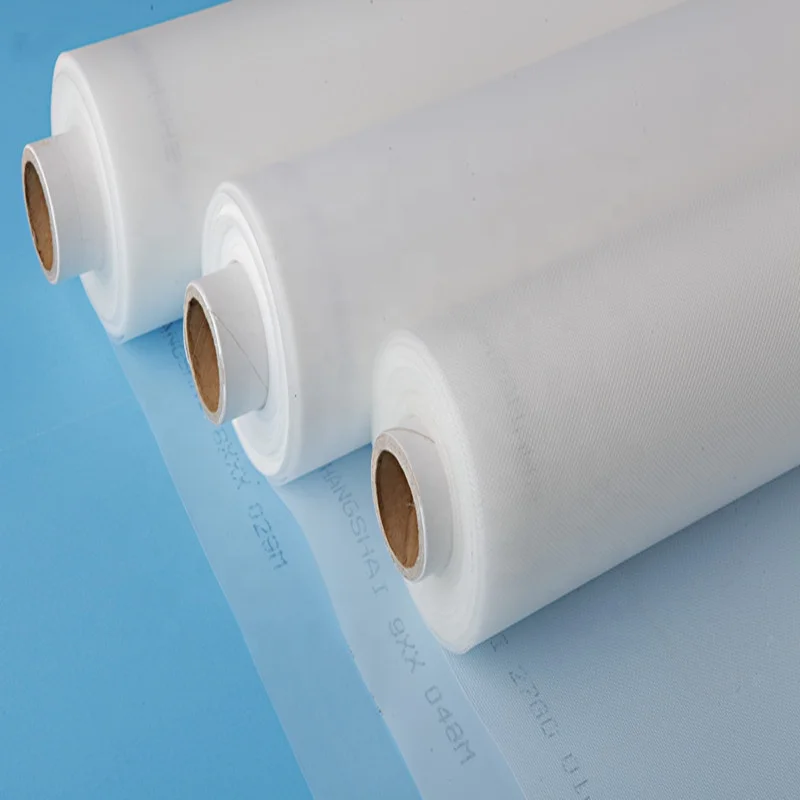

120 135 150 160 180 195 200 250 300 mesh nylon polyester silk screen printing mesh for screen printing
- Category: >>>
- Supplier: Shanghai Shangshai Bolting Cloth Manufacturing Co. Ltd.
Share on (1600653401232):
Product Overview
Description
6 300/200/100/90/80/70/60/ 50 micron nylon filter mesh
Product Description
Specification Details of 20~420 Mesh 100% Polyester Printing Mesh:
1.Material: 100% Polyester (100% Nylon availabel)
2.Mesh count: 18mesh(7T)-420mesh(165T)
3. Width: 0.6m-3.65m
4.Length: 30-70m per roll
5.Thread diameter:31-400um
6.Color: white/yellow/orange/black
7.Packing: PVC bag inside for each roll, then carton,then waterproof bag outside
Features & Advantages of serigraphie :
1. Faster turn around time from the screen room to the press room
2. Good diathermancy
3. High air permeability
4. Acid resistance and Alkali resistance
5. Long working life
6. Hard wear
7. Three factories for manufacturing

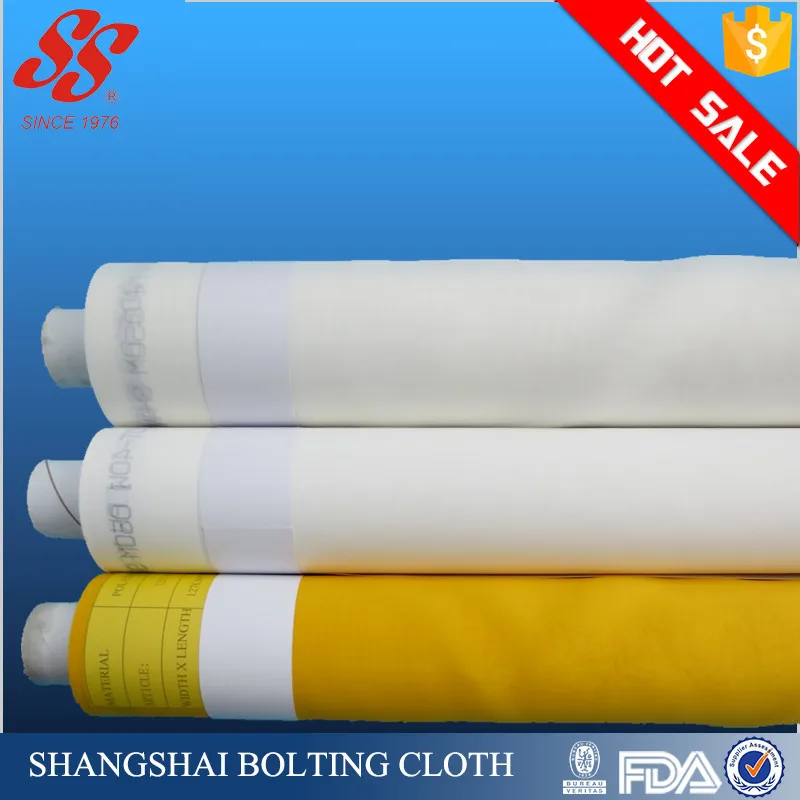

polyester printing mesh bolting cloth
polyester printing mesh | |||||||
| Model | Specification (/cm) | Mesh count (mesh/inch) | Thread Diameter (um) | Mesh opening(um) | Open Area(%) | Thickness (um) | Theoretic Ink Volume (cm3/m2) |
| SS-PET7/1080 | 7 | 18 | 350 | 1068 | 56 | 693 | 389 |
| SS-PET8/950 | 8 | 20 | 300 | 941 | 57 | 594 | 338 |
| SS-PET10/700 | 10 | 25 | 250 | 743 | 55 | 495 | 274 |
| SS-PET12/583 | 12 | 30 | 250 | 578 | 48 | 495 | 239 |
| SS-PET14/514 | 14 | 36 | 200 | 489 | 50 | 340 | 169 |
| SS-PET15/465 | 15 | 40 | 200 | 443 | 47 | 340 | 160 |
| SS-PET16/425 | 16 | 40 | 200 | 404 | 44 | 340 | 151 |
| SS-PET16/375 | 16 | 40 | 250 | 356 | 34 | 425 | 145 |
| SS-PET18/405 | 18 | 45 | 150 | 385 | 51 | 255 | 131 |
| SS-PET18/375 | 18 | 45 | 180 | 357 | 44 | 306 | 134 |
| SS-PET20/350 | 20 | 50 | 150 | 333 | 47 | 255 | 120 |
| SS-PET20/320 | 20 | 50 | 180 | 304 | 39 | 306 | 120 |
| SS-PET21/333 | 21 | 54 | 140 | 319 | 48 | 238 | 114 |
| SS-PET24/297 | 24 | 60 | 120 | 282 | 49 | 204 | 99 |
| SS-PET24/270 | 24 | 60 | 140 | 263 | 42 | 238 | 100 |
| SS-PET24/267 | 24 | 60 | 150 | 253 | 39 | 255 | 100 |
| SS-PET29/223 | 29 | 74 | 120 | 214 | 41 | 204 | 83 |
| SS-PET30/213 | 30 | 76 | 120 | 203 | 39 | 204 | 80 |
| SS-PET32/213 | 32 | 80 | 100 | 202 | 44 | 170 | 75 |
| SS-PET32/193 | 32 | 80 | 120 | 183 | 36 | 204 | 74 |
| SS-PET34/194 | 34 | 86 | 100 | 184 | 42 | 170 | 71 |
| SS-PET36/178 | 36 | 90 | 100 | 169 | 39 | 170 | 66 |
| SS-PET39/185 | 39 | 99 | 71 | 176 | 50 | 121 | 61 |
| SS-PET39/170 | 39 | 100 | 80 | 168 | 45 | 136 | 62 |
| SS-PET43/153 | 43 | 110 | 80 | 145 | 41 | 136 | 56 |
| SS-PET47/142 | 47 | 130 | 71 | 135 | 42 | 121 | 51 |
| SS-PET51/125 | 51 | 135 | 71 | 119 | 39 | 121 | 47 |
| SS-PET53/125 | 53 | 135 | 64 | 118 | 42 | 109 | 45 |
| SS-PET53/118 | 53 | 135 | 71 | 112 | 37 | 121 | 45 |
| SS-PET56/115 | 56 | 142 | 64 | 109 | 38 | 109 | 41 |
| SS-PET59/105 | 59 | 150 | 64 | 100 | 36 | 109 | 39 |
| SS-PET61/100 | 61 | 155 | 64 | 95 | 34 | 109 | 37 |
| SS-PET64/92 | 64 | 163 | 64 | 88 | 32 | 109 | 35 |
| SS-PET68/83 | 68 | 173 | 64 | 79 | 29 | 109 | 32 |
| SS-PET72/84 | 72 | 183 | 55 | 80 | 34 | 94 | 31 |
| SS-PET77/75 | 77 | 195 | 55 | 71 | 31 | 94 | 29 |
| SS-PET80/77 | 80 | 200 | 48 | 73 | 35 | 82 | 29 |
| SS-PET90/66 | 90 | 230 | 48 | 60 | 28 | 82 | 23 |
| SS-PET100/61 | 100 | 250 | 40 | 51 | 30 | 85 | 26 |
| SS-PET110/52 | 110 | 280 | 40 | 43 | 26 | 68 | 18 |
| SS-PET120/42 | 120 | 300 | 40 | 37 | 18 | 68 | 13 |
| SS-PET130/47 | 130 | 330 | 40 | 31 | 17 | 68 | 12 |
| SS-PET140/37 | 140 | 350 | 34 | 32 | 19 | 58 | 11 |
| SS-PET150/34 | 150 | 380 | 30 | 31 | 23 | 51 | 12 |
| SS-PET165/29 | 165 | 420 | 27 | 29 | 22 | 46 | 10 |
| Remark:The following datas are theoretic ,please reference the actual datas if there it differs. | |||||||
20mesh ~420mesh Printing material mesh silkscreen
/polyester printing mesh bolting cloth:
20~420 Mesh 100% Polyester Printing Mesh/polyester printing mesh bolting cloth

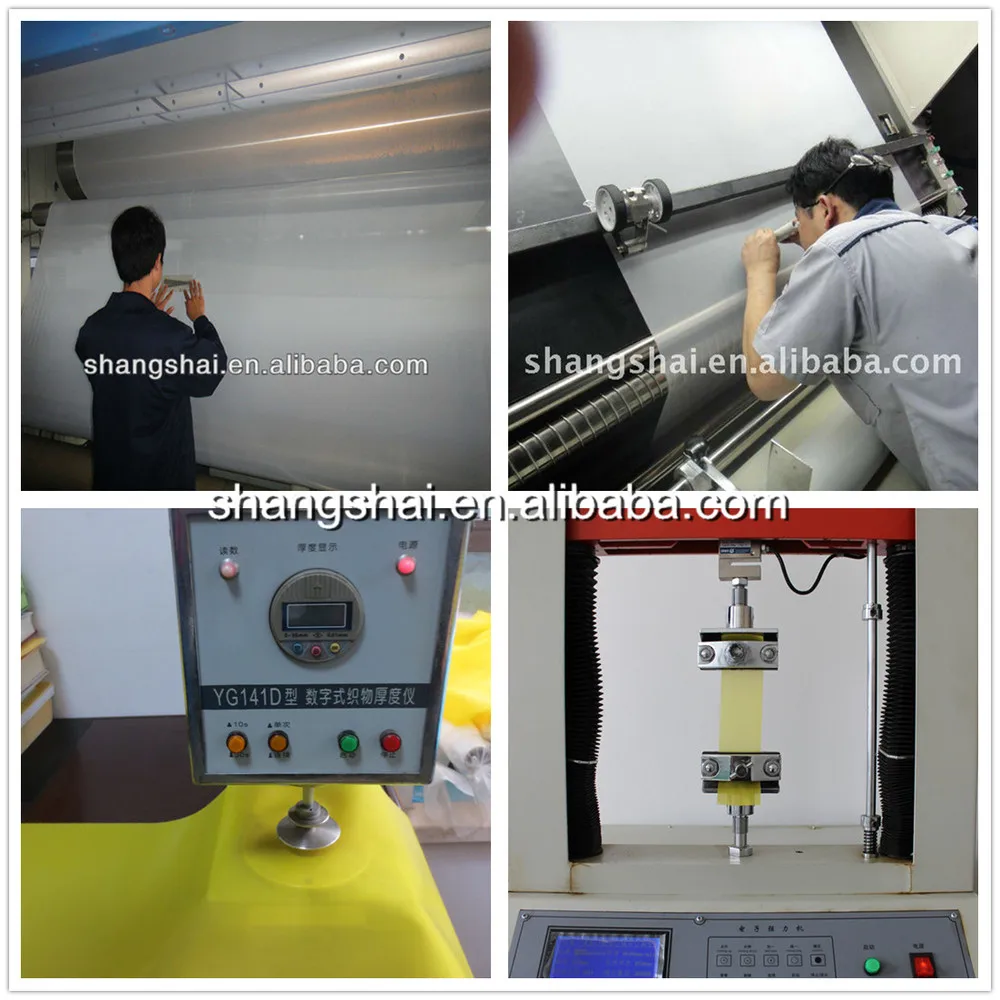

20~420 Mesh 100% Polyester Printing Mesh Test:
60 80 100 150 200 300 350 420 mesh polyester printing mesh bolting cloth
Company Information

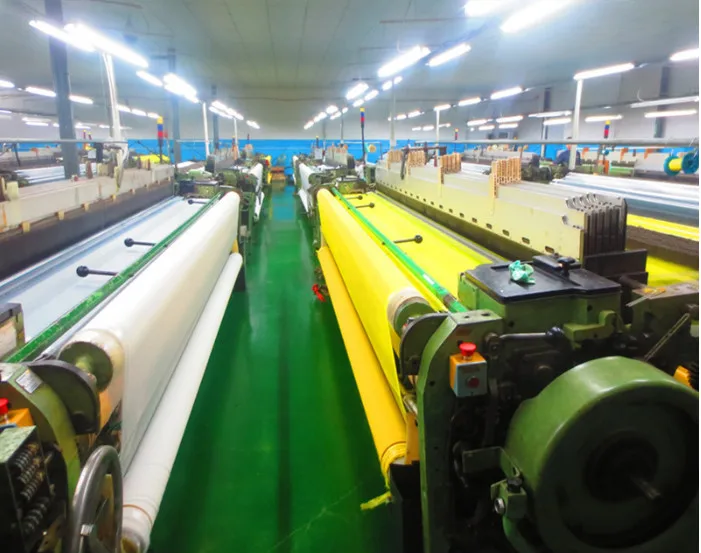

Welcome to our Factory!
Shanghai Shangshai Bolting Cloth Manufacturing Co.,Ltd is a professional manufacturer of all kinds of Screen Printing Mesh, Filter Mesh, Flour Mesh,and stainless steel mesh established in 1997.
Our company has 2 factories, the bigger one is located in ANPING, HEBEI, is a recommended enterprise of the HEBEI Government. The factory in Hebei covers 119 ACRES (79,373 square meters), the other factories are located in Shanghai.
Mainly Products: Polyester Mesh, Terylene Mesh, Nylon Mesh, Polyamide Mesh, Flour Mesh, Stainless Steel Mesh, Iron Wire Mesh, Filter Mesh, etc. screen printing and filtration related products.

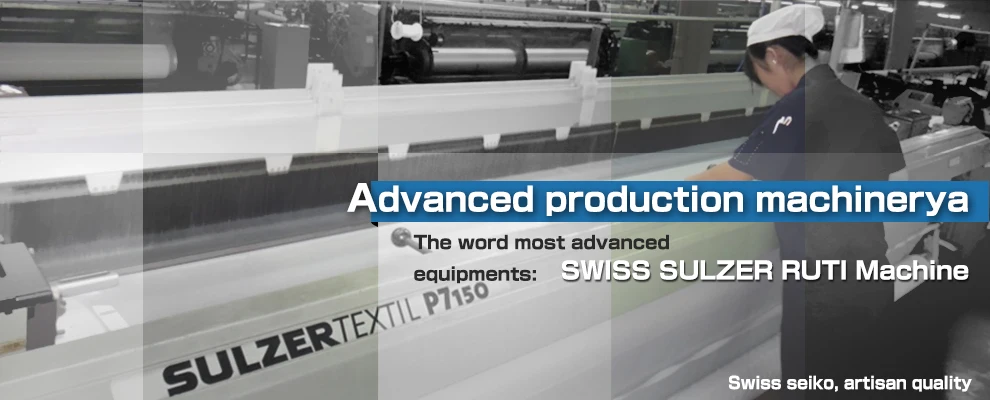

Equipments: 300 SWISS SULZER RUTI weaving machines, 5 Benninger high speed warping machines, 2 water washing heat setting machines. The width of weaving machines: 280cm, 330cm, 360cm, 390cm.Exported Countries: America, Germany, Japan, Britain, Italy, Russia, Brazil, Turkey, Argentina, Pakistan, Thailand, Singapore, Korea, Mexico, etc all over the world.

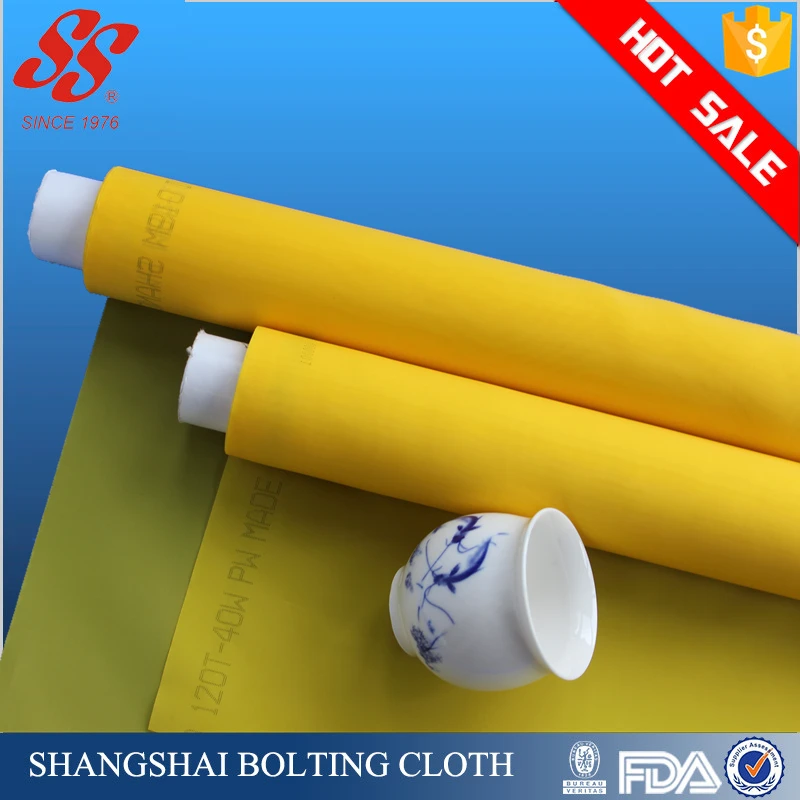

Printing material 100% polyester monofilament silk screen mesh malla para serigrafia

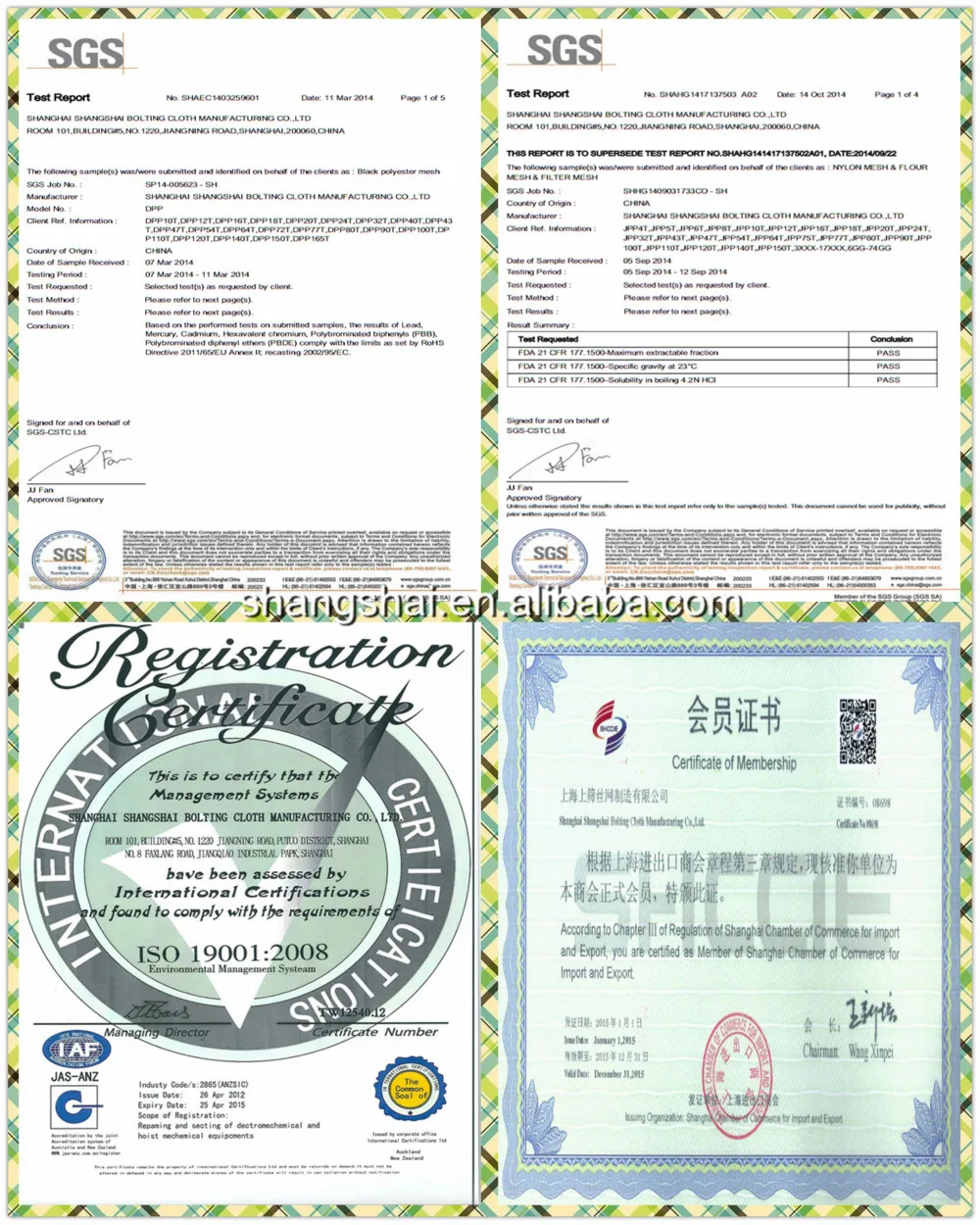

Certification:
Packaging

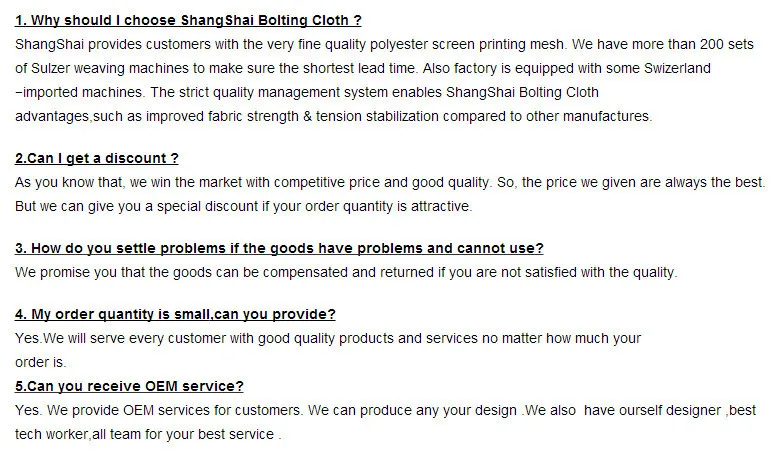

FAQ
