Cheapest Full Automatic Felt Carpet Needle Punching Production Line
- Category: >>>
- Supplier: Dongyang Aolong Nonwoven Equipment Co. Ltd.
Share on (1600653613656):
Product Overview
Description
Product Description

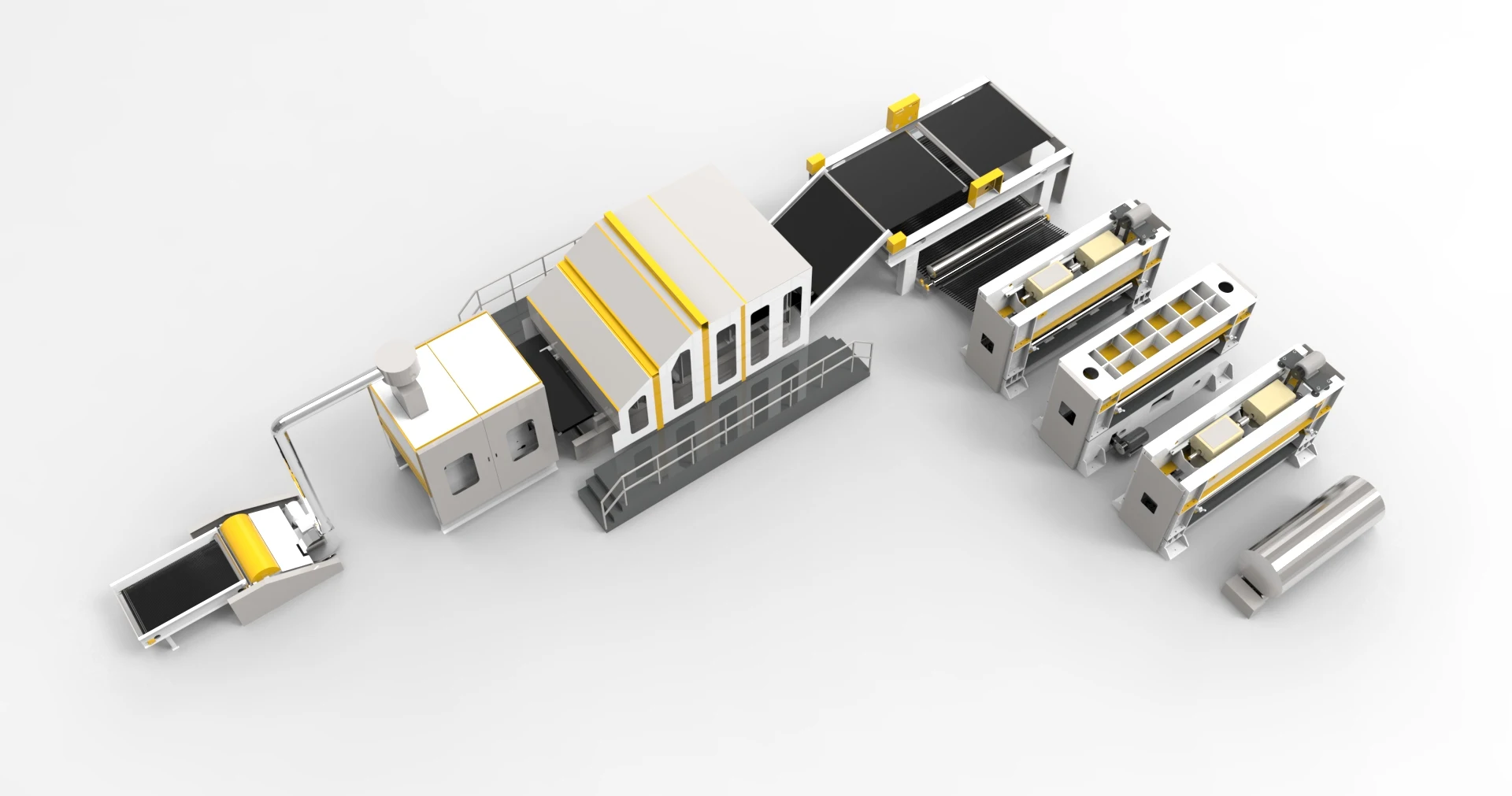

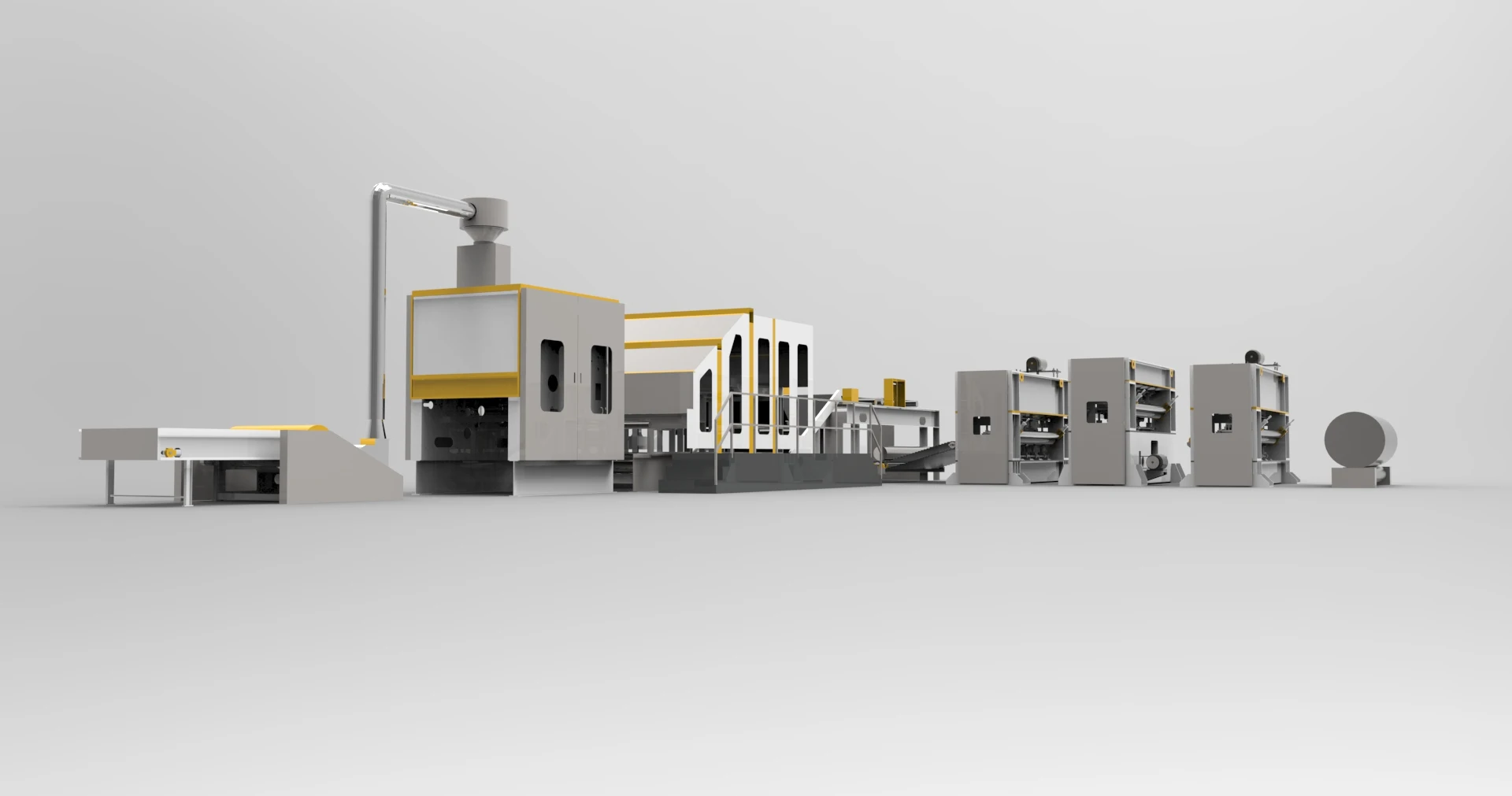

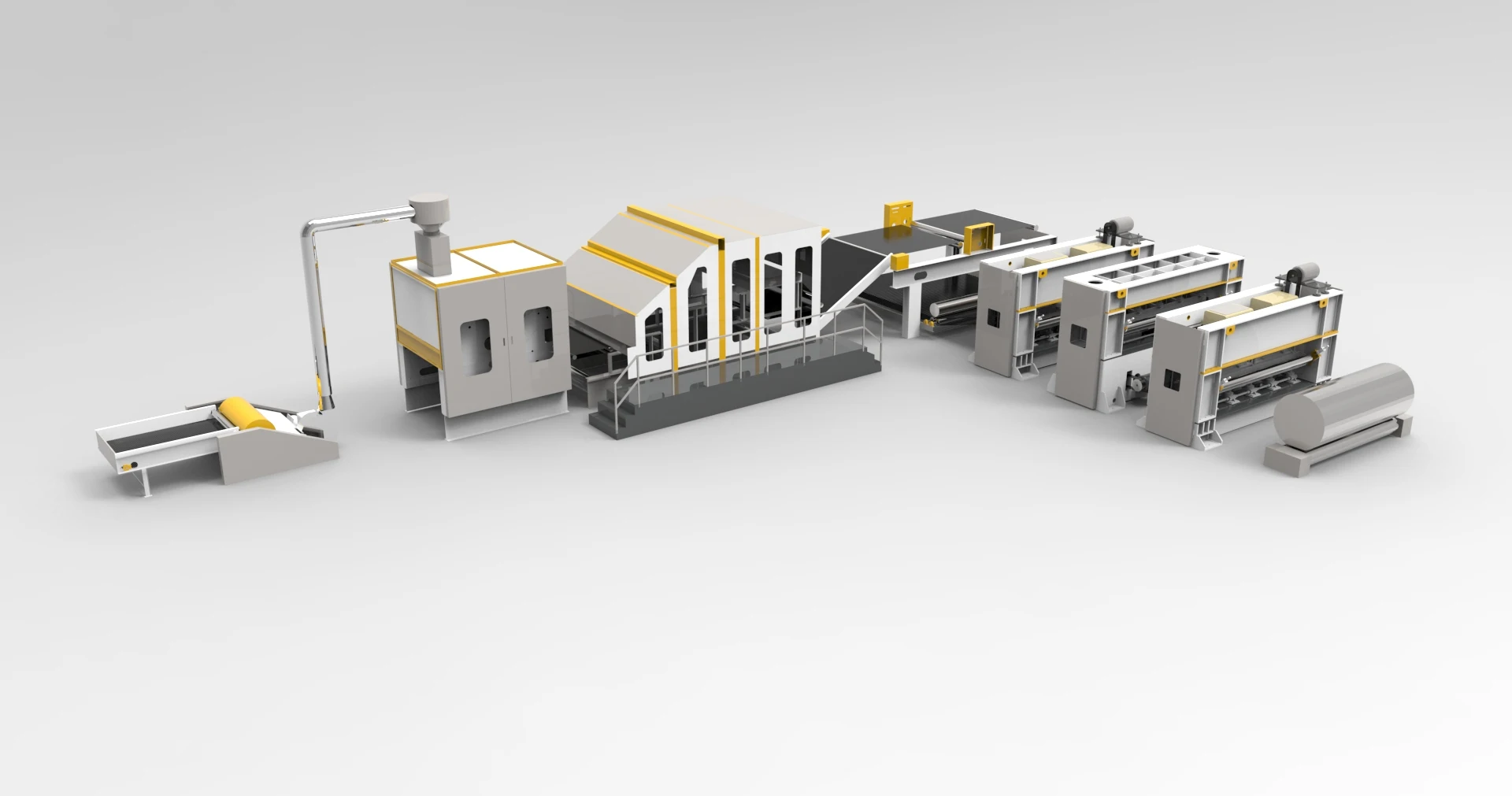

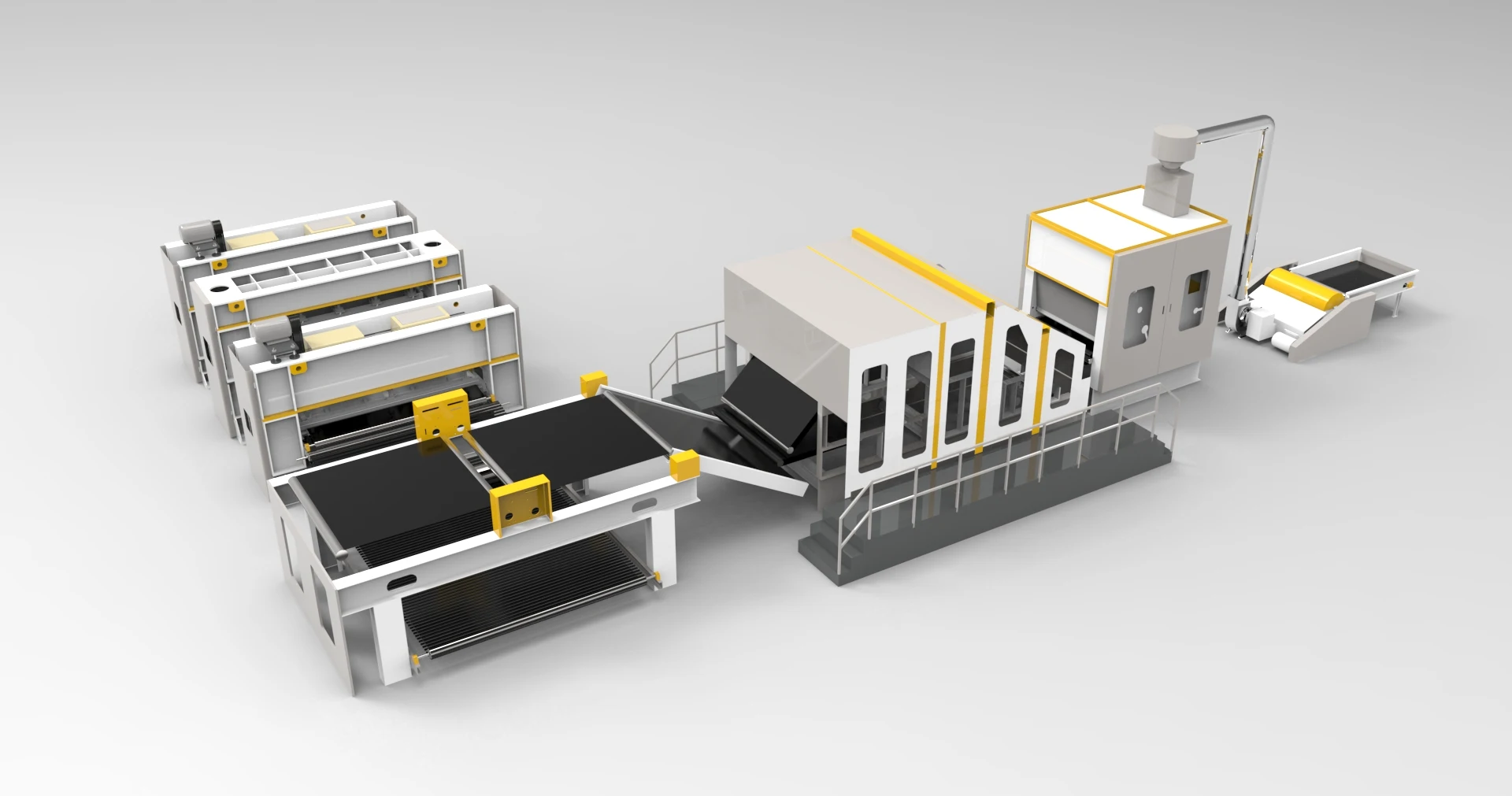

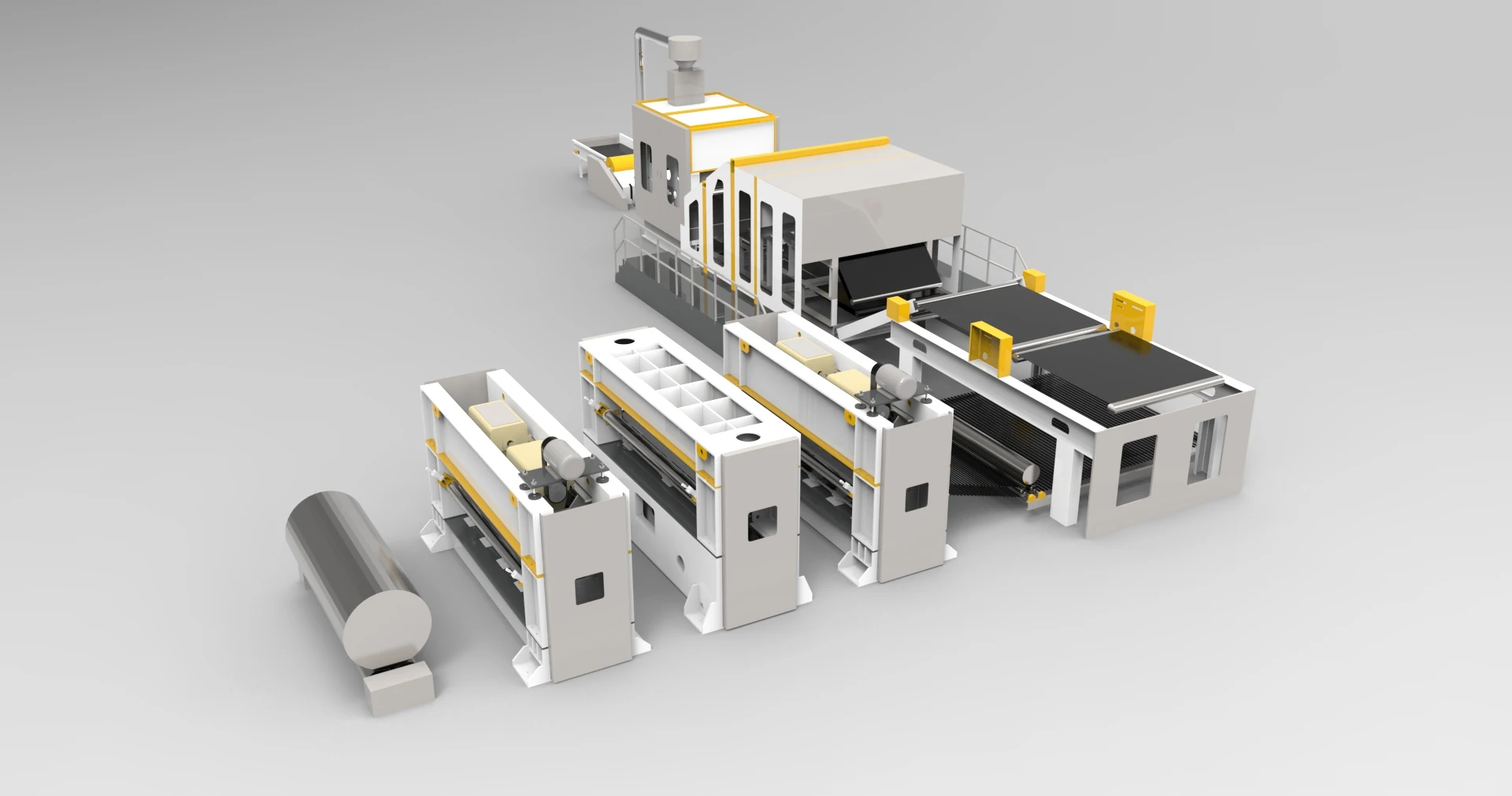

A.L Carpet/Felt Needle Punching production Line
Working process:
Bale Opener → Pre-opener → Main-opener → Cotton feeder → Cylinder Doff Crading machine → Cross lapper→ Needle punching→ Ironing machine → Automatic cutting and winding machine
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Detailed Images
Machine Parts

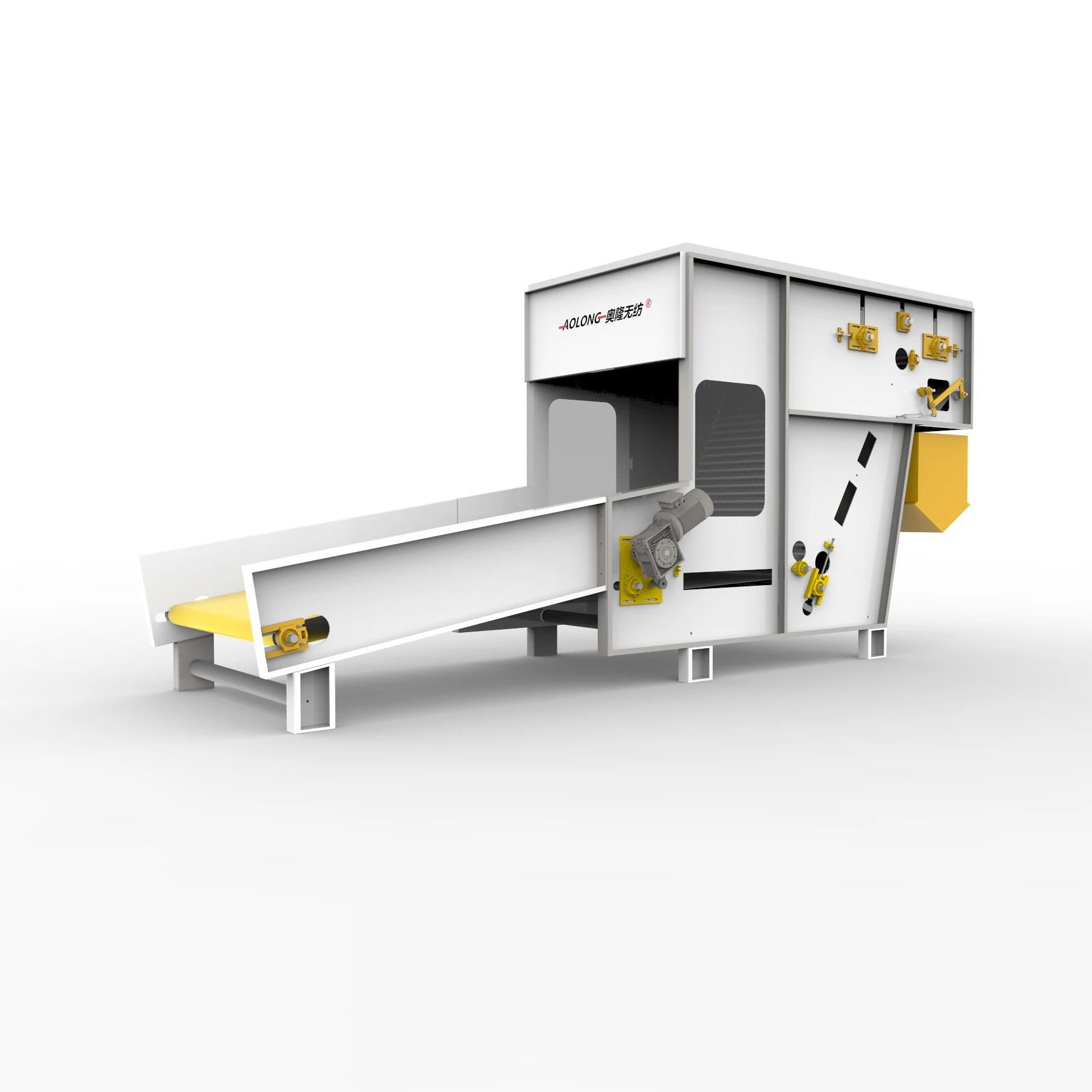

Name: Bale Opener
Width:1100mm 1200mm 1300mm 1400mm
Function: Open the fiber and weigh fiber electronically,it can be combined with sveral units together to mix different type of fibers
Main Features

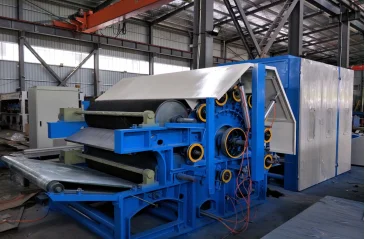

Name:single cylinder double doff carding machine.
double cylinder double doff carding machine.
Width:1850mm,2000mm,2200mm,2500mm
Capacity:200kg/h,250kg/h,300kg/h,350kg/h
Function:It is disigned with single cylinder or double cylinder and double doff,fiber is sent from front cylinder to middle doff and main cylinder through rollers,each cylinder have 4-5 sets of carding rollers,after many times of carding than feed to the curtain on the cross lapper.
Machine Parts

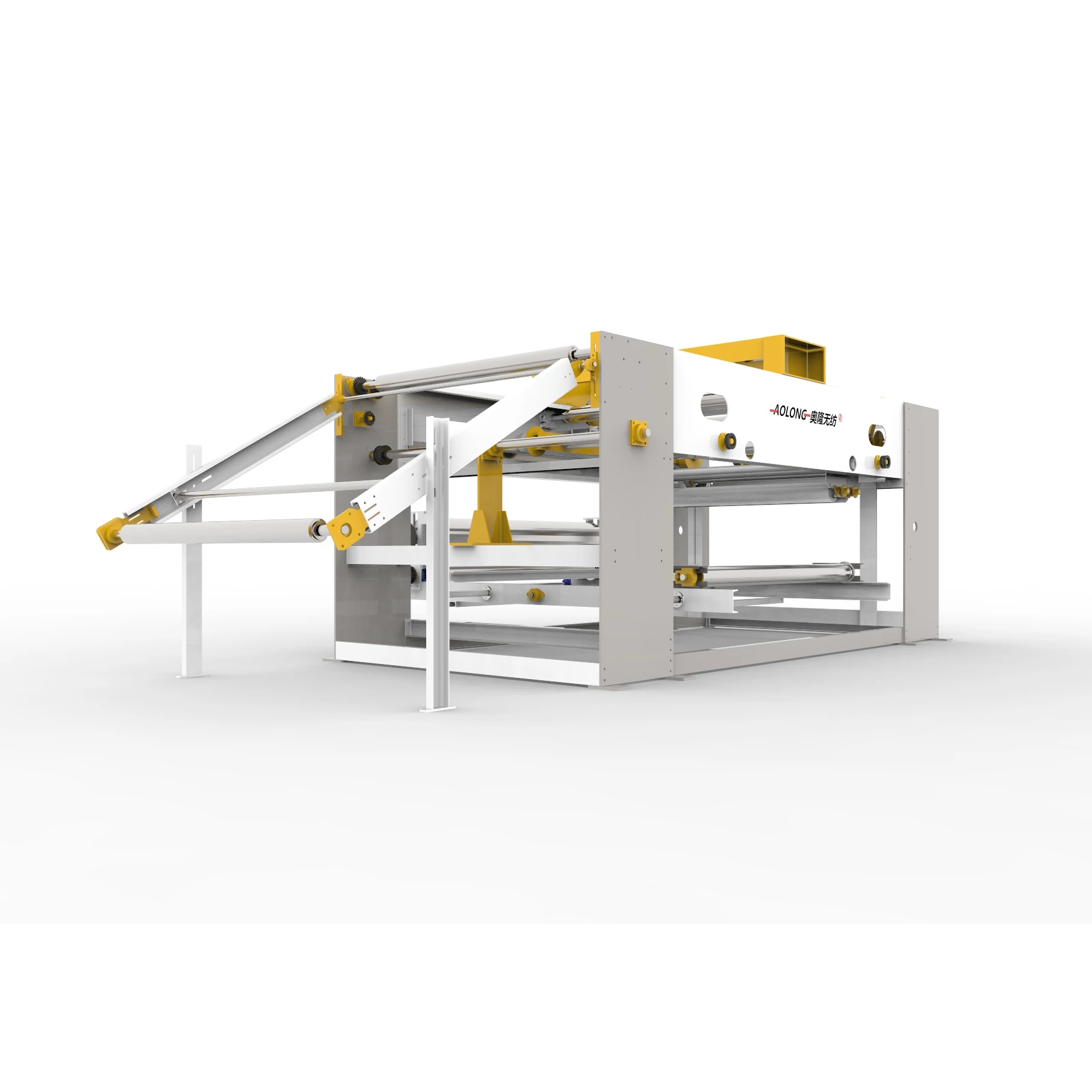

Name: Cross lapper machine
Feeding width: 1700mm-2700mm
Output width:1900mm-9000mm
Feeding speed:10m/min-50m/min
Output speed:1m/min-10m/min
Function:After carding,fiber net is sent to double-belts cross lapper through the non-skid curtain,it will be layered on the down-side curtain,than send to next equipment by adjustable moving curtain
Main Features
Name:Needle puching machine
Working width:2200mm-8800mm
Punching frequency:100-720/min
Needle density:3500-4500n/m
Function:It is used production of needle punching nonwoven fabrics like garments interlining,felts,carpet,geotextile etc,there are pre-needle punching,up needle punching and down needle punching
Related Products

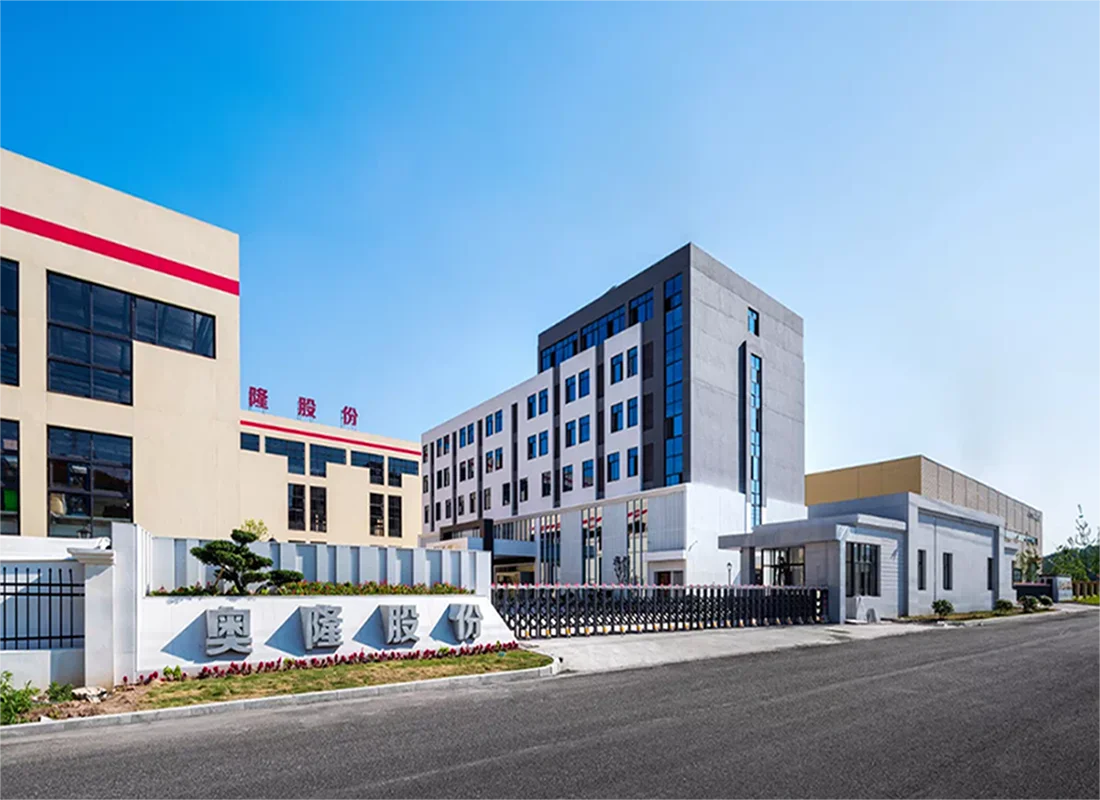

Our Company
DongYang AoLong Nonwoven Equipment Co.,Ltd, is a professional manufacturer of PP spun bonded nonwoven fabric production line, PET needle punching lines.
Our factory has many year`s experienced engineers and service team to develop and install our AL brand of PP spun bonded nonwoven fabric production lines from 1.6m, 1.8m, 2.4m,3.2m and 4.2m with different models like S,SS,SSS,SMS&SMMS.
PET needle punching line includes Carpet line, PU leather line, Filtering felt line, Waisted felt line, Polyfill line, Geotextile line etc
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

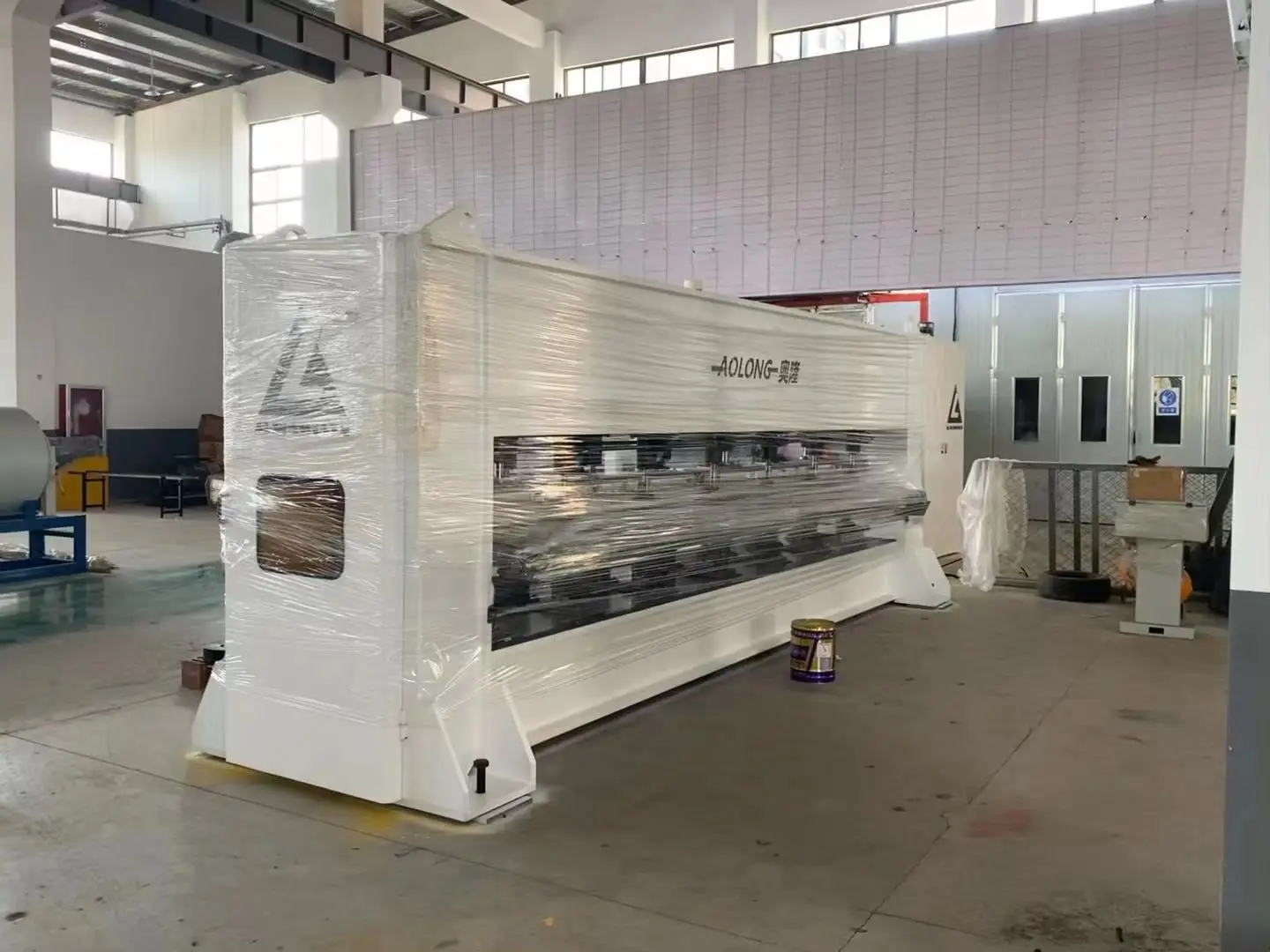

Packing & Delivery
FAQ
A. How I get right Machine for me , If I have no ideal about the machine ?
B: It doesn't matter. Tell me what kind of fabric that you want the machine , how much you want to produce and factory szie etc. We will design for you.
A.I already have one factory but there is a little of different in the size ,For example the height can't meet the 13m , only 12m?
B:Don't worry. Your machine will be customized.
A How to make sure your machine's quality?how about the service?
B: Each machine gets ISO9001:2008,CE, SGS. And warranty is one year. you can enjoy the service within production lifetime.
