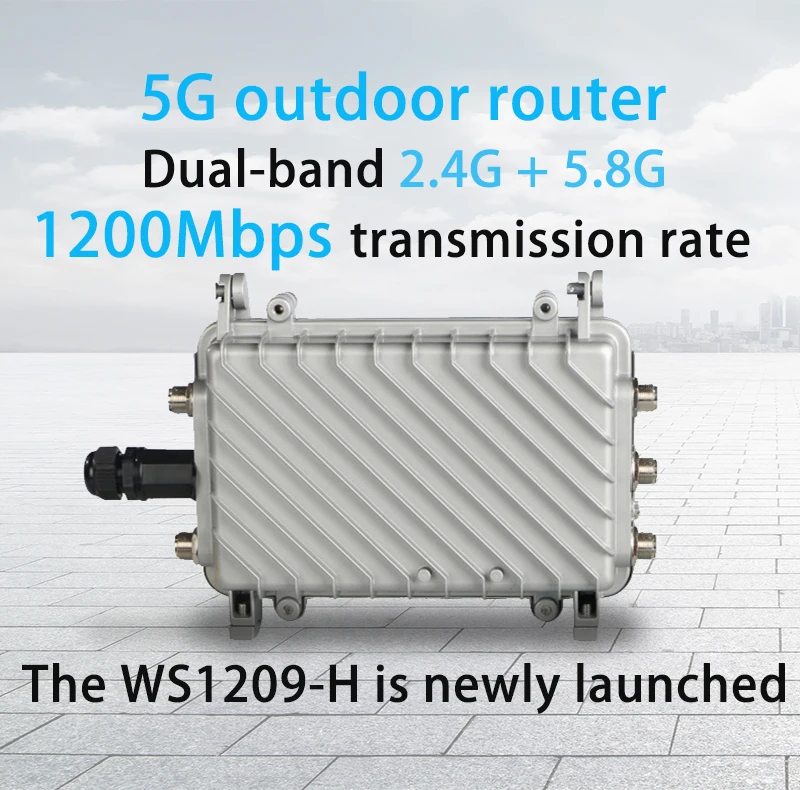

Wireless speed 1200Mbps dual band router wifi 5g chip MT7621 waterproof outdoor 5g wireless router

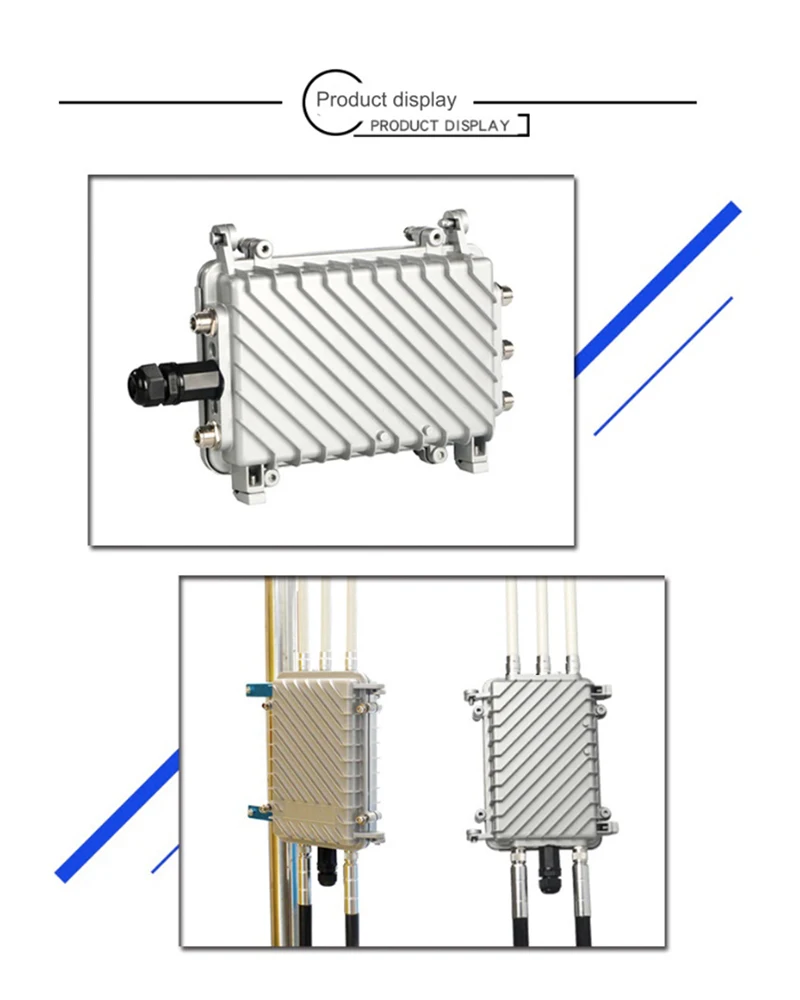

   The WS1209-H outdoor 5G gateway base station is based on our independent technology research and development. It belongs to the hardware product category of distributed self-organizing network system solutions. It has a 5G industrial host with high speed, large connection, wide coverage, low latency, and high reliability. This product supports 5G, Ethernet, WiFi, wireless spread spectrum communication and other network access; at the same time, it has strong real-time data edge computing capabilities, open system design, and supports secondary development; it adopts chips, devices, housing design, etc. Full industrial-grade housing waterproof design, with waterproof casing protection grade up to IP66, supports ceiling, wall, pole-mounted installation, can be adapted to a variety of industrial sites such as indoor and outdoor, widely used in smart factories, smart medical, unmanned vehicles, Smart cities and other fields.

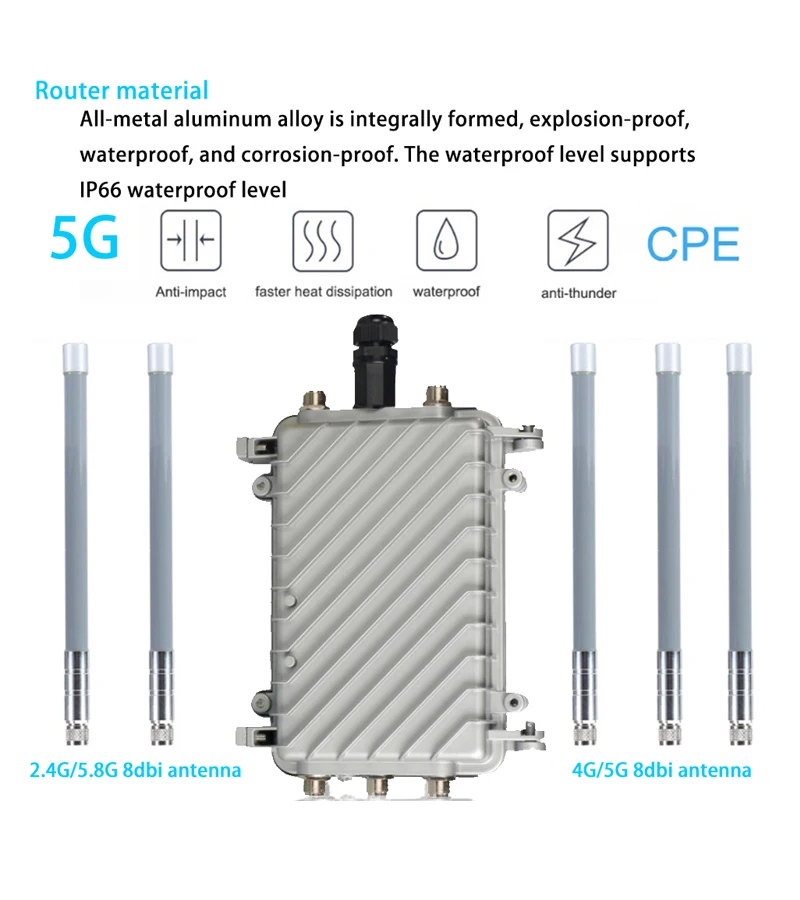

Shell characteristics

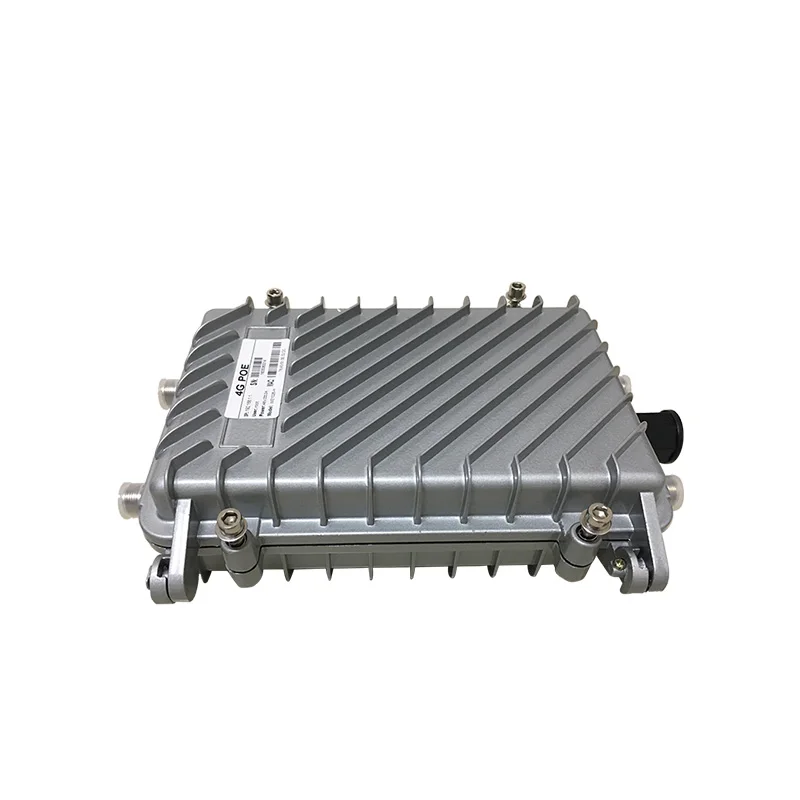

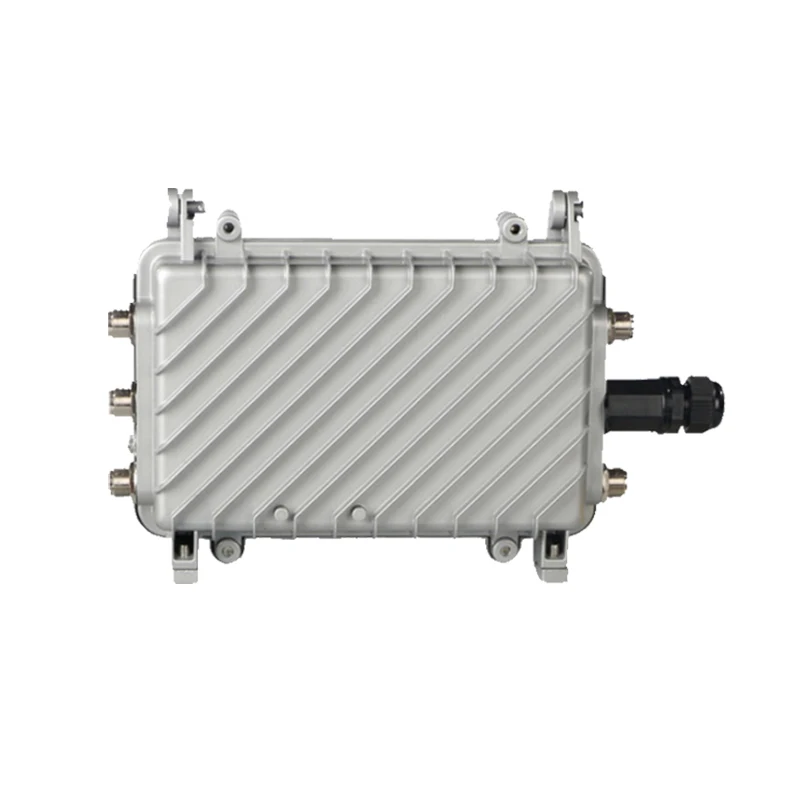

1. All-metal aluminum alloy is integrally formed, explosion-proof, waterproof, and corrosion-proof. The waterproof level supports IP66 waterproof level

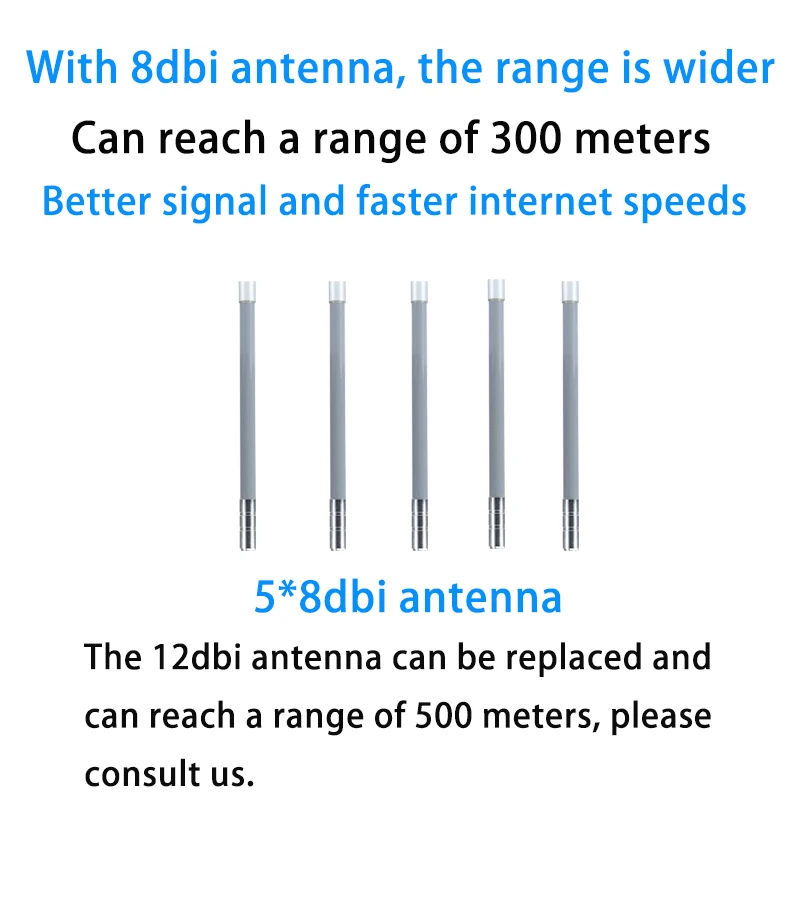

2. 5 external N-type industrial-grade WiFi antenna interfaces, adapt to different antenna types according to the needs of the scene,8DBi high gain fiberglass antenna


3. The power, internet, 4G/5G instructions are clear at a glance.


4. External waterproof grade Gigabit Ethernet LAN port.

WiFi Datasheet

WiFi 1200Mbps(802.11AC)

• Working Radio: #1: 300Mbps @ 2.4GHz; #2: 900Mbps @ 5.1-5.8GHz


• Coding Technology:1024-QAM / OFDMA


• Peak Connections:>500+ Clients


• Wi-Fi Standard Conformance:WiFi 802.11ac / 802.11n backward

Data Switching

• Mobile 4G/5G Connection (Support APN)


• Giga Ethernet Connection


• 2.4G/5Ghz WiFi


• Advanced Firewall


• MAC Filter


• WiFi Sercurity


• VPN Passthrough and VPN Client (L2TP PPTP)


• IPV4/IPV6


• WEB / APP Mangement


• Firmware upgrade

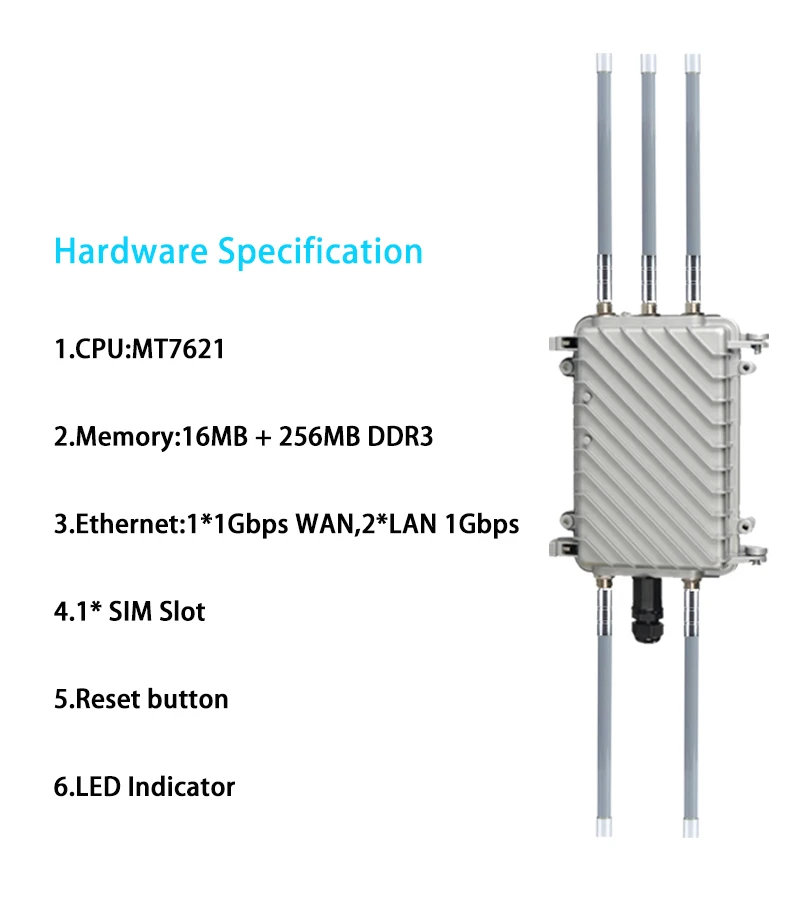

Hardware Specification

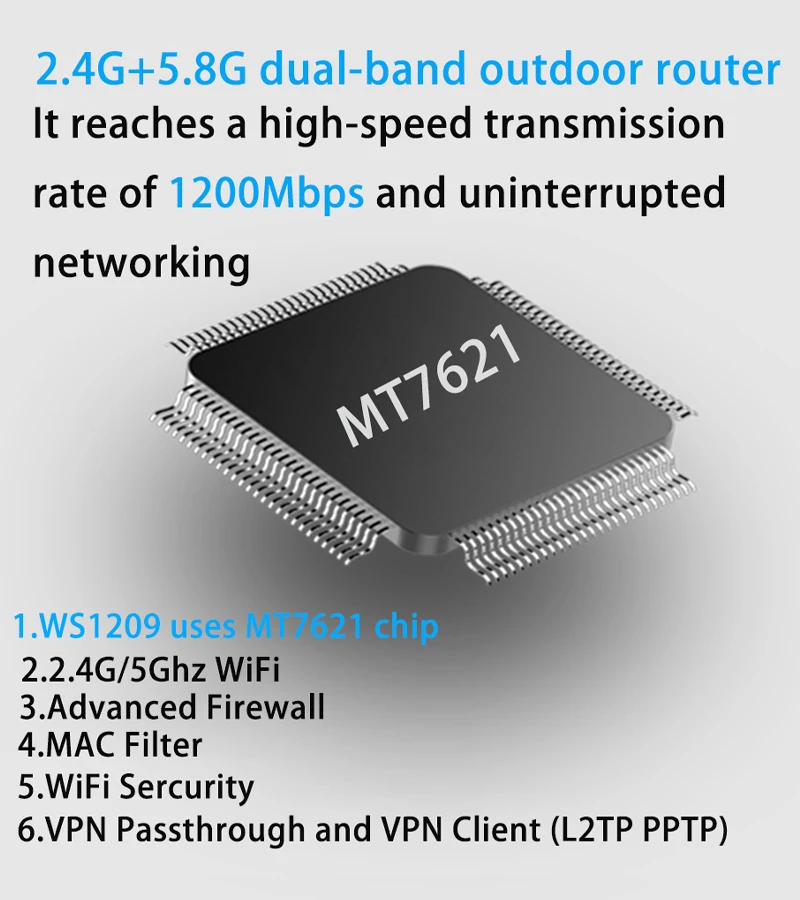

• CPU:MT7621


• Memory:16MB + 256MB DDR3


• Ethernet:1*1Gbps WAN,2*LAN 1Gbps


• 1* SIM Slot


• Reset button


• LED Indicator : 4G5G Status, Power Status, 2.4G LED, 5.8G LED


• Power Consumption:<24W

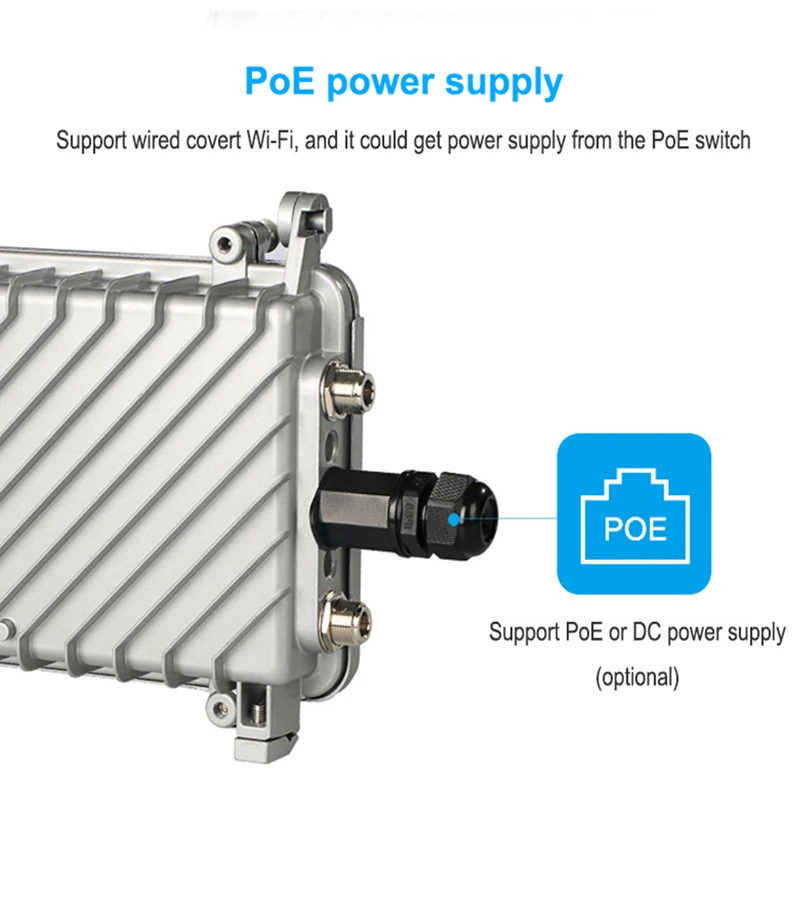

• DC Power Supply: 15V POE or 48V POE


• Working temperature:0℃~40℃, Storage temperature: -20℃~+70℃


• Humidity:5%~95%

       HUASIFEI is a manufacturer professional in R&D and producing network equipments, products are included Access Point, openWRT wifi router, Vehicle router, outdoor CPE, 3G/4G/5G wifi router. HUASIFEI also is a wifi coverage sloutions provider, provides the solution for hotel, school,hospital,enterprise,vehicle field etc. with 50 people R&D team and around 700 people in factory, 20,000 Square meters production scale, is very skilled at processing OEM/ODM design, also builds the long term cooperation with Mediatek, Broadcom,Qualcomm, capably offering good quality product and fast after-sale service.Till now, HUASIFEI's products have exported to over 30 countries and regions.

FAQ

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.

Q3. Do you have any MOQ limit?

A: Low MOQ, 1pc for sample checking is available.

Q4. Do your products meet our standards?

A: Yes, almost all our products have CE,ROHS,FCC,etc.

Q5. How to proceed an order?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
