corrosion resistant vacuum tube solar thermal collectors photothermal high temperature glass-metal tube
- Category: Solar Collectors >>>
- Supplier: Qingdao,Dingyejunhong,Solar,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description

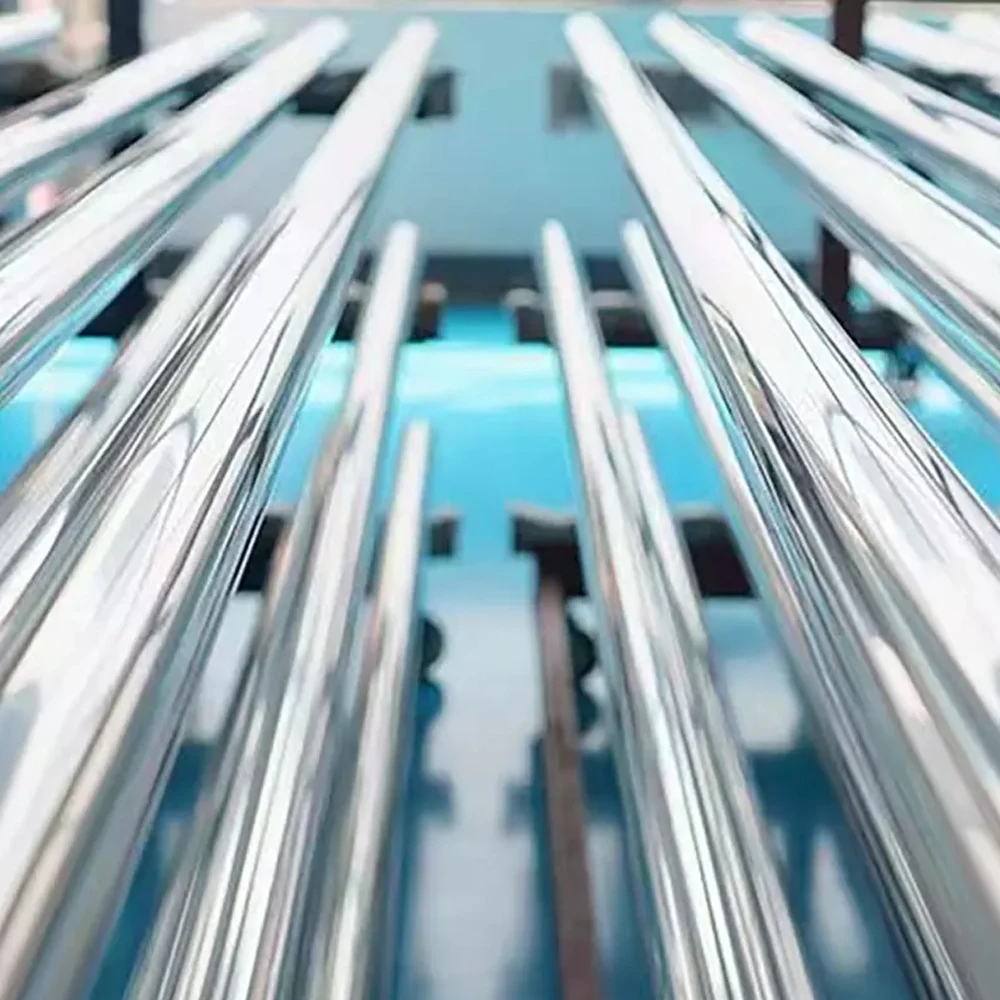

Medium temperature collector tube
Used in trough collectors; can provide users with heating, cooling, drying and domestic hot water needs
Product Description
tyoe | unit | DYJHW70-40 | DYJHW/95/100-40*2000 | DYJHW95/100-40 | DYJHW125-4 |
Diameter of outer glass tube | mm | 70 | 95,100 | 95-100 | 125 |
Diameter of metal tube | mm | 40 | 40 | 40 | 70 |
Length | mm | 2000 | 2000 | 3000 | 4060 |
Tmax | ℃ | 280 | 360 | 400 | |
weight | kg | 4.3 | 6.9 | 9 | 15.8 |
Absorption Ratio | >94.2% | >94.5% | >94.5% | >94.5% | |
Launch ratio | <10%(280℃) | <10%(360℃) | <10%(360℃) | <10%(400℃) | |
Average heat loss | <55W/m | <55W/m | <60W/m | <115W/m | |
Degree of vacuum | <5x10-4Pa | <5x10-4Pa | <5x10-4Pa | <5x10-4Pa | |
Service life | 30 | 30 | 30 | 30 |
Medium and high temperature trough collector system
heat-bent glass focuses the sunlight on the metal through-tube heat-absorbing coating at the focus of the collector, and the heat is fully absorbed. At the same time, the collector keeps track of the Sun in real time under the action of the tracking system to keep the maximum heat absorption efficiency. The low-temperature working fluid flowing in the metal straight-through tube is heated, and the high-temperature working fluid and the energy-using terminal realize the heat energy conversion through the heat exchange, so as to achieve the goal of solar heat utilization
The field of industrial utilization | Purpose | In the form of heat energy | Temperature |
Heat utilization | Winter heating | Hot water or other medium | 80—140℃ |
Energy | Power Generation | Steam | 350℃ |
Food Processing | Rinse, concentrate and dry | Steam, steam, steam (Air) | 80—240℃ |
Plastic processing | Initiation, rapid separation, drying | Steam, steam (Air) | 130—150℃ |
Glass processing | Flat and dry fibers | air | 110—180℃ |
Chemical Industry | Heating, leaching, drying | Steam (Air) | 150—180℃ |
Paper Industry | Kraft paper is bleached and dried | steam | 150—180℃ |
Wood processing | Kiln drying, plywood preparation, hot-pressed fiberboard | Air, steam | 80—200℃ |
synthetic rubber | Initiator, monomer recovery, drying | Steam, steam (Air) | 130℃ |
Highway construction | Melt the asphalt | Steam | 120—180℃ |
Tobacco industry | Silk making | Steam | 150—200℃ |
2.55 m open hot bent trough collector (RC4)
unit length | 6m |
Opening width | 2550mm |
SAFE operation of wind speed | 7grade（14m/s） |
Tracking accuracy | 1mrad（Milliradians） |
Working environment temperature | -30℃-60℃ |
Focal length | 850mm |
Concentration ratio | 64 |
Peak optical efficiency | ≥72% |
Design Life | 25yaers |
3m open hot bent trough collector system（RC3A）
unit length | 6m |
Opening width | 3000mm |
SAFE operation of wind speed | 7grade（14m/s） |
Tracking accuracy | 1mrad（Milliradians） |
Working environment temperature | -30℃-60℃ |
Focal length | 950mm |
Concentration ratio | 80 |
Peak optical efficiency | ≥72% |
Design Life | 25yaers |
Customers from Italy and India visited the CSP workshop and the CSP heating project in Yantou Village
