Computer J202 carrier Board for Jetson Nano/Xavier NX/TX2 NX, with 4xUSB, M.2 Key M,E same size of NVIDIA Jetson
Computer J202 carrier Board for Jetson Nano/Xavier NX/TX2 NX, with 4xUSB, M.2 Key M,E same size of NVIDIA Jetson
Computer J202 carrier Board for Jetson Nano/Xavier NX/TX2 NX, with 4xUSB, M.2 Key M,E same size of NVIDIA Jetson
Computer J202 carrier Board for Jetson Nano/Xavier NX/TX2 NX, with 4xUSB, M.2 Key M,E same size of NVIDIA Jetson
Computer J202 carrier Board for Jetson Nano/Xavier NX/TX2 NX, with 4xUSB, M.2 Key M,E same size of NVIDIA Jetson

Computer J202 carrier Board for Jetson Nano/Xavier NX/TX2 NX, with 4xUSB, M.2 Key M,E same size of NVIDIA Jetson

Share on (1600653908960):


Price:US$195.81

Quantity:


Product Overview

Description













Features






  • Perfectly suited: Design for Jetson Nano/Xavier NX/TX2 NX (260-pin SODIMM).




  • Developer Kit carrier board alternative: 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Jetson Xavier NX Developer Kit.




  • Rich peripherals: Higher performance stability consists of USB 3.2 gen 2 ports(4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, Raspberry Pi GPIO 40-pin, and so on.




  • High versatility: Suitable for complicated AI graphical applications.




  • Comprehensive certificates: FCC, CE, RoHS, KC







Description





reComputer J202 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.1 Gen 2, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™NX DEVELOPER KIT. There is additional power adapter included.




Please check out our reComputer J2011 edge AI device built with Jetson Xavier NX module, carrier board, and pre-installed Jetpack.







Note




  • We recommend using 9-12V power adapter, however J202 could support 15V MAX.




  • If you want to get started with a Jetson module  (flash to eMMC or SSD) under Recovery mode, please check our wiki.




  • We'd like to hear from you, welcome to join our Discord channel to share your thoughts (Jetson edge AI).









Functionality


With the NVIDIA Jetson module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.


With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.


Edge AI Applications


Work with up to 21 TOPS AI performances provided by the Jetson Xavier NX, it delivers the capability to develop and test power-efficient, small form factor intelligent solutions with accurate, multi-modal AI inference across industries.



Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!



Please also check out Seeed wiki guide including getting started with Jetson Nano and also building different projects.





d provided only

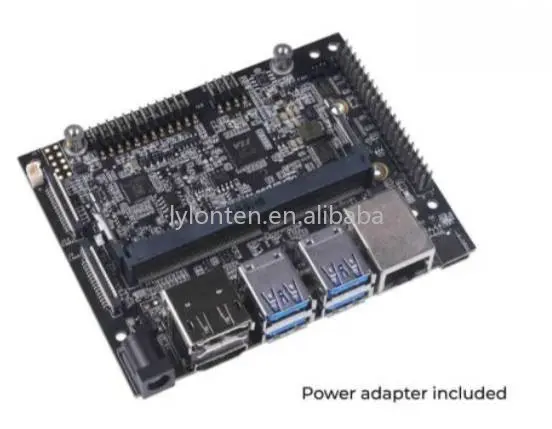

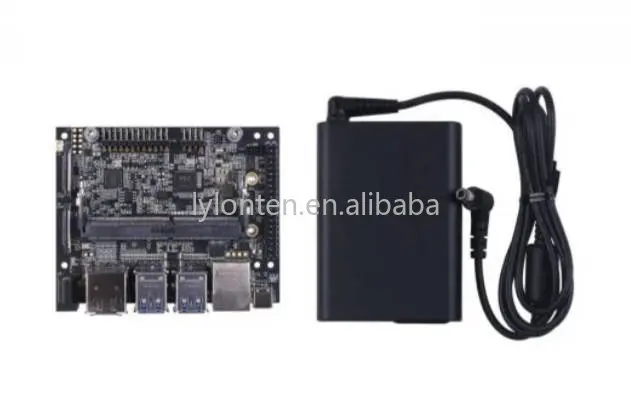

Power adapter provided

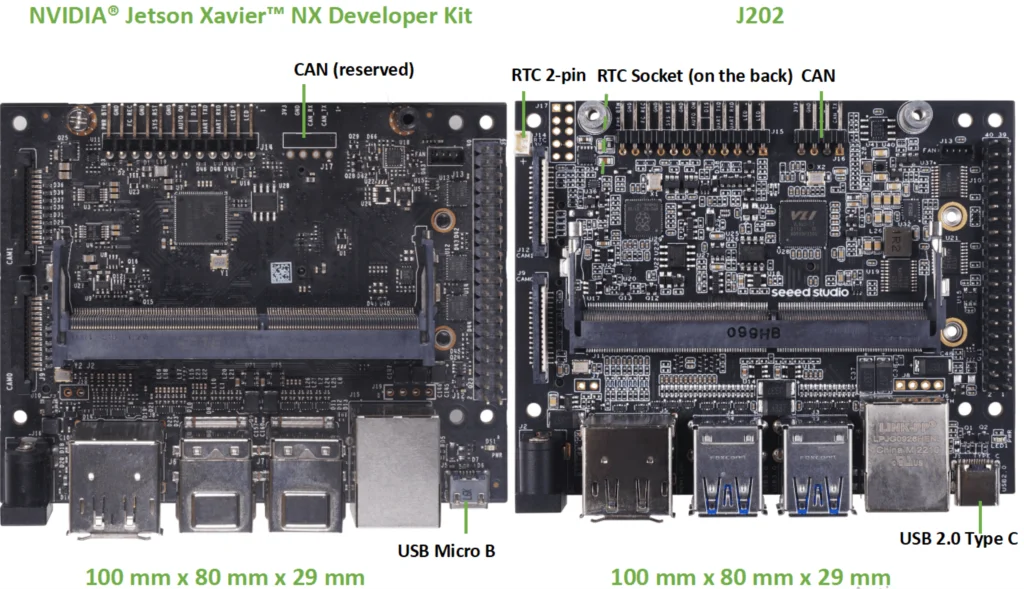

Comparison with NVIDIA Xavier NX Dev Kit carrier boards

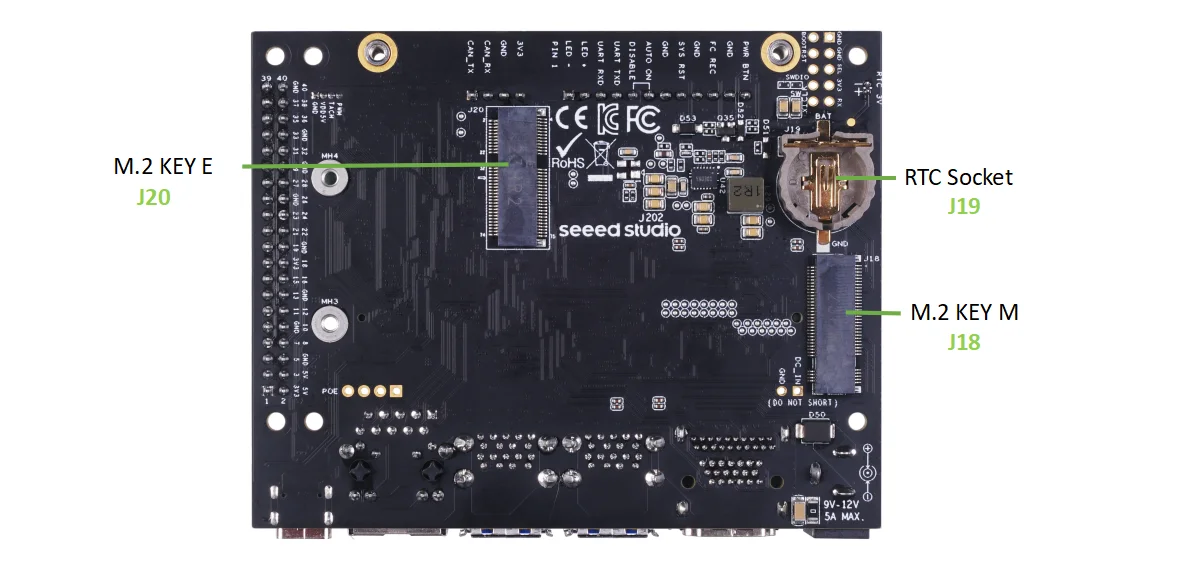

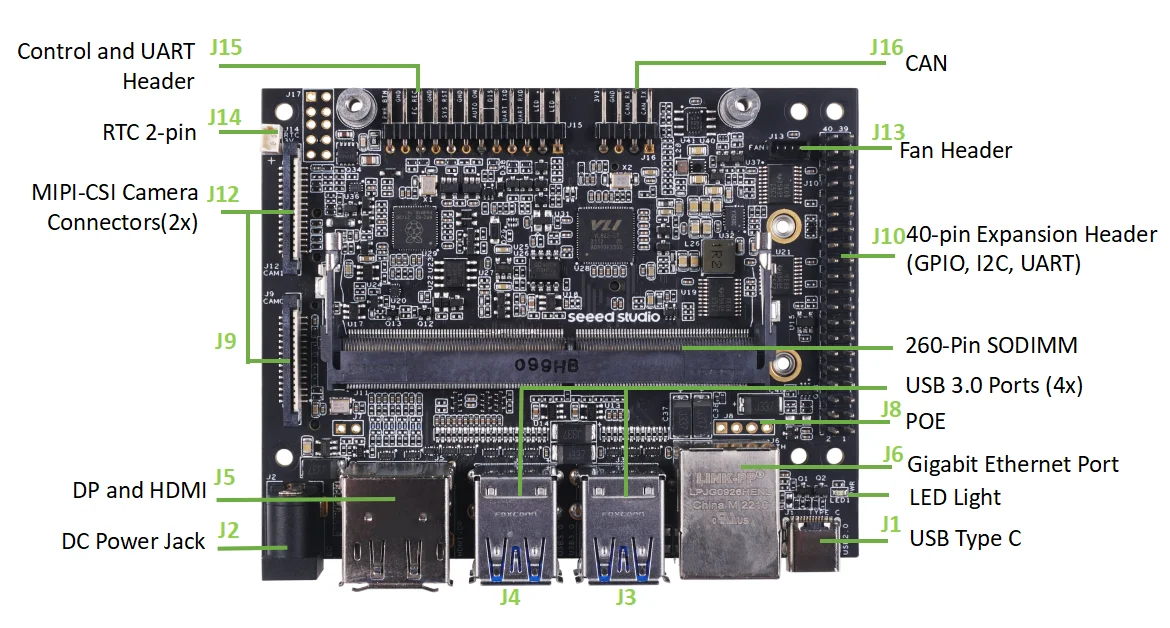

Hardware Overview






Part List


1 x reComputer J202 Carrier Board


1 x 12V/5A Power adapter 5.5mm/2.1mm(power cord not provided)





Note




  • We provide 12V/5A Power adapter, but the power cord is not included




  • We will not include a 3V RTC battery.
