Model | BBDC20 | BBDC30 | BBDC40 | |||
Shell material | Sheet Meal | |||||
Dimension | 450mm*250mm*850mm(L*W*T) | |||||
Weight | ≤70KG | ≤80KG | ≤80KG | |||
Installation Method | Wall-mounted | |||||
Cable routing | Bottom Inlet Wiring, Up Outlet Wiring | |||||
Cable length | 5 M | |||||

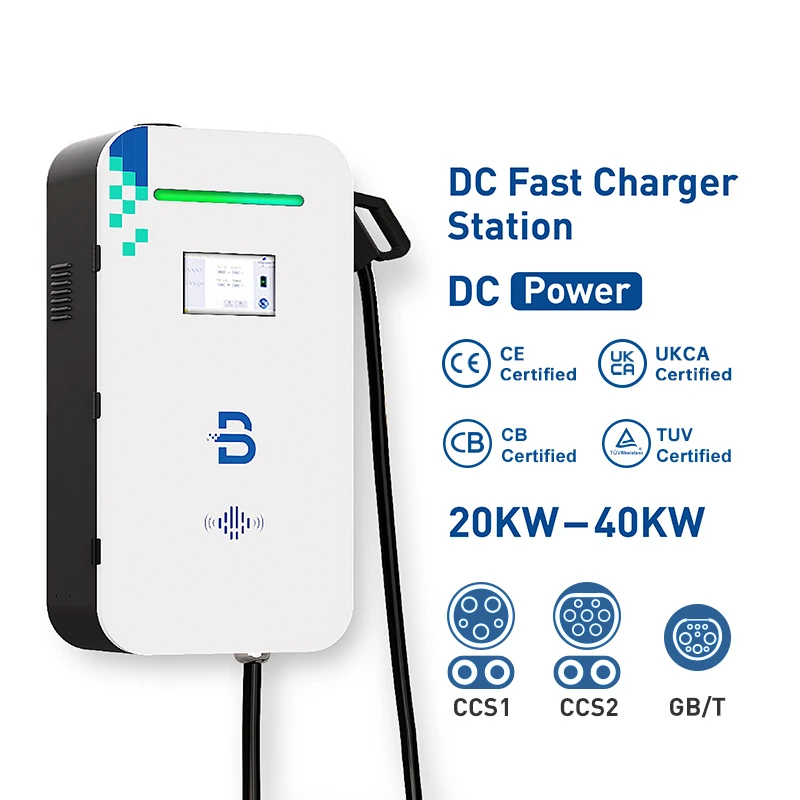

Charging outlets | Single (CCS1/CCS2/GBT) | |||||
Connectivity authorization | RFID, App | |||||
Screen | 7 inch LCD screen/LED light | |||||
Electrical Specification | ||||||
AC input voltage | AC380V±15% ,3P+N+PEAC | |||||
Input frequency | 50Hz/60Hz | |||||
Consumption | ≤15wh | |||||
Rated power | 20KW | 30KW | 40KW | |||
Output voltage range | CCS1/CCS2/GBT: 150 Vdc –1000 Vdc | |||||
Output current | 0~66.5A | 0~100A | 0~133A | |||
Efficiency | ≥95% | |||||
Power factor | ≥0.99(load:100%) | |||||
Functionate design | ||||||
User Interface | Emergency stop button, LED indicator, Card swiping, Touch screen | |||||
Charging stands | IEC 61851-21-2:2021:IEC 61000-6-2:2019:EN61000-6-4:2019:1EC 61851-1:2019:EN61851-23:2014:EN 61851-24:2014 | |||||
Communication | ||||||

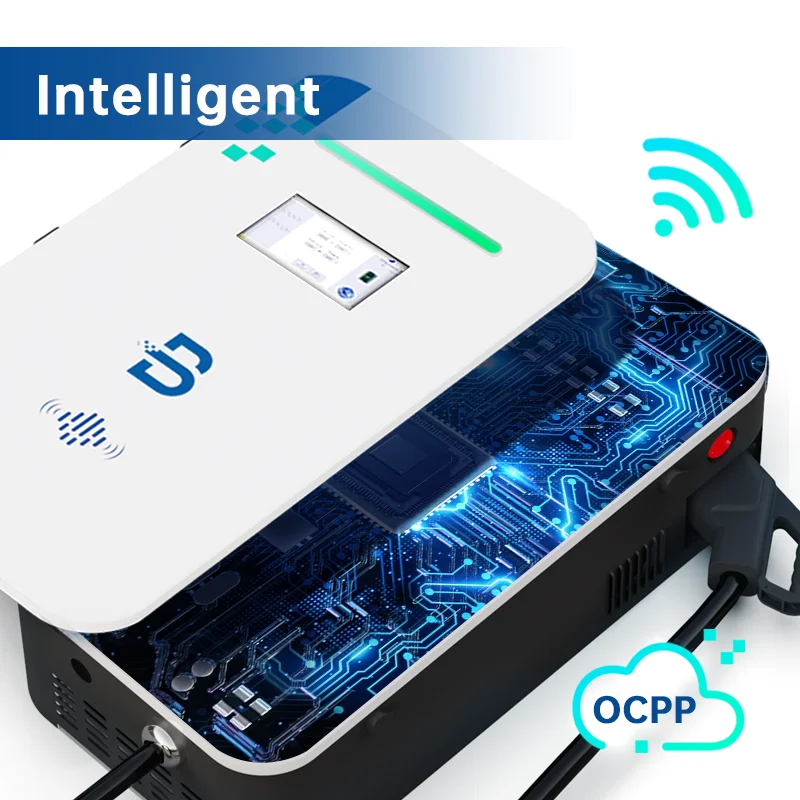

OCPP | OCPP 1.6 | |||||
Network interface | Ethernet/4G | |||||
Environment condition | ||||||
Application place | Indoor/Outdoor | |||||
Working latitude | <2000m | |||||
Working temperature | -30°C-+50°C | |||||
Working humidity | 5%~95% | |||||
Protection level | IP55 | |||||
Natural cooling | Forced-air cooling | |||||
Warranty | 24 months warranty | |||||

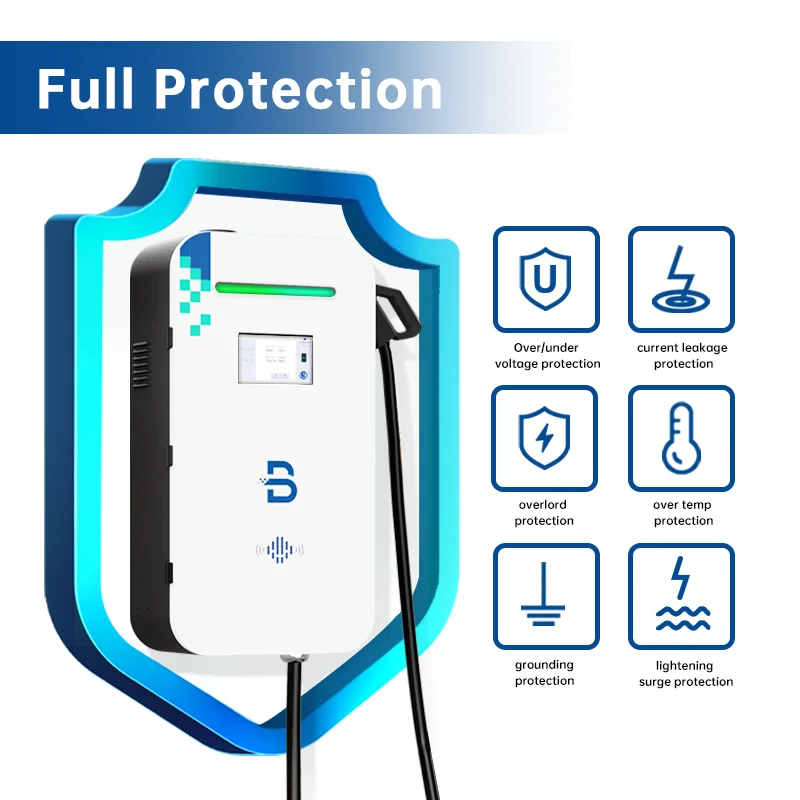

Security design | Over/under voltage protection,Overlord protection,Current leakage protection, Grounding protection,Over temp protection,Lightening surge protection | |||||
