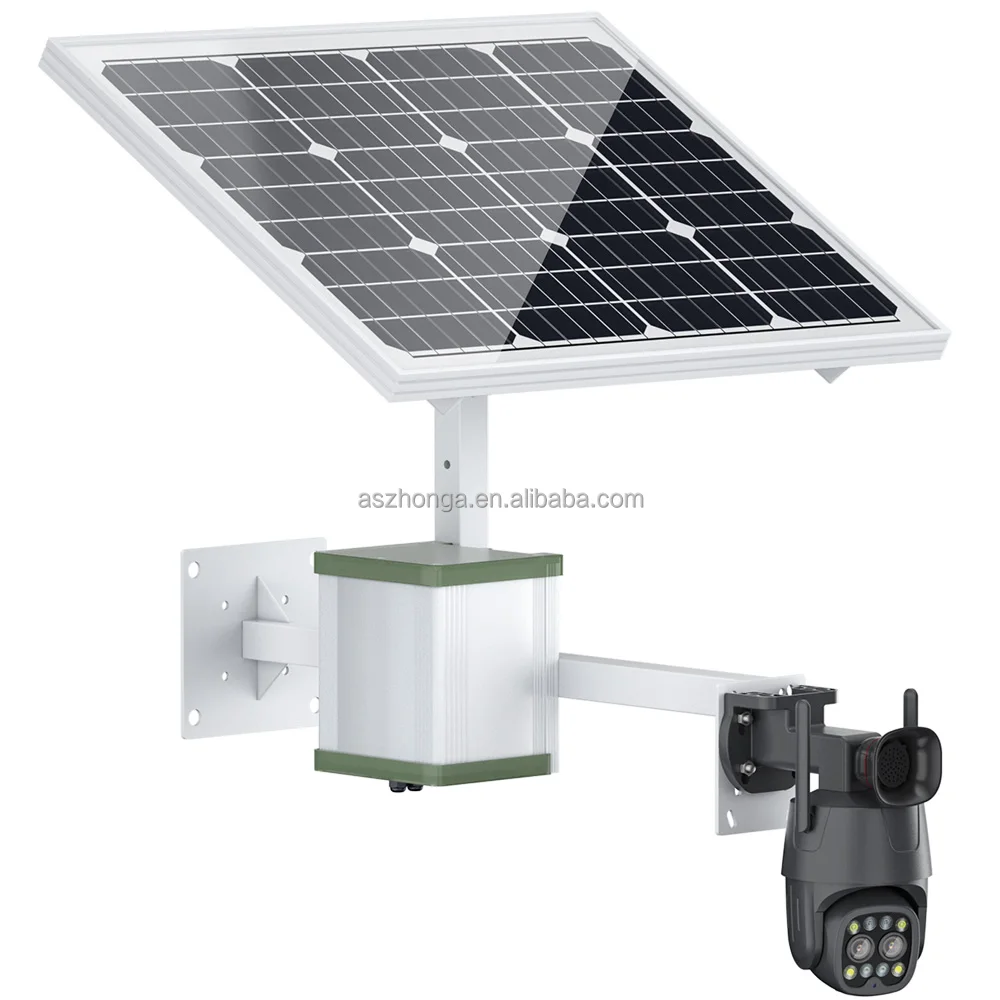

2K 1080P WIFI Security IP Camera Wireless 2MP 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam 40W 20A Battery Solar Panel CamHi
- Category: >>>
- Supplier: Shenzhen Aoshi Zhongan Technology Co. Ltd.
Share on (1600654047879):
Product Overview
Description
Product Description
HD 1080P/4MP WIFI Security IP Camera Wireless 2MP 3G 4G SIM Card Outdoor PTZ CCTV Surveillance Cam 40W 20AH Battery Solar Panel CamHi CamHipro APP Two-way Audio IR Night Vision Auto Tracking Dual-Lens Home Outdoor PTZ Camera
Features :

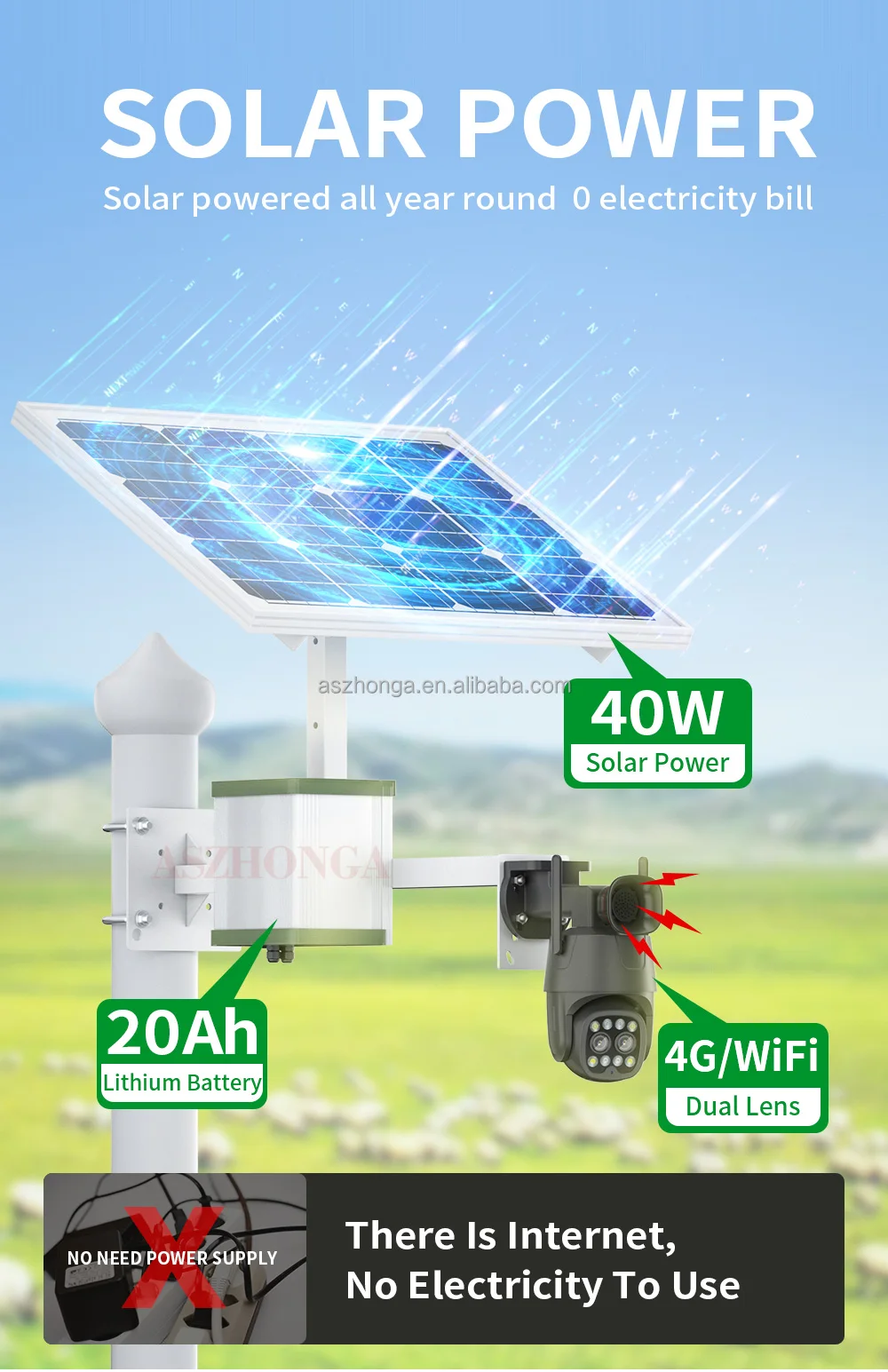

40W DC-18V OUTPUT Monocrystalline silicon solar power panels
20AH Power Grade Ternary Lithium Energy Storage Battery
DC OUT PUT 12V 5A Compatible with commercially available 12V powered cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life extension and protection.
2-in-1 solar angle adjustment and surveillance camera mounting bracket.
Equipped with a 4G outdoor waterproof router for reliable network transmission

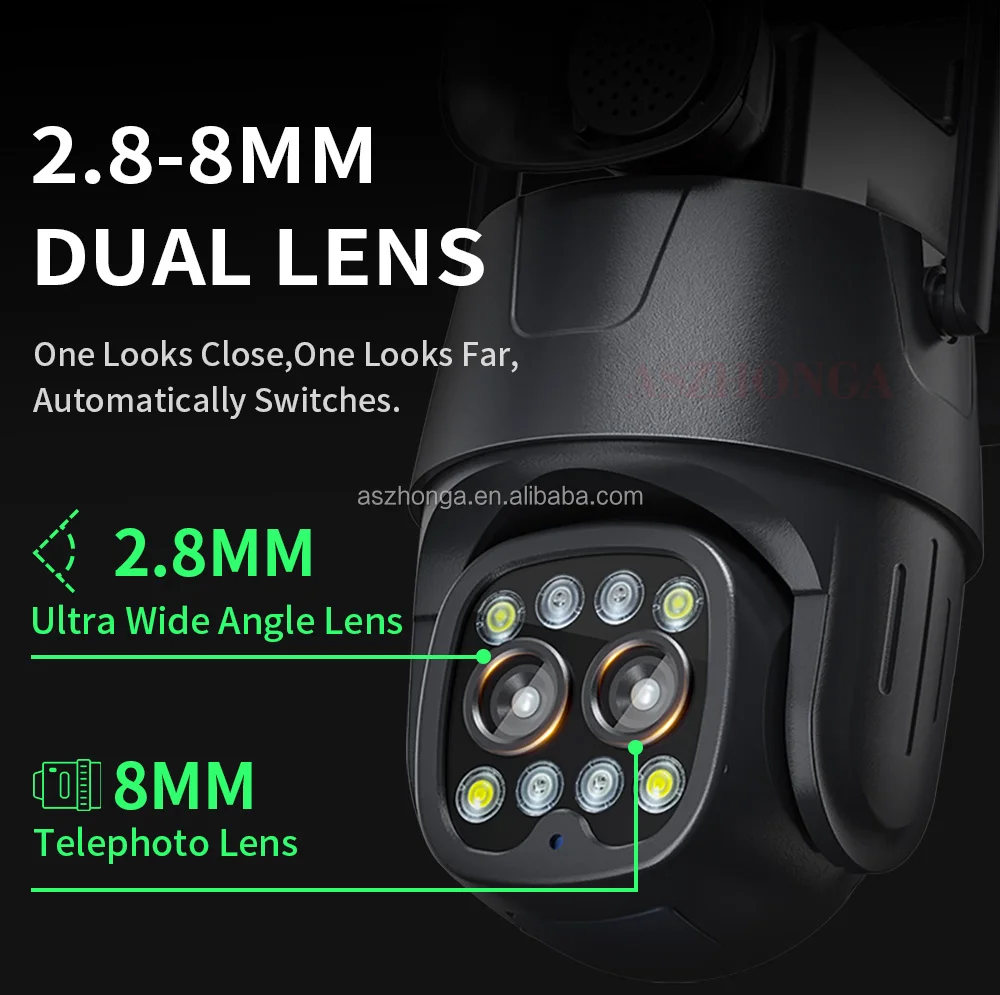

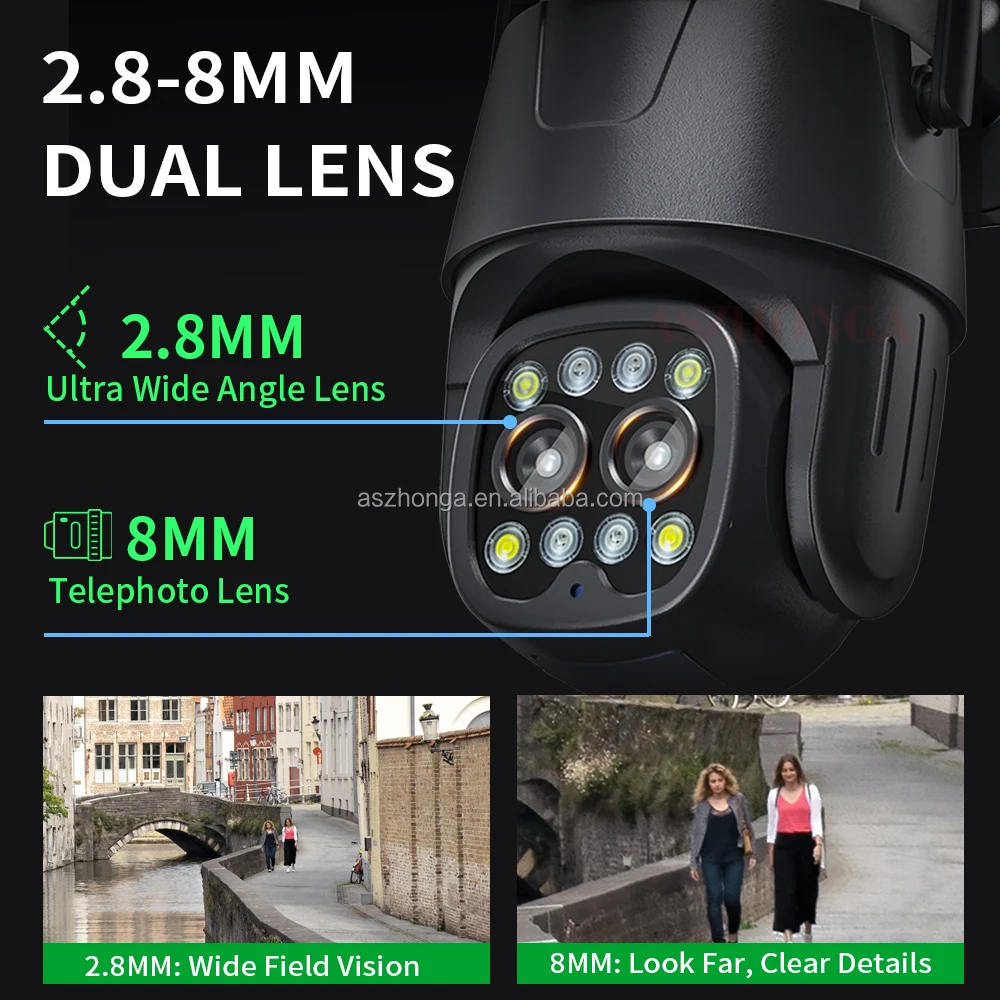

Lens:2.8mm+8mm (4x ZOOM)LensSupport HD 2MP (1920*1080) / 4MP(2560*1440)20 frame rate High quality resolution

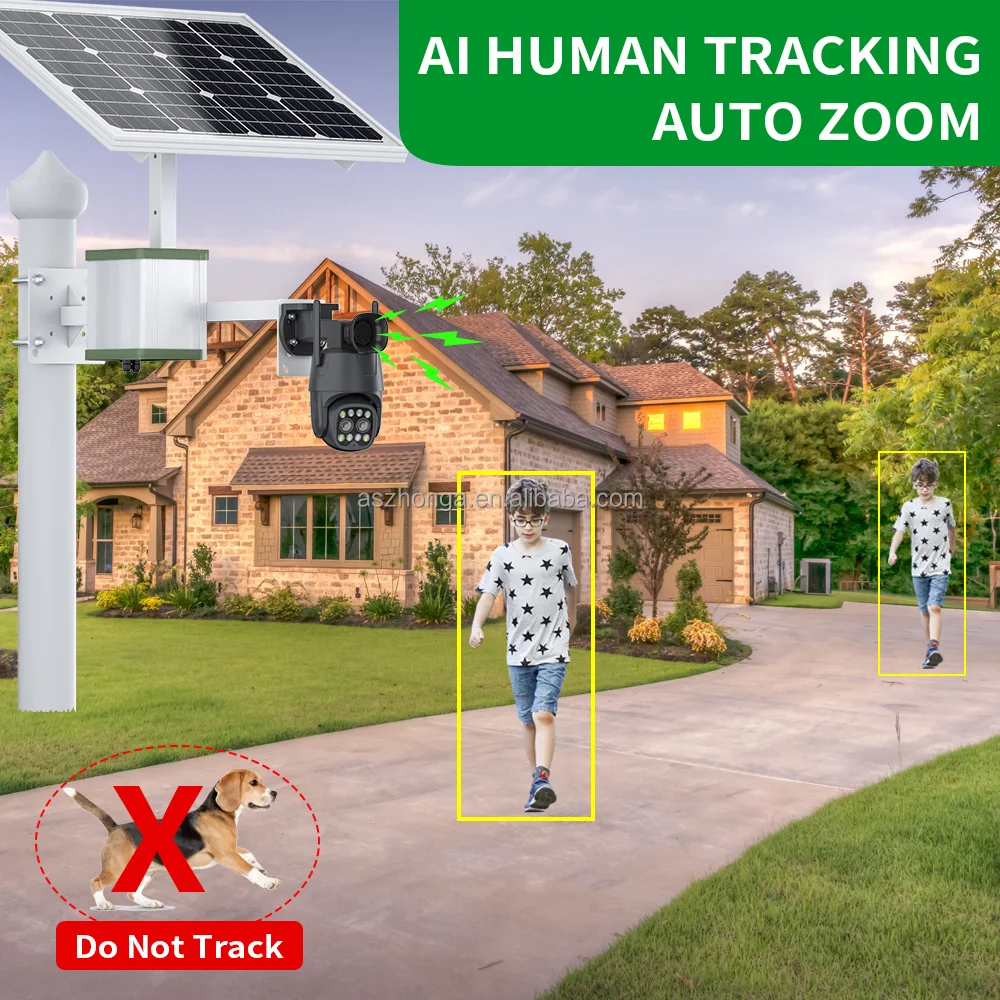

Support Auto Tracking&Motion Detection
4pcs Array Infrared LEDs 0-20m Night Vision
4pcs Array White light LEDs Full color night vision support
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support 2-Way Audio
Microphone Effective Range 10 Meters
Loudspeaker Effective Range 10~20 Meters
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Day&Night mode: Auto IR-CUT
Open Network Video Interface Forum: 4G Version Not Support, Wifi Version Support
Support P2P, View & Anywhere & Anytime
Support TF card, up to 128G(Don't included TF Card)
Provide Android & IOS APP (CamHi/CamHipro) and professional CMS PC client software
Voltage: DC 12V 2A
Outdoor Use , Waterproof IP66
4pcs Array Infrared LEDs 0-20m Night Vision
4pcs Array White light LEDs Full color night vision support
Pan tilt rotation, horizontal:355° & vertical:90°Ø
Support 2-Way Audio
Microphone Effective Range 10 Meters
Loudspeaker Effective Range 10~20 Meters
Built-in Microphone&Speaker,Support Two Way Audio Talk Back
Day&Night mode: Auto IR-CUT
Open Network Video Interface Forum: 4G Version Not Support, Wifi Version Support
Support P2P, View & Anywhere & Anytime
Support TF card, up to 128G(Don't included TF Card)
Provide Android & IOS APP (CamHi/CamHipro) and professional CMS PC client software
Voltage: DC 12V 2A
Outdoor Use , Waterproof IP66
Support 4G Network (For countries in North and South America, please select US VER. and for the rest of the countries, please use EU VER. . This product is not supported in Japan. WIFI VER .NOT SUPPORT 4G NETWORK )
NOTE:
-4G EU VER,SUPPORT BAND : GSM 900/1800 MHz ; 4G FDD-LTE Band 1/3/77/8/20 ; 4G TDD-LTE Band 38/40/41 ; 3G WCDMA Band 1/8 ;
-4G US VER,SUPPORT BAND : GSM 900/1800 MHz ; 4G FDD-LTE Band 1/2/4/12/13 ; 3G WCDMA Band 2/5/4)
Support 2.4GHz WIFI and RJ45 Network Cables
NOTE:
-4G EU VER,SUPPORT BAND : GSM 900/1800 MHz ; 4G FDD-LTE Band 1/3/77/8/20 ; 4G TDD-LTE Band 38/40/41 ; 3G WCDMA Band 1/8 ;
-4G US VER,SUPPORT BAND : GSM 900/1800 MHz ; 4G FDD-LTE Band 1/2/4/12/13 ; 3G WCDMA Band 2/5/4)
Support 2.4GHz WIFI and RJ45 Network Cables

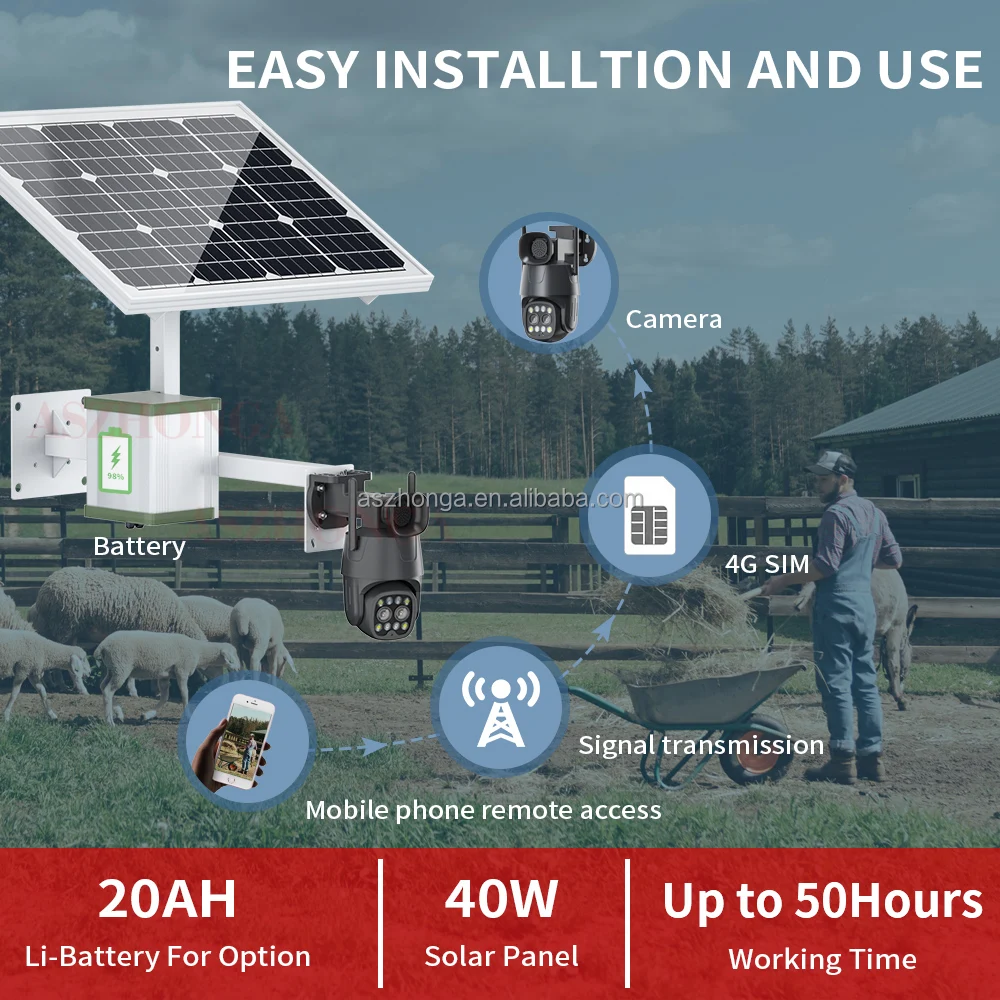

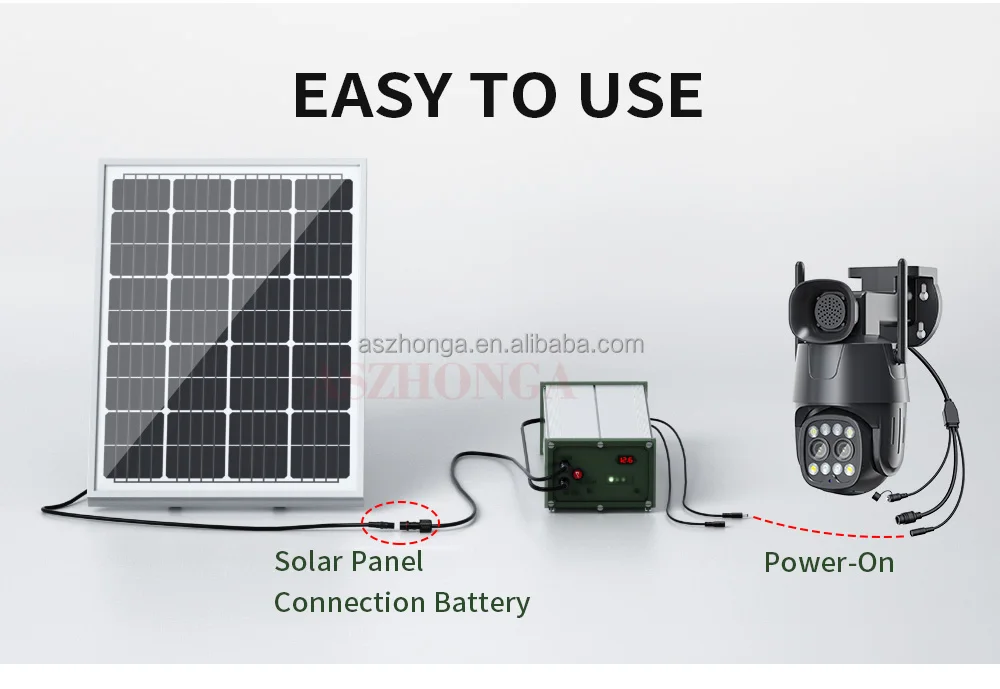

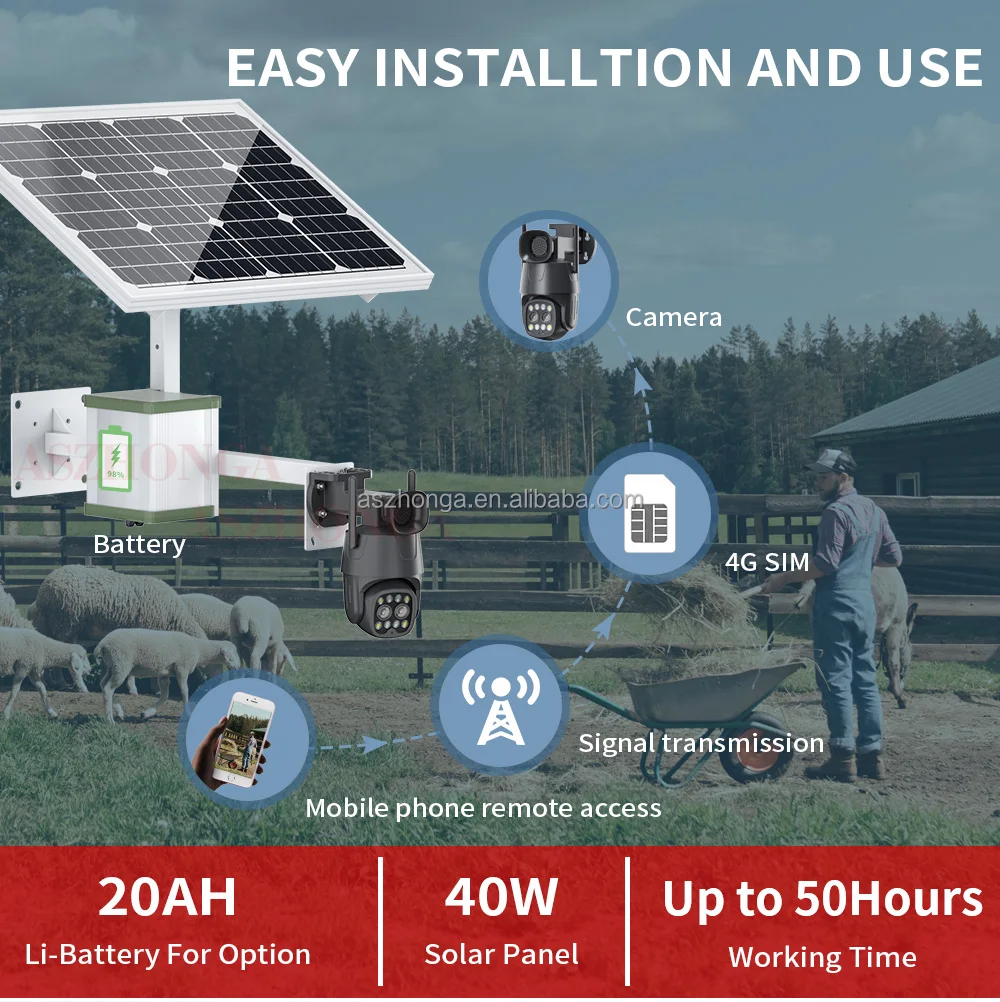

EASY USE
In extreme conditions where there is not enough sunlight to generate electricity, a fully charged battery can provide up to 50 hours of uninterrupted surveillance power for the accompanying camera.

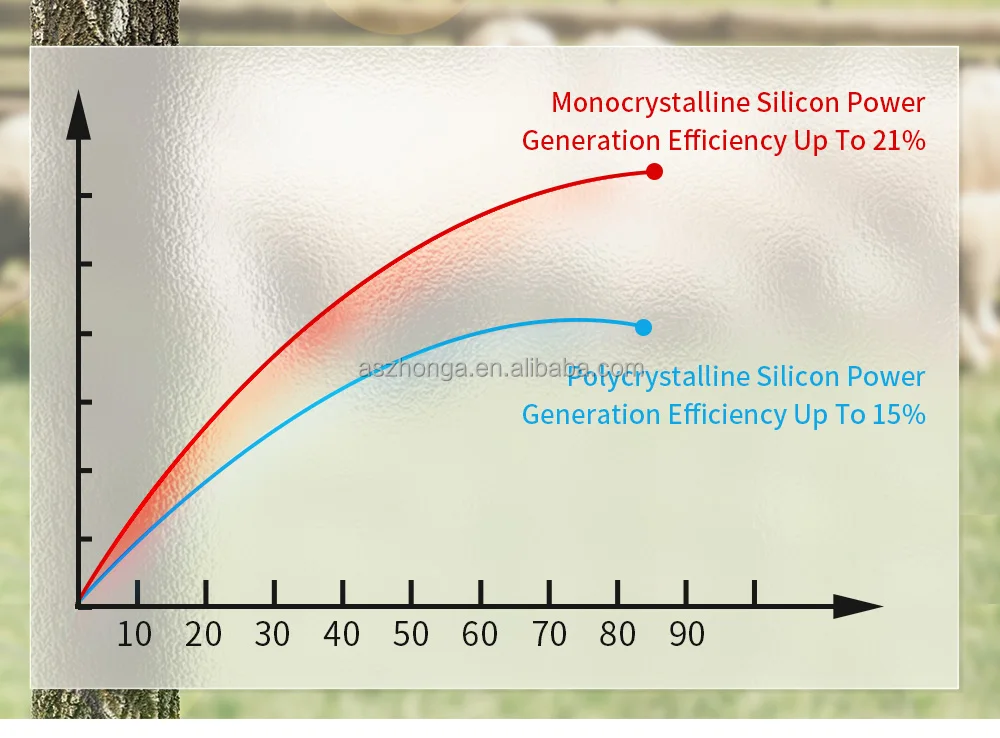

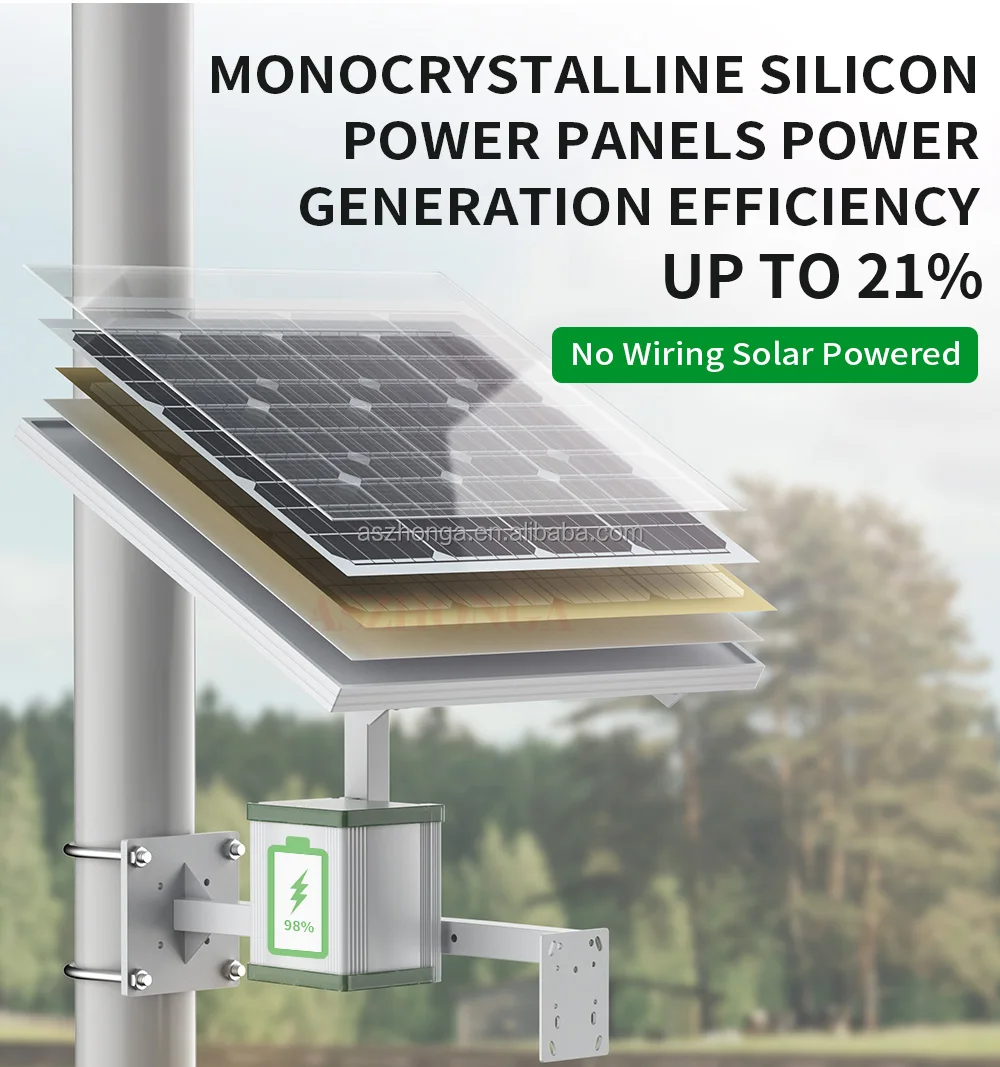

40W Monocrystalline silicon solar power panels
The solar panels are made using a monocrystalline silicon process. High power generation efficiency, providing up to 21% photovoltaic conversion efficiency. Can quickly replenish power for storage batteries.
(NOTE:Solar panel power generation is affected by weather and latitude, please refer to the actual power generation, the above data is collected from the laboratory.)

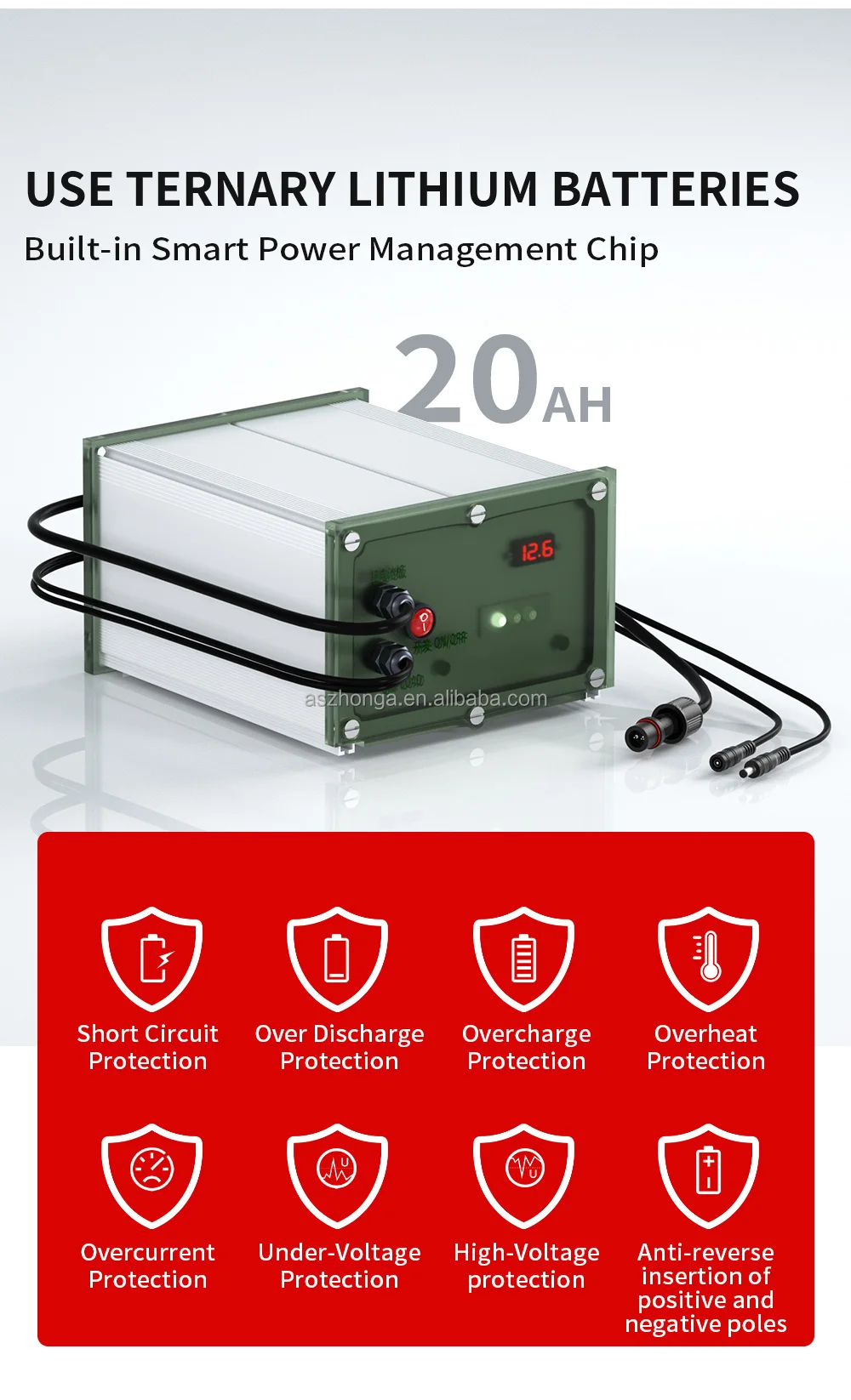

20Ah Trithium Energy Storage Battery
DC OUT PUT 12V 10A Compatible with commercially available 12V powered cameras
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Built-in solar power dedicated10A PWM Power Management Controller
Overload, reverse connection, over-discharge, over-charge, short-circuit, backflow prevention, etc. Effective battery life
extension and protection.
Battery voltage LED display to tell at a glance how much power is left

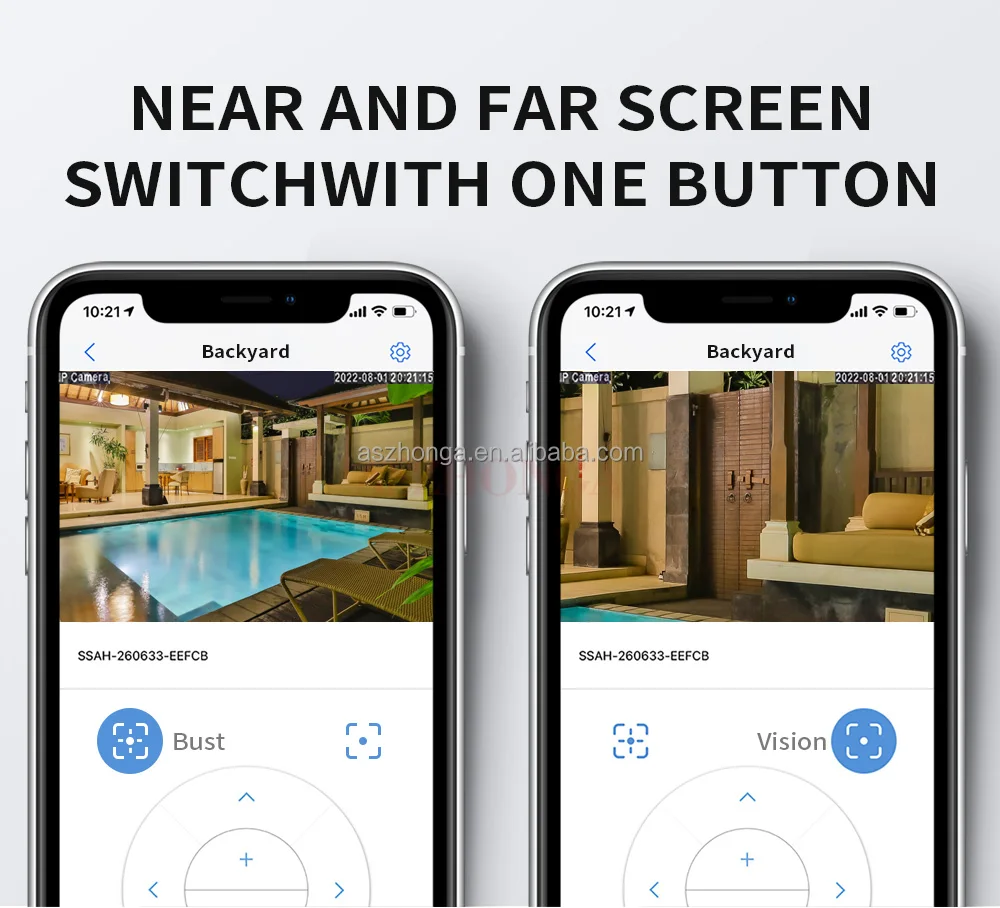

4X Digital Zoom, Pan Tilt Rotation
Security camera up to 4X digital zoom, Rotation Range: Horizontal 0~355 Degree Unlimited Rotation; Vertical 0~90 Degree. Take care of your home in all directions

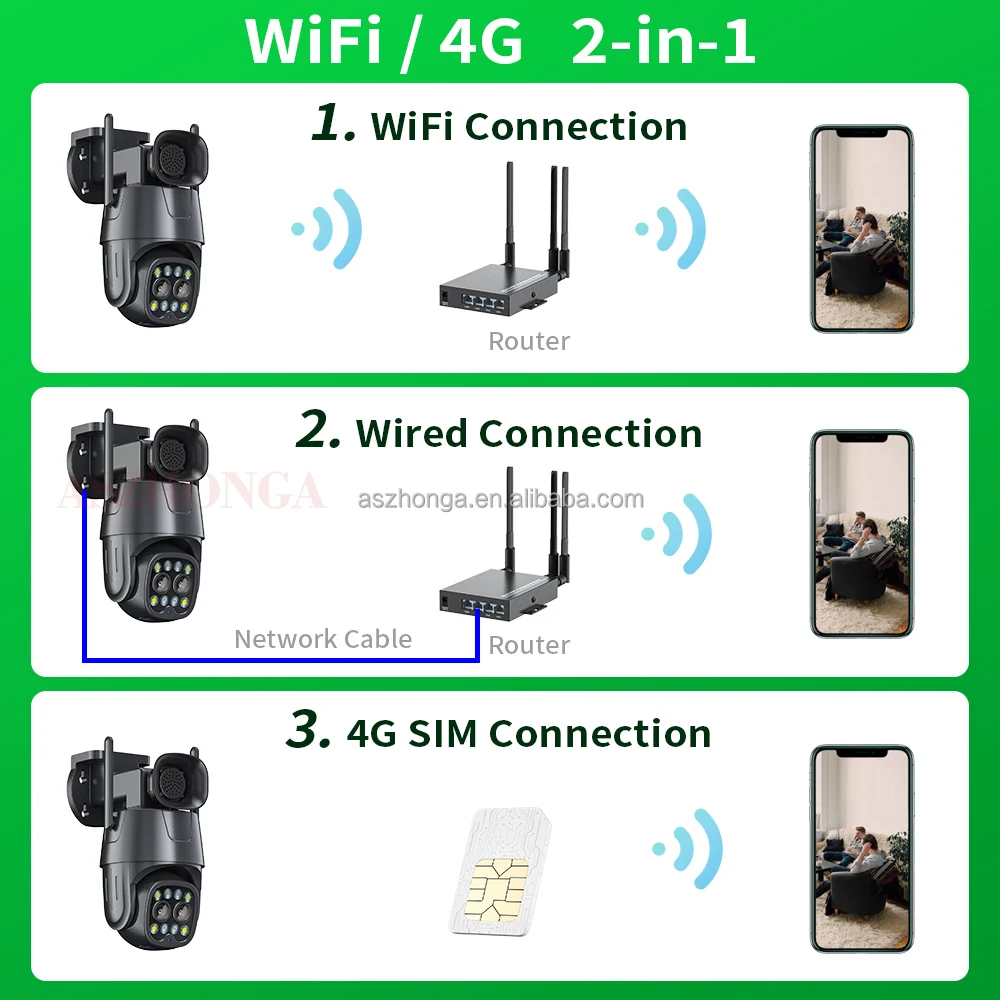

Multi-Network Support

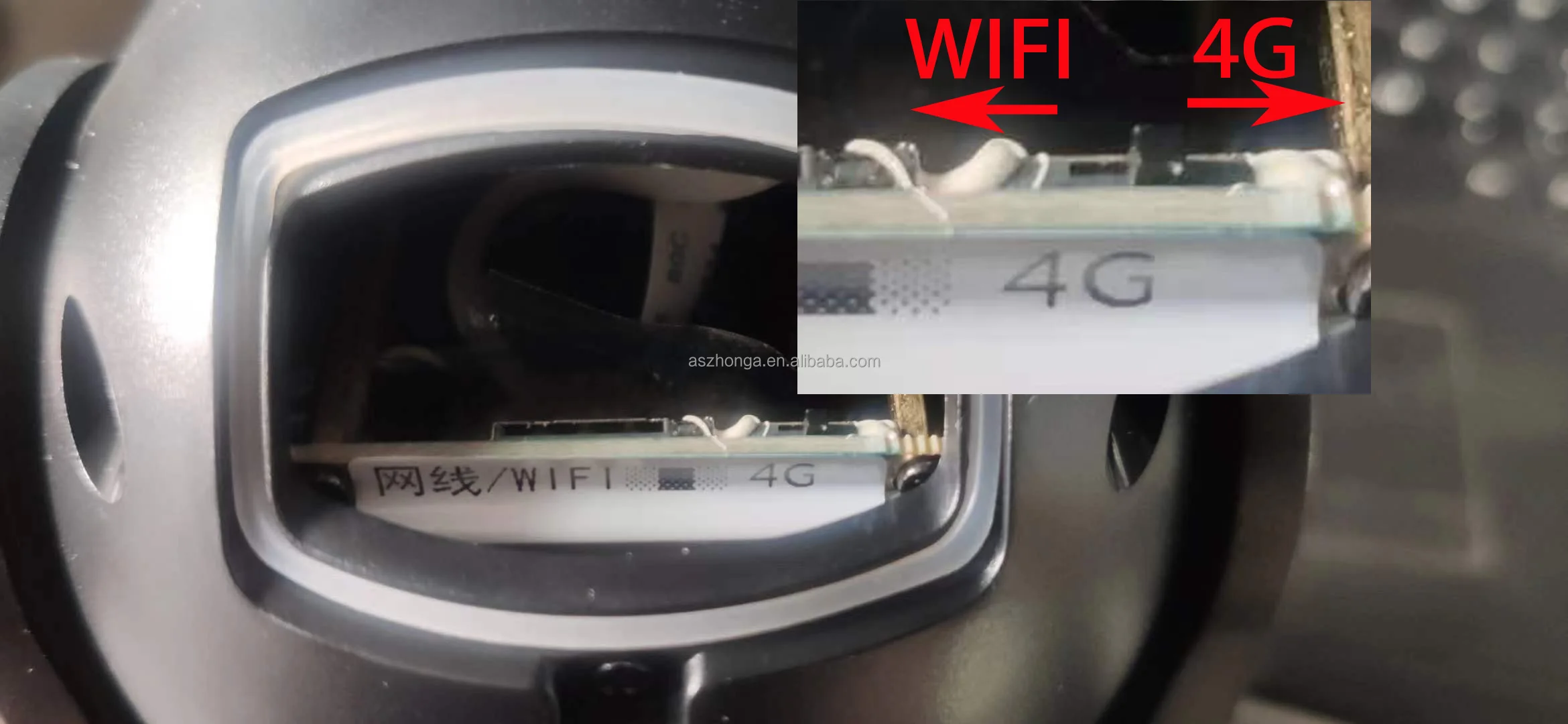

Support 4G network, wifi network, RJ45 network cable. One key 4G network switch to WIFI network working mode. Adapt to more network environments.
Note: The WIFI version of the camera does not support 4G networks.

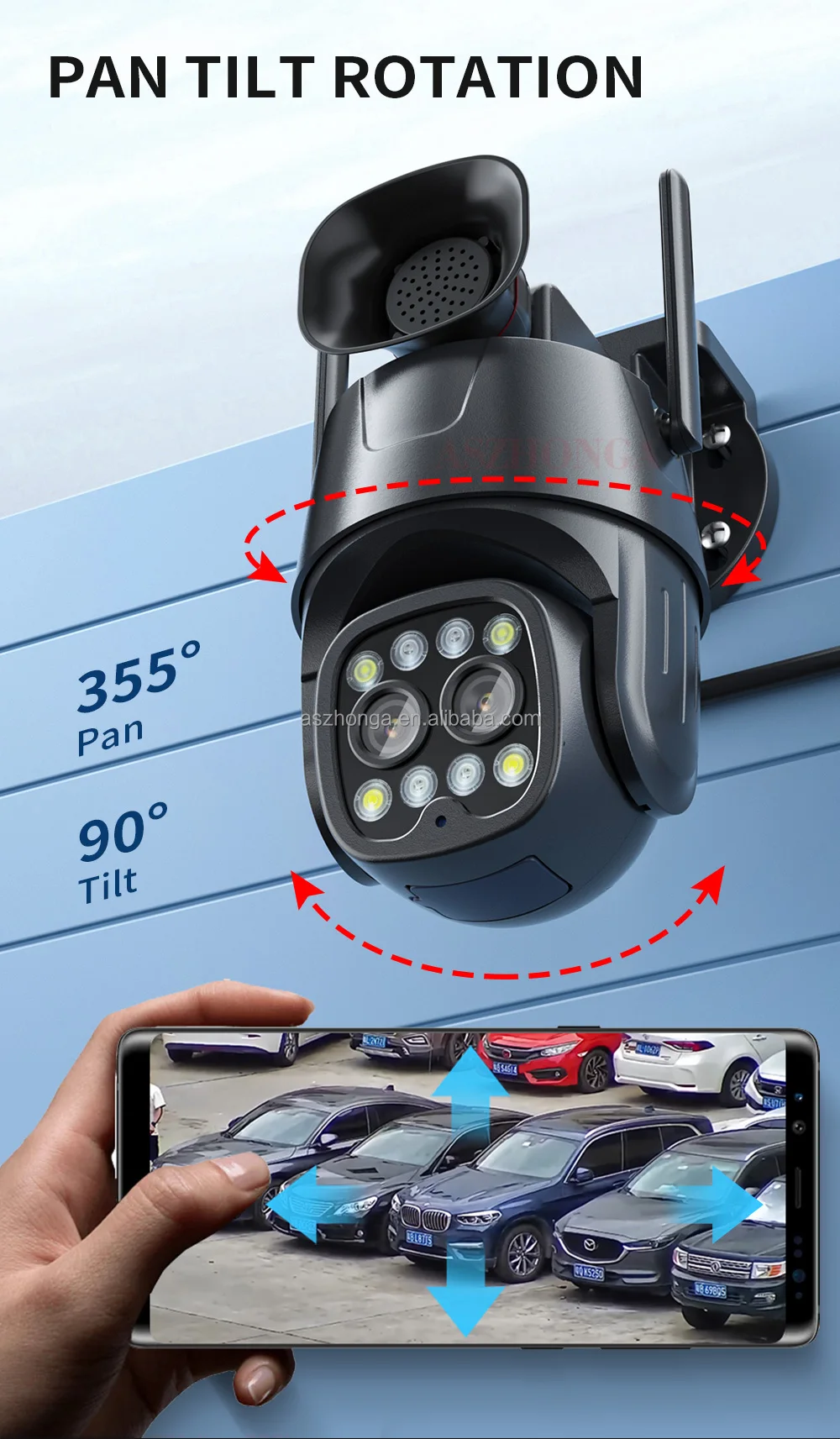

Pan Tilt Rotation
Horizontal: 355 Degree & Vertical: 90 Degree

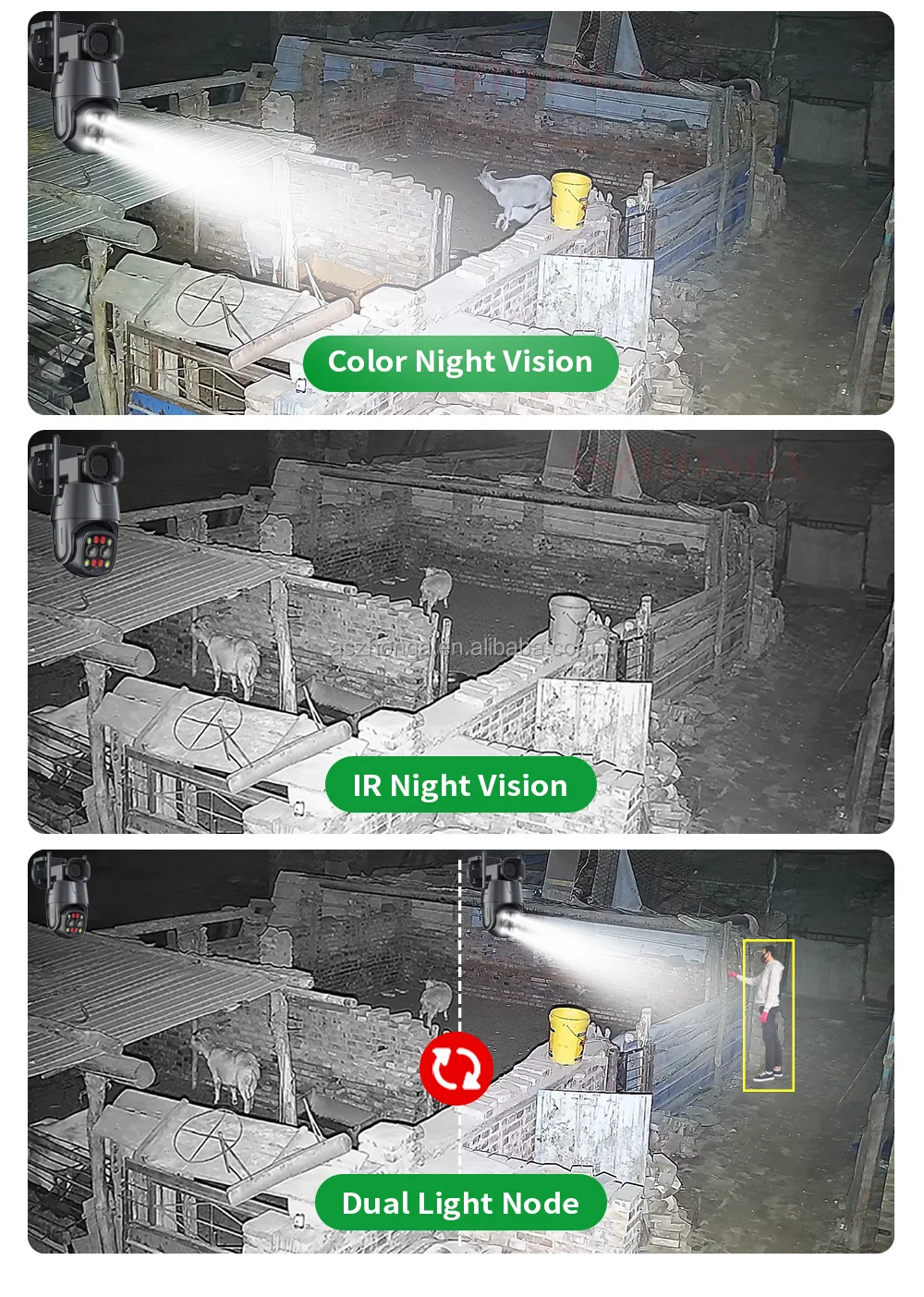

Day And Night Color Vision
The camera has clear image at night, with 4Pcs infrared radiation light for 24 hours vigilance, the camera night vision range in the dark up to 15M, in the prevention of security threats have a very good guarantee.PTZ camera with 4infrared radiation lamp and 4 white LED can achieve up to 10 meters distance color night vision function.
Two-way Audio
Built-In Microphone, Support Two Way Audio Talk Back ( With Speaker )
IP66 Outdoor Waterproof
Outdoor security camera with waterproof body and power adapter, work temperature minus -20 degrees Celsius to 60 degrees Celsius, work well on the heavy rains or snows days.

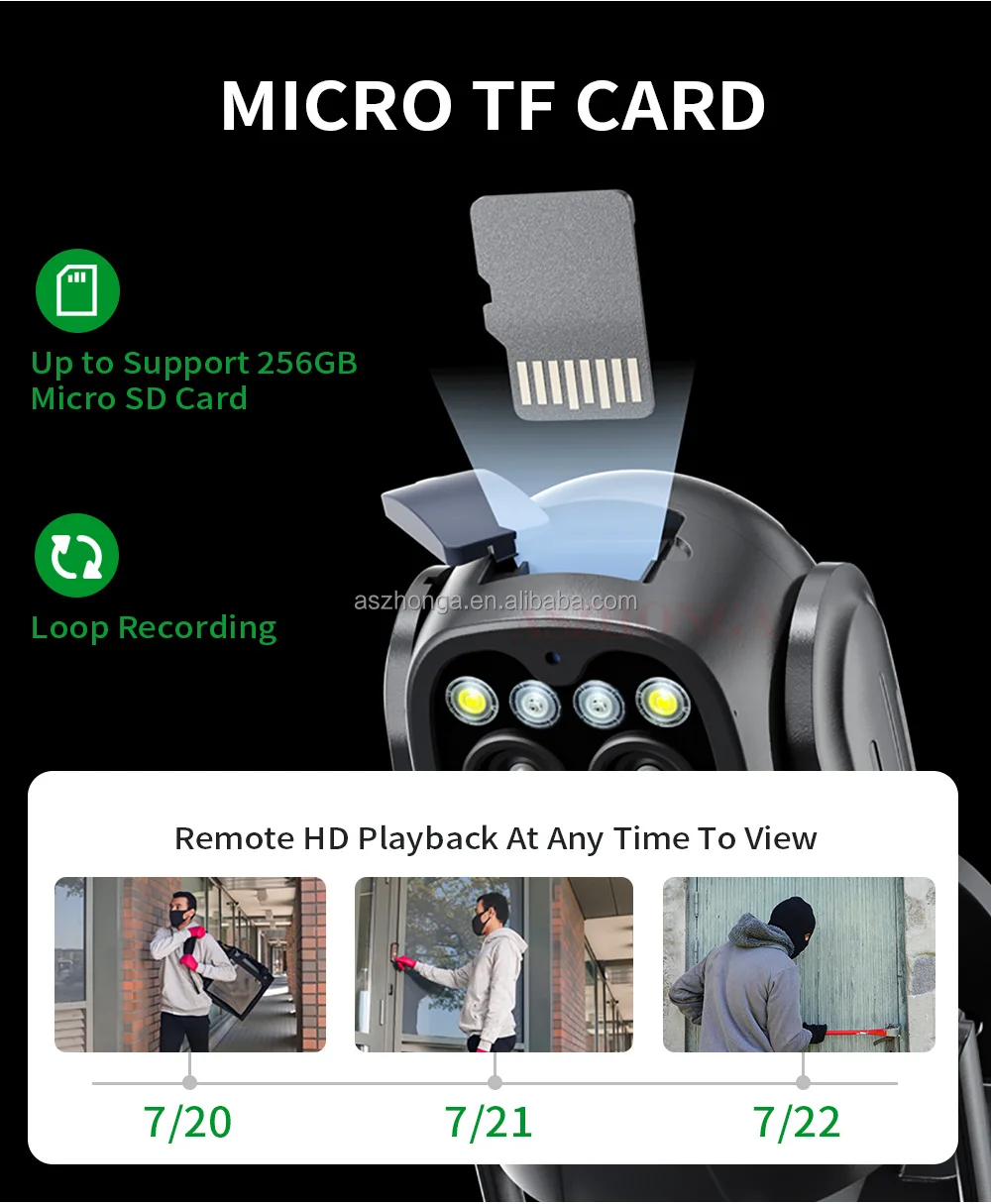

TF Card Storage
UP TO SUPPORT 128GB TFCard

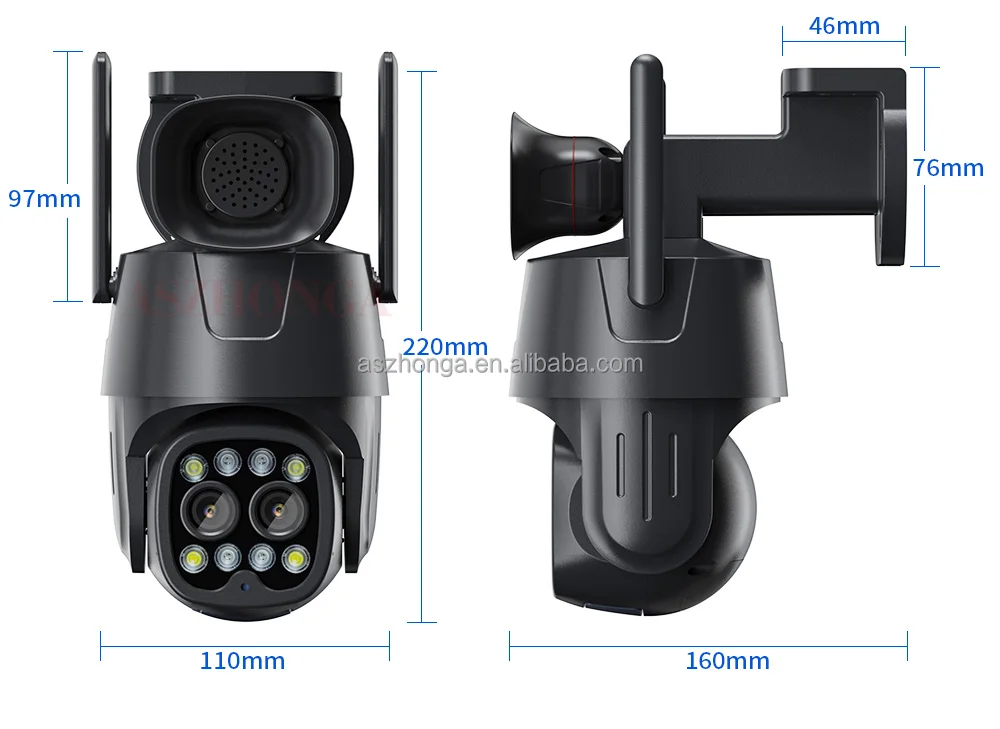

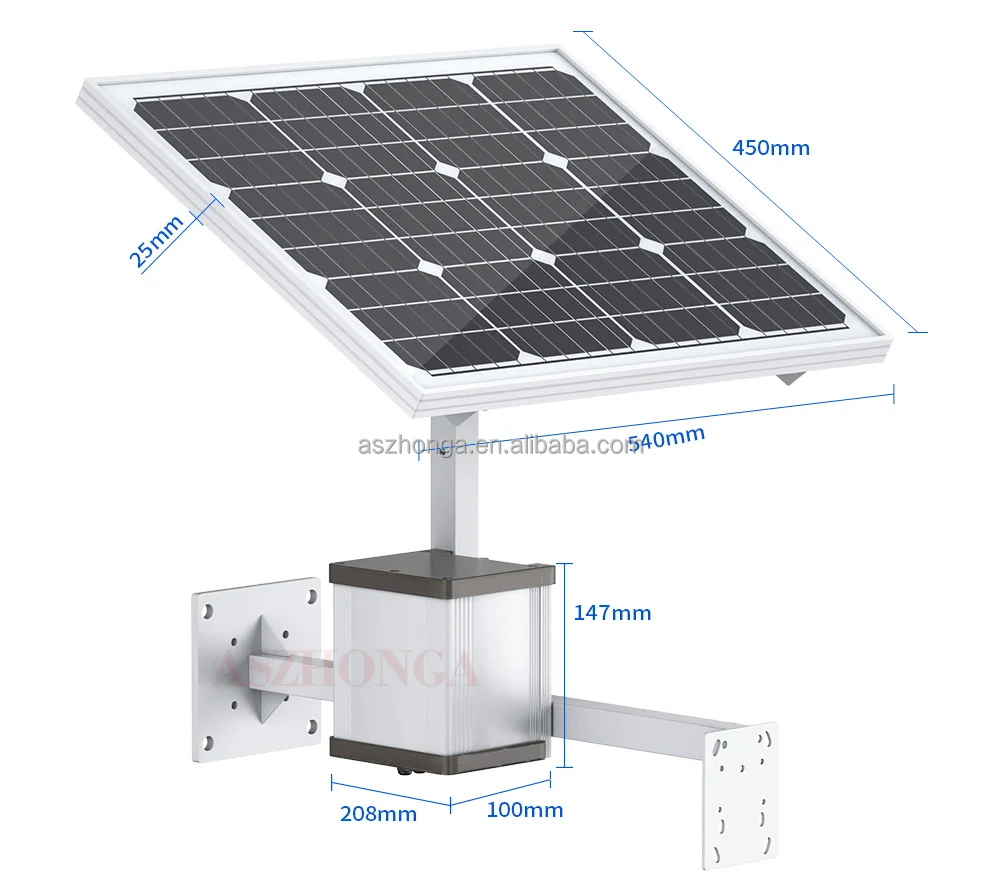

Size &Product Details:

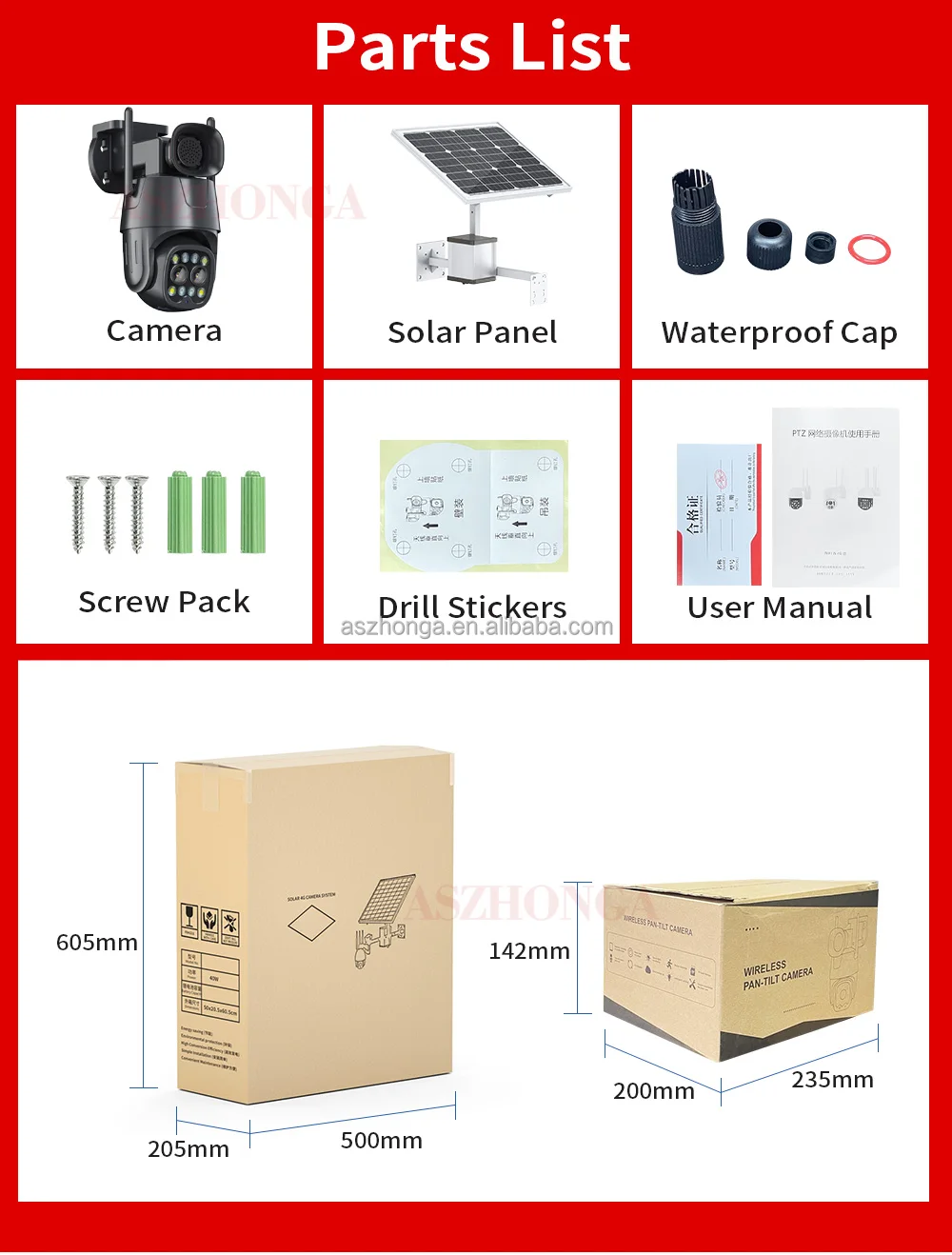

Package LIST:
1Pcs * 40W Solar panel
1Pcs * 20Ah Ternary Lithium Energy Storage Battery
1Pcs *2-in-1 solar angle adjustment and surveillance camera mounting bracket.
2Pcs *Metal Hoop
1Pcs * camera1Pcs * Screw Bag
1Pcs * Manual
1Pcs * Manual
Specification
Model | SP40-20-P20US | ||||||
Solar Panel Cell Process | Monocrystalline Silicon Whole cells | ||||||
Rated Maximum Power(Pmax) [W] | 40 | ||||||
Open Circuit Voltage(Voc) [V] | 21.6 | ||||||
Maximum Power Voltage(Vmp) [V] | 18 | ||||||
Short Circuit Current(Isc) [A] | 1.93 | ||||||
Maximum Power Current(Imp) [A] | 1.74 | ||||||
Module Efficiency [%] | 21.3 | ||||||
Max system voltage [V] | 1000 | ||||||
Panel Dimension [mm] | 540*450*25 | ||||||
Power Tolerance | 0~+3W | ||||||
Temperature Coefficient of Isc(α_Isc) | +0.048%/℃ | ||||||
Temperature Coefficient of Voc(β_Voc) | -0.27%/℃ | ||||||
Temperature Coefficient of Pmax(γ_Pmp) | -0.35%/℃ | ||||||
Operating Temperature | -25℃~70℃ | ||||||
STC | Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G | ||||||
Battery Type | Ternary Lithium Batteries | ||||||
Nominal Capacity [Ah] | 20 | ||||||
Power Management Controller | Built-in PWM | ||||||
Power and voltage display | Real-time Battery Voltage LED Display | ||||||
DC IN | 12.6V | ||||||
Solar Power Input | DC-18V 2 Pin Aviation Cable Plug | ||||||
DC OUT | 12V 5A | ||||||
Protective Features | Overload, reverse connection, overdischarge, overcharge, short circuit, backflow prevention, etc. | ||||||
Operating Temperature | -25℃~50℃ | ||||||
Nominal Voltage | 11.1V | ||||||
Intemal Rcsistance | Full Charged Battery 25℃ | ||||||
Capacity Affected by Tempcrature (10 hour) | 40℃(104°F) | 102% | |||||
25℃ (77°F) | 100% | ||||||
0℃ (32°F) | 90% | ||||||
-15℃ (5°F) | 70% | ||||||
Self-Discharge 25℃ Capacity | after 3month storage | 92% | |||||
after 6month storage | 84% | ||||||
after 12month storage | 65% | ||||||
Charge constant Voltage 25℃ (77°F)Float | Initial charging current less than 10A Voltage 12.3-12.6V | ||||||
Camera Effective pixels | 2.8mm+8mm (4x ZOOM)Lens | 2.8mm+8mm (4x ZOOM)Lens | |||||
CMOS Sensor | 1/2..8" | 1/2..7" | |||||
Lens | 2.8mm+8mm | ||||||
View angle | 90° | ||||||
Min.illumination | 0.05 Lux / 0 Lux(IR on) | ||||||
Day&Night mode | Auto IR-CUT | ||||||
Night vision distance | 4pcs Array Infrared LEDs. | ||||||
4pcs White LEDs，Support full color night vision | |||||||
Video compression Standard | H.265 | ||||||
Video streaming | Triple streaming | ||||||
Video resolution | First stream: 1920x1080 Main Stream | First stream: 4MP 2560*1440@25fps；3MP 2304*1296@25fps；2MP 1920*1080@25fps； Main Stream | |||||
Second stream:VGA | |||||||
Triple stream :QVGA | |||||||
Image settings | Brightness,saturation,contrast,Sharpness,Exposure,flip,mirror | ||||||
Image enhancement | Backlight compensation,Automatic white balance,Digital WDR, 3D digital noise reduction | ||||||
Audio function | Built in Audio Microphone, Support Two Way Audio Talk Back | ||||||
Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) | ||||||
Alarm linkage | Alarm send pictures to the specified mailbox, | ||||||
alarm upload pictures and videos to the FTP server, | |||||||
alarm write pictures and videos to Micro TF card, alarm message push | |||||||
Privacy mask | Maximum support 4 users to simultaneously browse | ||||||
OSD | Support camera name, date and time information superimposed | ||||||
User management | Supports user and rights management | ||||||
Simultaneous viewers | maximum support 12 users to simultaneously browse (each stream supports 4 users) | ||||||
Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, | ||||||
FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP（Customization required） etc. | |||||||
Connection protocol | ONVIF-Compatible 2.1Version (backward compatible) | ||||||
Network Support | 2.4 GHz to 2.4835 GHz / IEEE802.11b/g/n Draft | ||||||
Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | ||||||
4G Network（WIFI VER NOT SUPPORT 4G） | -4G EU VER,SUPPORT BAND : GSM 900/1800 MHz ; 4G FDD-LTE Band 1/3/77/8/20 ; 4G TDD-LTE Band 38/40/41 ; 3G WCDMA Band 1/8 | ||||||
-4G US VER,SUPPORT BAND : GSM 900/1800 MHz ; 4G FDD-LTE Band 1/2/4/12/13 ; 3G WCDMA Band 2/5/4 | |||||||
Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | ||||||
Rotation angle | Horizon: 355°. Vertical: 0° to 90° | ||||||
Horizontal speed | 1° to 30°/S | ||||||
Vertical speed | 1° to 15°/S | ||||||
Cruise Zoom | Not Support | ||||||
Power interface | 1* DC φ2.1*5.5mm power interface | ||||||
Ethernet | 1 * RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | ||||||
TF card Slot | 1 * TF card slot. up to 256GB (NOT included TF Card) | ||||||
Reset button | Support | ||||||
Power supply | DC 12V 2A | ||||||
Power | Day: 5W; Night: 14W | ||||||
Operating temperature | -20 to +60 degree | ||||||
Operating humidity | 10% to 95% | ||||||
Material&Waterproof Level | Side Housing ,Outdoor Use,Waterproof IP66 | ||||||
Package Size(mm) | 520*220*620 | ||||||
Package Weight(kg) | 11 | ||||||
