2 cavity/ouput 16-200 PVC pipe double screw extruder production line making machine
- Category: Plastic Extruders >>>
- Supplier: Zhangjiagang,Huade,Machinery,Technology,Co.,Ltd.
Share on:
Product Overview
Description
2 cavity/ouput 50-200 PVC pipe double screw extruder production line making machine
2 cavity/ouput 16-200 PVC pipe double screw extruder production line making machine
GF series plastic pipe material production line is mainly used in the area of agriculture water supply system, architectural water supply system, pavement of cables, etc as well as pvc pipe material of all sorts of pipe caliber and wall thickness. This machine group consists mainly of twin conical screws extruder, vacuum calibrating tank, hall-off unit, cutting unit, tilter, etc. Single screw extruder and haul-off unit have applied impeded A/C inverter, both vacuum pump and driving motor have applied excellent products. The drawing machine includes two-claw type, three-claw type, four-claw type, six-claw type,eight -claw, type, etc. Saw cutting or planet cutting can be applied. It is additionally applied with length measuring meter and thickness increasing device, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall spiral pipe, inner wall hollow pipe, etc, it can also produce PP, PE, ABS, PPR, PEX, silicon core pipe and pipe material of other material. The planet-shaped cutting machine is fully automatic computer digital control, it has such advantages of simple operation, reliable property, etc. It has reached world advanced level.
Processing flow of 2 cavity/ouput 50-200 PVC pipe double screw extruder production line making machine CE certification:
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack
PVC powder + additive → mixing → spring feeding → twin screw extruder → mould and calibrator→ vacuum forming machine → haul off machine → cutting machine → discharging rack
2 cavity/ouput 50-200 PVC pipe double screw extruder production line making machine
FEEDER
Feeding machine is also called plastic feeding machine. Standard material is a necessary product in waste plastic production line. The feeding machine is also divided into single type automatic vacuum feeding machine and split type high-power automatic vacuum feeding machine.
ZJF100 | 1.1KW | φ30mm | 200kg/hr |
ZJF300 | 1.1KW | φ36mm | 300kg/hr |
ZJF450 | 1.5KW | φ45mm | 450kg/hr |
ZJF700 | 2.2KW | φ59mm | 700kg/hr |
MIXING
SRL-Z SERIES HOT/COOLING COMBINATION MIXER
The line shall be used to produce small diameter single wall corrugated pipe in PE/PVC and PP raw material.
Molding corrugated pipe with smooth inside and outside surface, and even ripple at one time by corresponding die.
Used as electricity pipe, washing machine drain pipe, dust collector pipe and ventiduct, etc.
Small size corrugated pipe of p4-6.7(mm) are used in car.
Molding corrugated pipe with smooth inside and outside surface, and even ripple at one time by corresponding die.
Used as electricity pipe, washing machine drain pipe, dust collector pipe and ventiduct, etc.
Small size corrugated pipe of p4-6.7(mm) are used in car.
SRL-W SERIES HORIZONTAL MIXING UNIT
It is used in mixing, stiming, drying, coloring, and other technique of plastics, rubber, chemicals for daily use. It is an ideal advanced equipment of producing plastics plate, pipe, special-shaped material and degradation plastics.
The unit is developed through introducing, digesting and absorbing foreign advanced technology. The minor vacuum mixing principle is adopted in mixing materials. The electric elements all adopt imported famous ones and adopt PLC control. It has many advantages, such as high auto level, fast mixing. Its blades are precisely cast with stainless steel and passed the dynamic and static balancing test. Especially, the blades of its cooling machine adopt the most advanced screw stirring structure in the world. There is no deal angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly, its mixing efficiency has reached foreign advanced level.
The unit is developed through introducing, digesting and absorbing foreign advanced technology. The minor vacuum mixing principle is adopted in mixing materials. The electric elements all adopt imported famous ones and adopt PLC control. It has many advantages, such as high auto level, fast mixing. Its blades are precisely cast with stainless steel and passed the dynamic and static balancing test. Especially, the blades of its cooling machine adopt the most advanced screw stirring structure in the world. There is no deal angle in the whole vessel. It has advantages, such as fast cooling, discharging thoroughly, its mixing efficiency has reached foreign advanced level.
Model | Motor Power(kw) | output(kg/h) |
SRL-Z100/200 | 14/22（22）/7.5 | 180 |
SRL-Z200/500 | 30/42（45）/11 | 350 |
SRL-Z300/600 | 40/55（55）/11 | 480 |
SRL-Z500/1000 | 47/67（75）/15 | 800 |
SRL-Z800/1600 | 60/90（90）/22 | 1200 |
SRL-W500/1600 | 47/67（75）/15 | 800 |
SRL-W800/2500 | 83/110（110）/22 | 1500 |

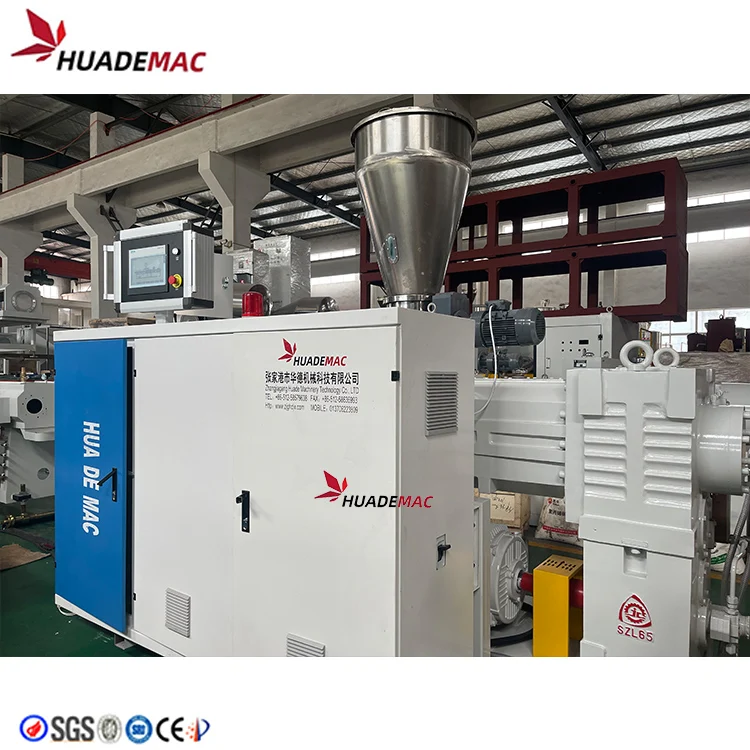

EXTRUDER
Extruder is one of the types of plastic machinery, originated in the 18th century.
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die. Plastic extruders can be classified into twin-screw extruder, single screw extruder, rare multi-screw extruder and non screw extruder.
According to the direction of material flow and the angle of screw center line, the extruder head can be divided into right angle head and oblique angle head.
Screw extruder relies on the pressure and shear force produced by screw rotation, which can make the material fully plasticized and evenly mixed, and then molded by die. Plastic extruders can be classified into twin-screw extruder, single screw extruder, rare multi-screw extruder and non screw extruder.
No. | Main Extruder | Main motor power(kw) | Extrusion amount(kg/h) | Die Head |
1 | SJSZ45/90 | 15 | 30-120 | / |
2 | SJSZ51/105 | 18.5 | 50-150 | 20-63Single Outlet |
3 | SJSZ55/110 | 22/30 | 60-180 | 20-63Double Outlet，20-110Single Outlet |
4 | SJSZ65/132 | 37 | 60-300 | 20-63Double Outlet，16-32Four Outlet75-160Single Outlet |
5 | SJSZ80/156 | 55/75 | 100-400 | 75-250Single Outlet，110-315Single Outlet |
6 | SJSZ92/188 | 90 | 200-800 | 160-450,316-630 |
DIE/MOULD
40Cr/42CrMo

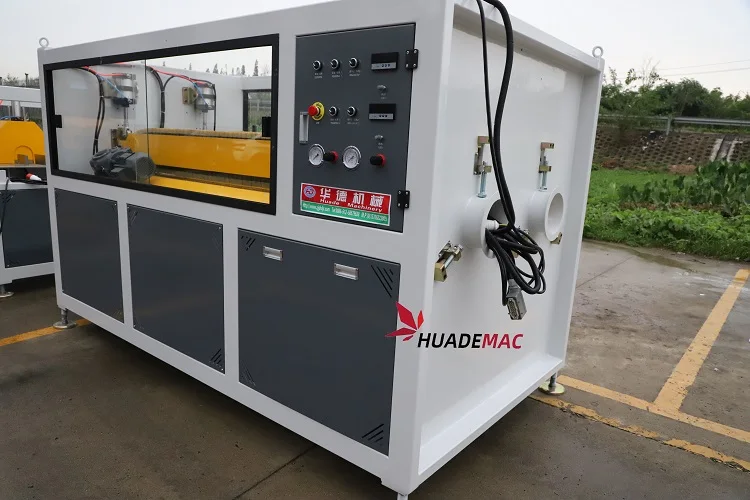

VACUUM CALIBRATING
Parameter | 16-40 four outlet | 20-63 double outlet | 20-110 | 50-160 | 75-250 | 110-315 | 160-450 | 315-630 | ||||||||
Double chamber vacuum sizing box（5.6m） | ||||||||||||||||
Vacuum pump power | / | / | 3KW×2 | 3 KW x2 | 3 KW x2 | 4 KW x2 | 4 KW x2 | 5.5KW x2 | ||||||||
Pump power | / | / | 3KW×2 | 4KW x 2 | 4KW x 2 | 5.5 KW x 2 | 5.5 KW x 2 | 7.5 KW x 2 | ||||||||
Single cavity vacuum sizing box（5.6m） | ||||||||||||||||
Vacuum pump power | 7.5kw | 2.2 KW x2 | 4kw x 1 | 3KW x 1 | 4KW x 1 | 5.5 KW | 5.5 KW | 4 KW x2 | ||||||||
Pump power | 5.5kw | 3KW x 2 | 4kw x 1 | 4KW x 1 | 5.5KW x 1 | 7.5 KW | 7.5 KW | 5.5KW x2 | ||||||||
HAUL-OFF UNIT
Haul-off Unit | 16-40 four outlet | 20-63 double outlet | 20-110 | 50-160 | 75-250 | 110-315 | 160-450 | 315-630 | ||||||
Motor | 1.1KW x 4 | 1.5KW x4 | 1.1kw×2 | 1.5KW x2 | 4KW/1.1KW x3 | 5.5KW /4x1.1KW | 5.5KW /4x1.5KW | 7.5KW | ||||||
Speed | 2-12 m/min | 10m/min | 8m/min | 6m/min | 3.5-5m/min | 3m/min | 2 m/min | 1.4 m/min | ||||||
Model | Integrated machine | 一体 | 一体/分体 | Split machine | 分体 | 分体 | 分体 | 分体 | ||||||
Cutting Unit | Knife-lift /Dust-free | Knife-lift/ Dust-free | Knife-lift/Dust-free/Planetary | Knife-lift/ Dust-free | Dust-free /Planetary | Dust-free /Planetary | Dust-free/ Planetary | Dust-free/Planetary | ||||||
PVC Pipe extrusion line/PVC pipe making machine with CE certification from Zhangjiagang Huade Machinery
