Glam 1300W Intelligent Hydraulic Portable Electric Drill Industrial Grade Metal Hole Puncher Channel Steel Angle Steel 220V/110V
- Category: >>>
- Supplier: Taizhou Eric Trade Co. Ltd.
Share on (1600654234792):
Product Overview
Description

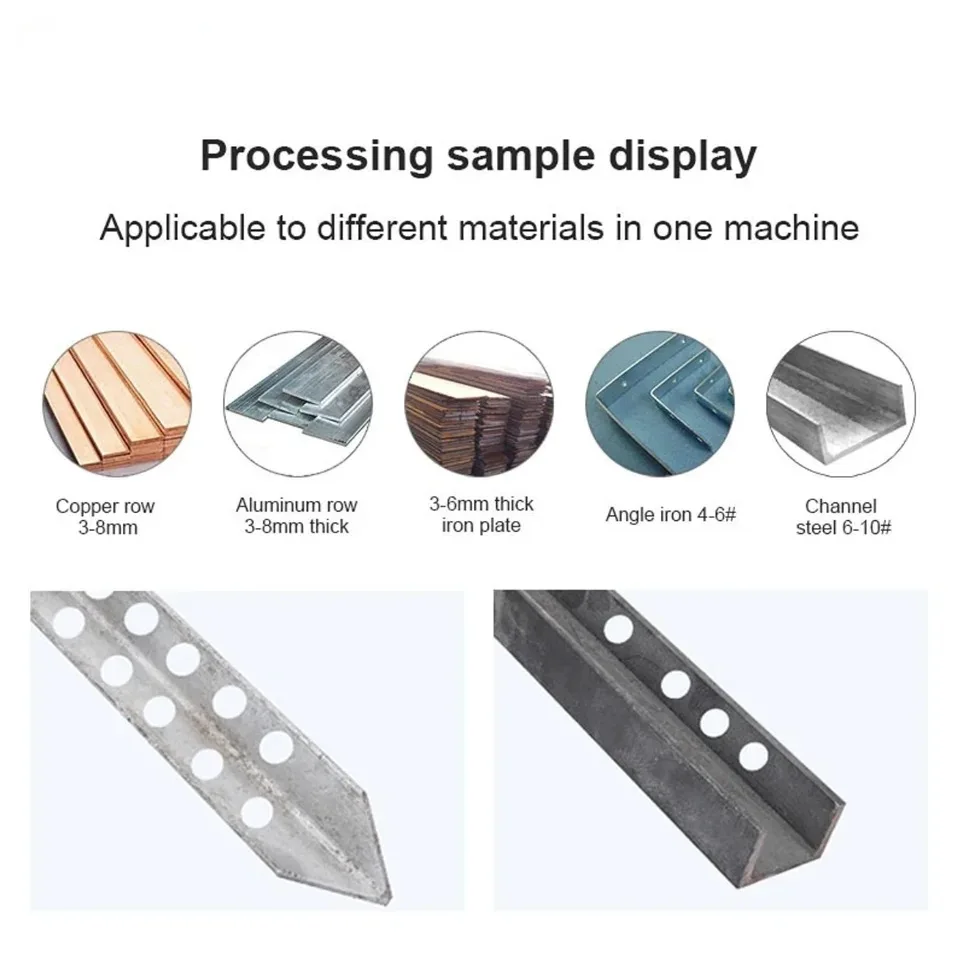

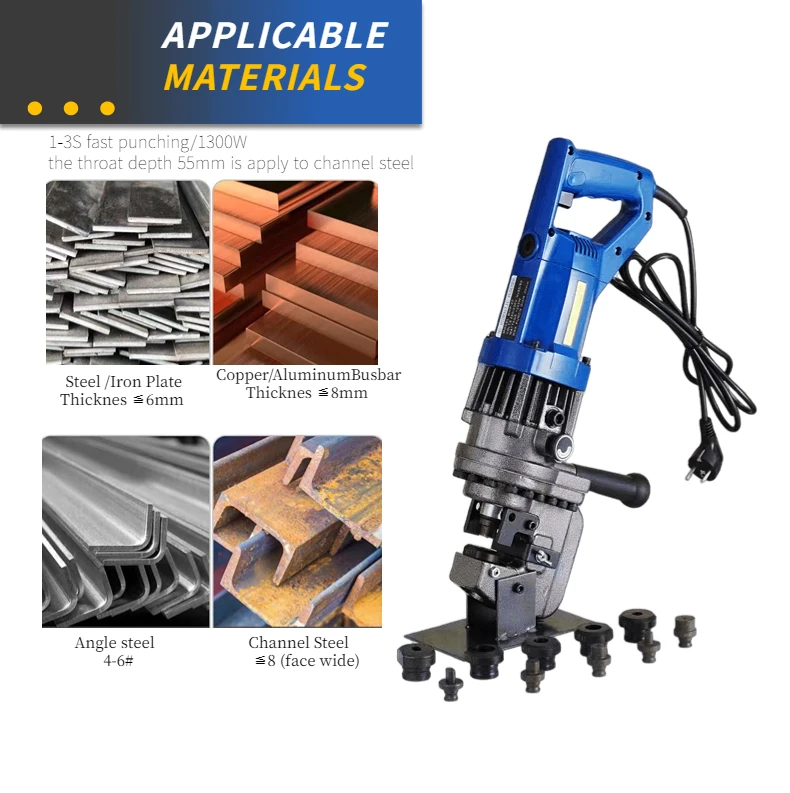

Hand hold electric hydraulic punchesare efficient punching tools with stable output, to save your time and effort.These punching machines are used in punching round hole on steel plate, sheetiron, copper plate, aluminum plate, formed steel, U-steel, l-steel, and so on.
Model: MHP-20
Output: 15T
Power: 1300w
Voltage:220/110v
Punching speed: 2-3s
Throat depth: 40 mm
Punching diameter: Φ4-20.5 mm
Copper / aluminum plate: thickness ≤ 8 mm
Iron / steel plate: thickness ≤ 6 mm

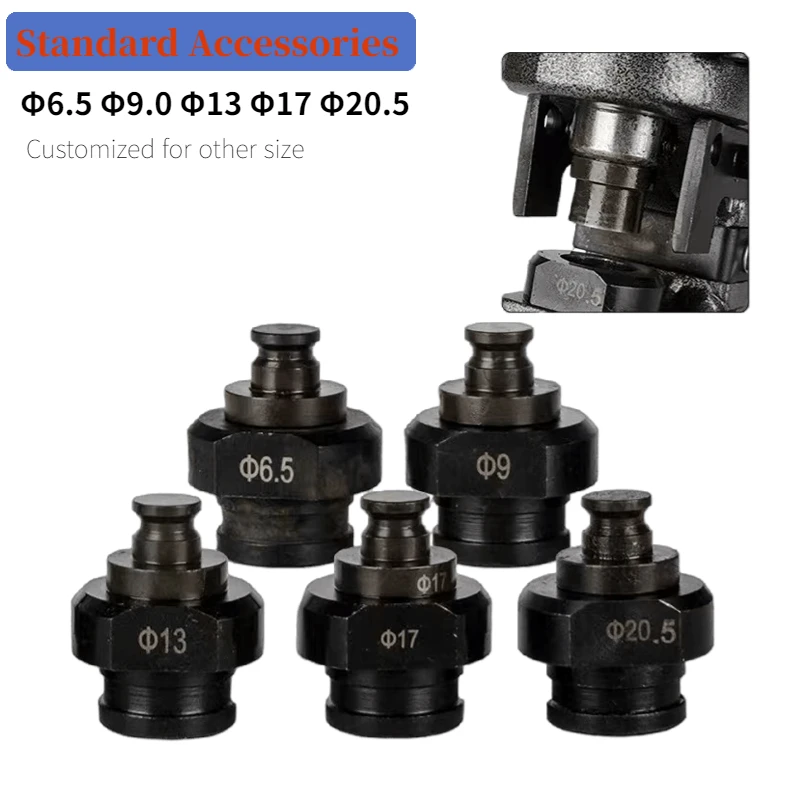

Punch dies: Φ6.5 Φ9,Φ13,Φ17, Φ20.5 mm
Machine Size: 500 x 195 x 100 mm

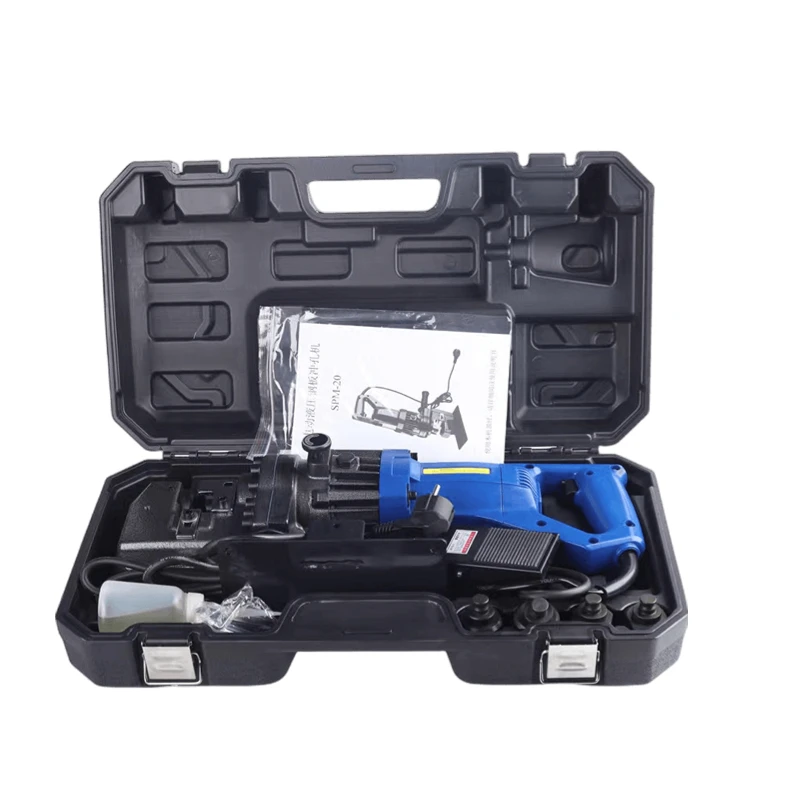

Package ：steel box/Package plastic box Package Size: 545 x 310 x 180 mm
Net weight: 12 kg
Gross weight:19 kg
Output: 15T
Power: 1300w
Voltage:220/110v
Punching speed: 2-3s
Throat depth: 40 mm
Punching diameter: Φ4-20.5 mm
Copper / aluminum plate: thickness ≤ 8 mm
Iron / steel plate: thickness ≤ 6 mm
Punch dies: Φ6.5 Φ9,Φ13,Φ17, Φ20.5 mm
Machine Size: 500 x 195 x 100 mm
Package ：steel box/Package plastic box Package Size: 545 x 310 x 180 mm
Net weight: 12 kg
Gross weight:19 kg

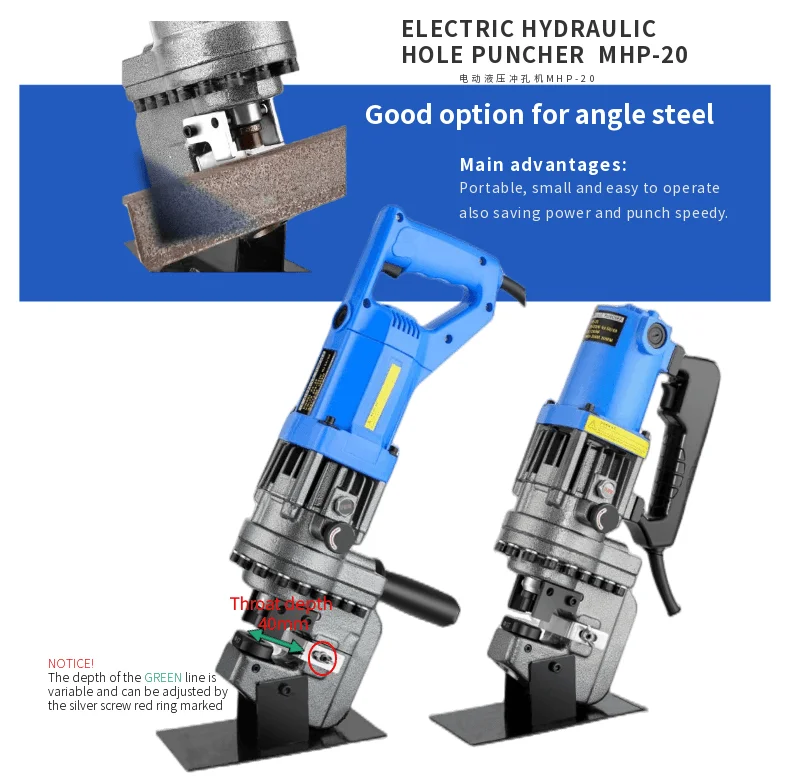

MHP-20 Angle Steel Channel H-shaped Steel Hydraulic Punching Machine Flange puncher 1300W Electric Punching Machine

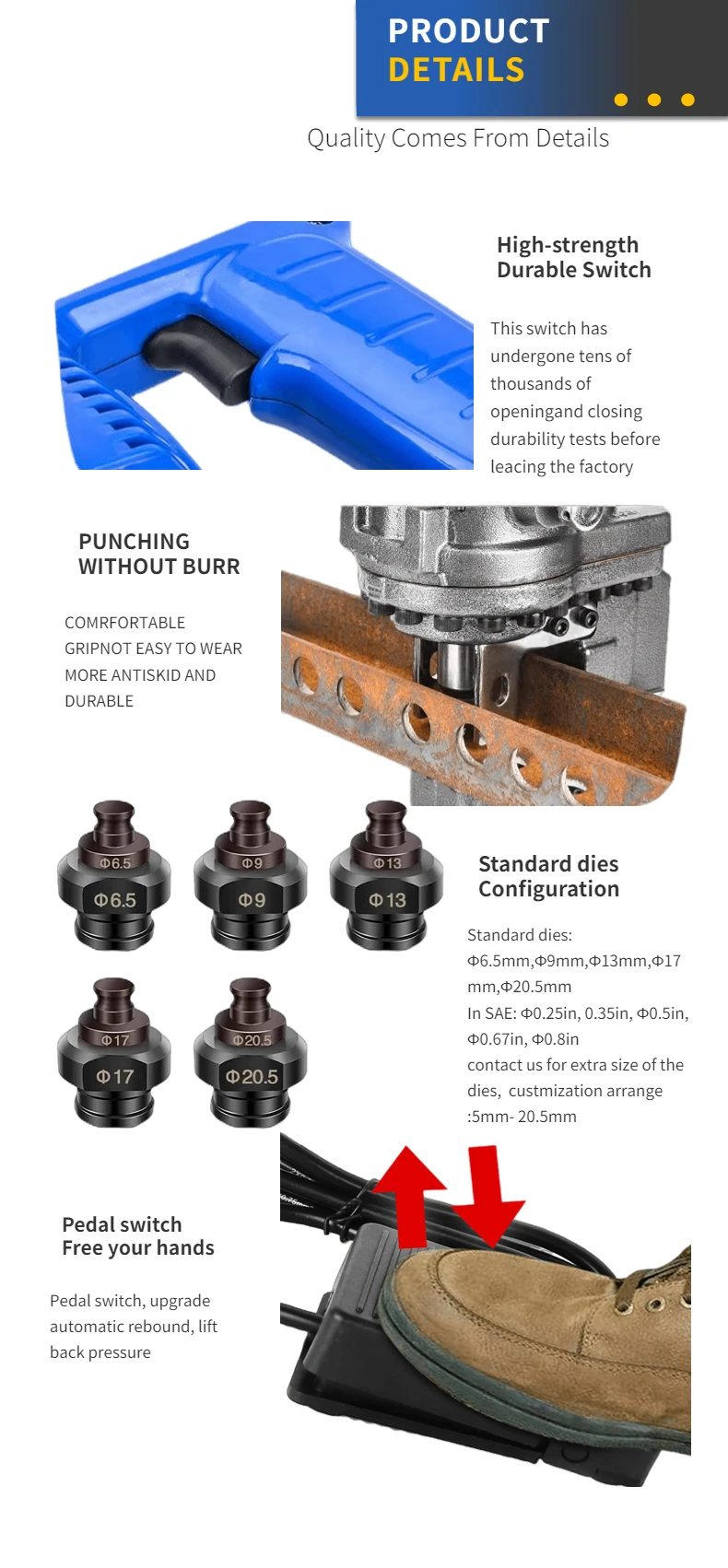

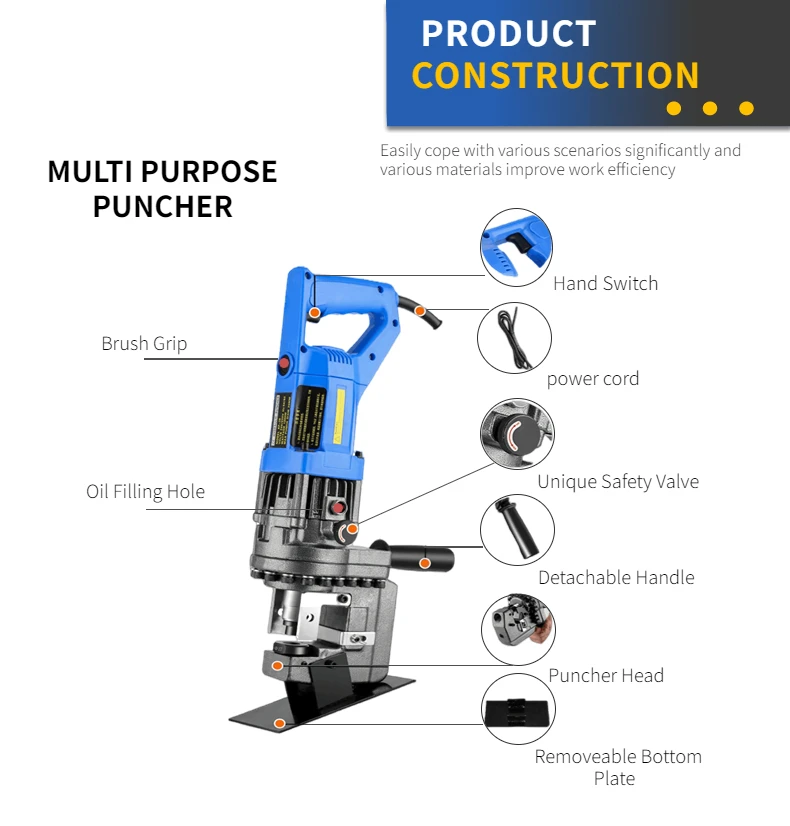

High-strength and durable opening key: After the factory, the durable test switch is continuously opened and closed tens of thousands of times.
Accurate positioning without offset: suitable for punching of metal materials such as angle iron channel steel
Auxiliary handle design: the handle is detachable for easy operation at different angles
Manual oil return switch: oil can be returned anytime, anywhere
Precise positioning, stable penetration, hydraulic punching, avoiding chipping

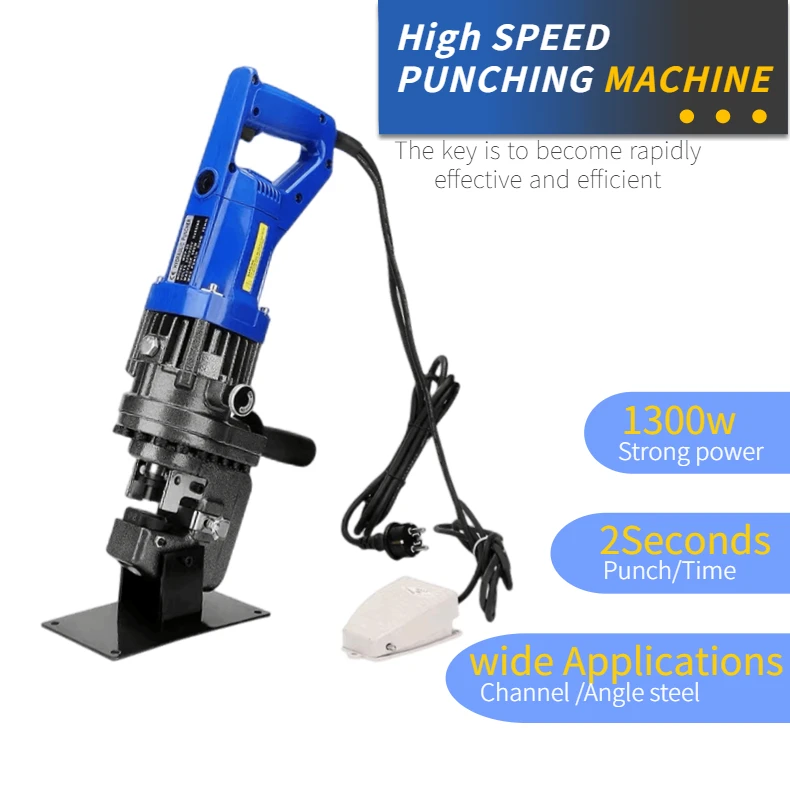

Ultra-high power, extremely fast into holes.
Accurate positioning without offset: suitable for punching of metal materials such as angle iron channel steel
Auxiliary handle design: the handle is detachable for easy operation at different angles
Manual oil return switch: oil can be returned anytime, anywhere
Precise positioning, stable penetration, hydraulic punching, avoiding chipping
Ultra-high power, extremely fast into holes.

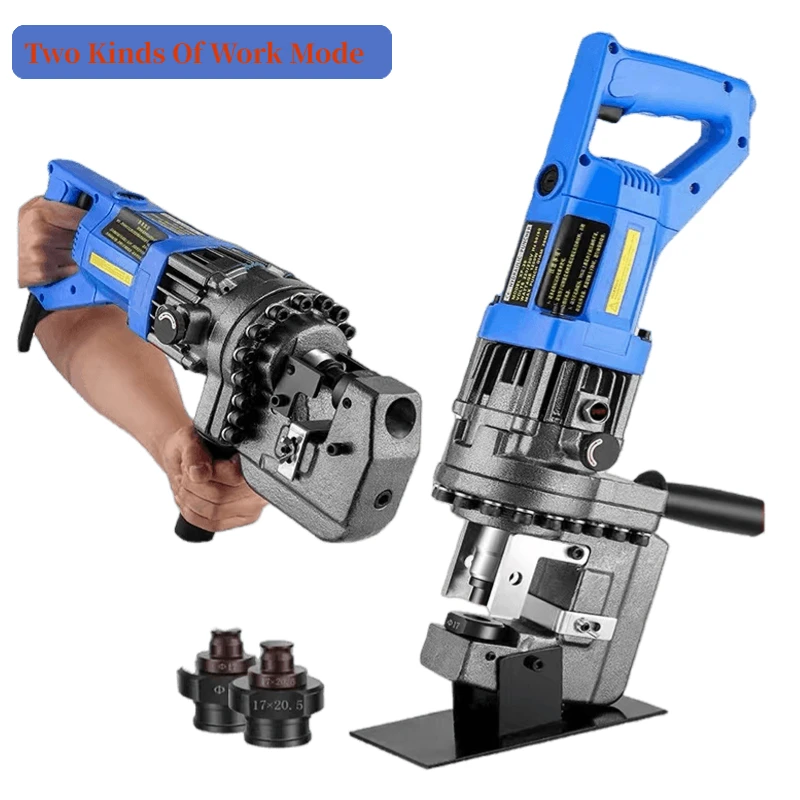

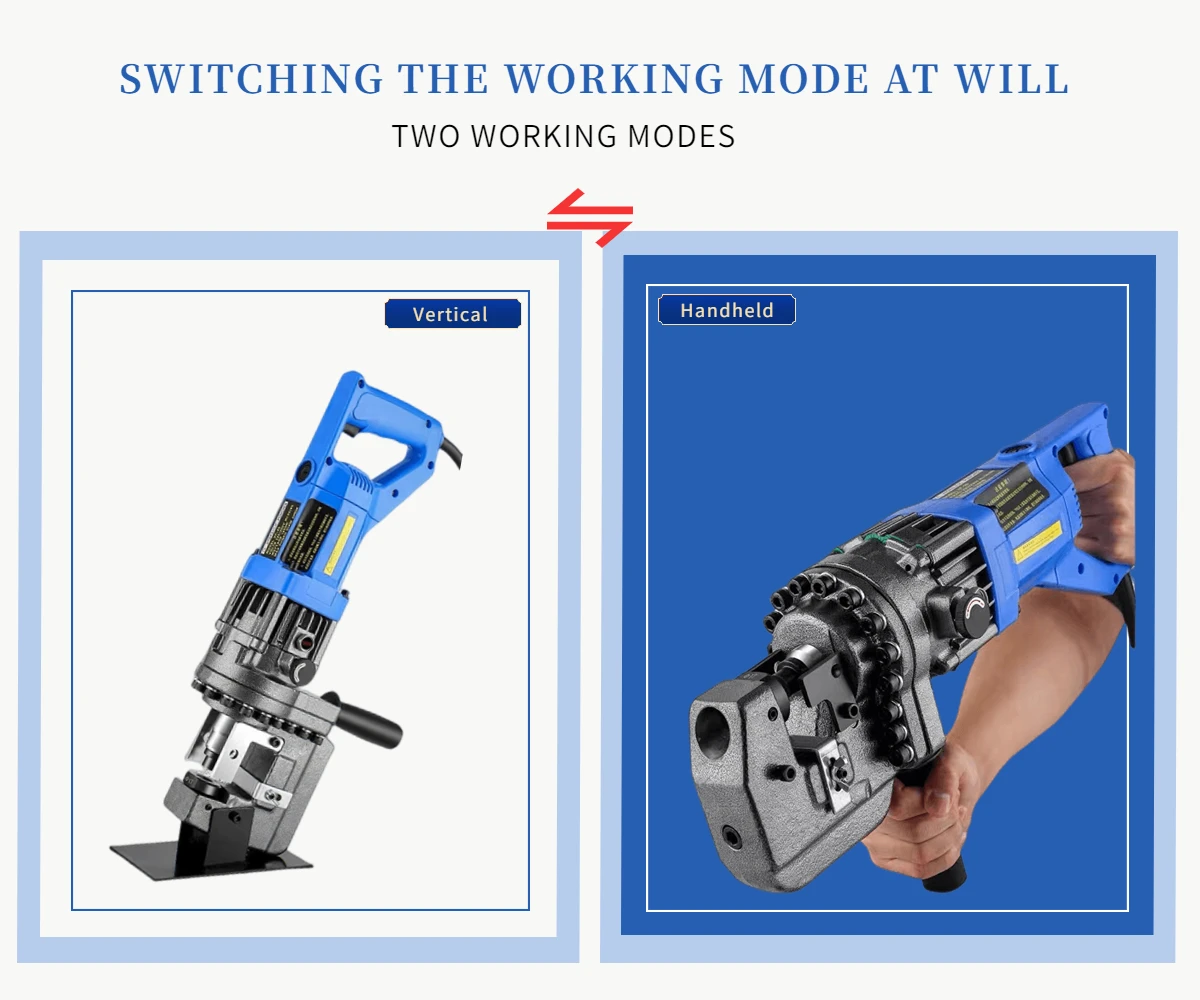

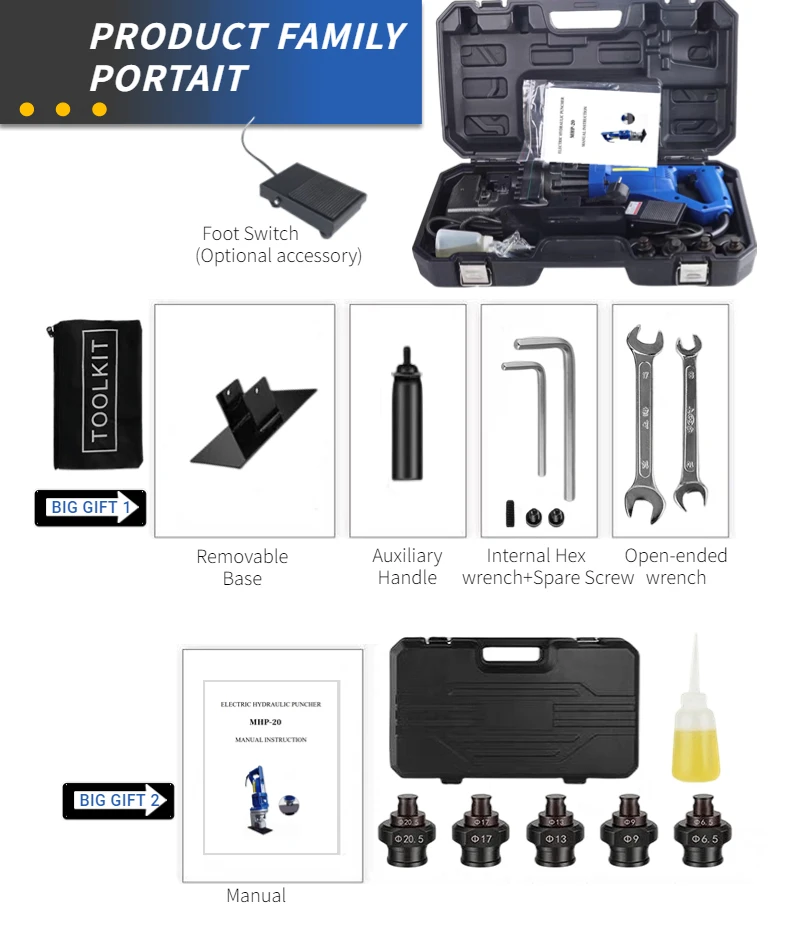

INSTALL THE BASE
INSTALL THE BASE AND PLACE IT ON THE PLATFORM TO WORK
ATTACH THE AUXILIARY HANDLE
EQUIPPED WITH AUXILIARY HANDLE FOR HAND-HELD WORK

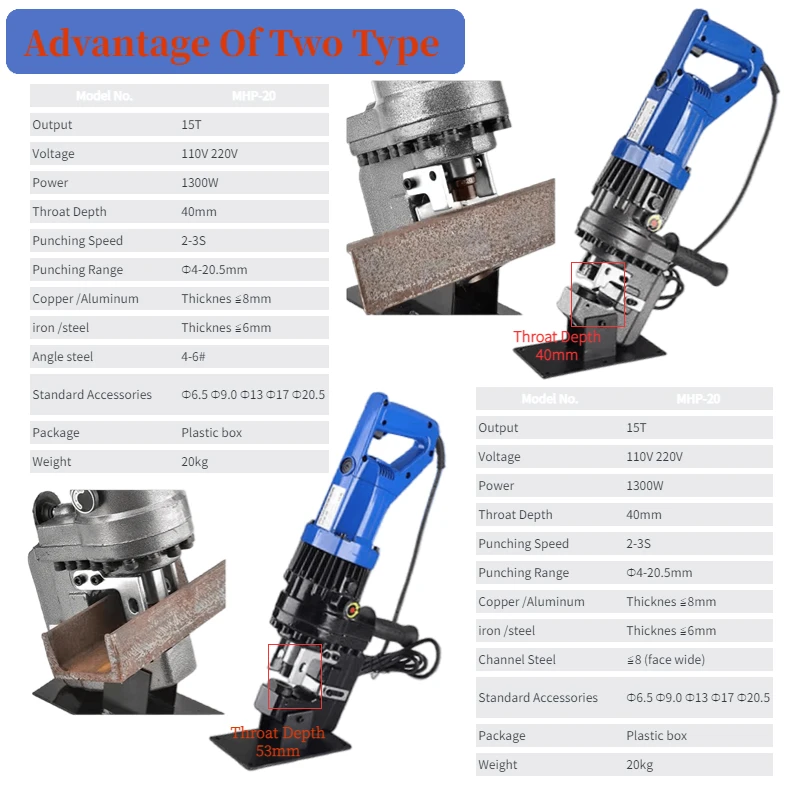

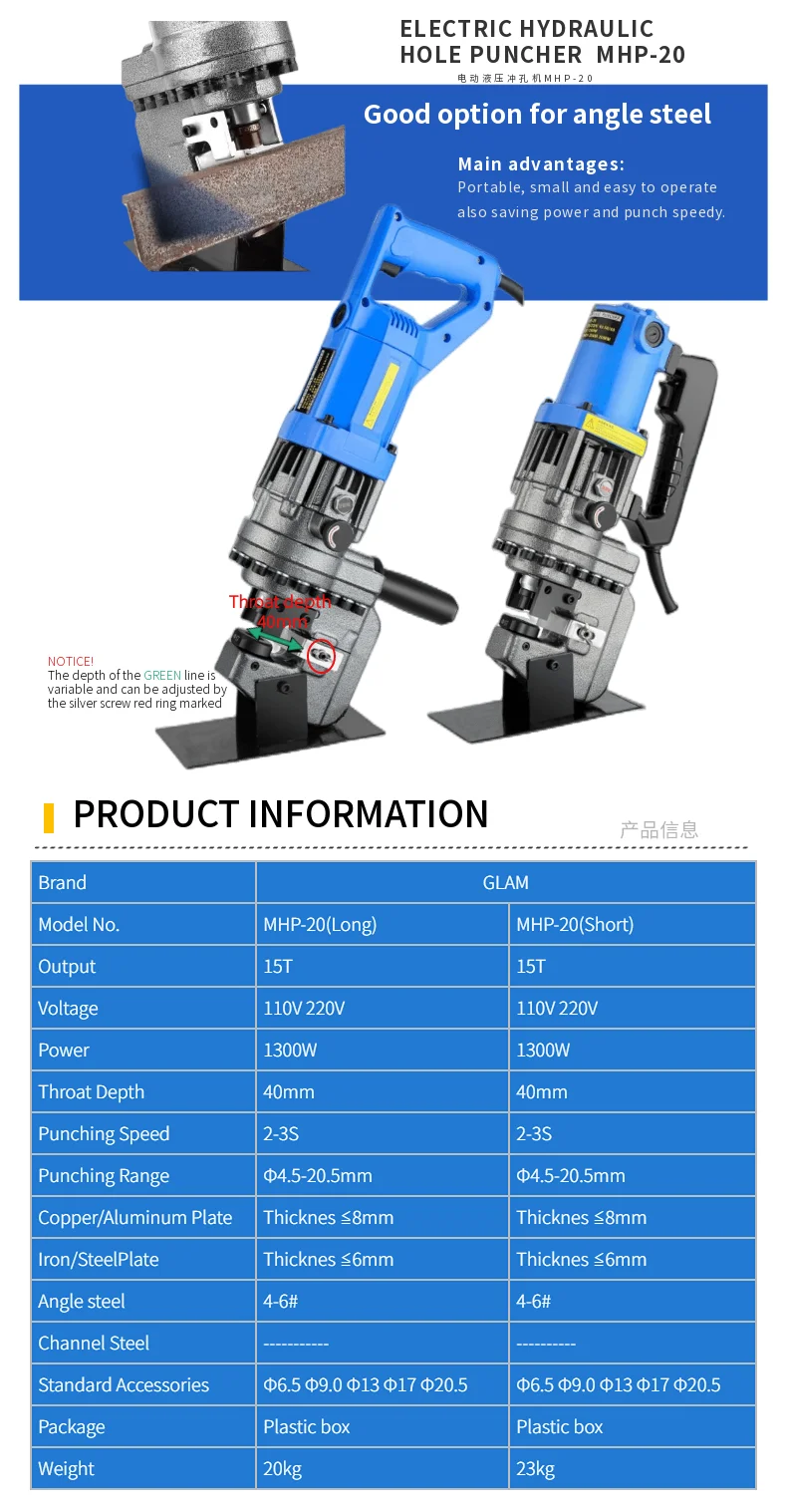

Model No. | MHP-20 (Long type ) | MHP-20 (short type) |
Output | 15T | 15T |
Power | 1300v | 1300v |
Voltage | 110/220v | 110/220v |
Frequency | 50hz/60hz | 50hz/60hz |
Throat Depth | 40mm | 40mm |
Punch Speed | 2-3s | 2-3s |
Punch Range | Φ4.5-20.5mm | Φ4.5-20.5mm |
Copper/Aluminum Plate | Thicknes ≦8mm | Thicknes ≦8mm |
Iron/Steel Plate | Thicknes ≦6mm | Thicknes ≦6mm |
Angle Steel | 4-6# | 4-6# |
Channel Steel | not apply to channel steel | not apply to channel steel |
Standard Accessories | Φ6.5 Φ9.0 Φ13 Φ17 Φ20.5 | Φ6.5 Φ9.0 Φ13 Φ17 Φ20.5 |
Package | Plastic box | Plastic box |
Weight | 19kg | 21kg |

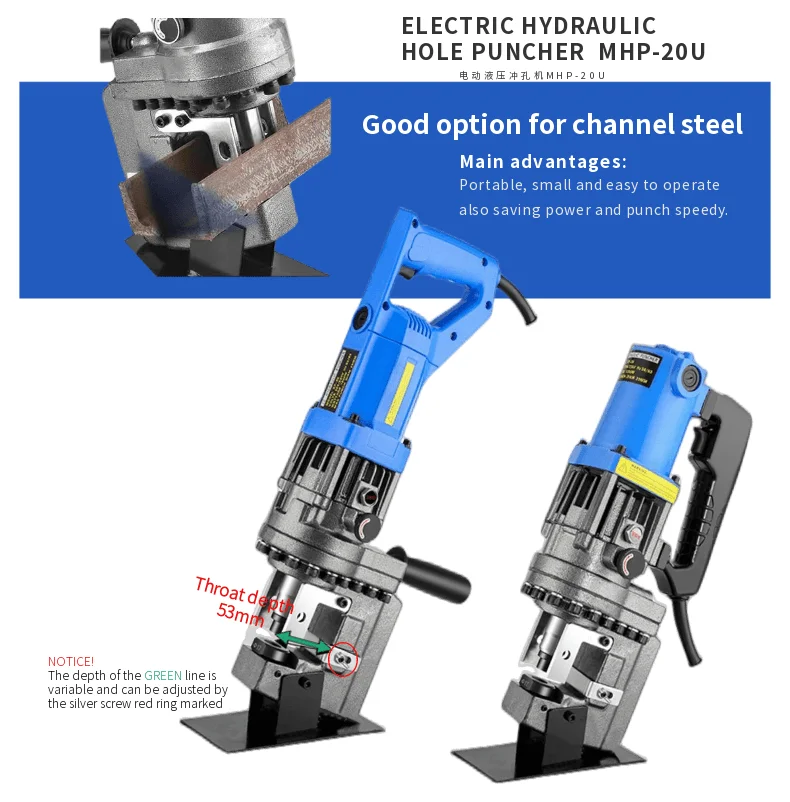

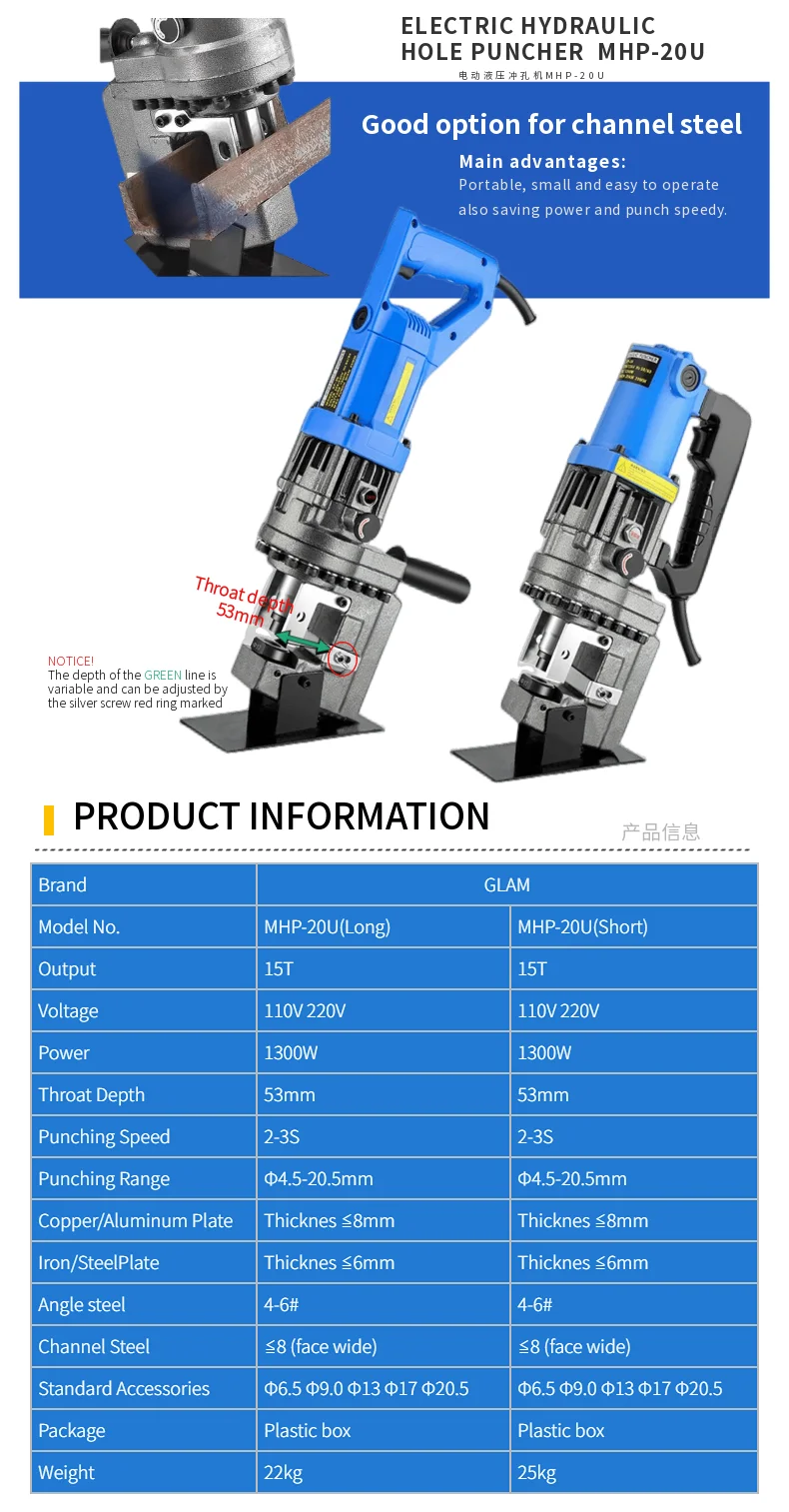

Model No. | MHP-20U (Long type ) | MHP-20U (short type) |
Output | 15T | 15T |
Power | 1300v | 1300v |
Voltage | 110/220v | 110/220v |
Frequency | 50hz/60hz | 50hz/60hz |
Throat Depth | 53mm | 53mm |
Punch Speed | 2-3s | 2-3s |
Punch Range | Φ4.5-20.5mm | Φ4.5-20.5mm |
Copper/Aluminum Plate | Thicknes ≦8mm | Thicknes ≦8mm |
Iron/Steel Plate | Thicknes ≦6mm | Thicknes ≦6mm |
Angle Steel | 4-6# | 4-6# |
Channel Steel | ≦8 (face wide) | ≦8 (face wide) |
Standard Accessories | Φ6.5 Φ9.0 Φ13 Φ17 Φ20.5 | Φ6.5 Φ9.0 Φ13 Φ17 Φ20.5 |
Package | Plastic box | Plastic box |
Weight | 21kg | 21kg |
