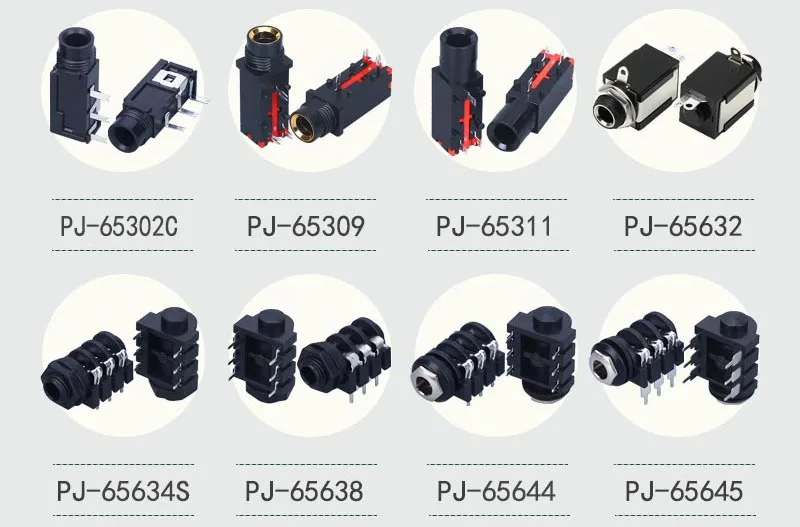

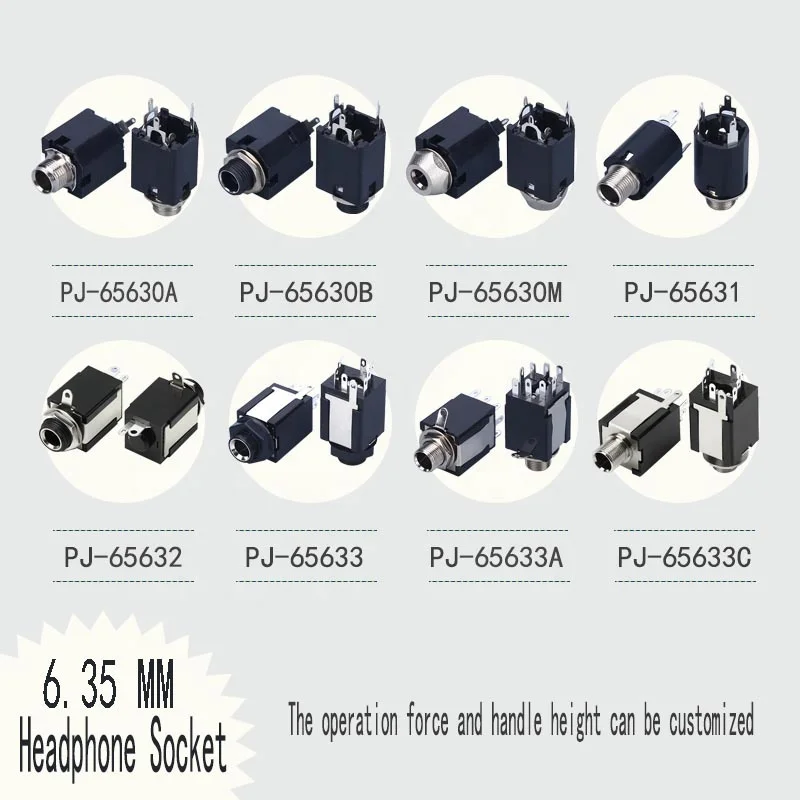

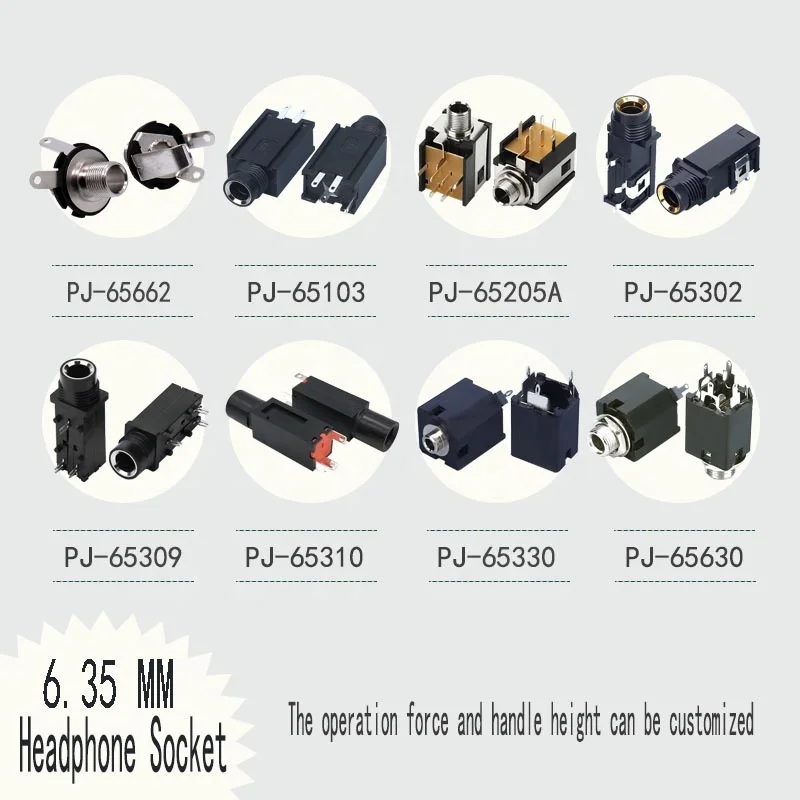

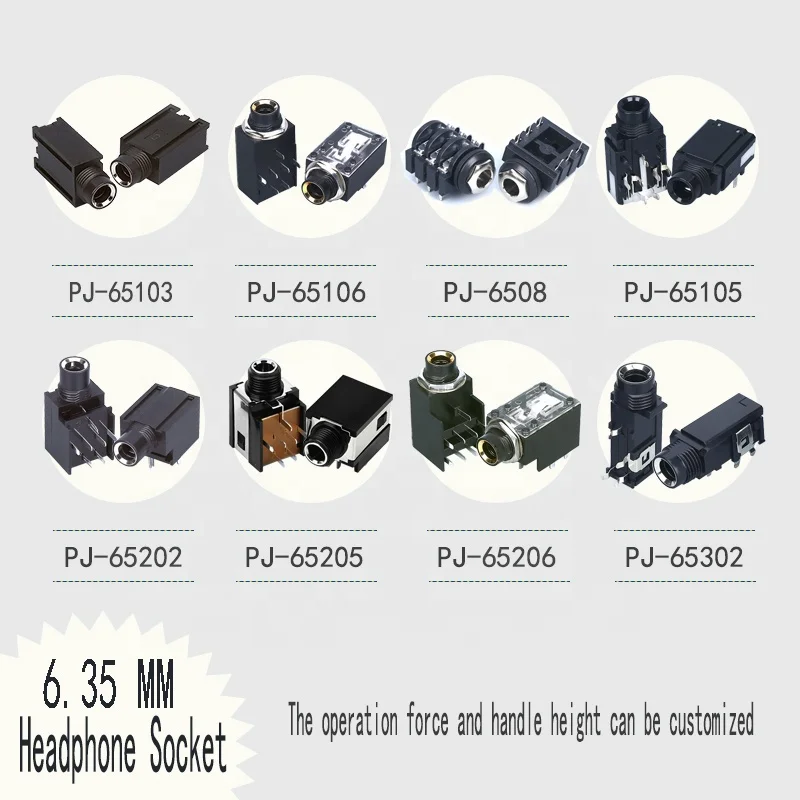

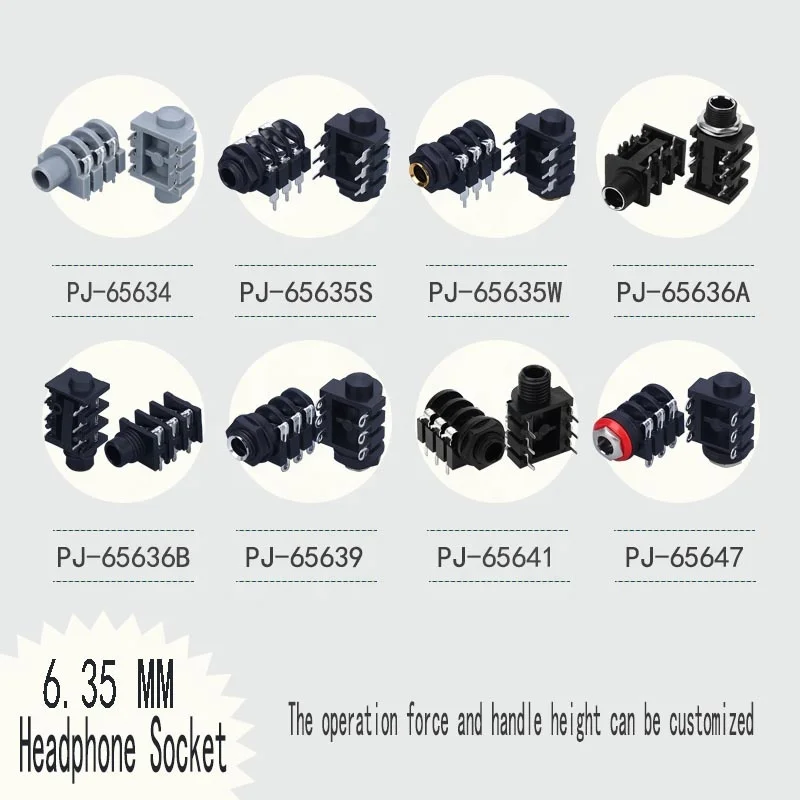

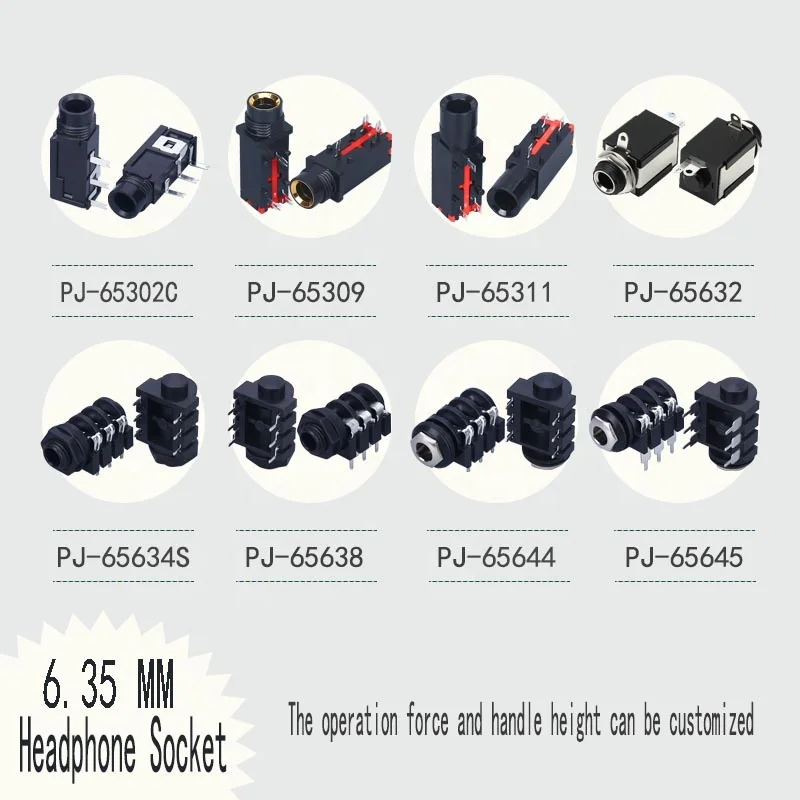

2023 Wintai tech PJ 65302C mono jack in stereo socket audio input socket 6.35 jack connector
- Category: >>>
- Supplier: Wenzhou Wintai Electronic Technology Co. Ltd.
Share on (1600654771369):
Product Overview
Description
Products Description

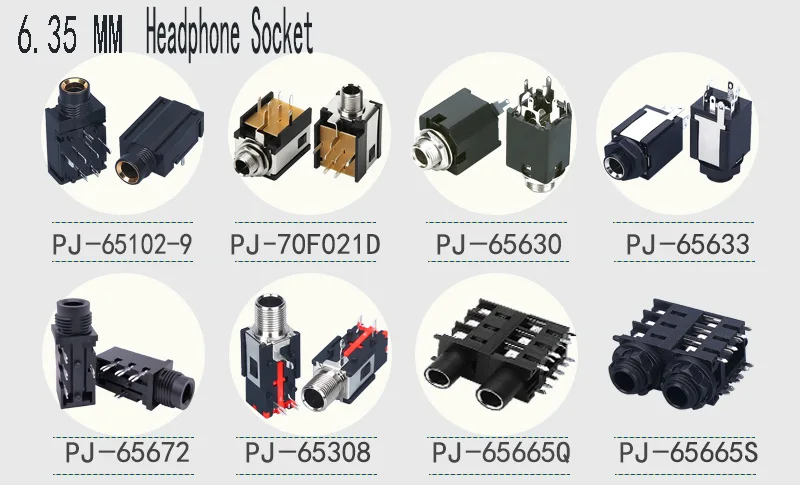

WINTAI Headphone Jack
Wentai Technology 6.35mm headphone socket, using PA66 and PET plastic materials, high temperature resistance, good toughness, smooth surface of parts, can be used at 120 temperature for a long time. Good insulation, high temperature and high frequency can still maintain good performance. The built-in shrapnel is made of stainless steel, good ductility, good contact, fatigue resistance and wear resistance. All products comply with the European Union environmental standards.

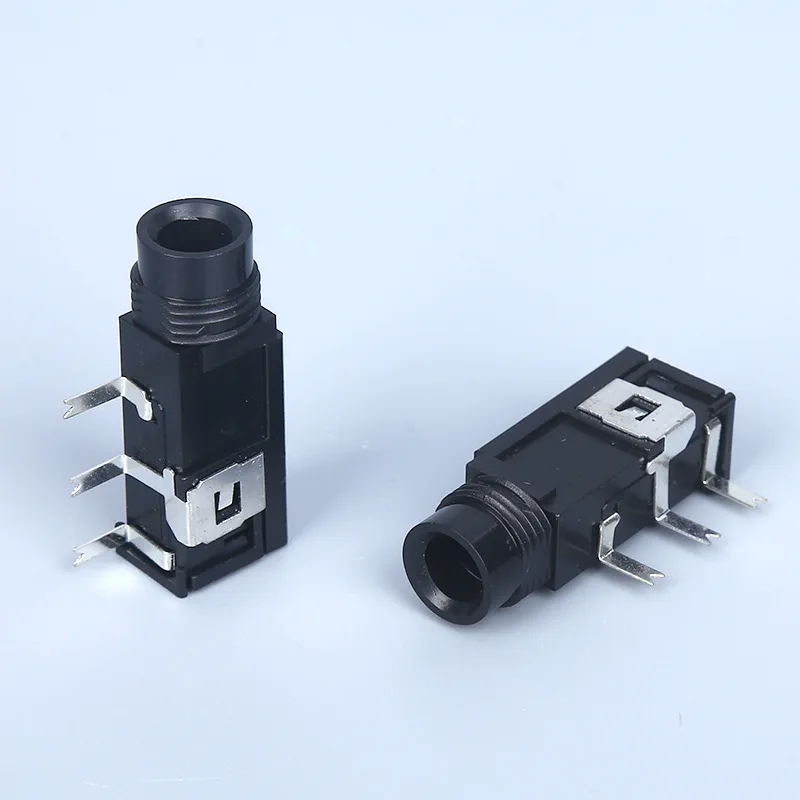

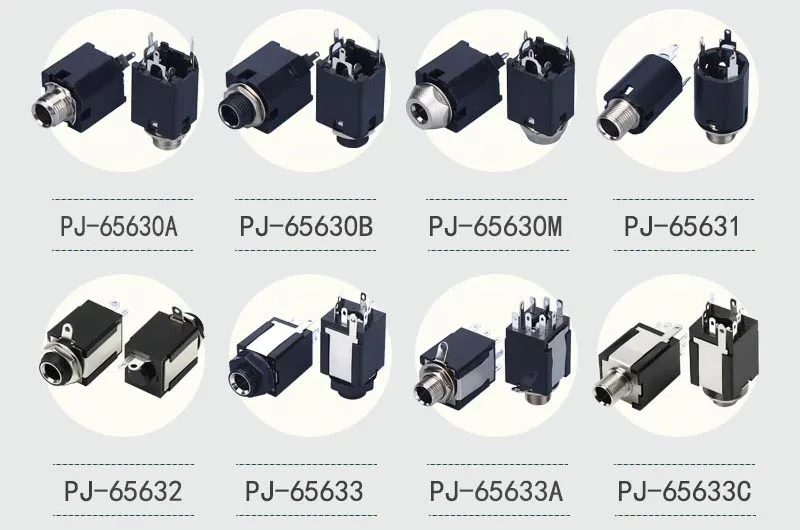

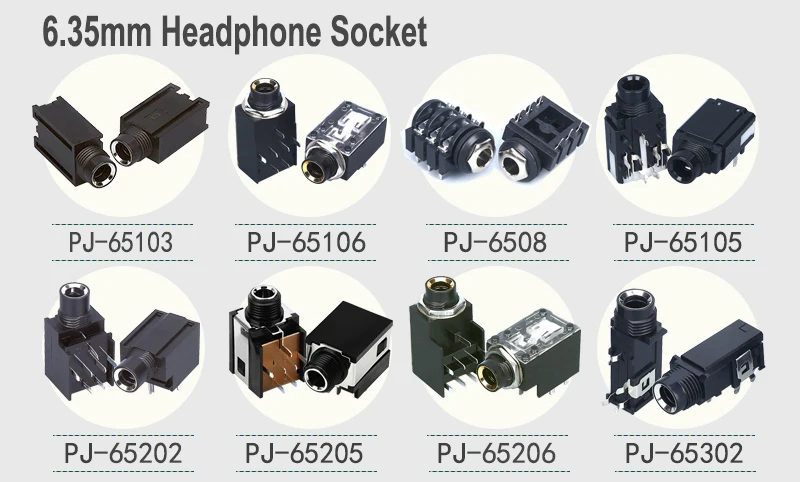

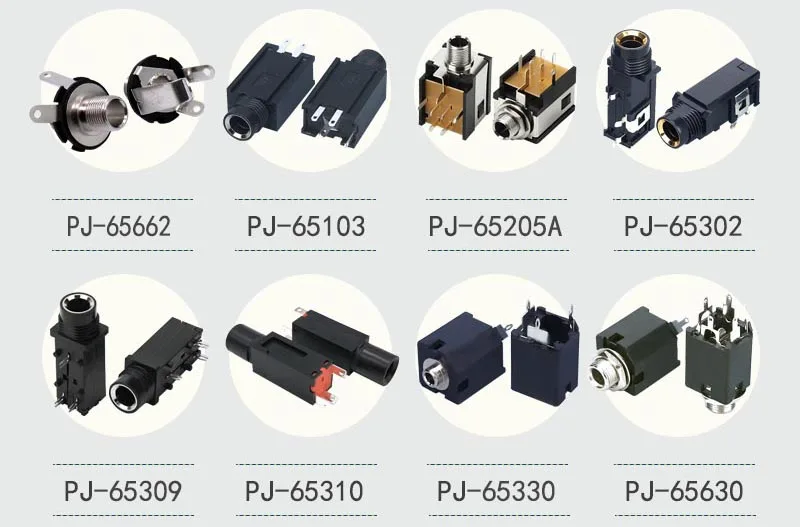

Details Images
Performance Specification
The diameter of the inner hole of the commonly used headphone socket is 2.5mm, 3.5mm and 6.35mm. And the audio phoen jack socket is 3.5mm.

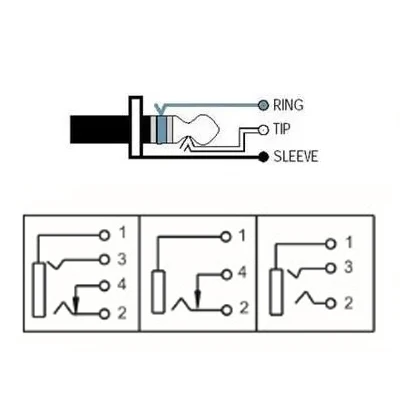

The headphone socket consists of 3 pins to 5 pins, depending on the design needs, as shown on the left diagram.
Headphone socket is mainly used in mobile phone stereo design, CD player, wireless phone, MP3 player, digital laptop, DVD, digitall camera, and so on.
Product Paramenters
Product Name | Headphone Jack |
Current Rating | 1A, 30VDC |
Withstand Voltag | 500 VAC |
Operating Force | 160gf, 250gf |
Operating Temperature | -25oC ～ +80oC |
Contact Resistance | 50 mΩ Max |
Insulation Resistance | 100MΩ Min |
Life Time | 10,000 Cycles |

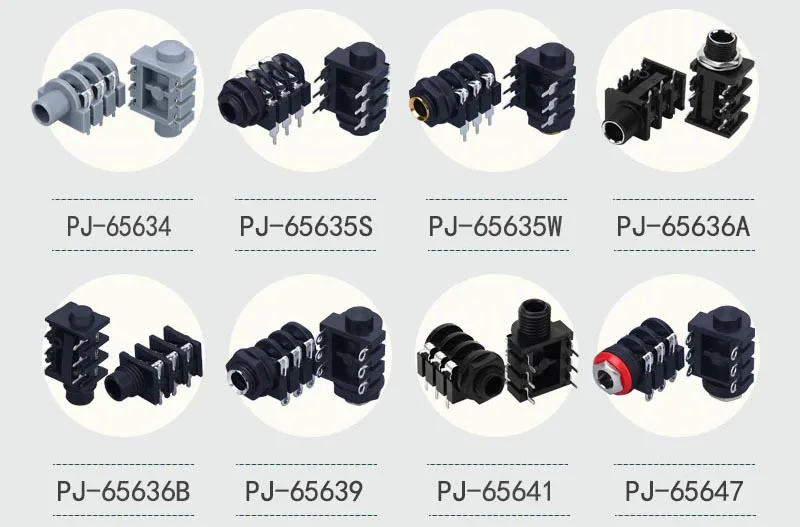

Related Products
