Product Overview
Description
Product Description

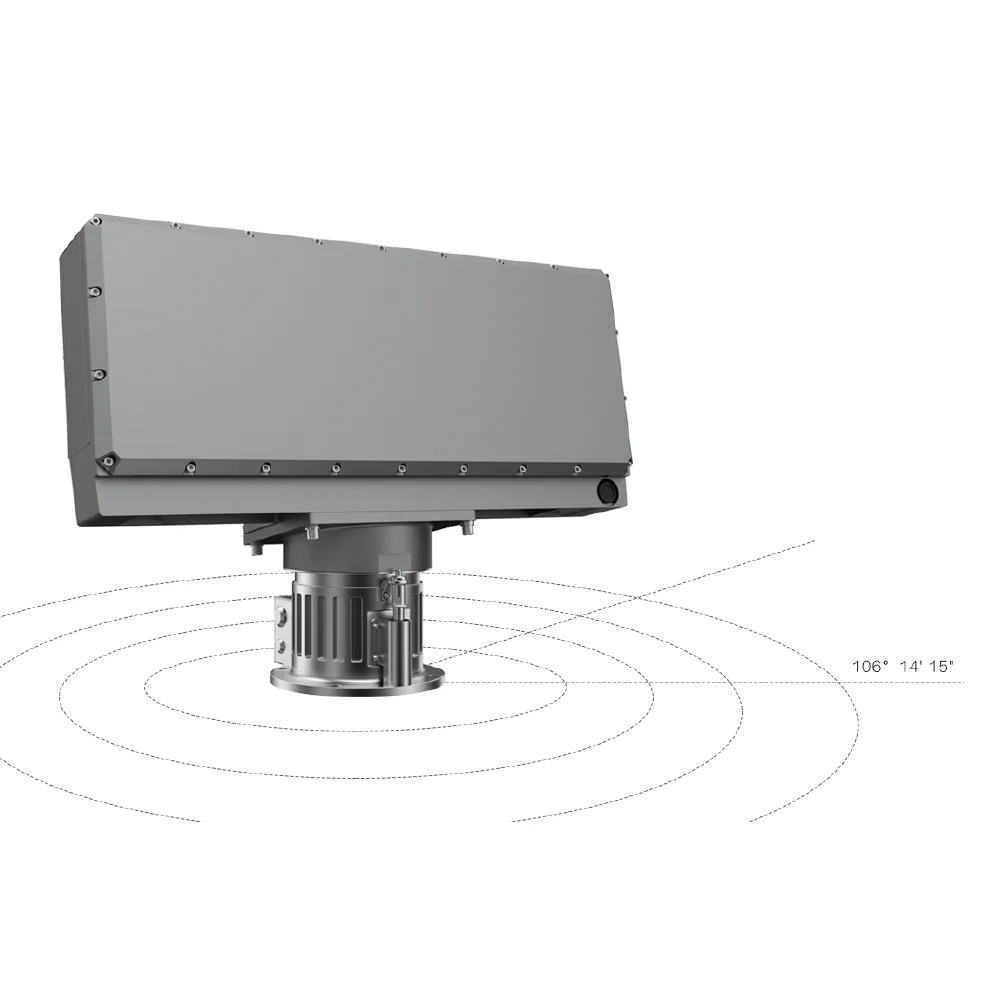

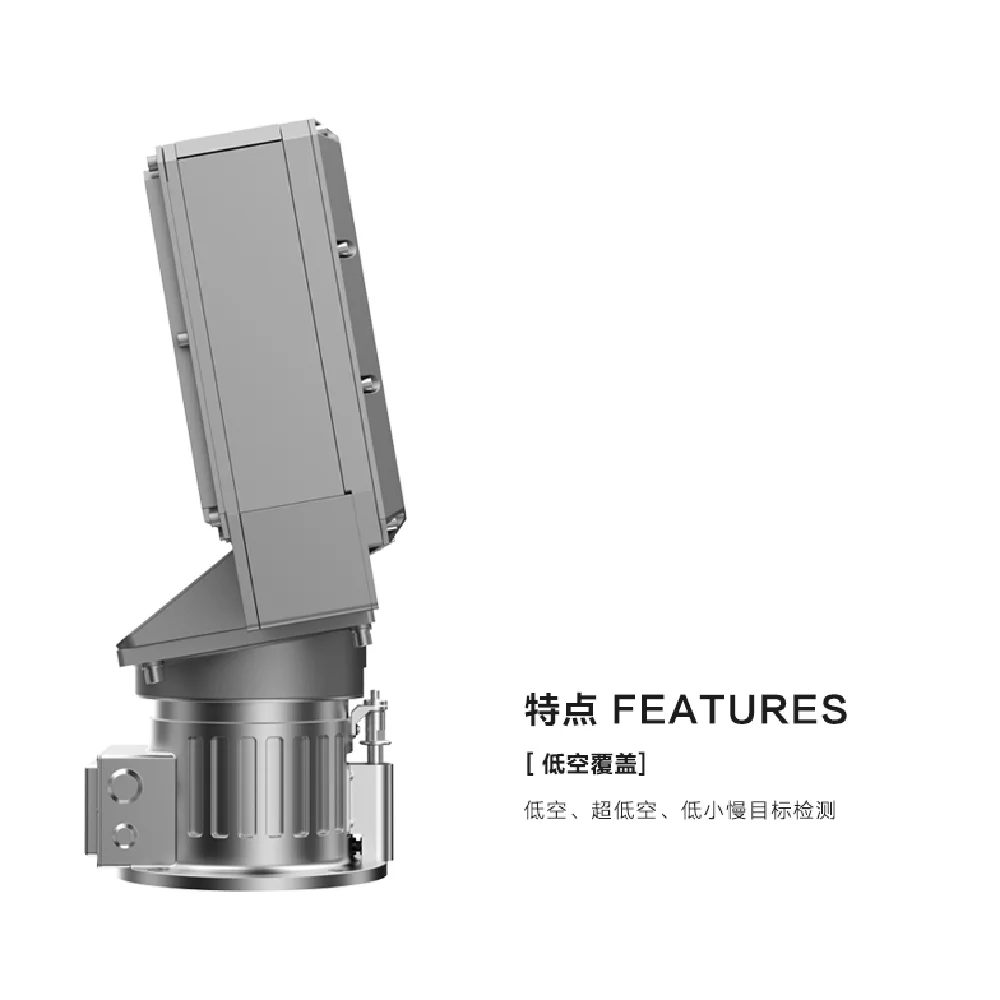

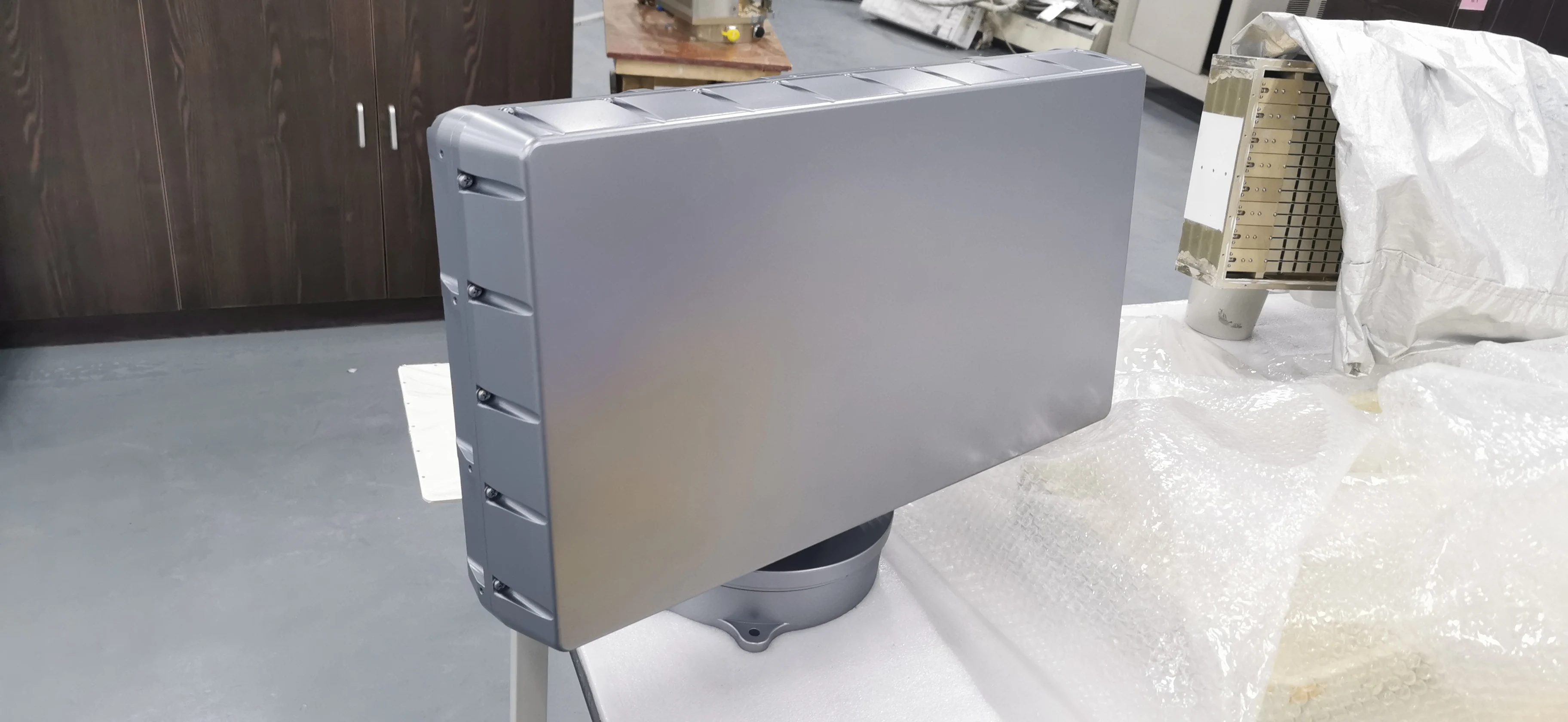

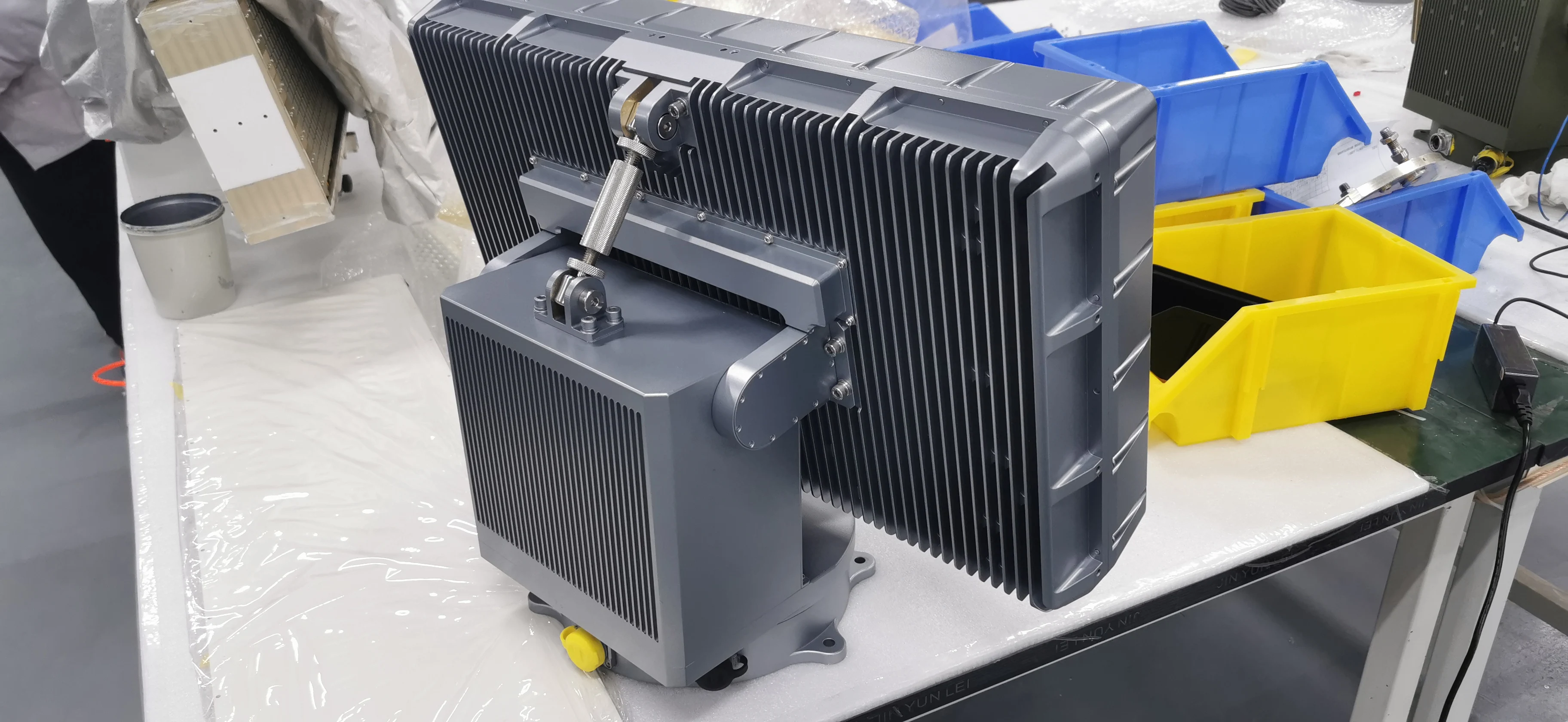

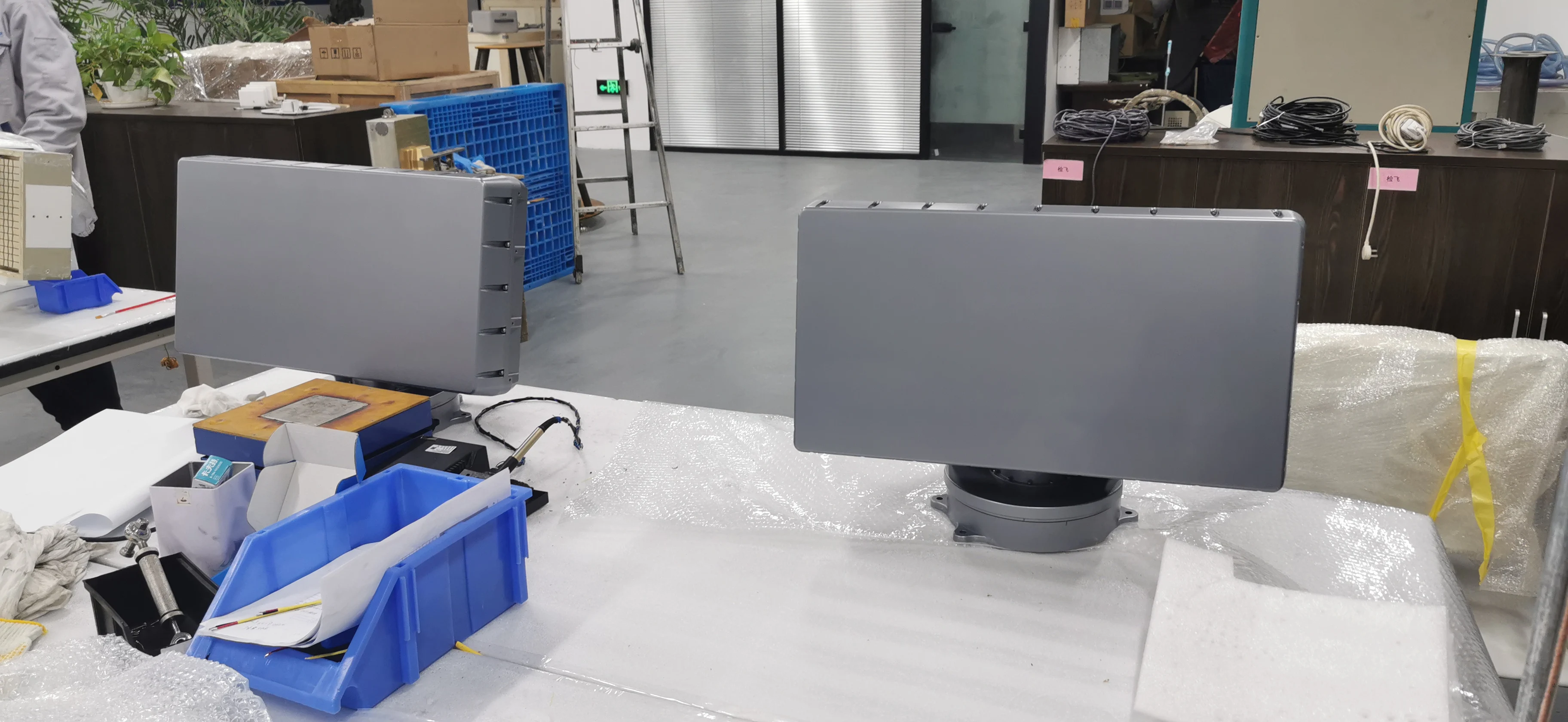

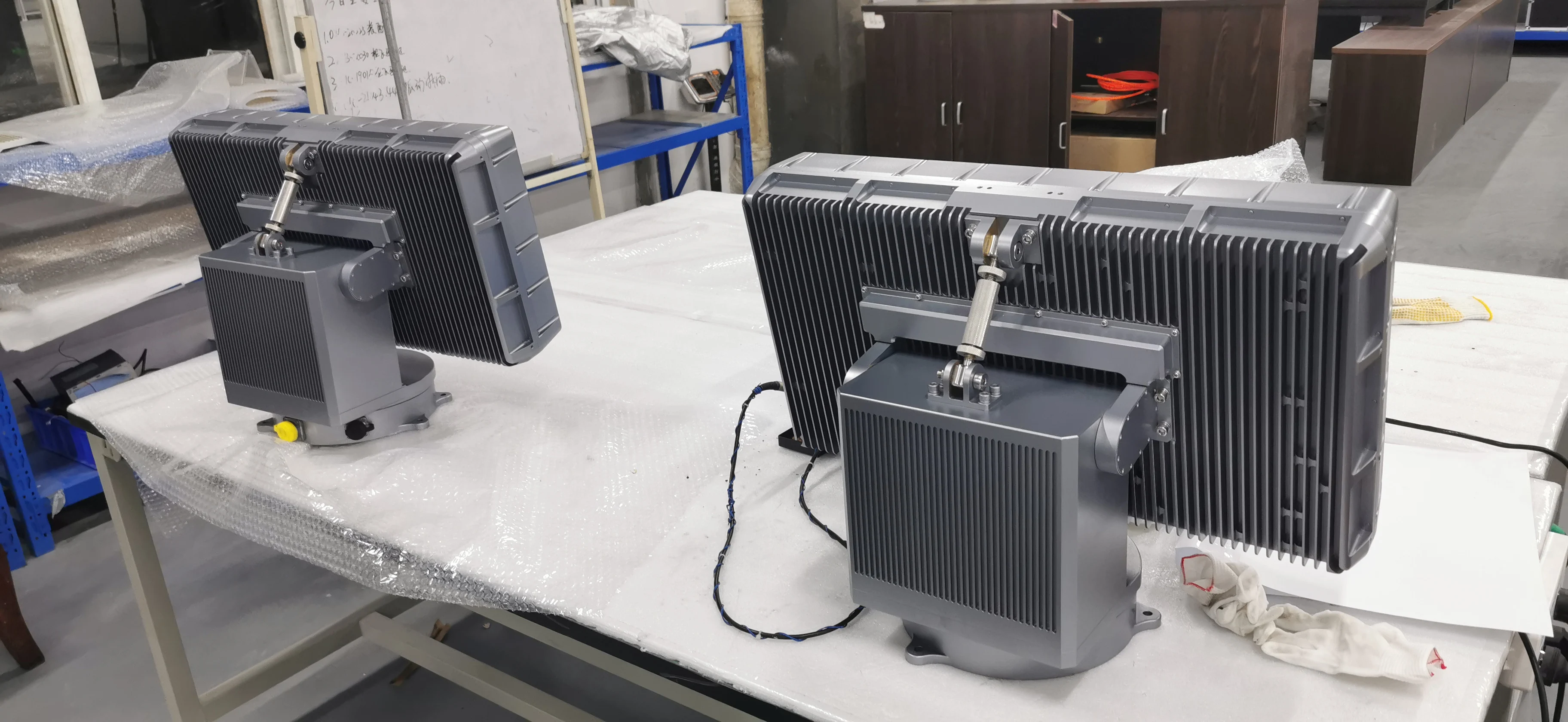

SC-R3000 is a set of three-dimensional space surveillance radar for low-altitude small targets with all-round and high-elevation coverage. It is mainly responsible for real-time reconnaissance of aircraft, ground personnel, vehicles and other targets in the surrounding area, finds and tracks targets, and outputs target information or report to the accusation platform. The radar supports three modes of installation: fixed, vehicle-mounted and portable, and is flexibly suitable for different application scenarios.
Product Parameters
Working frequency | Ku-band (16.01GHz~17.018GHz) | ||
Modulation type | linear frequency-modulation pulse | ||
Scanning method | Azimuth mechanical scan + elevation wide beam | ||
Detection angle | Azimuth: 0°~360°scan, pitch 0°~ 40 ° | ||
Measure dimension | Range/Azimuth/Elevation/Speed | ||
Detection distance | > 3 km (micro-UAV RCS=0.01); | ||
Accuracy | Distance Accuracy: ≤ 10 m; Azimuth Accuracy: ≤ 1 °; Pitch Accuracy: ≤ 1 ° | ||
Detectable target minimum speed | 1m/s~80m/s | ||
Near end blind spot | ≤200m | ||
Target capacity | ≥200 | ||
Resolution | Distance ≤ 15 m, azimuth resolution: ≤ 2.5 ° , pitch resolution: ≤ 6 ° | ||
Tracking method | TWS/Continuous Tracking | ||
Self-check capability | Real-time subsystem working status monitoring | ||
Protocol | UDP | ||
Transmit power | Average power: ≤25W; Peak power: ≤100W; | ||
Power consumption | Average power consumption: ≤160W | ||
Turntable speed | 3r/min ~12r/min can be set | ||
Power supply | AC220V/50Hz | ||
Data interface | Gigabit Ethernet port | ||
Weight | (without tripod, without rain cover): ≤25kg | ||
Dimensions | ≤560mm×210mm×400mm (length×width×height) | ||
Operating temperature | − 40 ℃~ +60 ℃ | ||
Protection class: | IP65 |
Company Profile
Hunan NovaSky Electronic Technology Co.,Ltd. was established in 2006. The company focuses on electromagnetic detection, sensing and control technology, and provides product and system integration services for anti-terrorism, search & rescue, high-end security and automotive safety. At present, the company has subsidiaries in Beijing and Shanghai, and R & D centers in Changsha, Chengdu and Xi'an. Novasky is rewarded as national high-tech and "double-soft" certification enterprise.
Certifications
Our Exhibition
Test Equipment
After Sales Service
FAQ
1 Q:Do you have any discount?
A:Yes, if you buy large QTY, please send us a email, we will give you a big discount.
2 Q:What's the delivery time?
A:According to the specification and quantity of your order, generally 7-10 days for normal
standard products within 50pcs.
3 Q:Do you have overseas distributor?
A:Yes,we have distributors in Korea, Singapore, Malaysia, UK and so on.
4 Q:Can we use our logo on the products?
A:Yes.We can provide OEM and sign a licensing agreement.
5 Q:Are you manufacturer or trading company?
A:We are manufacturer with 15 years of experience.Welcome to visit our company.
6 Q:Do you have any certification?
A:Yes,according to the different products,overpass CE, RoHS, ISO, Ex,Ul etc,we can offer certificates.
7 Q:How the stability of products?
A:3~5 years is ok in normal situation.
8 Q:What's the means of transport?
A:Express such as TNT,Fedex,DHL,UPS, or logistics by indicator.
