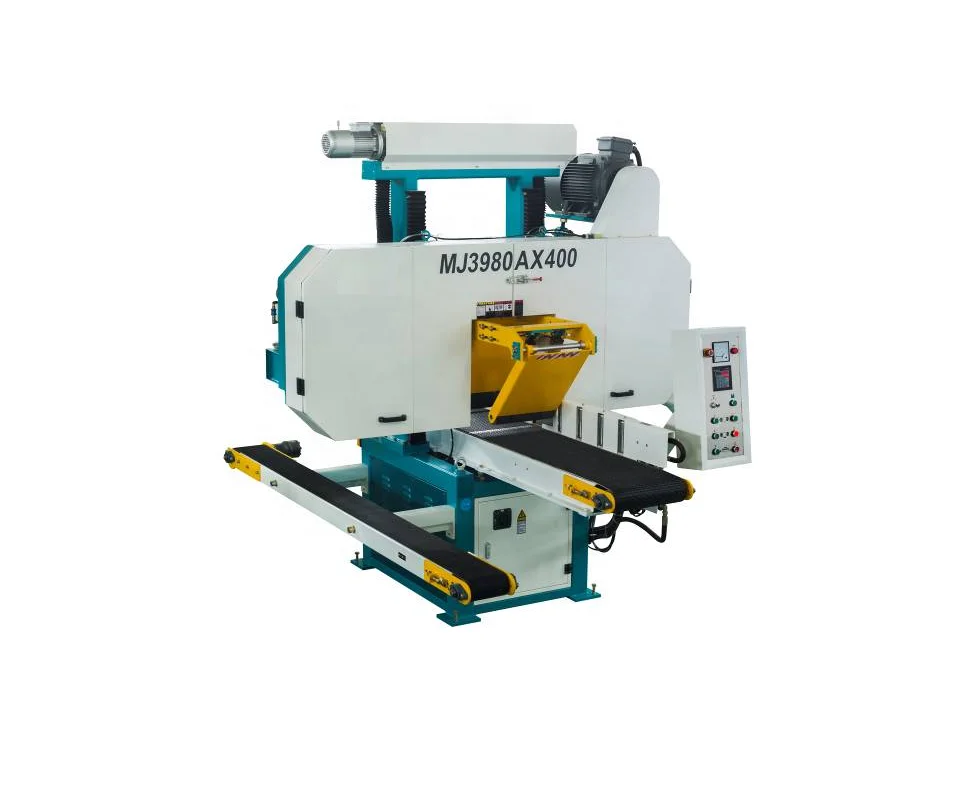

300mm Working Thickness High Precision Square Lumber Wood Band Saw Resaw
- Category: >>>
- Supplier: Shandong STX Machinery Trade Co. Ltd.
Share on (1600655355864):
Product Overview
Description
Lumber Saving Heavy Duty Precision Horizontal Resaw Bandsaw Machine with CE
1. Function:
This machine widely used in solid wood panel (pine, fir, oak, poplar, mahogany, etc.),with
high efficiency,precision,labor-saving,material-saving,and safety.
2.Performance and advantage
1. High efficiency:Hydraulic feeding, the opening speed can generally reach 18 meters/
minute.
2.Low consumption:
1) Save wages:recruit ordinary workers to solve the difficulty of recruiting masters and
reduce wage costs.
2) Save material: The sawing path is small, and the board surface is smooth. Compared with
the traditional vertical saw,each board can save 4-5mm sawing path and materials,and
the planing process can be eliminated. It Can be sanded directly or after drying.
3. Intelligent:The intelligent positioning of the worm gear
reducer is more accurate and reduces the opening error.
3.Technical Specification:
Max. working size (Saw blade to 150mm) | 400×300mm |
Distance from saw blade to worktable | 3~300mm |
Width of conveyer belt | 385mm |
Diameter of saw wheel | 800mm |
Feed speed | 0~20 m/min |
Saw wheel elevation motor | 0.25kw |
Saw wheel motor | 18.5kw |
Hydraulic pressure | 55kg/sqcm |
Dust outlet diameter | 102mm×2 |
Size of saw blade (L×W×H) |
5200 x 40 x 0.9mm |
Saw kerf | 1.2~2.2mm |
Orerall dimensions(L×W×H) | 3000×2250×2400mm |
Net weight | 2230kg |
4.Features:

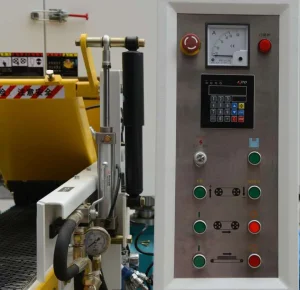

Digital display thickness setting:Use the numeric keyboard keys to set the plate thickness, the operation is fast and convenient,and the positioning is accurate.
|  |
| Thick workbench:The workbench uses 8MM thick plate, and the bottom is full of ribs. Prevent deformation due to long-term use,to promise it sawing accuracy. |

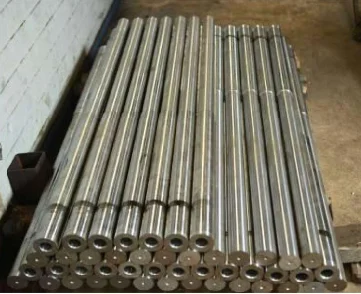

Bold lifting shaft The load-bearing column of the upper saw wheel frame adopts φ65MM diameter 45# carbon steel. Deformation can be prevented by heat treatment. The extro thick 8C hard chrome plating layer is not easy to rust and dechromate, smooth movement,load-bearing wheel frame is not easy to deform, less vibration, and sawing will be
|  |
| Lifting system:using Taiwan brand ABBA precision screw,the lifting height can be set freely within 200MM, which is convenient for adjusting the thickness of the plate and positioning accurately. |

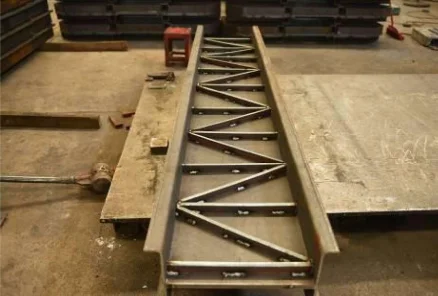

| Thickened saw wheel bottom plate:14mm thick national standard steel plate is laser cut, square tube is reasonably distributed in vertical and horizontal directions to reirforce steel bars,and fully welded, which has good rigidity, is not easy to deform,and the saw blade is more durable. |  |
 | stable oil temperature, smooth conveying, smooth sawing of boards, speed regulation range is 0-18m/min: 1. Imported valve from the United States:Control the flow of hydraulic oil,the output is smooth and stable, and it does not appear to be fast or slow or continuous heating. Ensure the feeding is stable without jitter,the sawing board is smooth without chattering,the speed range is wide,and the speed can be adjusted according to woods.(Other brands use motor drive to feed,the speed adjustment range is small,and the motor is easily damaged when the adjustment range is exceeded) |
Chinese-Italian hydraulic motor:Specially imported technology from Italy, which drives the power of the feeding belt. The oil flow djustment range is large. When the hydraulic motor is switched between high and low speeds,the power and speed are stable.
|  |
| Gear pump in Taiwan:The hydraulic motor drives the gear pump to output hydraulic oil. Power on for a long time to ensure smooth and stable oil pressure without high temperature heating. |
Hydraulic feeding device:the hydraulic motor drives the feeding wheel to drive a single-slot belt feeding. The curved surface feeding wheel prevents the feeding belt from swinging and deviating,the feeding is stable,and the sawing plate is smooth and accurate. |  |
 | Hydraulic returning device:the hydraulic motor drives the feeding wheel to drive the belt feeding.The curved surface feeding wheel prevents the feeding belt from swinging and deviating, which is particularly suitable for the sawing process where one board opens multiple pieces |
| Saw wheel diameter 800mm, saw wheel outer circle contact surface greatly increases friction,speed up by 50% faster than the ordinary horizontal band-sawing machine. |  |
| Heavy-duty bearing device:NSK heavy-duty release bearing 32013 is used inside the saw wheel.The large bead contact surface ensures that the saw blade can withstand greater tension when tensioned,so that the two saw wheels are less deformed when tensioned. The outer circle of the saw wheel is wear-resistant, stable and smooth. |
Tensioning guide for saw wheel: Guided by the
|  |
| Fully automatic tensioning system: Using the full-automatic tensioning system, one person can quickly change the saw blade. The system has an automatic pressure holding function.When sawing,when the saw blade is hot, it will automatically increase the pressure. Ensure the saw blade is stable,not easy to break or deviate. |

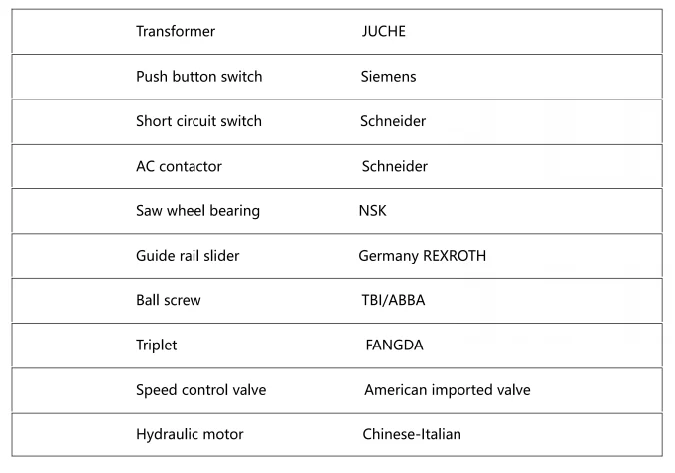

Introduction of quality accessories: |  |
| Vibration reduction of the front press: The vibration reduction function can buffer the thick wood from vibration when exiting the front press, reducing work errors and reducing chatter marks. |
Back pressing:The inclined pressing plate design does not block back the material to be fed.The rubber layer prevents slipping and is fine-adjusted when there is a difference in wood height.The air cylinder adjusts the air pressure according to the thickness of the material, presses the wood to prevent it from |  |
| Water reservoir: It is used to store water or diesel oil. The saw blade will be cooled and lubricated with water mist or diesel oil, when it is overhot. |
| Water spray device: The saw blade generates heat during sawing. The water spray device sprays water on the saw blade in the form of spray to cool down and lubricate the blade.The saw blade is stable and is not easy to drift or break. |  |
 | Saw clip guide wheel: Special wear-resistant ceramics are used as clips to prevent the saw blade from vibrating up and down.The 10,000-speed high-speed guide wheel prevents the saw blade from backing up and ensures that the saw teeth are exposed to the saw wheel.Therefore,the saw blade is not easy to break and deviate,and the cutting is accurate. |
| International first-line brand electrical appliances:Siemens/Schneider contactors/thermal relays,which are more durable for frequent startup operations.Phase sequence protectors can automatically protect the voltage when the voltage is unstable,and the failure rate is low. The machine uses European standards. 110V safety voltage. (Other brands are all domestic brands) |  |
