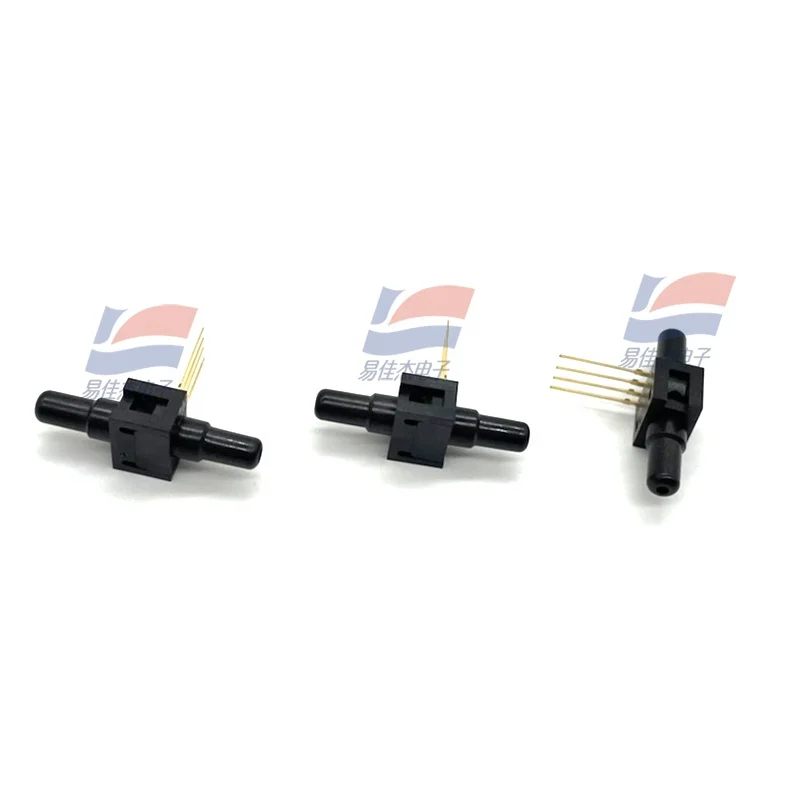

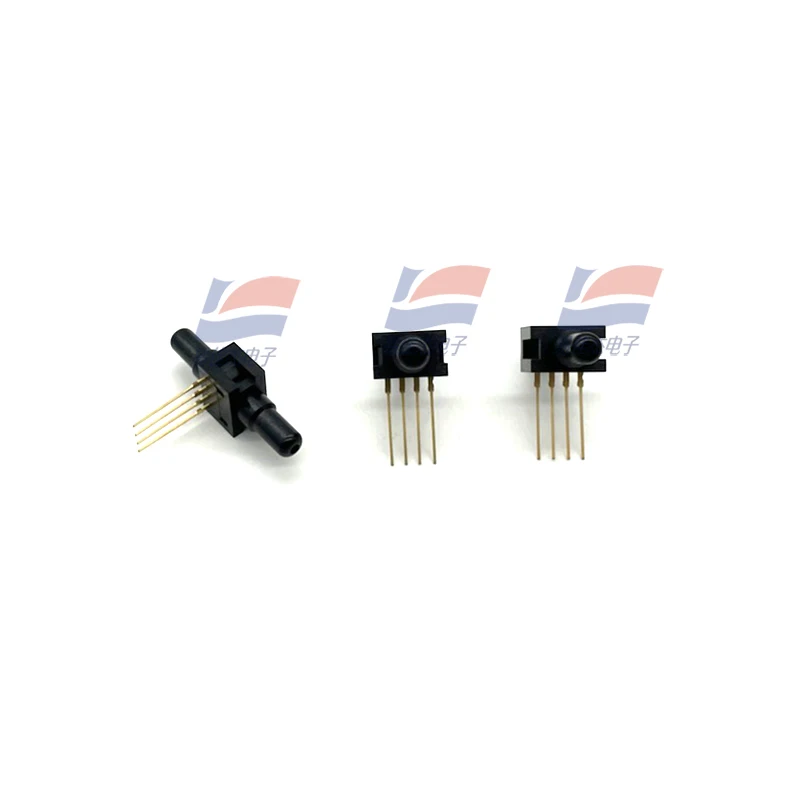

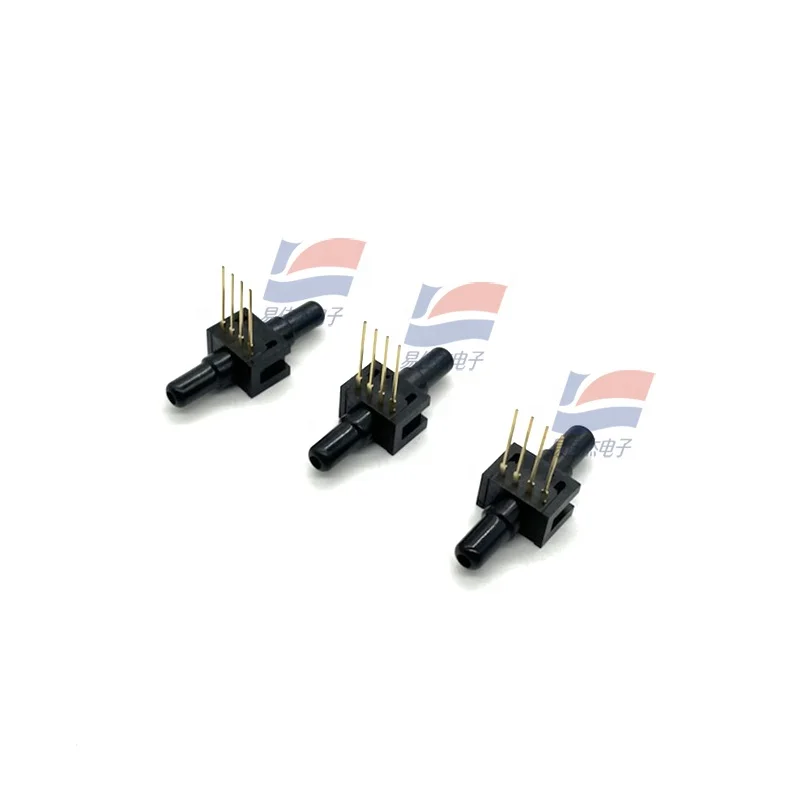

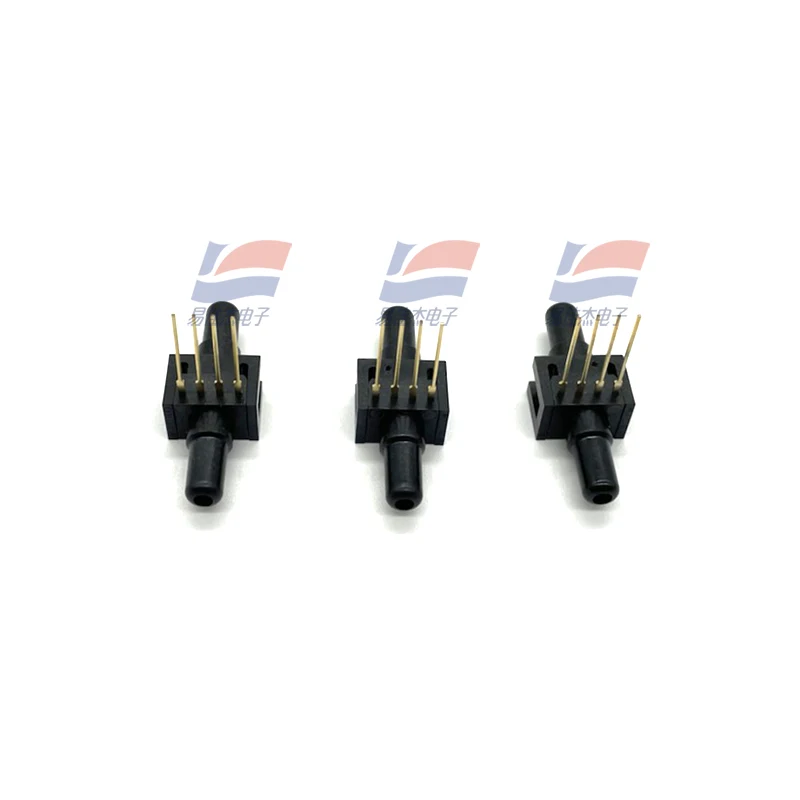

YJJ Factory calibrated 26PC series miniature pressure sensors 26PCCFA6G

Product Overview

Description

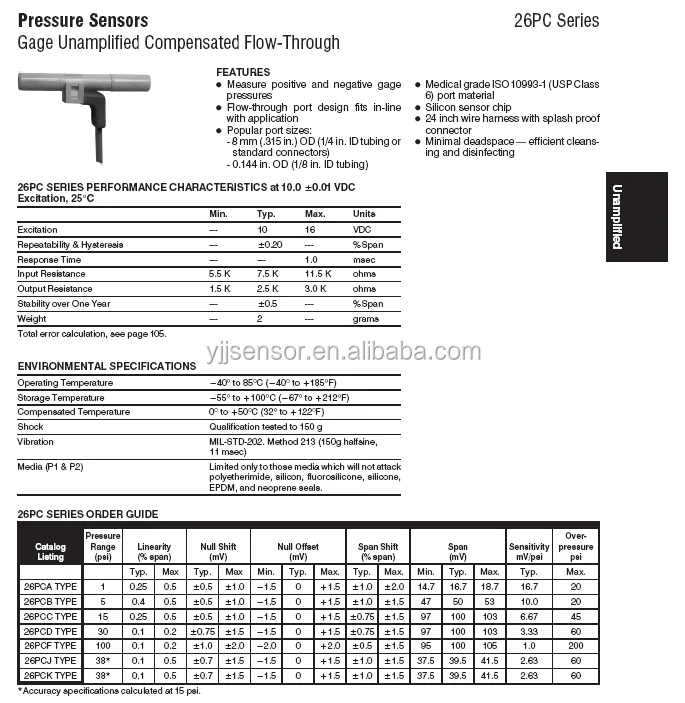

26PC SMT PERFORMANCE CHARACTERISTICS (AT 10 VDC ±0.01 VDC EXCITATION, 25 °C)

Min. Typ. Max. Units

Excitation Voltage — 10.0 16.0 Vdc

Response Time — — 1.0 ms

Input Resistance 5.5 k 7.5 k 11.5 k Ohm

Output Resistance 1.5 k 2.5 k 3.0 k Ohm

Span P2>P1(1) Min. Typ. Max.

0 to 1 14.7 16.7 18.7 mV

0 to 5 47 50 53 mV

0 to 15 96 100 104 mV

Null Offset Min. Typ. Max.

0 to 1 -2.0 0 +2.0 mV

0 to 5 -2.0 0 +2.0 mV

0 to 15 -2.0 0 +2.0 mV

Linearity (BFSL P2>P1) Typ. Max.

0 to 1 — ±0.50 ±1.75 % span

0 to 5 — ±0.50 ±1.5 % span

0 to 15 — ±0.50 ±1.0 % span

Null Shift 25 °C to 0 °C, 25 °C to 50°C(2) Typ. Max.

0 to 1 — — ±1.0 mV

0 to 5 — — ±1.0 mV

0 to 15 — — ±1.0 mV

Span Shift 25 °C to 0 °C, 25 °C to 50°C(2) Typ. Max.

0 to 1 — ±1.5 ±4.5 % span

0 to 5 — ±1.0 ±1.7 % span

0 to 15 — ±0.75 ±1.5 % span

Repeatability and Hysteresis Typ. Max.

0 to 1 — ±0.2 — % span

0 to 5 — ±0.2 — % span

0 to 15 — ±0.2 — % span

Overpressure P2>P1; P1>P2 Typ. Max.

0 to 1 — — 20 psi

0 to 5 — — 20 psi

0 to 15 — — 45 psi

Notes:

1. Span is the algebraic difference between output at maximum rated operating pressures and output at 0 psi.

2. Temperature error is calculated with respect to 25 °C.

SPECIFICATIONS

Characteristic Description

Storage Temperature -55 °C to 100 °C [-67 °F to 212 °F]

Operating Temperature -40 °C to 85 °C [-40 °F to 185 °F]

Compensated Temperature 0 °C to 50 °C [32 °F to 122 °F]

Alignment Pins 0,86 mm [0.034 in] diameter pins extend through PCB

Port Diameter 1,88 mm [0.074 in] diameter uses standard 0,59 mm [0.0625 in] ID tubing

Port Orientation Parallel to PCB (low profile on board)

Pick Up Feature 3,18 mm [0.125 in] feature on port cover

SMT Solder ·  Sn 96.5 Ag 3.5 No Clean Flux

·  Sn 63 Pb 37 No Clean Flux

SMT Reflow Profile Max peak temperature of 260 °C [500 °F] for 10 seconds

Media Compatibility Both ports are limited to media that are compatible with polyphthalamide,

fluorosilicone and silicon.

Shock Qualification tested to 150 g

Vibration MIL-STD-202. Method 213

(150 g half sine 11 ms)

Weight 0.5 grams [0.0176 oz]
