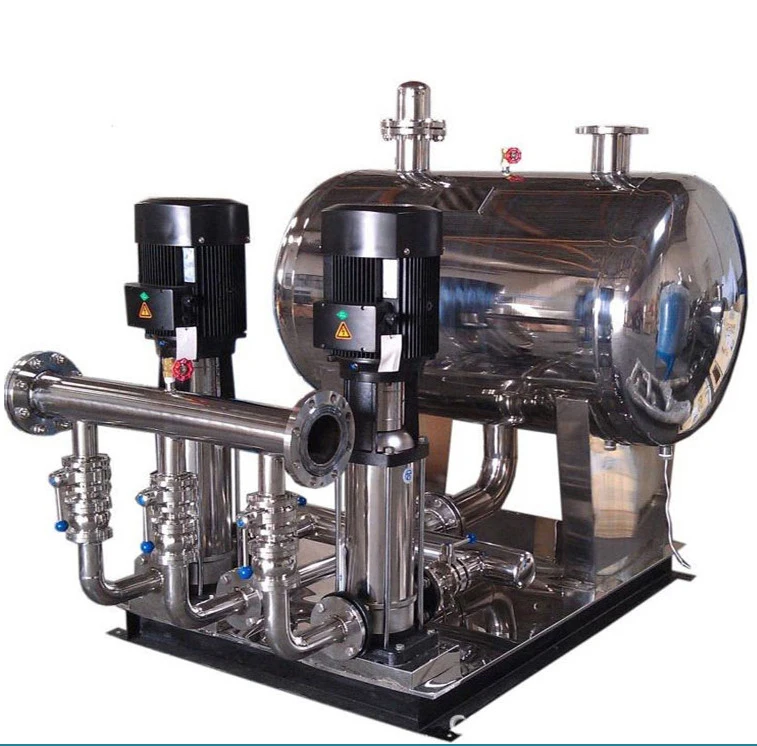

1ph 220v to 3ph 380v Durable warranty 2 years low noise Multistage pump vsd 300 gpd RO system

Share on (1600655411723):


Price:

Quantity:


Product Overview

Description


12-


1_01


.jpg









































































Product Type

Booster Pumps,Centrifugal Pumps,HVAC Condensate Removal Pumps,high life pump


Product name

Stainless steel industrial pump RO Water Pump


MaterialStainless Steel(Except Flow Passage Components)
PackagingWooden case or carton box will be provided.
Flow rate0.6~240m³/h
Head range5~360m
Power range0.37KW~110KW
MaterialSS304/SS316L/SS904
Frequency50/60HZ
Temperature type-15 to 180℃
Max working pressure4Mpa
Insulation classF
ConnectionFlange/Thread
SealCartridge mechnical seal
Warranty2 years
IP classIP55
AltitudeMax. 1000m (If >1000m,customized)


Introduction

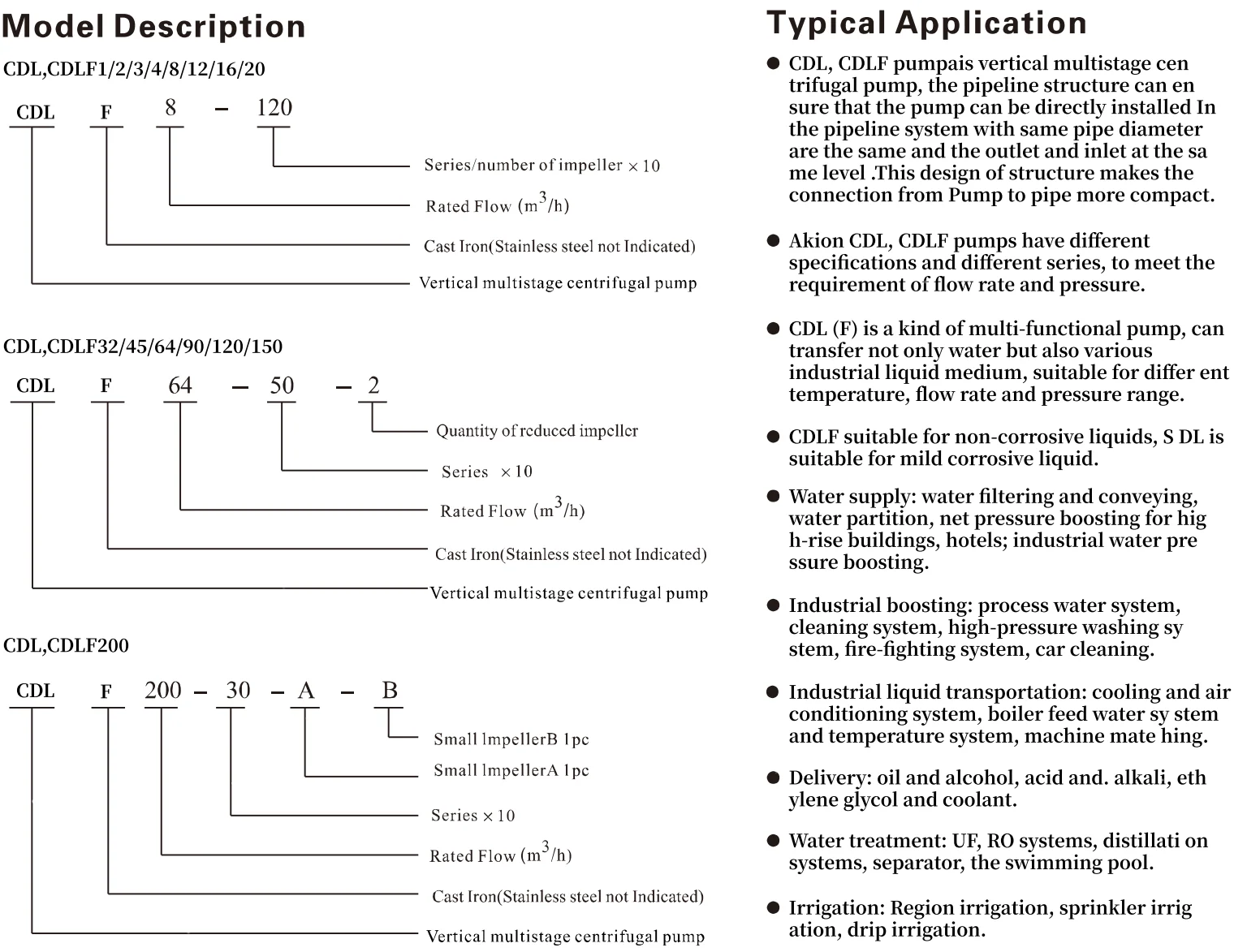

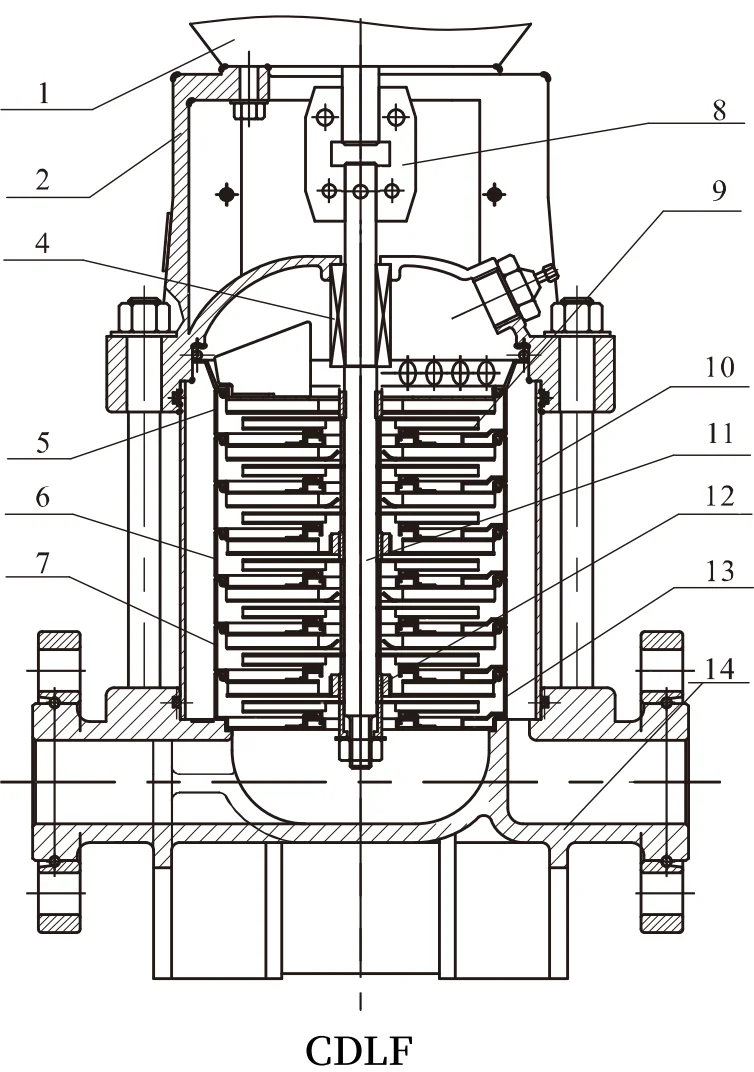

CDL F.png



  • Working conditions
    Thin, clean, non-flammable, non-explosive, solid free, fiber free, physically and chemically water-like liquid.

  • Liquid temperature:
    Room temperature type: -15℃ to 70℃
    Hot water type:-15℃ to 105℃
    Environment temperature:Max.40℃
    Altitude: Max.1000m

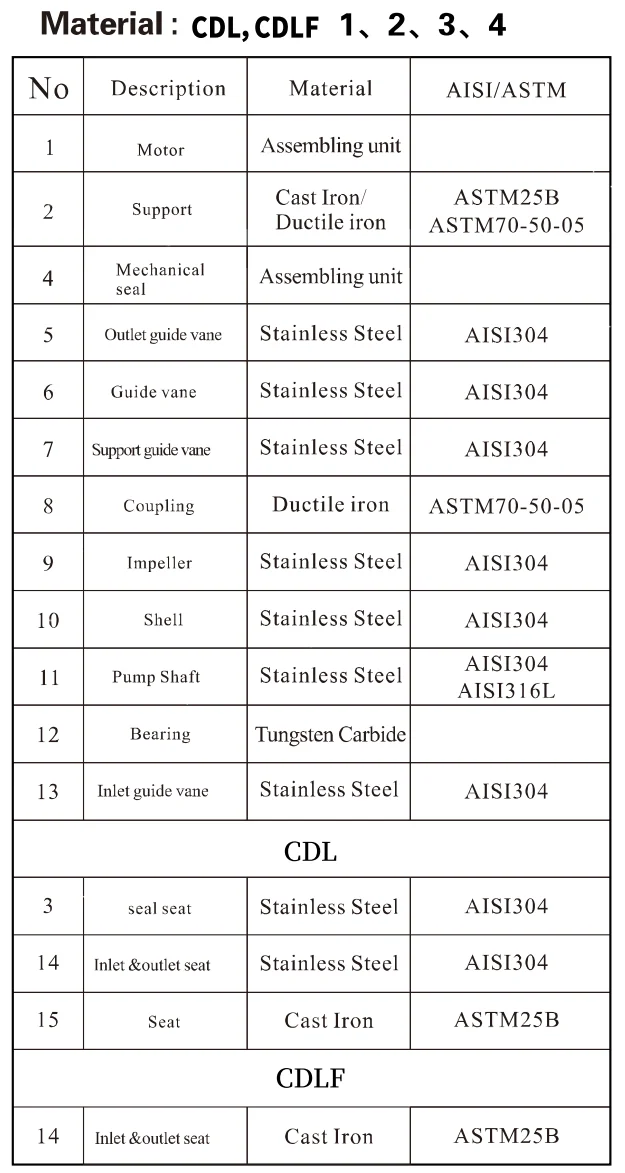

CDL F MATERIAL.pngCDL F.png

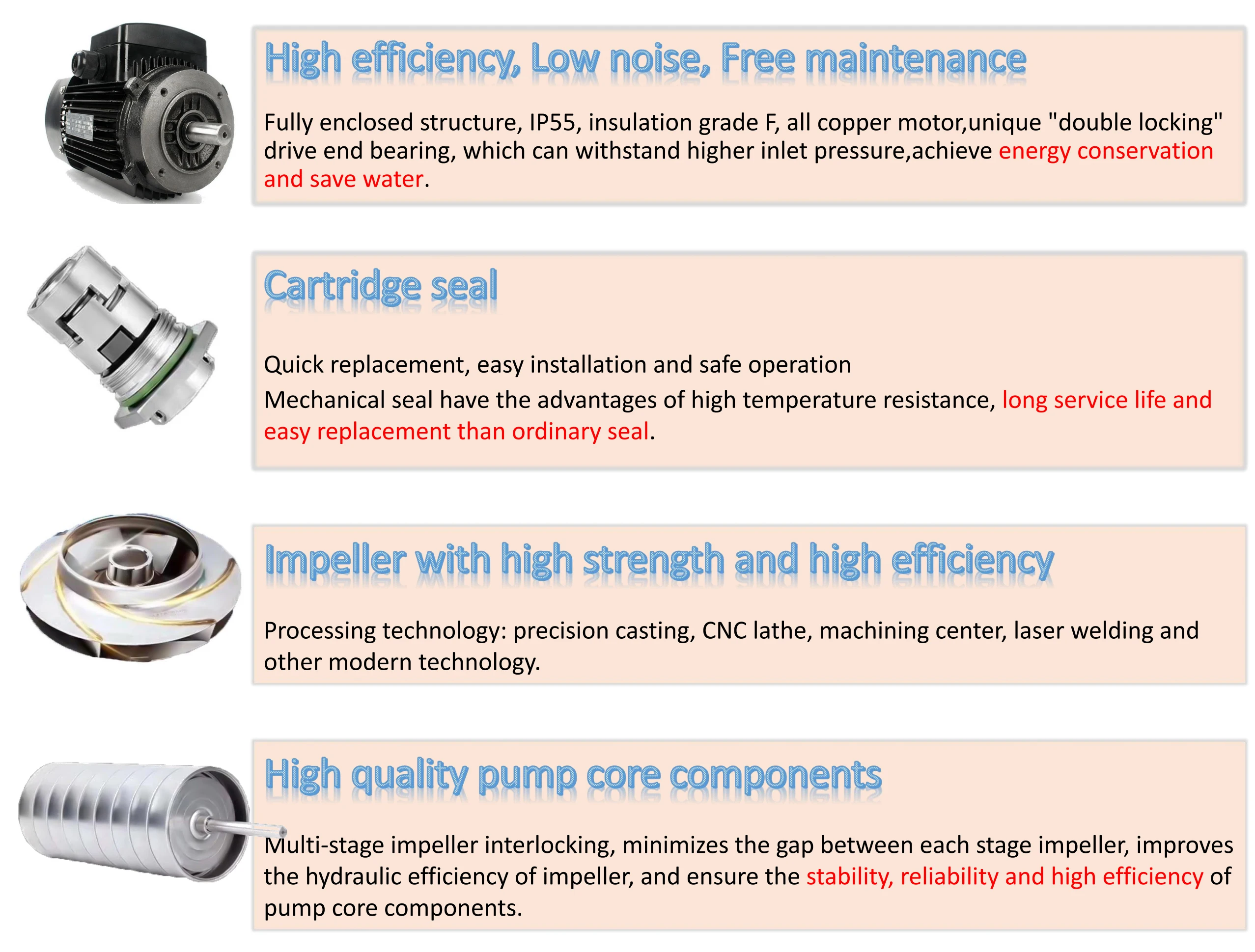

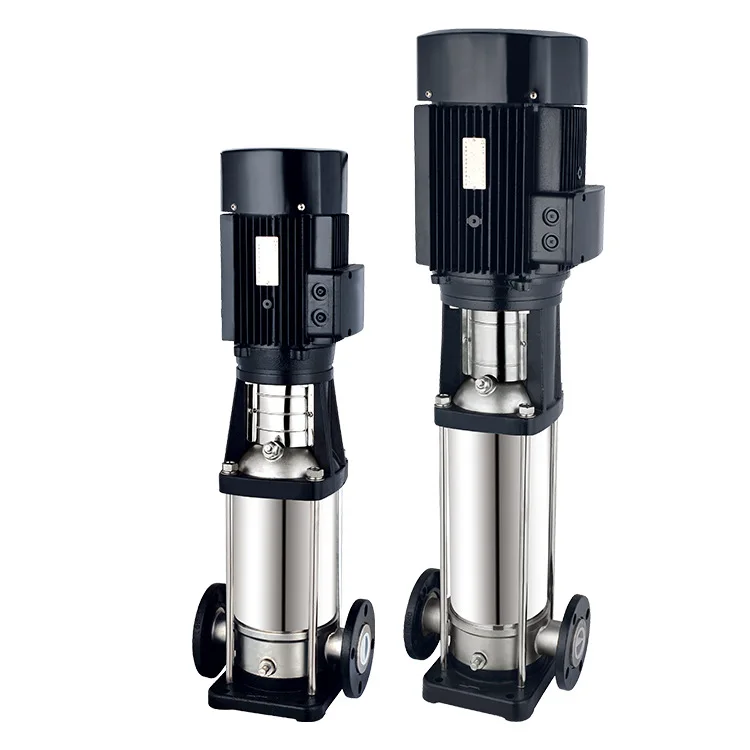

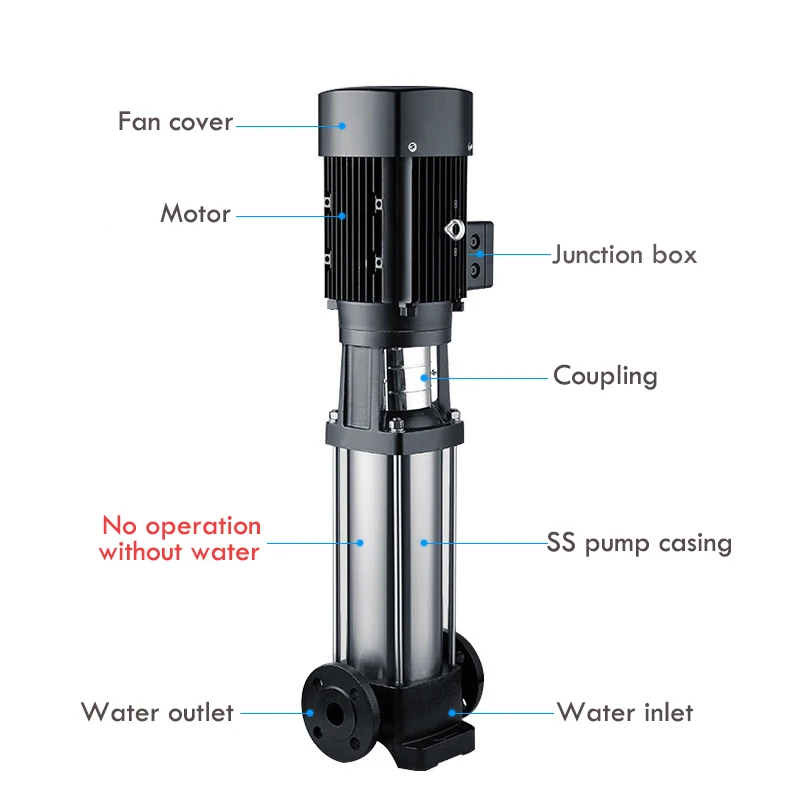

  • CDL(F) series of High-quality Multi-stage Centrifugal Pump is a kind of non self-priming vertical centrifugal pump, which adopts standard motor and assembly mechanical seal. It has so many advantages, such as small volume, light weight, low noise, easy maintenance and nice appearance etc.

  • CDL(F)series are widely used in daily life, industry, agriculture, water treatment system and so on.



pump application

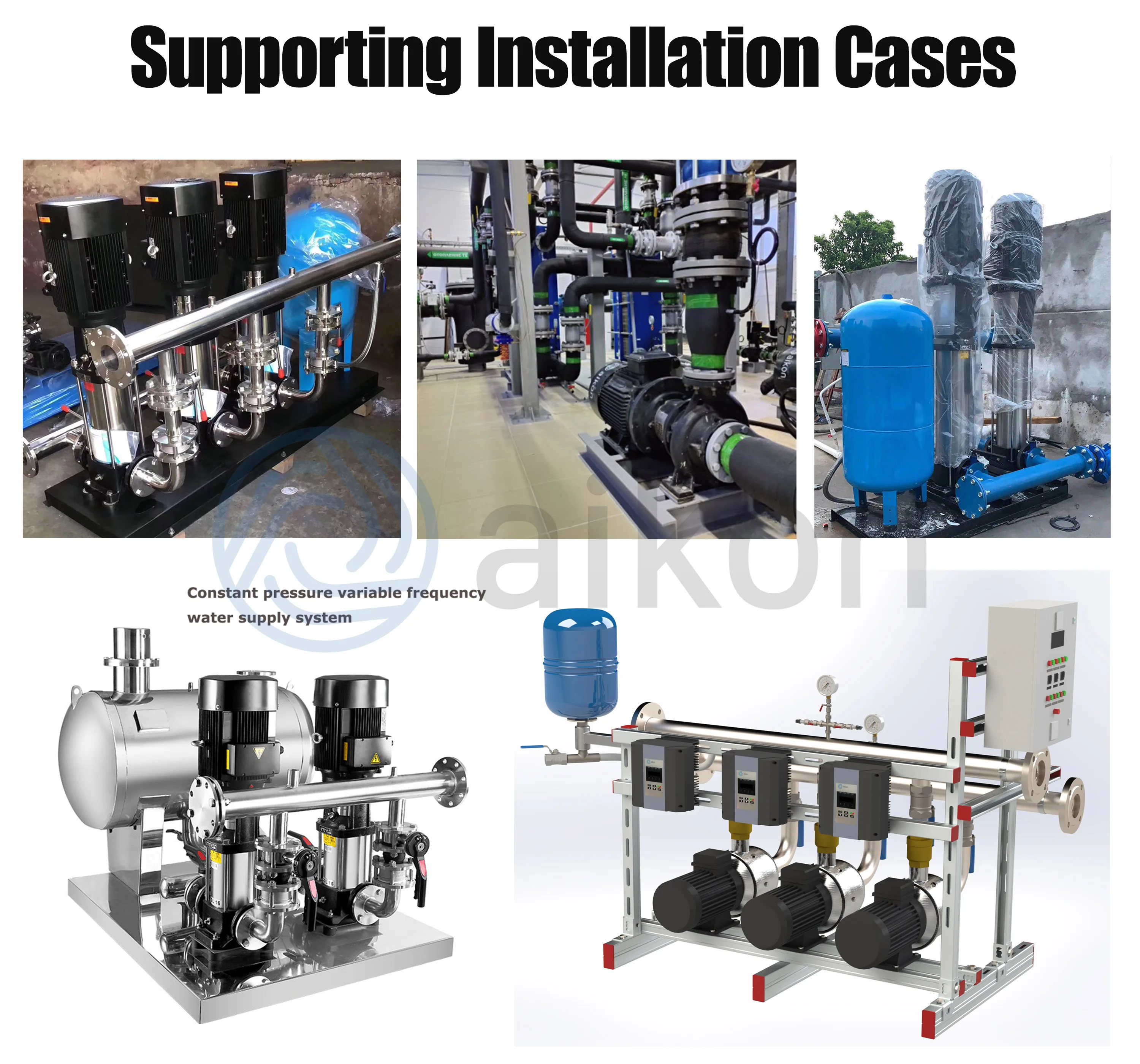

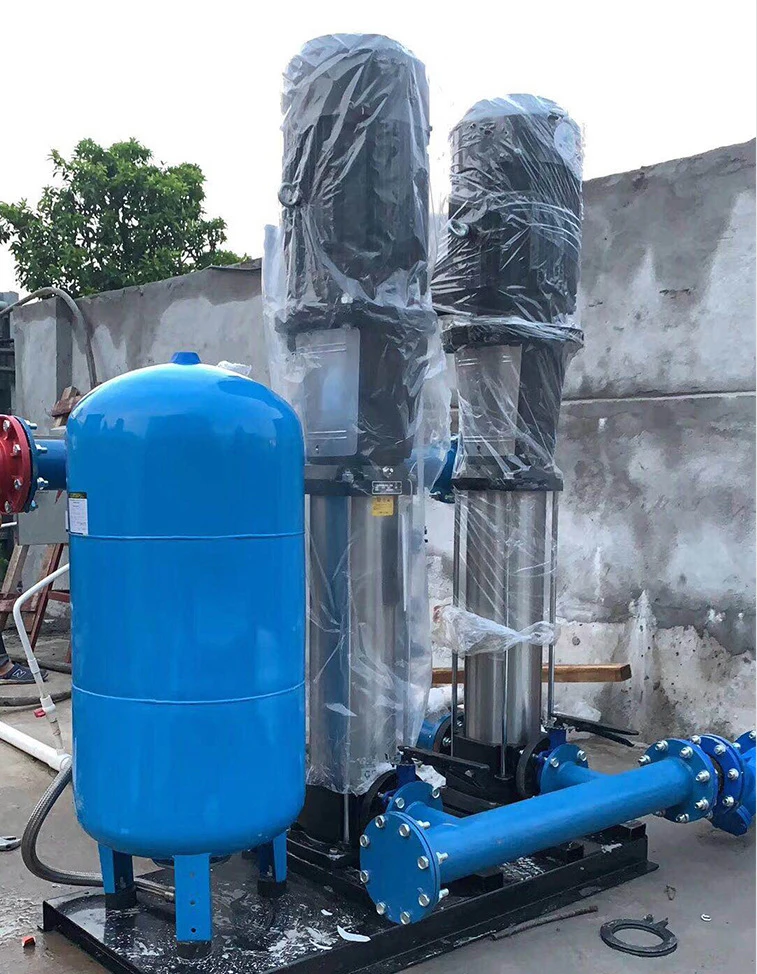

install case.jpg





More Products




Company Information


About us


.jpg


Mission


With constantly innovating and developing, brands that go out of China are no longer inferior to other international mega brands. We simplify the complexity and push the best to the world. We aim number one.





 Our factory


.jpg







Payment&Transport









FAQ


Q:Can you accept customized products?
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.



Q:What’s the terms of payment?


A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.


A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.





Q : What's the different between inverter and solar inverter?
A:Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept DC input, it can save more power.





Q: What should be noticed when installing inverter?
A:Put the product in a place where is well ventilate,cool, dry and water-proof. Do not stress or put foreign objects into the inverter. Remember to turn on the inverter before turn on the appliance.





Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.





Q:Can you give me a discount?


A:We mainly do wholesale service,our discount is based on your order quantity.





Q:What is your main market?


A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America.





Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
