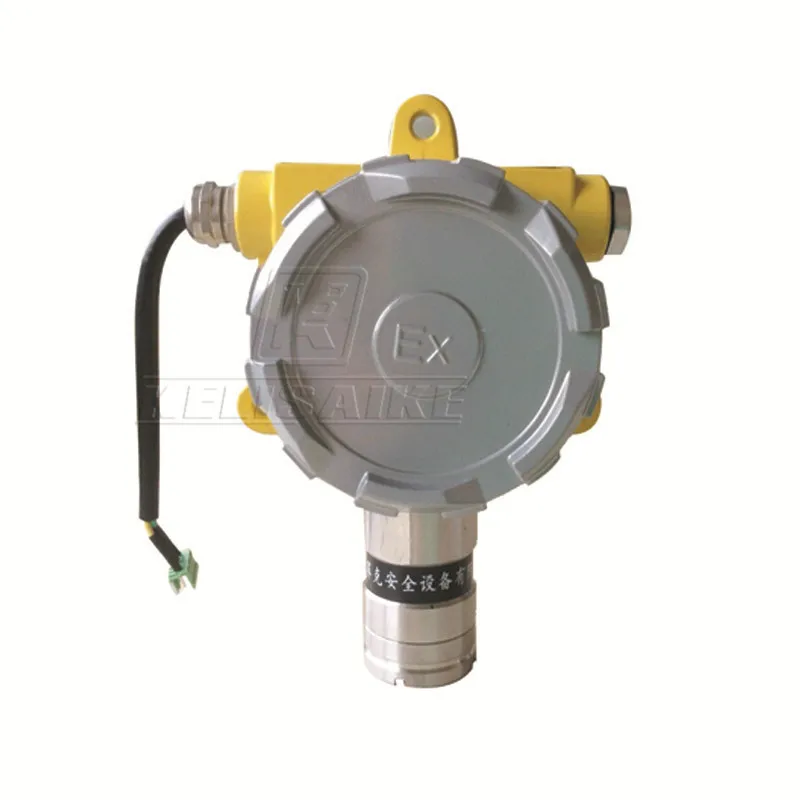

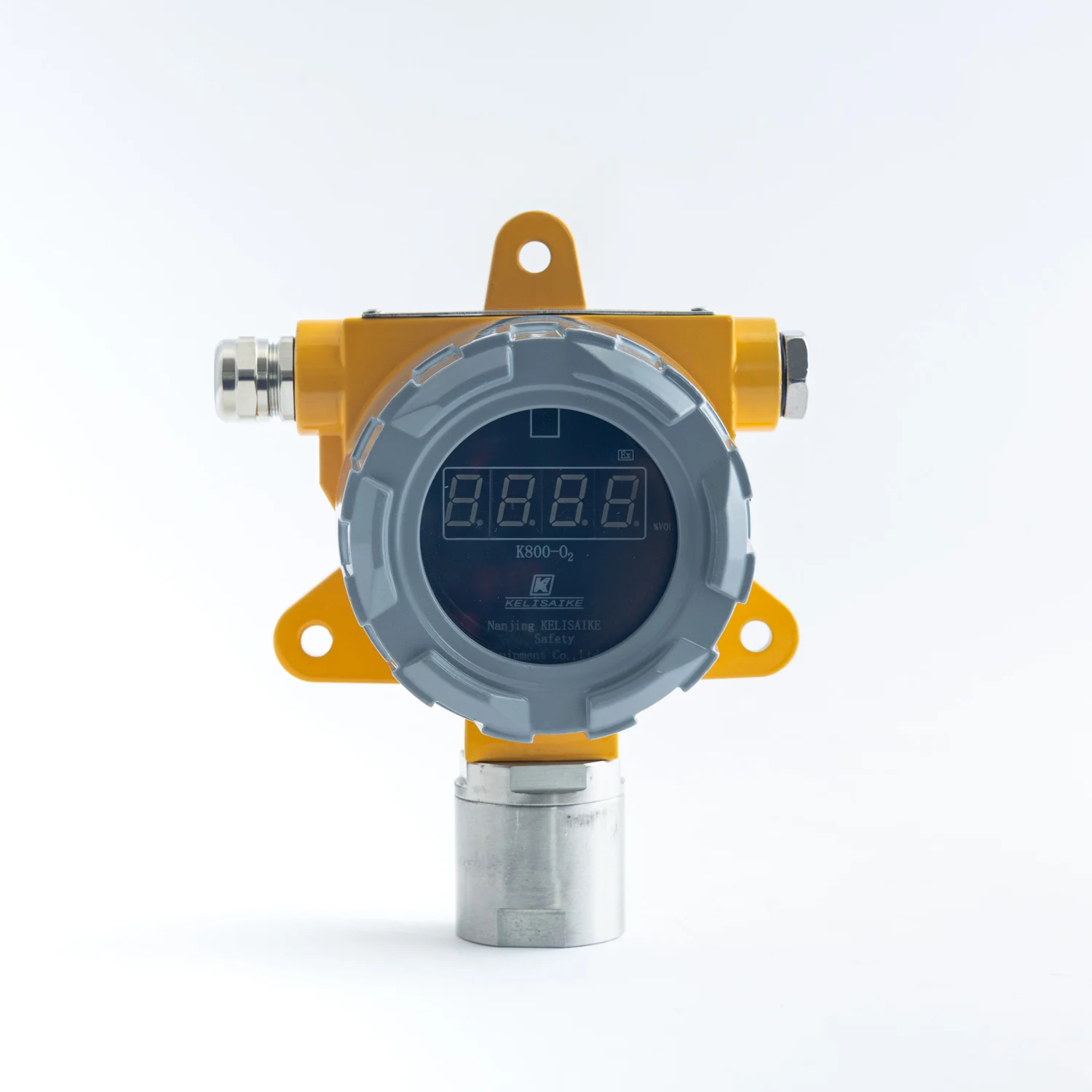

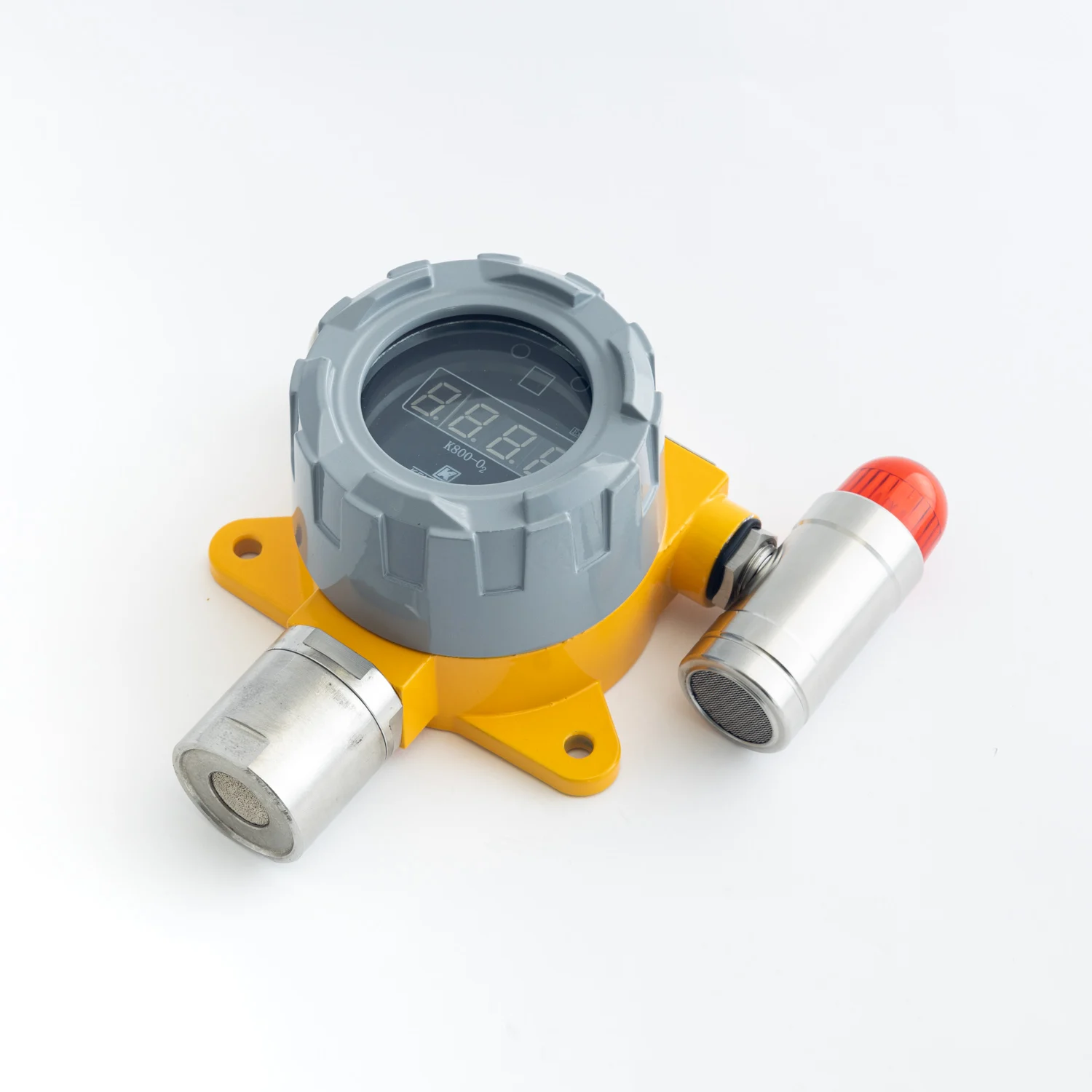

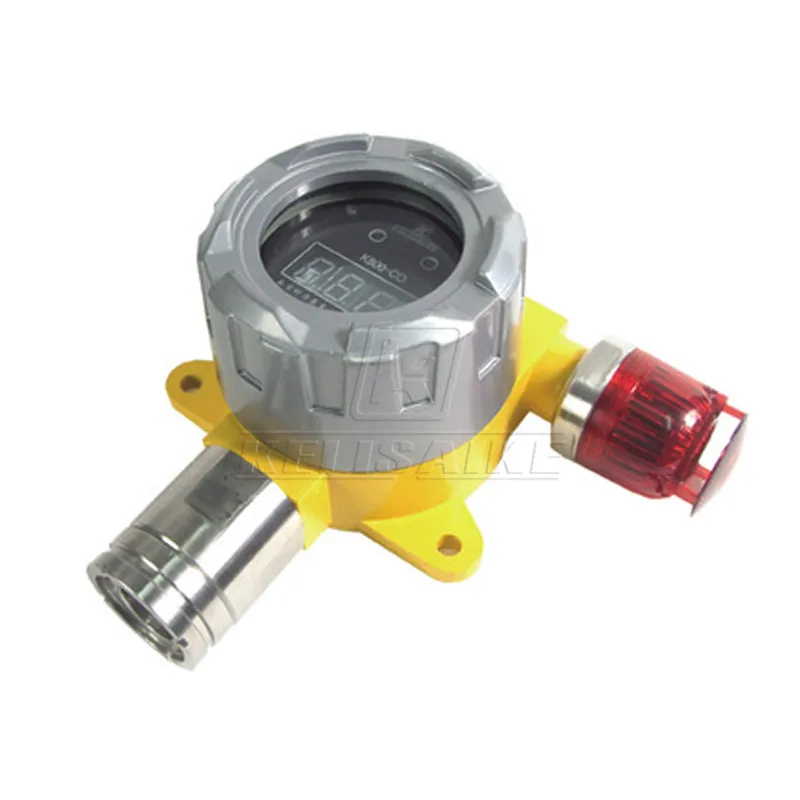

High Precision LCD Display O3 Ozone Meter Fixed Gas Detector with CE certificate

Product Overview

Description

High Precision LCD Display O3 Ozone Meter Fixed Gas Detector with CE certificate





>>> Key Features



1) EX Proof: ATEX & CNEX
2) Accuracy& Stability: Premium Gas sensors (including CITY, ALPHASENSE, HONEYWELL, DYNAMENT etc.), 100% calibration, 100%QC.
3) Maintenance: Module design easy maintenance
4) Warranty Service: 1year warranty& New replacement within 3 months

5) OEM &ODM: 16-year experience in gas detection system, OEM&ODM services are welcome.

6) CERTIFICATIONS: UL, CE, CMC, ATEX, CNEx, MA, SIL, ISO certifications.

7) Network wireless (Optional): Blue tooth, 4G, NB, connect to the mobile APP and upload data.

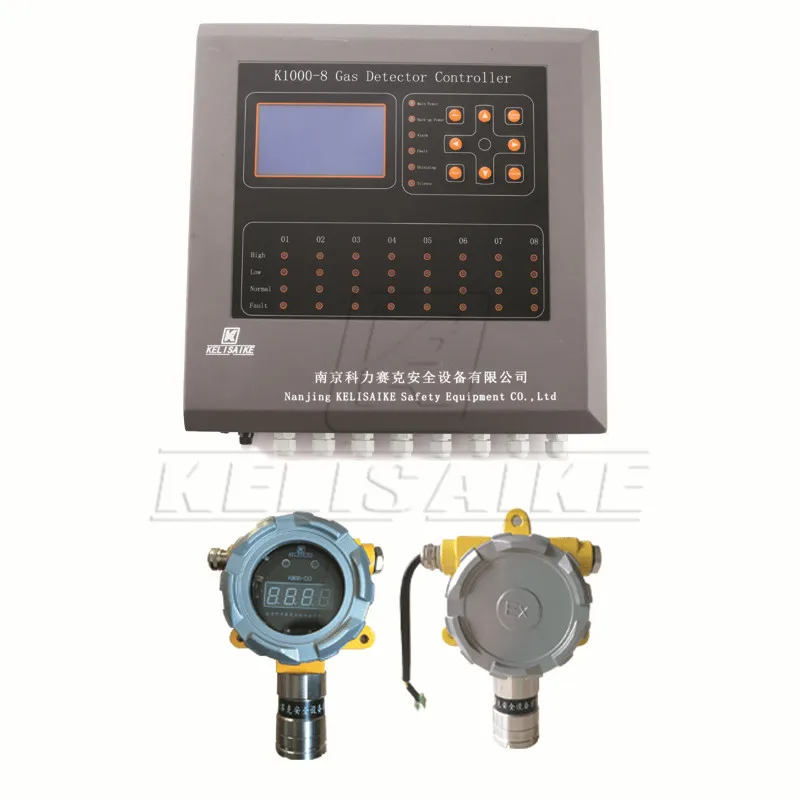

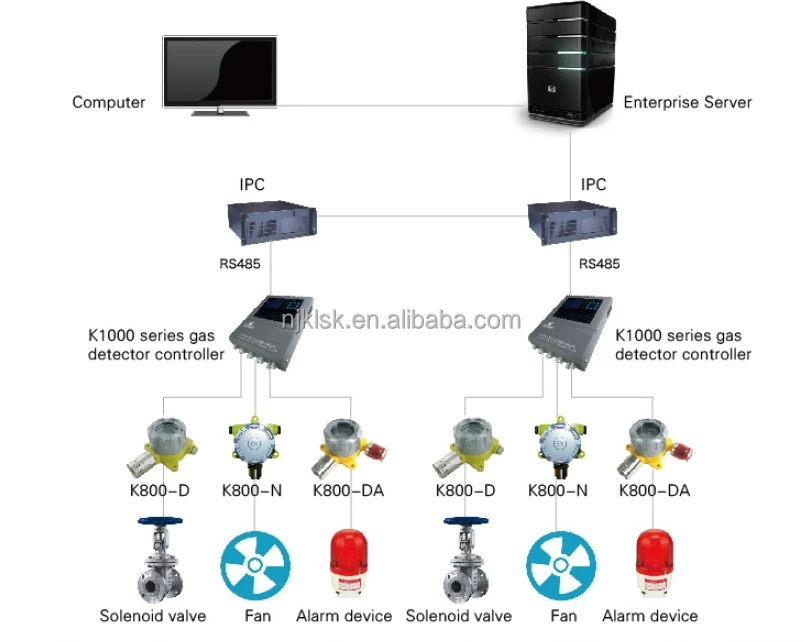

The online gas detector monitors gas leakage by natural diffusion. It can be directly connected with DCS systems or Central unit. With relay output, once the concentration exceeds the preset alarm point(threshold), it will start the acoustic-optical alarm on the central unit and drive the external equipment like exhaust fans.





>>> Technical Specifications



Technical Specifications

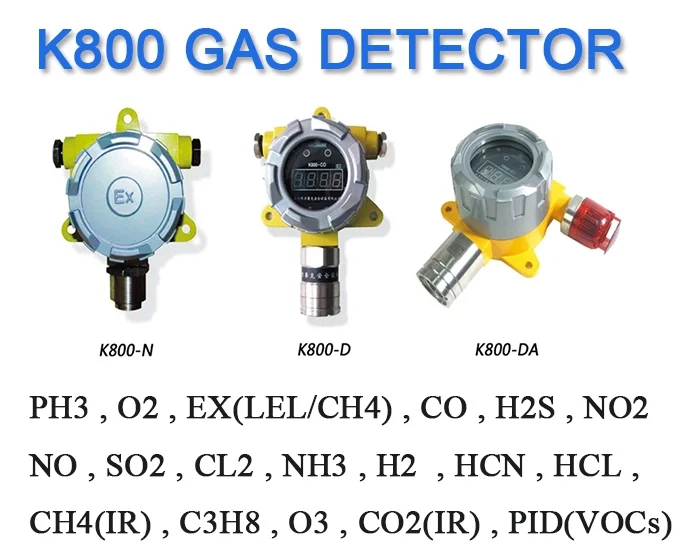

Item:	K800 Fixed gas detector
Sensor Cell:	UK sensors (brand CITY, Alphasense, Dynament etc.), US (brand Honeywell), Japan and Germany sensors
Lifetime of Detector:	2 – 5 years
Sample Mode	Diffusion
Operating Voltage:	24V DC
Display	4 digital LED readout display
Transmission Cable	Three core shield cable, 3×1.5mm
Ambient Temperature:	- 20 ° C ~ + 50 ° C
Relative Humidity:	15~90%RH(non condensation)
Working Pressure:	86~106Kpa
Detection Precision:	±5%FS
Explosion-proof Grade:	Exd II CT6
Protection Grade:	IP65
Response time	T90≤30S
Wiring	3-wire/4-wire
Body material	YL113 aluminum +304L S/S; M20*1.5
Suitable cable	RVVP3*1.5mm2 cable
Relay output	1 relay output
Display	LCD display
Indicator light	with power, fault,alarm-1,alarm-2 indicator light
Operation method	remote control
Ingress protection	IP66
Operating temperature	-20℃~+60℃
Dimensions	140*141*91mm(H*W*D)
Weight	About 1.6kg
Operating humidity	10~95%RH non-condensing
Operating pressure	80-120kPa
Certificates
	EN 61326-1:2013
EX	Exd IICT6 Gb Ex tD A21 IP66 T80°C
SIL	SIL2
	UL508  UL1203

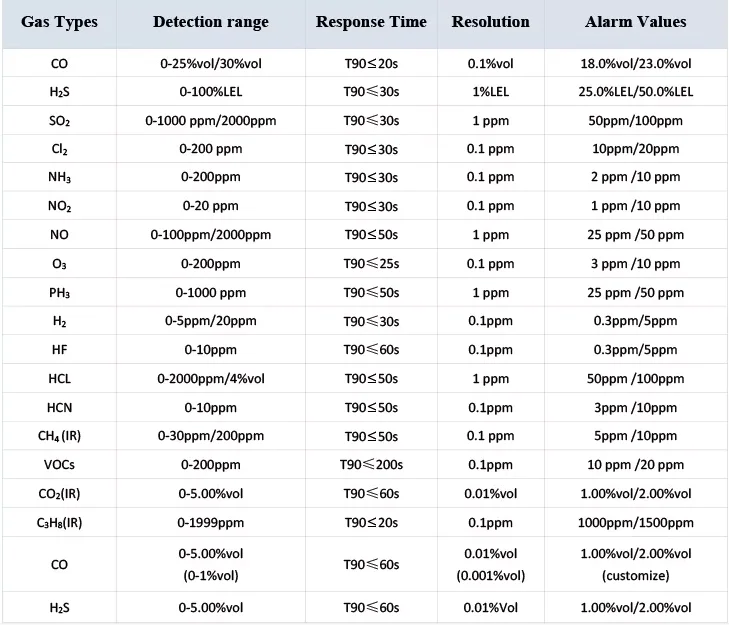

>>> Measurable Gas Meter





Mark: other customized gas types are also available.
