BOMI BMB 63 factory direct sale customized tools drill bit manufacturers Reduced Shank twist and Drill Bits set for metal
- Category: >>>
- Supplier: Changzhou Bomi Tools Co. Ltd.
Share on (1600655422916):
Product Overview
Description
Product Overview

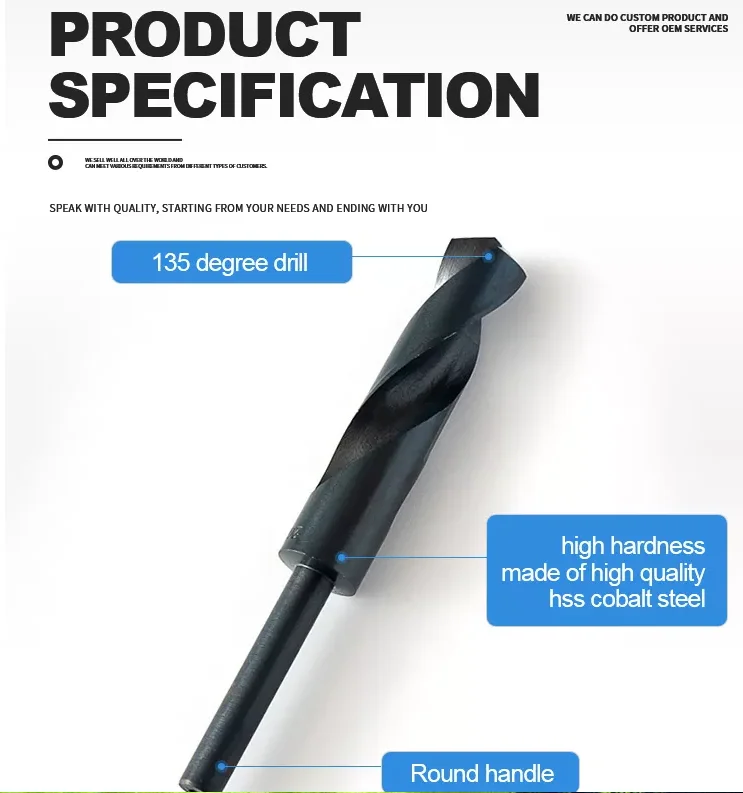

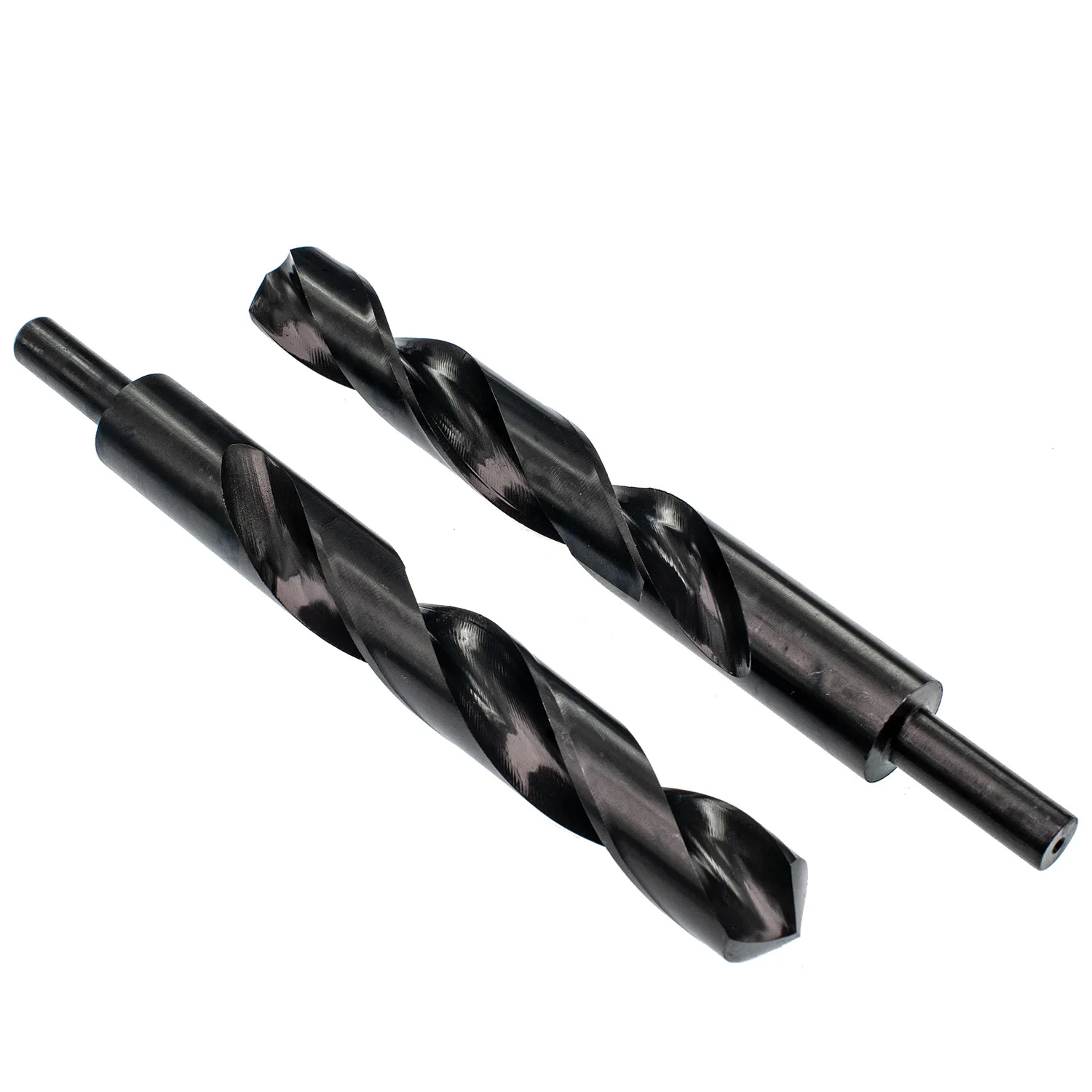

HSS Silver & Deming 1/2 Inch 3 Flats Reduced Shank Twist Drill Bit for Metal
MaterialHSS (HSS Cobalt is Available)
ProcessMilled (Fully Ground, Rolled & Polished, Rolled areAvailable)
Standard Blacksmith Reduced Shank 10mm, 13mm (DIN338, Stub DIN1897, Long DIN340, Extra Long DIN1869, DIN345 Taper Shank are Available) Silver & Deming1/2" Reduced Shank (Jobber Length, Stub Screw Machine Length, Long Taper Length, Airctraft Extensoin, Extra Long 12", 18", 24 'areAvailable)
Size 33/64"-1-1/2"

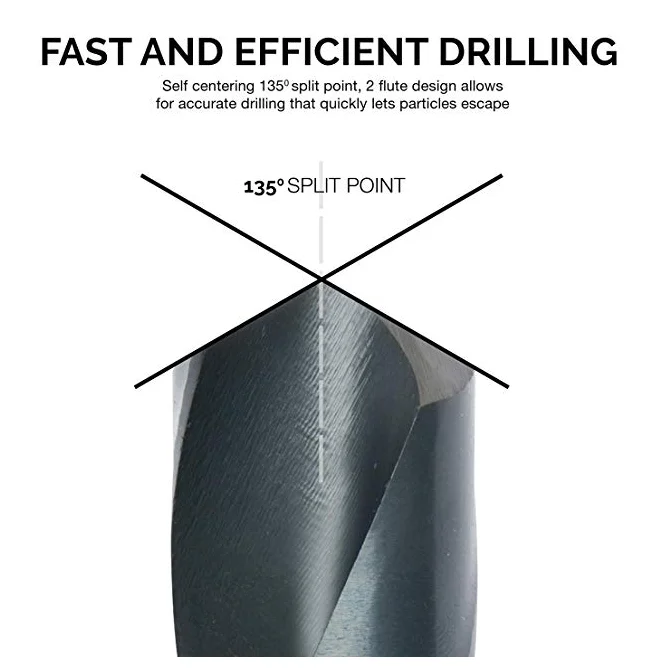

Point Type135 Degree Split Point (118 Degree Regular Point. Turbo Max Point. Pilot Point are Available)
Shank Type Reduced Shank (Straight Shank. Hex Shank. Double R Hex Shank. Threaded Hex Shank. Taper Shank are Available)
Helix AngleRegular Spiral Type N (Slow Spiral Type H. Fast Spiral Type W. Left Hand Spiral are Available)
Shank Type Reduced Shank (Straight Shank. Hex Shank. Double R Hex Shank. Threaded Hex Shank. Taper Shank are Available)
Helix AngleRegular Spiral Type N (Slow Spiral Type H. Fast Spiral Type W. Left Hand Spiral are Available)
Web & Flute TypeRegular
feb & Flute (Thick Web with Parabolic Flute. Heavy Duty Web with Regular Flute are Available)Surface FinishBlack & Gold (BlackOxide. Bright. Amber Color. Titanium. Black & Bright are Available)
feb & Flute (Thick Web with Parabolic Flute. Heavy Duty Web with Regular Flute are Available)Surface FinishBlack & Gold (BlackOxide. Bright. Amber Color. Titanium. Black & Bright are Available)
Package10/5 Pcs in PVC Pouch, Plastic Box, Individually in Skin
Card, Double Blister, Clamshell.
Card, Double Blister, Clamshell.
Features
1. High-speed steel tools are good for most general purpose applications, offering a
combination of hardness and toughness for wear resistance.
combination of hardness and toughness for wear resistance.
2. Universal 118° point shape for drilling a wide selection of
materials.
materials.
3. Precision ground point, flutes, body, clearance and drill diameter for the ultimate in accuracy and performance.,
4.Ground flutes provide fast chip removal to maximize accuracy and efficiency along the full working surface of the bit.
Right elevation
Left elevation
Front elevation
SALES AND SERVICE NETWORK
Product specification | |||||
Blacksmith Reduced Shank 10mm, 13mm | |||||
Diameter (mm) | Flute Length (mm) | Overall Length (mm) | Shank | ||
Diameter (mm) | |||||
10.5 | 87 | F | 10.0 | ||
11.0 | 94 | 142 | 10.0 | ||
11.5 | 94 | 142 | 10.0 | ||
12.0 | 101 | 151 | 10.0 | ||
12.5 | 101 | 151 | 10.0 | ||
13.0 | 101 | 151 | 10.0 | ||
13.5 | 103 | 160 | 10.0 | ||
14.0 | 108 | 160 | 10.0 | ||
14.5 | 114 | 169 | 10.0 | ||
15.0 | 114 | 169 | 10.0 | ||
15.5 | 120 | 173 | 10.0 | ||
16.0 | 120 | 178 | 10.0 | ||
16.5 | 125 | 184 | 10.0 | ||
17.0 | 125 | 184 | 10.0 | ||
18.0 | 130 | 191 | 10.0 | ||
20 | 140 | 205 | 10.0 | ||
13.5 | 108 | 160 | 13.0 | ||
14.0 | 103 | 160 | 13.0 | ||
14.5 | 114 | 169 | 13.0 | ||
15.0 | 114 | 169 | 13.0 | ||
15.5 | 120 | 178 | 13.0 | ||
16.0 | 120 | 178 | 13.0 | ||
16.5 | 125 | 184 | 13.0 | ||
17.0 | 125 | 184 | 13.0 | ||
17.5 | 130 | 191 | 13.0 | ||
18.0 | 130 | 191 | 13.0 | ||
18.5 | 135 | 198 | 13.0 | ||
19.0 | 135 | 198 | 13.0 | ||
19.5 | 140 | 205 | 13.0 | ||
20 | 140 | 205 | 13.0 | ||
SIMILAR PRODUCTS
Company Overview
Changzhou Bomi Tools Co., Ltd is a manufacturer and trader specialized in the research, development and production of Long length
twist drills, Taper drills, Step drills. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets through out the world.
twist drills, Taper drills, Step drills. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets through out the world.
FACTORY
1) We're a direct manufacturer and 100% export to worldwide
2) We have around 10 years producing experience.
3) Our drill product:HSS drill bits, masonry drill, SDS drill,glass&tile drill, step drill,Taper Point Drill Bit ，Center Drill Bit, Brad Point Drill Bit, drill set etc.
4) Above 95% customers will place a formal order after testing the samples.
2) We have around 10 years producing experience.
3) Our drill product:HSS drill bits, masonry drill, SDS drill,glass&tile drill, step drill,Taper Point Drill Bit ，Center Drill Bit, Brad Point Drill Bit, drill set etc.
4) Above 95% customers will place a formal order after testing the samples.
A variety of product classification details
More product details are displayed for reference
application
Used for woodworking, wall, metal
packaging and shipping
Transport by sea freight by air express
Photos of hardware Exhibition
Participated in Shanghai hardware exhibition, Japan exhibition, Zhejiang Yongkang show pictures
Display of packaged products
step drill bit set ,sds plus drill bit set,wood spade drill bit set
