SISIC Sic Ceramic Balls for Bearings High Strength Silicon Carbide Black Round Industrial Ceramic Silicon Carbide Plate Price
- Category: >>>
- Supplier: Shandong Zhijing New Material Co. Ltd.
Share on (1600655438330):
Product Overview
Description
Products Description

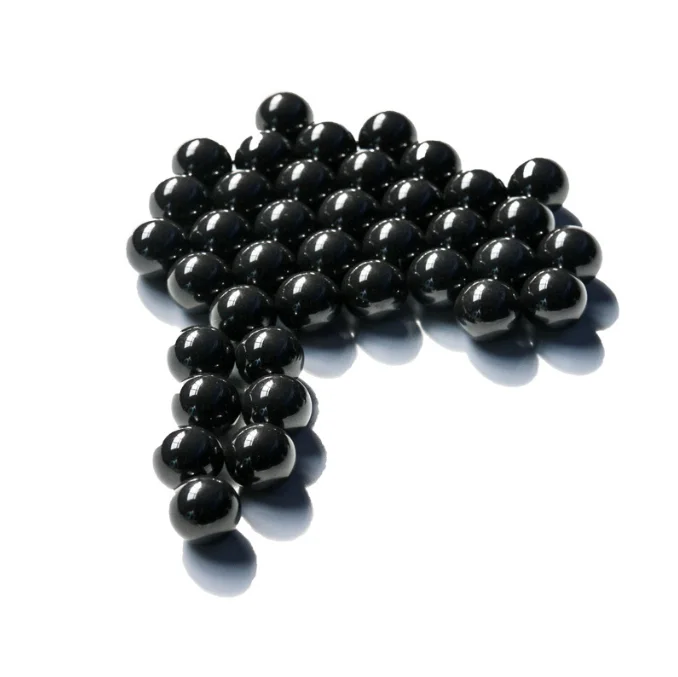

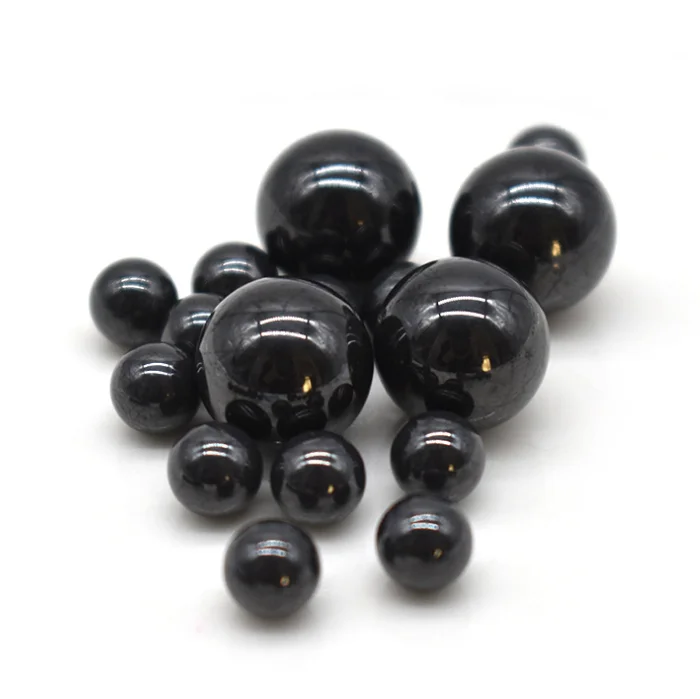

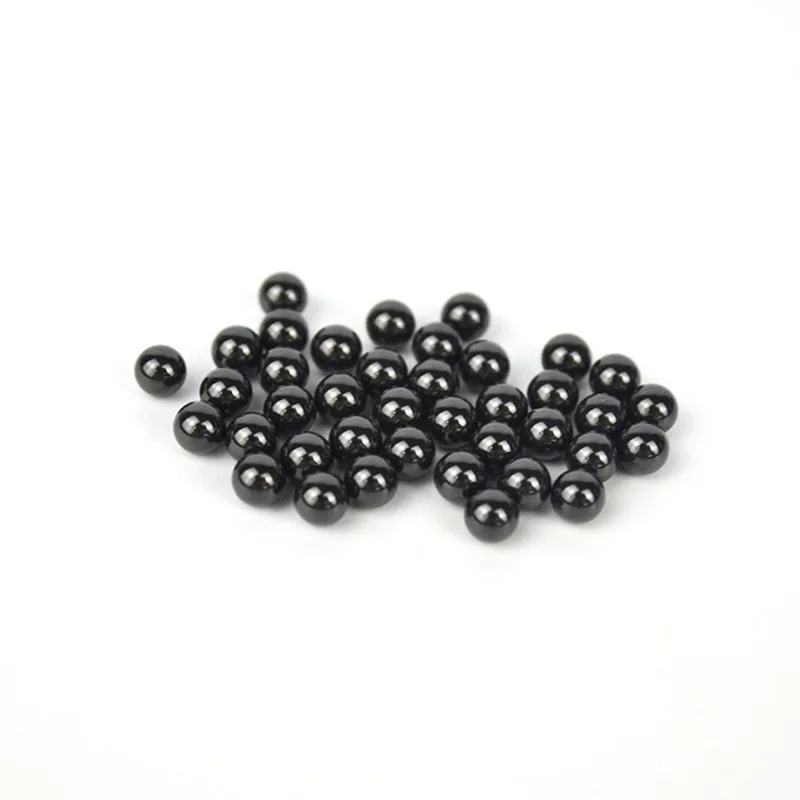

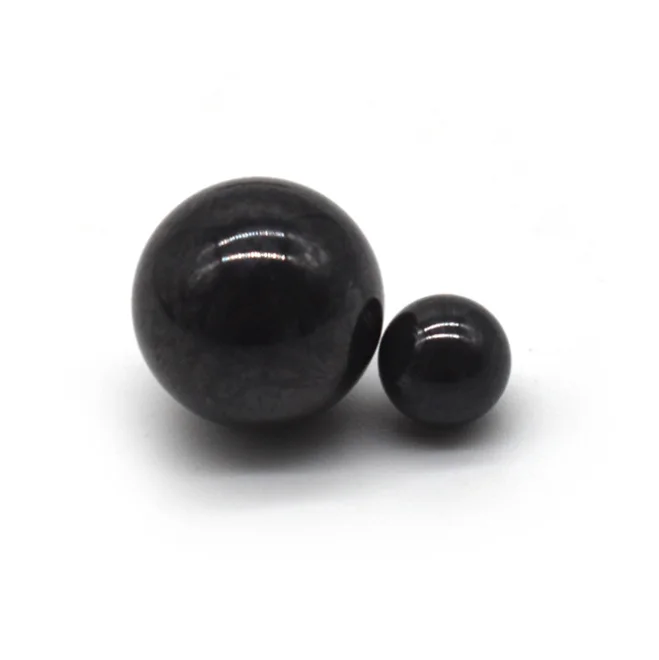

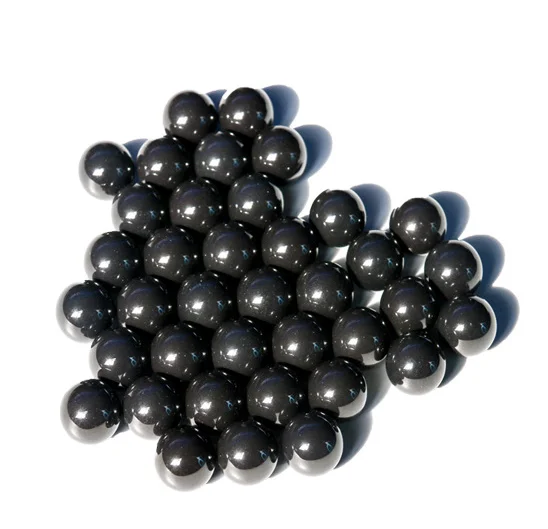

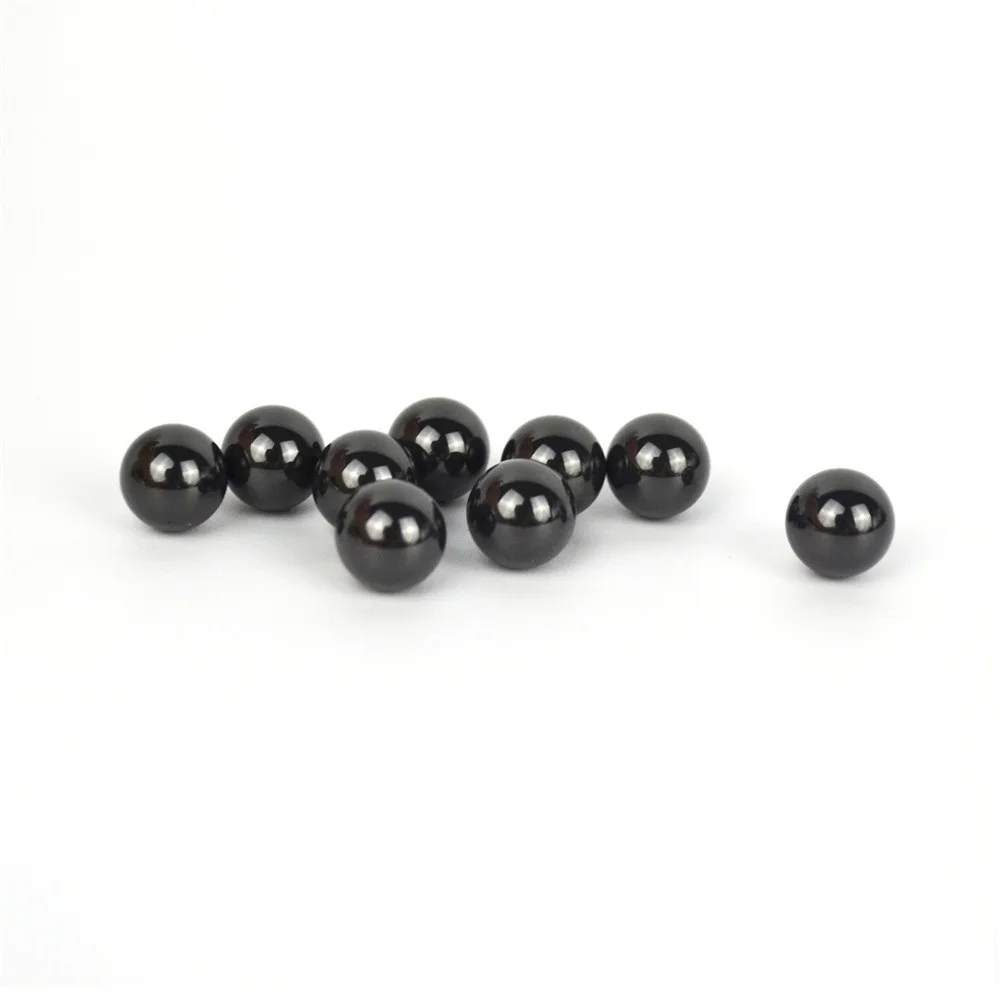

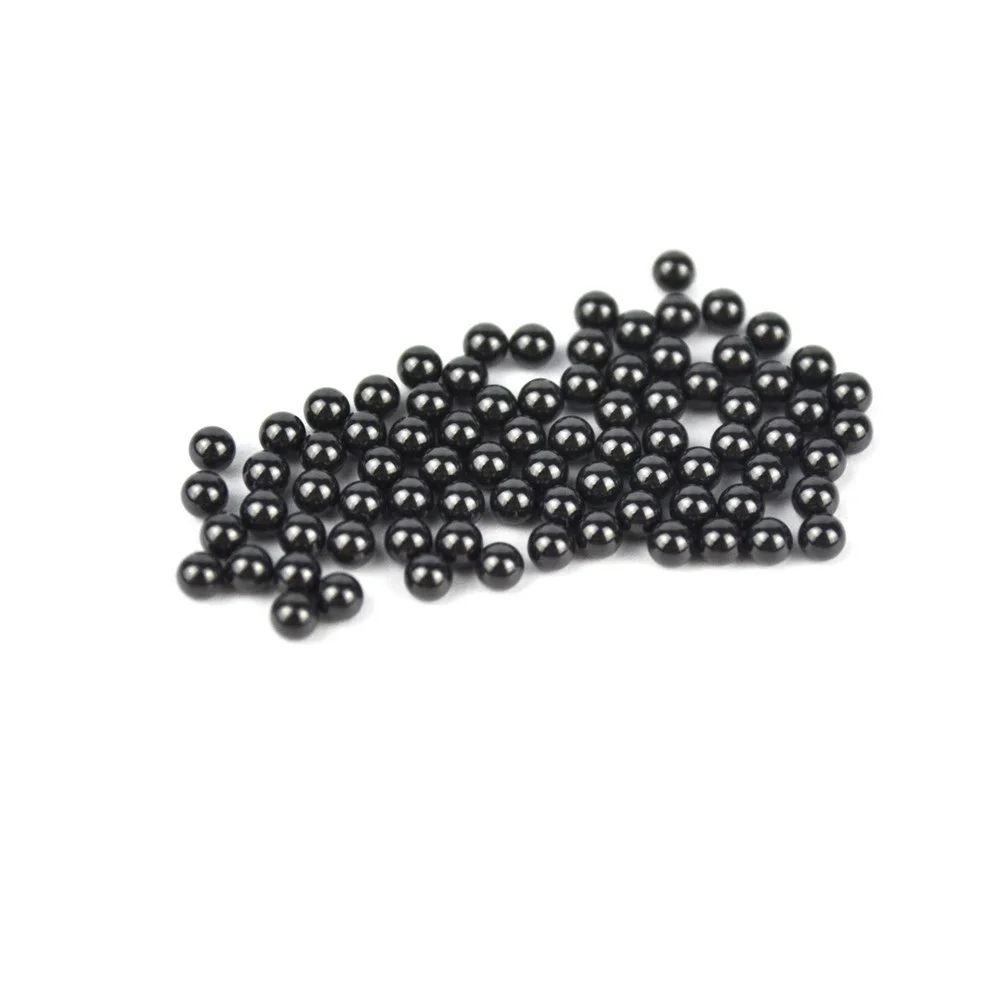

Silicon Carbide Ball
Silicon carbide (SiC) is a lightweight ceramic material with high strength properties comparable to diamond. It has excellent thermal conductivity, low thermal expansion, and is resistant to corrosion from acids. Silicon carbide is an excellent ceramic material for applications requiring good erosion and abrasive resistance. Consequently, it is useful in a variety of applications including spray nozzles, shot blast nozzles and cyclone components.
Silicon carbide ceramic balls have a series of properties that metal materials do not have, such as high strength, good wear resistance, high rigidity, corrosion resistance, high temperature resistance, electrical insulation, non-magnetic conduction, and small specific gravity. They are suitable for special ceramic bearing rolling elements.
Silicon carbide ceramic balls have a series of properties that metal materials do not have, such as high strength, good wear resistance, high rigidity, corrosion resistance, high temperature resistance, electrical insulation, non-magnetic conduction, and small specific gravity. They are suitable for special ceramic bearing rolling elements.
1. High rigidity, high strength and high hardness.
2. Extremely strong corrosion resistance, can be used in strong acid and strong alkali.
3. High temperature resistance, silicon nitride ceramic ball can be used normally in the environment below 1000 ℃.
4. Low density (3.2g/cm3), about 60% lighter than steel balls, reducing wear and noise.
2. Extremely strong corrosion resistance, can be used in strong acid and strong alkali.
3. High temperature resistance, silicon nitride ceramic ball can be used normally in the environment below 1000 ℃.
4. Low density (3.2g/cm3), about 60% lighter than steel balls, reducing wear and noise.
5. Low coefficient of linear expansion (3.2x10-6/K), almost 1/4 of that of bearing steel, able to withstand sharp changes in
temperature.
6. Self-lubricating, can solve the pollution caused by the lubricating medium and the inconvenience of adding, and can be used under vacuum and high temperature.temperature.
7. Chemical resistance, high mechanical strength.
Application fields: high temperature bearings, corrosion-resistant bearings, chemical pumps, ceramic valve balls.
Material Performance
项目 Item | 单位 Unit | 指标 Data | ||||||
反应烧结碳化硅RBSIC（SISIC） | 氮化物结合碳化硅NBSIC | 无压烧结碳化硅SSIC | 重结晶碳化硅RSIC | |||||
碳化硅含量SiC content | % | 85 | 80 | 99 | 98.5 | |||
游离硅含量Free Silicon content | % | 15 | 0 | 0 | 0 | |||
最高使用温度 Max service temperature | ℃ | 1380 | 1550 | 1600 | 1650 | |||
密度Density | g/cm3 | 3.02 | 2.72 | 3.10 | 2.60-2.74 | |||
气孔率Open porosity | % | 0 | 12 | 0 | 15 | |||
抗弯强度 Bending strength 20℃ | Mpa | 250 | 160 | 380 | 100 | |||
1200°C | Mpa | 280 | 180 | 400 | 120 | |||
弹性模量 Modulus of elasticity 20°C | Gpa | 330 | 220 | 420 | 240 | |||
1200°C | Gpa | 300 | / | / | 200 | |||
热传导系数 Thermal conductivity 1200℃ | W/m.k | 45 | 15 | 74 | 10 | |||
热膨胀系数 Coefficient of thermal expansion | K-1x10-6 | 4.5 | 5.0 | 4.1 | 4.8 | |||
维氏硬度HV | kg/mm2 | 2500 | 2500 | 2800 | / | |||
Details Images

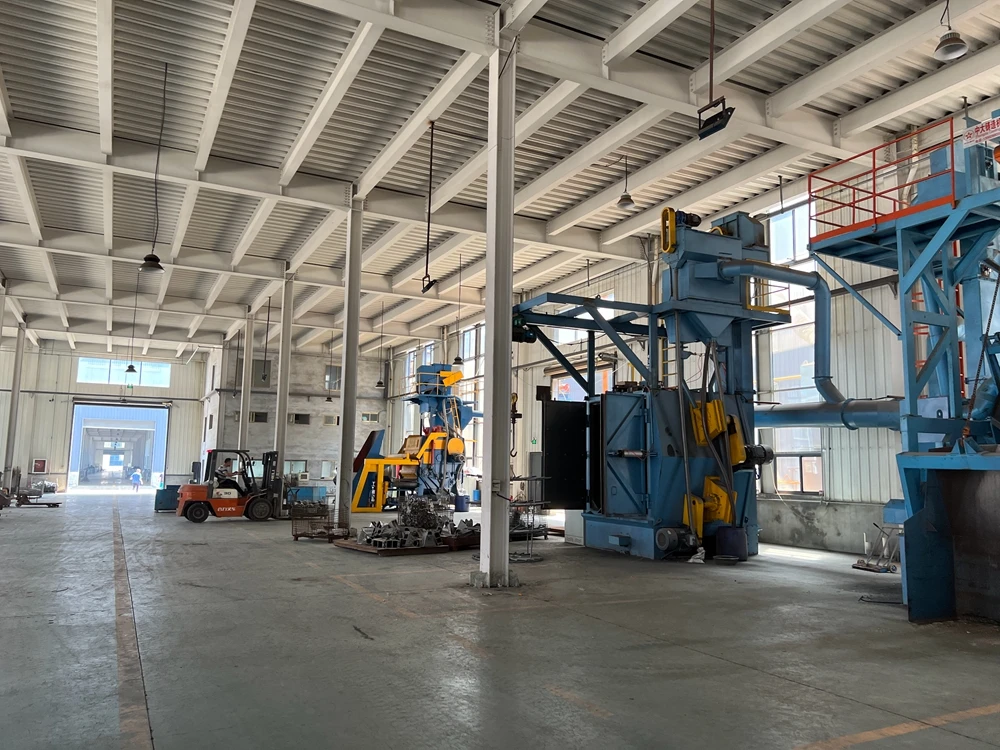

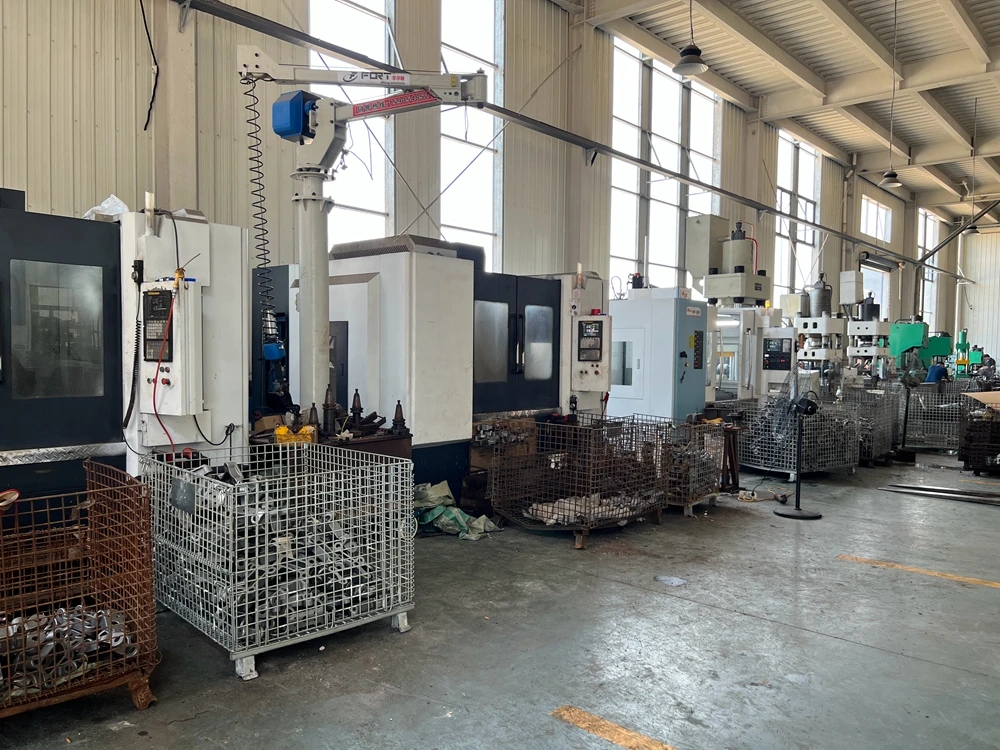

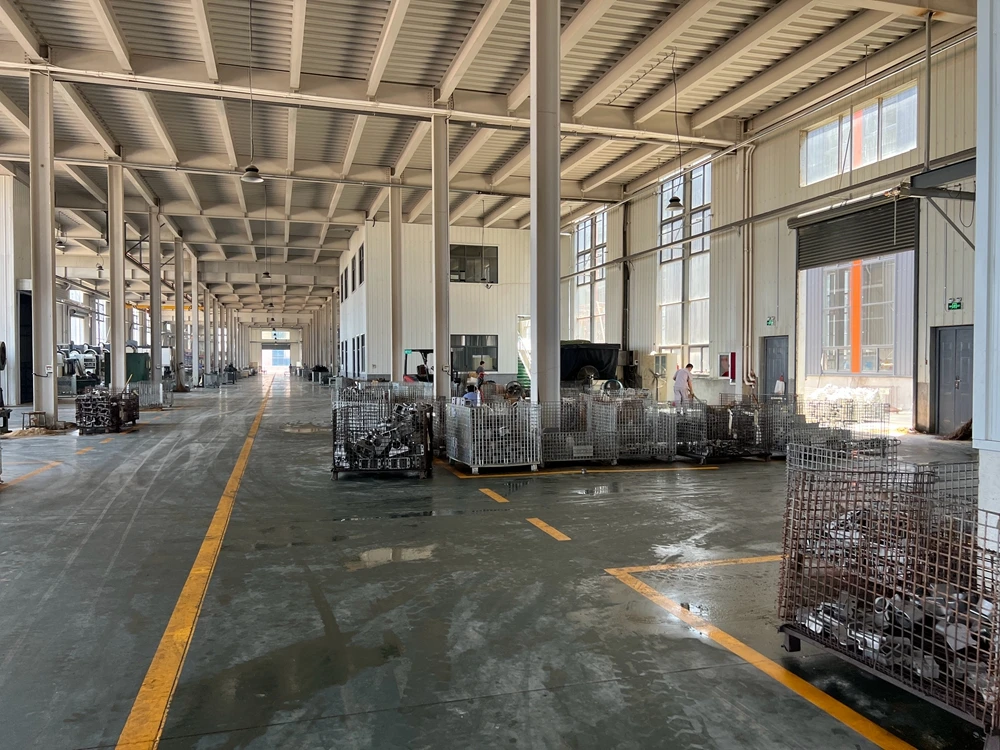

Company Profile

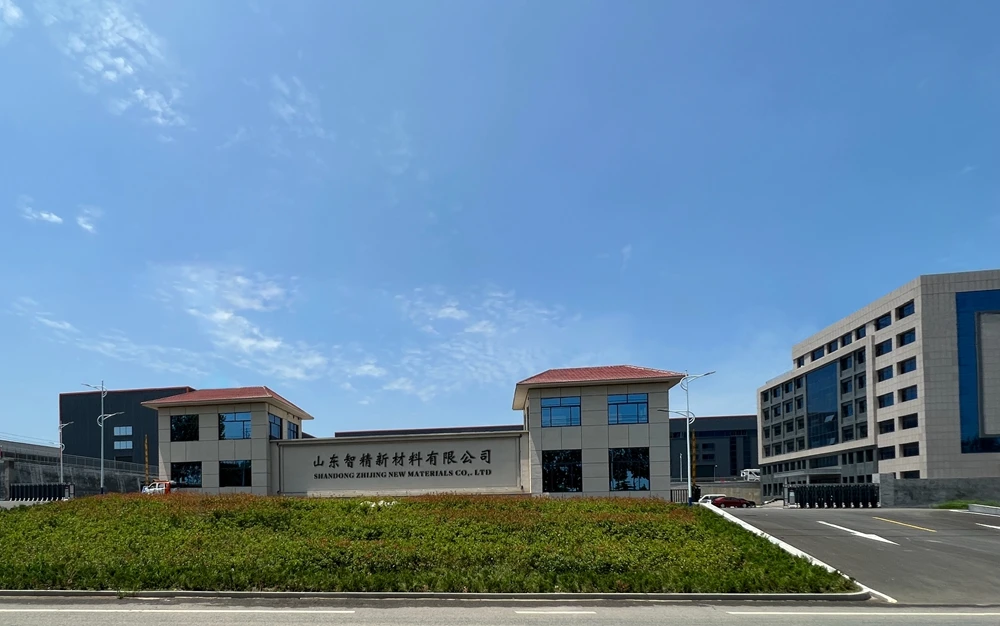

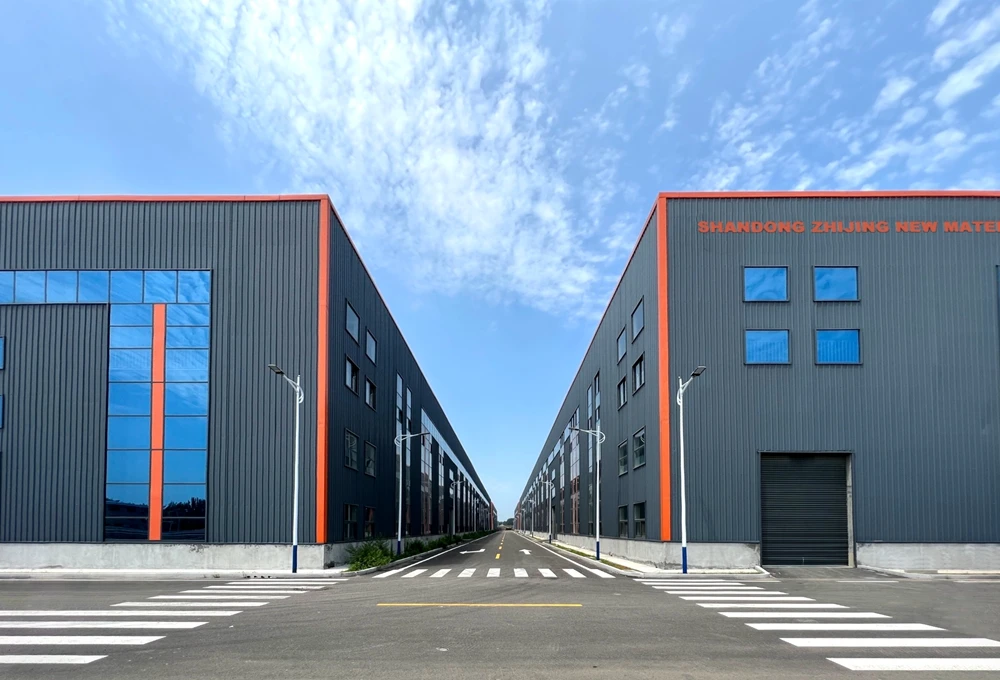

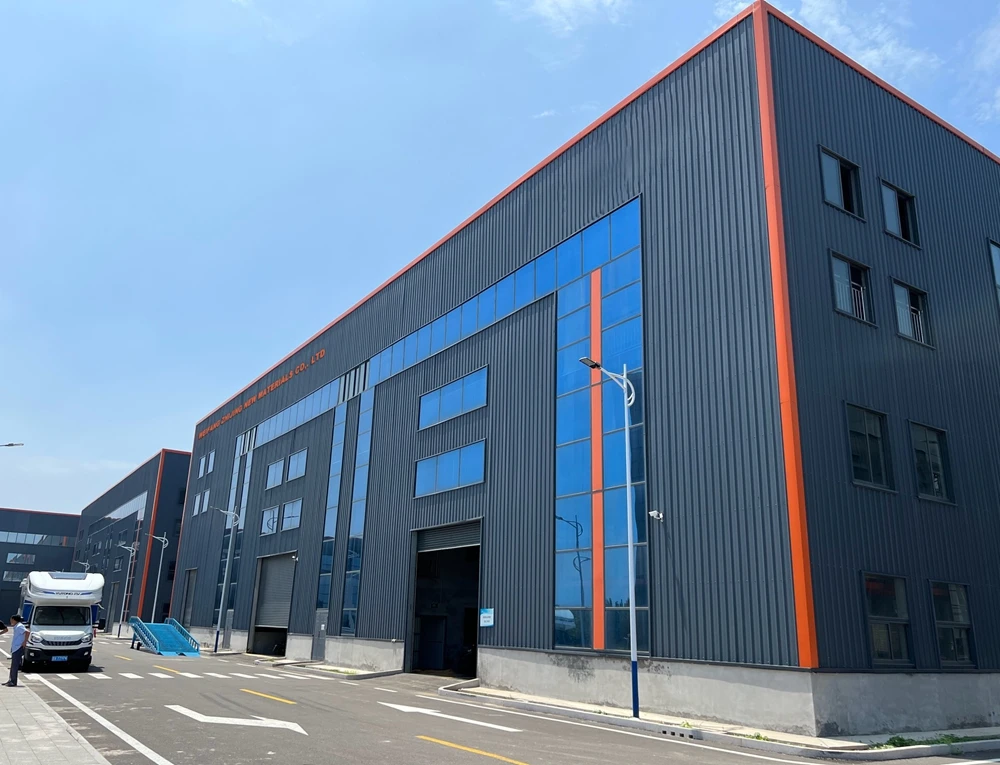

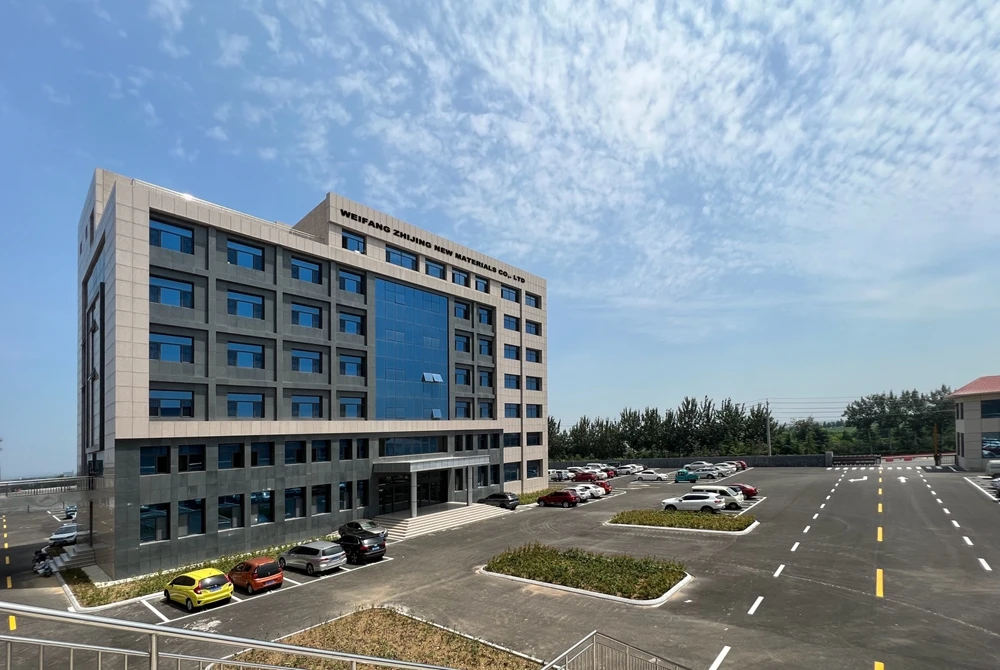

Shandong Zhijing New Material Co., Ltd is located in the Weifang City, Shandong Province, close to Jinan-Qingdao Expressway, Weilai Expressway, 201, 309 National Highway, Weifang Airport, Jiaoji Railway, and has superior transportation and geographical location. The company is committed to the development, production and sales of high-performance silicon carbide products. The main products are reaction sintered silicon carbide ceramic beams, rollers, flame nozzles, cold air pipes, sheds, saggars, crucibles, thermocouple protection tubes, heat exchange tubes, and radiation Tube inner tube, radiant tube outer tube, desulfurization nozzle, cantilever propeller, atmosphere furnace tube, sandblasting nozzle, shaft sleeve, seals and various high temperature resistant,
wear resistant, corrosion resistant silicon carbide ceramic special-shaped parts, etc., reaction sintering silicon carbide Ceramic products are widely used in military industry due to their high strength, high hardness, wear resistance, high temperature resistance, corrosion resistance, oxidation resistance, thermal shock resistance, good thermal conductivity, rapid cold and rapid heat resistance and high temperature creep resistance. In the fields of aerospace, nuclear power, liquid crystal, metallurgy, chemicals, machinery, automobiles, papermaking, medicine and other field Our company offers variety of products which can meet your multifarious demands.
Packaging & Shipping
Package details
1. 5-50 pieces in a wooden box (fully enclosed, safe, and secure)
2. 800kg~1000kg /wooden box.
3. Anti-collision protection such as foam board
The 4.3-layer wood composite panel is sturdy, impact resistant, drop resistant
2. 800kg~1000kg /wooden box.
3. Anti-collision protection such as foam board
The 4.3-layer wood composite panel is sturdy, impact resistant, drop resistant
Shipping details
1.Professional car transport to various ports in China, then loaded by a professional shipping company.
2.Both FOB and CIF can be operated flexibly.
3. Competitive sea freight and short transit time
2.Both FOB and CIF can be operated flexibly.
3. Competitive sea freight and short transit time
FAQ
Q1: What's the properties of silicon carbide products?Low density (3.07 to 3.15 g/cm3)
High hardness (HV10 ≥ 22 GPa)
High Young’s modulus (380 to 430 MPa)
High thermal conductivity (120 to 200 W/mK)
Low coefficient of linear expansion (3.6 to 4.1x10-6/K at 20 to 400°C)
Maximum operating temperature of SiSiC under inert gas: 1,350°C
Excellent thermal shock resistance of SiSiC: ΔT 1,100 K
Erodible Corrosion and wear resistant even at high temperatures
Toxicologically safe
Q2.How are the products' quality?
The products will be strictly inspected before shipment, so the quality could be guaranteed.at the same time, mature
production technology ensuring the quality satisfy international request.
Q3:What is the Warranty for the products?
For all the products,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the
shipping cost and replacement.
Q4.What is the service life of the products?
The service life of different products is unlike.It also depends on your using condition and method.
Q5:Are you a manufacture or trader?
We are a professional silicon carbide products manufacturer.
Zhijing has been established since 2020 in China.
Q6:What's your shipping port?
Qingdao port.
Q7.Can we visit your company?
Sure,welcome at any time,seeing is believing.
Q8. Do you provide samples?
Yes, we can offer sample for you to check the product specification and quality.
Q9. Do you accept OEM?
Yes, we can do OEM. In the case of ensuring product safety, it can be customized according to your needs. To this end, our
technical staff will make technical recommendations based on your request.
Q10:What format of the file do you need if I want my own design?
JPG, AI, CDR or PDF are acceptable.
Q11.What's the MOQ of trial order?
No limit,We can offer the best suggestions and solutions according to your condition.
Q12.What are the payment terms?
Usually T/T,but L/C,Western Union etc are available for us. 30% in advance, 70% balance before shippment.
Q13. How long is delivery time?
The delivery time will be determined according to the quantity of the order. Generally it is 1-3 working days if the goods are in
stock. Or it is 15 working days if the goods are not in stock.
High hardness (HV10 ≥ 22 GPa)
High Young’s modulus (380 to 430 MPa)
High thermal conductivity (120 to 200 W/mK)
Low coefficient of linear expansion (3.6 to 4.1x10-6/K at 20 to 400°C)
Maximum operating temperature of SiSiC under inert gas: 1,350°C
Excellent thermal shock resistance of SiSiC: ΔT 1,100 K
Erodible Corrosion and wear resistant even at high temperatures
Toxicologically safe
Q2.How are the products' quality?
The products will be strictly inspected before shipment, so the quality could be guaranteed.at the same time, mature
production technology ensuring the quality satisfy international request.
Q3:What is the Warranty for the products?
For all the products,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the
shipping cost and replacement.
Q4.What is the service life of the products?
The service life of different products is unlike.It also depends on your using condition and method.
Q5:Are you a manufacture or trader?
We are a professional silicon carbide products manufacturer.
Zhijing has been established since 2020 in China.
Q6:What's your shipping port?
Qingdao port.
Q7.Can we visit your company?
Sure,welcome at any time,seeing is believing.
Q8. Do you provide samples?
Yes, we can offer sample for you to check the product specification and quality.
Q9. Do you accept OEM?
Yes, we can do OEM. In the case of ensuring product safety, it can be customized according to your needs. To this end, our
technical staff will make technical recommendations based on your request.
Q10:What format of the file do you need if I want my own design?
JPG, AI, CDR or PDF are acceptable.
Q11.What's the MOQ of trial order?
No limit,We can offer the best suggestions and solutions according to your condition.
Q12.What are the payment terms?
Usually T/T,but L/C,Western Union etc are available for us. 30% in advance, 70% balance before shippment.
Q13. How long is delivery time?
The delivery time will be determined according to the quantity of the order. Generally it is 1-3 working days if the goods are in
stock. Or it is 15 working days if the goods are not in stock.
