300 400kg/hour copra oil press machine coconut peanut hot cold oil mill
- Category: >>>
- Supplier: Jingdezhen Huiju Technologies Co. Ltd.Jingdezhen Ltd.
Share on (1600655441748):
Product Overview
Description
Product Description

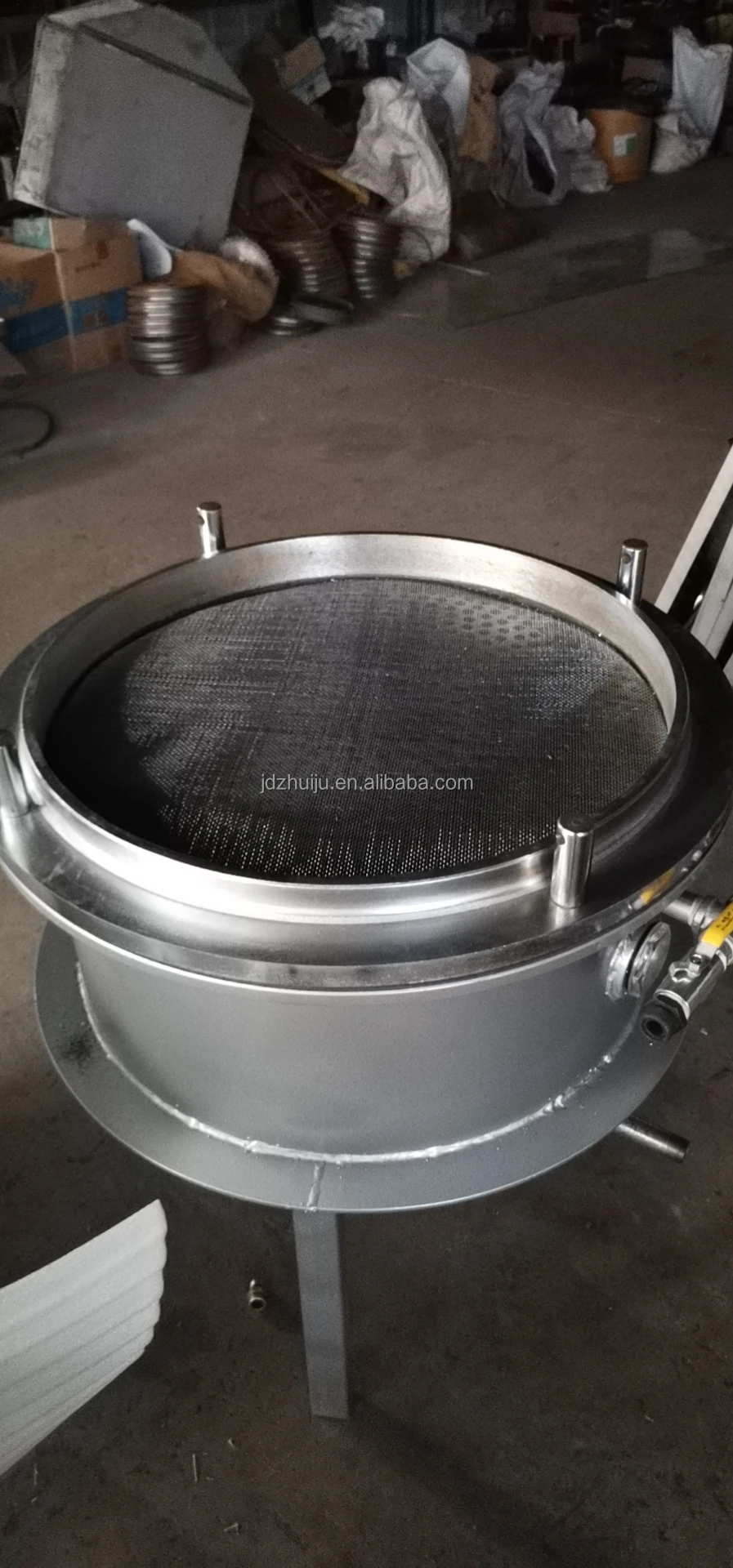

Huiju peanut oil press is mainly composed of feeding mechanism, variable speed mechanism, pressing cage mechanism, pressing screw mechanism, vacuum filter mechanism, adjusting mechanism and rack 7. Working principle of medium and small oil press: Main motor transfer to the capability of the reducer to the main shaft, mounted on the spindle squeezer as the rotation, between the spiral oil constantly move forward, because of the pressing chamber and narrowing the gap between squeezer, oil density increase, so the pressure increase, in the process of squeezing, between oil particles, oil and friction between parts, heat, Thus constitute the two essential oil process pressure, heat, fuel cells, oil spilled from the oil line, bread is out of the squeezer cones and was introduced between the mouth, when the spilled oil through the oil pan into the filter cylinder, vacuum pump out the air in the cylinder, cylinder form the negative pressure, oil through a filter cloth, is pumped into the filter cylinder, and sludge isolation on the filter cloth, What you get is pure oil.
Item No. | HJ-PR125 |
Power/Voltage | 15kw/380V |
Vacuum pump power | 1.5kw |
Heating power | 3.75kw |
Screw speed | 34r/min |
Screw diameter | 125mm |
Capacity | 300-400kg/h |
Weight | 1460kg |
Size | 2100*1400*1900mm |
Advantages
Advanced design, reliable performance, simple operation, convenient maintenance, its main characteristics are,
1.High oil yield - compared with the old equipment, the normal oil yield can be higher than 2 to 3 percentage points, each processing 100 catties of peanuts can be more than 2-6 catties on average, the annual economic benefits are very considerable.
2.Energy saving -- reduce the electric power by 40% with the same output, and save 6 KWH per hour on average, the daily production can save 30 yuan of electricity. Labor saving - the same output can save 60% of the labor force, 1 to 2 people can organize the production, can save about 40 yuan of labor effect per day.
3.Wide use - one machine multi-purpose, can press peanut, flax, sesame, rapeseed, oil sunflower, cottonseed, soybean and other 30 kinds of oil crops. Multiple press, one press clean.
4.Oil pure - vacuum filter residue, ensure oil pure, in line with health and quarantine standards. 5.Cover an area of small -- oil workshop needs 10-20 square meters to be able to satisfy use.
Method of pressing rapeseed
When cold pressing, squeeze with nails, there is a sound, divided into two parts when the oil is extruded, the moisture is appropriate, if the powder is too dry, the cake is too wet, the key is to master the moisture. Fry seed during hot pressing, fire first, the big fire 10-15 minutes, what specific time rapeseed moisture and fire size to decide, general rapeseed dry, less water, fry time short, whereas fry a long time, always pay attention to fry seed, two boards available ground rub rapeseed, shell and kernel separation is appropriate, if the kernel into seed is too dry, if the specific provisions of shell and the kernel is not too wet, water 2-5%. The temperature of 110℃ can be pressed.
Method of crushing soybeans
Cold pressing, with front teeth can bite, crack and accompanied by sound is appropriate. If into flat block, no crack line is too wet, can be used to bake or dry method, if broken has a larger loudness, it is too dry, first with the right amount of water wet again, mix well so that the skin has wrinkles, into the press water control in 7-8% or so, adjust the cake thickness to 1-1.5 mm or so. When hot pressing, fry before pressing until bursting and edible, temperature 120-125℃, water 2.5-3.5%, cake thickness 1-1.5 mm, while pressing dry, but once pressed cake material is too coking, so that the protein loss is great, generally use two times to press dry, fry the soybean to 80 mature, pressing temperature 90-100℃, water 4.5-5.5%. The first cake is 1.5 mm thick, the second cake is 1 mm thick, the surface of the cake is wrinkled, so that the oil yield is high.
Method of pressing sesame seeds
The machine is heated to 130-170 deG C, and the sesame seeds are fried in the pan until they become round, swell, and then are yellow and oily.They are quickly raised for several times, and pressed after the black smoke is eliminated. The oil is red and yellow, and the cake is large or long. Problems that sesame oil press is prone to: 1, the cake is not shaped, the cake is broken, broken slag, splash oil; The main reason is that sesame is too light, and the other reason is that the temperature of sesame seeds is too low when the smoke is discharged. 2, the cake around the axis, cake is round tuo shape, between the press at the noodle residue, black oil, machine smoke, bitter oil, slow feeding, mainly caused by excessive sesame fry or pressing temperature is too high, in addition to pressing screw adjustment is too tight may also appear such problems.
The method of multi-functional oil press pressing peanuts
Peanut kernels due to large water, not enough elasticity, can not produce large pressure, raw pressing only add 3% of dry cake mixed oil, such as shell raw pressing, not add cake, hot pressing after frying to make protein fully denaturated, elastic, peanuts shelled to maintain about 10% of the shell content, before frying the peanuts wet again, Stir fry until 90% ripe (110-115℃), knead the kernels by hand to separate the kernels, break the kernels in half and press them. Adjust the thickness of the cake to about 1.5mm.
Packing & Delivery
plywood box for export
Company Profile
Established in 2003, Jingdezhen Huiju Technologies Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of most kinds of poultry items and human food equipment. We are located in Jiangxi, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. Covering an area of 1,500 square meters, we now have over 50 employees and an annual sales figure that exceeds USD 1000,000. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching more than 40 countries in Europe, North/South America, Middle east, Asia etc. We continue to strive to meet the Customer's expectations in terms of quality products, timely deliveries, competitive pricing and reliable after-sales service.
