Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine
Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine
Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine
Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine
Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine
Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine
Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine

Rainbow Swirl Lollipops Candy Making Machine Giant Lollipop Machine

Share on (1600655456739):


Price:$99,000.00

Quantity:


Product Overview

Description



Product Description

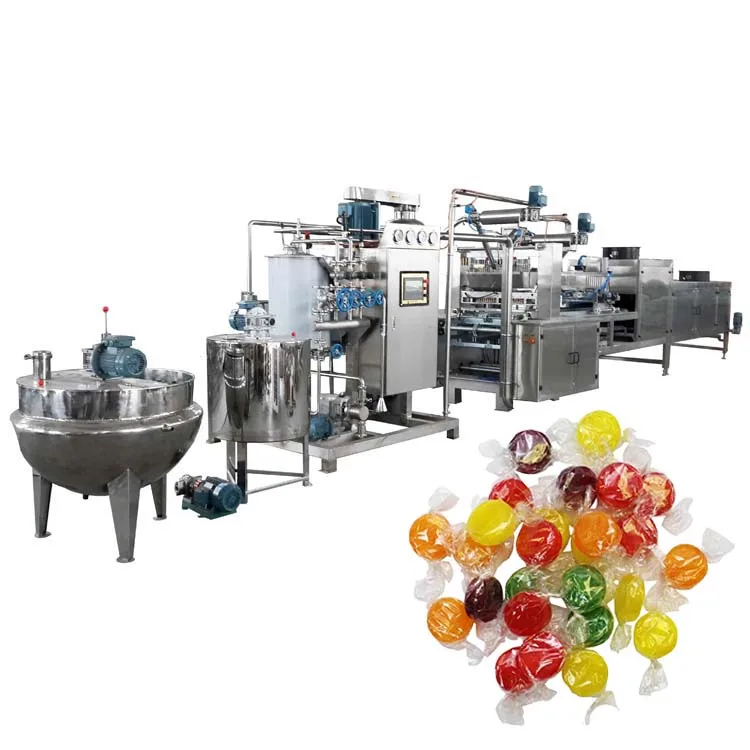

The machine full automatic servo driven PLC controlled hard candy depositing line is the most advanced production line for deposited hard candy manufacturing. This line mainly consists of auto weighing and mixing system（optional）, pressure dissolving system, micro-film cooker, depositor and cooling tunnel and adopt the advanced servo system to control the processing.


Production capacity：
300kg/h
Stroke speed：
45-55 n/min
Steam consumption
300kg/h
Voltage：
380 V
Power：
34kw
Compressor air consumption：
0.3Ｍ3／min
Compressor air pressure：
0.4－0.6Ｍpa
Room temperature：
＜25℃
Humidity：
＜55％
Water consumption：
0.3 Ｍ3／hour




Details Images

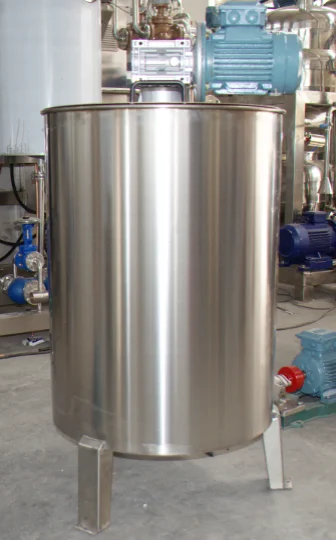

Dissolving tank
A. Dissolving tank total volume: 300L
B. Mixer motor power 0.75Kw
C. Equip with valve, steam trap, pressure meter, safety valve
D. Steam consumption: 100kg/h, pressure: 0.5Mpa
E. Machine made of SUS304 material (except standard parts)
F. Machine size (L*W*H): 1100*1100*1400 mm
G. Machine weight: 100Kg


Storage tank
A. Storage tank total volume: 200L
B. Mixer motor power: 0.75Kw
C. Equip with syrup filter net, SUS304 outlet pipe
D. Machine made of SUS304
E. Machine size (L*W*H):650*650*1350mm
F. Machine weight: 120Kg

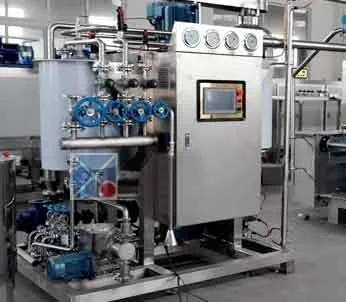

Micro-film Cooker
A. Piston dosing pump: 1set, motor power 0.75Kw　
B. Preheater 1set
C. Vacuum pump 1set, motor power 4Kw,
including SUS304 piping system 1set
D. Micro film generator 1set, power:4Kw
E. Discharge pump 1set, motor power 1.5Kw, speed adjustable, including SUS304 insulation piping system 1set
F. Steam control system 3sets (preheating, cooking, heat preservation) pipe material: all use SUS304 high pressure resistant pipe
G. Electrical control use PLC, large screen etc centralized control
H. Whole machine steam consumption: 200kg/h,
steam pressure: 0.6Mpa
I. Machine made of SUS304 material (except standard structural parts)
J. Machine size: 2.1*1.6*2.25 m
K. Machine weight: 900kg

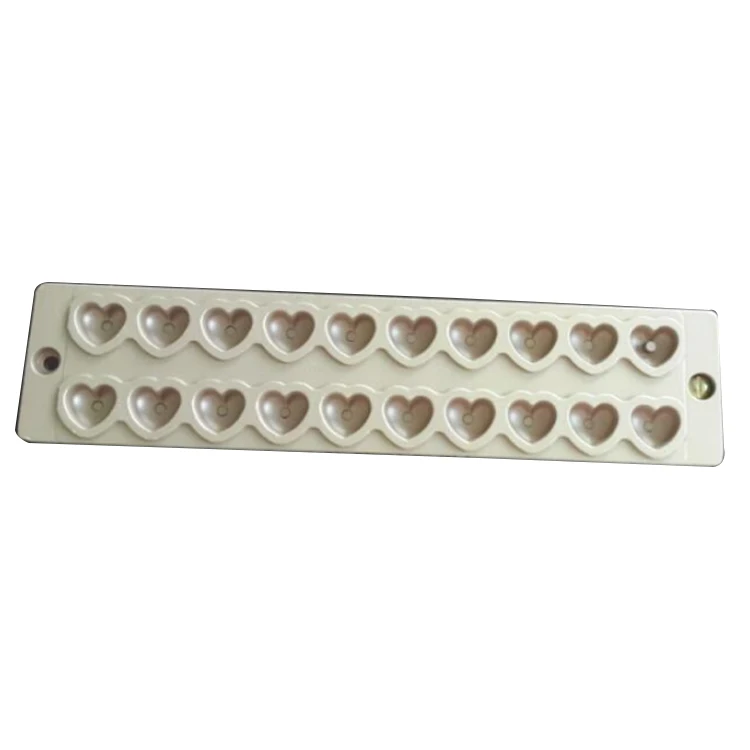

Moulds
Moulds made of Aluminum alloy,Outside
coated with Teflon;
candy shape and size can be designed.

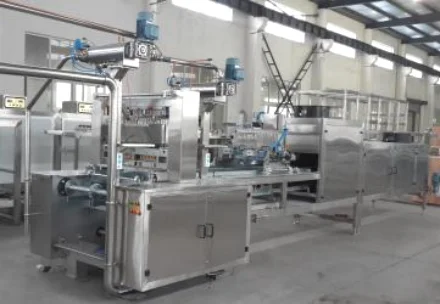

Servo system Depositing & cooling
(One row without A/C)
A. Double color servo depositor 1set, servo motor: 1.5Kw X 2sets
B. Depositor head automatic tracking use servo motor control, power 1Kw
C. Depositor electrical control: 5-route temp. controller, power 5.5 Kw.
D. Mold conveyor power: 1.5Kw, use inverter adjust speed
E. Syrup color & flavor mixer 2sets, power 0.37Kw
F. Flavor and color dosing 4sets, flow rate 3L/h(Max), flow rate adjustable
G. Cooling tunnel belt 1set, conveyor 0.75Kw
H. Machine made of SUS304 material (except transmission shaft, cam, chain, gears and related standard configuration parts)


Feature


1.Sugar and all other materials are automatic weighed, transferred and mixed through adjust touch screen. Various kinds of recipes can be programmed in the PLC and applied easily and freely when required.

2.PLC, touch screen and servo driven system are imported brand, more reliable and stable performance and durable use-life.

3.Depositing volume (candy weight) can be changed easily through setting data on touch screen. More accurate depositing and continuous production makes minimal product wastage.

4.Simple and compact machine structure, menu style operation interface, convenient operation and maintenance, high efficiency, low-noise, stable performance and long life.

5. Ball and flat lollipop stick-insert machine for producing lollipop in the same line is optional


Application


The hard candy production line is composed of electric candy cooking machine, cooling table, burrito machine, sieving machine, forming machine, cooling sieve, packaging machine, etc. It can produce round, oval hard candy and cylindrical candy.

The whole production line is controlled by electrical integration, which is easy to operate and control. It is an ideal equipment for small and medium-sized candy enterprises.




Main Products




If you want more informations,please click here and contact us!!!


Our Company












FAQ


Q1:Are You A Factory or A Trading Company?
A: We Provided Perfect OEM and After-sale Service.

Q2:Where is Your Factory? How Can I Visit Your Factory?
A:Our Factory is Located on HangZhou Zhejiang Province. We Are Warmly Welcom You Visit Our Factory if You Have a Travel Plan

Q3:Can You Send Me the Video To Show The Machine Works?
A:Certainly, We Have Made Video of Every Machine

Q4:How Can I Know Your Machine Is Designed For My Product?
A:You Can Send Us Samples of Your Product and We Test It On Machine

Q5:How Can I Pay My Order?
A:Usually We Accept L/C, D/A, D/P, T/T, Western Union, MoneyGram,Cash Paying Methods

Q6:Do you Have a Ce Certificate?
A:For Every Model of Machine, It Has a CE Certificated

Q7:What about install?
A. Our engineers will be sent according to your project.However,the customer will pay the economic air tickets round trip and arrange the accommodation for them.
