Meat Blister Packaging Trays Vacuum Forming Machine
- Category: >>>
- Supplier: Dongguan Houtai Machinery Manufacturing Co. Ltd.
Share on (1600655481901):
Product Overview
Description
Product Description

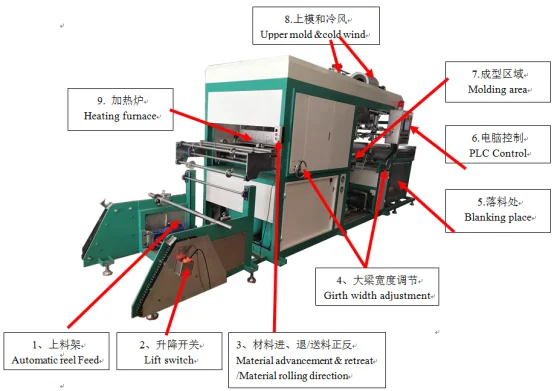

Machine Deatils:
No. | Item | Specifications and Models |
1 | Forming way | The upper mould, the lower mould and the hot furnace are special cylinder of "TUOCHUANG" enlargement type |
2 | Forming Size | Forming length:450mm-710mm Forming width:510mm-1220mm |
3 | Forming depth | ≤200mm |
4 | Material and thickness | PVC,PET,PS,PP 0.15mm-2.0mm |
5 |
Sheet Tracting system | European hollow tooth box variable frequency Madara plate, special Italian grinding Angle 30° high temperature quenching nickel plated tip chain strip plate |
6 | Heating system | Adopt 600W energy-saving far infrared ray ceramic heating brick 60 pieces |
7 |
Temperature controller | 60 sets of Shanghai "AOYI" temperature control modules are controlled by computer. PLC is adopted to control the temperature to solve the influence of power grid voltage. The temperature is set stable and fast, with the function of fast heating |
8 | Cooling system | Four double - ended strong fans, guide rail insert type stainless steel tube circulation water |
9 | Vacuum control system | Vacuum control system: enlarged vacuum air storage tank 0.35m;The valve body is the cylinder direct guide mechanical type |
10 | Track | Flat light guide rail, surface plated with hard chromium, guide with motor homology |
11 | Full machine guide rod | special Japanese hard chrome light circle |
12 | Pneumatic component | Water oil isolation, electromagnetic valve: "Japan" chronic kidney disease (CKD) |
13 | Electronic component | Frequency Converter: Panasonic Encoder: Omron |

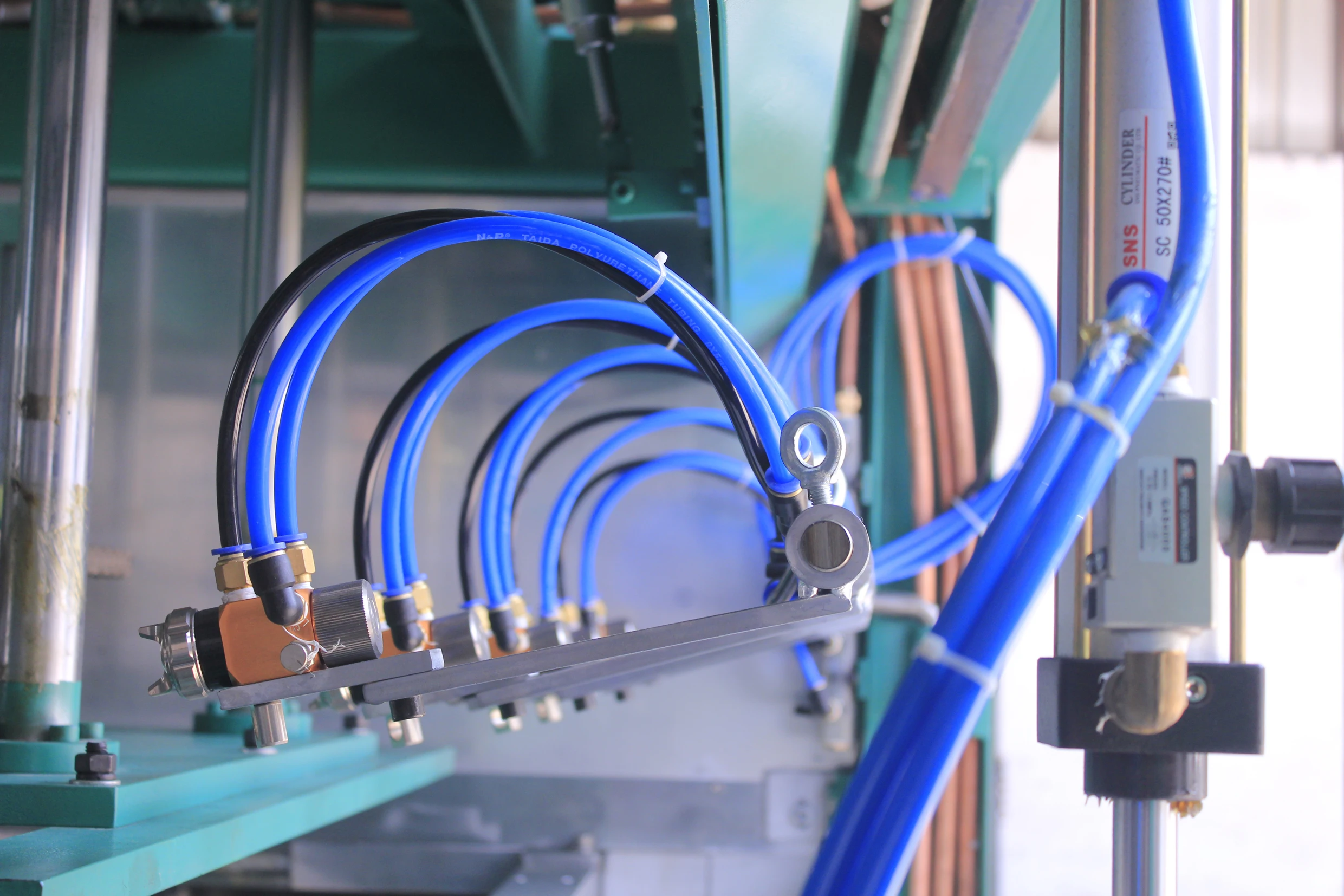

14 | Spray gun | Japanese “MEIJI” 10pcs |
15 | Vacuuming pump | One set of "AIRTECH" 100m³ from America |
16 | Chiller | 3HP 1 set China brand |
17 | Machine size | length:7500mm width: 2000mm height 2600mm |
18 |
Electricity | power : Max 35KW Normal production: 15KW-25KW Voltage :380V /3P/ 60HZ |

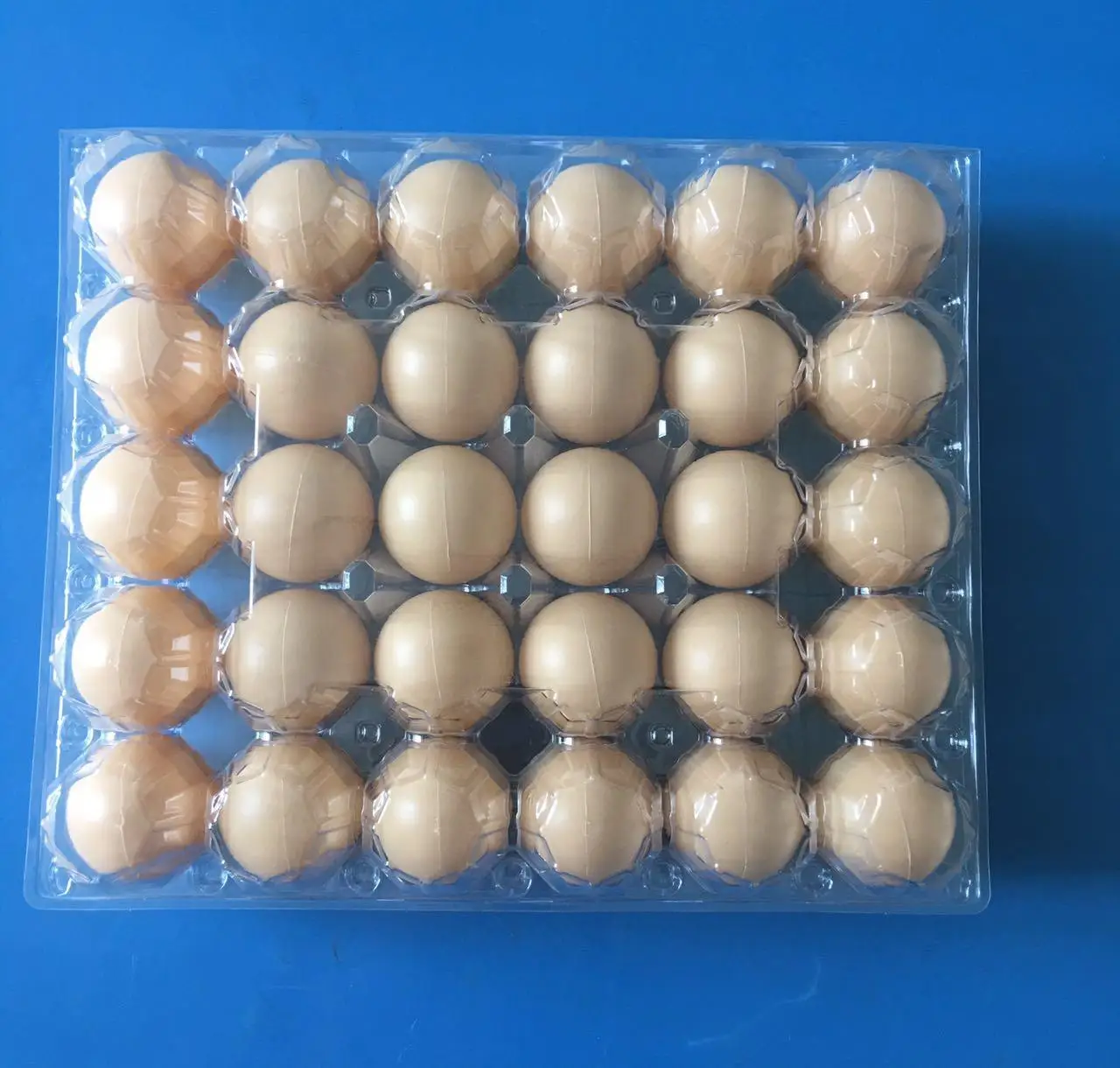

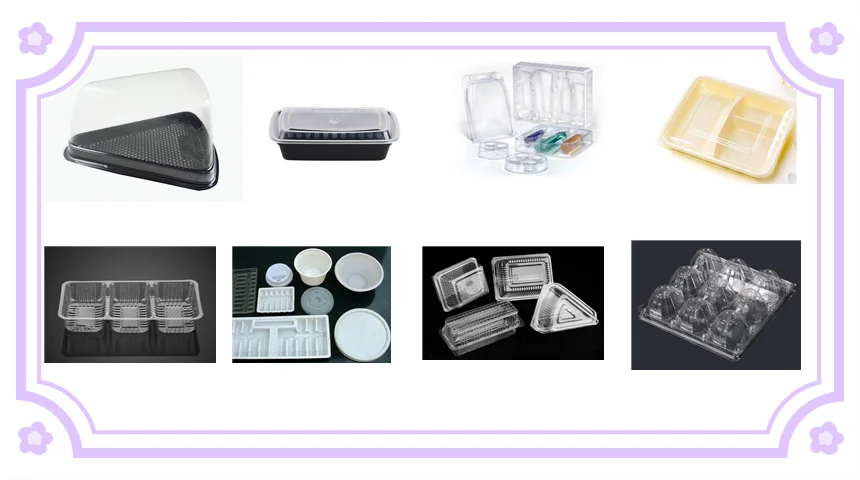

Application
Cutting Video
| 1 | High Speed Vacuum Forming Machine | https://www.youtube.com/watch?v=1BylJTly4Gg |
| 2 | Horizontal and vertical slitting machine epe foam plastic cutting machine | https://youtu.be/BJrsh-lzw4Y |
| 3 | single side plastic sheet die cutting machine with robot arm | https://youtu.be/pIYhox698Z0 |
| 4 | blister packaging hydraulic cutting machine | https://youtu.be/AJEtDZgaiAI |
| 5 | All in one full automatic positive and negative multi station machine | https://youtu.be/FykJJhMlo3Q |
| 6 | High speed Hydraulic Plastic disposable container Cutting Machine | https://youtu.be/ic8GI8cPv0o |

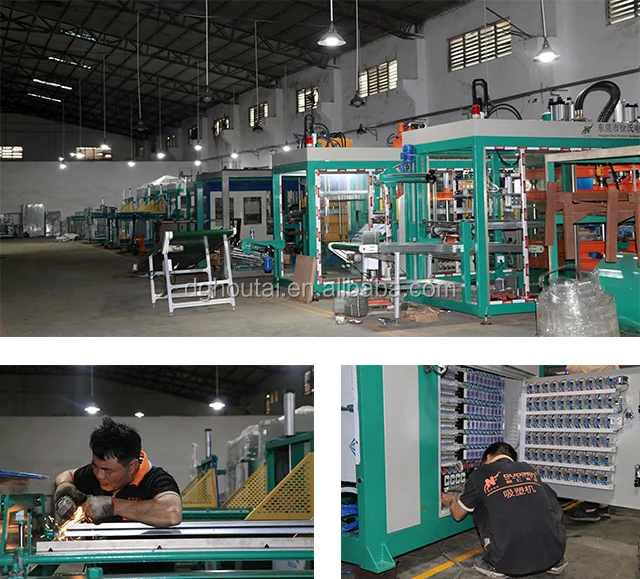

Company Information
Dongguan Houtai Machinery Manufacturing Co., Ltd. is a mature manufacturer established in 2003 with the approval of relevant national departments. We have a variety of large three axis, four axis, five axis CNC machining center, precision gantry large water mill, precision testing tools and other equipment. We are specializing in the production of blister continuous trimming machine, four column hydraulic cutting machine, plastic vacuum forming machine, thermoforming station, thermoforming machine and auxiliary equipment. We deeply concentrate on the blister industry. Our machines are highly praised by customers.
"HOUTAI" brand machines are widely used in blister packaging, fast food packaging, fruit packaging, EVA/EPE packaging etc industry. Our first-class sales team is thoughtful and meticulous in the whole pre-sale, sale, after-sales service. We always keep the pursuit of product excellence, to ensure that users buying at ease, using rest assured.
Houtai are always willing to create brilliant future hand in hand with friends in the industry!

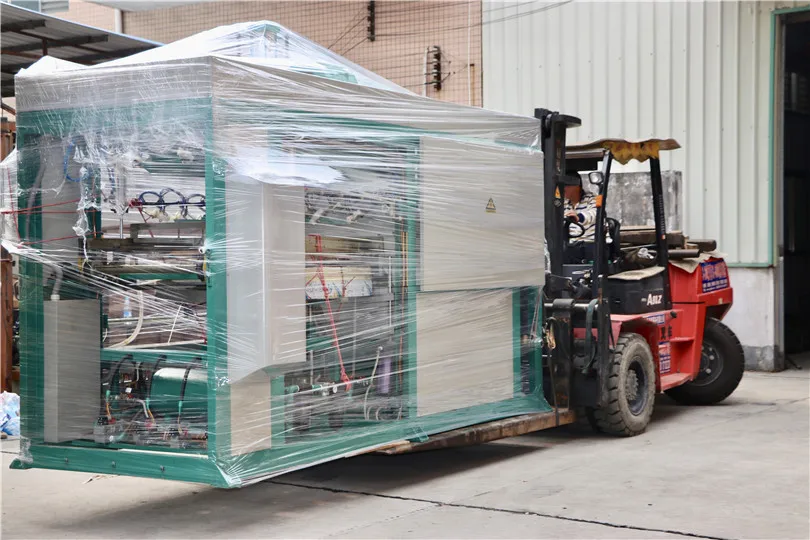

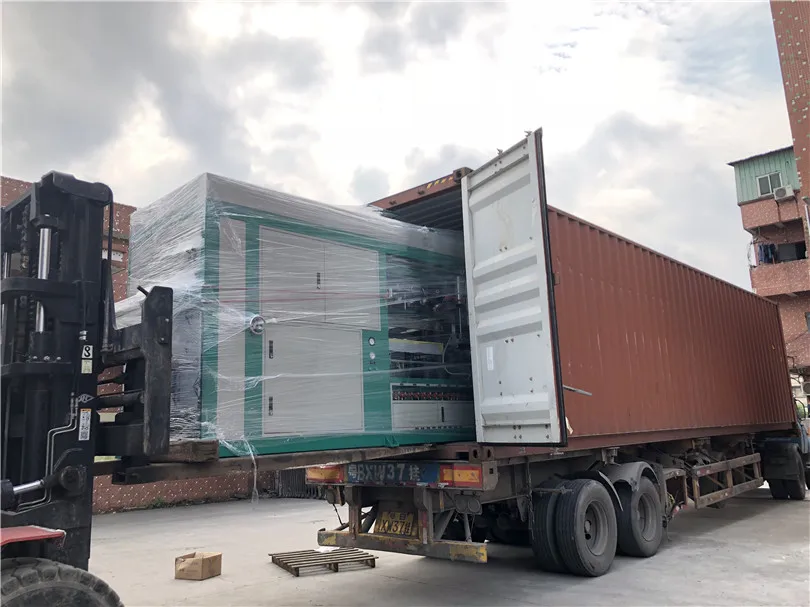

Packaging & Shipping
Packaging
1.We can pack it according to customers special request.
Delivery Time
60 days after confirming order,detail delivery date should be decided according to production season and order quantity
Payment Terms
30% of total amount as down payment shall be paid after signing the contract, the rest 70% shall be paid before delivery.
Our Services
1. 24 hours online and telephone support; Nomatter anytime, anywhere or any question I will reply you as soon as possible.
2. Exclusive and unique solution can be provided to our customers by well-trained and professional engineers and staffs.
3. Engineers and professional technicians keep seeking the new ways to innovate all of our wheel loaders, which could provide you the most competitive products.
4. Global cooperation with distributors, you can get the most convinent after-sale service. Special discount and protection of sales area provided to your distributor.
5. Your success is our business. We will do our best to provide you the most competitive product with high quality and low price.
FOR MORE DETAILS PLEASE DO NO HESITATE TO CONTACT WITH US!
FAQ
1. What's the warranty of your machines?
12 months Warranty, Life-long technical support
2. How do you help with the installation?
Engineer is available to serve over sea if needed. It is easy for customer to install through video calling. What’s more, we have video tutorial for customers.
3. Can we test our own material by your machine before order?
Yes, please contact us to send your material. We will test and send video to you.
4. Can you make dies (molds) of different products for us?
Yes, we used to do that for customers.
5. Are you factory or trading company?
We are factory.
Don't know what machine is suitable for you?
Please just ask us!
Don't know how the machine working?
Please contact us to see the video!
