SHUIPO orbital sem robot wading machine tank trailer welding machine
- Category: >>>
- Supplier: Shandong Shuipo Intelligent Equipment Co. LTD
Share on (1600655500968):
Product Overview
Description
Top Quality Circular Seam Welding Machine Welding Robot
Product Show

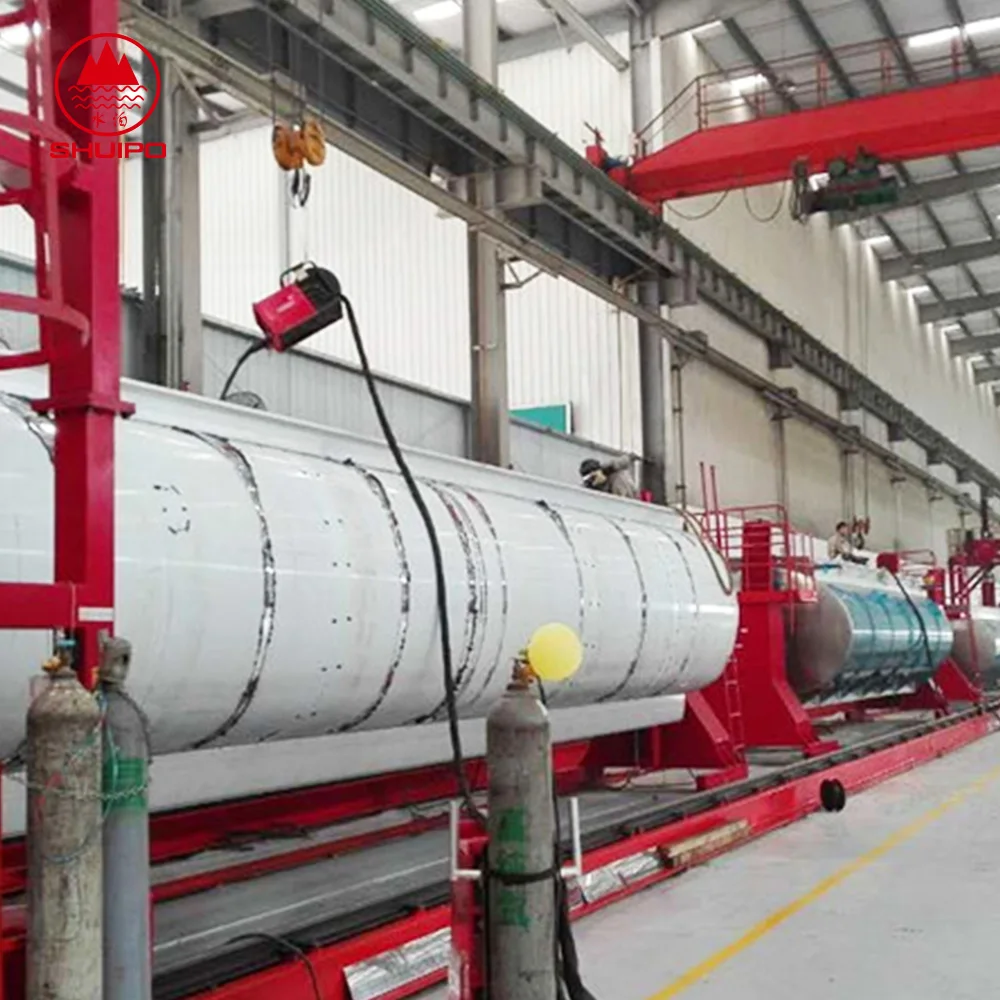

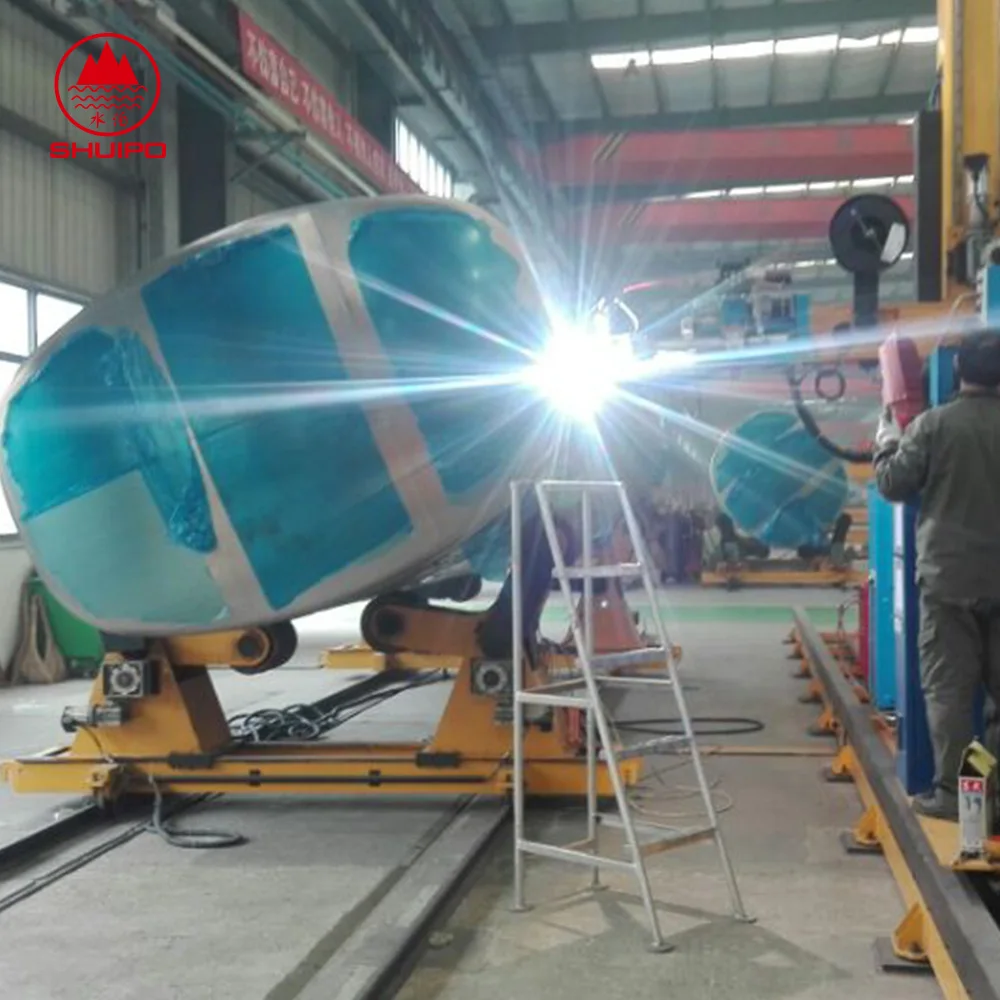

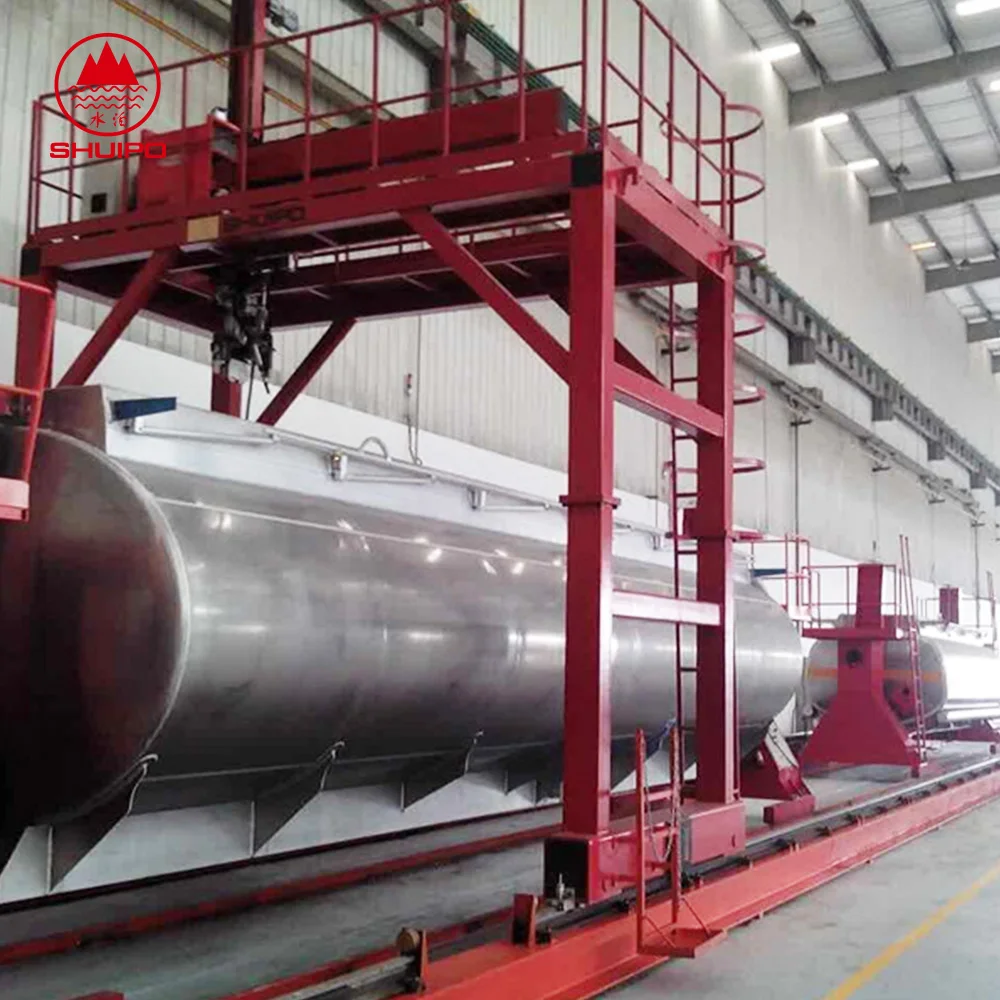

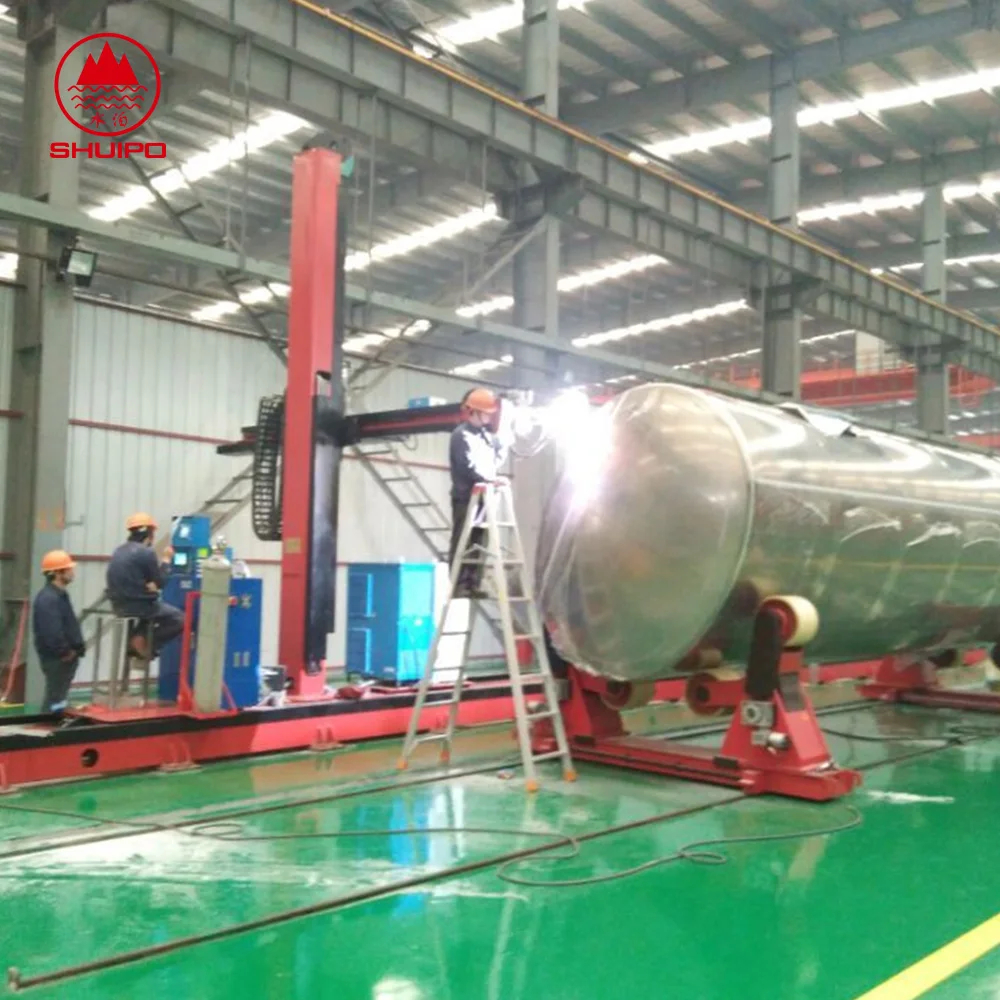

1.Pictures for Circular Seam Welding Machine Welding Robot

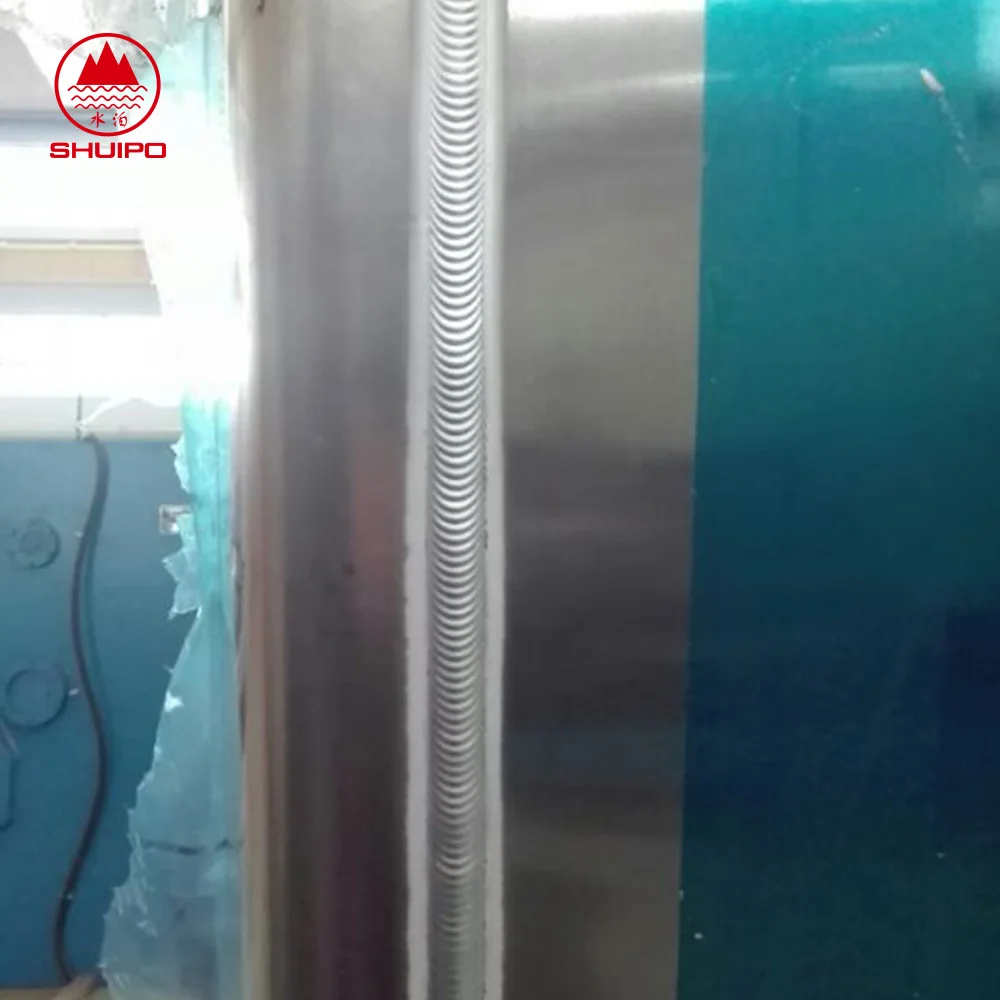

2.Welding Effect of Circular Seam Welding Machine Welding Robot
Part of the Workpiece and the Effect of Processing
The Patent Certificate
3.Technical Statistics of Circular Seam Welding Machine Welding Robot
Maximum Diameter | 3200mm (can be customized) | |
Minimum Diameter | 1200mm | |
Gantry | Gauge | 3600mm |
Rail Length | 16000mm (can be customized) | |
Rotating Device | Gauge | 1200mm |
Rail Length | 16000mm | |
Welding Speed | 50-600mm/min | |
Gantry Longitudinal Returning Speed | 2800mm/min | |
Welding position | flat position welding | |
Welding Wire Diameter | 1.2-1.6mm | |
Welding Manner | The Submerged Arc Welding | |
Gantry Drive | AC Frequency Converter, Stepless Speed Regulation, Double Sides Drive | |
Rotating Device Drive | The AC Frequency Converter, the Stepless Speed Regulation | |
Cable Conveying | The Tackle Type | |
Flux Reclaimer | The Pneumatic Automatic | |
Welding Profile Modeling | Magnetic Automatic Profile Modeling | |
Welding Width | 5-12mm | |
Welding Seam Monitoring Mode | The Guide Track | |
Power Supply | AC 380V 50HZ 3-phase 4-wire | |
Main Machine Power Supply | 31KVA | |
All specifications can be customized
4.More products for your choice
Company show
1.About us
2.Package
3.Our Market
| Main Markets: | South Asia |
| North America | |
| South America | |
| Mid East | |
| Southeast Asia | |
| Africa | |
| Eastern Europe | |
| Western Europe | |
| Total Annual Sales Volume: | US$50 Million - US$100Million |
| Export Percentage: | 31% - 40% |
