Производитель 6 камер AVMATRIX PVS0613U, видеомикшер HDMI SDI с экраном 13,3 дюйма
- Category: Professional Audio, Video & Lighting(old) >>>
- Supplier: Zhangzhou Matrix Electronic Technology Co. Ltd.
Share on (1600655535144):
Product Overview
Description
Brief Introduction
PVS0613U

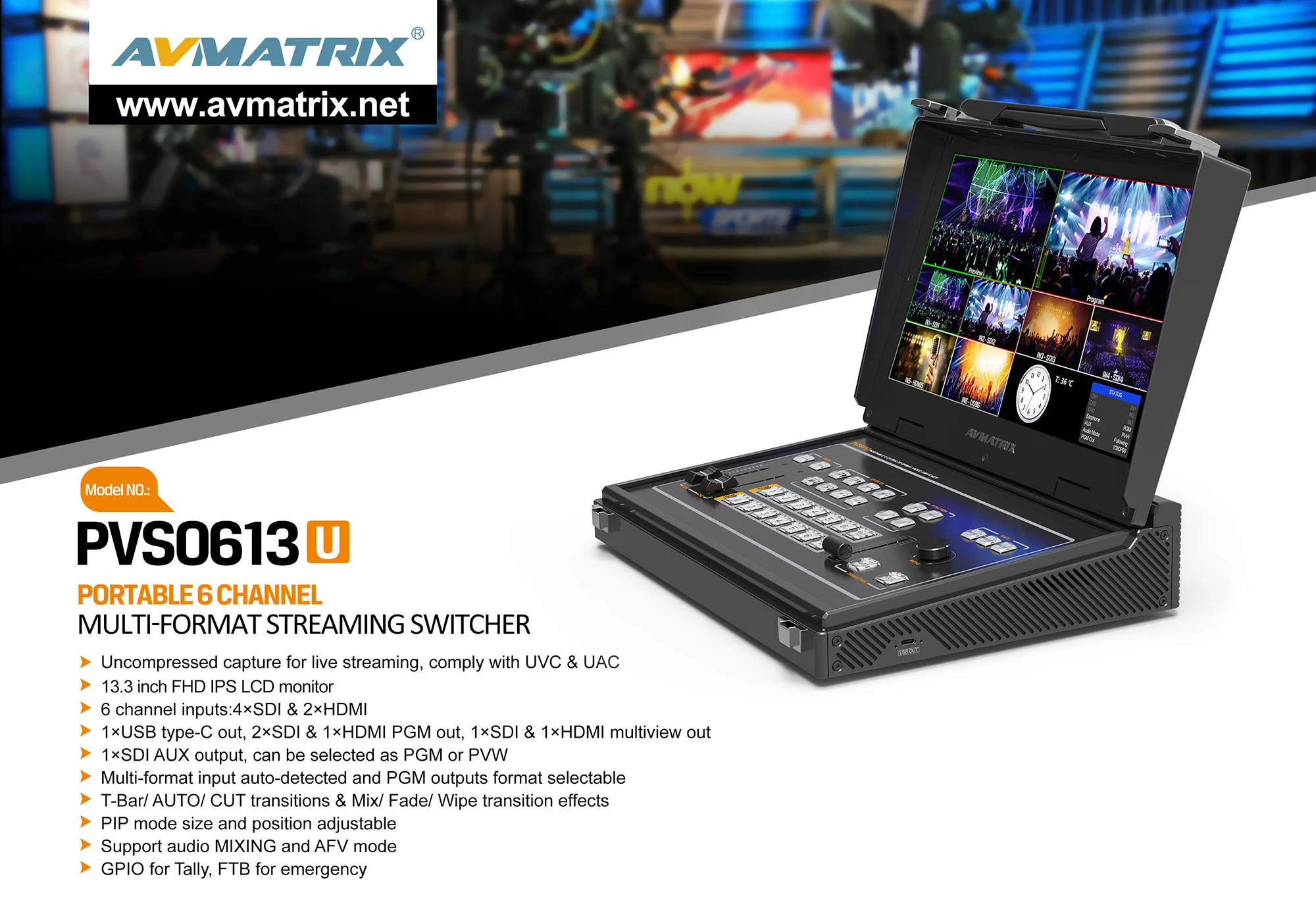

AVMATRIX 6 Cameras Production Video Mixer with 13.36" screen
AVMATRIX 6 Cameras Production Video Mixer with 13.36" screen
Main Features
1) Portable design with 13.3 inch FHD LCD display
2) 6 channel inputs: 4×SDI and 2×HDMI
3) 2×SDI & 1xHDMI PGM out,1× SDI PVW, 1×SDI & 1×HDMI multiview out
4) Input format auto-detected and PGM/AUX output format selectable
5) T-Bar/AUTO/CUT transitions and MIX/ FADE/ WIPE effects
6) PIP mode, window size and position adjustable
7) Audio mixer: 3.5mm stereo/RCA audio & SDI, HDMI embedded audio
8) GPIO interface for live tally system
9) FTB for emergency situation
Product Description

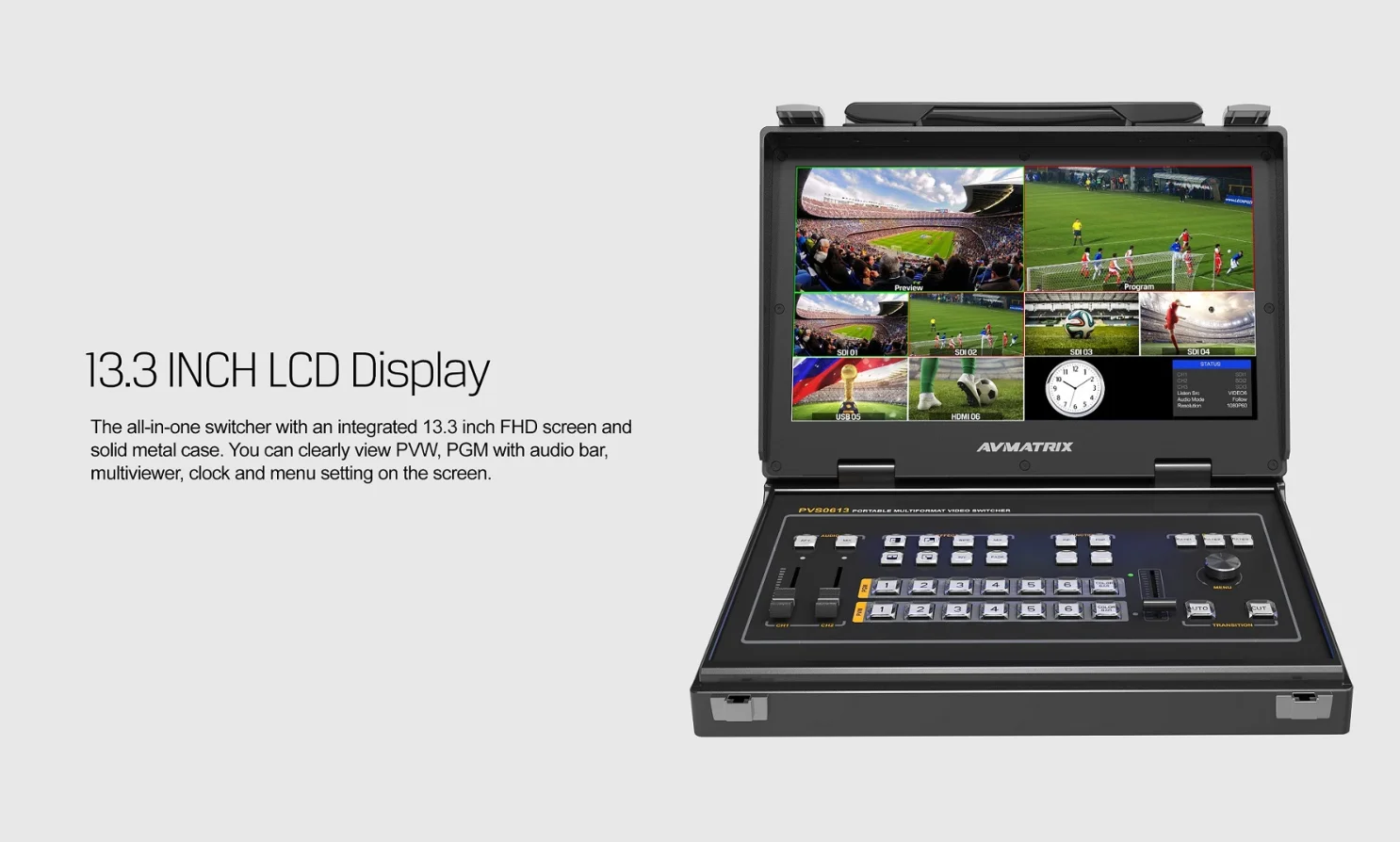

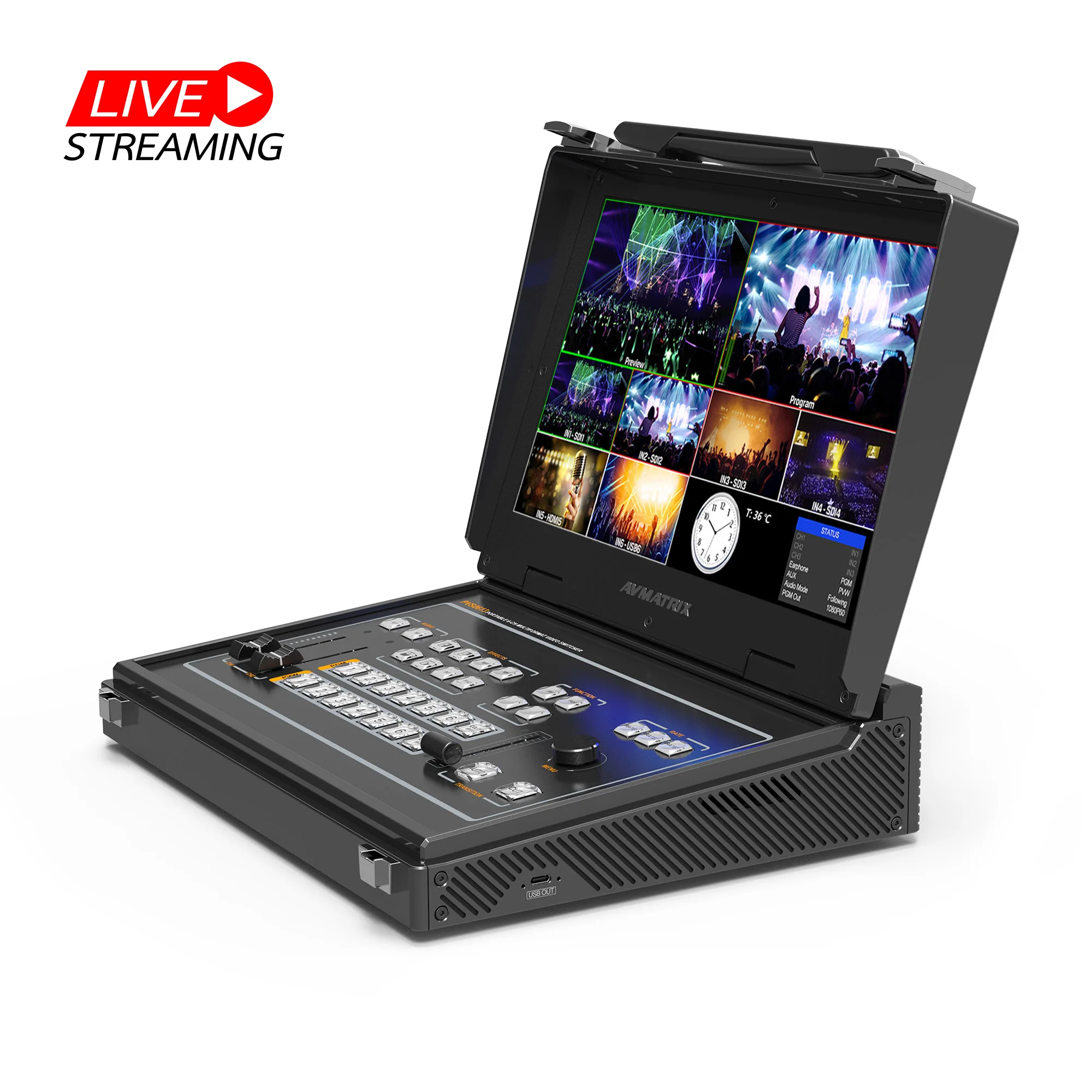

13.3 inch LCD Display
The all-in-one video switcher with an integrated 13.3 inch FHD screen and solid metal case. You can clearly view PVW, PGM with audio bar, multiview, clock, and menu setting on the screen.

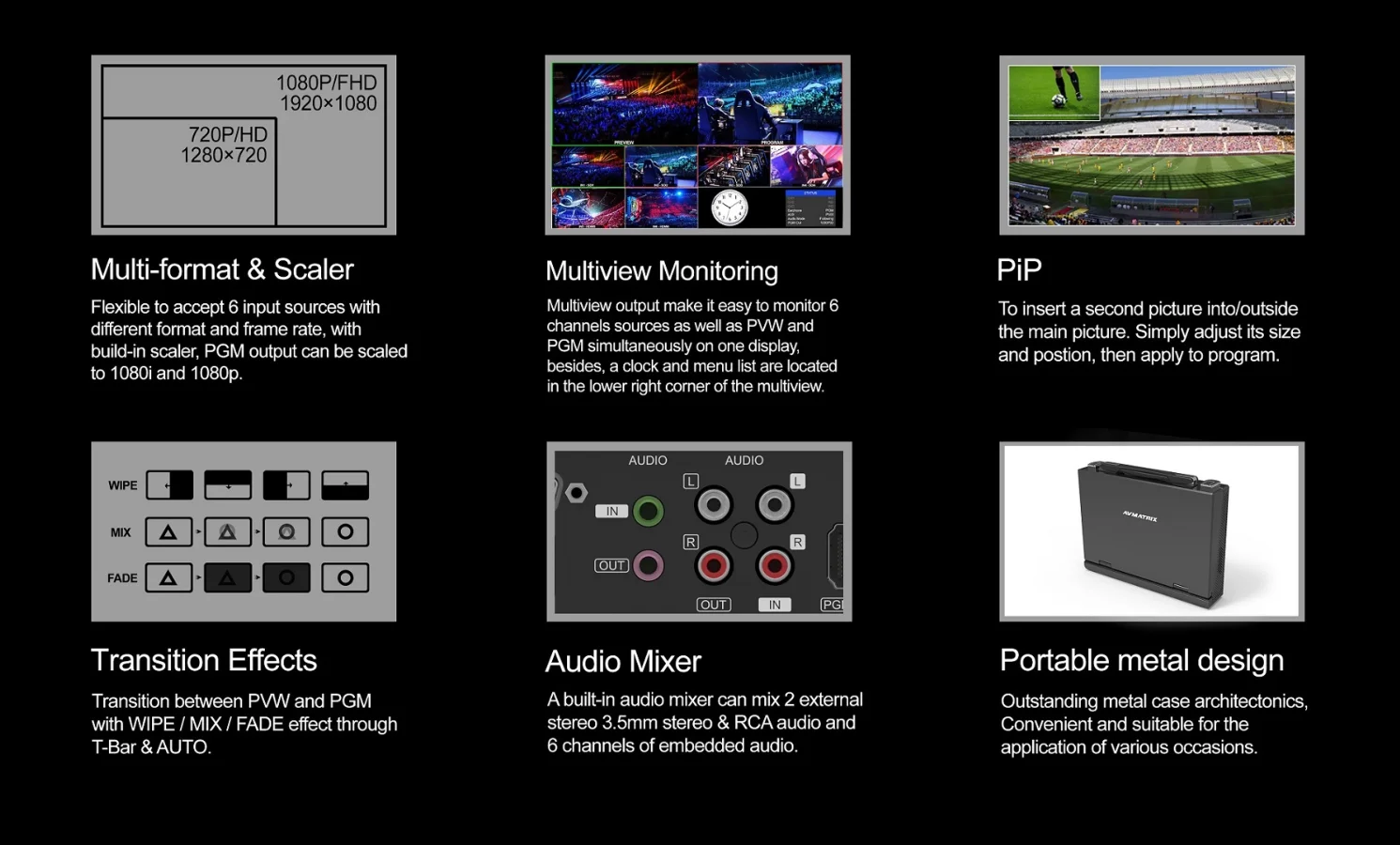

Multi-format & Scaler
Flexible to accept 6 input sources with different format and frame rate, with build-in scaler, PGM output can
be scaled to 1080i and 1080p.
be scaled to 1080i and 1080p.
Multiview Monitoring
Multiview output make it easy to monitor 6 cameras as well as PVW and PGM on one display at same time.
Besides, a clock and menu list are located in the lower right corner of the multiview.
Besides, a clock and menu list are located in the lower right corner of the multiview.
PIP
To insert a second picture into/outside the main picture. Simply adjust the size and position of windows and then overlay on the
program.
program.
Transition Effects
Transition between PVW and PGM with Wipe/ Mix/ Fade effect through T-bar & Auto.
Audio Mixer
A built-in audio mixer can mix 2 external stereo 3.5mm &RCA audio and 6ch embedded audios.
Portable Handbag
The switcher comes with a handbag, total around 1.7kg, very portable for taking to anywhere.

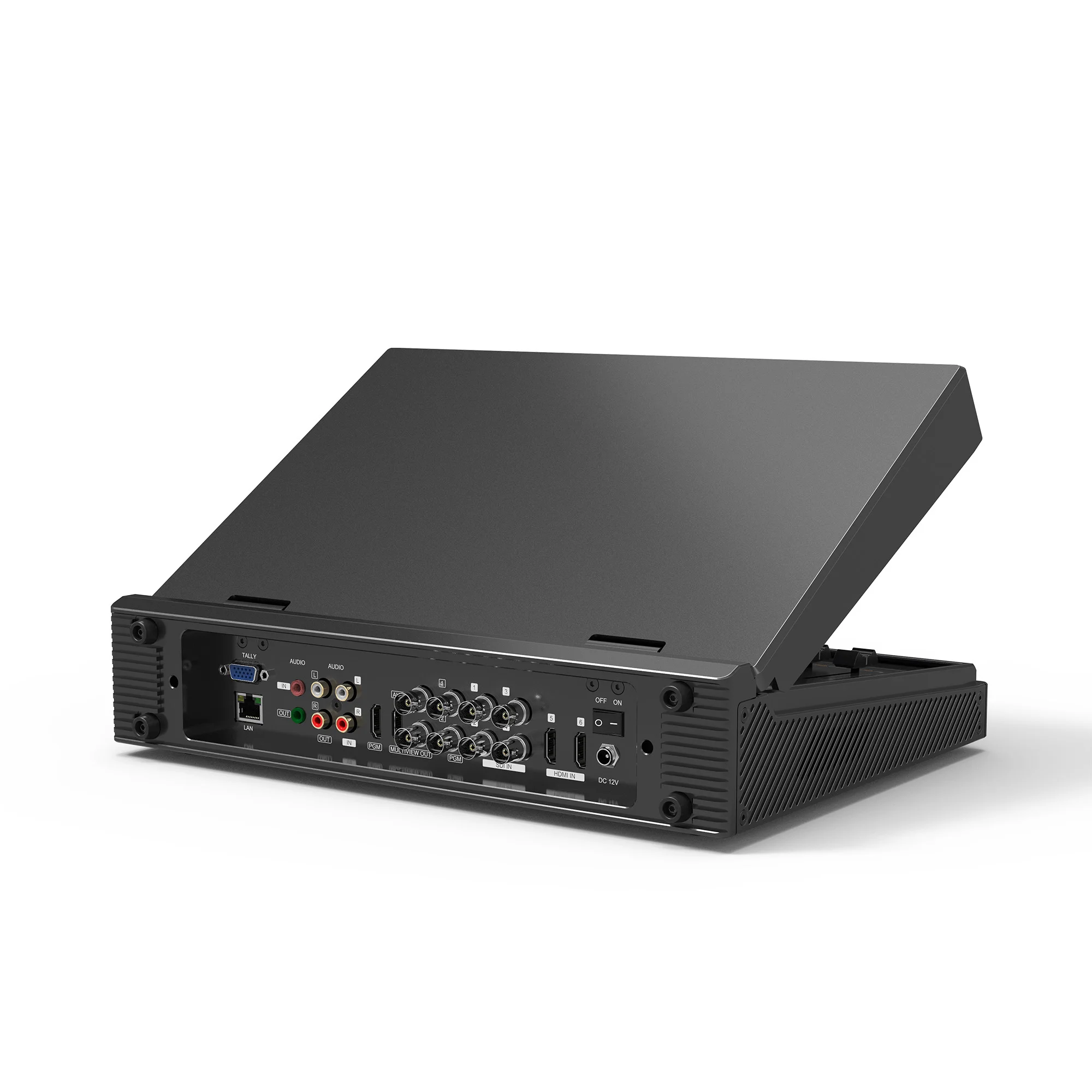

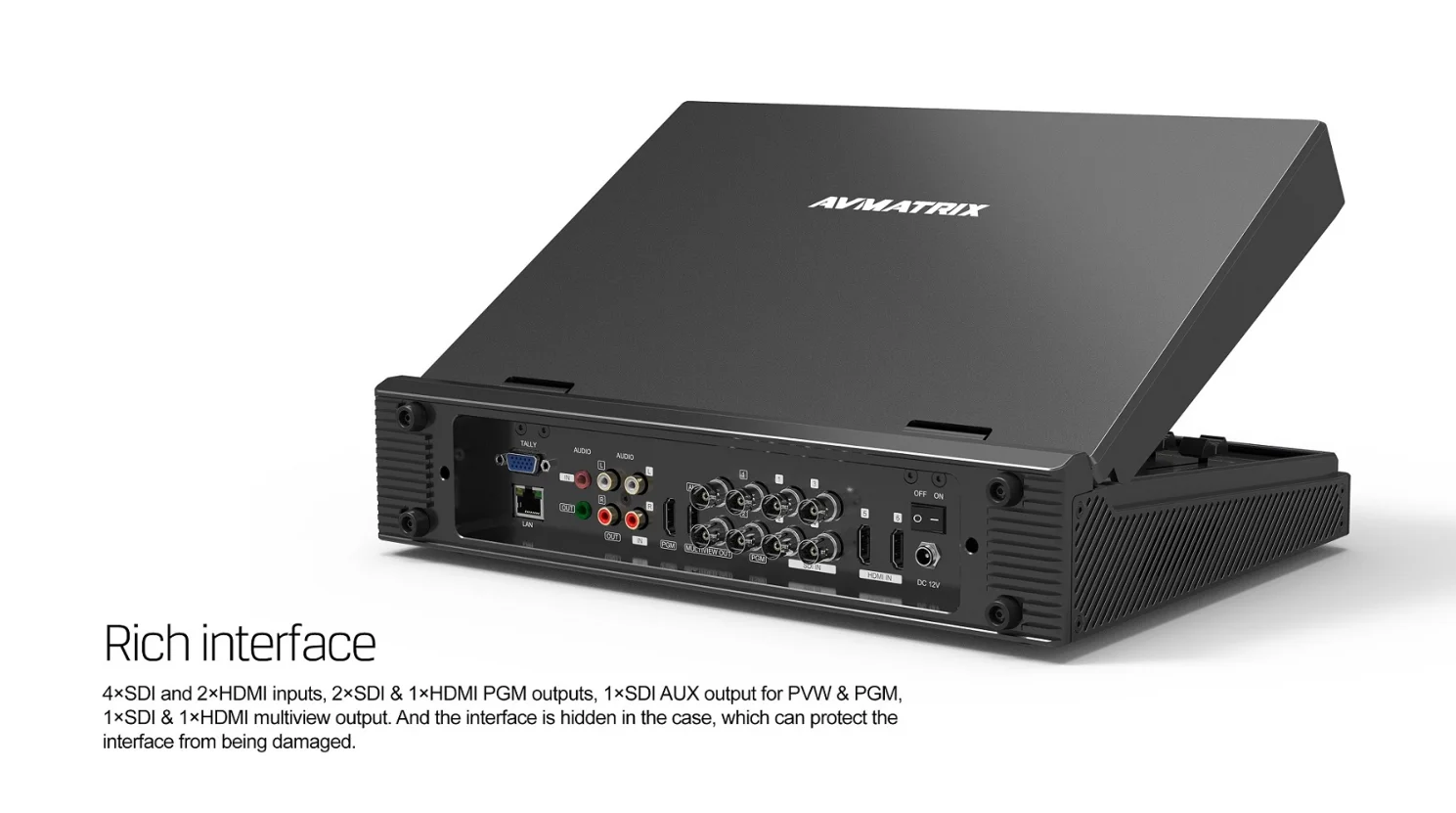

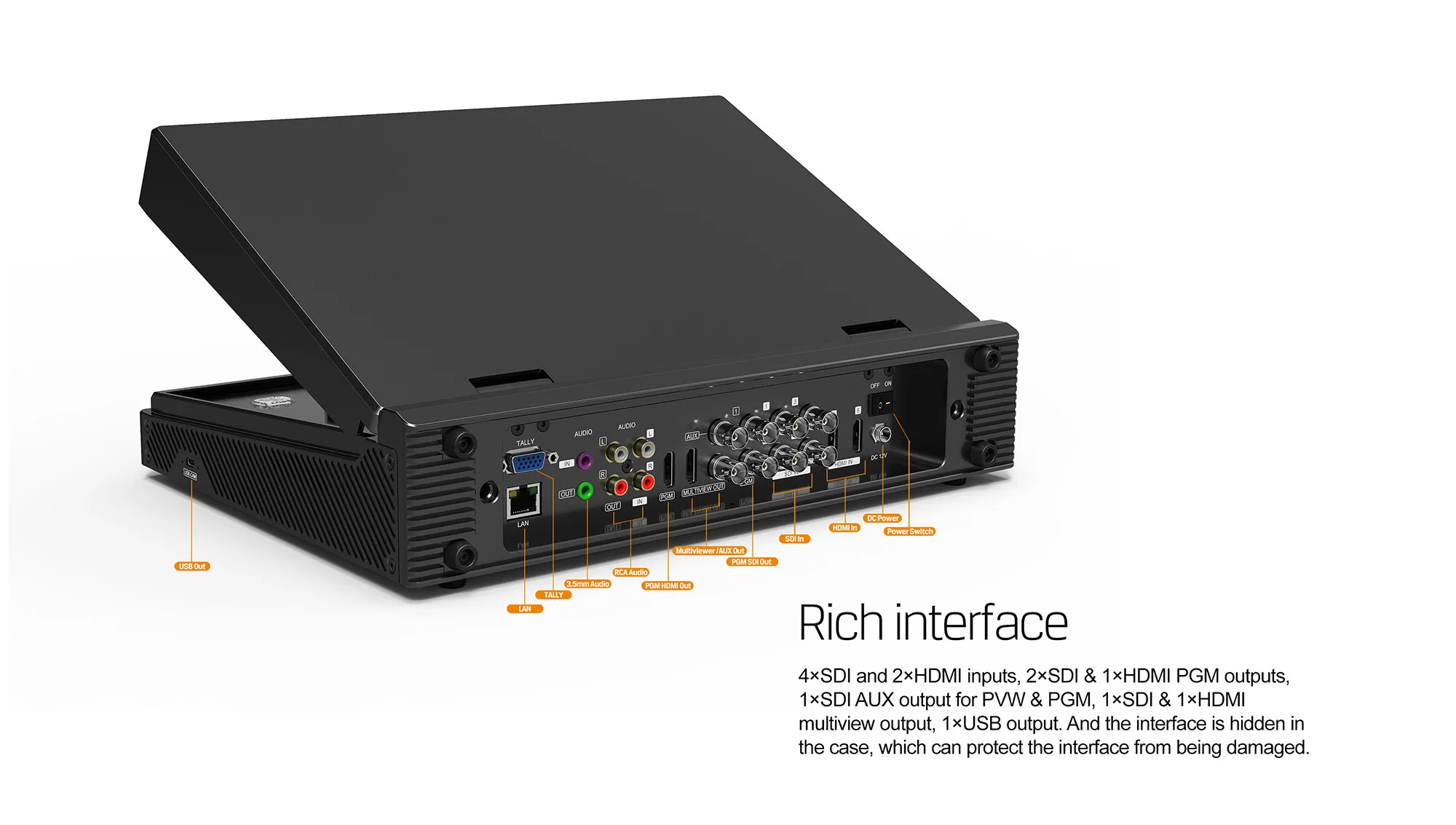

Rich Interface
1x SDI and 2x HDMI inputs, 2x SDI & 1xHDMI PGM outputs, 1X SDI AUX output for PVW & PGM, 1x SDI & 1x HDMI multiview output. And the interface is hidden in the case, which can protect the interface from being damaged.
Widespread Application
The all-in-one 6 cameras production video mixer can be widely used in various field events, such as live sports, virtual studio, Education, internet, concert, and so on
Techniacl Parameter
CONNECTIONS | Transitions | Manual T-bar/ AUTO/ CUT |
Transition Effects | Wipe/ Mix/ Fade/ FTB | |
Layouts | PiP/ Multiview | |
Audio Mixer | Following/Mixing | |
LCD Display | 13.3 inch, 1920×1080 resolution | |
Video Inputs | SD/HD/3G-SDI(75Ω)×4, HDMI2.0 type-A(100Ω)×2 | |
Analog Audio Inputs | 3.5mm stereo audio ×1, RCA (L/R)x1 | |
OUTPUTS | PGM Outputs | HD/3G-SDI(75Ω)×2, HDMI type-A(100Ω)×1 |
AUX Output (PGM/PVW) | SD/HD/3G-SDI(75Ω)×1 | |
Multiview Output | 3G-SDI(75Ω)×1, HDMI type-A×1 | |
Analog Audio Output | 3.5mm stereo audio ×1, RCA (L/R)x1 | |
LAN | RJ45x1, Synchronize local time | |
Tally | GPIO | |
STANDARD | SDI Input Format Support | 1080p 60/59.94/50/30/29.97/25/24/23.98 1080psF 30/29.97/25/24/23.98 1080i 60/59.94/50 720p 60/59.94/50/30/29.97/25/24/23.98 625i 50 PAL, 525i 59.94 NTSC |
HDMI Input Format Support | 1080p 60/59.94/50 1080p 30/29.97/25/24/23.98/23.976 1080i 50/59.94/60 720p 60/59.94/50/30/29.97/25/24/23.98 576i 50, 576p 50 | |
SDI & HDMI Scaling PGM Output | 1080p 60/59.94/50/30/29.9725/24 1080i 60/59.94/50 | |
Multiview HDMI Output | 1080p 60 | |
SDI Compliance | SMPTE 292M / SMPTE 259M / SMPTE 424M | |

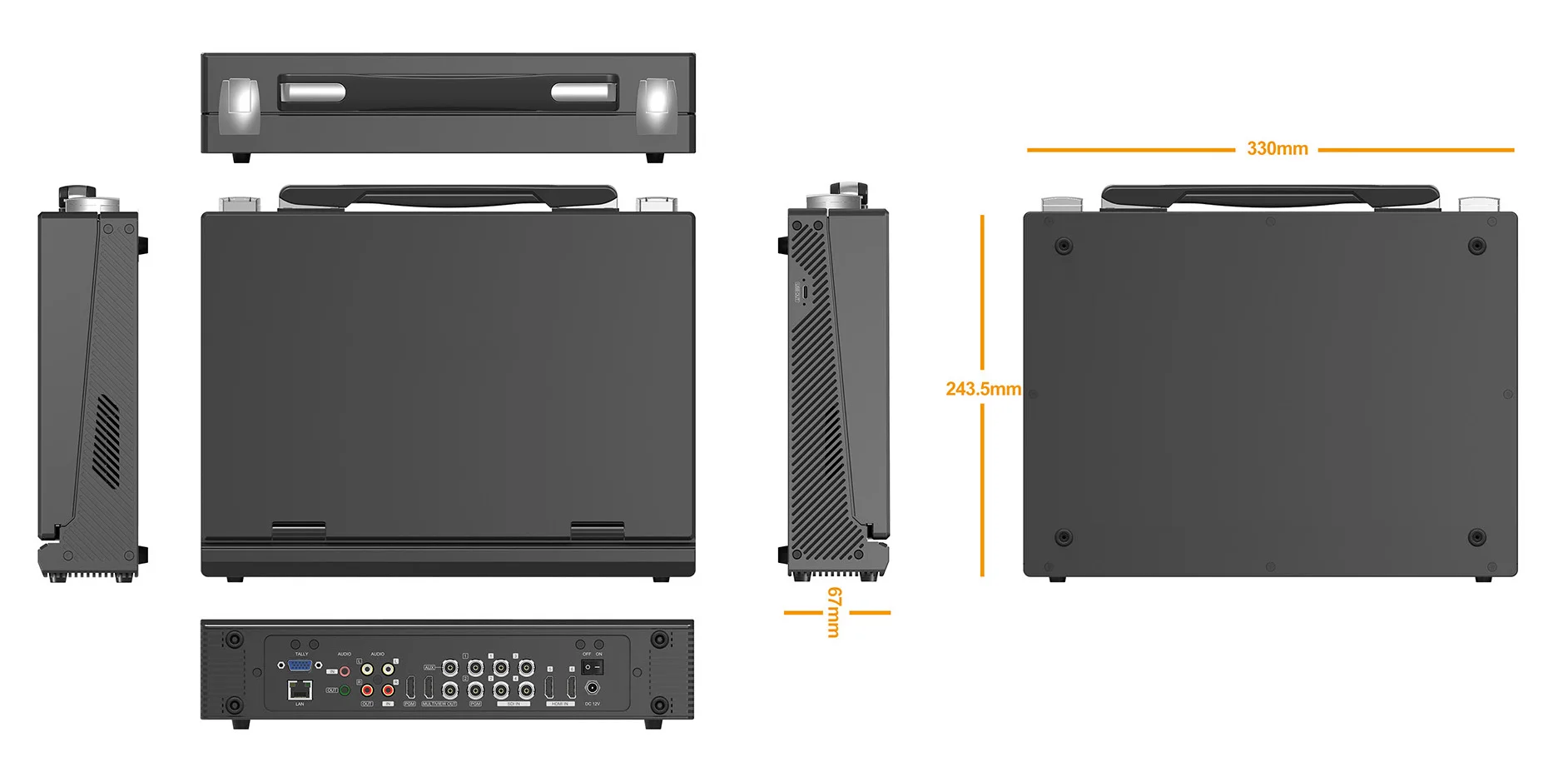

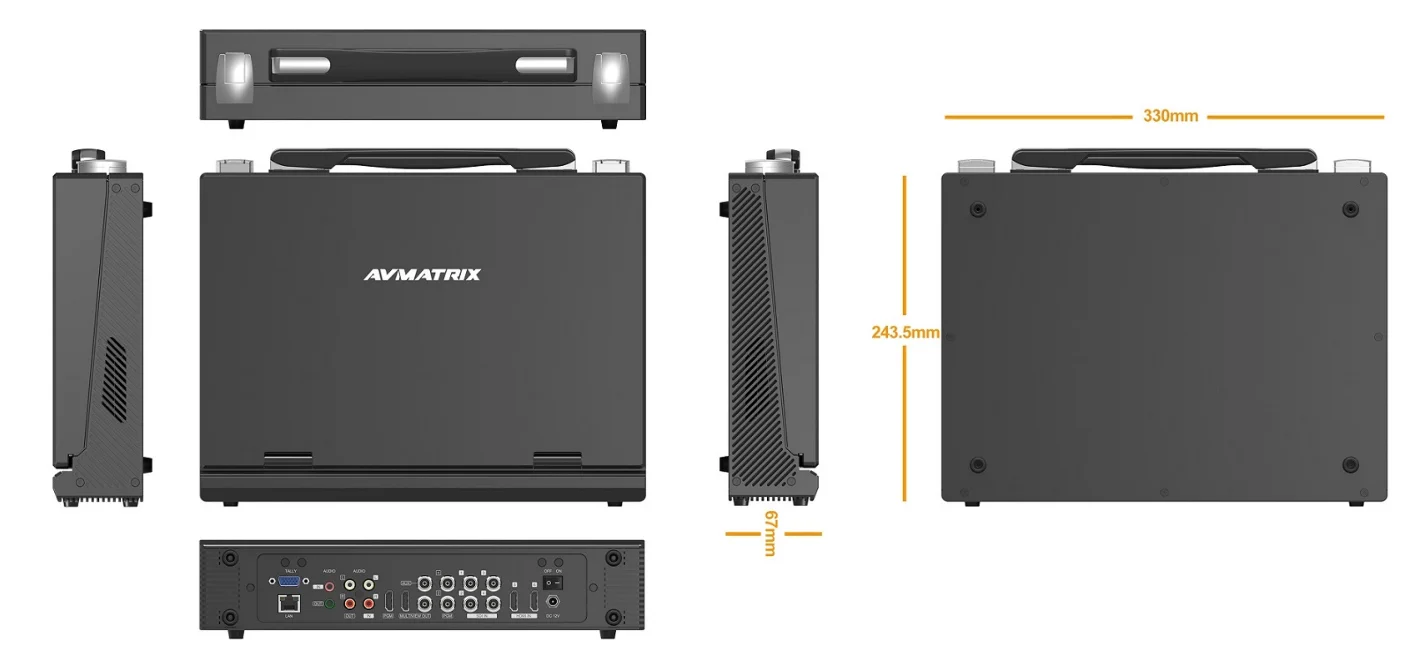

Dimension(LWD) | 330 × 243.5 × 67mm | |
Weight | 4.5kg | |
POWER | Power Supply | DC 12V 3A |
ENVIRONMENT | Operating Temperature | -20℃~60℃ |
Storage Temperature | -30℃~70℃ | |
Relative Humidity | 0%~90% non-condensing | |
Warranty | Warranty | 2 year limited warranty |
About AVMATRIX
After-Sales Service
AVMATRIX converters have earned a reputation for the highest quality and best levels of reliability. Built to the exacting standards of all avmatrix hardware, Mini-converters are backed by our world class support network and advanced replacement policy with 3-year international warrnaty.
About AVMATRIX
AVMATRIX is specialized in processing high definition video signals for years. we have developed and produced a series of pro video devices, including signal converter, multi-viewer, optical fiber converter, signal distribution amplifier, signal generator and matrix switcher, etc.
