Portable Lumber Band Saw Mill / Mobile Band Saw Mills / Portable Mini Log Sawmill With Trailer
- Category: >>>
- Supplier: Yantai Huike Machinery Co. Ltd.
Share on (1600655547191):
Product Overview
Description
Product Description

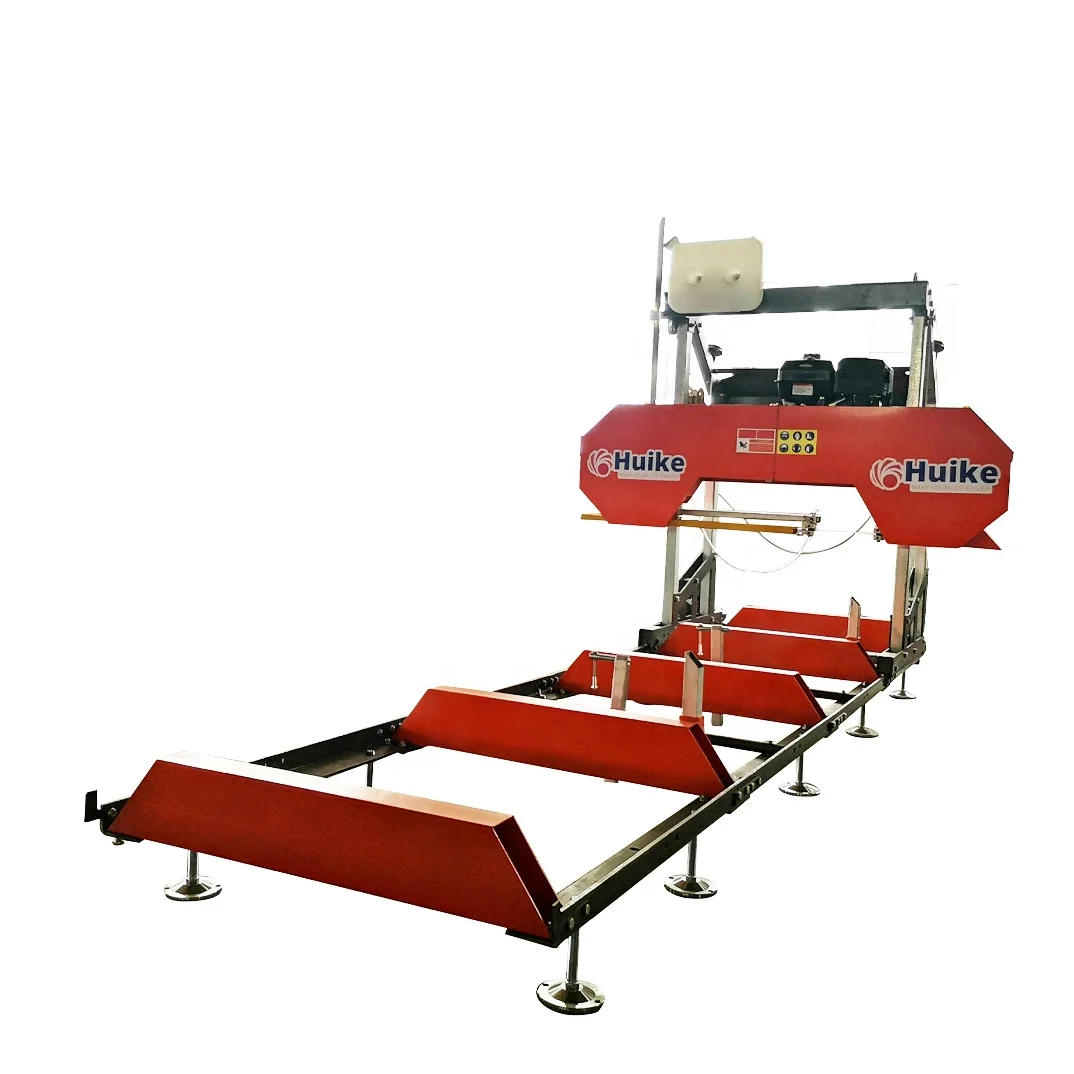

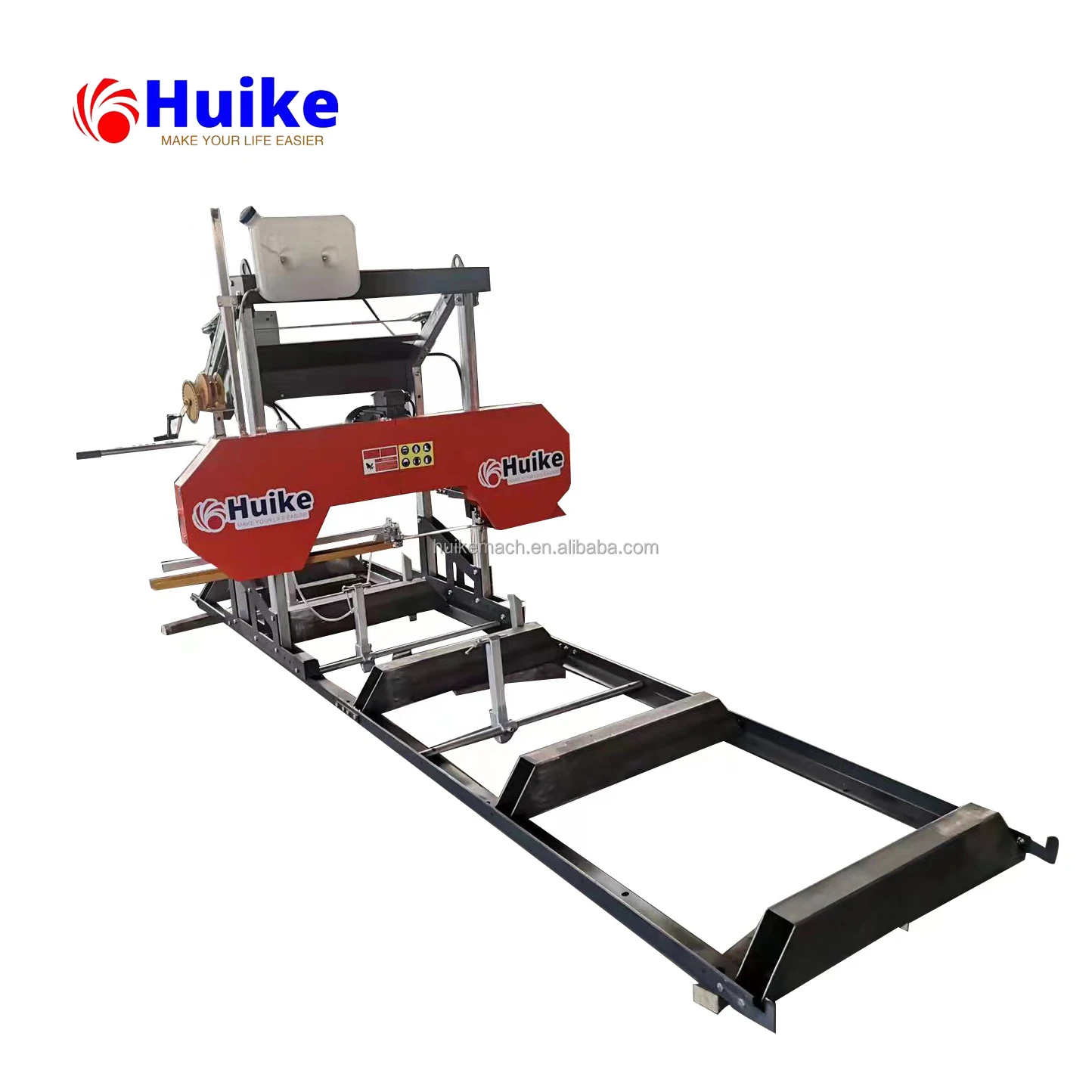

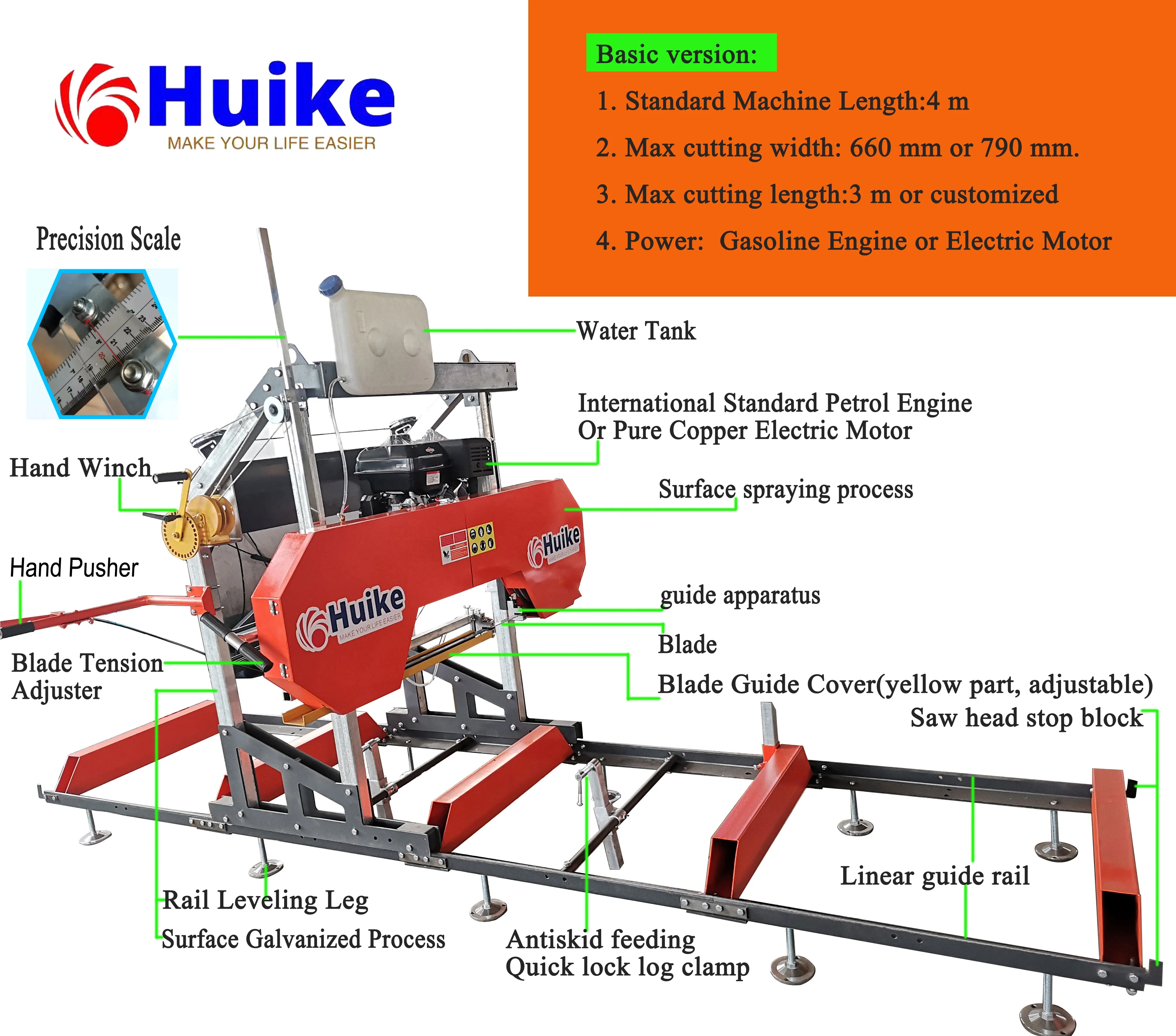

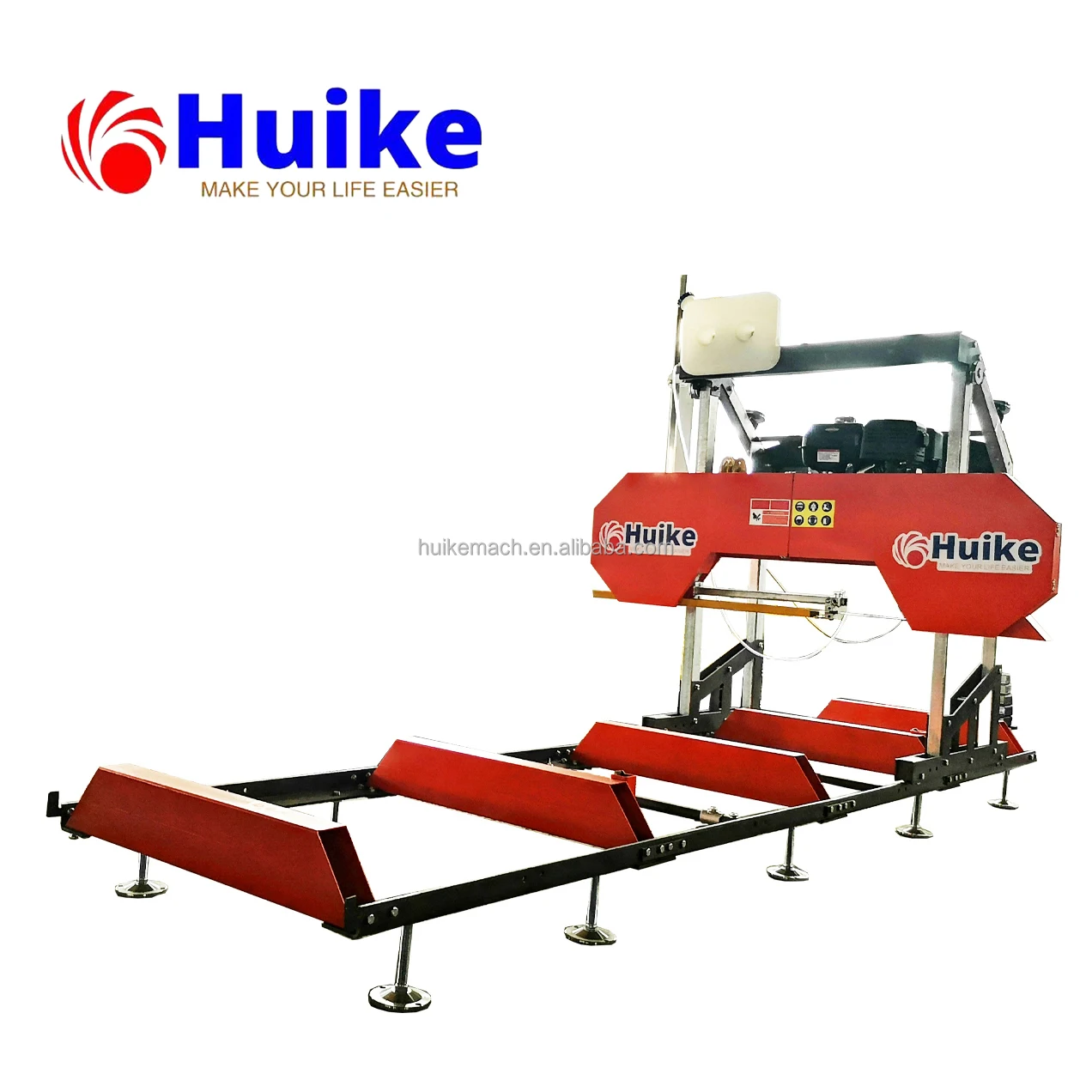

Huike Portable Band Sawmill
It is suitable for the scale production of sawmill and is widely used in wood processing in the original forest area.
Features:
1.hand forward and backward,hand lifting.
2.Power is cylinder air cooled gasoline engine.
3.Sawing hard wood customer recommends the use of American LENOX woodmaster B Bi-metal blades.
Advantage:
1.Simple installation, easy operation, labor saving , and high productivity.
2. Manual Operating, Simple , safe and pro-environment.
3. The thickness of processing wood can be adjusted according to your requirements, high-precision.
4. High cutting efficiency, smooth; high flatness of the cutting plate; high quality of final product, great reduce the lost of sawdust.
5. Petrol Engine / Electric Motor power supply.
6. Cutting wood diameter up to 790mm, the max sawing wood length can subject to customer’s requirements.
7. There's no need for the professional sawyers, the ordinary workers can operate the machine expertly.
4. High cutting efficiency, smooth; high flatness of the cutting plate; high quality of final product, great reduce the lost of sawdust.
5. Petrol Engine / Electric Motor power supply.
6. Cutting wood diameter up to 790mm, the max sawing wood length can subject to customer’s requirements.
7. There's no need for the professional sawyers, the ordinary workers can operate the machine expertly.
Specification
Model | HKS26G | HKS31G | HKS26E | HKS31E |
Power | Gasoline 9HP (LIFAN, Manual start) | Gasoline 15HP (LIFAN, Manual start) | Electric Motor 5.5KW | Electric Motor 7.5KW |
Displacement | 301cc | 420cc | 400V 50HZ 3phase | 400V 50HZ 3phase |
Cutting capacity Dia.*Thickness* Length | 660*178*2794mm (26”*7”*110”) | 790*178*2794mm (31”*7”*110”) | 660*178*2794mm (26”*7”*110”) | 790*178*2794mm (31”*7”*110”) |
Frame | 4pcs | 4pcs | 4pcs | 4pcs |
Blade size | 3690*34*0.9mm (145”*1-1/4”*0.035”) | 3960*34*0.9mm (156”*1-1/4”*0.035”) | 3690*34*0.9 mm (145”*1.25”*0.035”) | 3960*34*0.9mm (156”*1-1/4”*0.035”) |
Safe cutting Speed | 13-15s/m | 13-15s/m | 13-15s/m | 13-15s/m |
Blade speed | 17m/min | 17m/min | 17m/min | 17m/min |
Blade Wheel Dia. | 480 mm (18.8”) | 480 mm (18.8”) | 480 mm (18.8”) | 480 mm (18.8”) |
Dimension | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) | 4064*1778*1800mm (160”*70”*71”) |
Track size | 4000x900mm (157”x35.4”) | 4000x1030mm (157”x40.5”) | 4000x900mm (157”x35.4”) | 4000x1030mm (157”x40.5”) |
Packing | 2080x570x830mm | 2150 x570x830mm | 2080x610x810mm | 2150 x610x810mm |
Weight | 415/455kg | 415/455kg | 402/450kg | 402/450kg |
20”/40”HC | 20pcs / 63pcs | 20pcs / 63pcs | 20pcs / 63pcs | 20pcs / 63pcs |

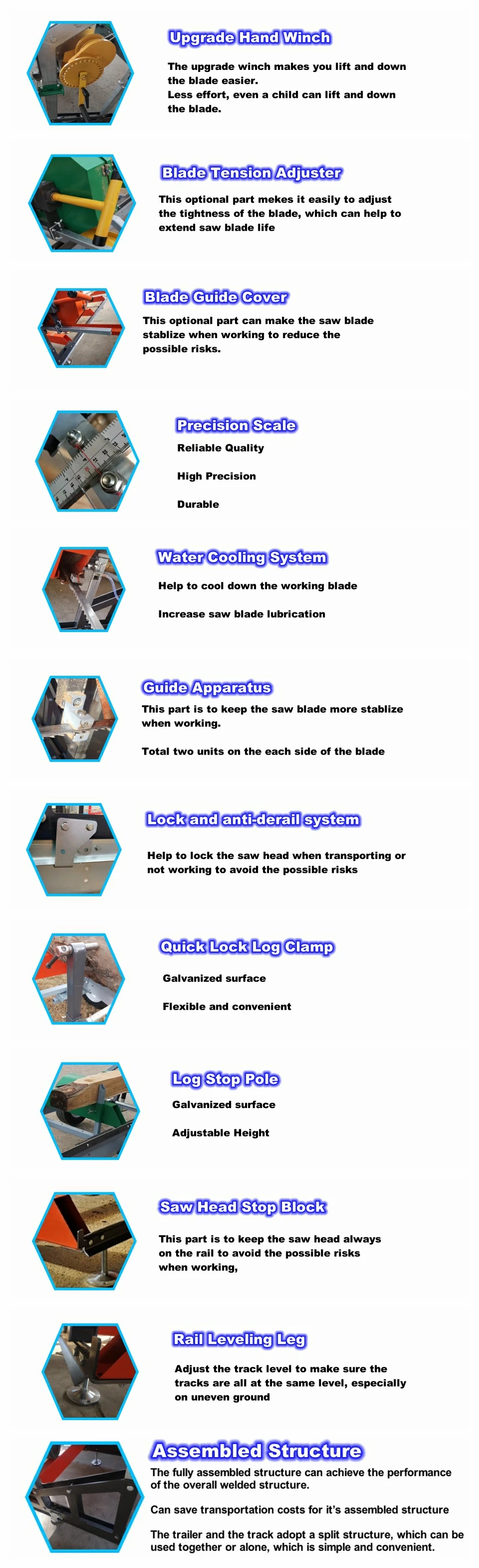

Optional Accessories
1. Upgrade 14 HP Kohler(13.5 B&S ) Gasoline Engine Manual start
2. Upgrade 14 HP Kohler(13.5 B&S ) Gasoline Engine Electric start
3. Blade Tension Adjuster 4. Blade Guide Cover
5. Normal Blade 6. Alloy Saw Blade / Carbide Blade
7. Extension 2 m Rail 8. Trailer: 4 m, 6 m, or 8 m
9. 48'' Log Tong 10. Upgrade 15 HP Lifan Gasoline Engine Electric start
3. Blade Tension Adjuster 4. Blade Guide Cover
5. Normal Blade 6. Alloy Saw Blade / Carbide Blade
7. Extension 2 m Rail 8. Trailer: 4 m, 6 m, or 8 m
9. 48'' Log Tong 10. Upgrade 15 HP Lifan Gasoline Engine Electric start
11. Blade Sharpener Machine

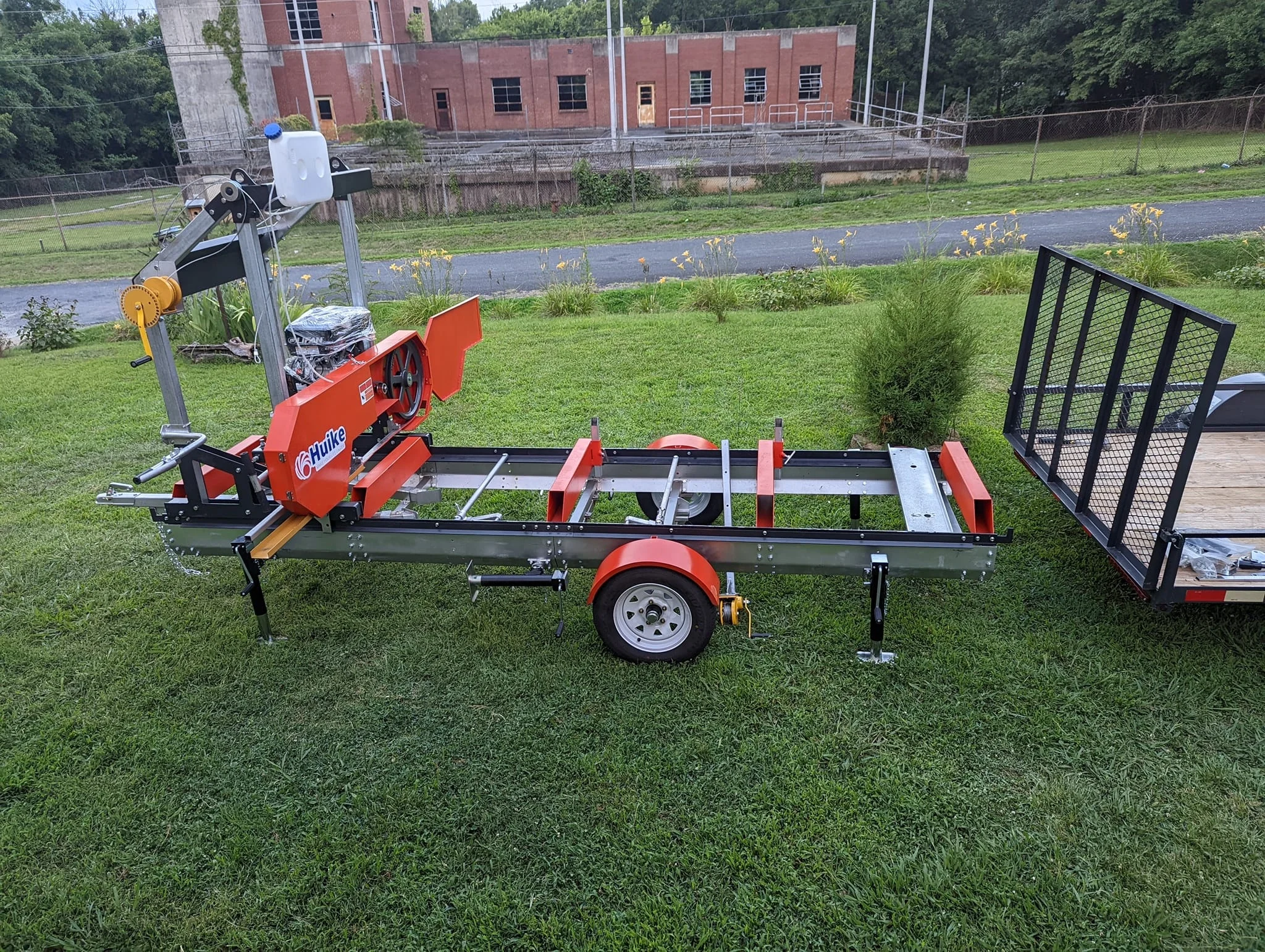

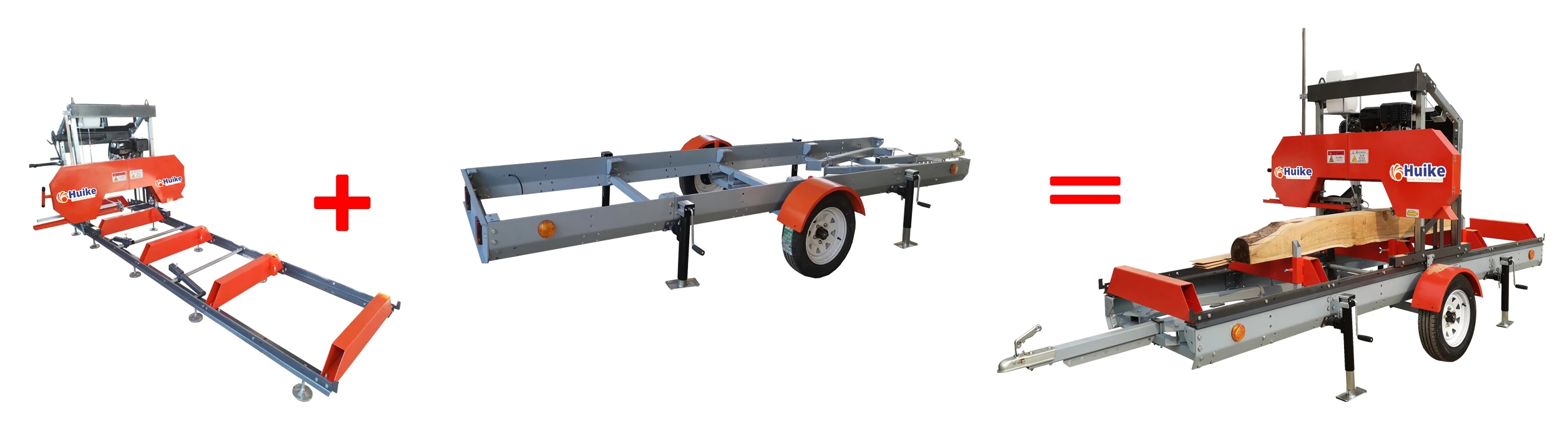

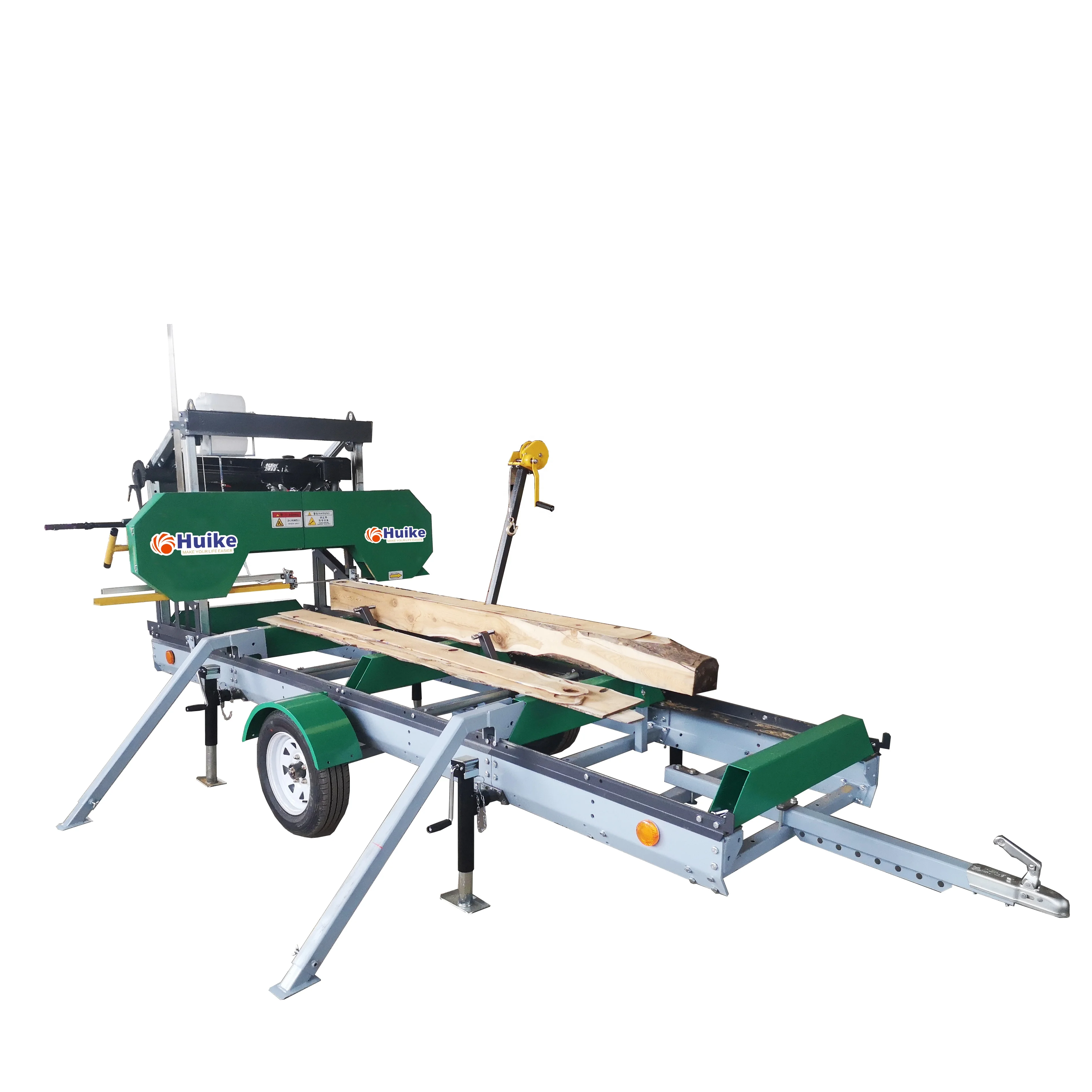

Trailer Version Attention
The sawmill also can be removed from trailer for ground level use!
Exhibition
Product Effect
Certifications
Packing & Delivery
Delivery Date: within 30 days after payment
Package: Iron pallet or wooden box

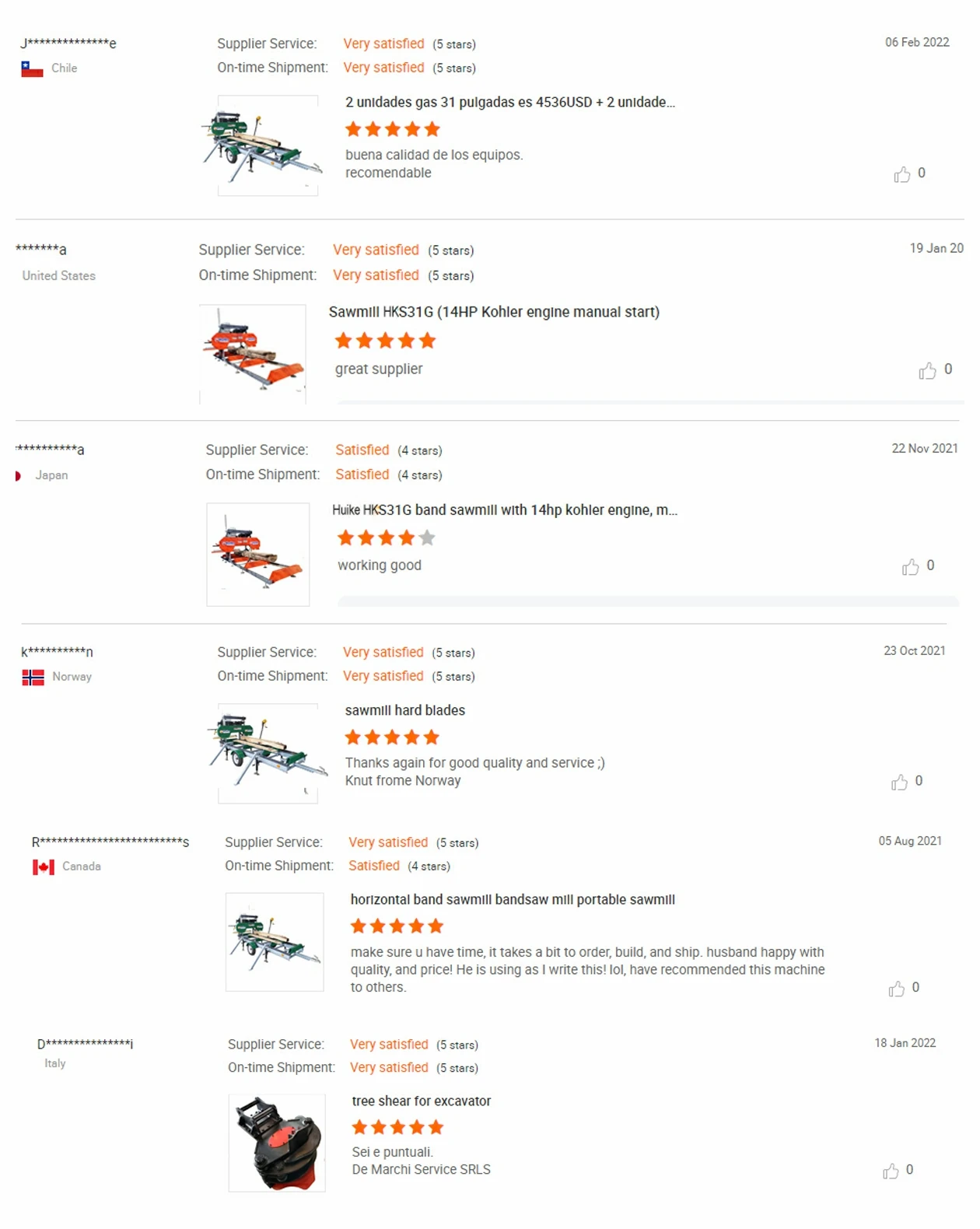

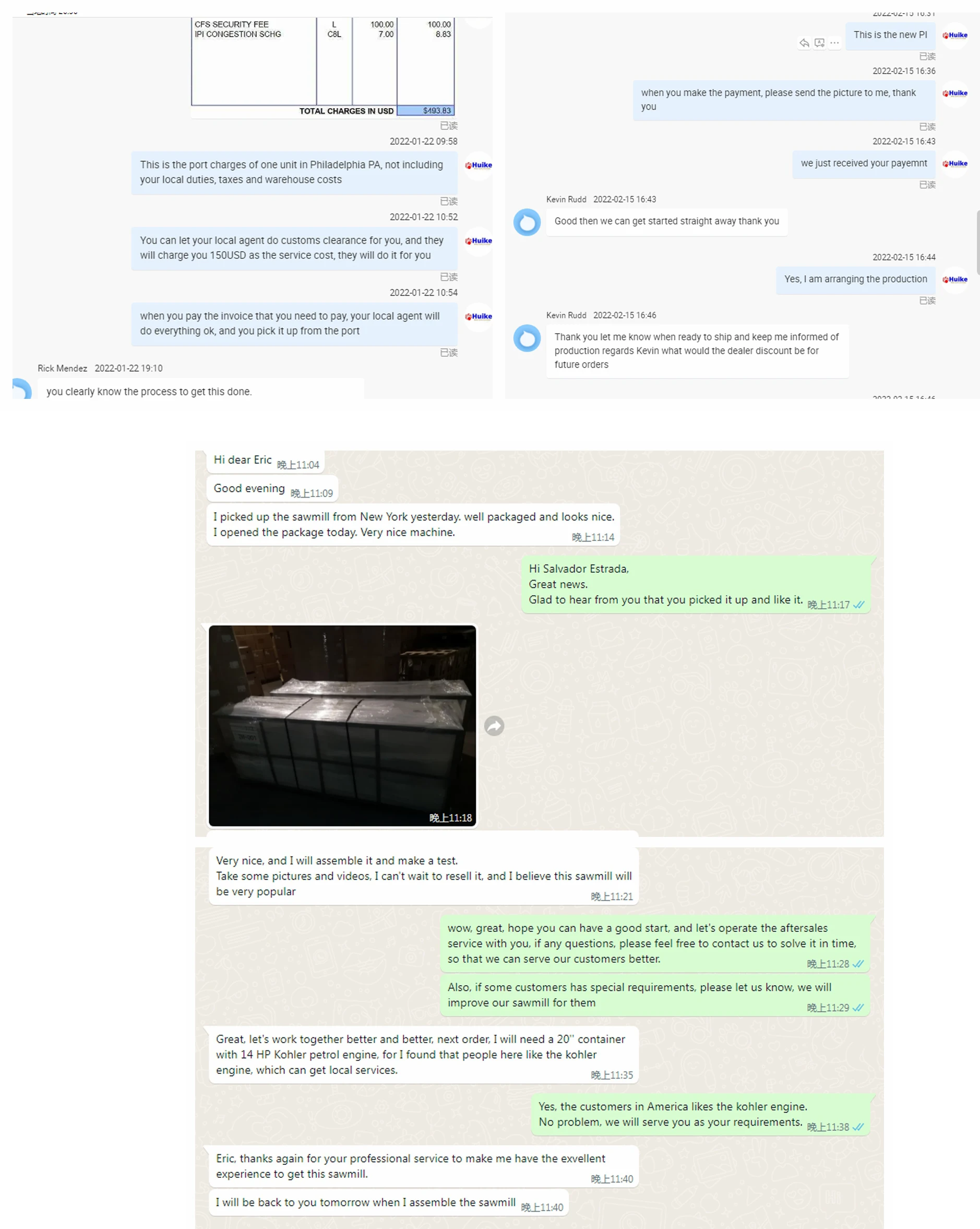

Customer Feedback
Hot Sale Products
Company Profile
FAQ
Q: Are you a factory or trade company?
A: We are a group company with 3 factories. Huike is our brand. And we can supply one-stop service as a trade company if diverse goods are needed.
Q: Can we visit your factory before order?
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station if needed.
Q: What's the warranty of your products?
A: The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made) with international express in 7 days.
To meet the demand of customer is our goal. We are standing by for any question of customer. We will make our service fast, efficient and satisfied.
Q: Is OEM acceptable to your factory?
A: Yes, We have professional engineers and designers. We can provide OEM products, and OEM production is one of our advantages.
Q: Can you provide custom machine, Yes or No?
A:Yes. We can provide custom machine for clients.
Q: What's the MOQ?
A: The MOQ is different from 1 set to 50 sets according to machines size and its value. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 sets.
Q: What's your lead time / delivery time / date for delivery?
A: After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CFR/CIF/DDU/DDP if needed.
Q: Do you have a stock?
A: Sorry, most of our machines don't have stock, we always produce according to order.
Q: Can we buy one sample?
A: Yes, one sample order is welcome.
Q: What's your payment term?
A: Regular 30% initial payment and the balance payment when goods are ready and after inspection before shipment.
However, if total amount is small, we prefer to 100% prepayment to help save bank charges for both of us.
Q: How about your after-sale service?
A: Most questions during operation can be solved with our help with pictures, videos and Instructions. Our engineers are available to service overseas to provide professional online support if needed.
Of course, we can provide overseas service to let our engineer go there, but there will be some costs you should bear. So long as the products purchased from Huike, we will provide parts service no matter in or out of the warranty.
Q: Can we visit your factory before order?
A: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at station if needed.
Q: What's the warranty of your products?
A: The warranty time of the machine is one year. During this period, we will send you the replacement for the broken part(not man made) with international express in 7 days.
To meet the demand of customer is our goal. We are standing by for any question of customer. We will make our service fast, efficient and satisfied.
Q: Is OEM acceptable to your factory?
A: Yes, We have professional engineers and designers. We can provide OEM products, and OEM production is one of our advantages.
Q: Can you provide custom machine, Yes or No?
A:Yes. We can provide custom machine for clients.
Q: What's the MOQ?
A: The MOQ is different from 1 set to 50 sets according to machines size and its value. For big size machine MOQ can be 1 set; for small size machine MOQ at least 5 sets.
Q: What's your lead time / delivery time / date for delivery?
A: After receiving your payment, we start to produce your order. It usually takes about 15-45 days depending on the products you order.
Q: What's your delivery term?
A: FOB Qingdao China usually, also can be CFR/CIF/DDU/DDP if needed.
Q: Do you have a stock?
A: Sorry, most of our machines don't have stock, we always produce according to order.
Q: Can we buy one sample?
A: Yes, one sample order is welcome.
Q: What's your payment term?
A: Regular 30% initial payment and the balance payment when goods are ready and after inspection before shipment.
However, if total amount is small, we prefer to 100% prepayment to help save bank charges for both of us.
Q: How about your after-sale service?
A: Most questions during operation can be solved with our help with pictures, videos and Instructions. Our engineers are available to service overseas to provide professional online support if needed.
Of course, we can provide overseas service to let our engineer go there, but there will be some costs you should bear. So long as the products purchased from Huike, we will provide parts service no matter in or out of the warranty.
