Product Overview
Description
Products Description

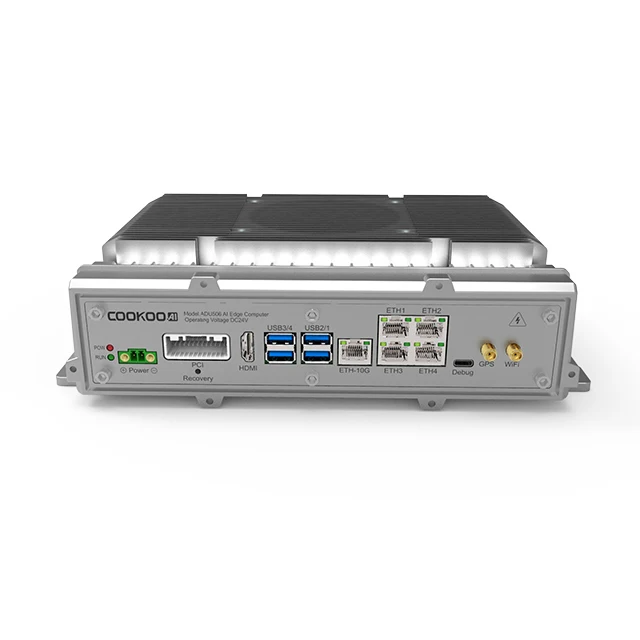

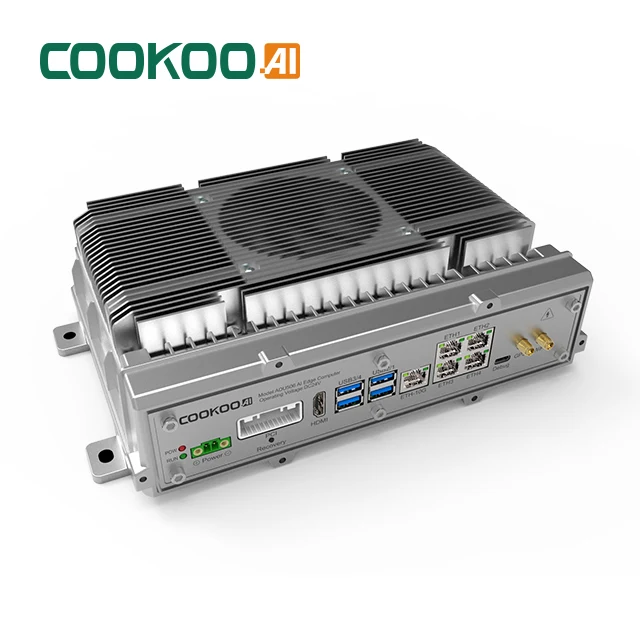

ADU506 series industrial AI edge compter is based on NVIDIA Orin module design,AI computing power 70-275 TOPS,software supports Deepstream SDK,CUDA,cuDNN and TensorRT,it can be processed deep learning,vision process,accelerated computing,depth estimation,route planning and object detection.It supports multi-sensors access,can be met need for various applying scenarios,e.g. autonomous robots,road perception,vehicle-road collaboration,and so on.

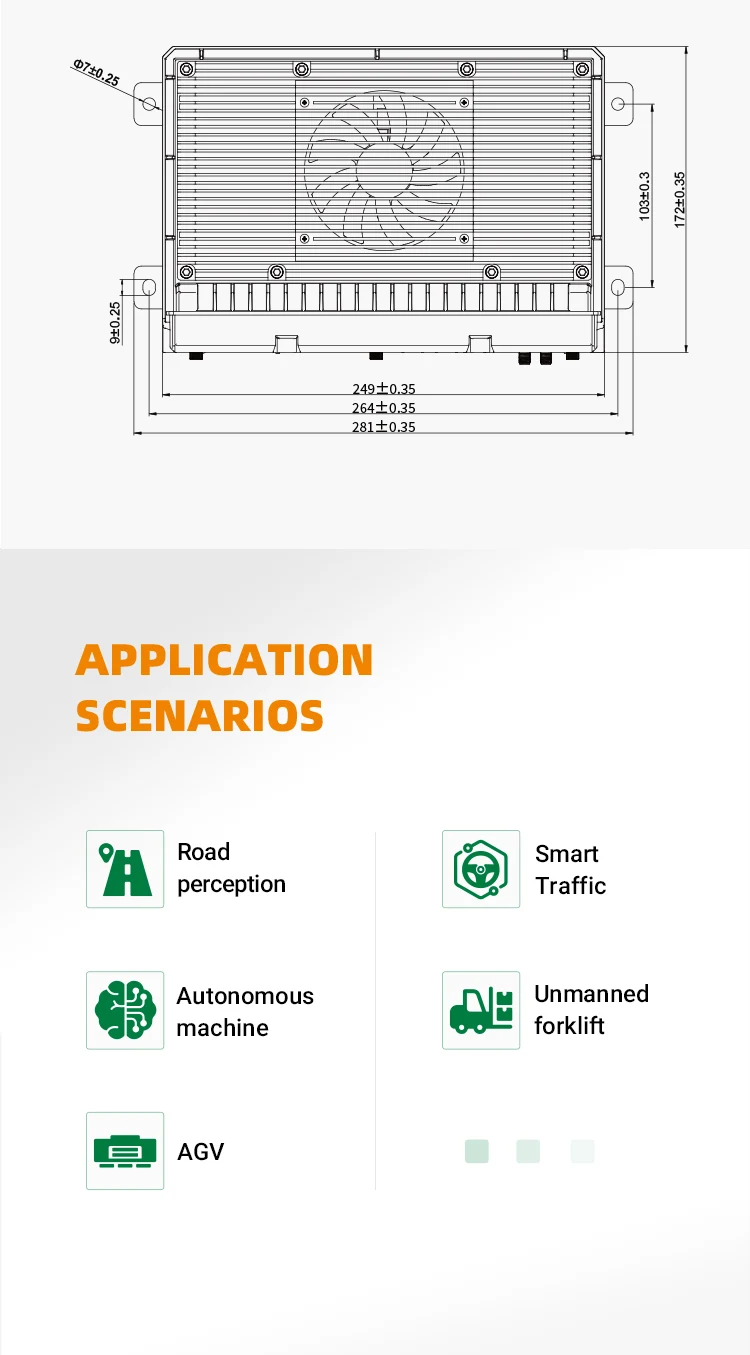

Application Scenarios：Road Perception,Intelligent Traffic,Autonomous Machine,Unmanned Forklift,AGV,etc.
Application Scenarios：Road Perception,Intelligent Traffic,Autonomous Machine,Unmanned Forklift,AGV,etc.
Specifications
Item | ADU506-A | ADU506-B | ADU506-C | ADU506-D | |||
SOC | NVIDIA Jetson AGX Orin | Jetson Orin NX | |||||
AI Power | 200 TOPS (INT8) | 275 TOPS (INT8) | 70 TOPS (INT8) | 100 TOPS (INT8) | |||
GPU | 1792 NVIDIA® CUDA® core and 56 Tensor Core NVIDIA Ampere architecture | 2048 NVIDIA® CUDA® core and 64 Tensor Core NVIDIA Ampere architecture | NVIDIA Ampere architecture carried 1024 NVIDIA® CUDA® Core and 32 Tensor Core | ||||
CPU | 8 cores Arm® Cortex®-A78AE v8.2 64 bit CPU 2MB L2 + 4MB L3, max. frequency 2.2 GHz | 12 cores Arm® Cortex®-A78AE v8.2 64 bit CPU 3MB L2 + 6MB L3, max. frequency 2.2 GHz | 6 cores Arm® Cortex®-A78AE v8.2 64 bit CPU 1.5MB L2 + 4MB L3 | 8 cores Arm® Cortex®-A78AE v8.2 64 bit CPU 2MB L2 + 4MB L3 | |||
DL Accelerator | 2x NVDLA v2.0 | 1x NVDLA v2.0 | 2x NVDLA v2.0 | ||||
DLA Max. Frequency | 1.4 GHz | 1.6 GHz | 614 MHz | ||||
Memory | 32GB 256 bit LPDDR5 | 64GB 256 bit LPDDR5 | 8GB 128 bit LPDDR5 | 16GB 128 bit LPDDR5 | |||
Storage | 64GB eMMC 5.1 | 64GB eMMC 5.1 | support external NVMe | ||||
Optional Module | SSD ，4G/5G communication module | ||||||

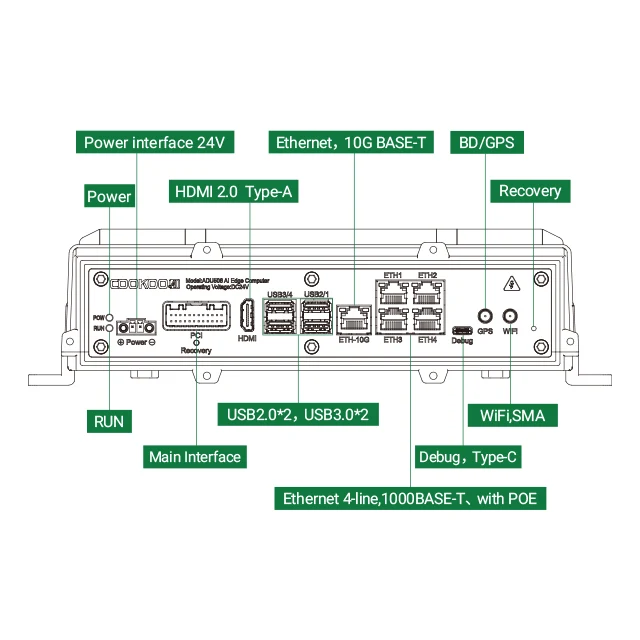

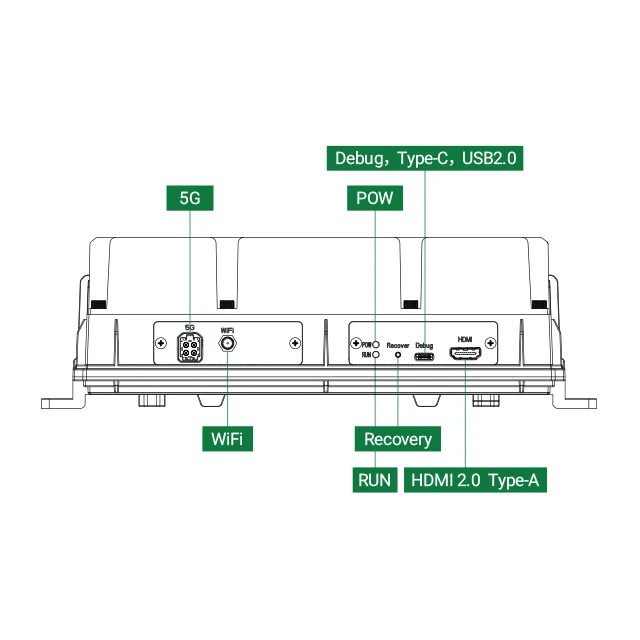

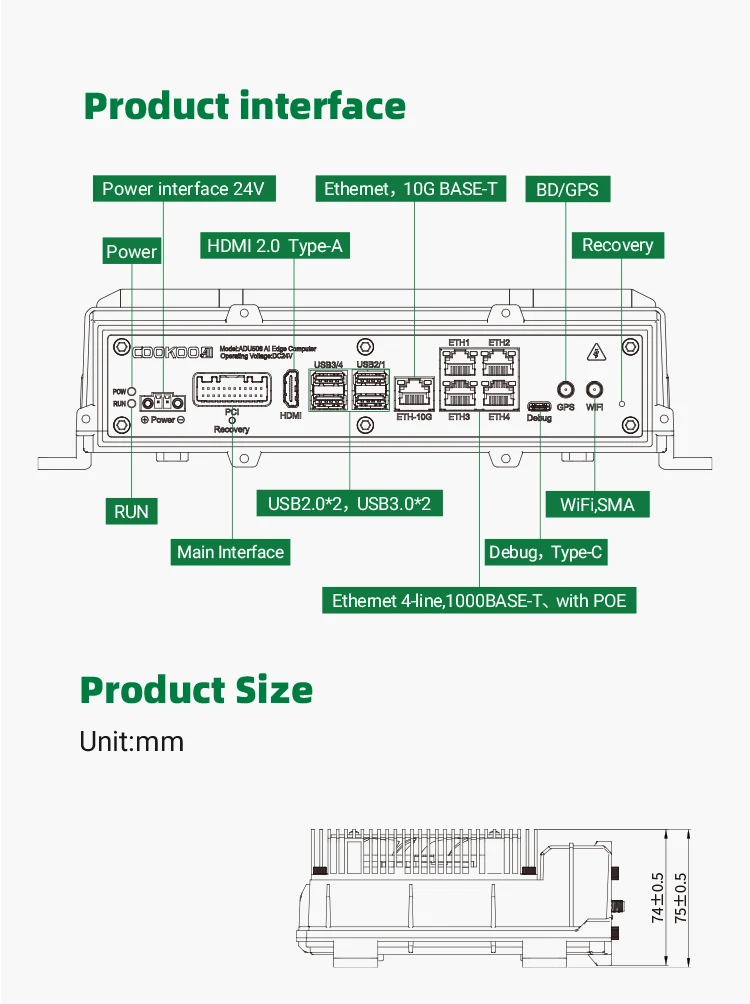

Standard Port
Item | Description | ||||||
Video Output | 1 channel，HDMI 2.0 Type-A | ||||||
USB | 4 channels，USB3.0 x 2 channels，USB2.0 x 2 channels | ||||||
CAN | 2 channels，Hi-speed CAN, compatible CANFD | ||||||
GPS Sec Pulse | 2 channels，1PPS-5V-OUT | ||||||
GPS RS232 | 2 channels，GPS-RS232-TX | ||||||
I/O | 4 channels，voltage range 0~36V | ||||||
Ethernet | 5 channels，sole netcom band，1000BASE-T with POEx4 channel; 10G BASE-Tx 1 channel | ||||||
RS232 | 2 channels | ||||||
RS485 | 2 channels，with photoelectric isolation | ||||||
Debug Port | 1 channel，for debug and programming | ||||||
SSD Port | 1 PC，expandable，support M.2 M Key SSD | ||||||
Power Port | 1-channel，24V | ||||||
Indicator | 2 PCs,power indicator and working indicator | ||||||
Button | 1 PC，for development&debug，recovery button | ||||||
Performance Index
Item | Description | ||||||
Working Voltage | DC 24V ± 20% | ||||||
Operation Temp | -20°C ~ +70°C | ||||||
IP | IP43(standard)/ IP65(customization） | ||||||
Net Weight | About 2.4kg | ||||||
